Grapple Tong FHZ-2300
Presentation.

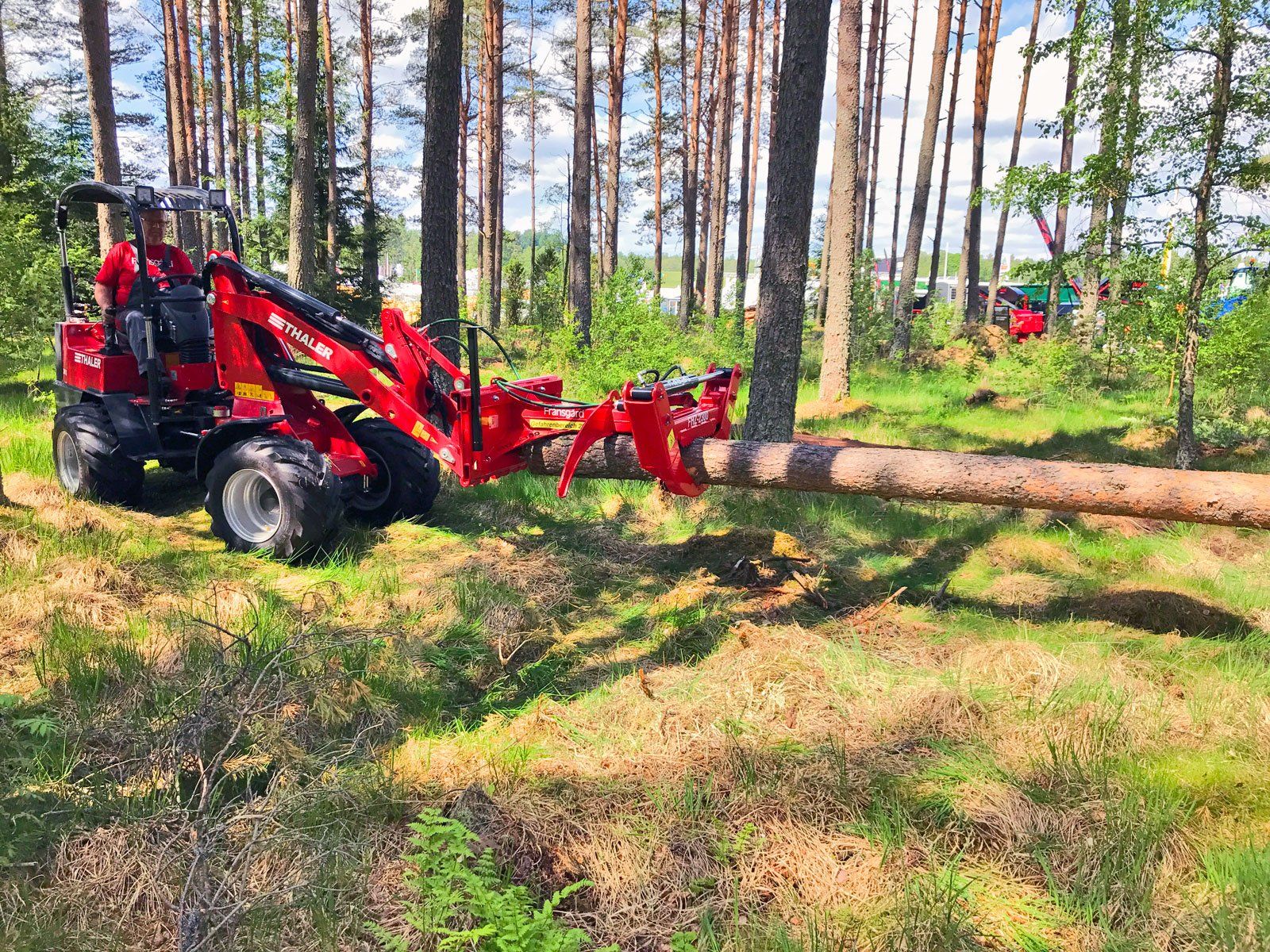

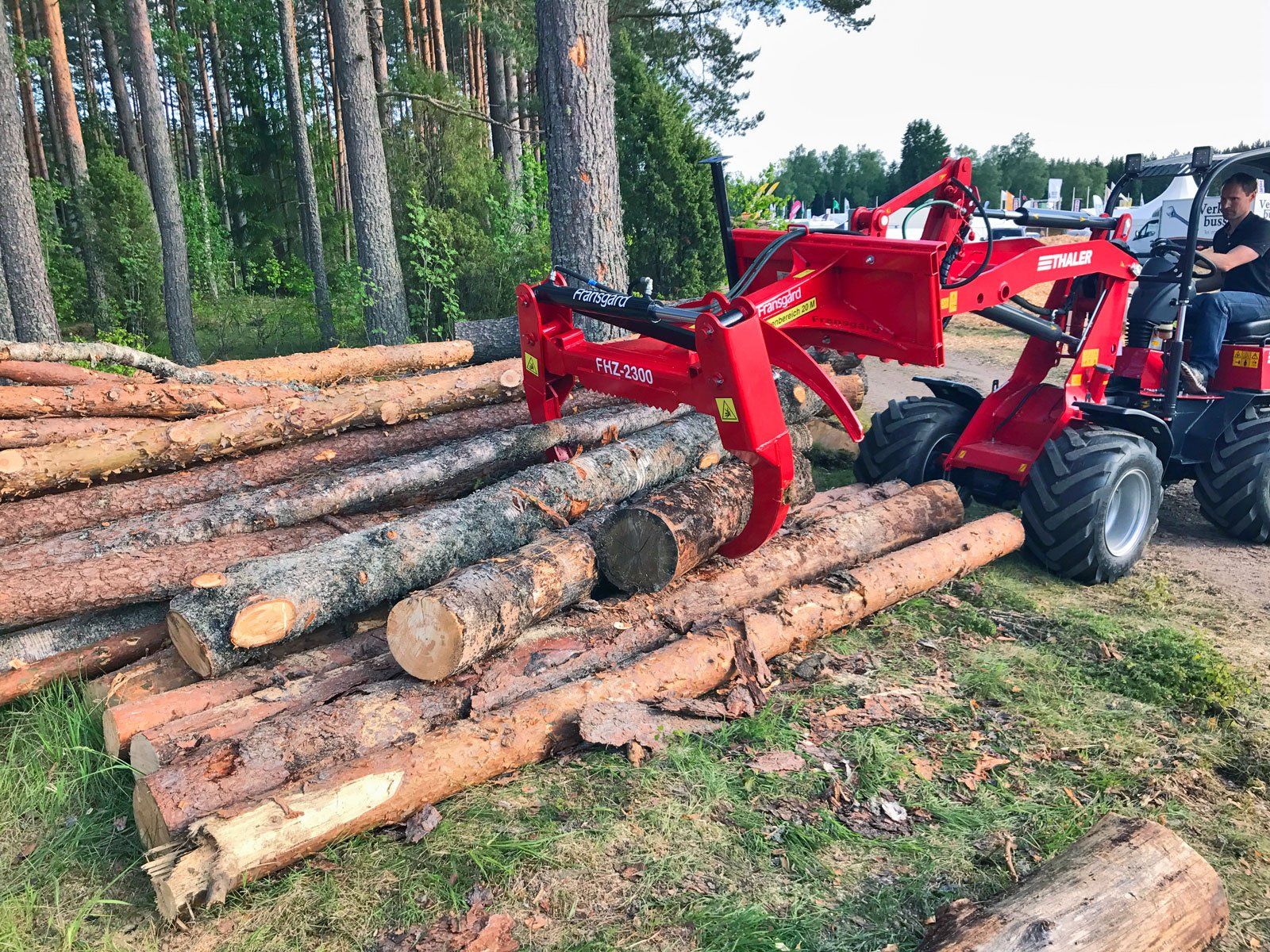

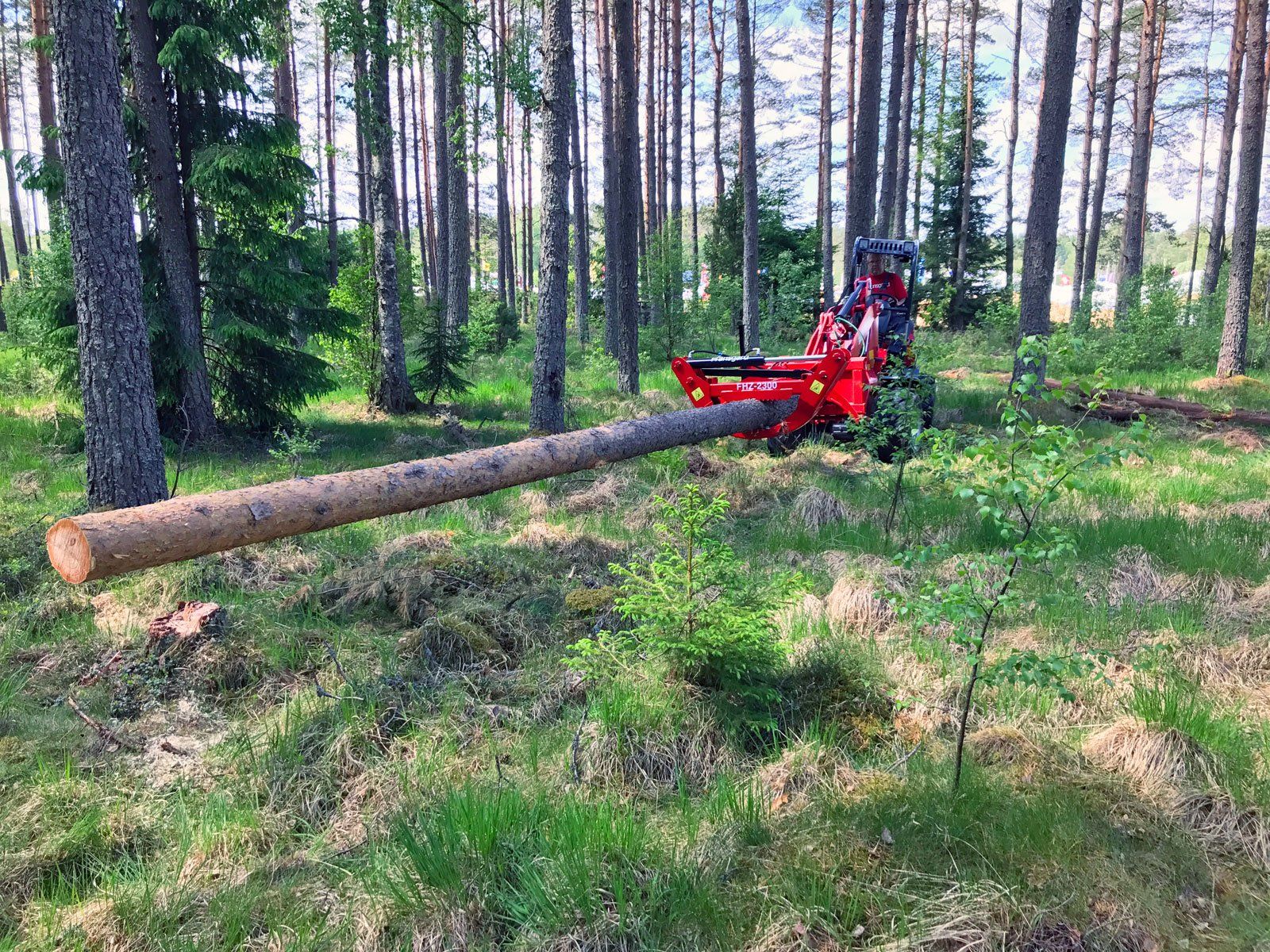

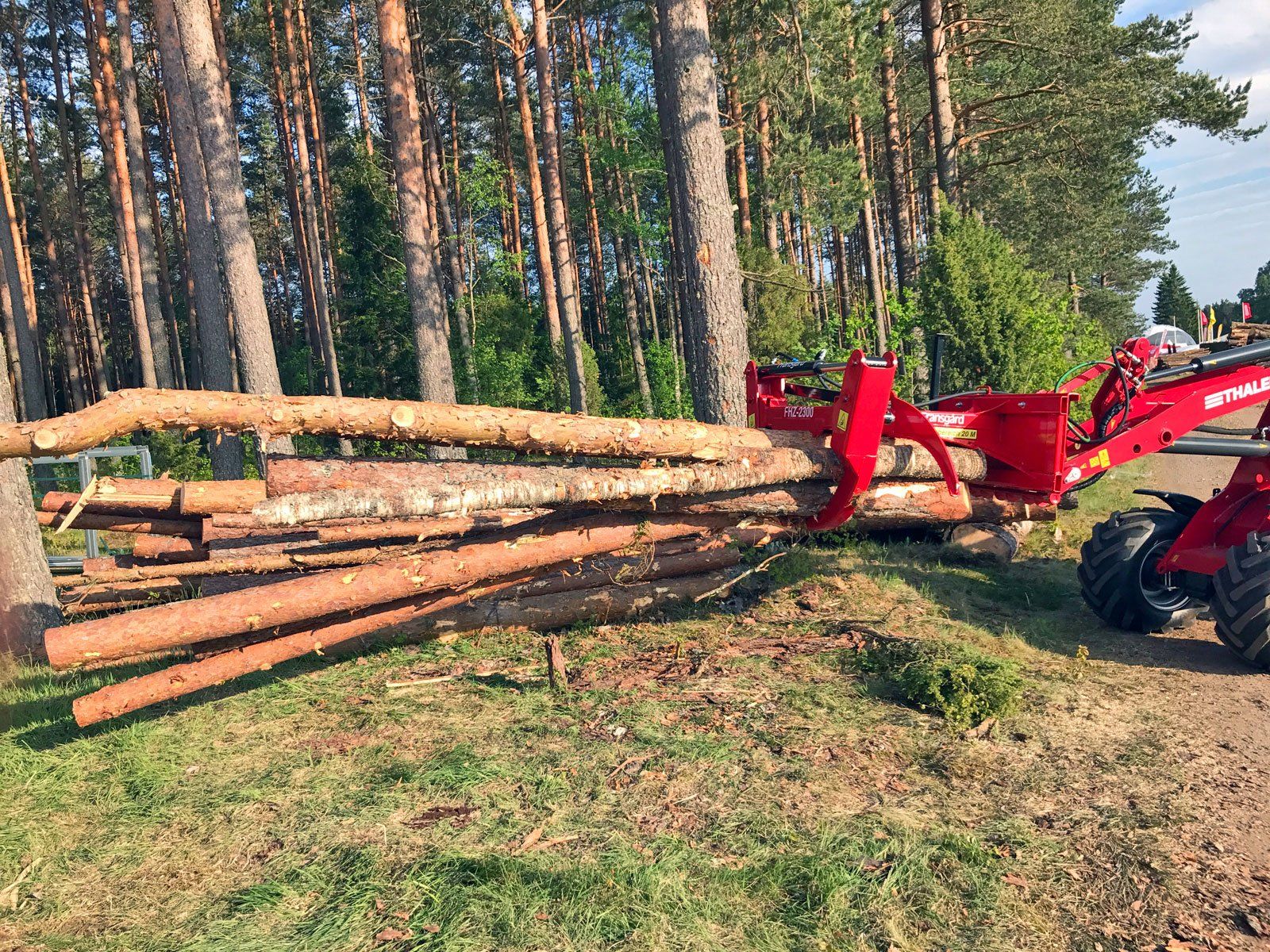

The FHZ grapple tongs from Fransgård have a strong grapple for gripping and moving logs out of a forest area. Our grapple tongs are very useful, especially when the logs are lying shoulder to shoulder after a storm. The machine is designed for efficient moving of whole or cut logs of different lengths.
Equipped with many details.
The suspension of the grapple tongs is fixed. The front-mounted grapple tongs can be mounted on many types of forestry machines using different types of mounts. Fransgård's FHZ grapple tongs are very robust and stable and can be used anywhere in the world where there is a need to remove tree trunks.
The sturdy base construction combined with brass bushings in all joints make the grapple tongs very durable and robust, so they can handle most tasks in the forest. The FHZ-2300 has an opening width of 2.3 m. It can also grip and hold logs as small as 15 cm in diameter.
Technical data
| Technical data: | FHZ-2300 |
|---|---|
| Opening width | 2300 mm. |
| Hydraulic connections. | 1 double |
| Swing cylinder. | No |
| Swing radius. | Fixed |
| Closing force. | 6 tonnes |
| Weight | 318 kg. |
| Recommended engine power | 20-100 Hp. |
Details

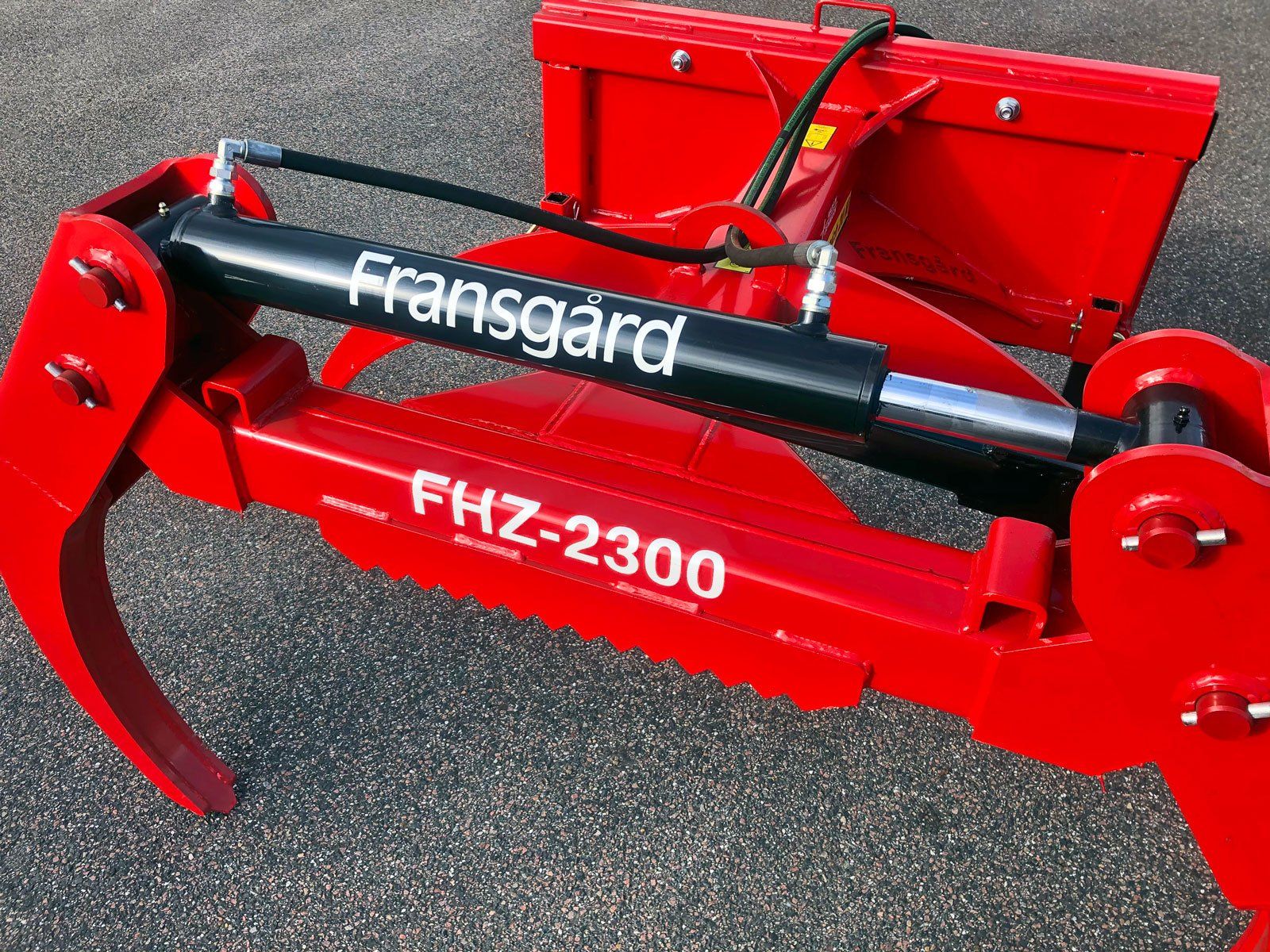

Closing cylinder
Powerful double-acting cylinder ensures that the logs are held firmly.

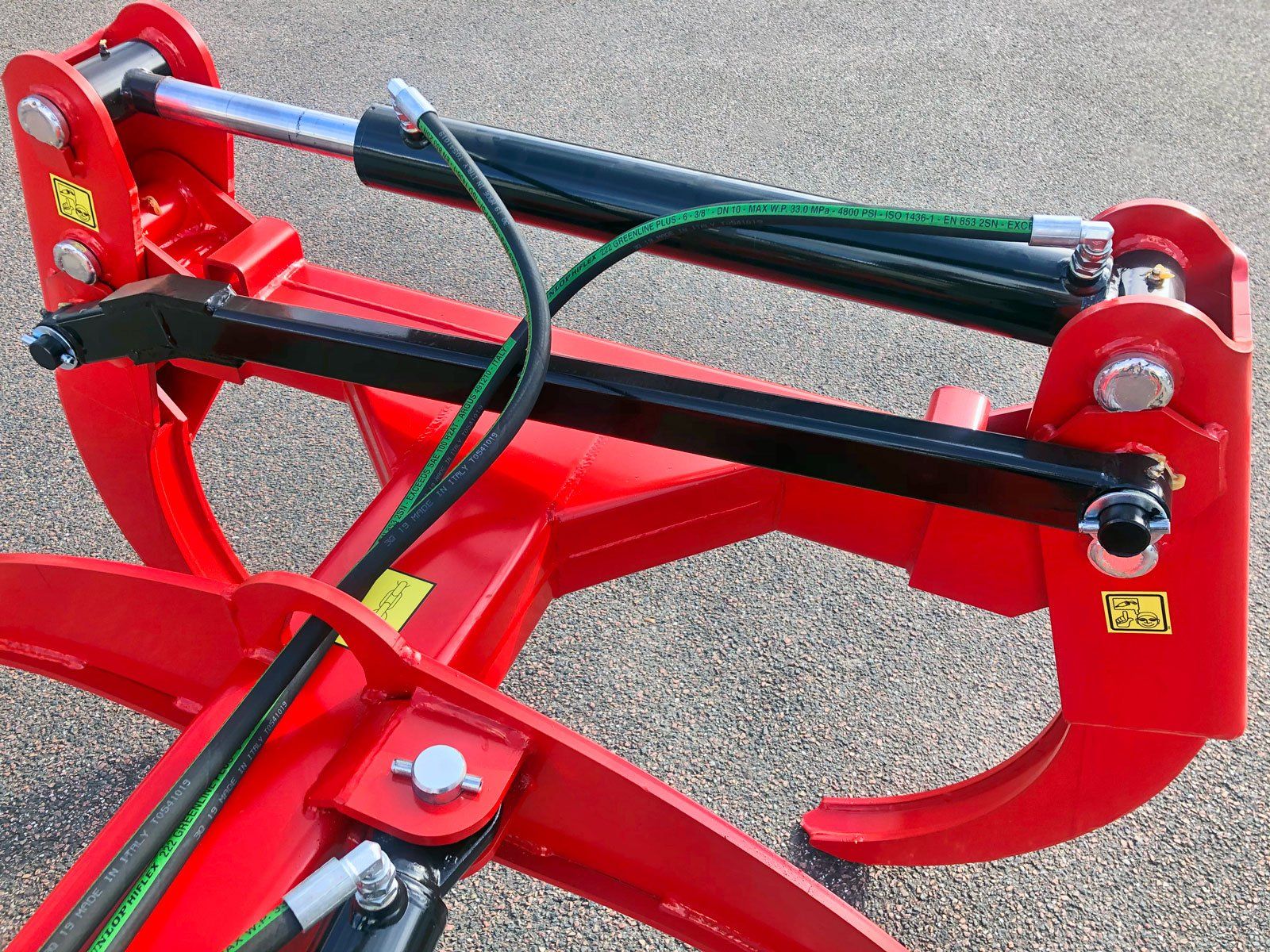

Tongs
The specially designed tongs close past each other, providing a very stable tool.

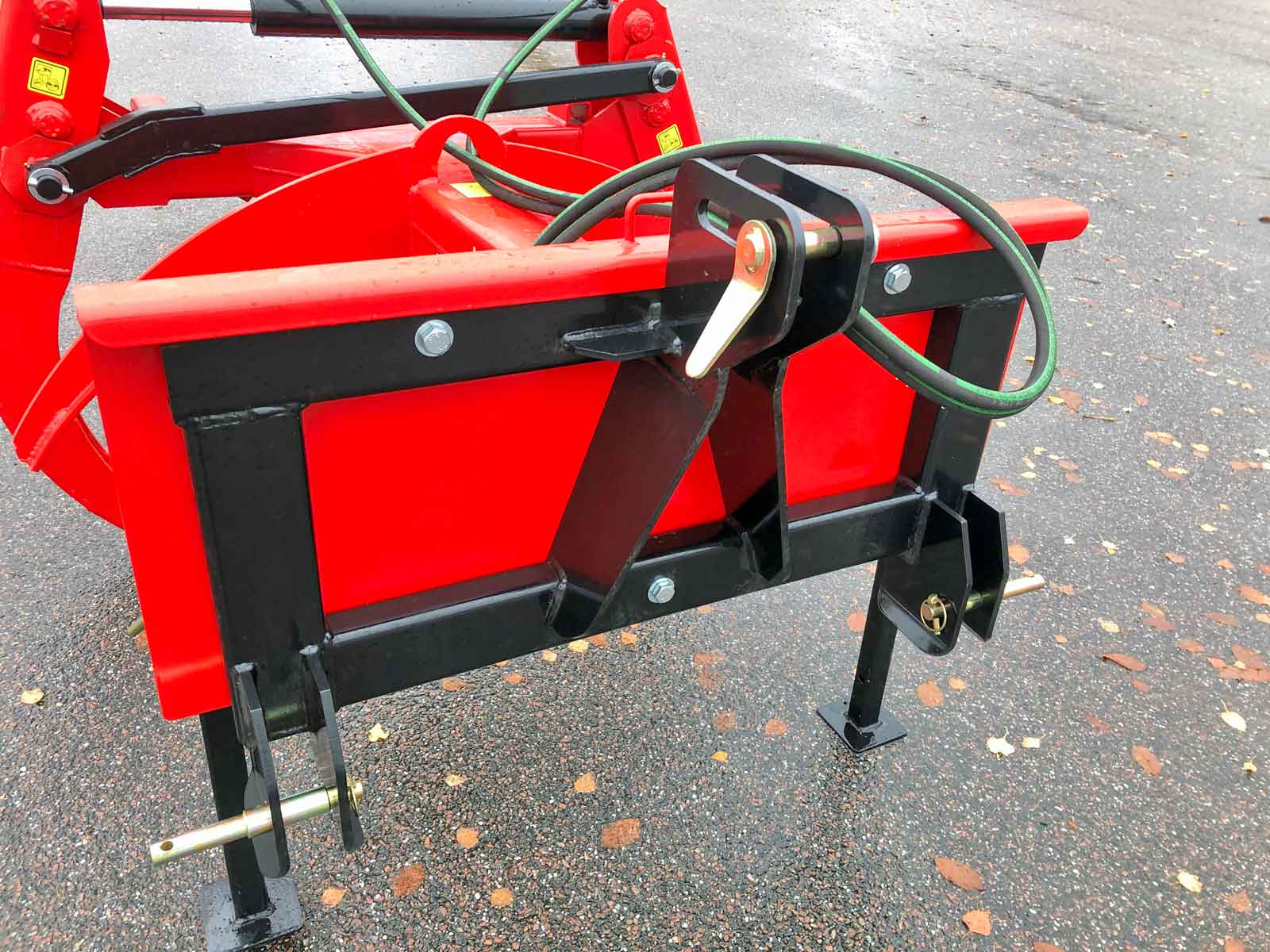

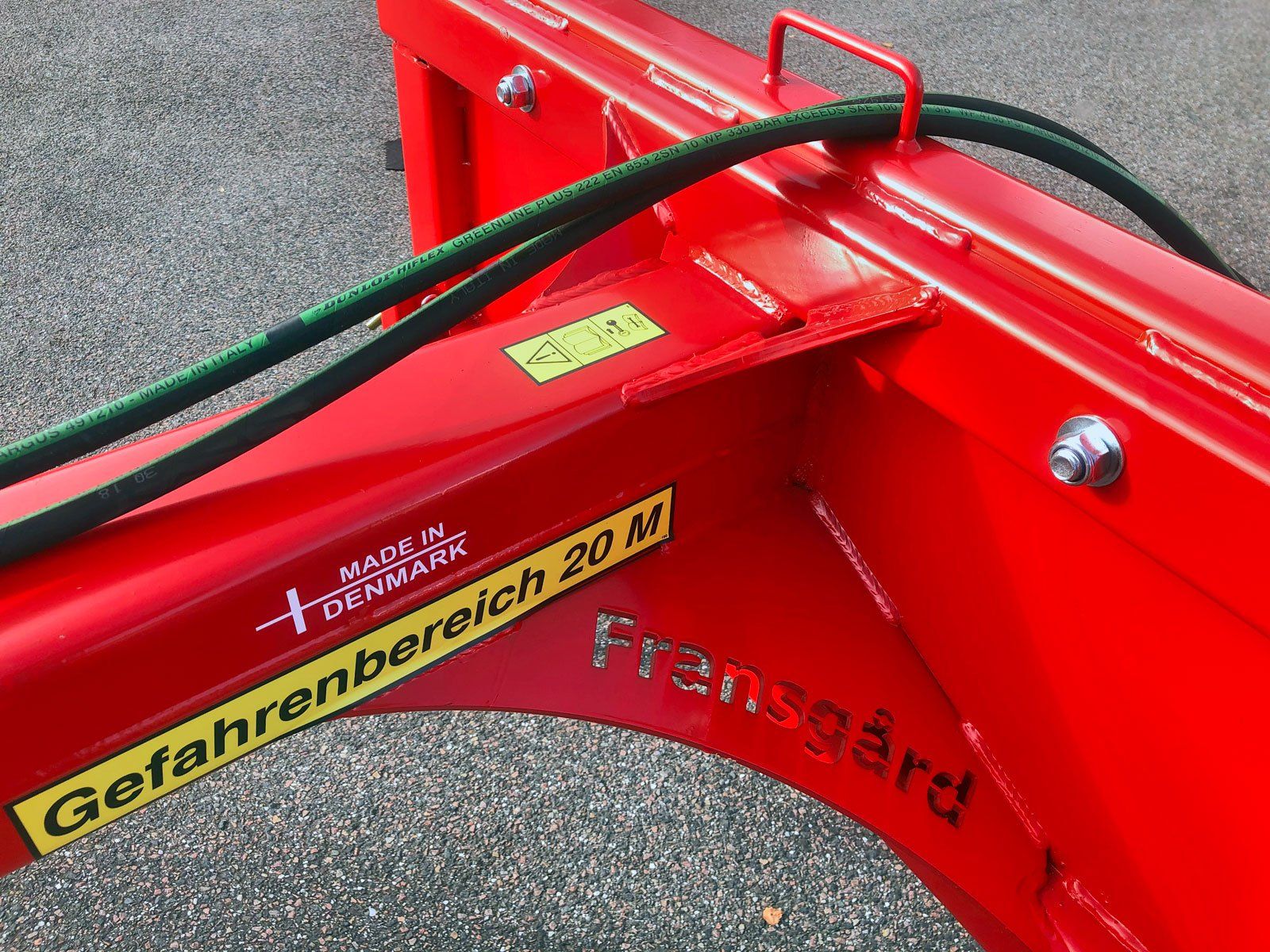

Fixed suspension
The FHZ grapple has a fixed suspension, which is welded to the mounting plate, on which the desired fastener is mounted with 3 bolts. The 4 reinforcing Z-triangles provide a very solid and stable tool.
Parallel bar
The solid parallel bar is safely positioned behind the large closing cylinder and is thus highly protected against external shocks and impacts. The parallel bar ensures that the grapples close simultaneously.

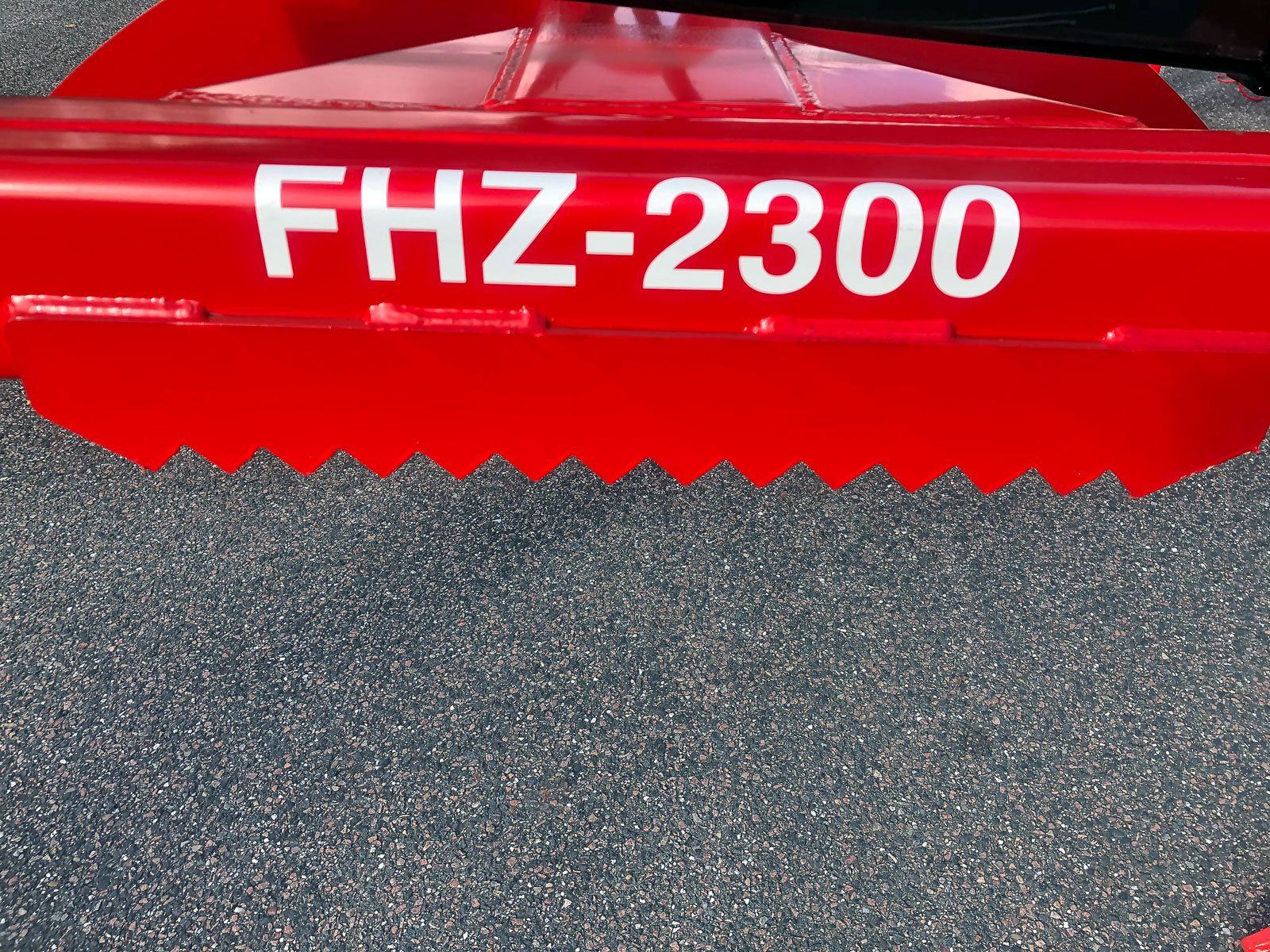

Sawtooth fittings
Fittings with sawteeth under the cross boom, ensure that the logs are held in the grapples during extension.
Support legs
The 2 support legs are easily placed in the bracket and are always at hand when parking the tool.
Top bar attachment
The top bar attachment has both a fixed hole and elongated slot. The fixed hole is used for short logs, while the elongated slot can be used for long logs.

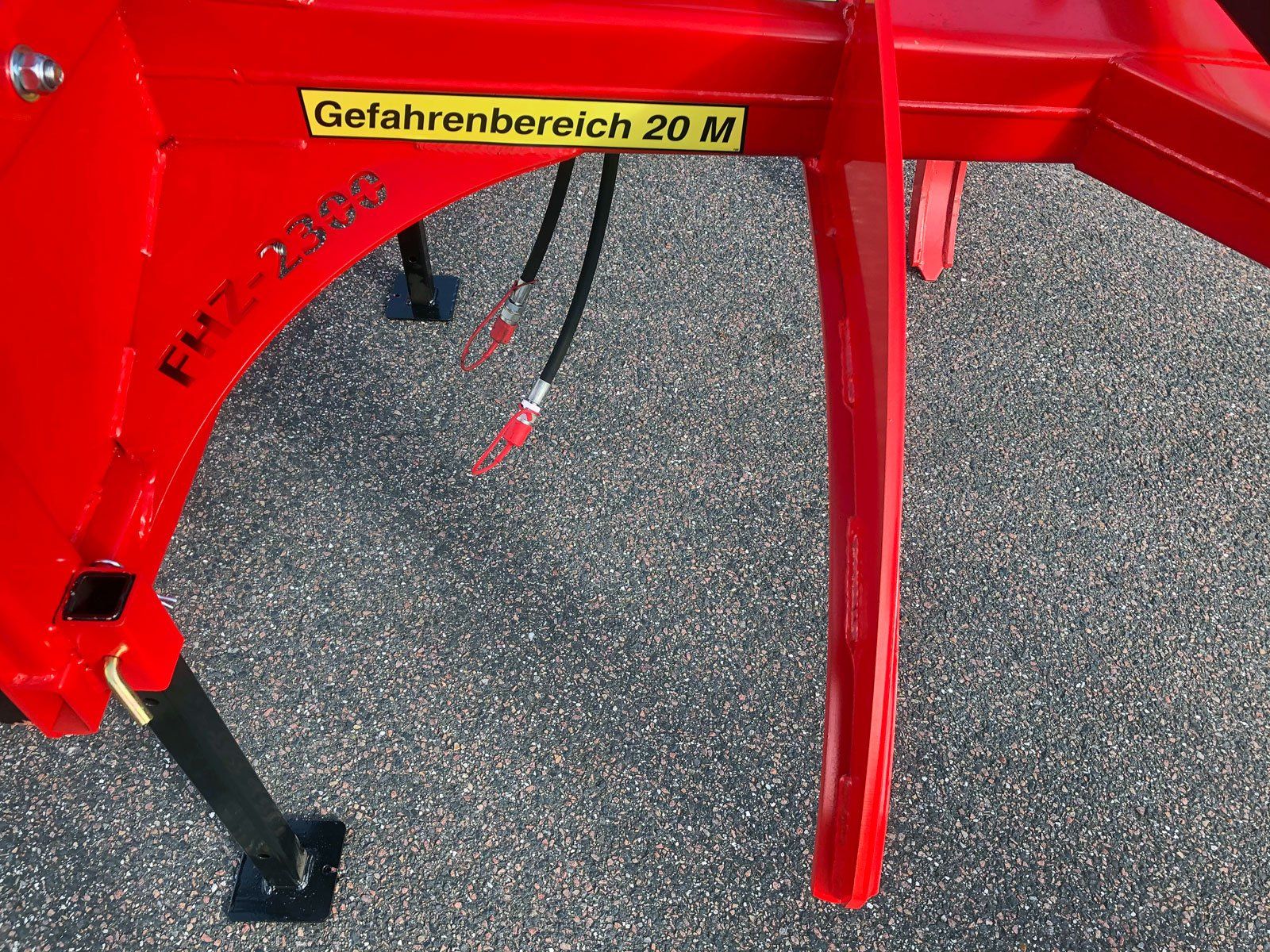

Guide arm
The 2 fixed guide rods in the middle of the arm ensure that short logs are kept in place during transport. If you are working with long logs, the ends of the logs must end before you get to the guide rods.
Cylinder attachment
The strong cylinder attachment with lubricating nipple ensures long life and a stable tong.
Assembly bolts
All assembly bolts are greasable and galvanised.
Open
FHZ-2300 can be opened up to 2300 mm.

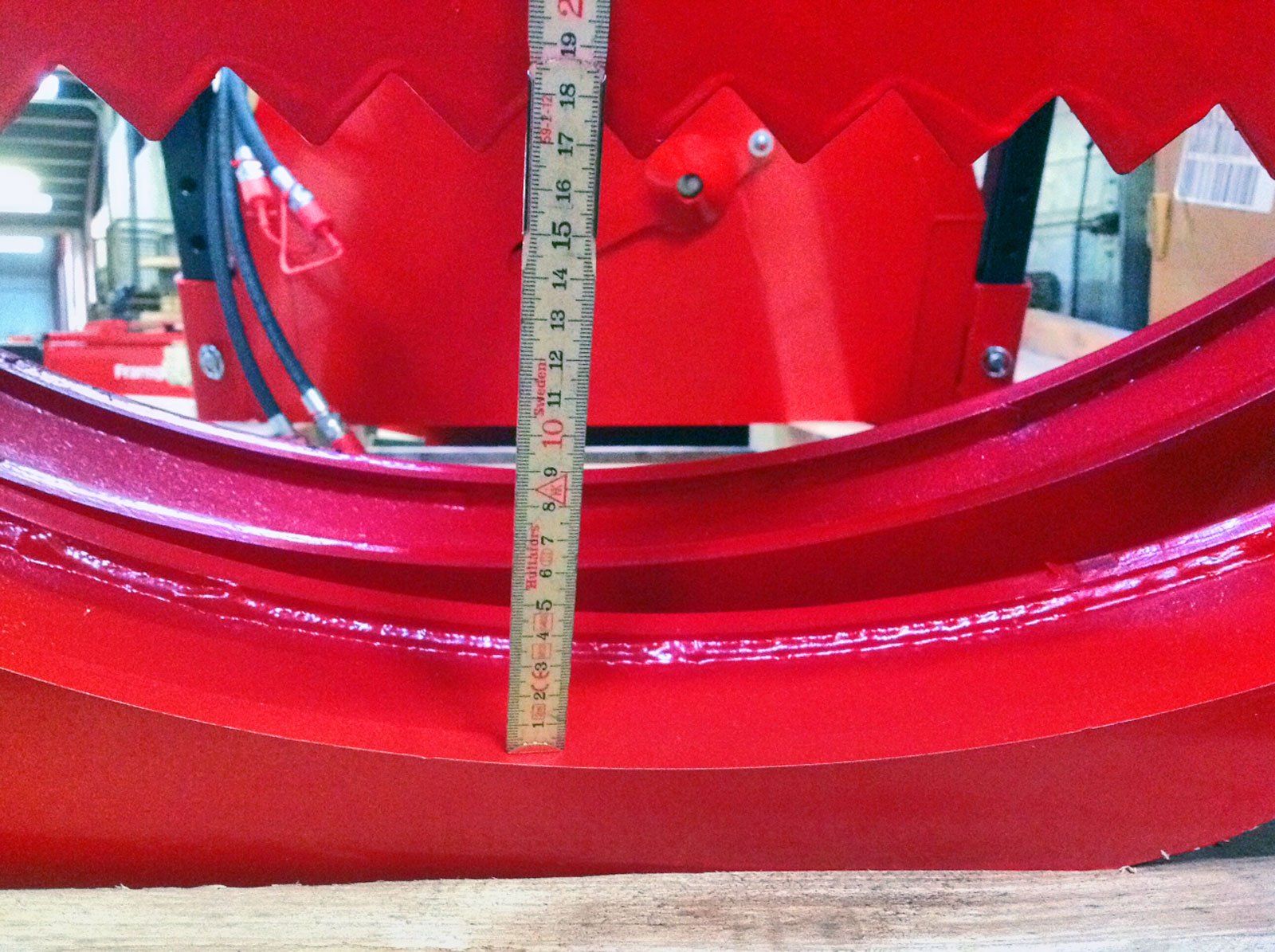

Closed
The FHZ-2300 can close its grapples so tightly that it can grip a log as small as 17 cm in diameter.
SMS suspention
Bolted on with 3 bolts.
