Fransgård's GT-210T and GT-250T mechanical levellers are built to a high quality in our own factory in Denmark. The design is made specifically for easy and quick mounting on all types of forklifts.
It is suitable for scraping soil, clearing snow and levelling roads and car parks.
The leveller is adjustable 244° in 10 positions. The adjustment is done without using tools. The cutting edge is prepared for mounting wide support wheels that can be offset.
Side plates can be fitted - on both the right and left sides - to hold the material, and a snow blade on the right side to cut the edge diagonally so snow doesn't fall out behind the blade after driving.
All features that give a good result.
Teshnical data | GT-210T | GT-250T |
---|---|---|
Working width | 2.10 m | 2.50 m |
Blade height | 60 cm | 60 cm |
Wear steel | Optional straight/tapered, straight/straight or serrated/tapered | Optional straight/tapered, straight/straight or serrated/tapered |
Support wheels | Possible | Possible |
Pivoting blade | 244° | 244° |
Vertical adjustment | 1 pos. | 1 pos. |
Mounting | Pallet forks on forklift trucks | Pallet forks on forklift trucks |
Weight | 255 kg | 285 kg |
Working width | 2.10 m | 2.50 m |
Tractor performance | Max. 120 HP | Max. 120 HP |

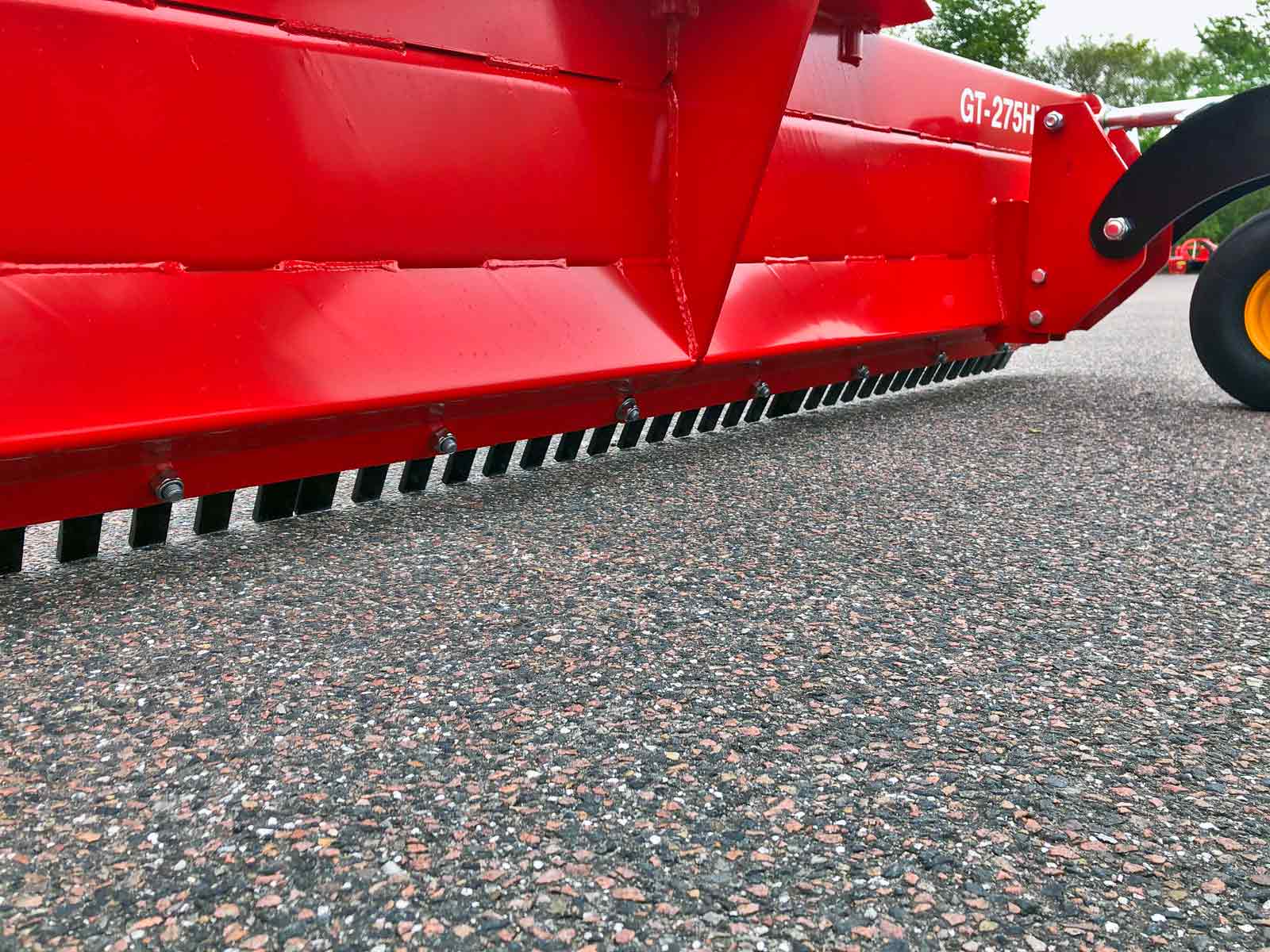

Strong blade with reinforcements at the rear. The lower reinforcement at the rear is designed so that you can reverse with the leveller without turning the blade, and any excess material, for example, when you come to an asphalt road, you will be able to reverse over and the leveller will press and distribute the material out into the road.

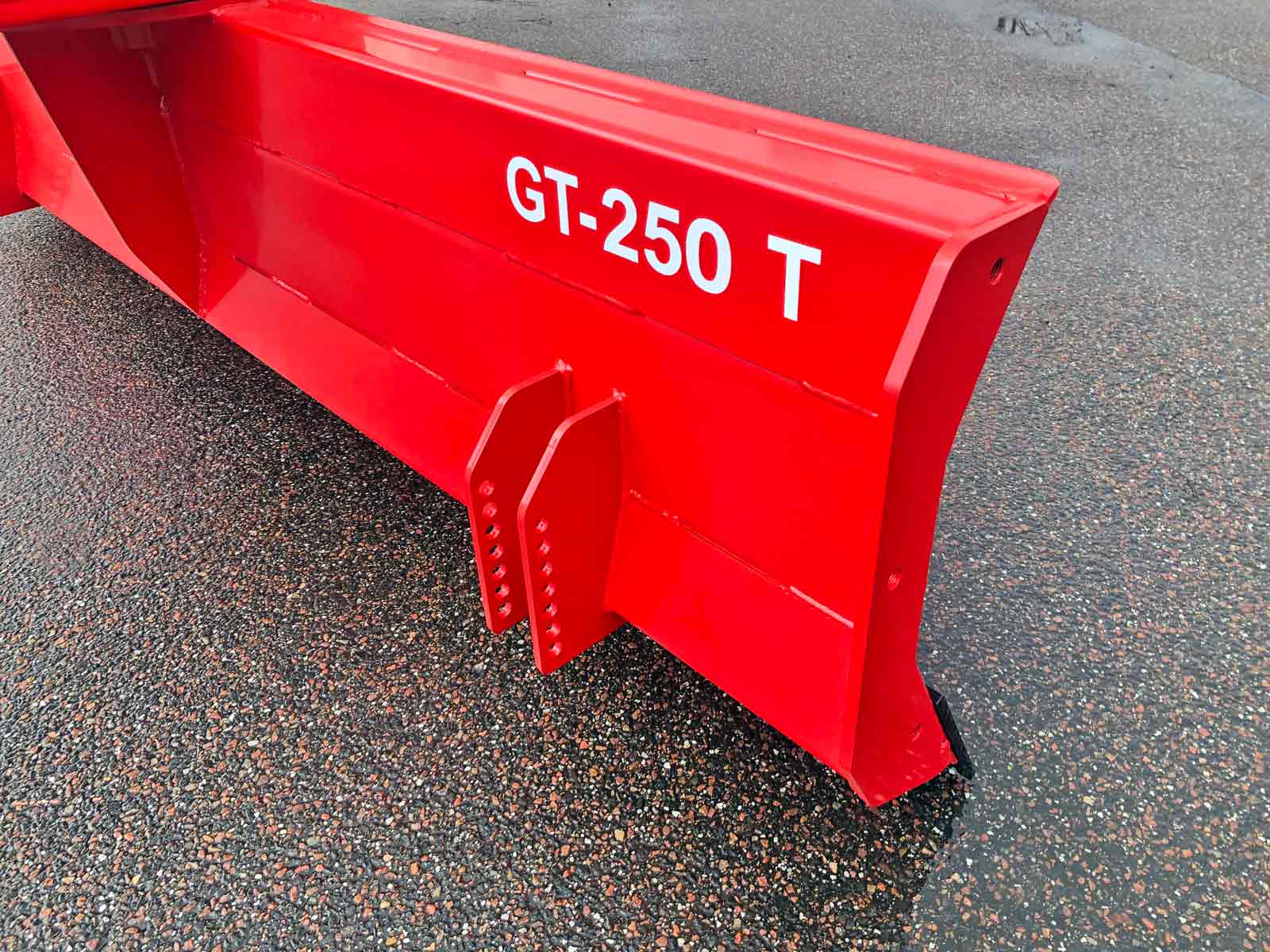

Reinforced ends on the blade of the leveller, which are also prepared for mounting the side flap and snow blade.

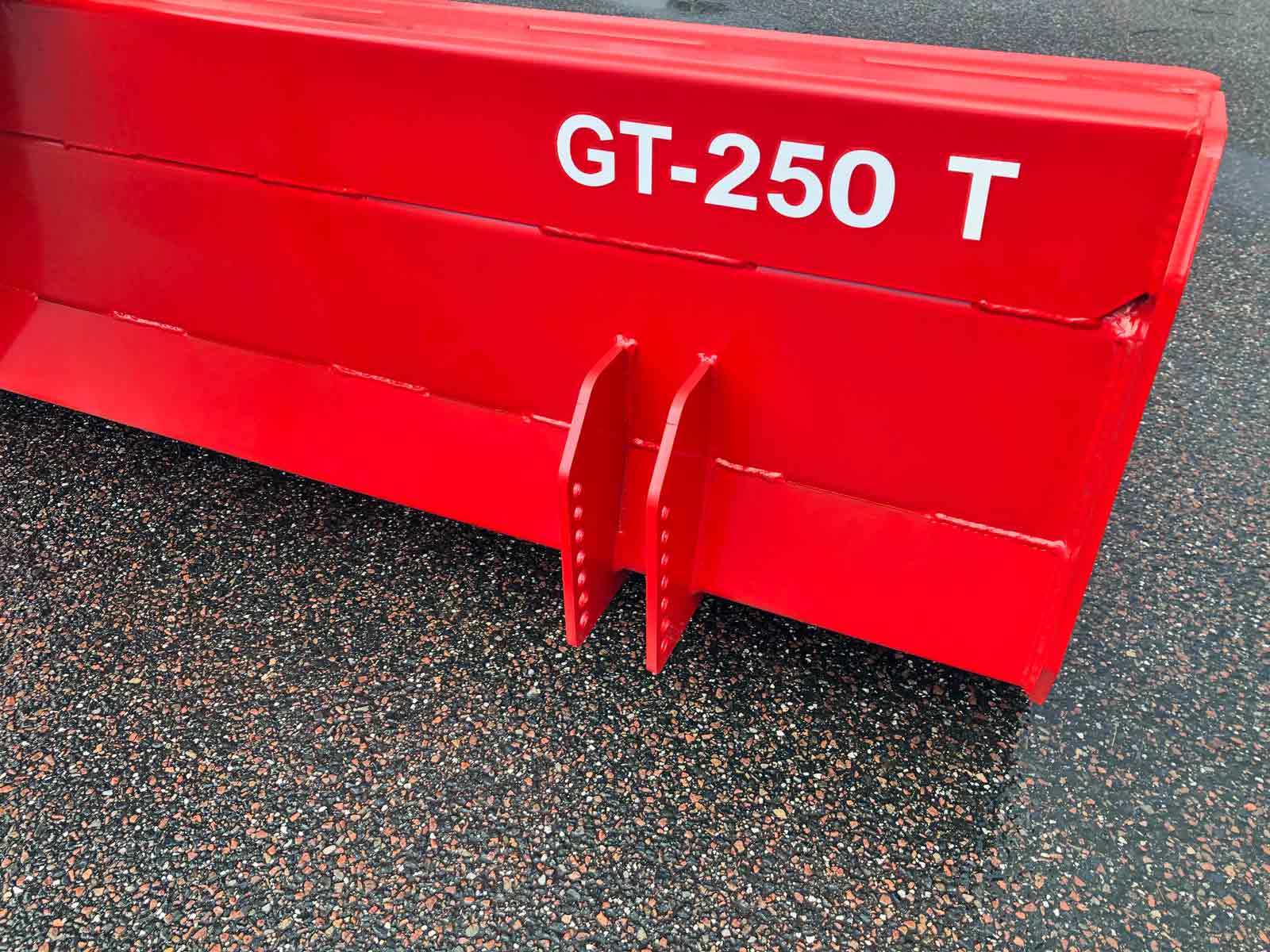

The leveller is prepared for the installation of wheel sets item no. 2512 or 2513.

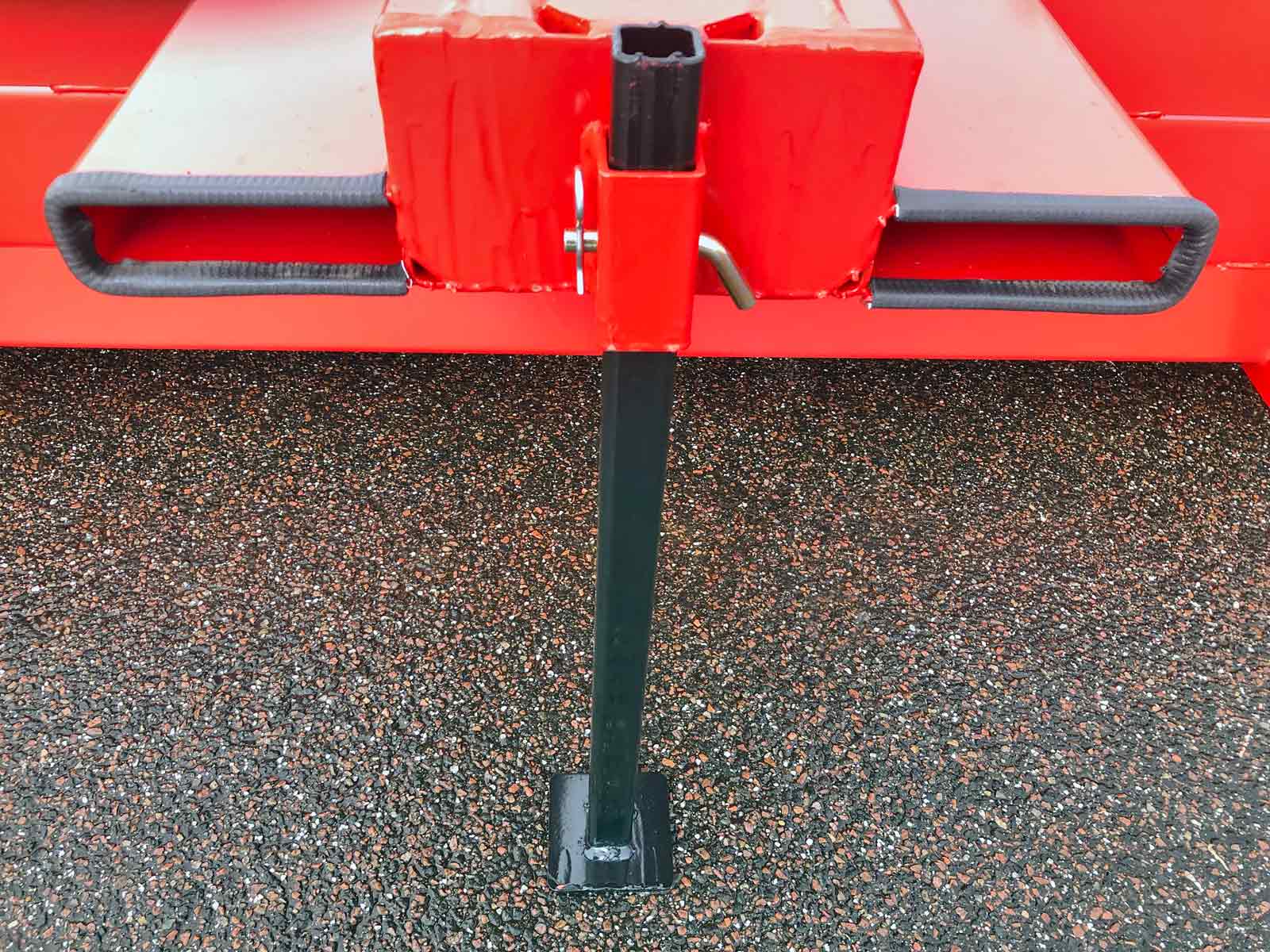

The support leg ensures stable parking and is easily lifted up while working with the cutting edge, so you always have it with you when parking the leveller again.

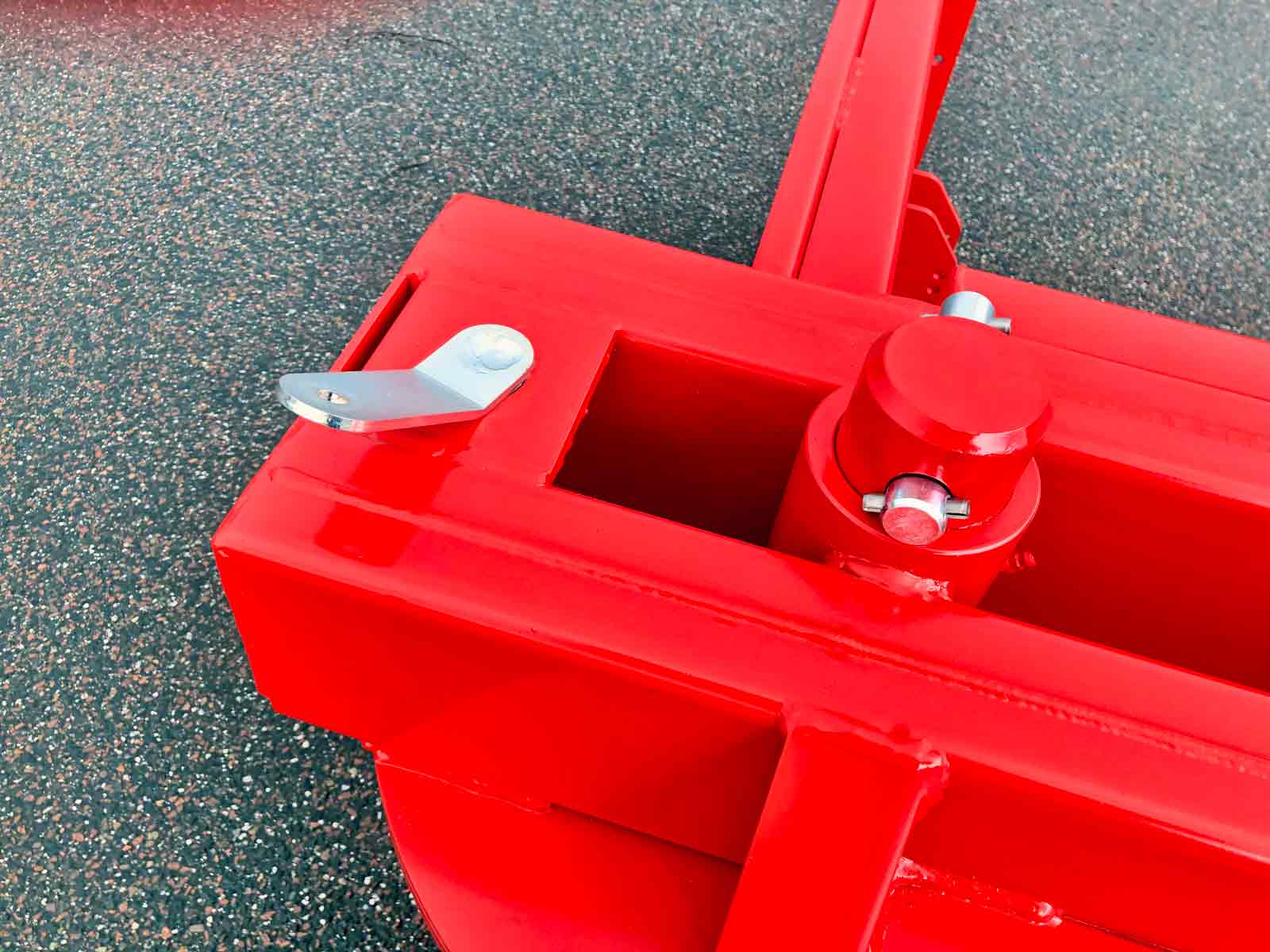

The blade and boom are assembled with a strong 75 mm main bolt.
The pivot on the blade has 10 settings and the blade can rotate 360 degrees.

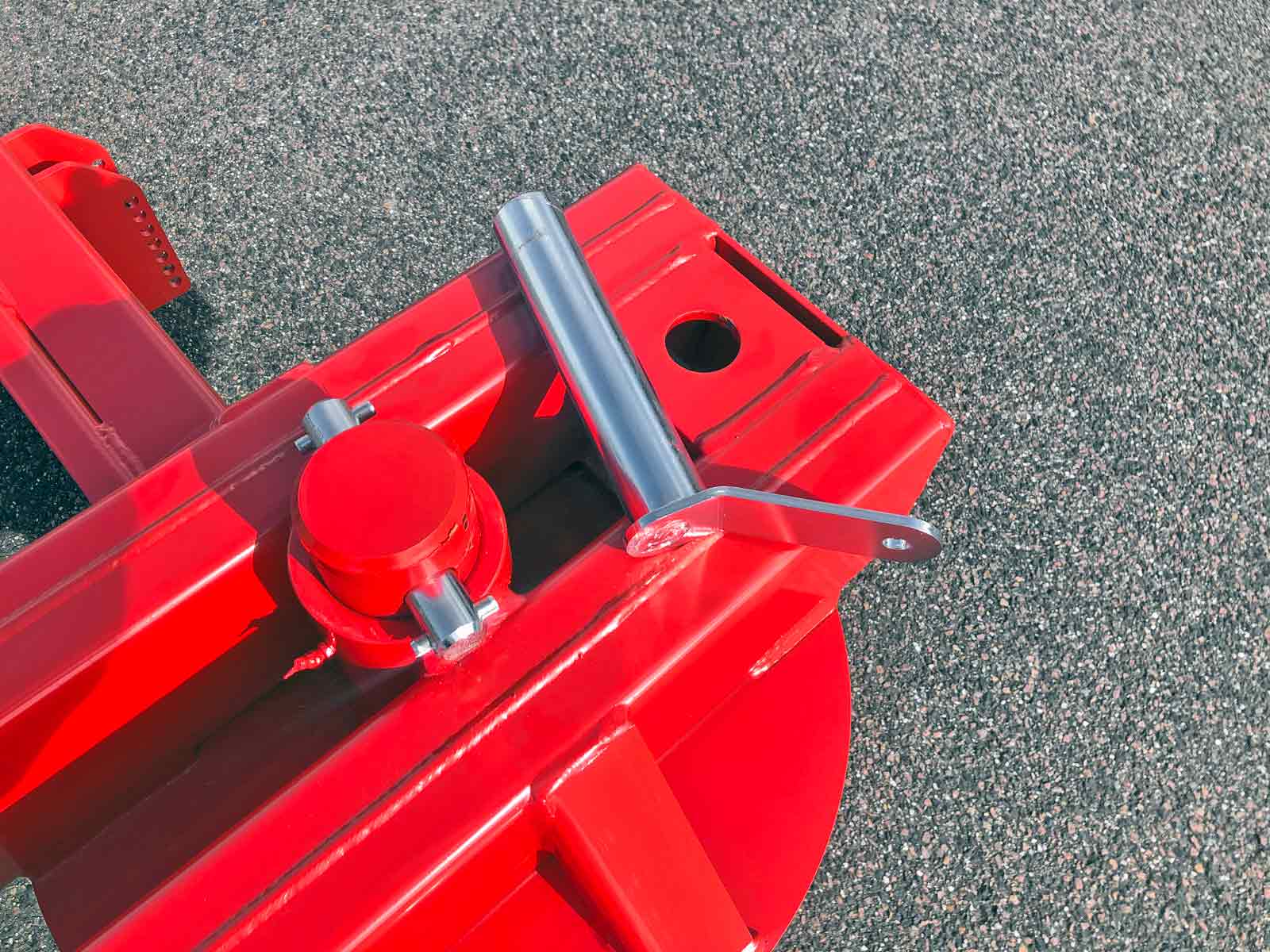

The blade is easily adjusted to the desired position with the locking bolt, which is operated without using tools.

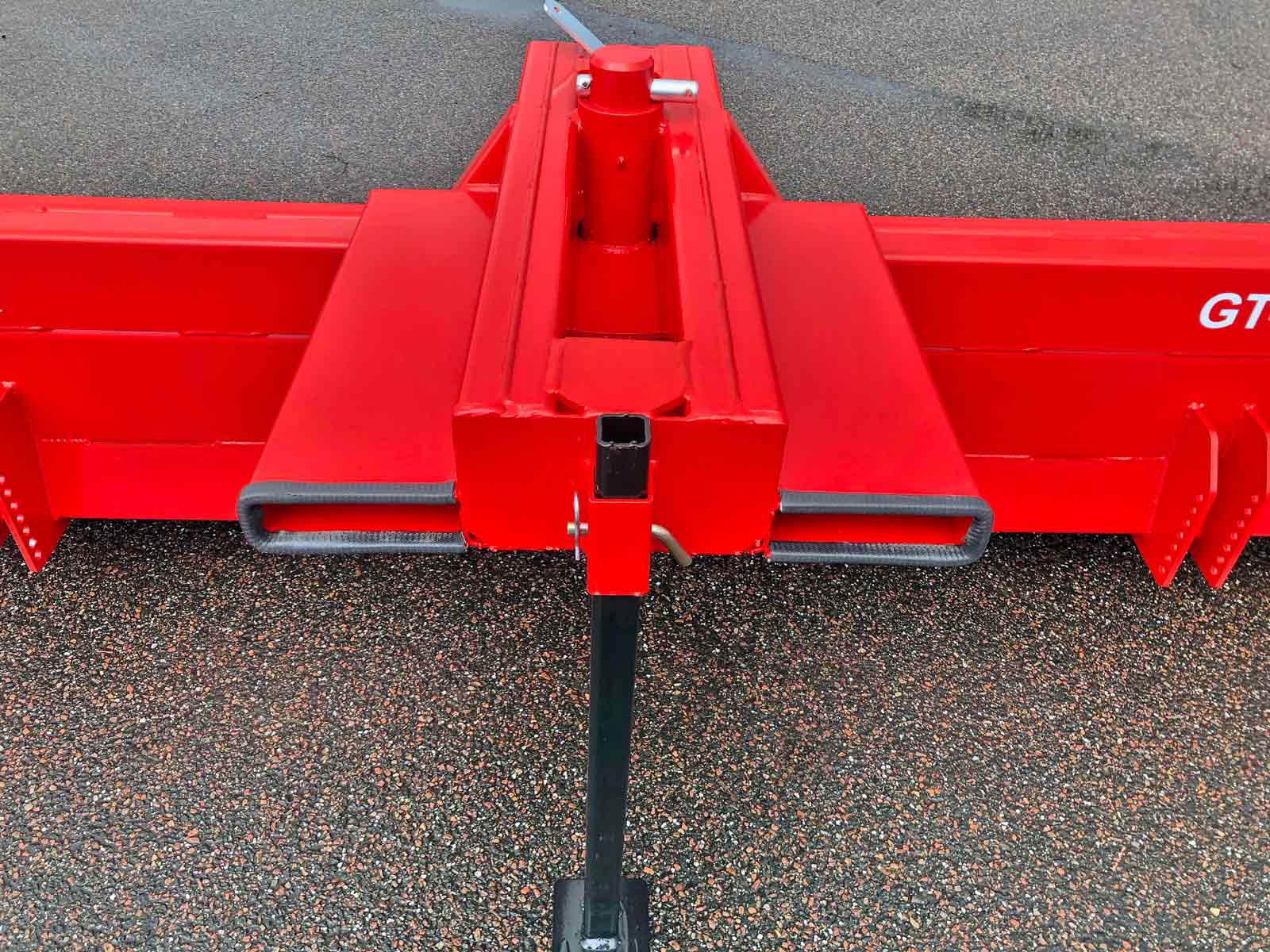

The boom consists of 2 strong profiles, where the fork suspension is welded on each side.

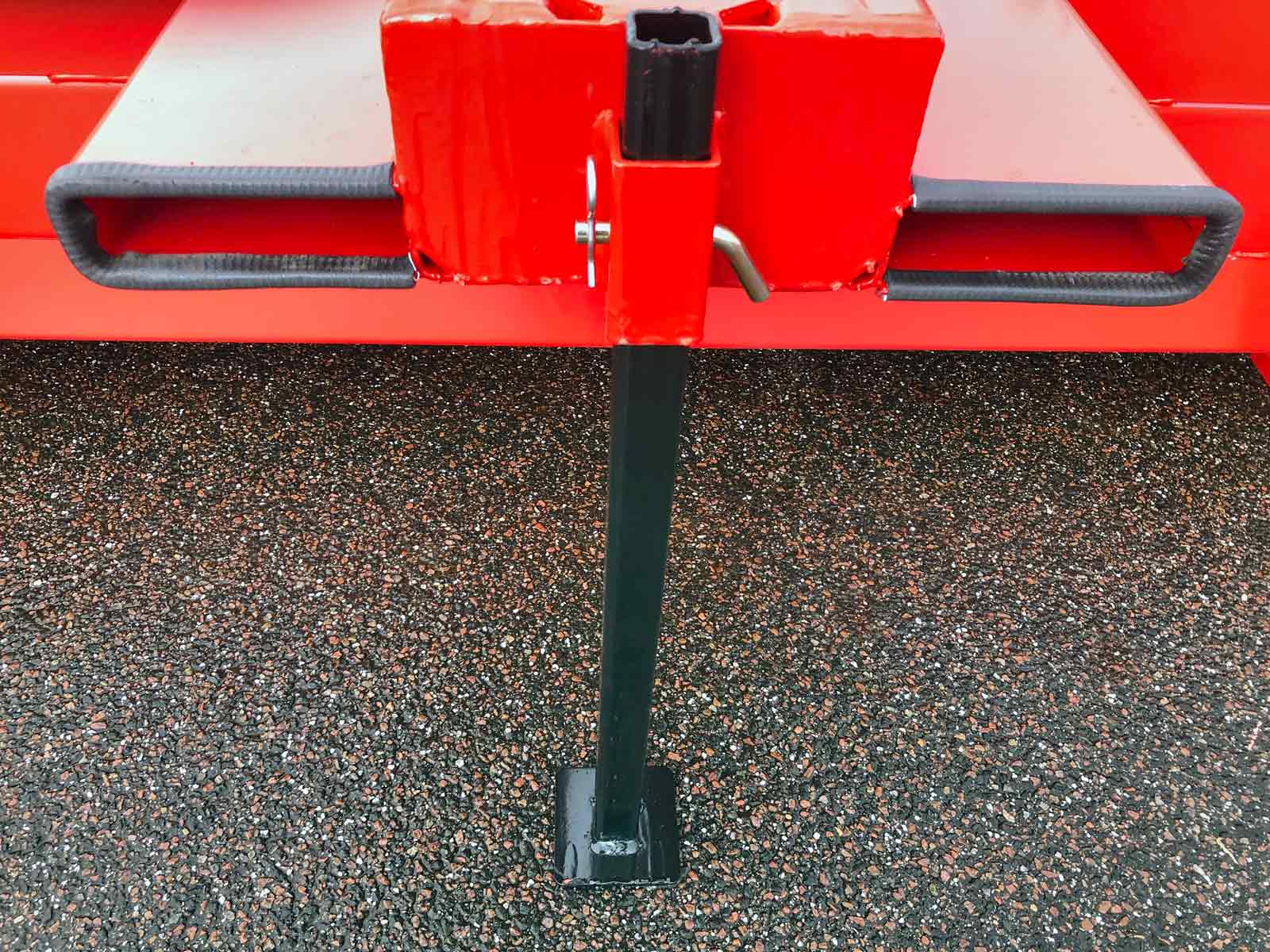

The wide-gauge fork suspension with a glued edge band fits most forks.

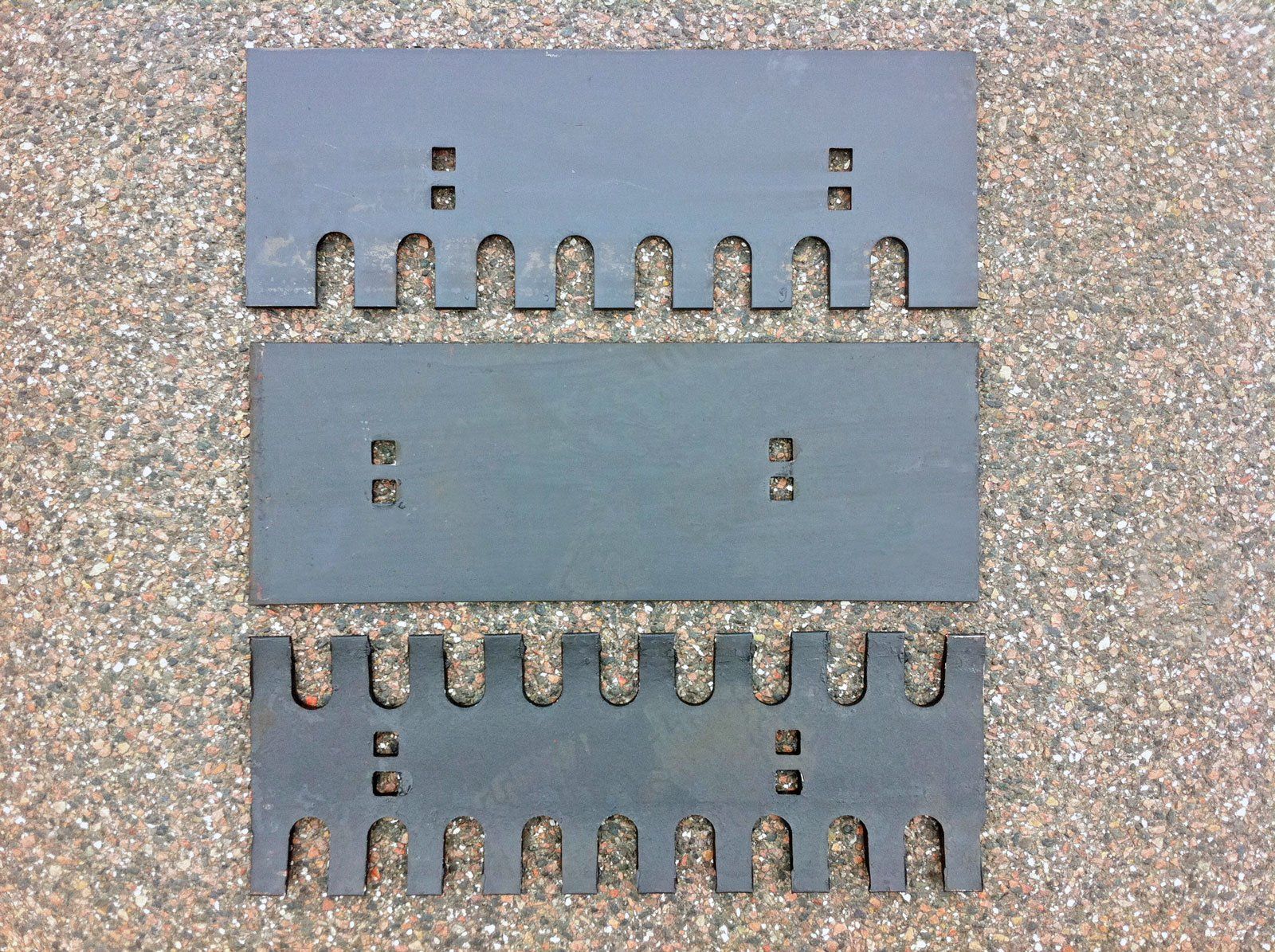

The leveller is fitted as standard with reversible smooth/toothed wear steel. You can have your leveller delivered with a smooth or toothed wear steel at no extra cost if this is specified when ordering the leveller. The leveller can also be fitted later with one of the other types of wear steel. Reversible wear steel is bolted on with 16 mm steel bolts grade 12.9.
Towing shoes help prevent the cutting edge from going too deep during work. Made of Hardox 500 steel
Wheel set with wide wheels 15 x 600, adjustable up and down via 2 bolts with a ring split.
Wheel set with wide wheels 15 x 600, stepless height adjustment via spindle. The wheels can turn 360 degrees, so you can reverse with the leveller without turning the blade.
The wide rear wheel spacing makes for a smoother operation.
Rubber blade for mounting on all Fransgård models of levellers. The rubber blade is mounted behind the existing wear steel, which acts as a backstop on the rubber blade. It should be fitted 2-3 cm lower than the wear steel and can be continuously moved downwards as it wears down. You drill the holes in the rubber blade yourself and mount it with the bolts provided.
Side flap to hold the material. Can be mounted on both the right and left side.
All Fransgård's newer levellers are ready for mounting side flaps and are easily mounted with the 3 bolts provided.
Snow blade for the right side, cut the snow edge diagonally so that it does not collapse and fall behind the tractor where you have just driven.
All Fransgård's newer levellers are ready for mounting snow blades and are easily mounted with the 3 bolts provided.
