Leveller GT-250DK · GT-275DK · GT-300DK

Presentation

The leveller for which no task is too big and almost none is too small. Whether you are a contractor, farmer or simply live in the countryside, Fransgård's GT-DK leveller is the right choice for all kinds of levelling and clearing tasks.

A strong and durable construction that makes the machine safe to operate.

Thought-out details pave the way

A well thought-out product, and it is of course built in high-strength steel and has, as the only leveller on the market, a unique turntable with interchangeable wear plates.

The hydraulic cylinder is well protected on top of the boom and ensures the best blade rotation on the market. An elongated top bar attachment and stepless adjustable wheels provide smooth road levelling. With hydraulic offset adjustment (optional extra) and a snow blade (optional extra), you can move the snow far to the side.

Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button

Technical data:

Model:	GT-250DK	GT-275DK	GT-300DK
Working width	250 cm	275 cm	300 cm
Blade height	70 cm	70 cm	70 cm
Offset adjustment, mechanical right/left or hydraulic (Optional)	60 cm	60 cm	60 cm
Hydraulic rotating blade	244°	244°	244°
Hydraulic connectors	2 double	2 double	2 double
Reversible wear steel Hardox 500	Std.	Std.	Std.
Push/front mounting	Yes	Yes	Yes
Support wheel rotatable 360	Std.	Std.	Std.
Snow blade right	Possible	Possible	Possible
Side flap	Possible	Possible	Possible
3-point suspension	Cat II	Cat II	Cat II
Weight	780 kg	795 kg	815 kg
Tractor performance	Max. 150 HP	Max. 150 HP	Max. 150 HP

Details:

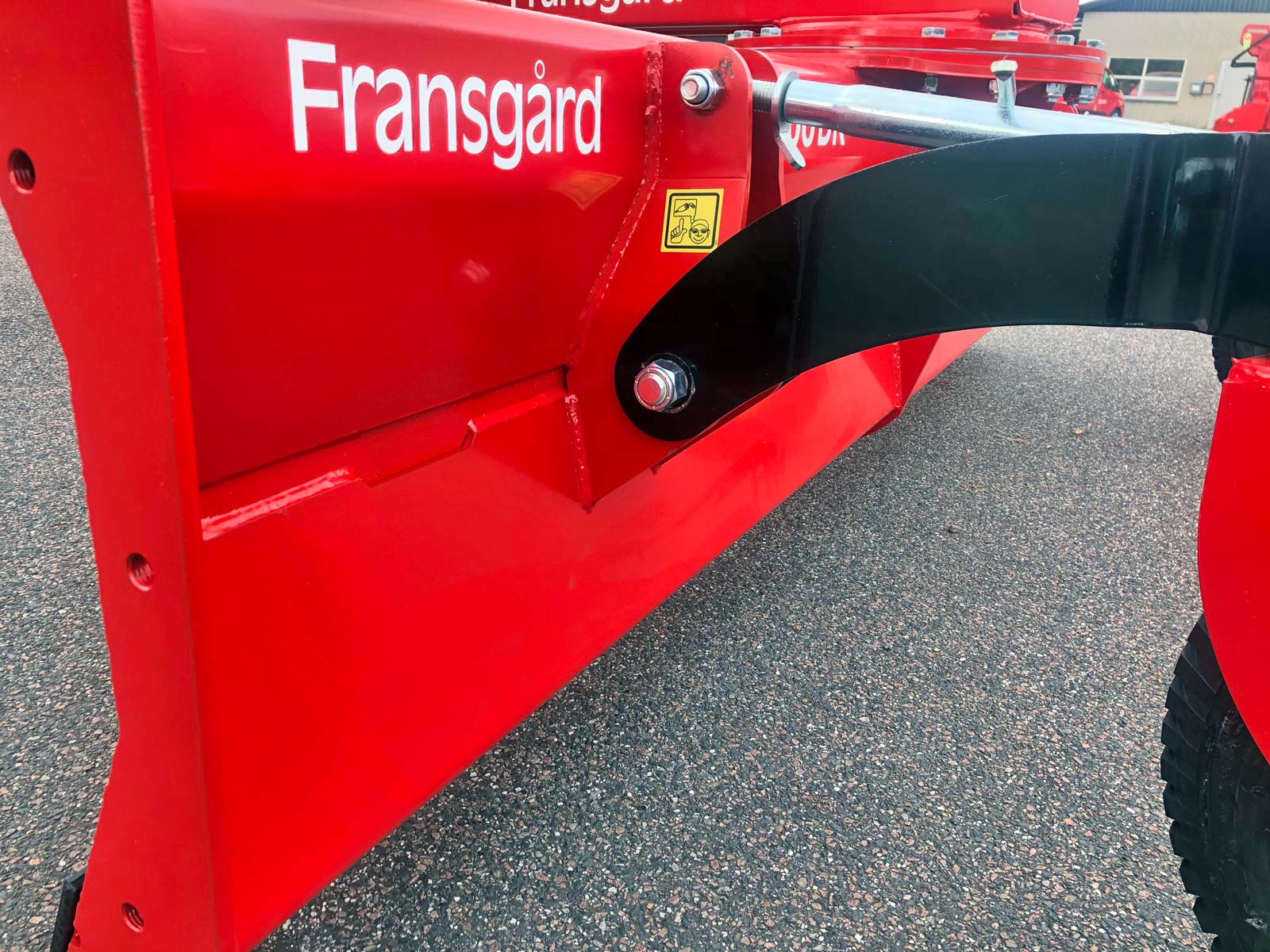

Blade rear

Strong blade with reinforcements both at the top and at the back of the blade.
Button

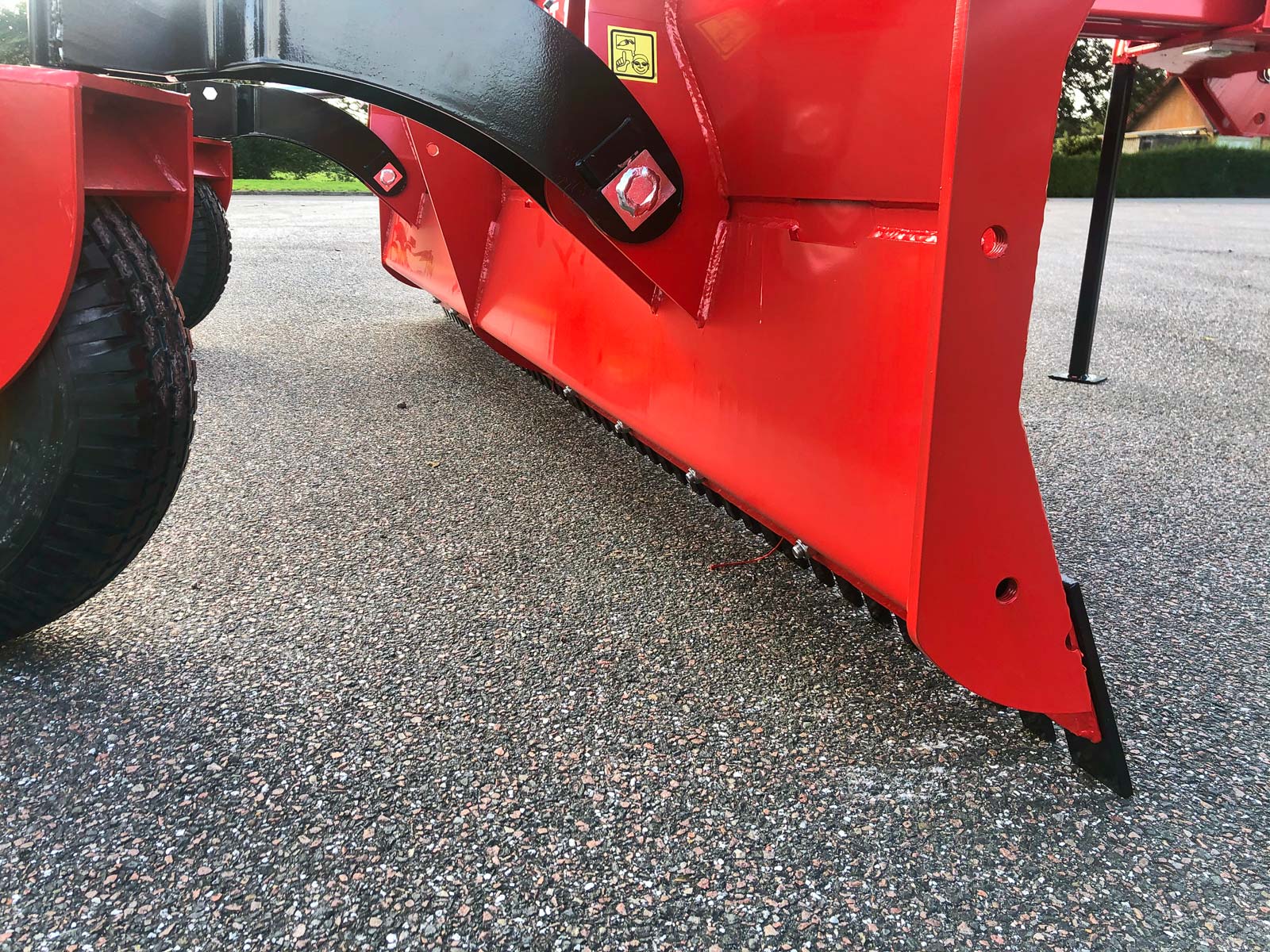

Blade rear, beveled edge

The lower reinforcement at the rear is designed so that you can reverse with the leveller without turning the blade, and any excess material, for example, when you come to an asphalt road, you will be able to reverse over and the leveller will press and distribute the material out into the road.
Button
3-point cat

With the 3-point suspension on Fransgård's leveller, the lift arms can be mounted at 2 different heights to fit most tractors. If the lifting arms are mounted in the lower hole on one side and the upper hole on the other side, the blade will have a horizontal cutting angle of approximately 7 degrees.
Button

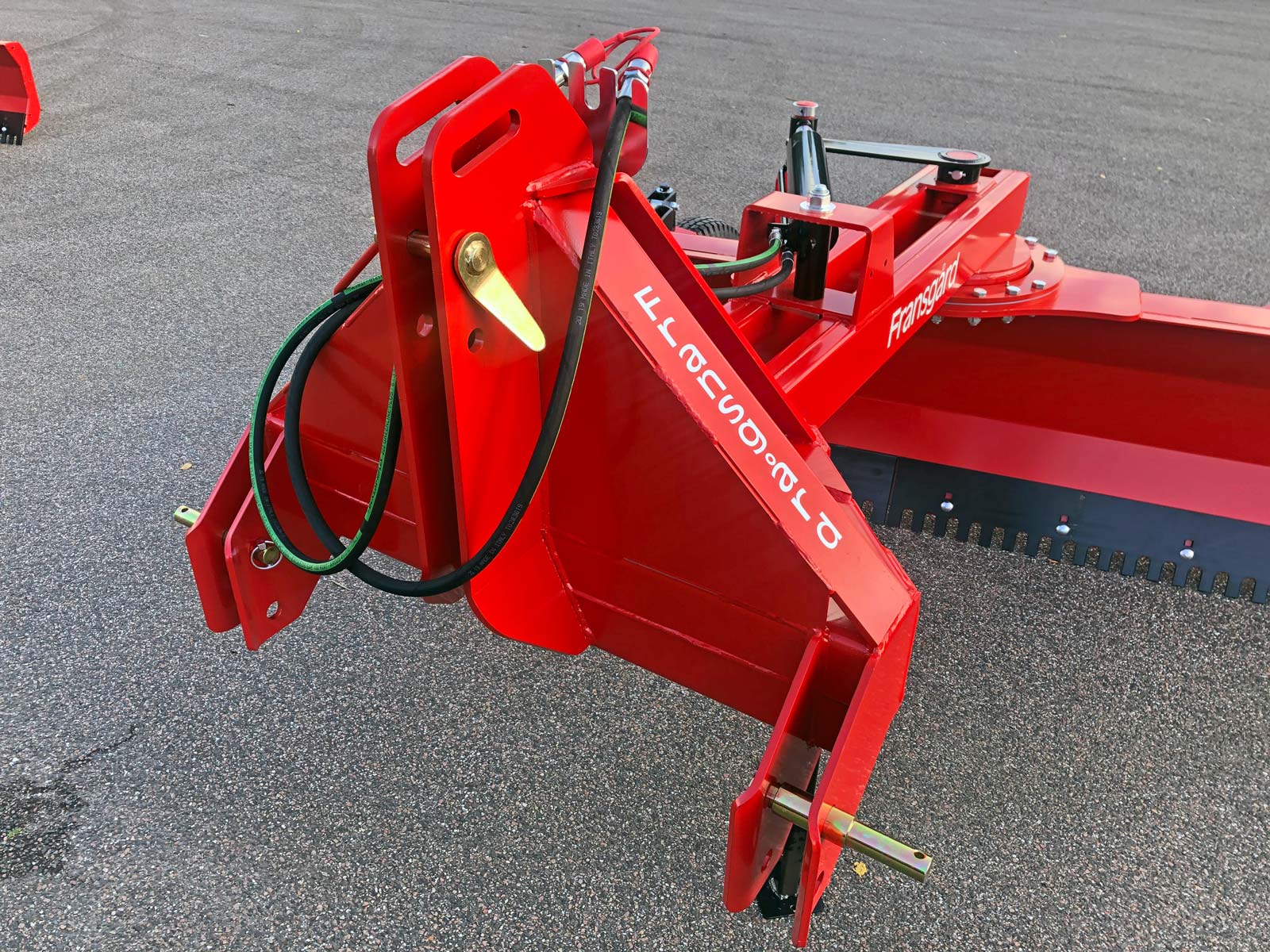

Top bar attachment

The top bar attachment has both 2 fixed holes and an elongated slot, where you can advantageously mount the top bar bolt when, for example, levelling roads, as the leveller can better follow the terrain and you achieve a better end result.
Button

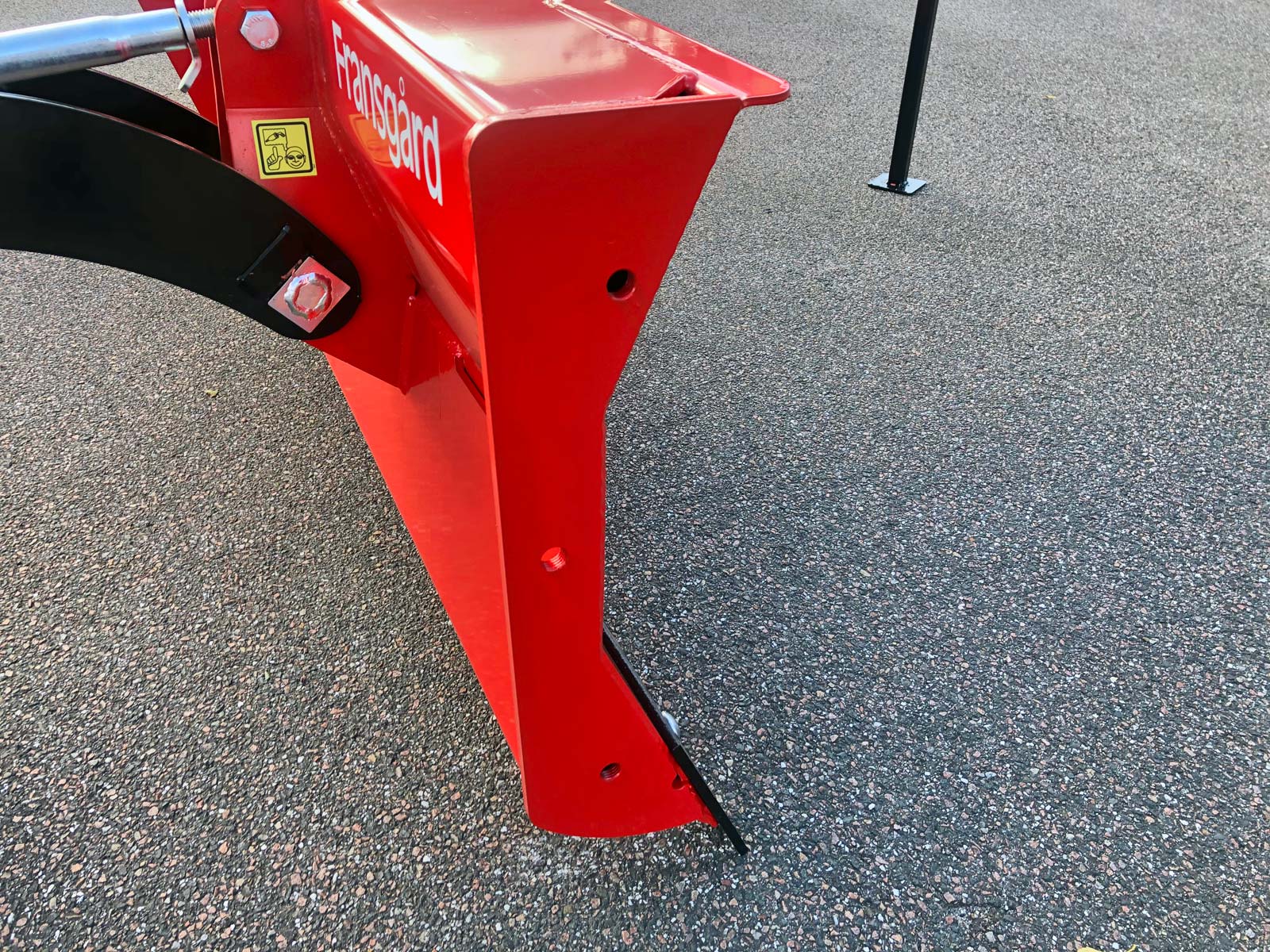

Blade ends

Reinforced ends on the blade of the leveller, which are also prepared for mounting the side flap and snow blade.
Button
Wearing steel mounted

Reversible wear steel bolts on with 16mm steel bolts grade 12.9.
Button

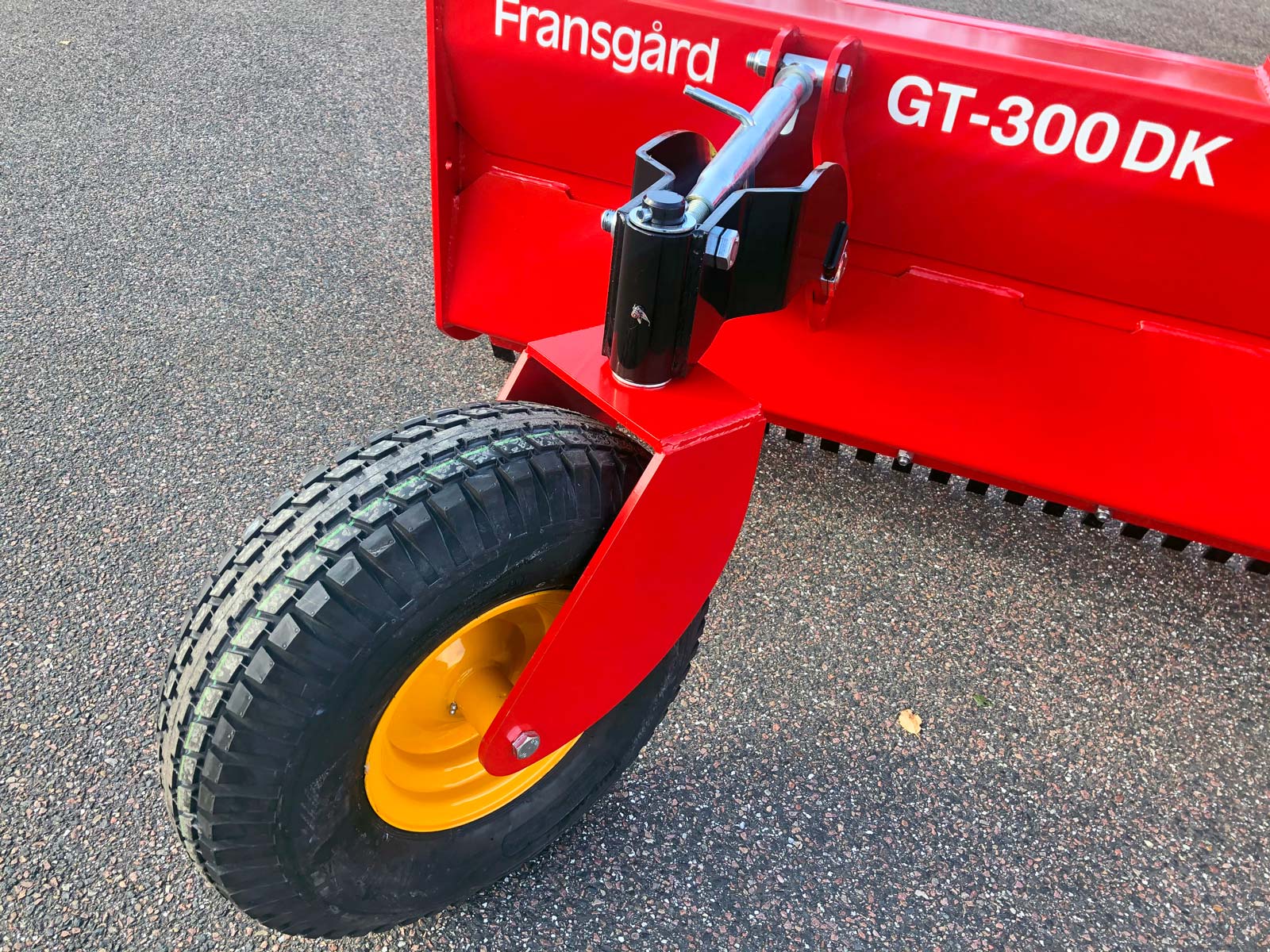

Wheels

The leveller comes as standard with large wheels that are stepless adjustable via a spindle. The wheels can turn 360 degrees, so you can reverse with the leveller without turning the blade.
Button
Support legs

Support legs are easily placed in the holder, so you always have them with you when you need to park the leveller again.
Button

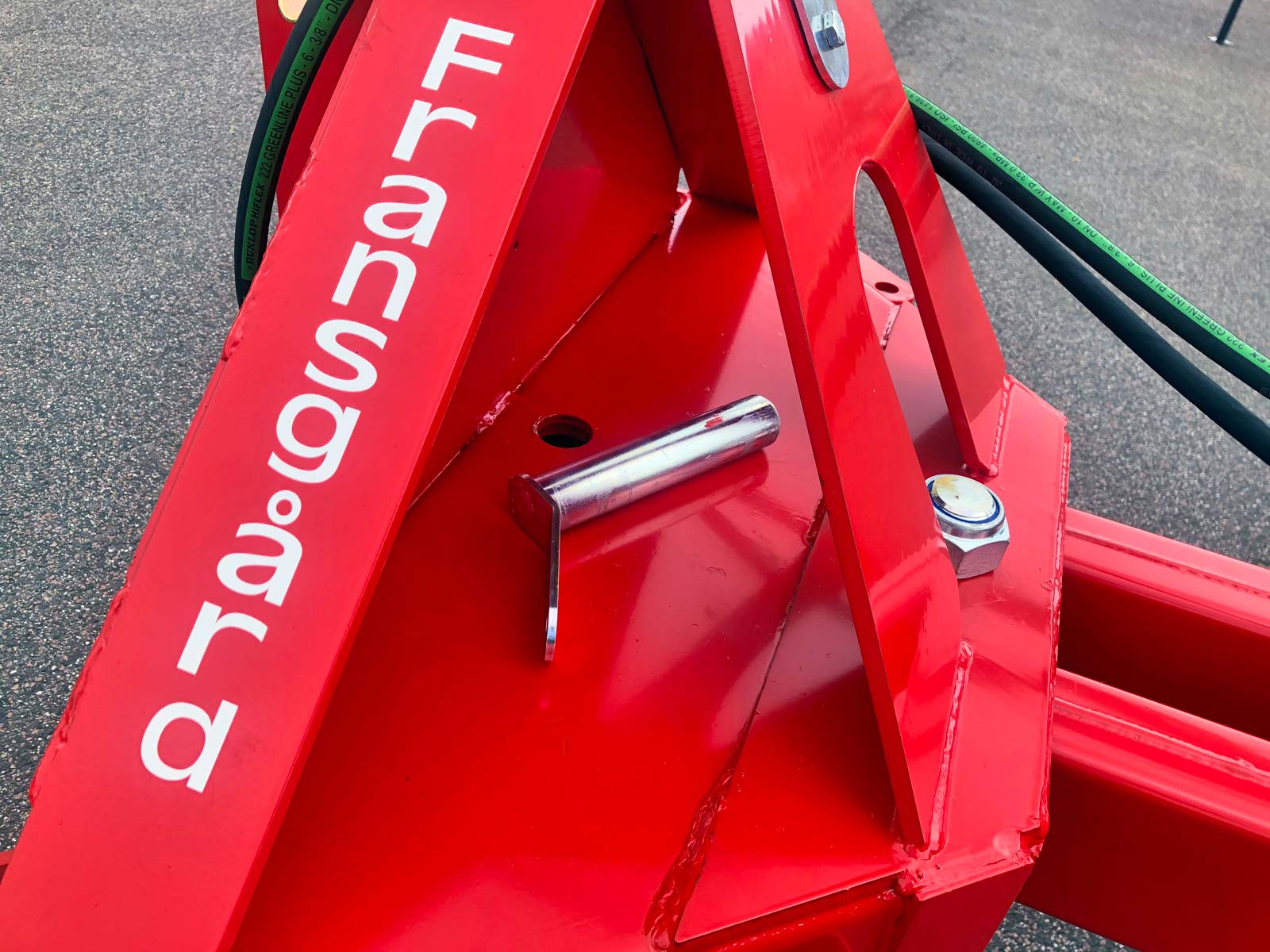

Bolts, offset adjustment

The leveller can be mechanically offset adjusted to the right or left side.
The locking bolt is mounted without using tools. All locking bolts are galvanised.

Button

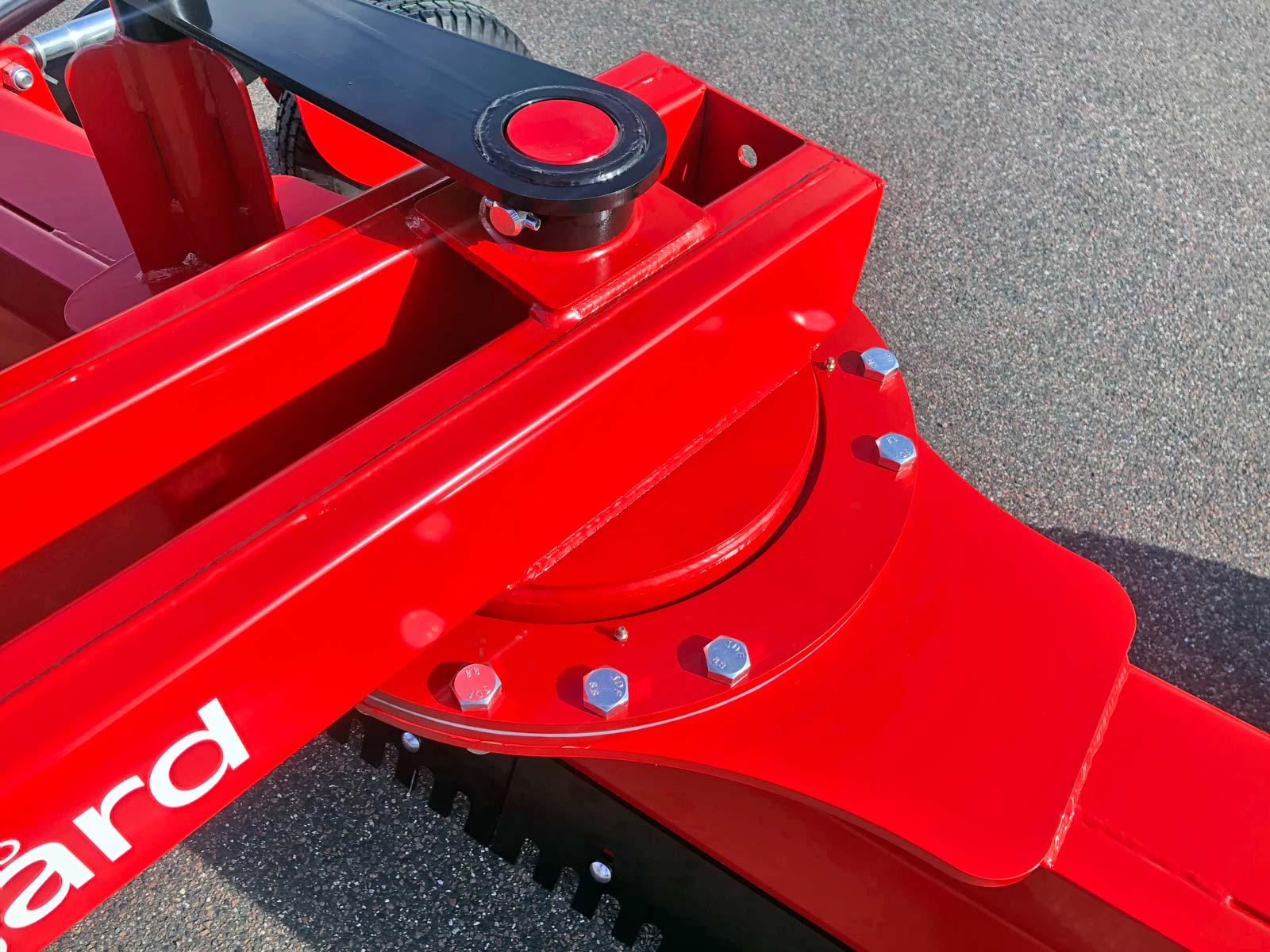

Main axle, boom

The blade and the hydraulic cylinder on the boom are assembled with a strong 75 mm main bolt.
Button

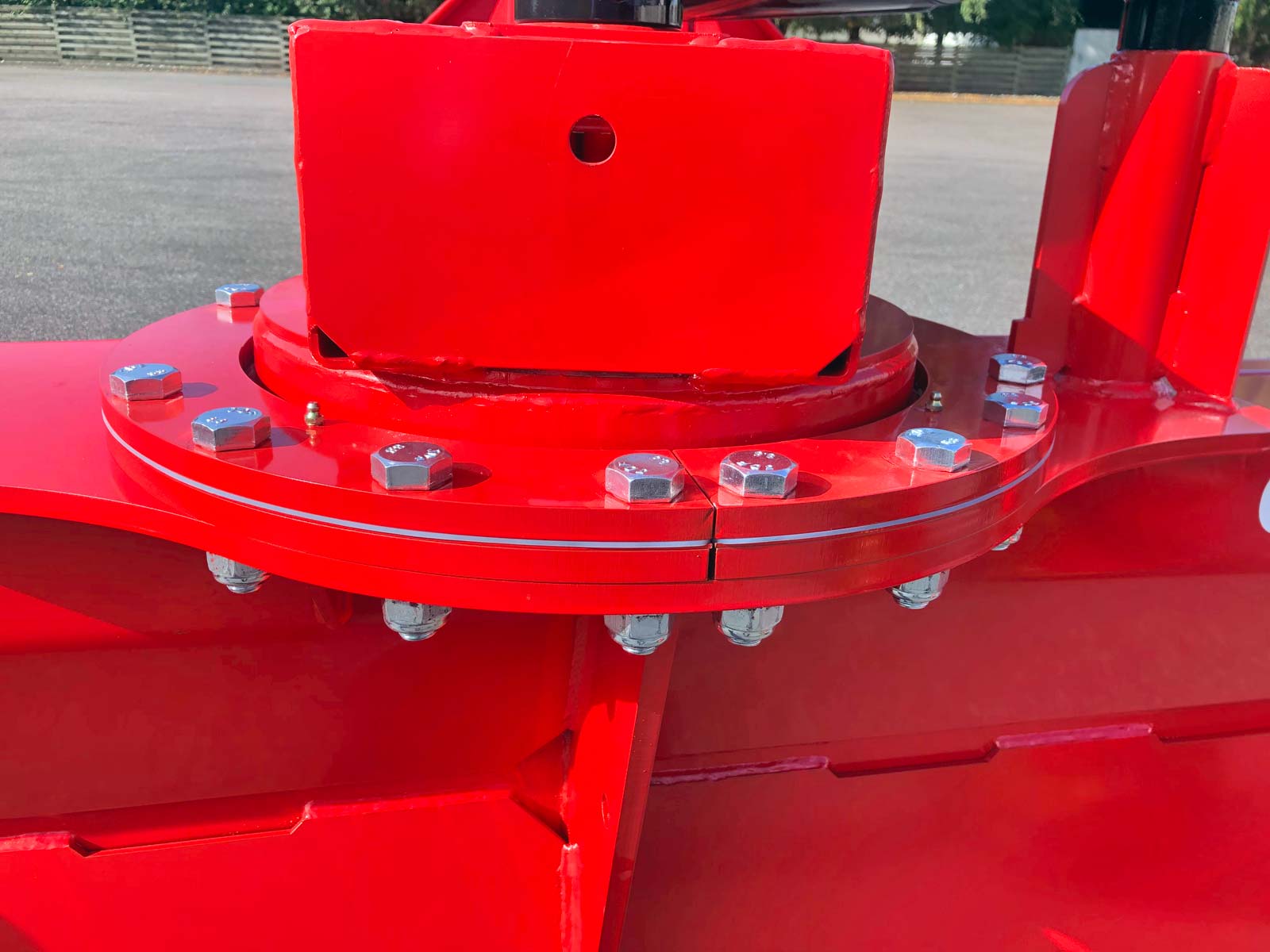

Turntable

The heavy-duty turntable on the blade is bolted together and has a replaceable PETP plastic wear disc and lubrication nipples to avoid wear in the turntable.
Button
Wearing steel all

The leveller is fitted as standard with reversible smooth/toothed wear steel. You can have your leveller delivered with a smooth or toothed wear steel at no extra cost if this is specified when ordering the leveller.
The leveller can also be fitted later with one of the other types of wear steel.

Button

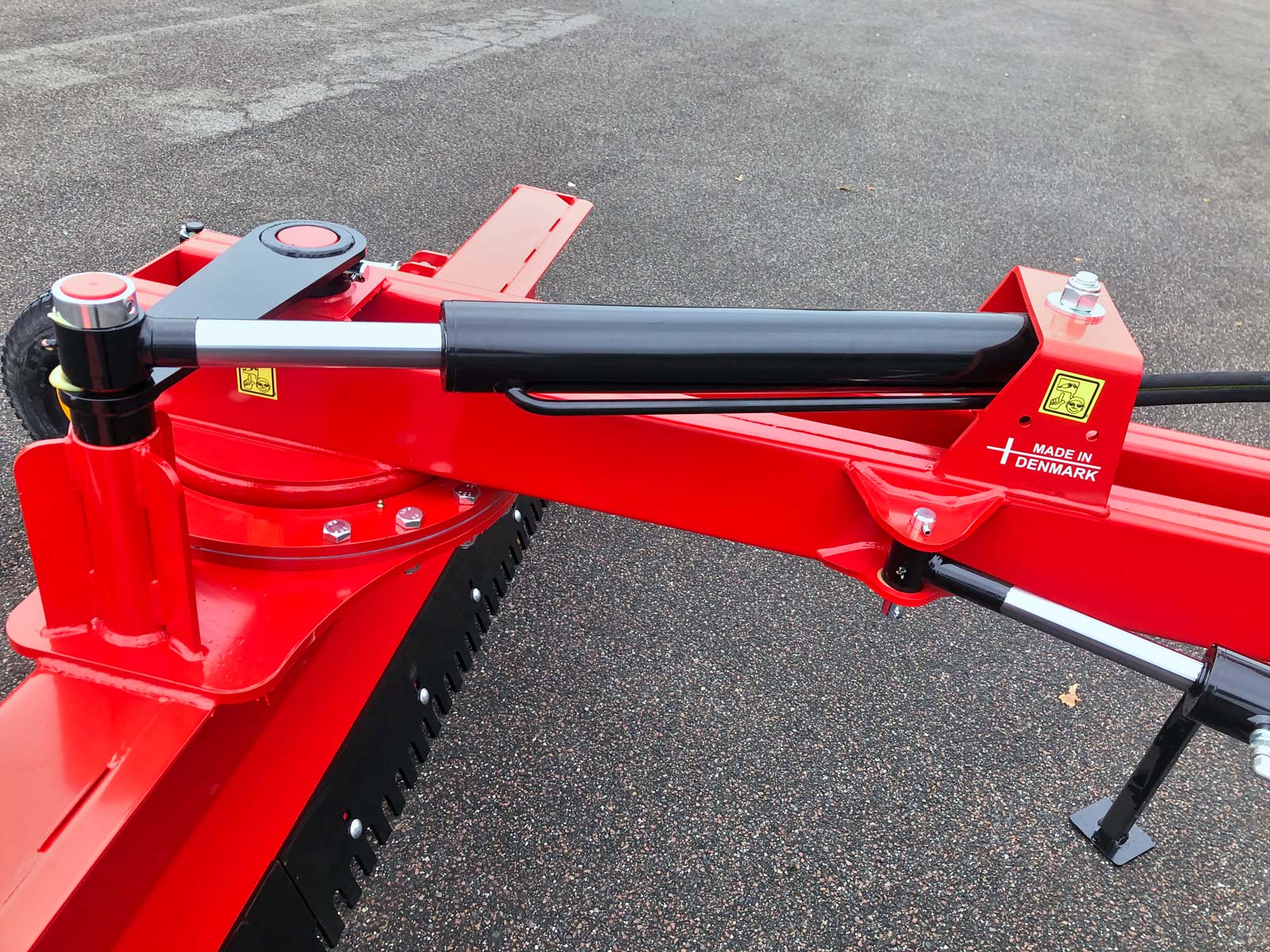

Blade cylinder

A strong blade cylinder with 45 mm stick ensures that the blade is kept stable.
The cylinder is well protected on top of the boom.
Button
Turning radius

The GT-DK leveller can be hydraulically turned up to 244 degrees.
Button

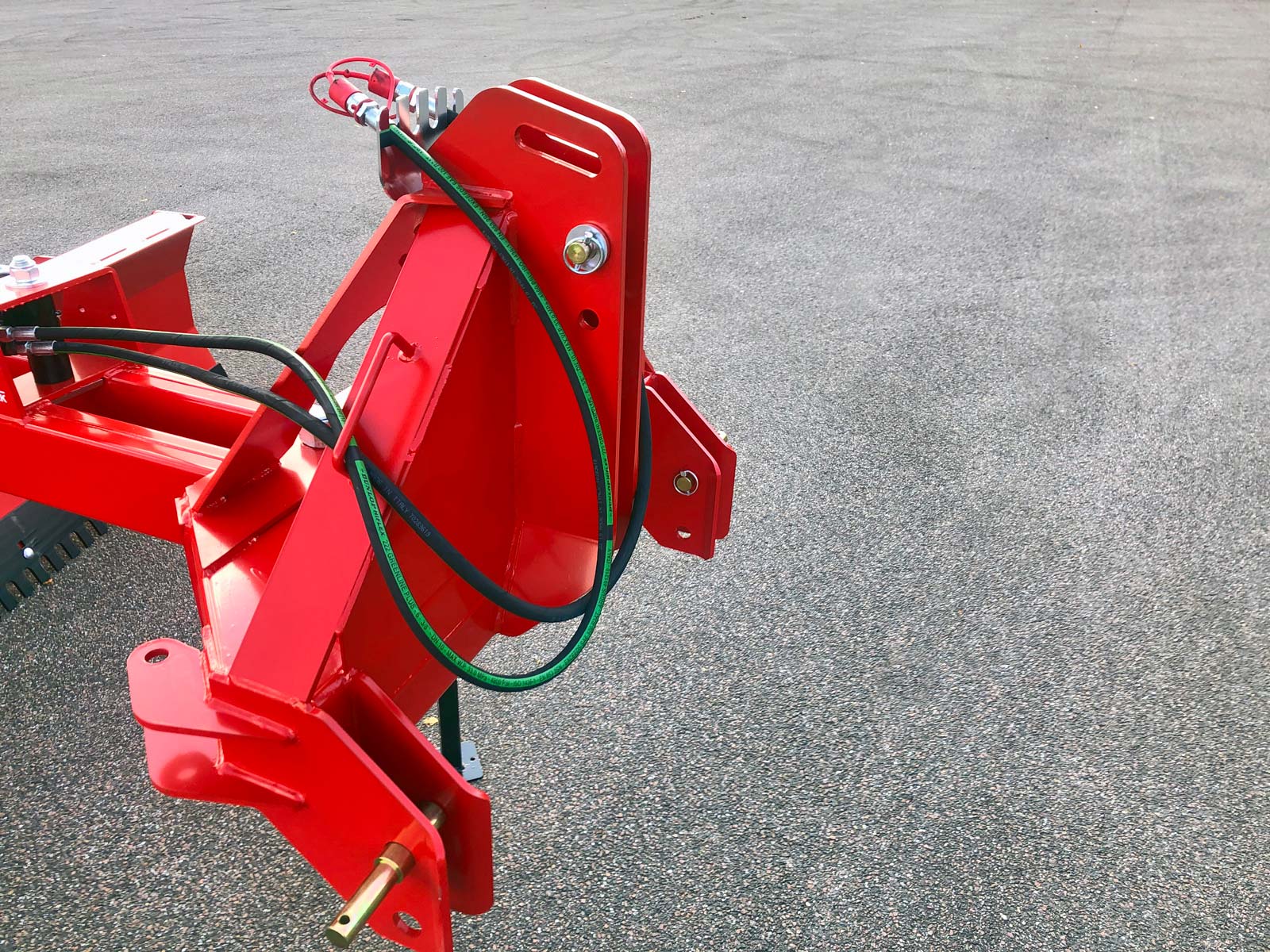

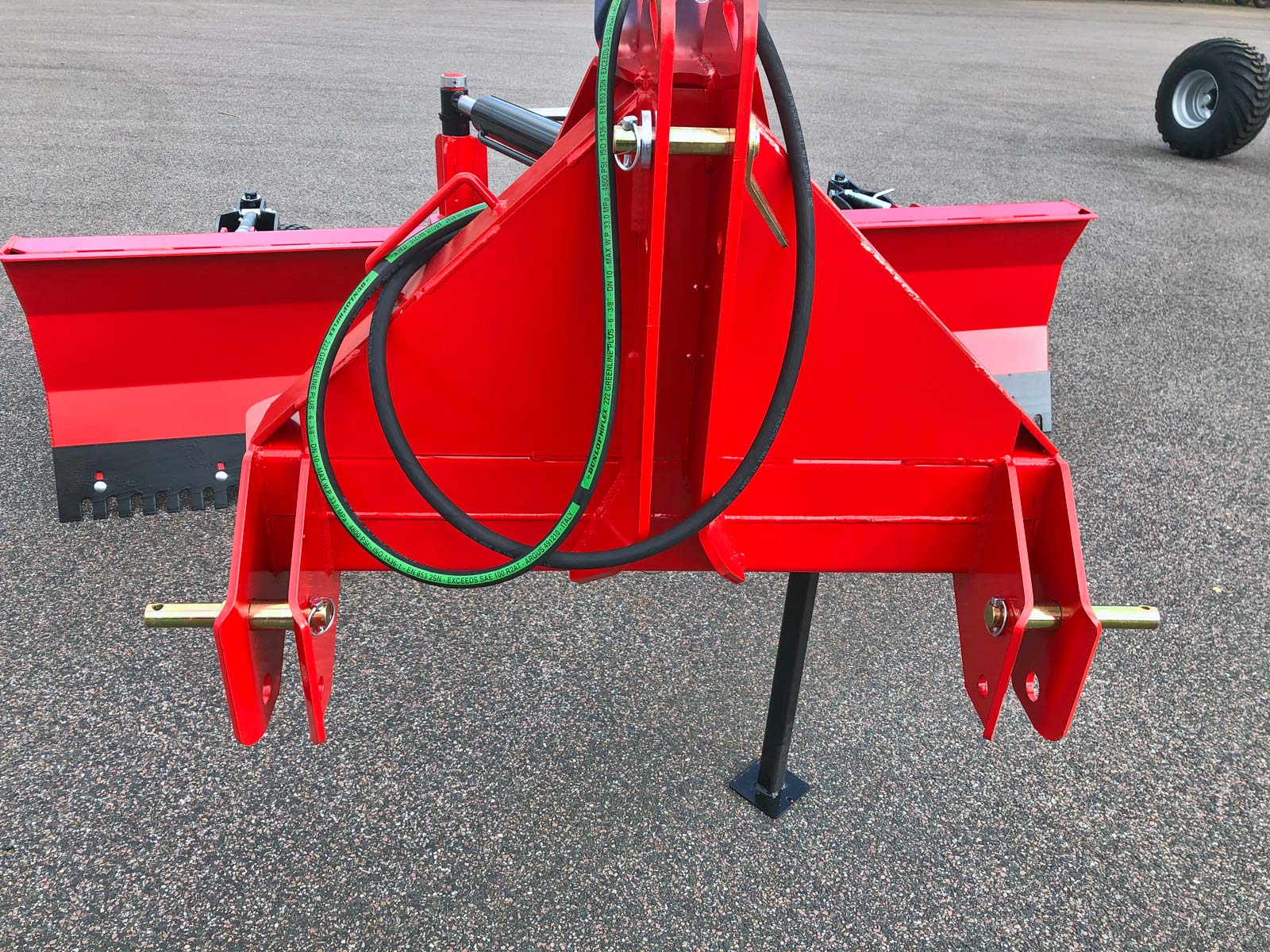

GT-DK 3-punkt kat II

3-point suspension is standard Cat. II
Button
Cylinder attachment

Heavy duty cylinder hinge in special steel provides stable operation and long life.
Button

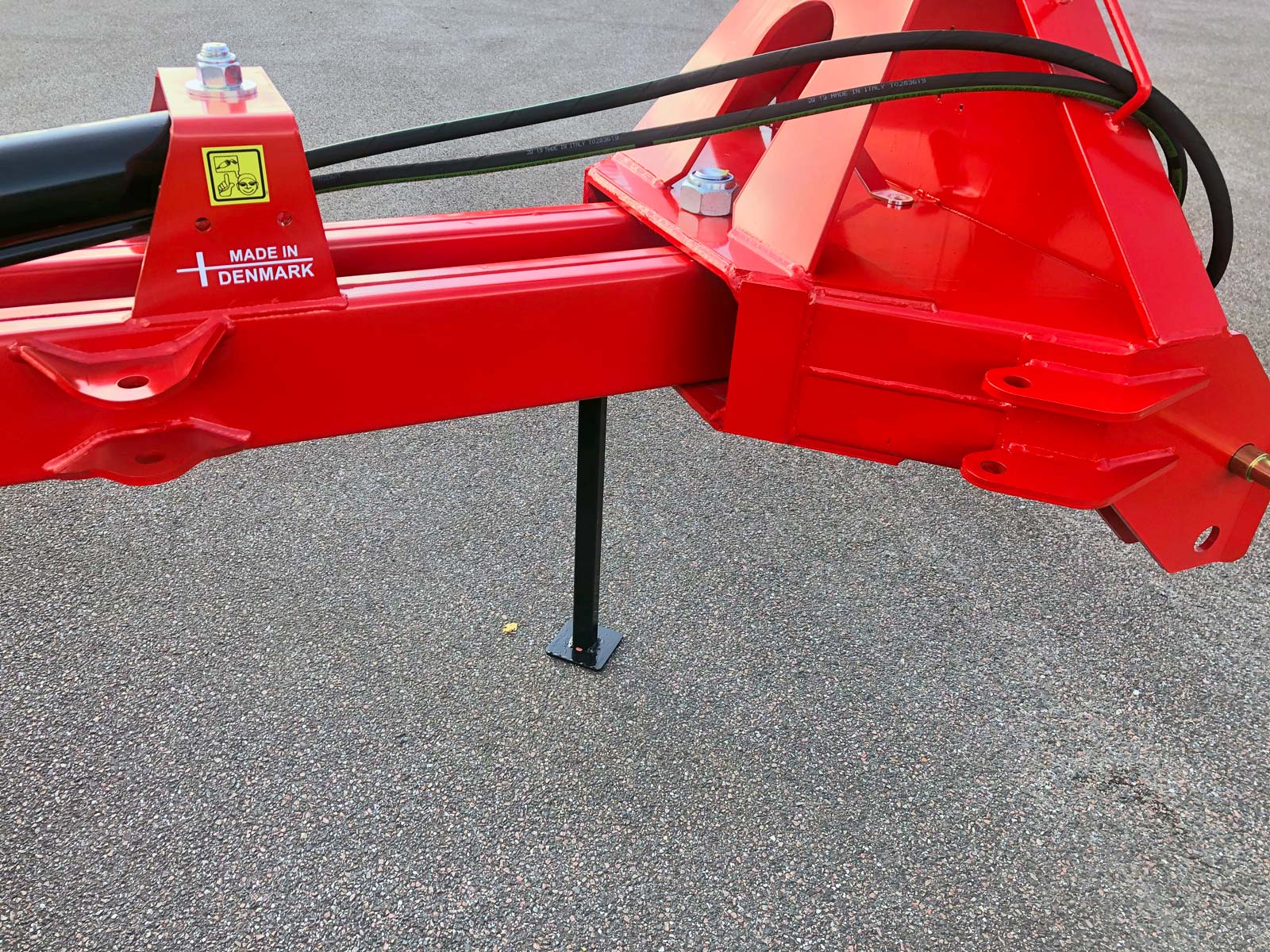

Fitting for hydraulic offset adjustment

All GT-DK levellers are prepared for the installation of hydraulic offset adjustment, item no. 2528.
Button

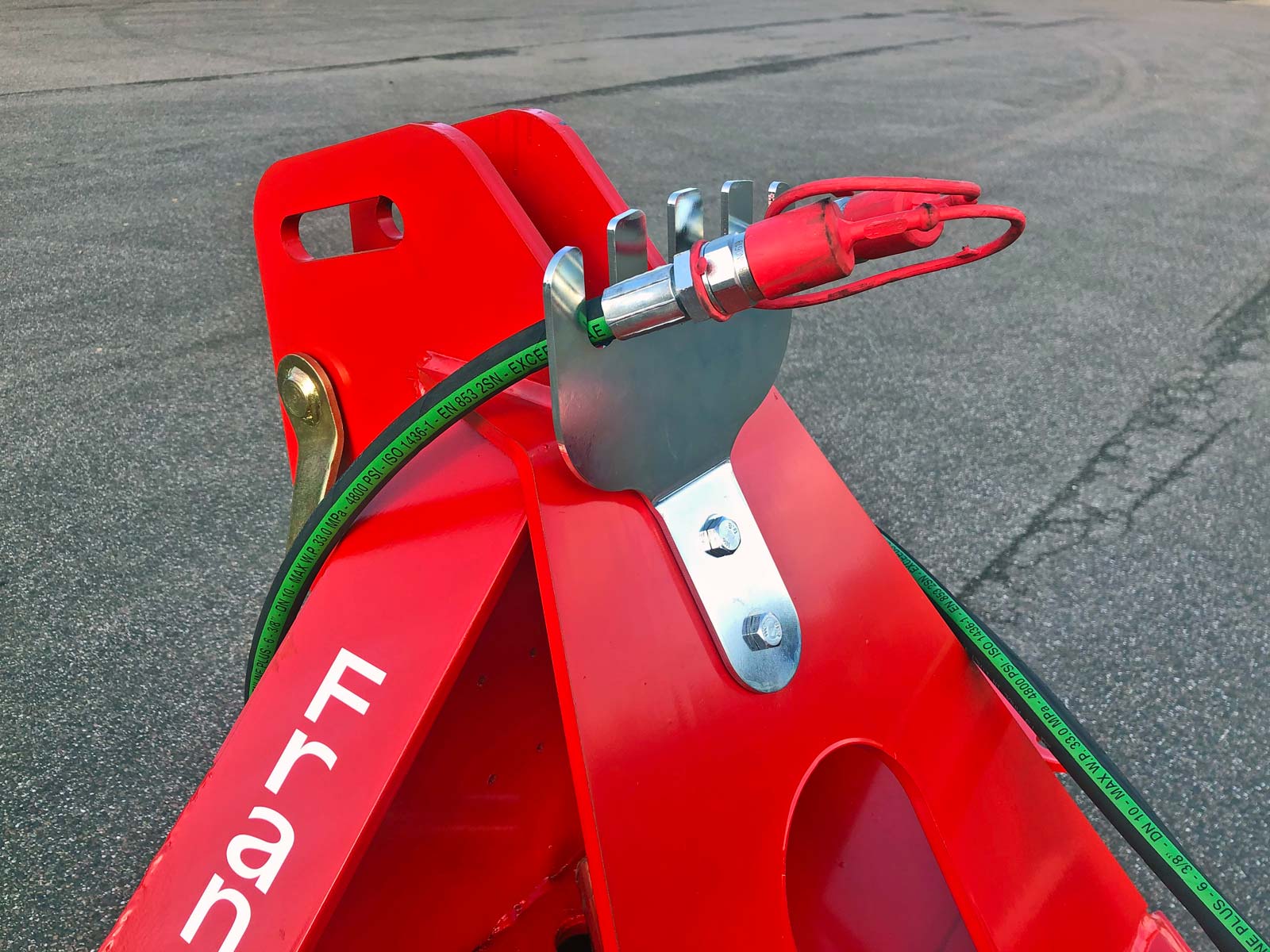

Hydraulic hose holder

The leveller is fitted with a holder for the hydraulic hoses as standard.
Button

Optional extras:

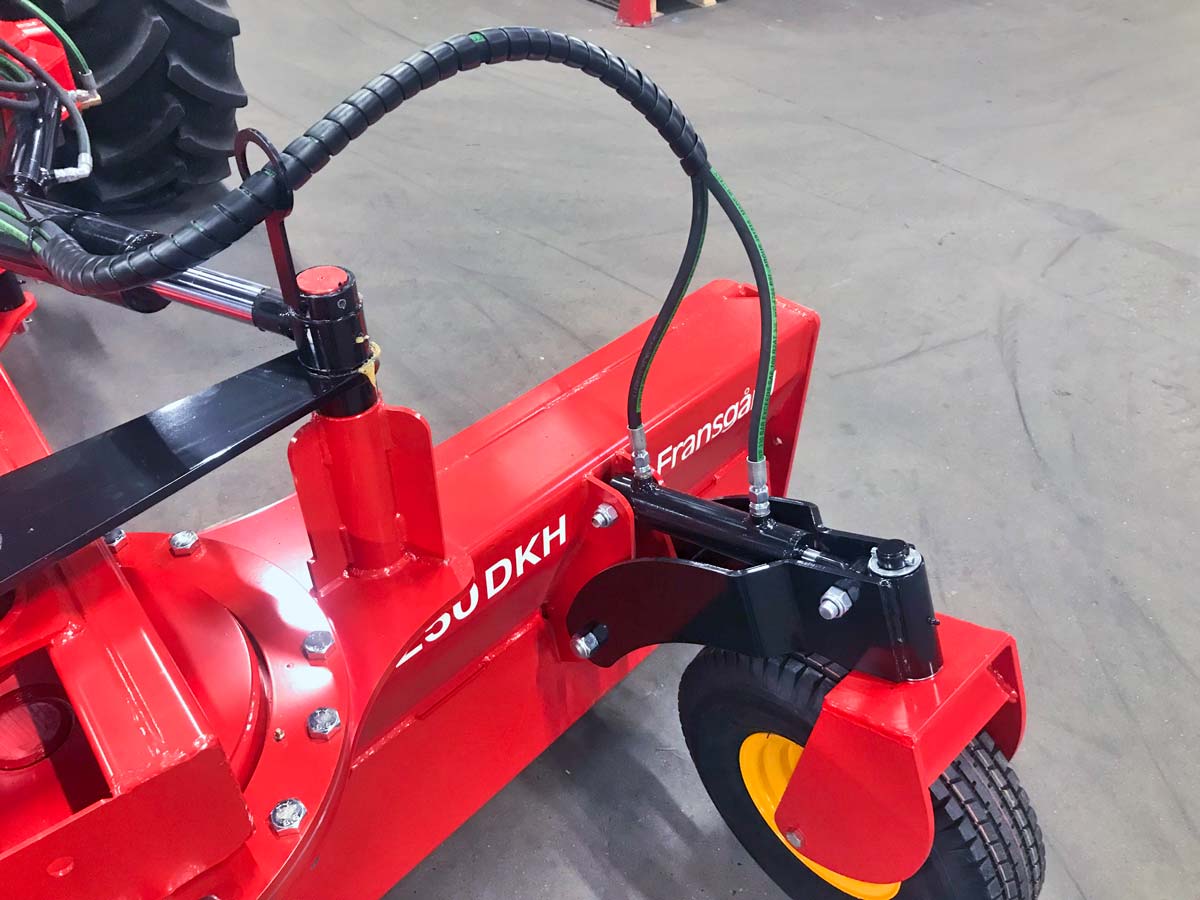

Item No. 2532

Hydraulic cylinder for adjusting the right wheel requires 1 double-acting hydraulic connector.
Button

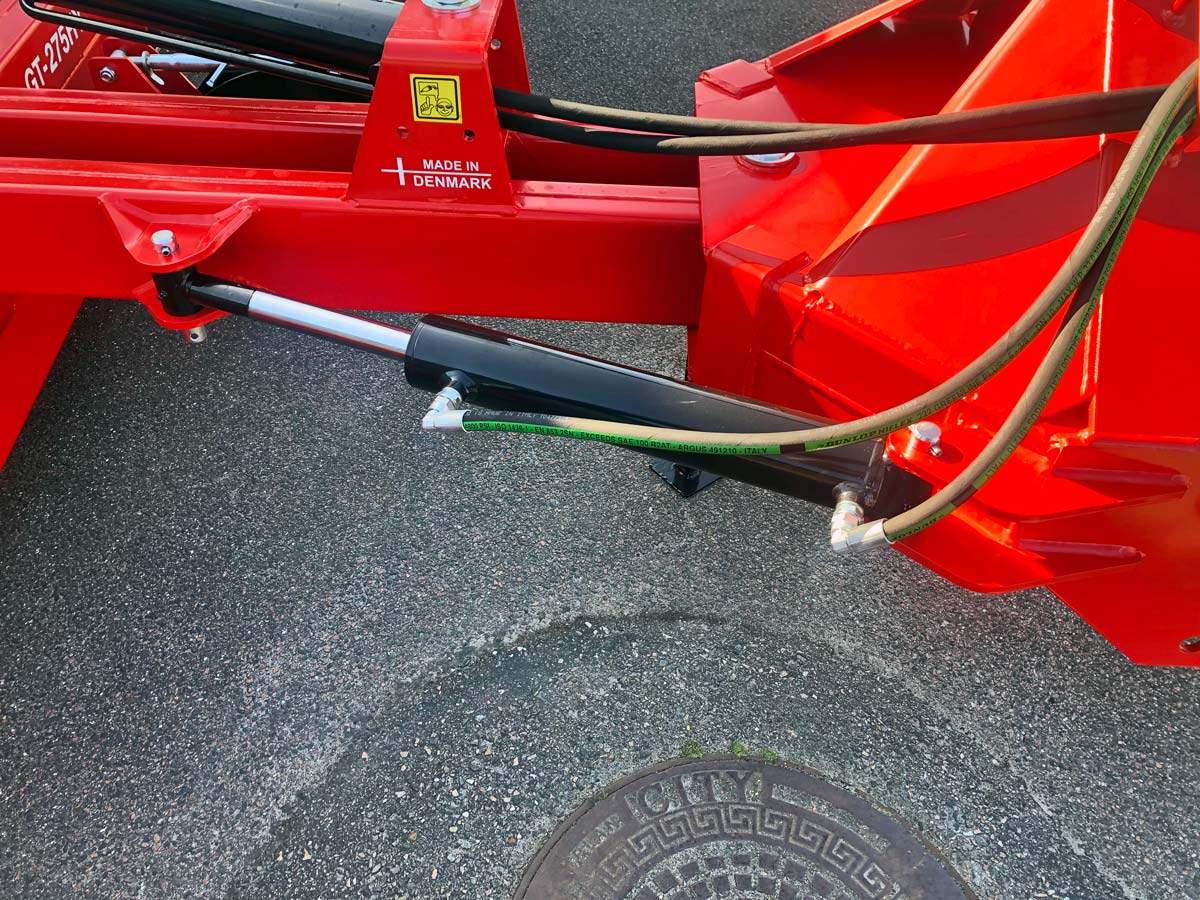

Item No. 2528

Hydraulic offset adjustment can shift the blade up to 55 cm to the right or left side, so you don't have to drive with the tractor wheel in the ditch, for example.
The hydraulic cylinder allows the blade to have offset adjustment exactly to the required distance if space is at a premium.
Button
Item No. 2517-2520

Rubber blade for mounting on all Fransgård models of levellers. The rubber blade is mounted behind the existing wear steel, which acts as a backstop on the rubber blade. It should be fitted 2-3 cm lower than the wear steel and can be continuously moved downwards as it wears down. You drill the holes in the rubber blade yourself and mount it with the bolts provided.
Button

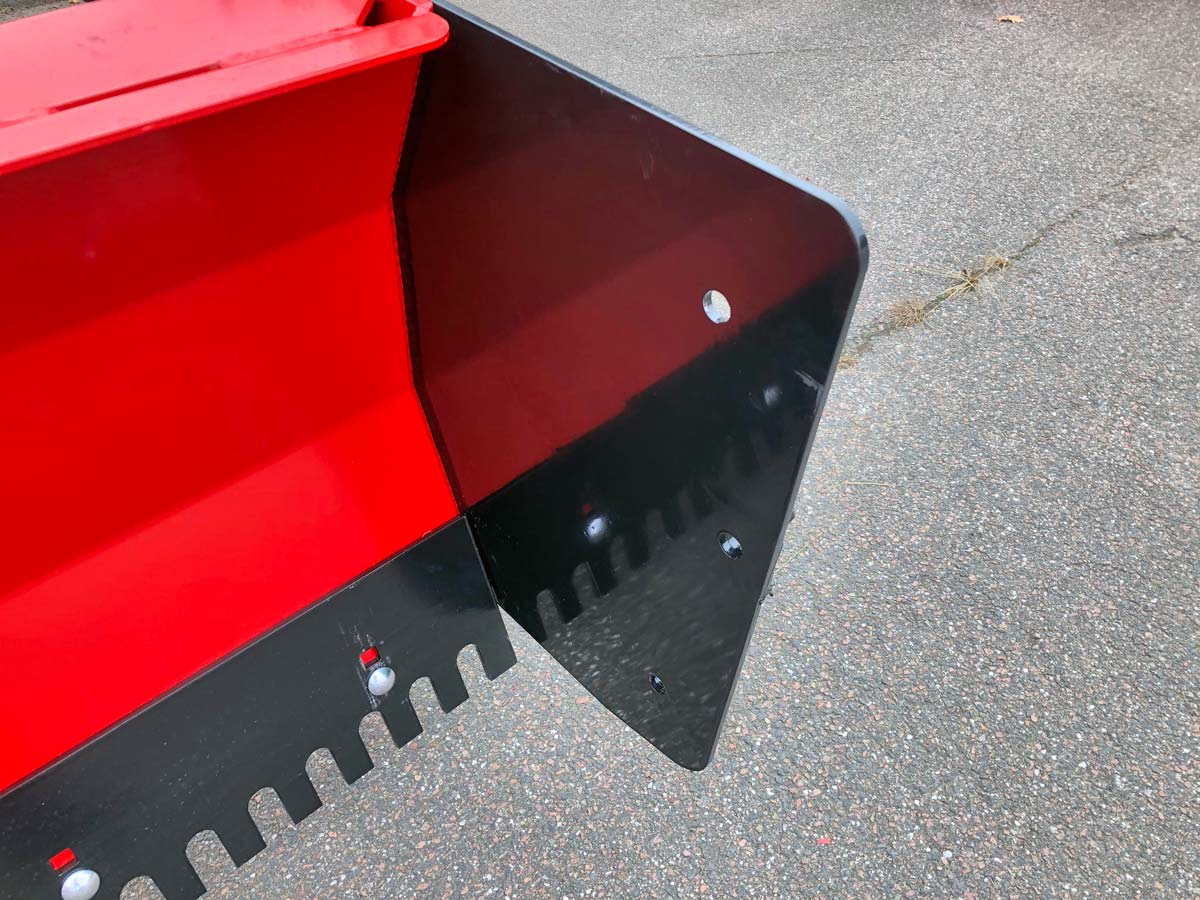

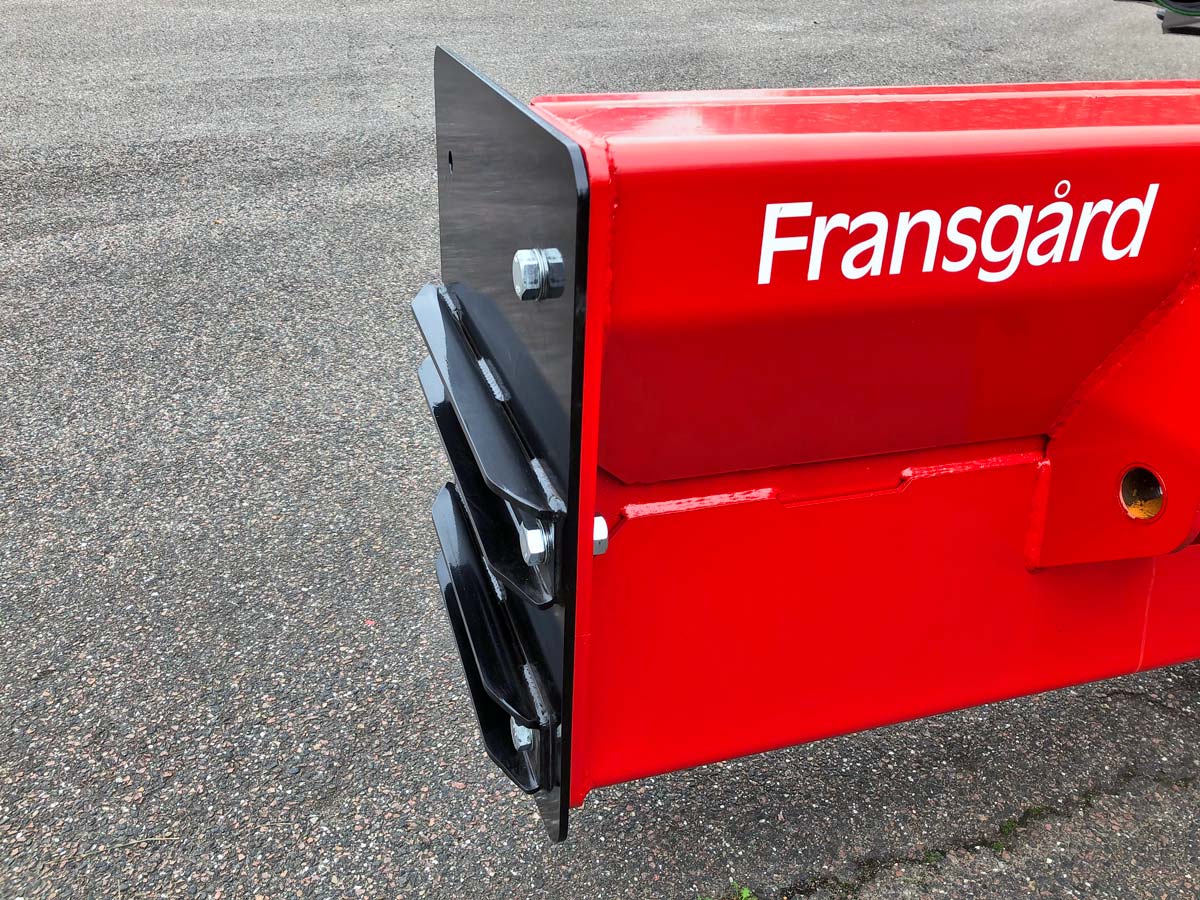

Item No. 2530

Side flap to hold the material. Can be mounted on both the right and left side.
Button
Item No. 2530

All Fransgård's newer levellers are ready for mounting side flaps and are easily mounted with the 3 bolts provided.
Button

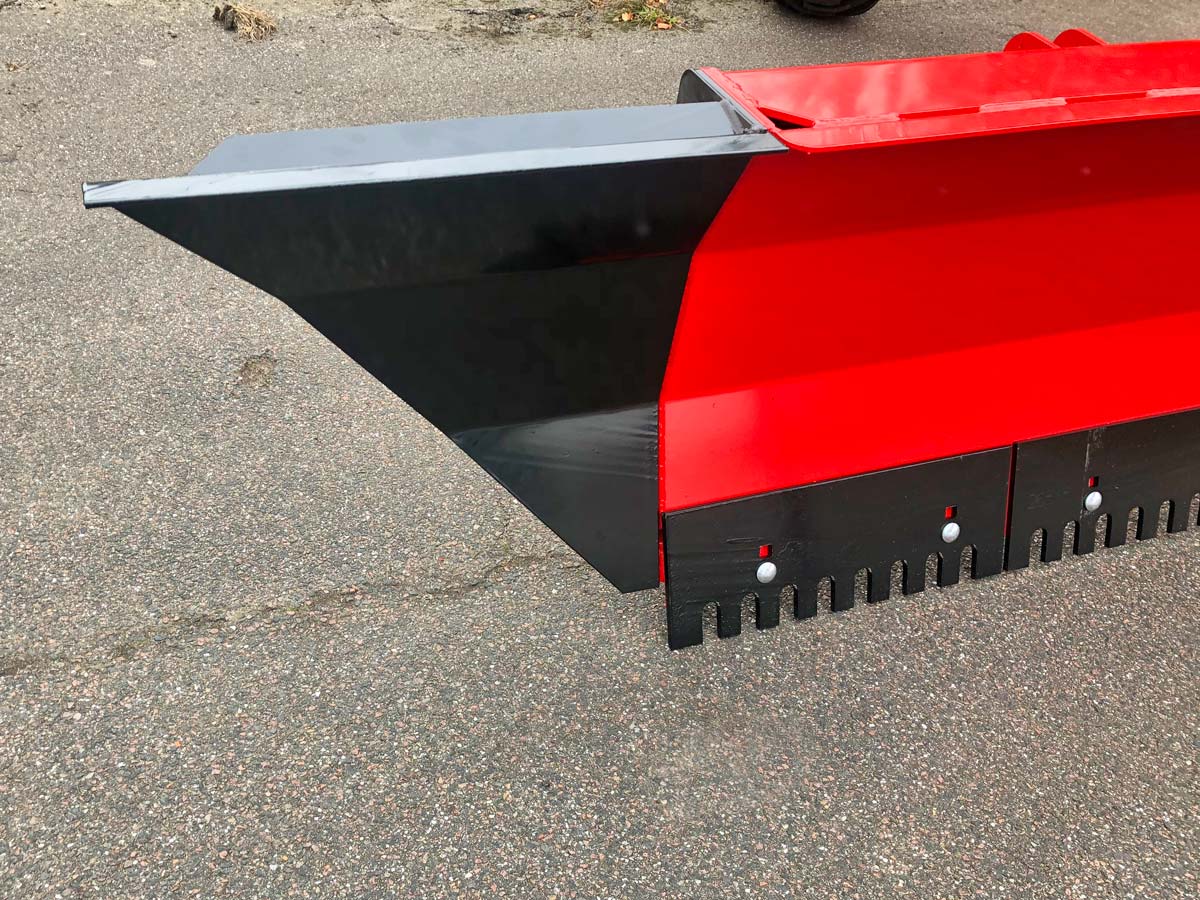

Item No. 2546

Snow blade for the right side that cuts the snow edge diagonally so that it does not collapse and in behind the tractor where you have just driven.
Button

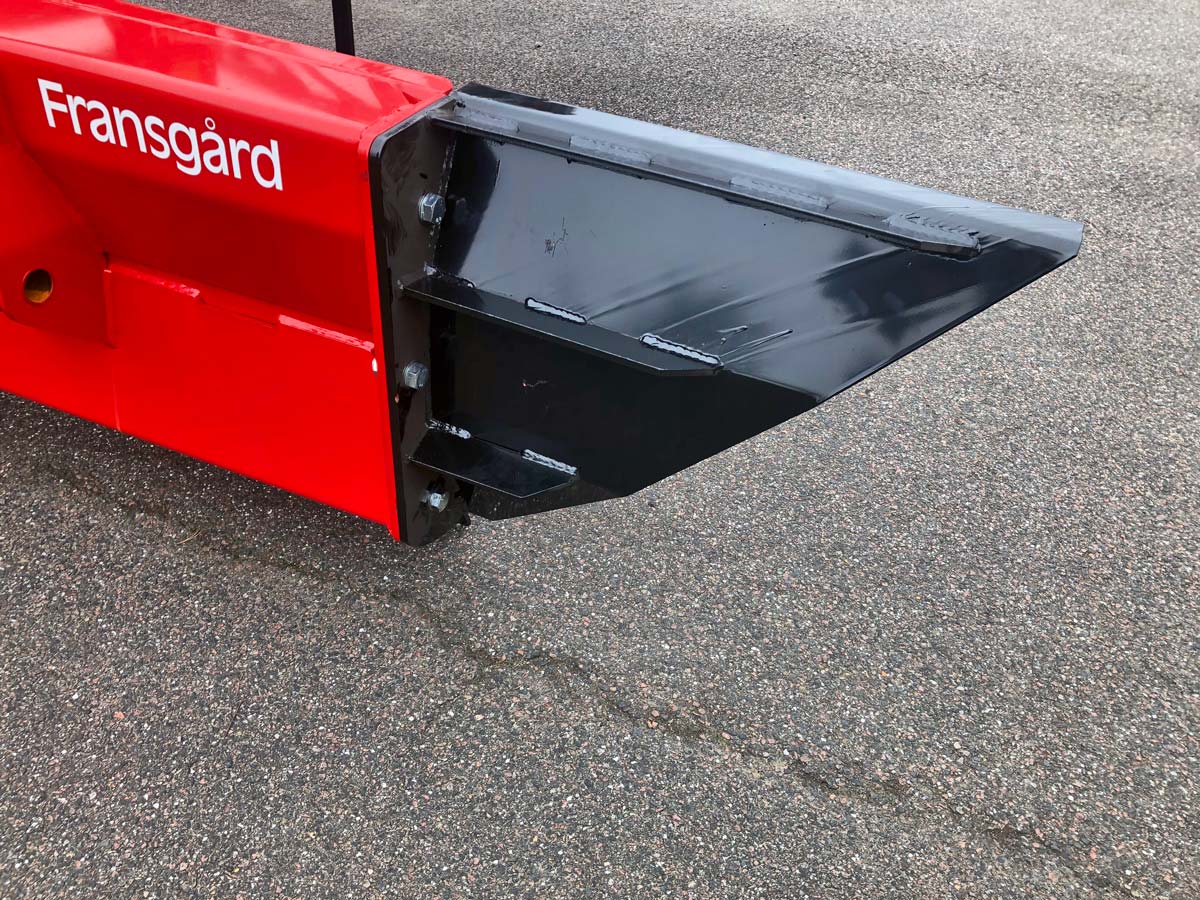

Item No. 2546

All Fransgård's newer levellers are ready for mounting snow blades and are easily mounted with the 3 bolts provided.
Button

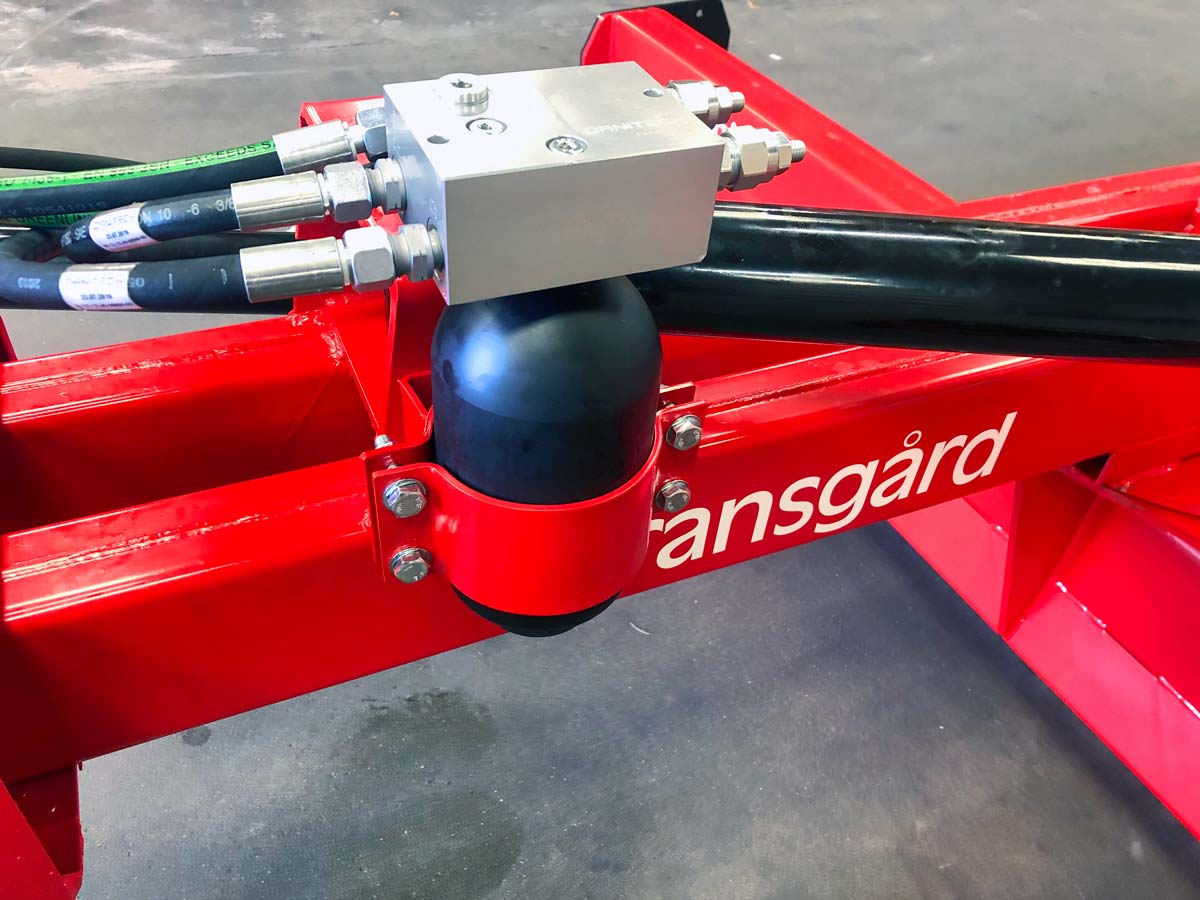

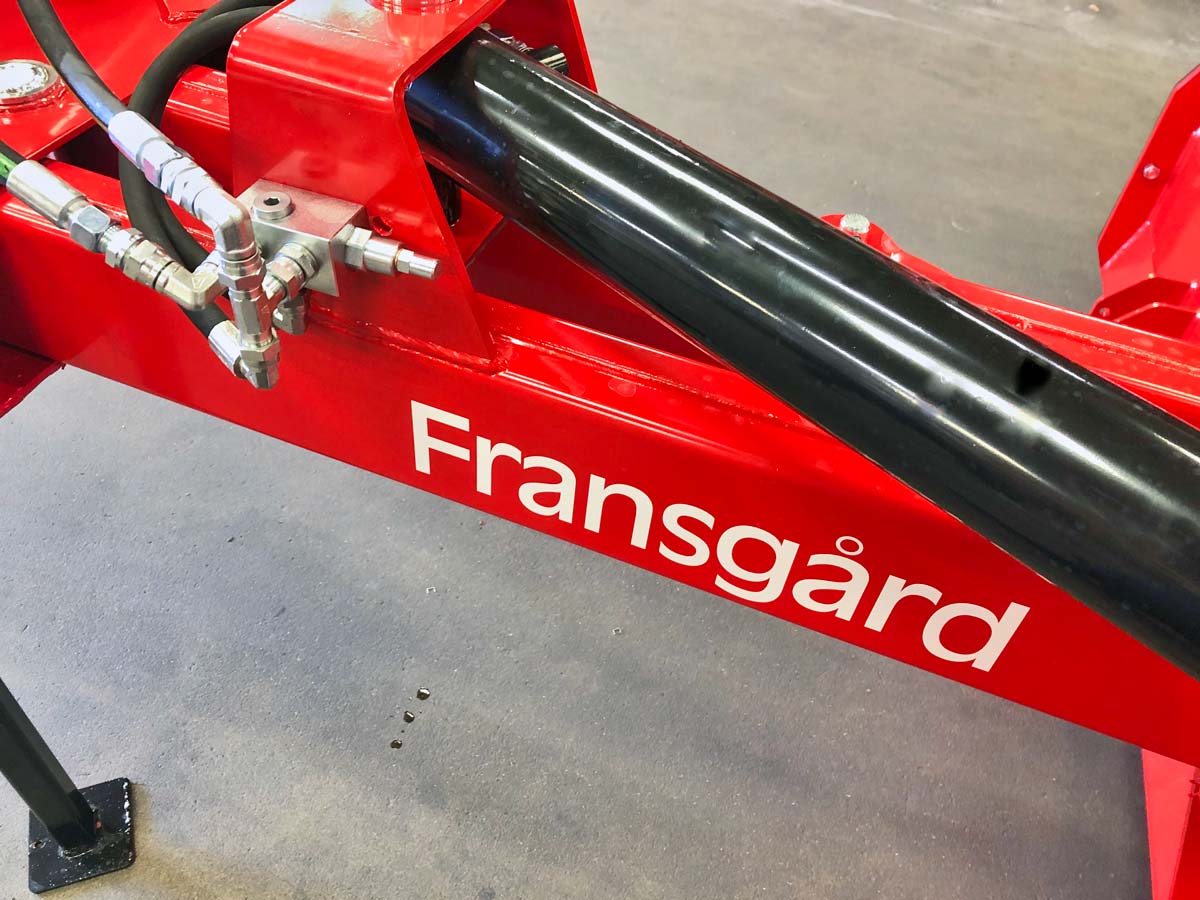

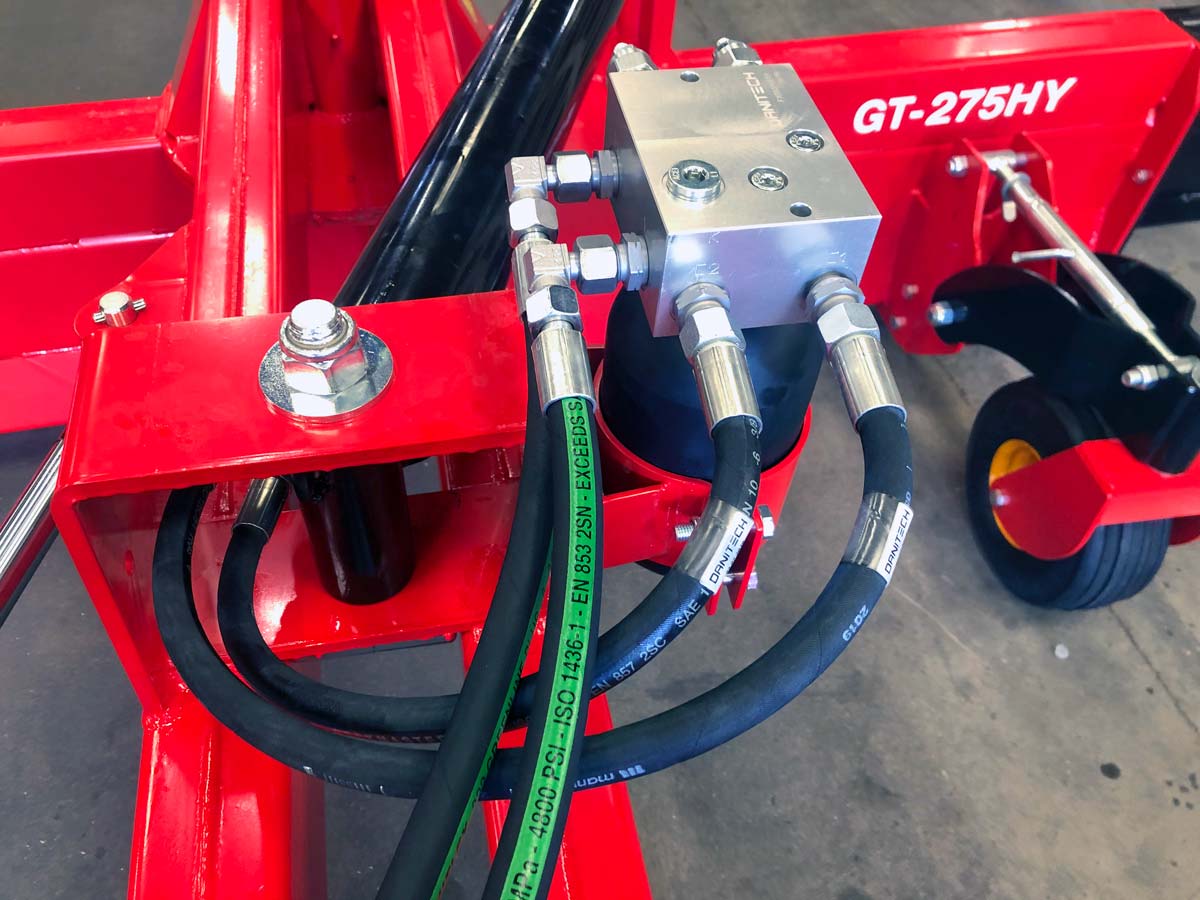

Item No. 2543

Shock valve with an accumulator for mounting on the blade cylinder of all Fransgård hydraulic levellers.
Button
Item No. 2543

The shock valve will relieve the cylinder and the leveller when hitting objects and minor impacts, in both the right and left side of the blade. Supplied as a complete set with assembly instructions.
Button
Item no. 2549

Adjustable side flap with mechanical adjustment, so that the side plate is always perpendicular to the direction of travel.
Button
Item no. 2549

The side flap has adjustable wear steel.
