Crimper Intenso I-180Pro
Presentation
Crimper Intenso I-180 pro is Fransgård's newest machine for grass treatment. It is designed to achieve better feed quality. The crimper helps to break the wax layer on the grass, reduce drying time and decreasing nutrient loss.

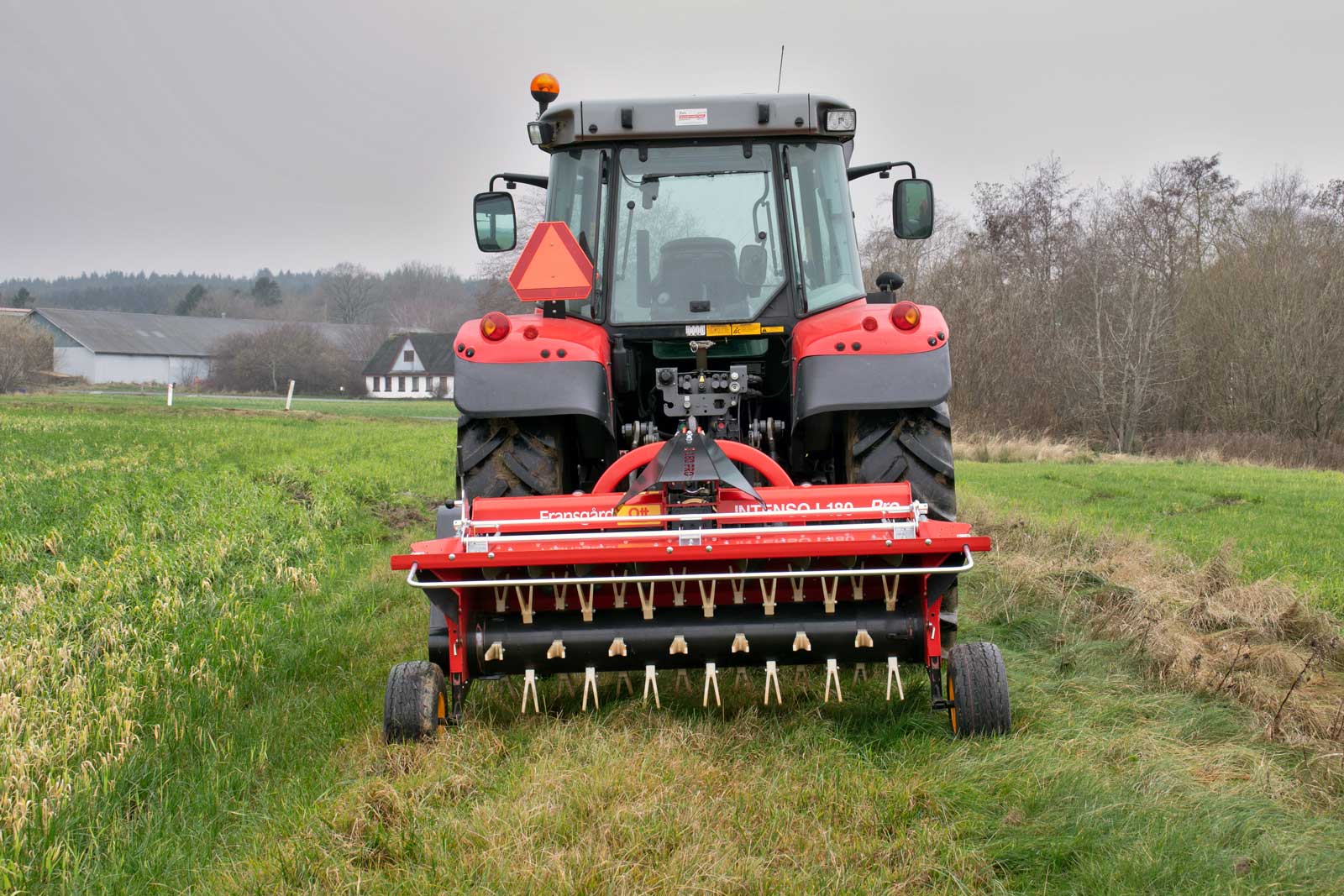

The machine is particularly suitable for use with a front swather, which provides good weight distribution on the tractor. At the same time, it is possible to maintain a high speed even with large volumes of material. The Intenso I-180 Pro makes a smooth, airy swath - even on the 2nd or 3rd crimp, making the job easier for the collector who has to process the material.
Effective in improving feed quality
Intenso I-180 Pro has a powerful closed rotor with 6 rows of strong Y-fingers in moulded plastic.
The crimper plate is coated with aluminium, which withstands the grass sap. The plate has 6 settings for the intensity of the crimping and both inner and outer swath plates, which ensure an even flow and the proper distribution of the material.
4 v-belt drives fitted with a powerful tension roller, ensure optimal operation.
The machine can rotate in the suspension and is fitted with a transport lock.
Technical data
| Model: | Intensio I-180 |
|---|---|
| Working width | 180 cm |
| Transport width | 235 cm |
| Rotor number | 1 |
| Rotor diameter | 600 mm |
| Number of teeth | 42 |
| Number of v-belt drives | 4 |
| Number of wheels | 2 |
| Wheel size | 18.5 x 8.5-6 ply |
| Hydraulic connectors | - |
| 3-point suspension | standard |
| PTO connector rpm | 540 |
| Power requirement kW/HP | 22 / 30 |
| Working speed km/h | 0 - 20 |
| Weight | 510 kg |
Details

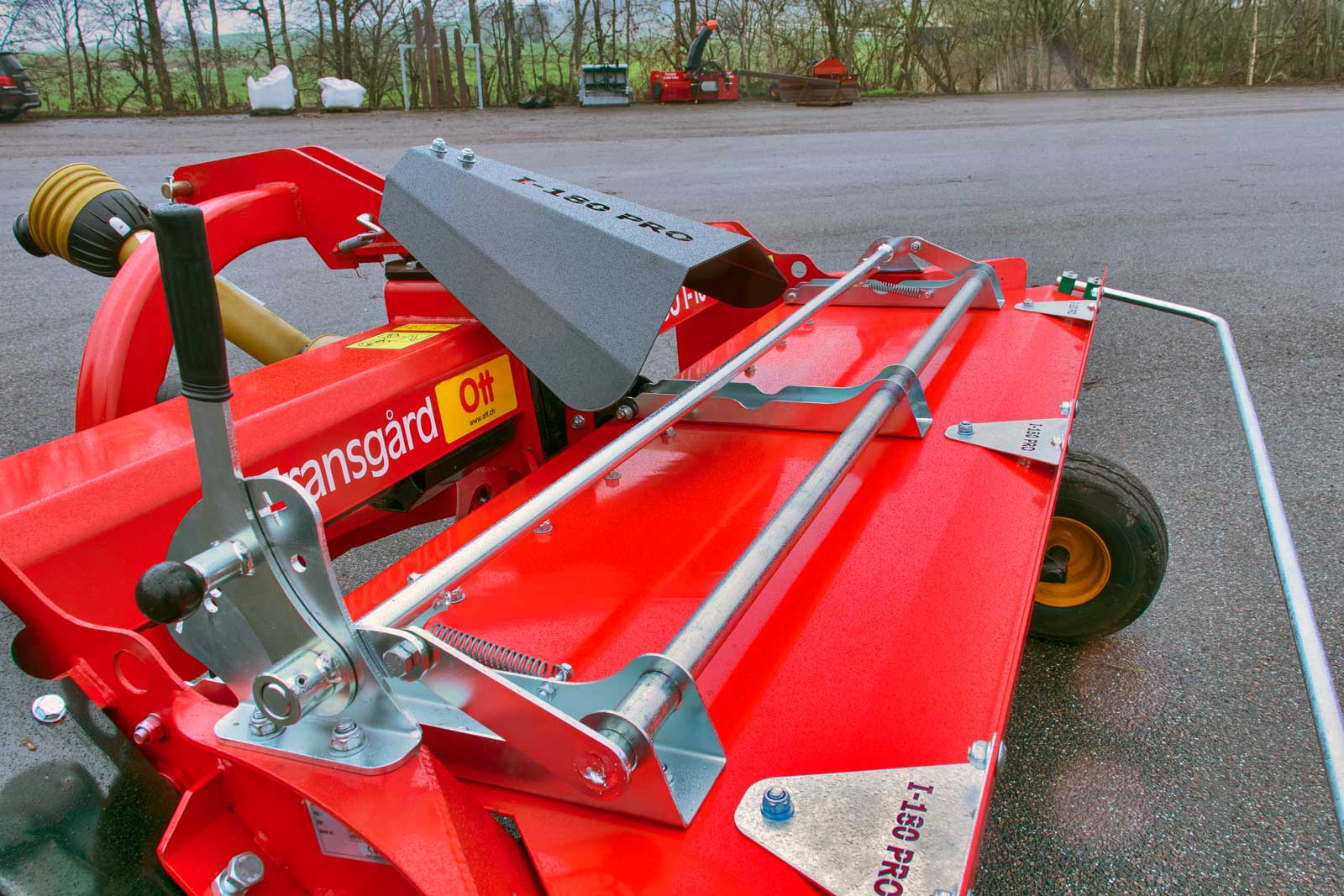

Top Plate
The strong top plate above the rotor gives a stable construction and you adjust the spreader blades via the slots on top.

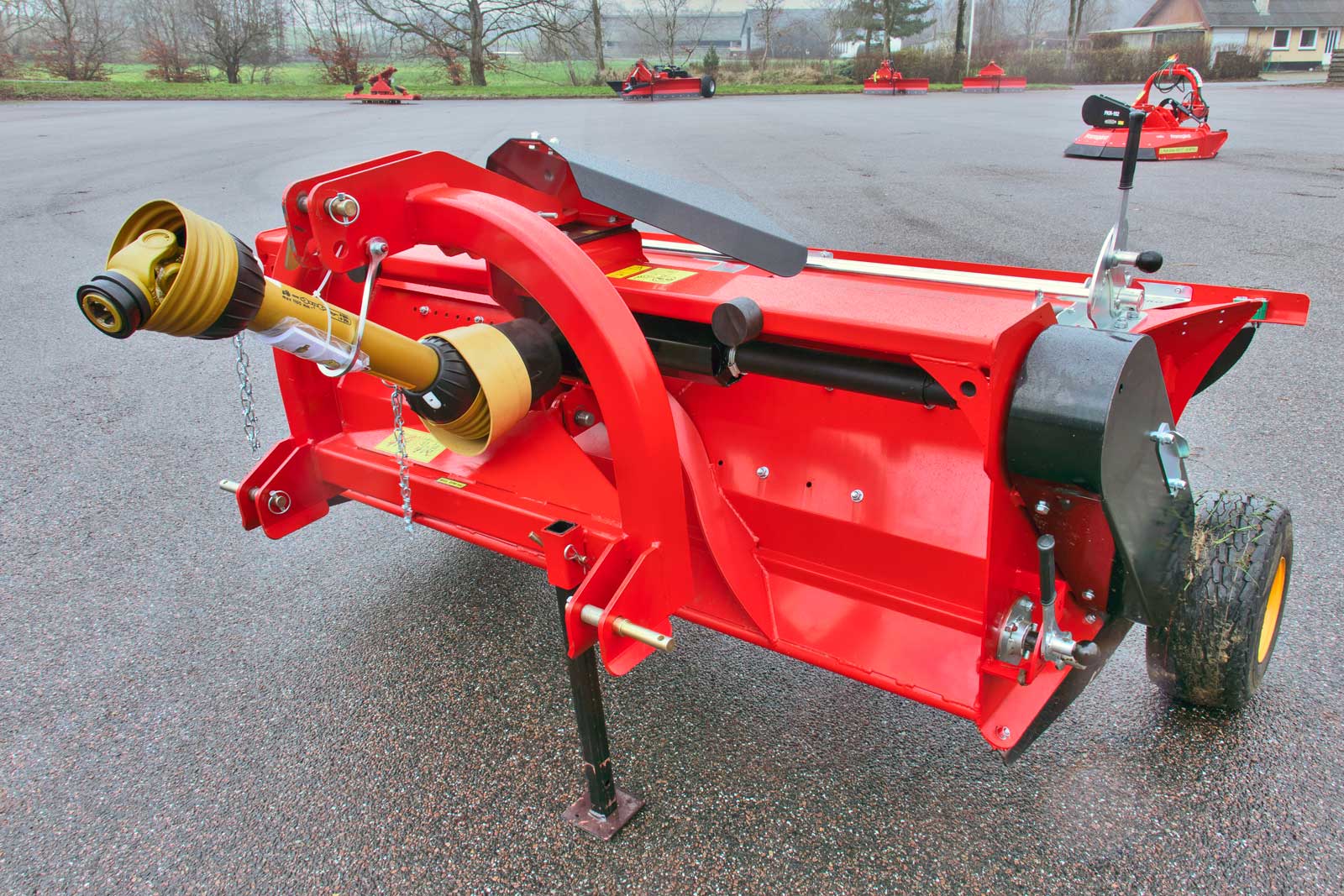

3-point hitch
The 3-point hitch is made of a rolled hollow profile and has a PTO hook that can be easily turned to the side.

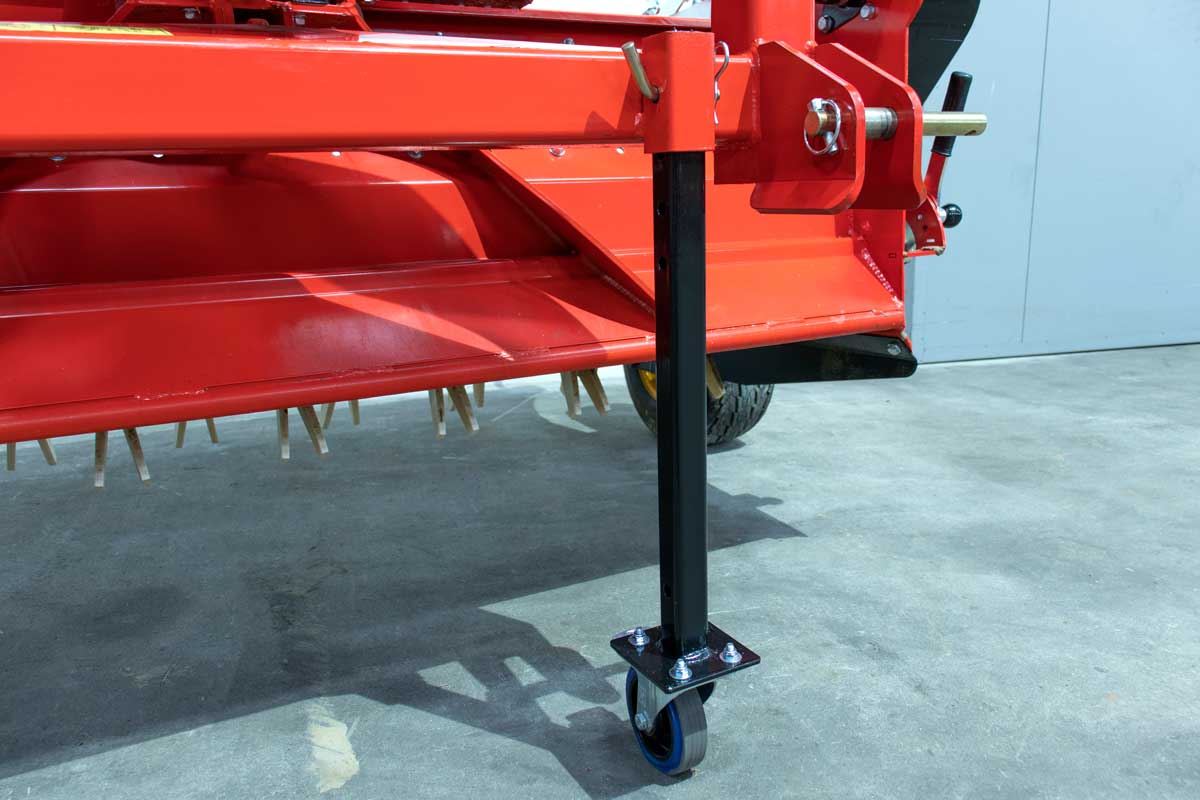

The support leg is pushed up when the machine is mounted on the tractor.

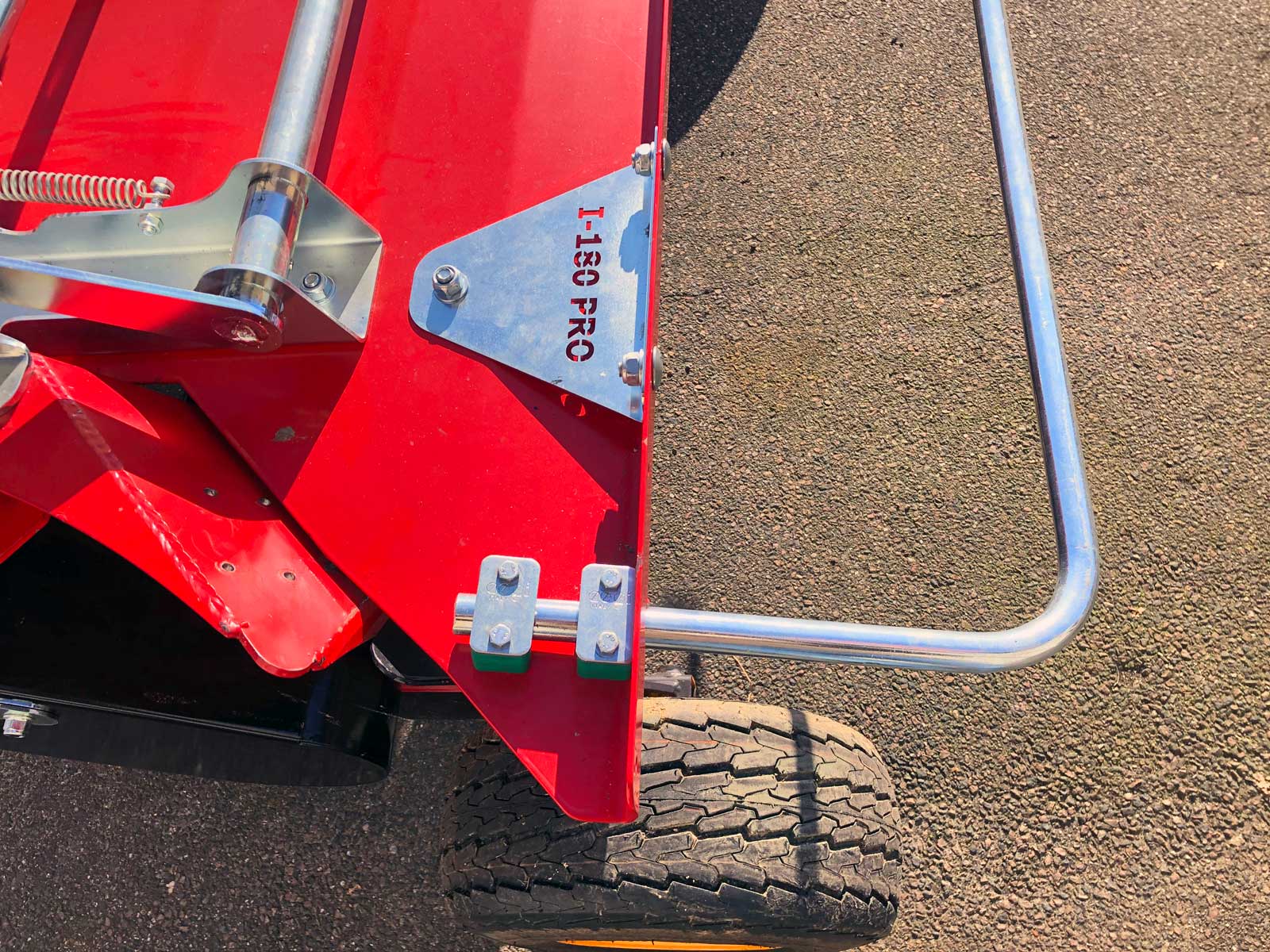

Pro protective bracket
Galvanised protective bracket is standard equipment.

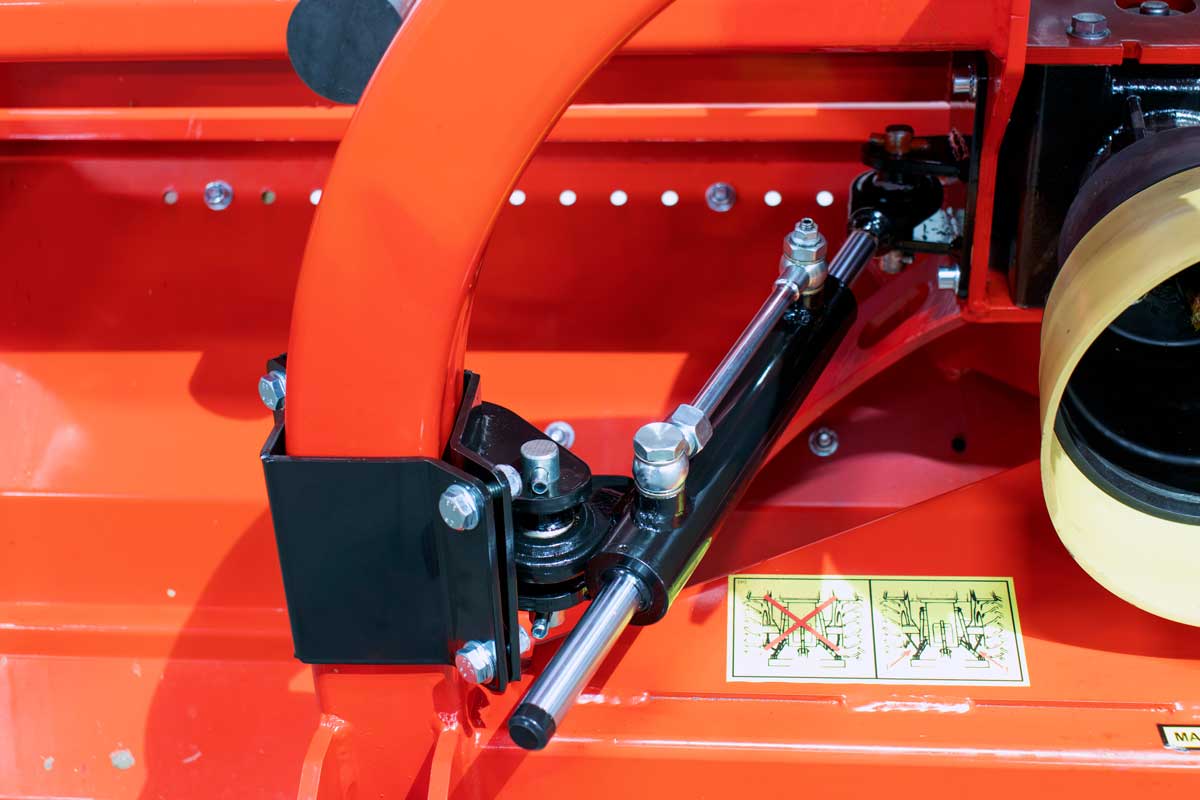

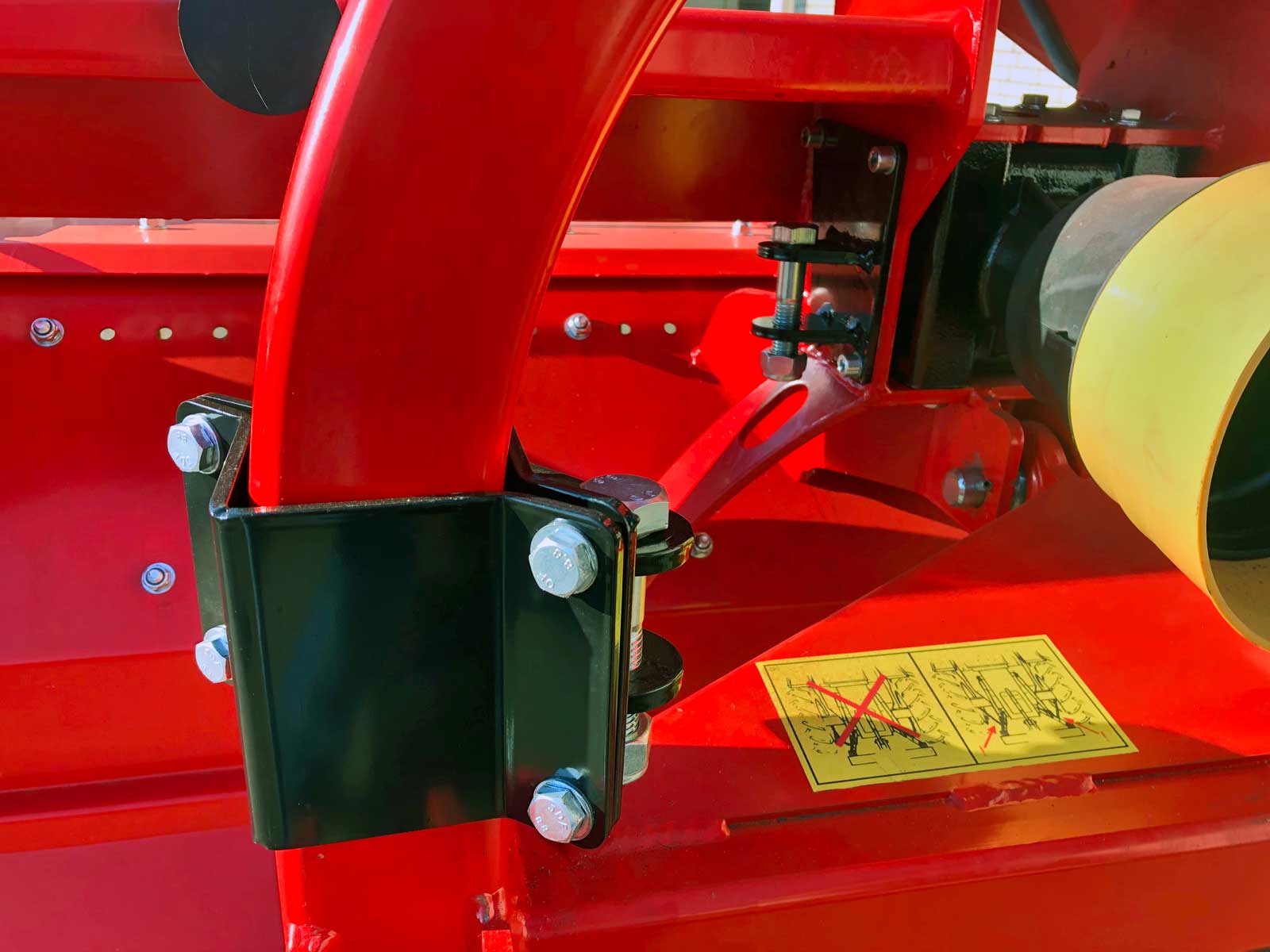

Pro bracket for the absorber
The crimper is prepared for mounting a shock absorber. Fittings included in the shock absorber kit
Item No. 4702.

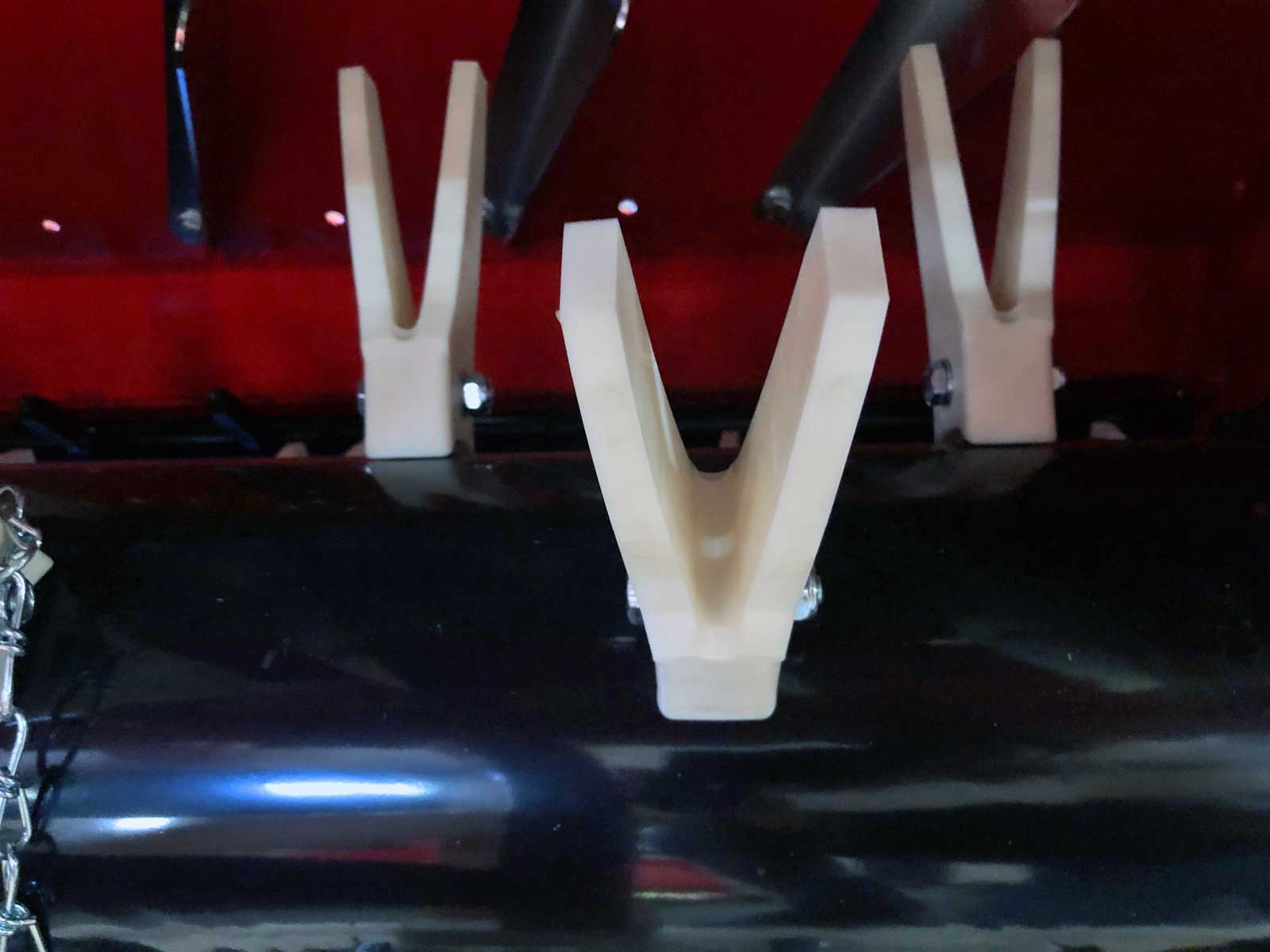

Fingers
Very strong nylon fingers shaped like a V provide optimal crimping of the material.

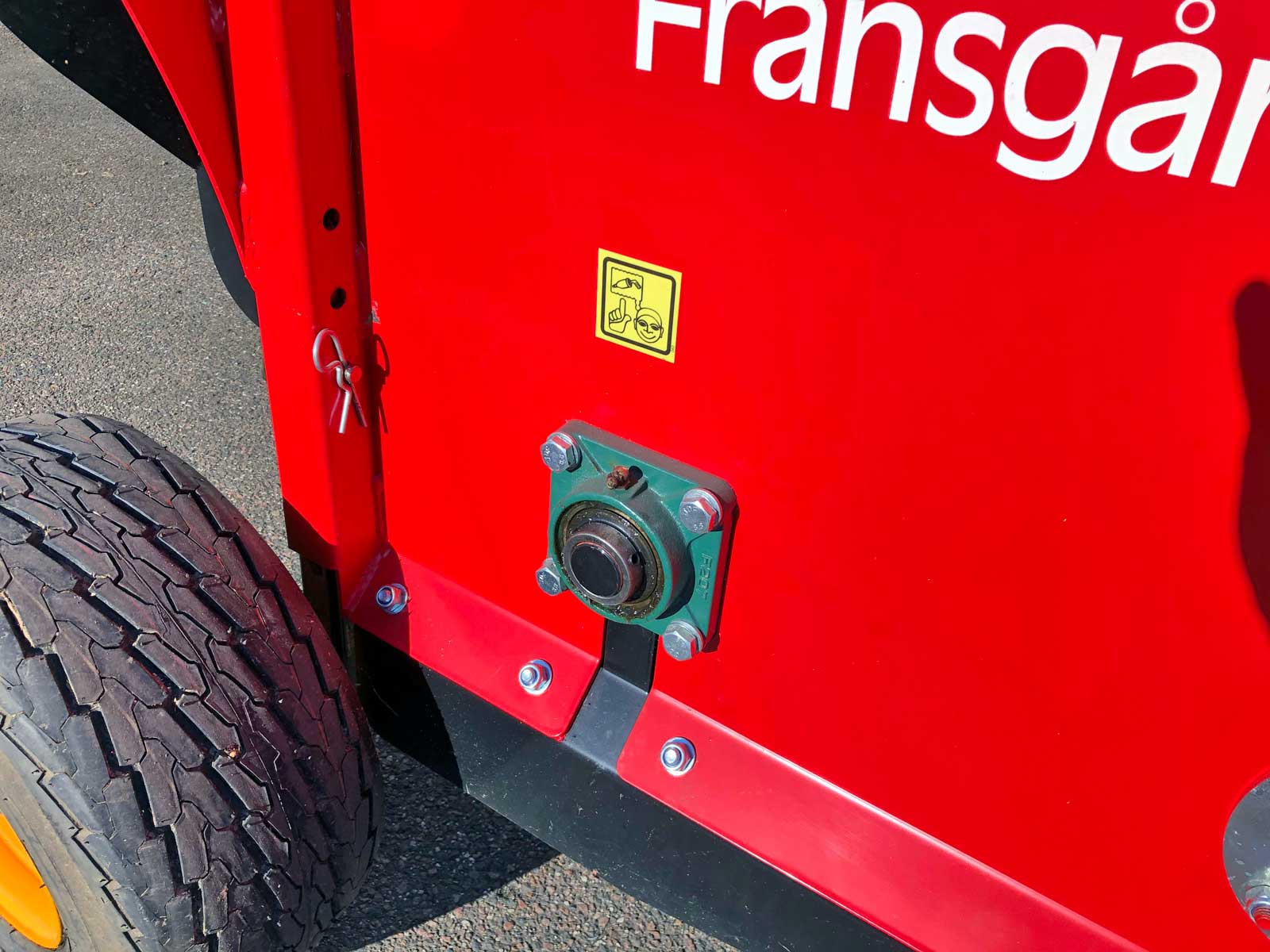

Flange bearing
Solid greasable flanged bearings give the rotor a smooth and stable rotation.

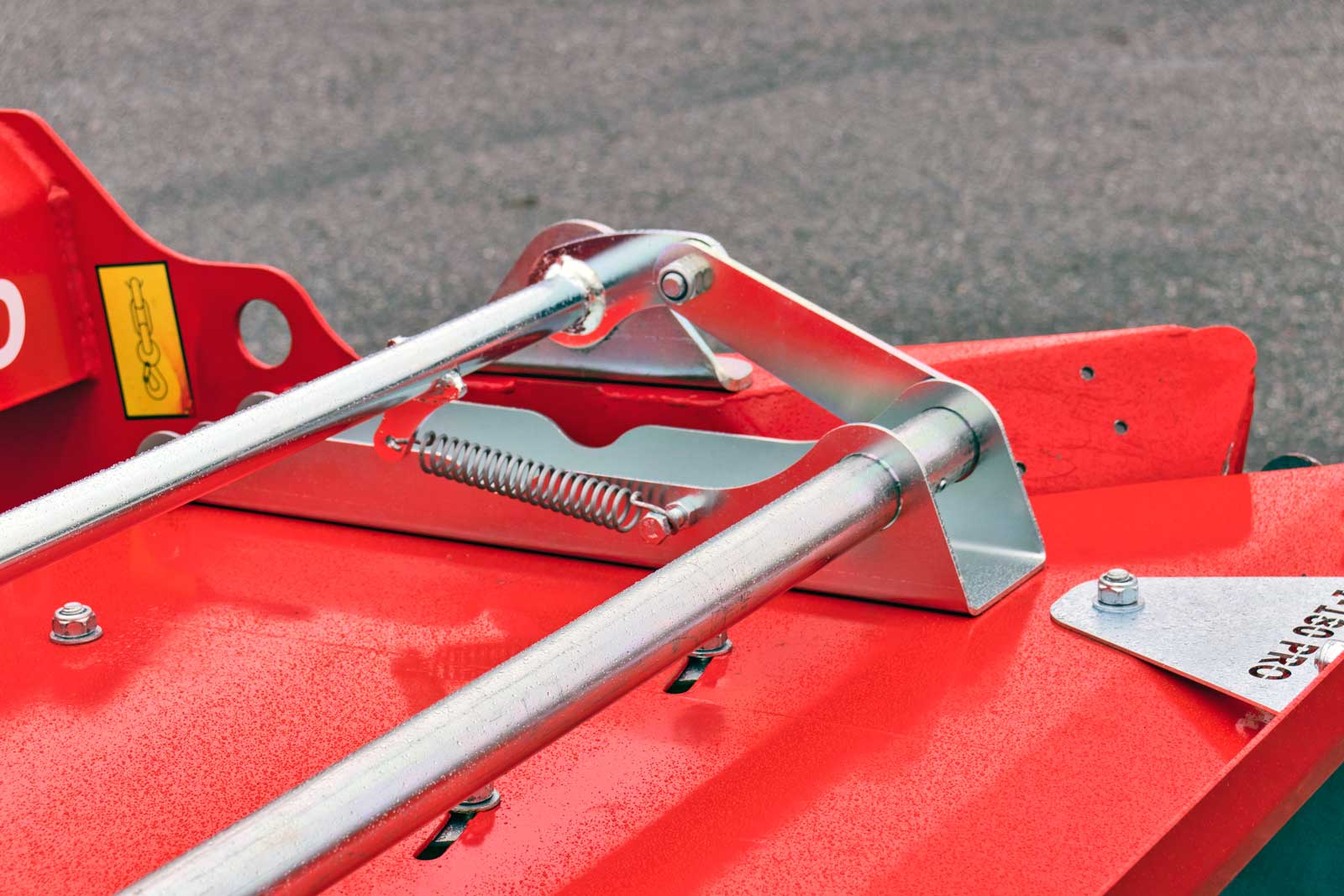

Galvanised bracket
All brackets, handles, bolts, etc., are galvanised.

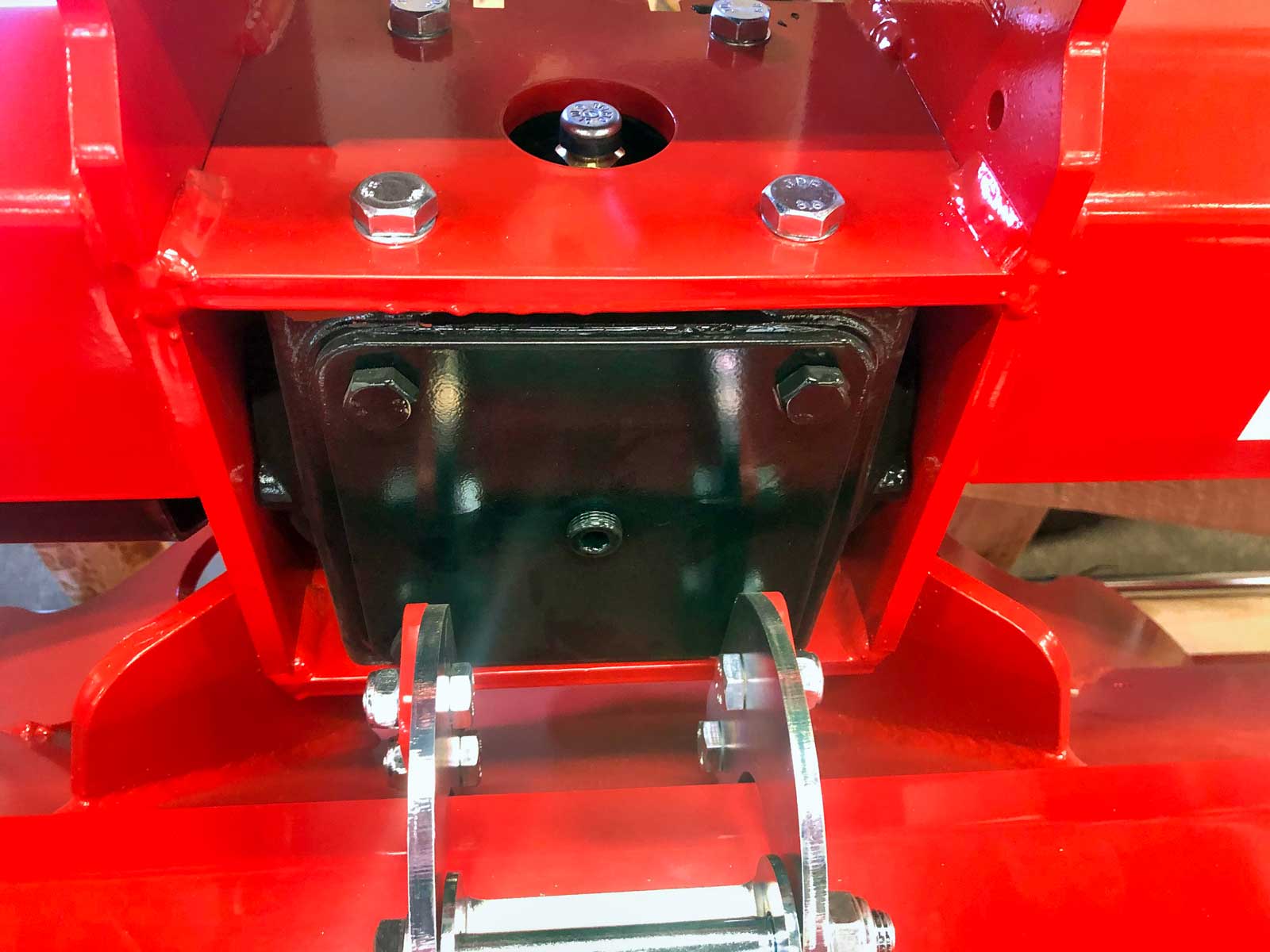

Gearbox
The heavy-duty angular gearbox with elevated venting is well protected in the main frame of the crimper.

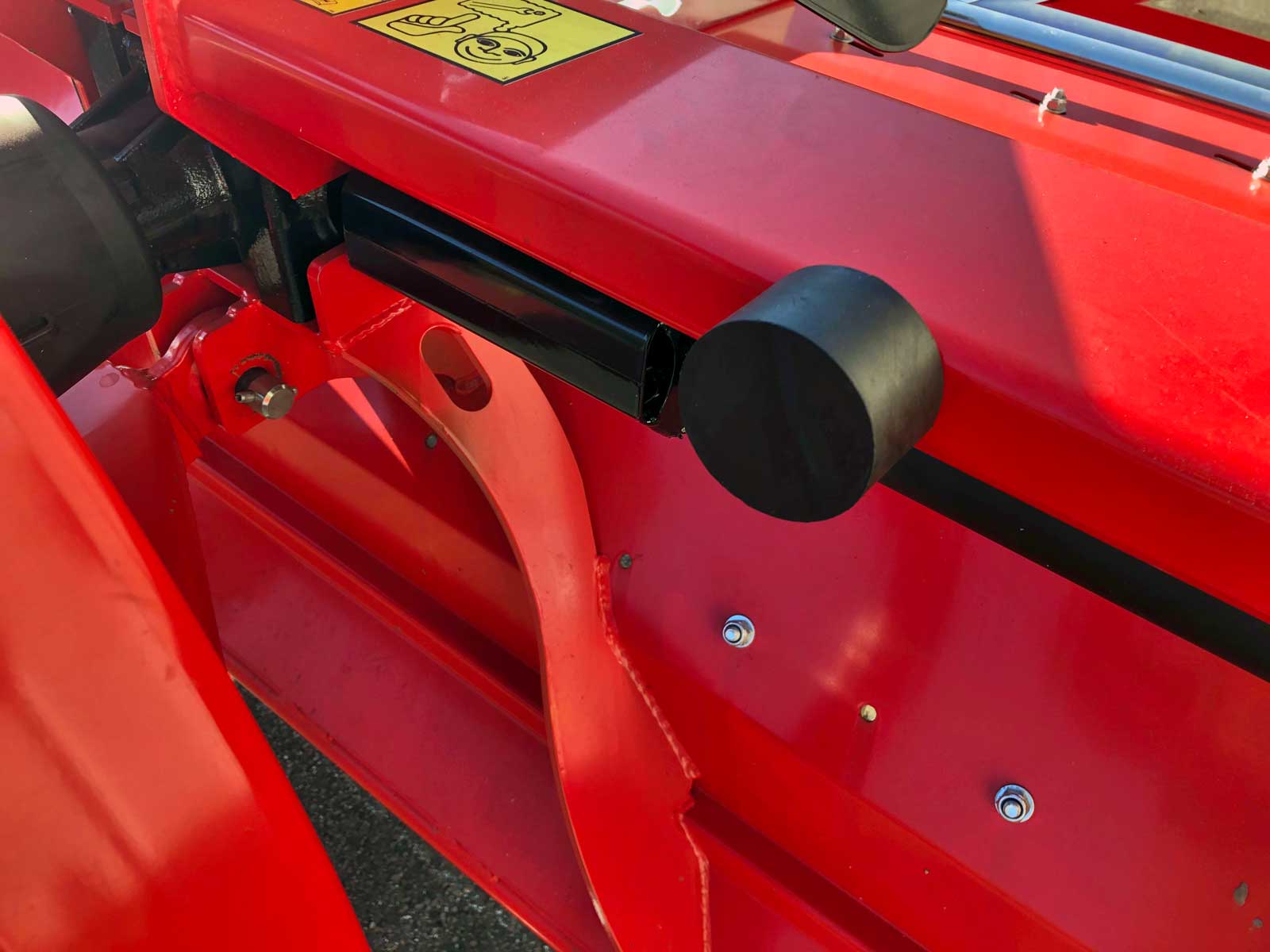

Rubber absorber
The 3-point hitch turns with it, so the machine has a very smooth turn and the 2 rubber absorbers act as a stop block for the turning radius of the hitch.

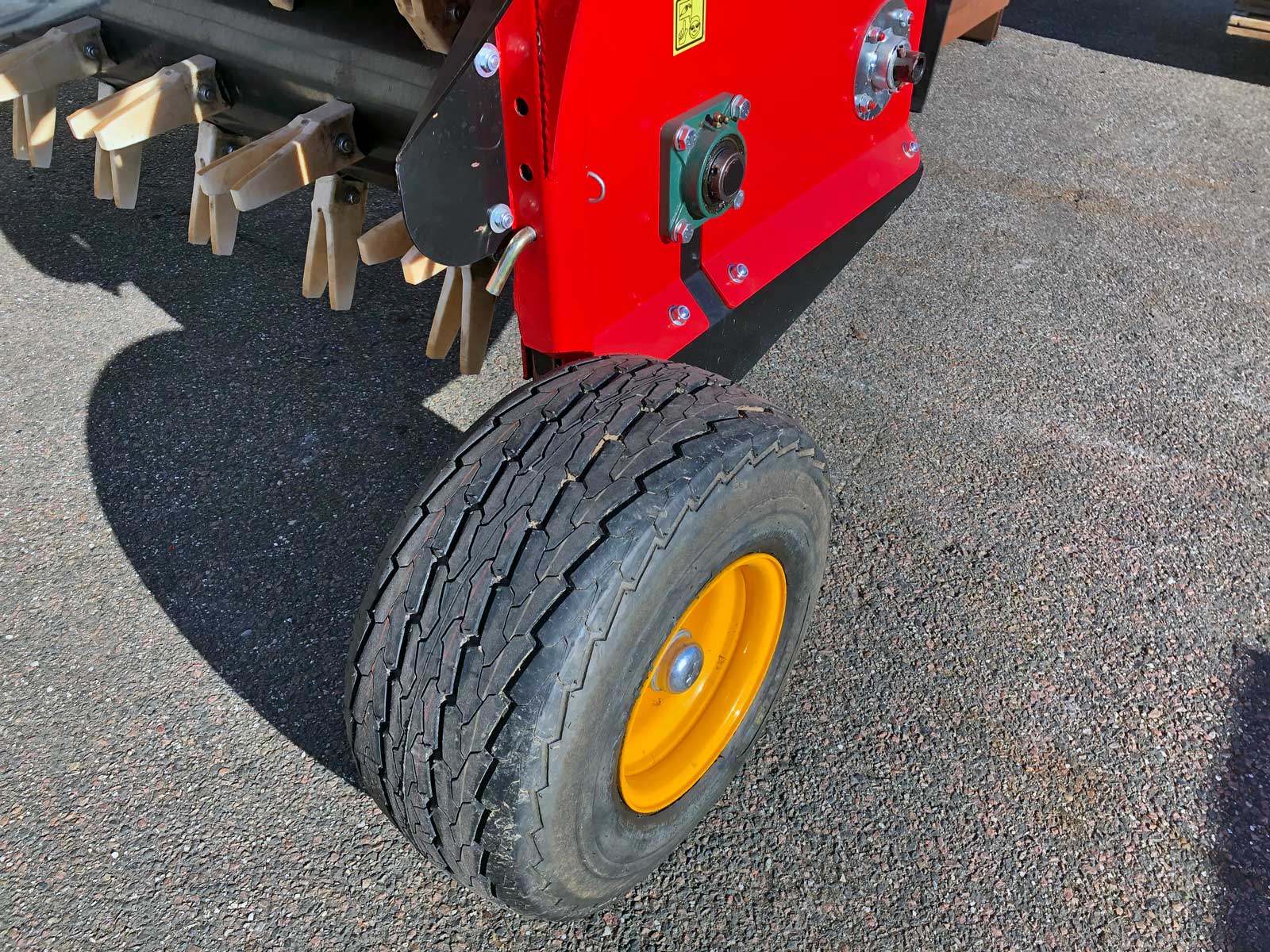

Wheels
Large fixed wheels ensure smooth operation even at high forward speeds. The wheel bracket can be adjusted to the desired height without using tools.

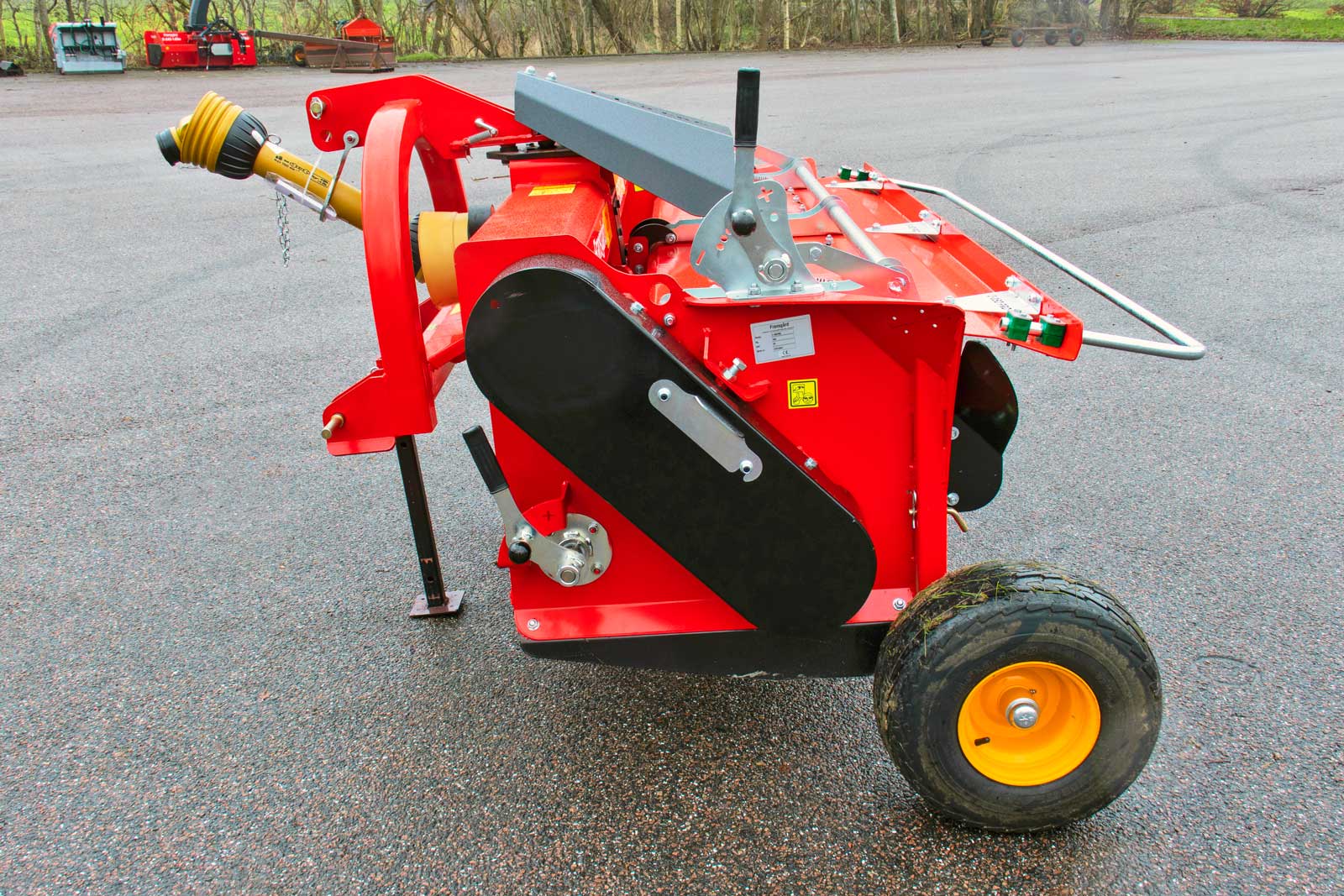

Main Frame
The main frame is made of special steel Domex 420 with many reinforcements in both the sides and the front plate.

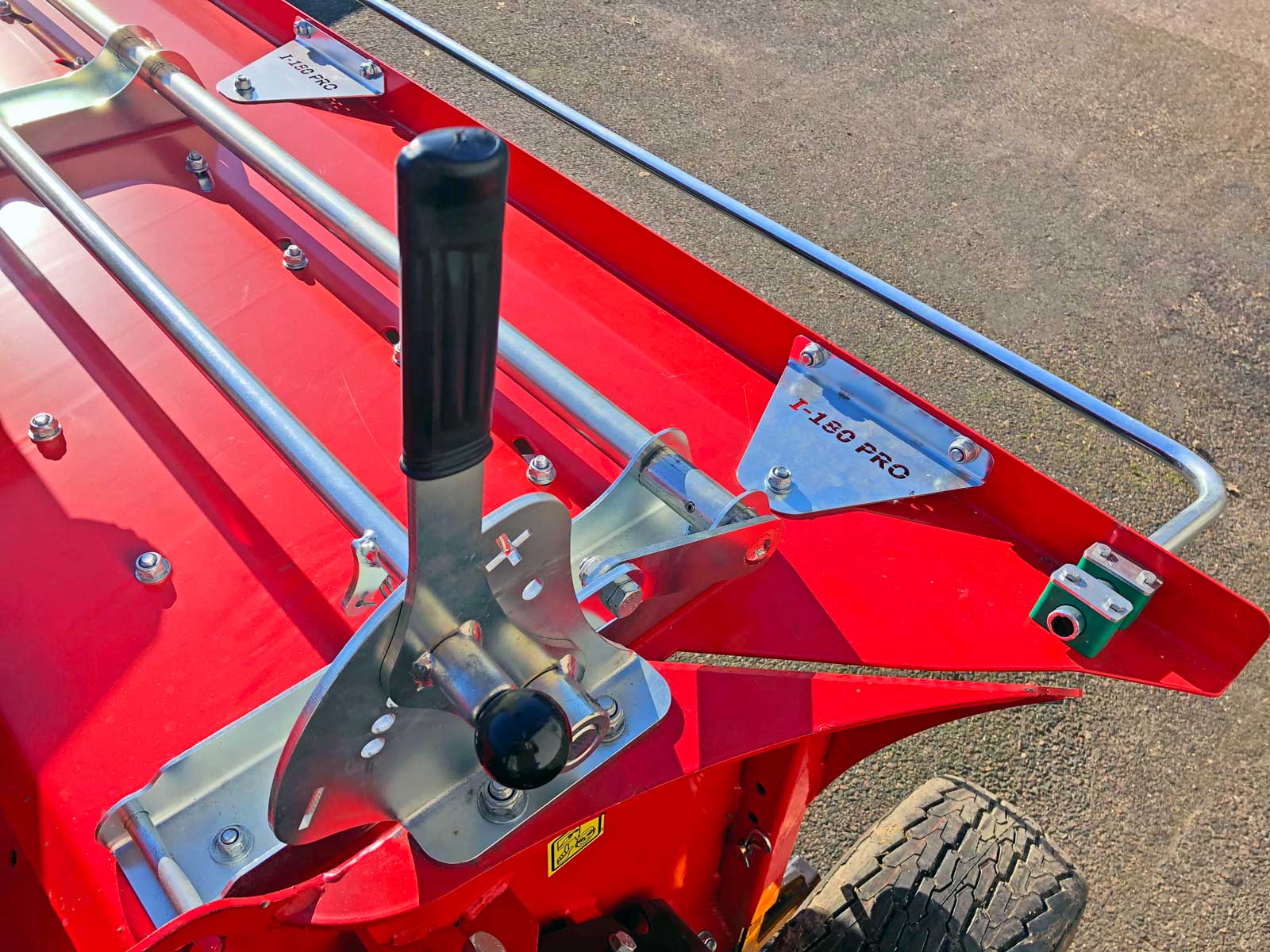

Handle crimper plate top
The handle with spring-loaded lock can adjust the upper crimping plate in 6 positions according to the quantity and desired crimping effect.

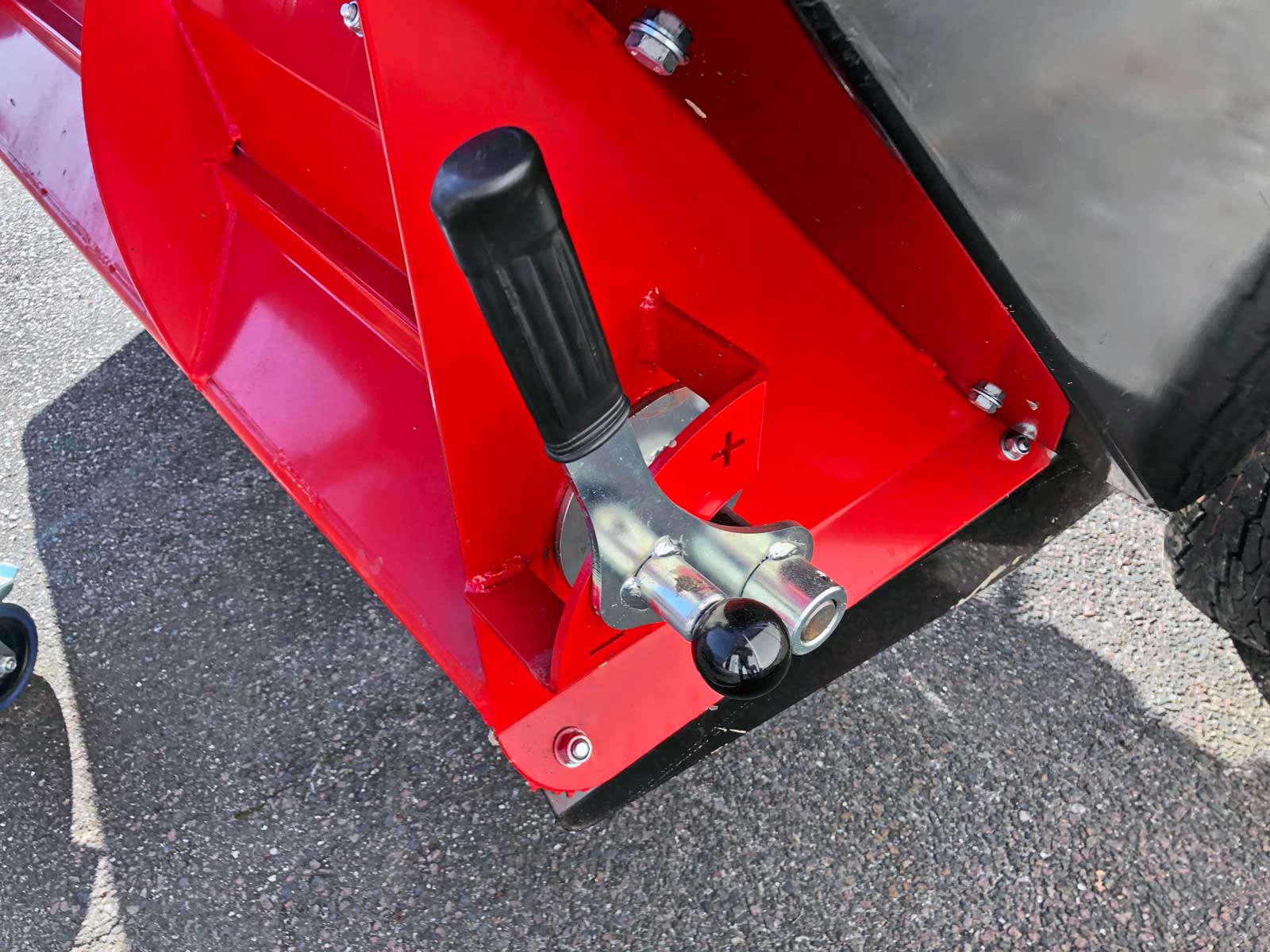

Handle crimper plate
The handle with spring-loaded lock can be adjusted according to how aggressive the crimping effect is desired and at the same time helps with a better distribution of the material.

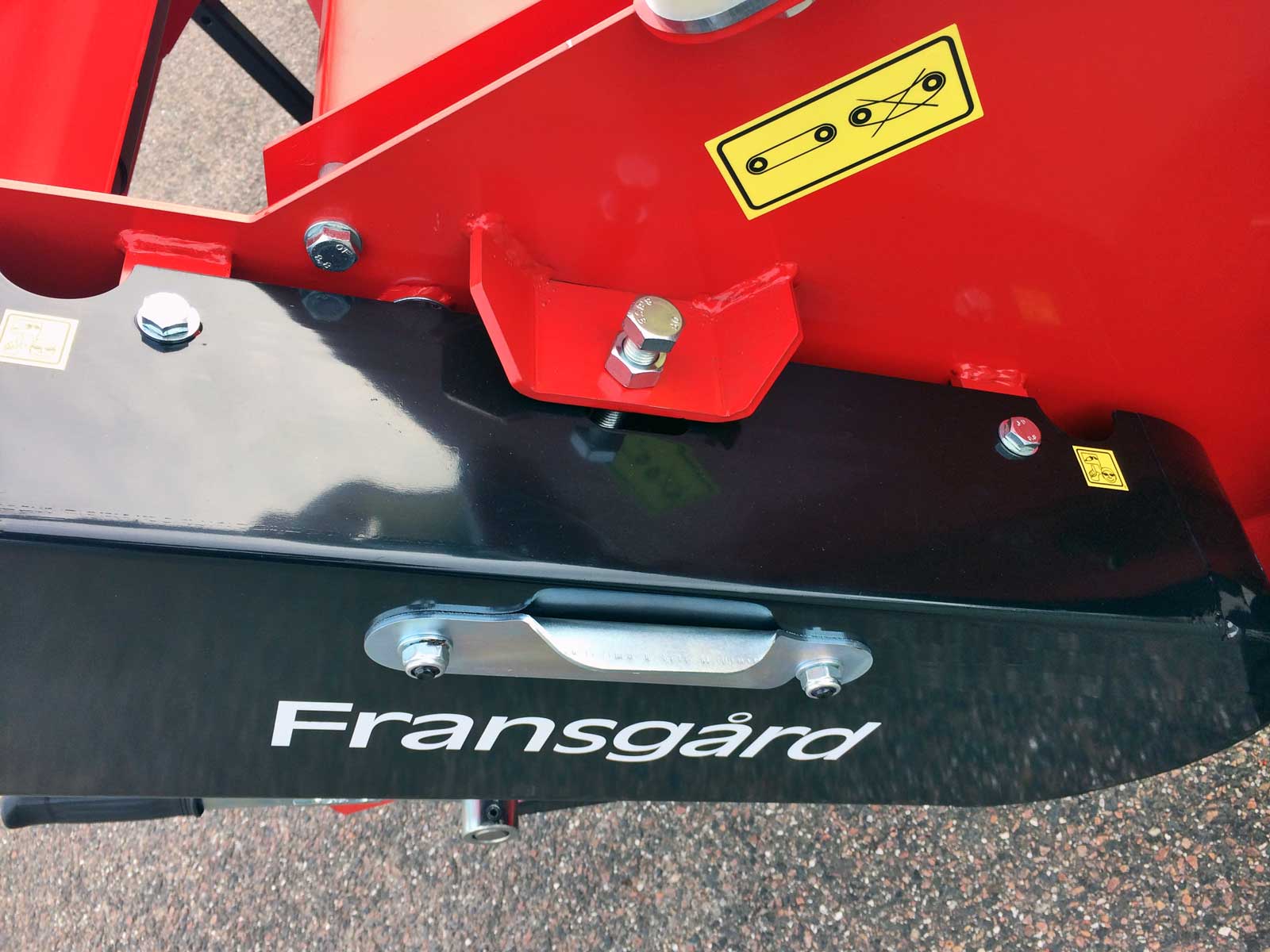

V-belt guard
The v-belt drive guard has a service hatch as standard, so you can easily check if the belts are tight, and at the same time you can also grease the flanged bearings and tighten the belts without removing the guard.

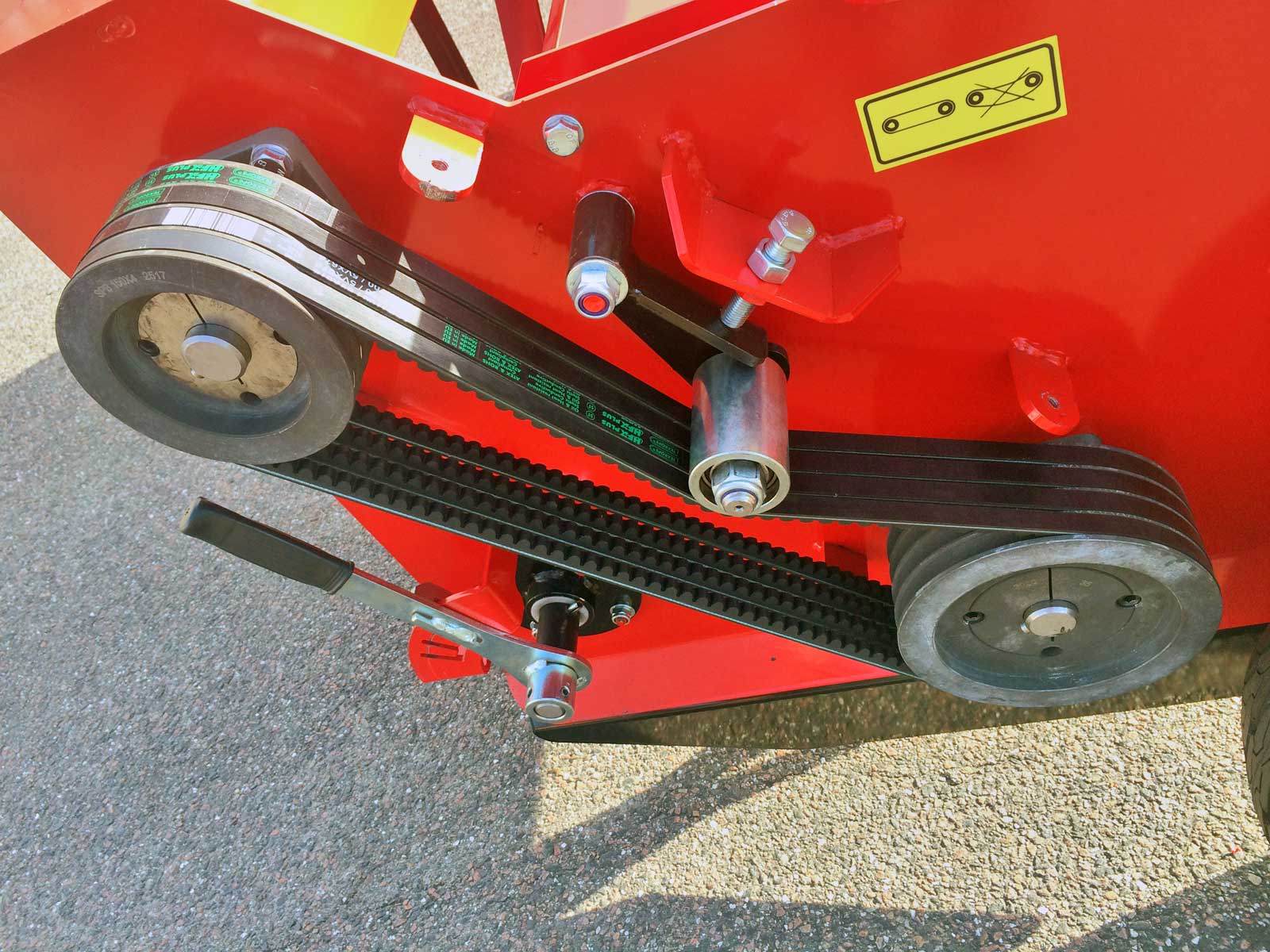

Belt tensioner
The belt tensioner presses the belt down in the middle, providing even more power and stability to the belts.

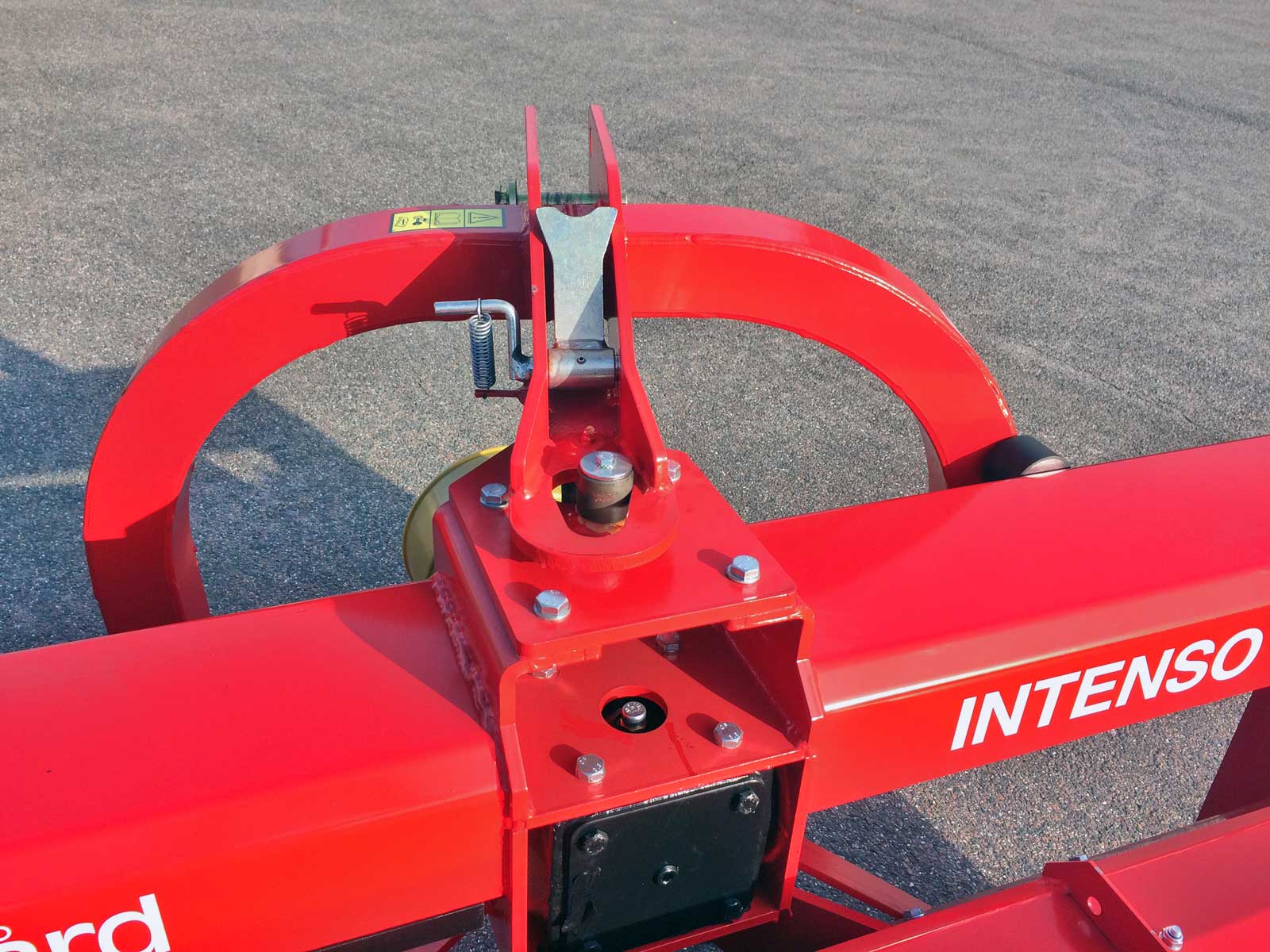

Transport Lock
The 3-point hitch has a transport lock that is activated manually and ensures that the machine hangs stably on the tractor during transport.

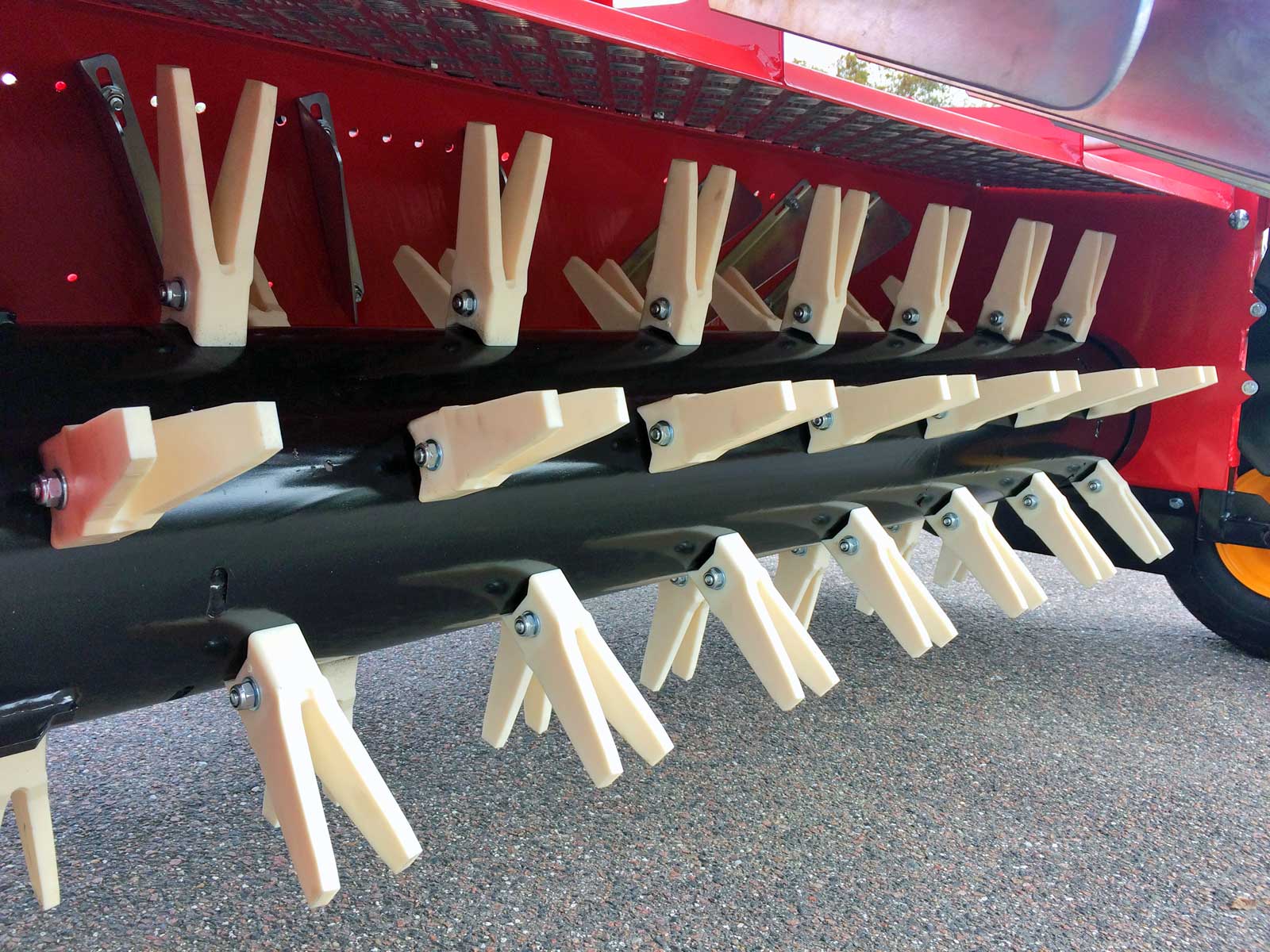

Rotor
The large rotor is made from one piece of pipe, which gives a robust and durable rotor. It also means that the rotor is completely closed, and you avoid material lying in the rotor, which creates an imbalance.

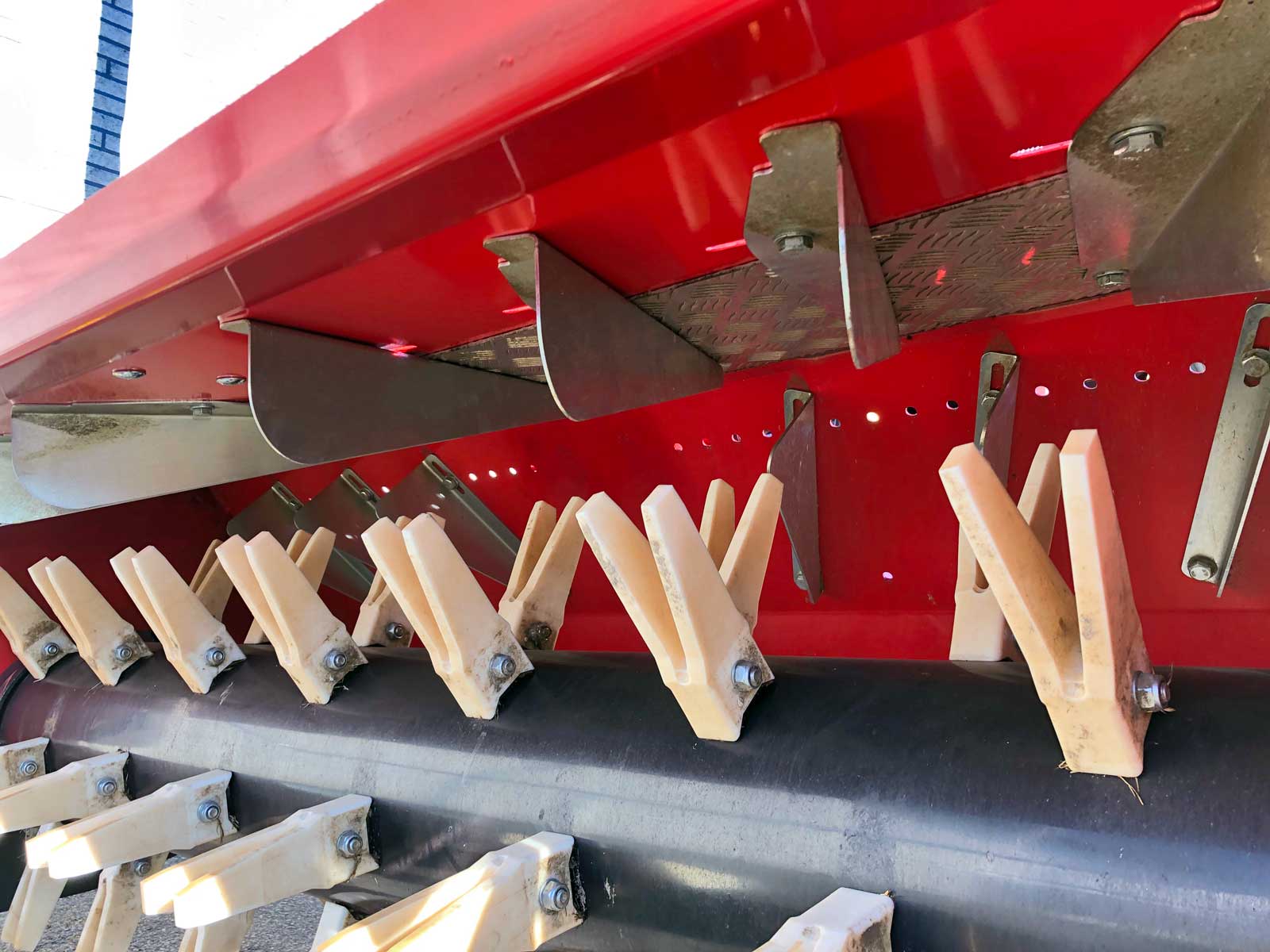

Spreader Wings
The galvanised spreader blades are located on the inside and are adjusted individually on top of the top plate. The aluminium chequer plate sits under the top plate, giving extra long life to the machine regarding the strong sap from the grass.

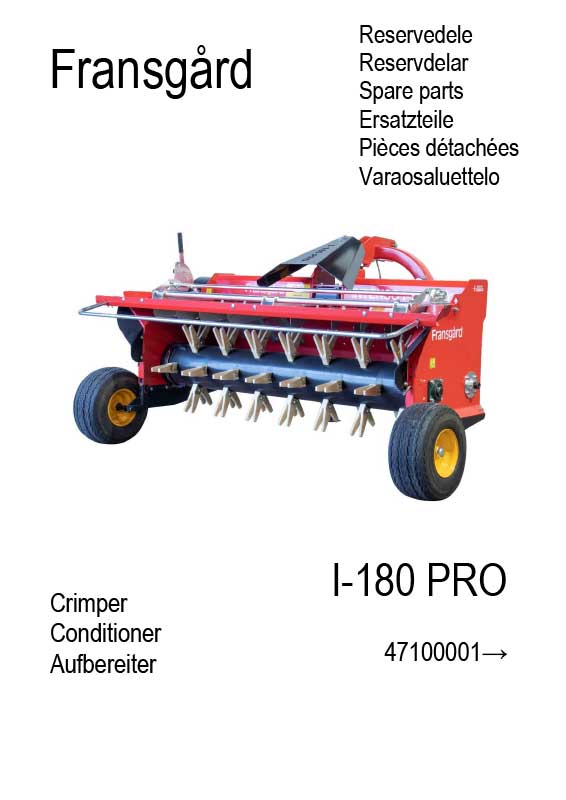

Download PDF files
