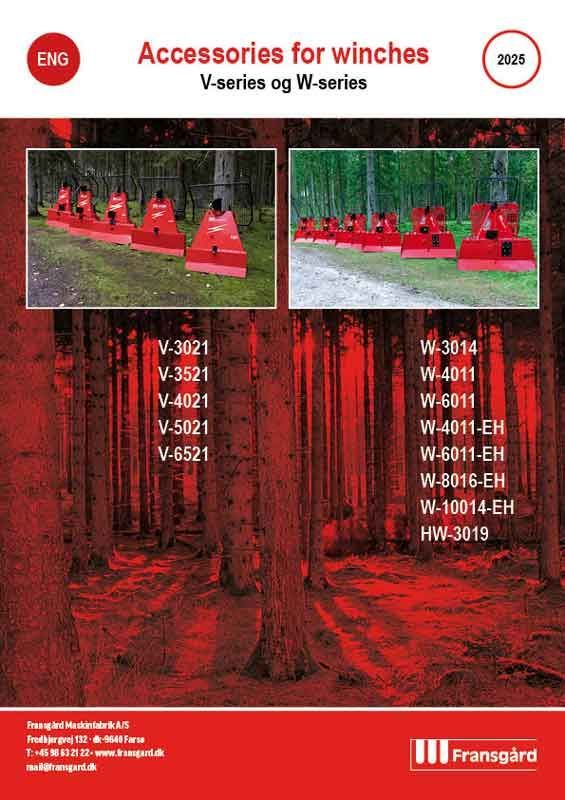

Winch W-3022 · W-4011 · W-6011 · W-4011-EH · W-6011-EH · W-8016-EH · W-10014-EH

Presentation

The Fransgård W- model winches are mechanically operated and the W-EH models are hydraulically operated high-quality winches. The winches can be expanded with many great and functional details that facilitate the workflow, such as a chainsaw holder, built-in toolbox, removable towbar and much more. Everything is designed to be simple and durable. Our hydraulic models (EH) must be operated by a cable control or wireless remote control and can be fitted with a hydraulically controlled top roller to assist with the unwinding of the wire.

Quality that lasts

Alle maskiner produceres og samles på vores moderne fabrik i Fredbjerg, Danmark. Laserskæring og svejsning foregår med højteknologiske robotter. Vores dygtige og erfarne medarbejdere har stor ekspertise i udvikling og fremstilling af robuste og stærke maskiner.

Hos Fransgård vægter vi kvalitet og holdbarhed højt, så vore kunder fastholder en stor grad af effektivitet.

Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button

Technical data:

Technical data:	W-3022	W-4011	W-6011	W-4011-EH	W-6011-EH	W-8016-EH	W-10014-EH
Tractive force	3 tonnes	4 tonnes	6 tonnes	4 tonnes	6 tonnes	8 tonnes	10 tonnes
Tractor power	Approx. 19 kW	Approx. 40 kW	Approx. 60 kW	Approx. 40 kW	Approx. 60 kW	Approx. 60 kW	Approx. 60 kW
3-point suspension	Cat I – II	Cat I – II	Cat I – II	Cat I – II	Cat I – II	Cat I – II	Cat II - III
Weight	215 kg	325 kg	450 kg	350 kg	475 kg	538 kg	860 kg
Wire standard ø x m	8 mm x 40 m	9 mm x 60 m	11 mm x 60 m	9 mm x 60 m	11 mm x 60 m	11 mm x 60 m	12 mm X 70 m
Wire max. ø x m	8 mm x 45 m	9 mm x 80 m	11 mm x 100 m	9 mm x 80 m	11 mm x 100 m	11 mm x 120 m	14 mm X 120 m
Retraction speed at 540 rpm	0.6 – 1.5 m/s	0.7 – 1.8 m/s	0.5 – 1.3 m/s	0.7 – 1.8 m/s	0.5 – 1.8 m/s	0.5 – 2.0 m/s	0.4 – 0.9 m/s
PTO connector height	38 cm	45 cm	58 cm	58 cm	64 cm	70 cm	70 cm
Top roller height	115 cm	125 cm	145 cm	125 cm	145 cm	160 cm	190 cm
Winch height	200 cm	220 cm	230 cm	220 cm	230 cm	240 cm	230 cm
Dozerblade	55 x 110 cm	65 x 150 cm	75 x 160 cm	65 x 150 cm	75 x 160 cm	80 x 180 cm	86 X 200 cm
Protective grill	Standard	Standard	Standard	Standard	Standard	Standard	Standard

Details:

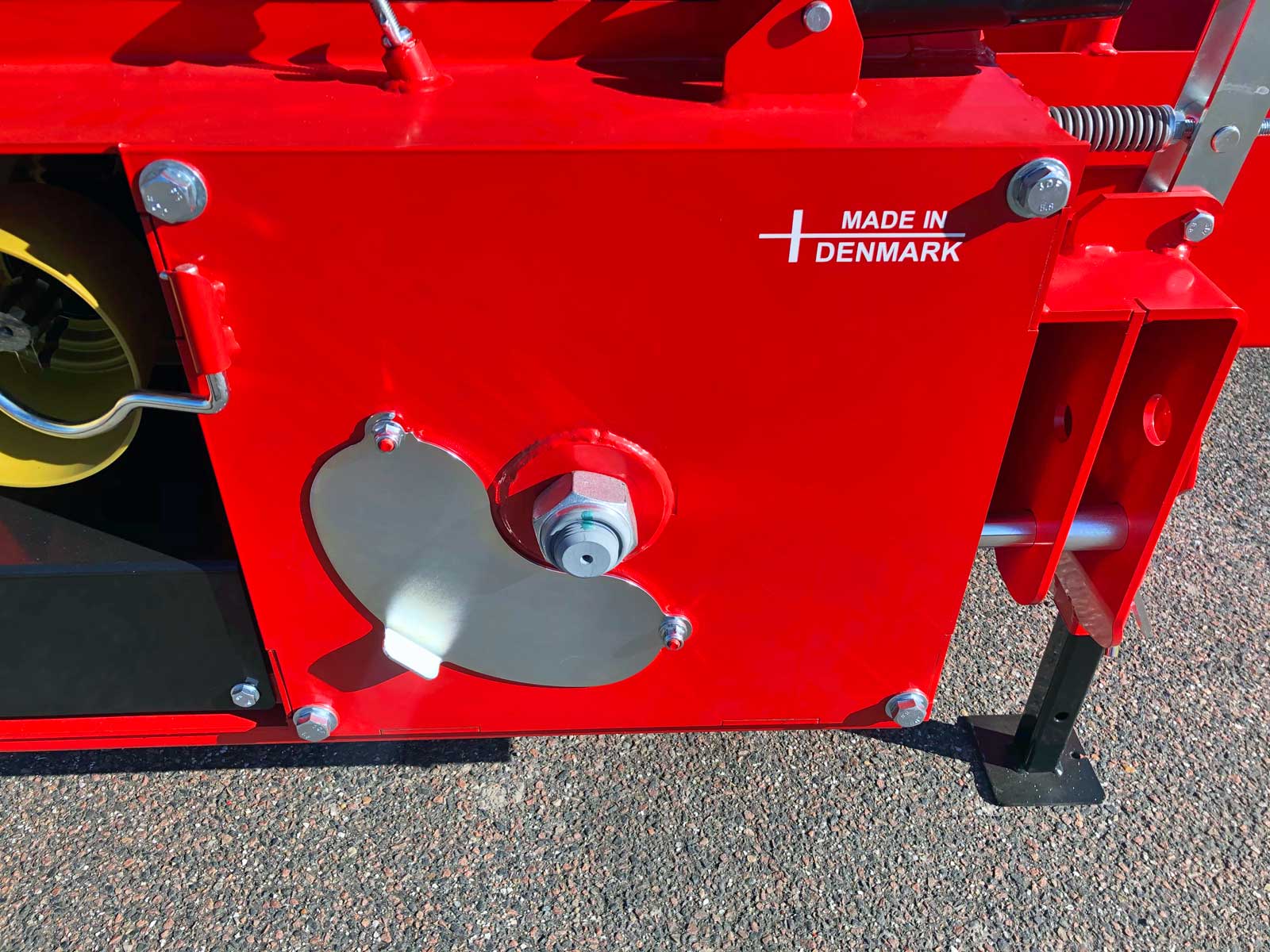

Backplate

The backplate protects vital parts from foreign objects and helps provide an extra stable main frame.
Button

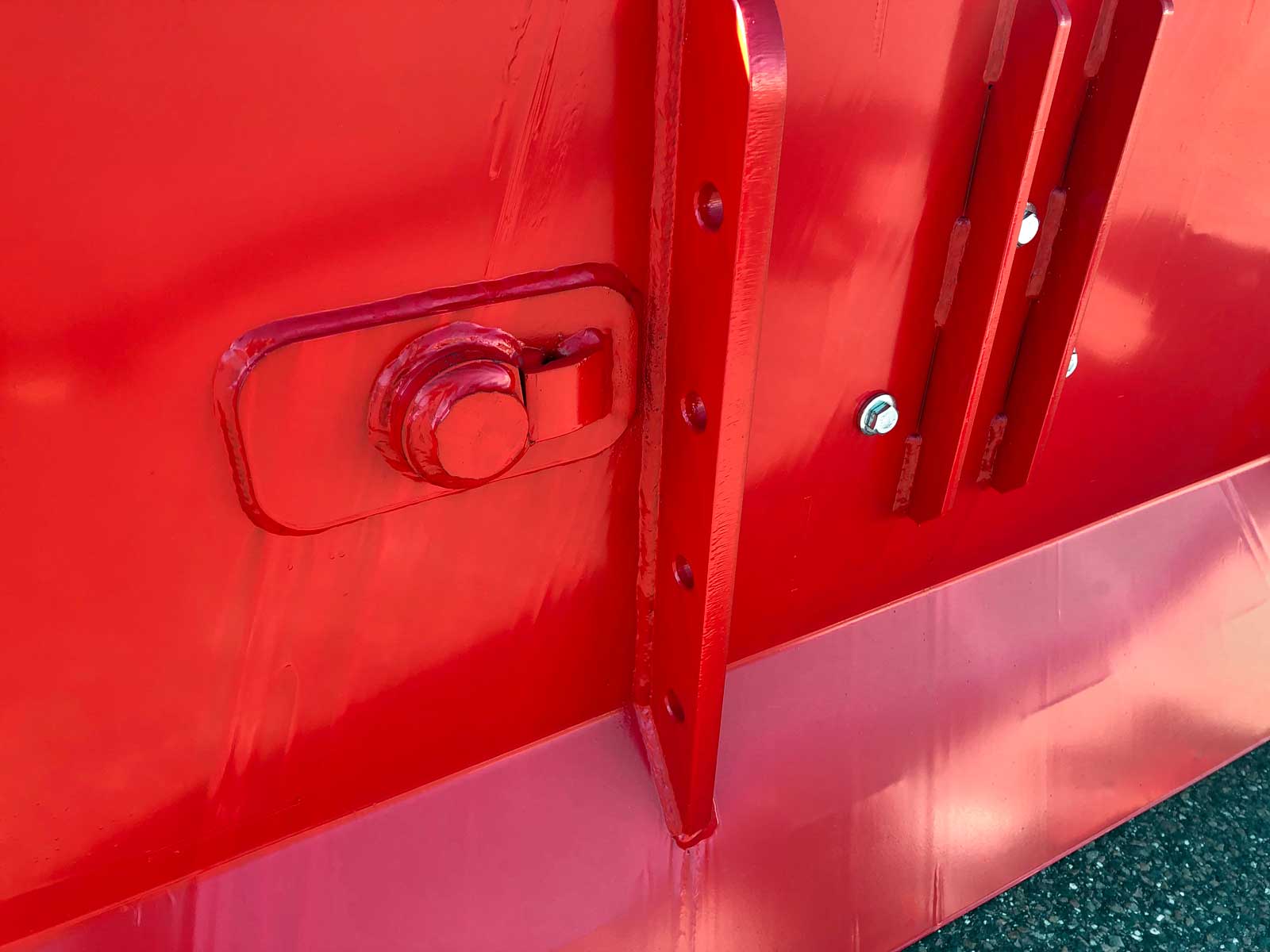

Towbar fittings

The W models are prepared as standard for the installation of towbars, item no. 1518.
Button

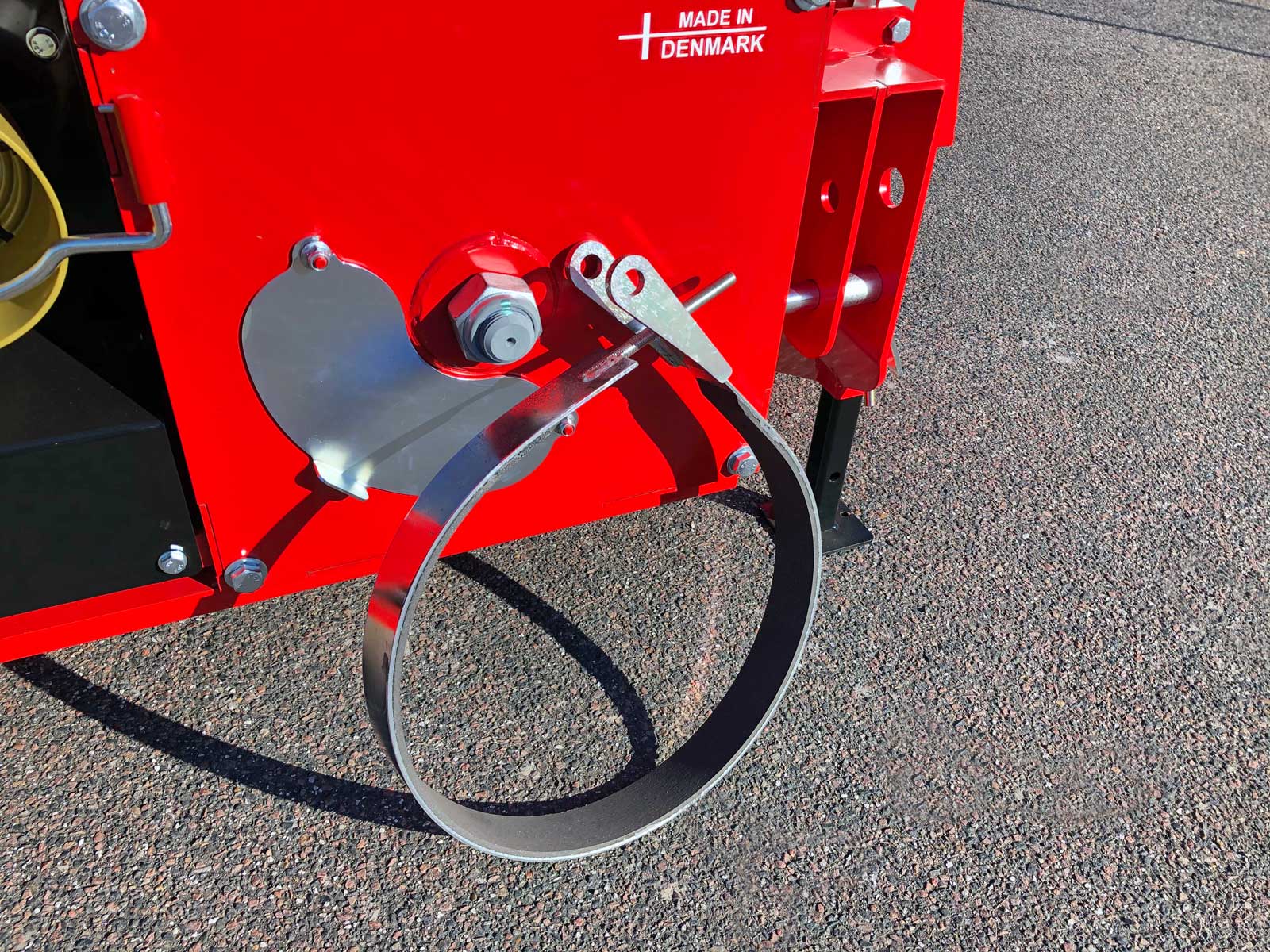

Belt brake

All W-winches are equipped with a belt brake around the drum, which ensures that the drum is always braked and cannot run back when you stop winding the wire.
Button

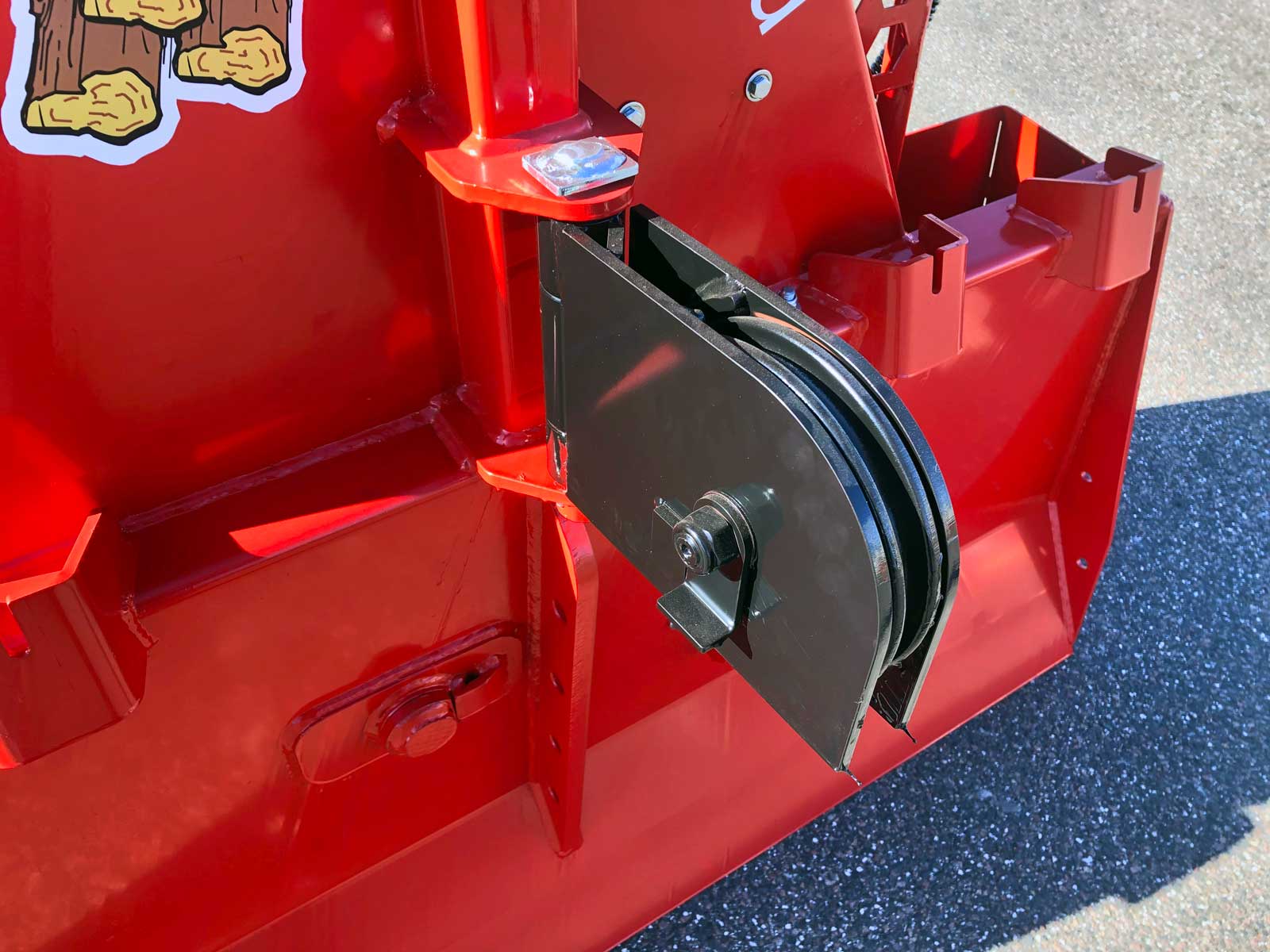

Bottom roller

A rotatable bottom roller on the winch provides greater safety when winding in from an oblique angle while moving the centre of gravity lower, minimising the risk of being lifted and allowing the use of a smaller tractor. The bottom roller is enclosed to ensure that the wire cannot jump off the pulley when you stop the pulling.
Button
Freewheel brake

The wire drum is fitted with a spring-loaded freewheel brake, which ensures that the wire drum stops rotating as soon as the extraction of the wire is stopped. This prevents loose wire parts from entering the wire drum.
Button
Galvanised bolts

All bolts, tow pins and splitters are galvanised.
Button

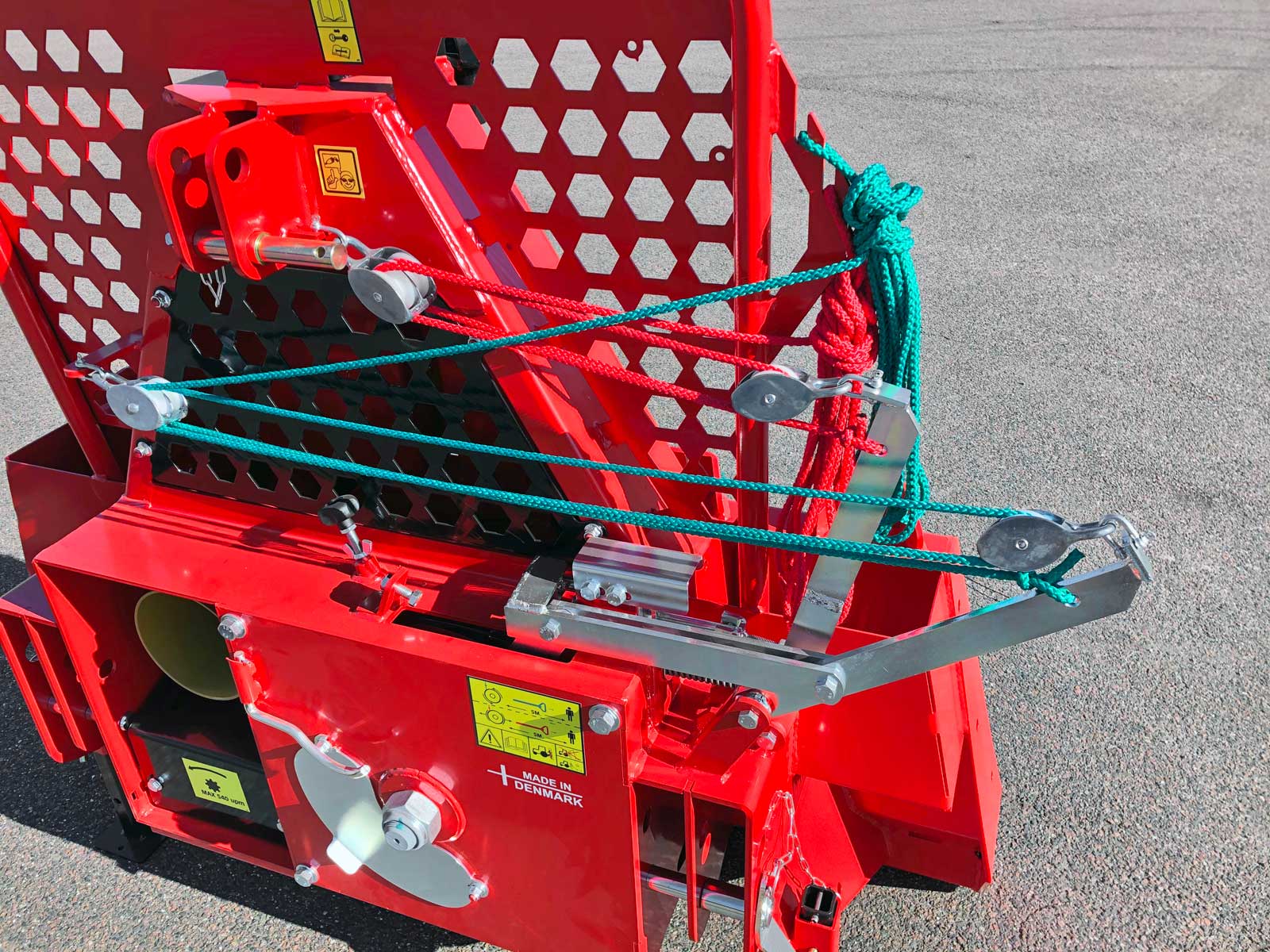

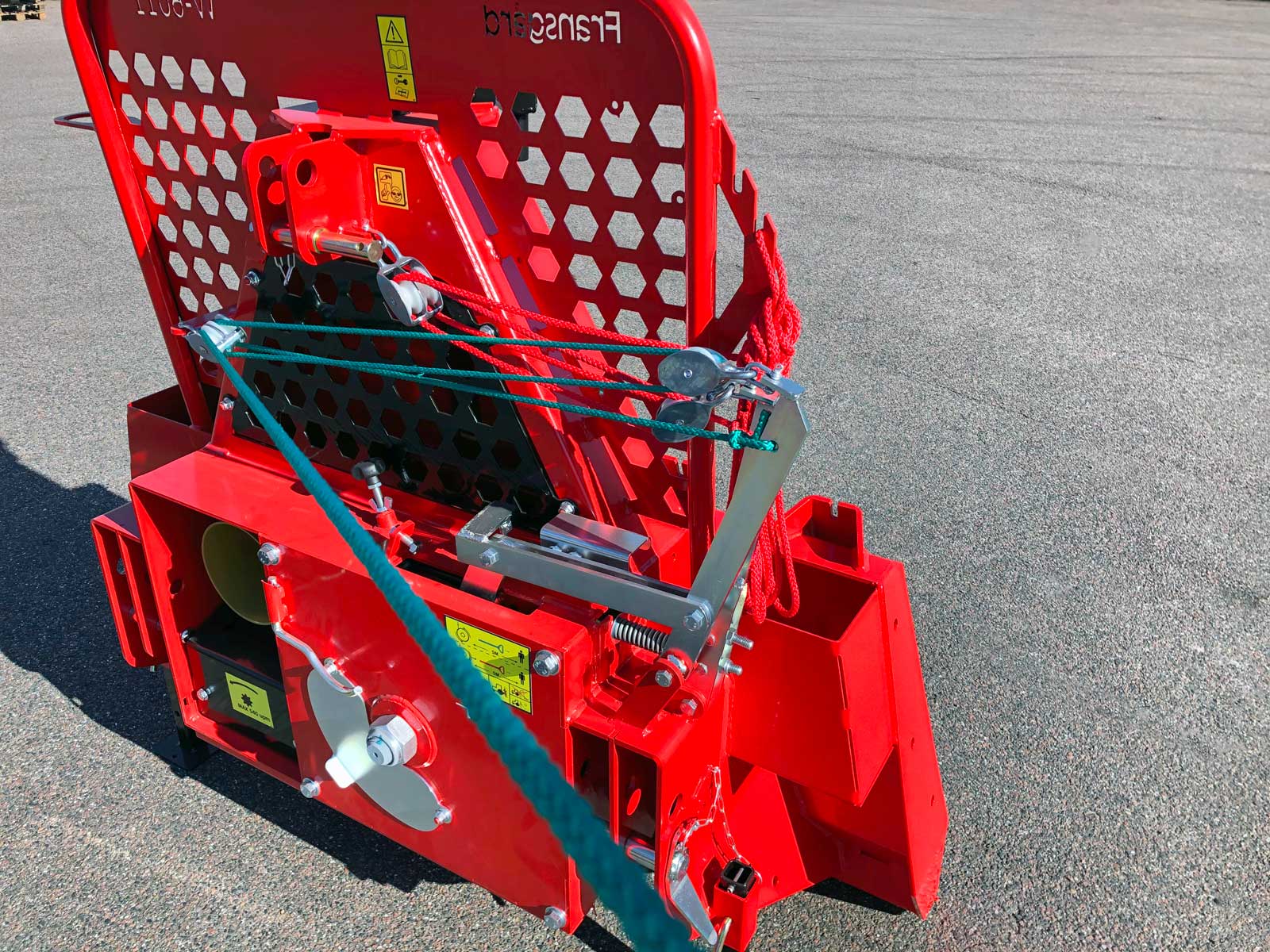

Green cord

The clutch is activated via the green cord on W models, while the brake is always applied in the same work function. The large gearing on the cord drive means that little effort is required when working with the winch. (W models)
Button

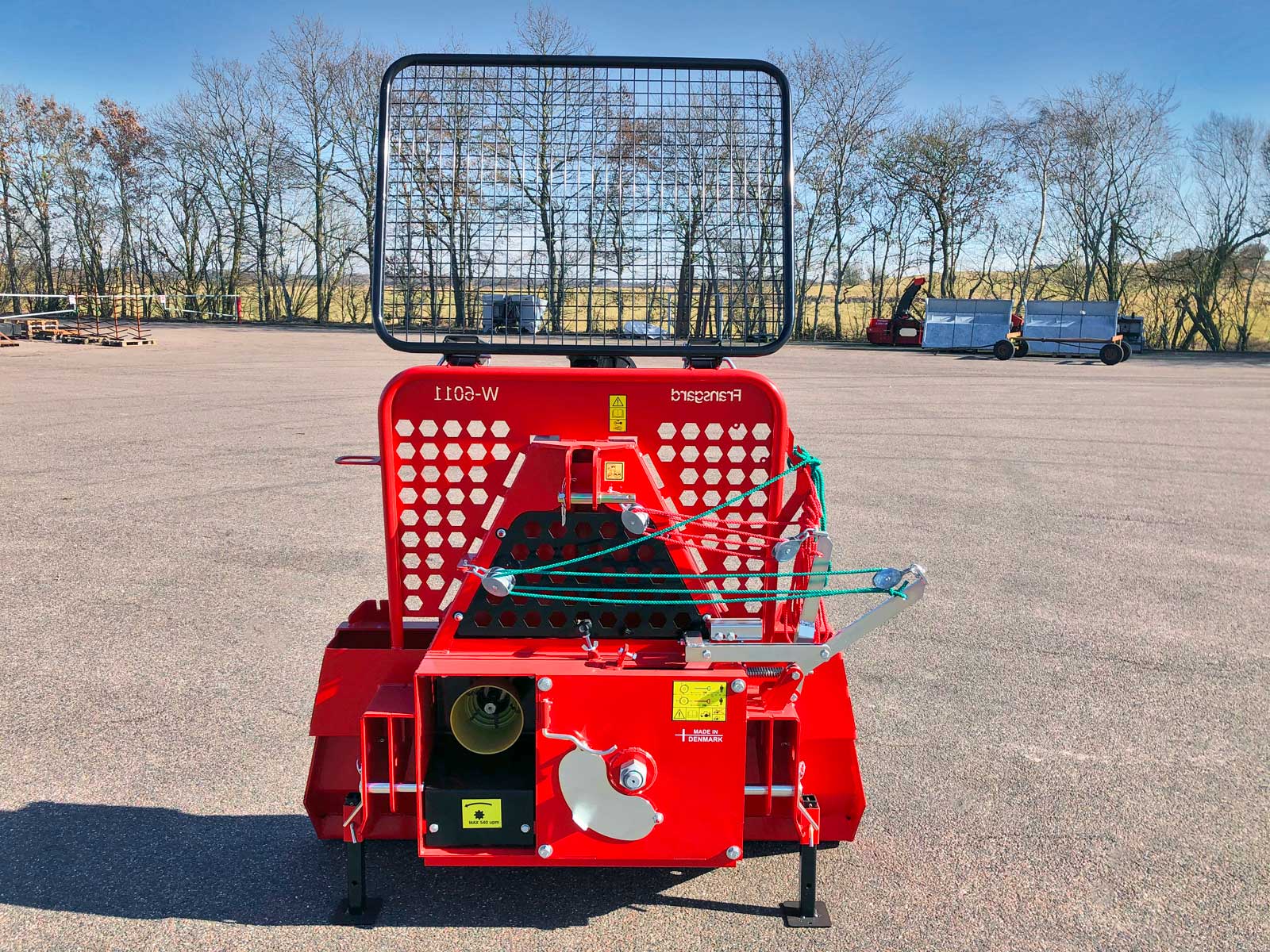

Main frame, rear

The main frame in the rear is shielded all over.
Button

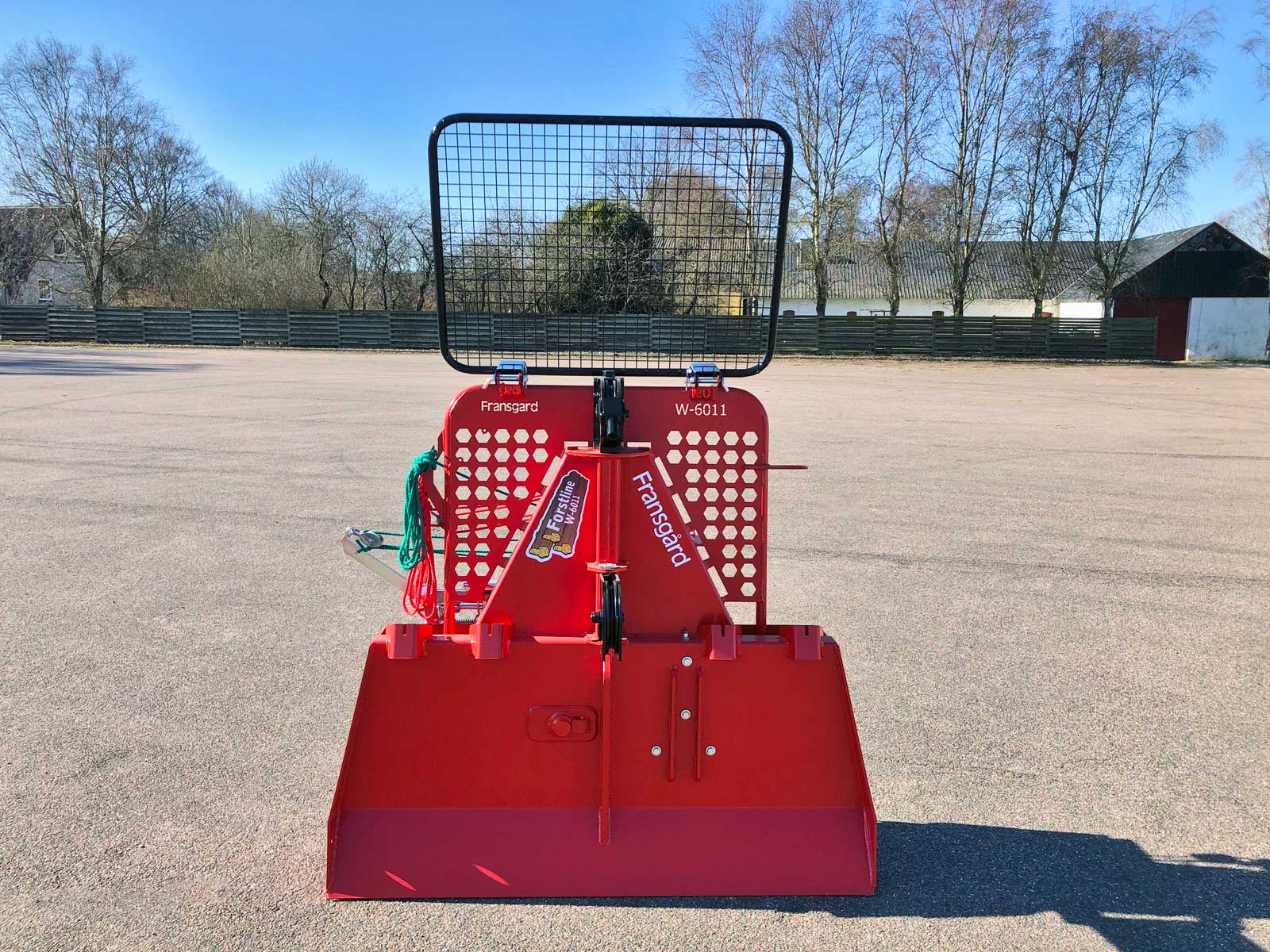

Main frame, front

The main frame of W forestry winches is beautifully designed and made out of Domex 420 steel with many reinforcements.
Button

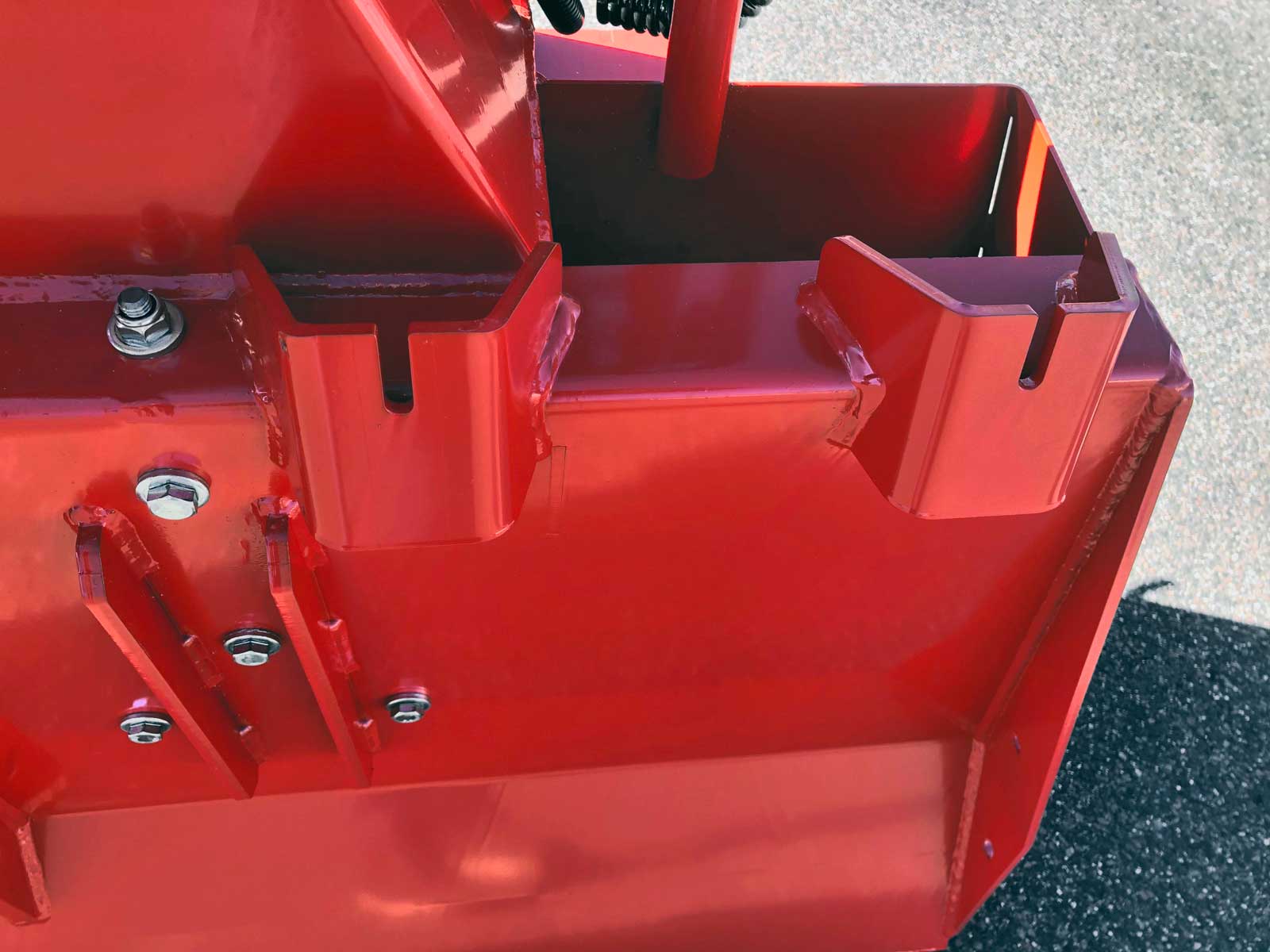

Chain fall

The chain fall at the top of the dozerblade is standard equipment and built in high-strength steel Domex 650.
Button

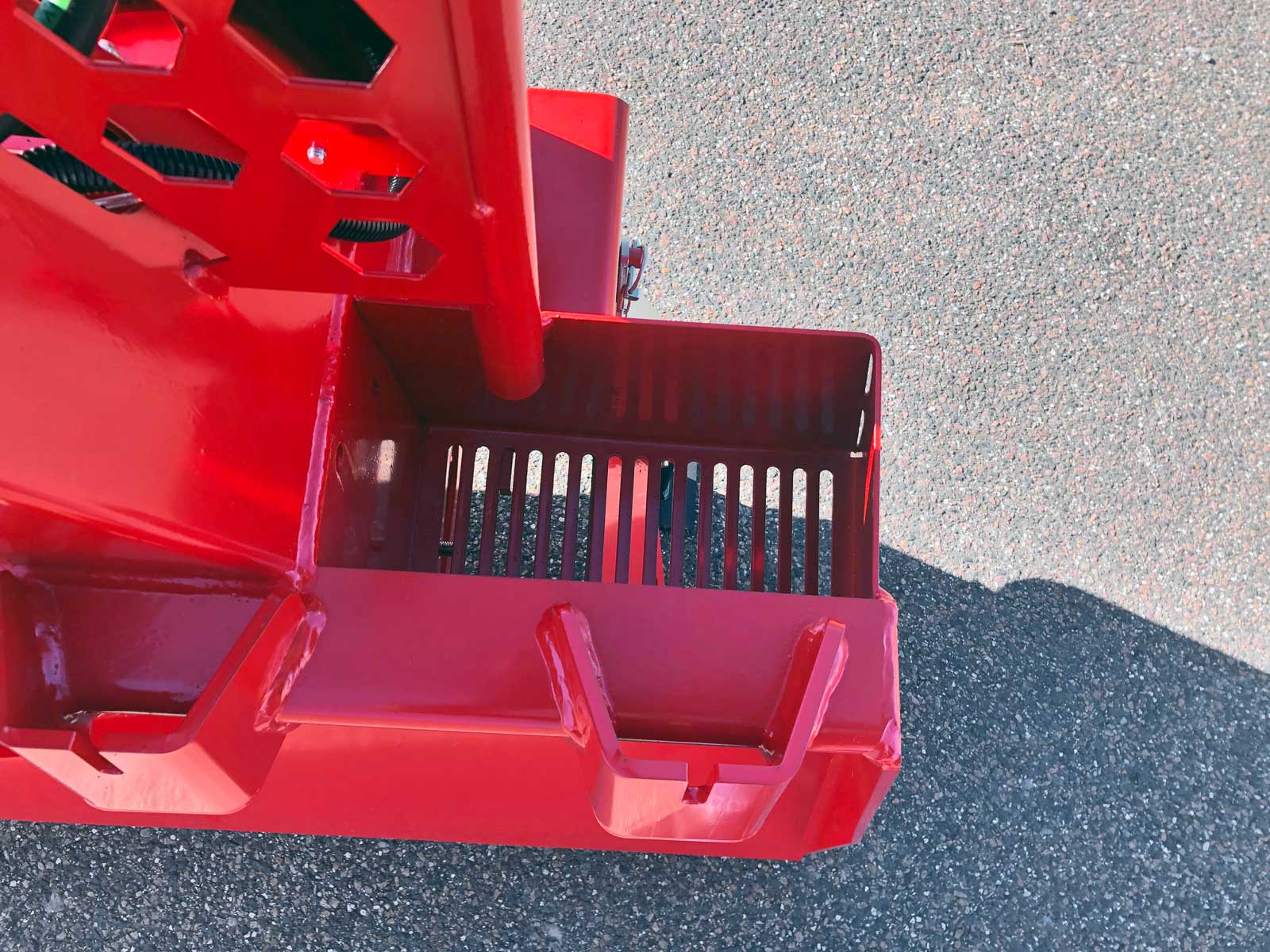

Storage boxes

Storage boxes for chains, stripper rollers, etc., are fitted as standard on each side of the winch.
Button
Hanger for cord control.

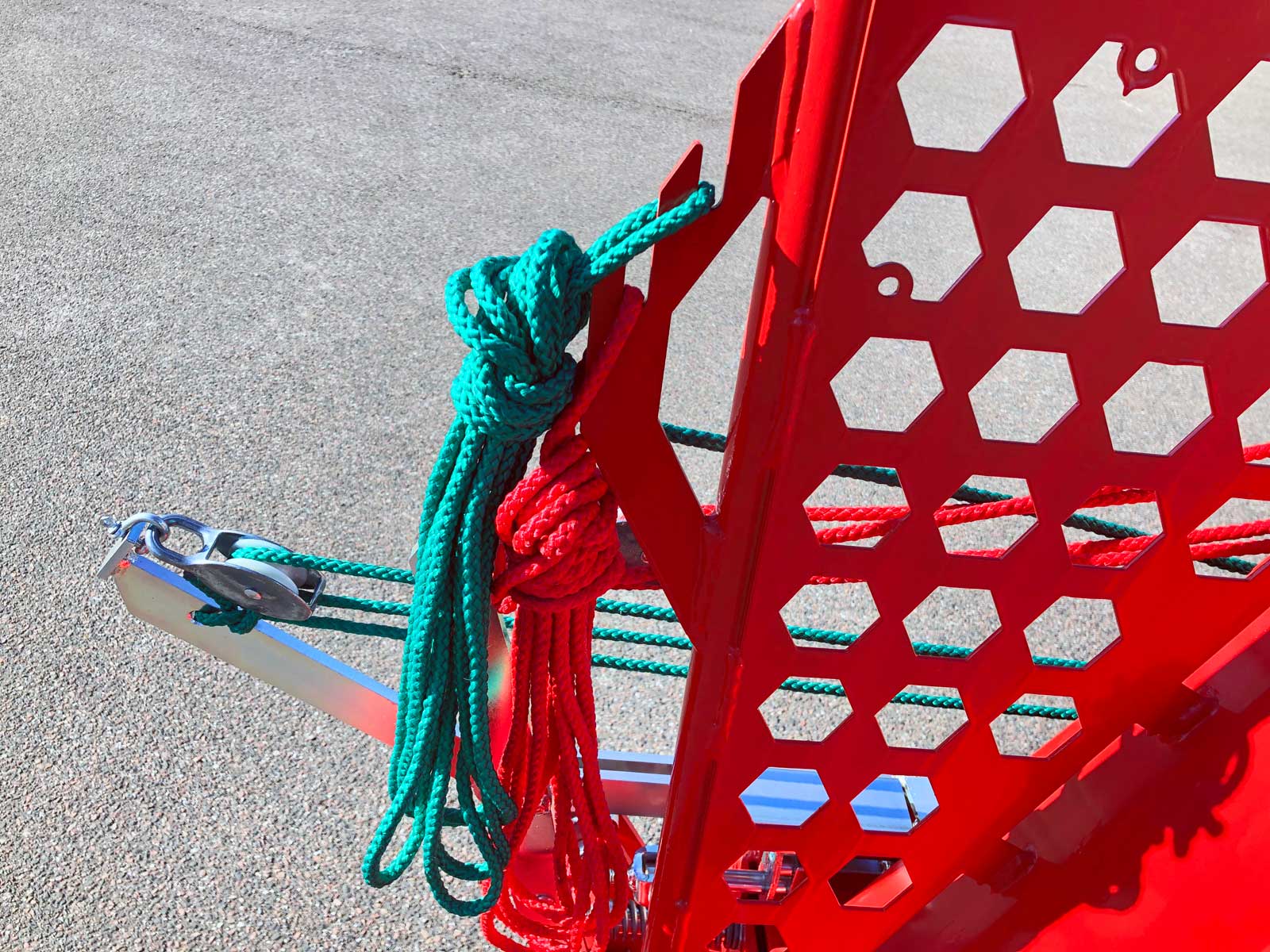

2 hooks for hanging the cord for the cord control on all W winches.
Button

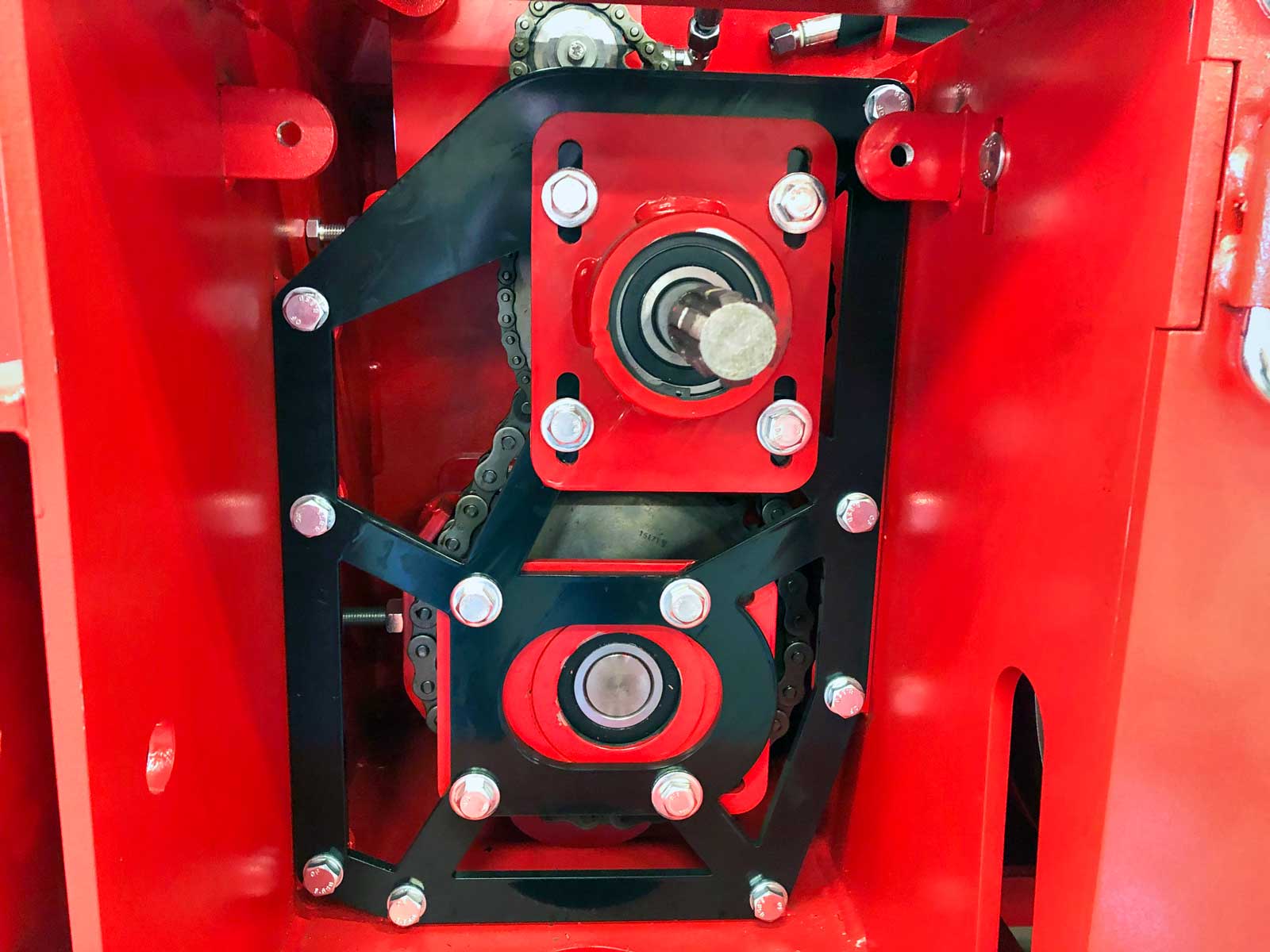

PTO drive

The extra reinforced drive chain ensures long life and minimal wear on the gear wheels, as well as fewer breakdowns. The chain is lightly lubricated from the outside with chain spray or grease. It is important not to use oil, as it will run down the clutch lining, which is riveted to the large gear wheel.
Button
PTO hook

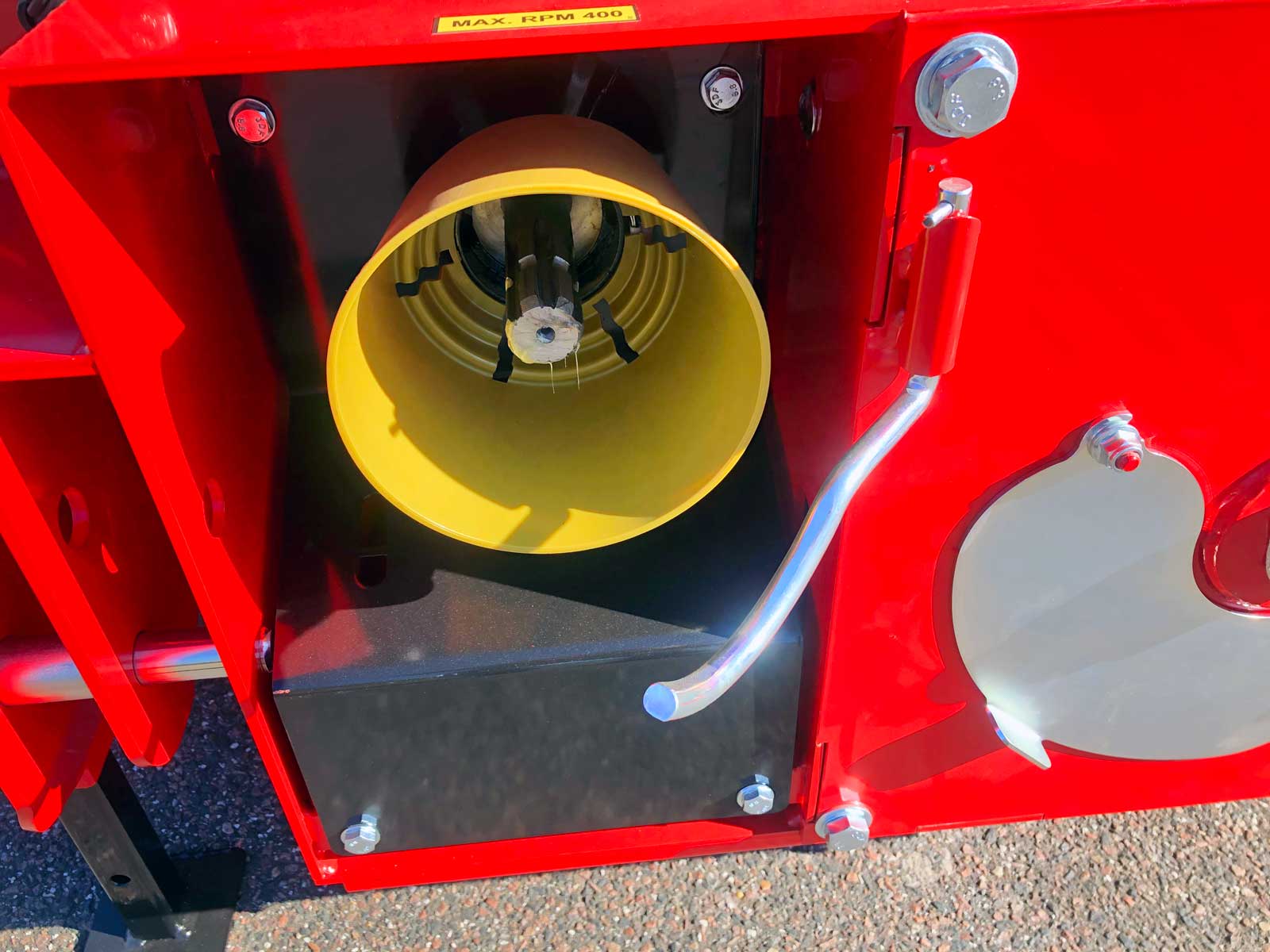

Hook to position the PTO axle when the machine is not in use. It can easily be turned to the side while working with the winch.
Button

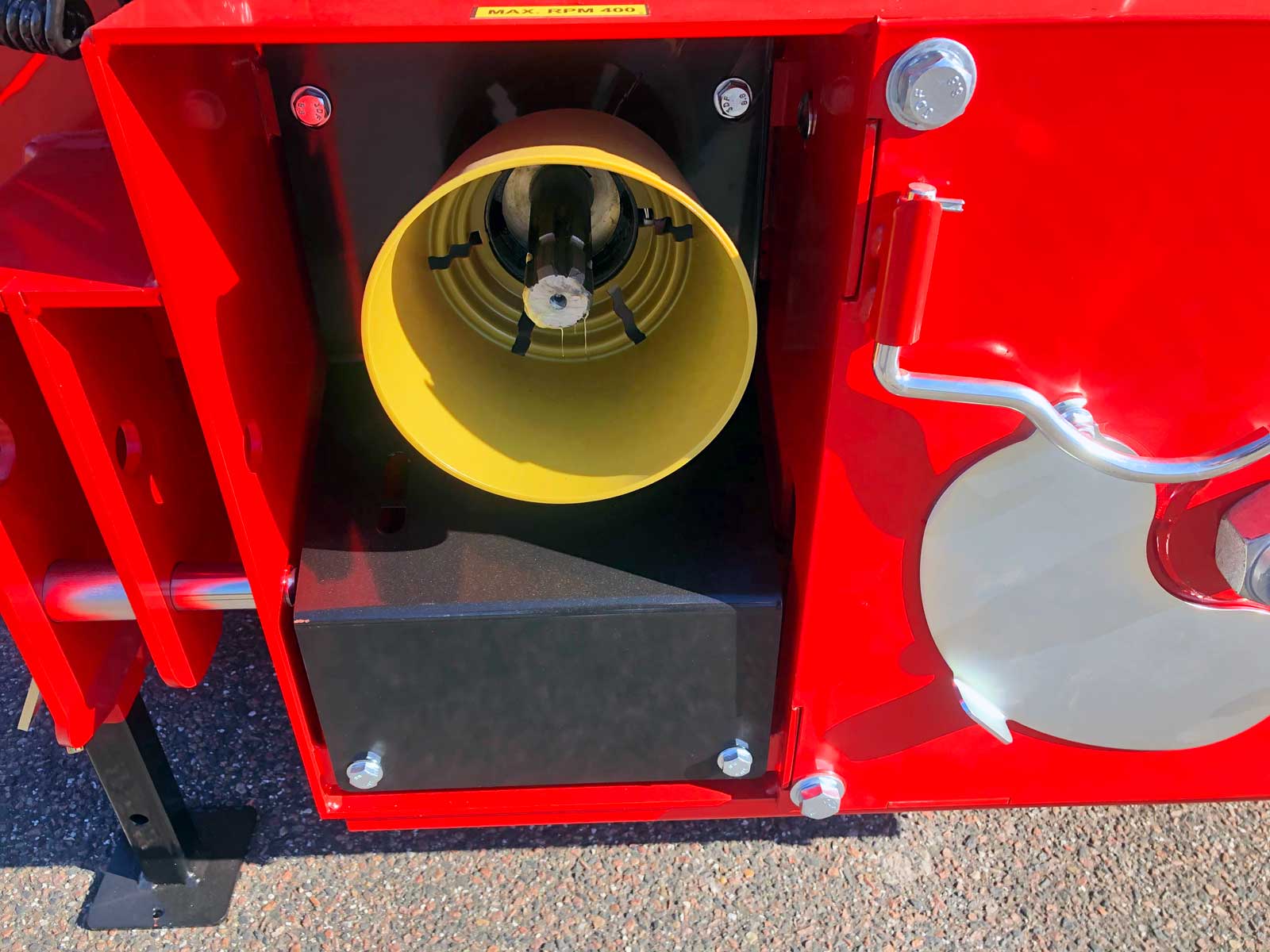

PTO connector

The PTO connector is well protected and placed high on the winch to avoid an excessive angle on it during work.
Button
Red cord

The brake is released by pulling the red cord. If the cord is pulled all the way to the stop, it is loosened and the wire can be pulled out.
Button

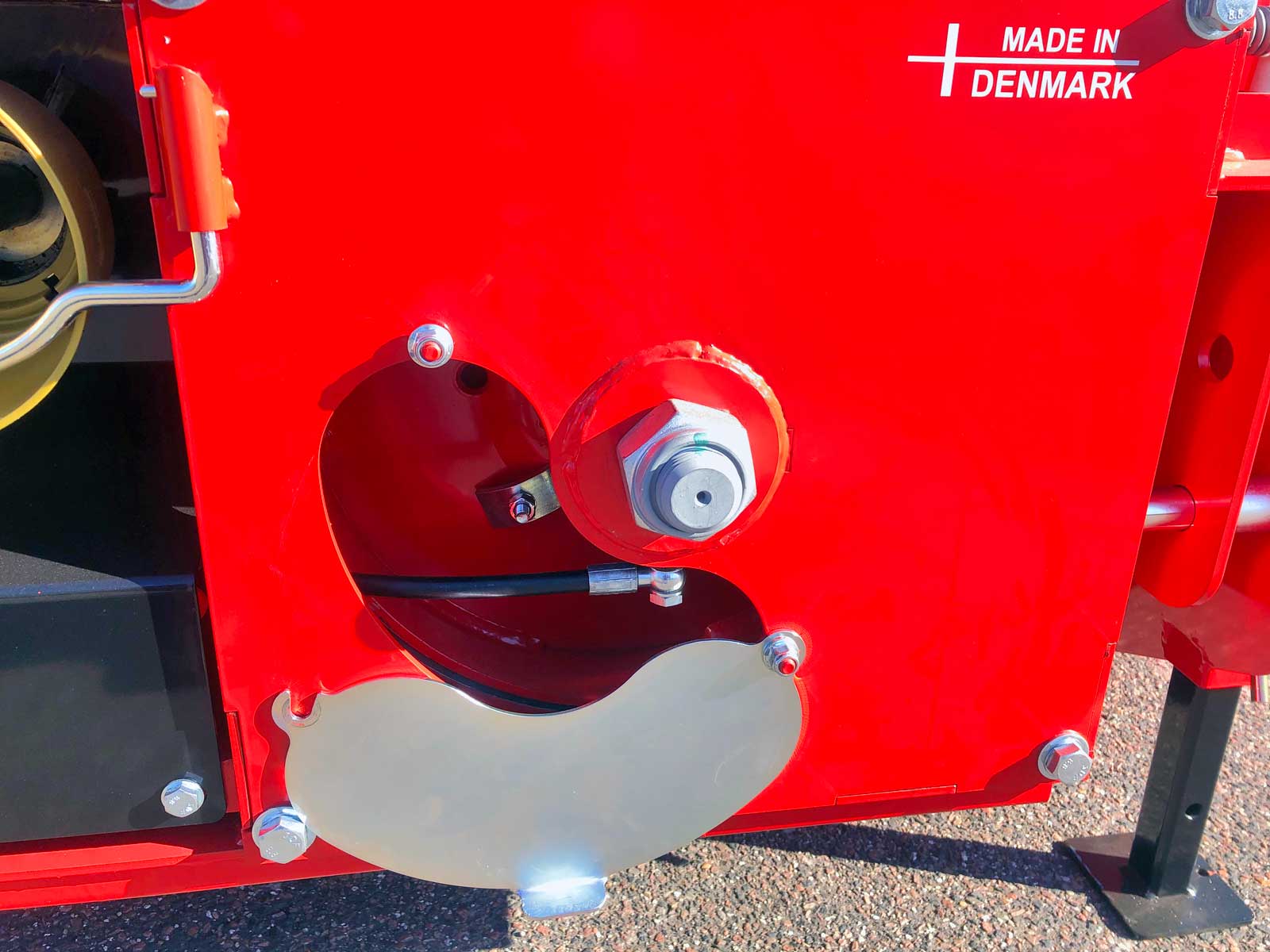

Service hole

The galvanised cover plate turns down easily, and the large hole provides good working conditions when installing the wire lock or servicing the clutch cylinder on EH models.
Button

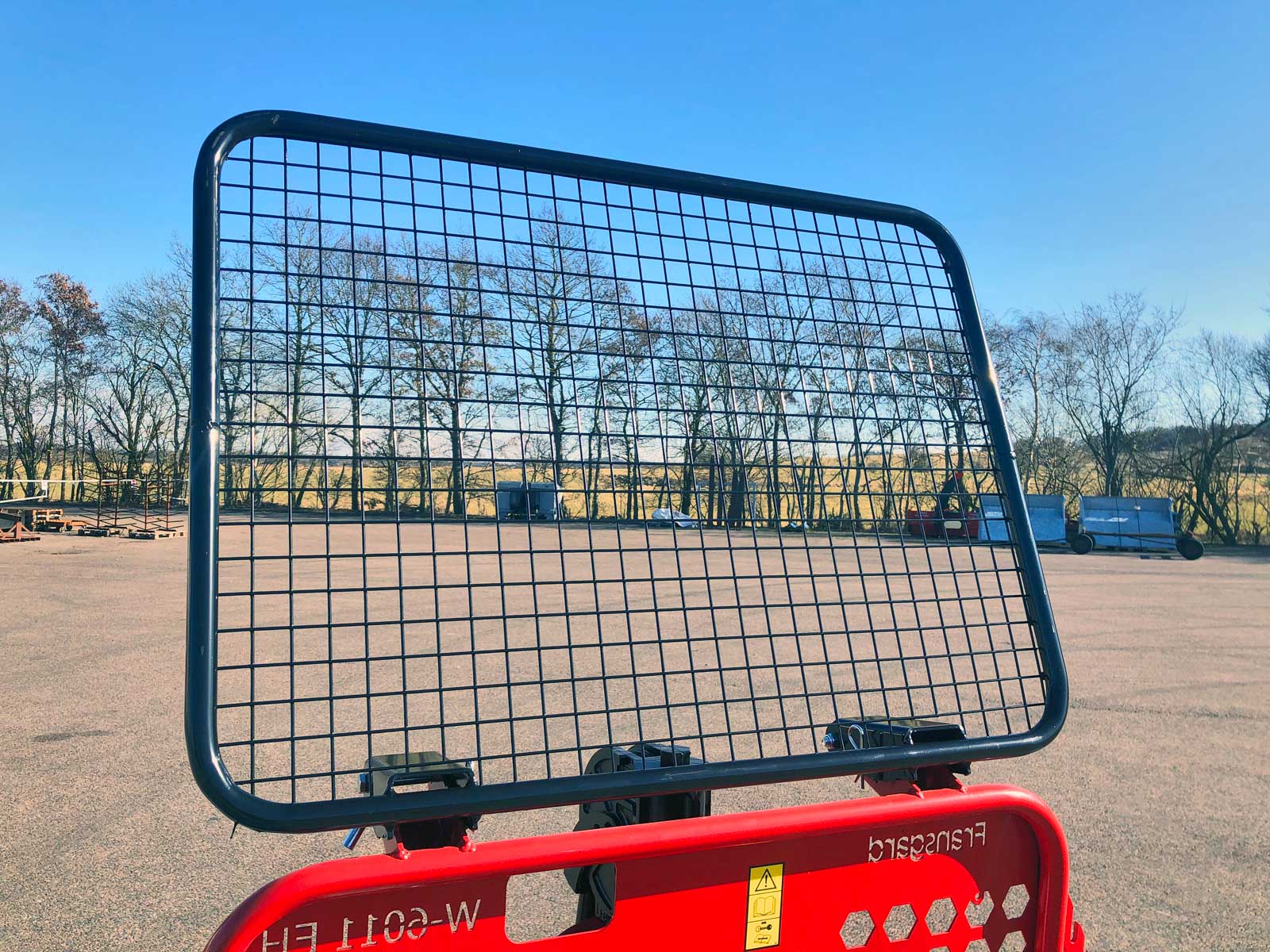

Safety grill, up

All Fransgård winches have a safety grill as standard to protect the tractor during work.
Button

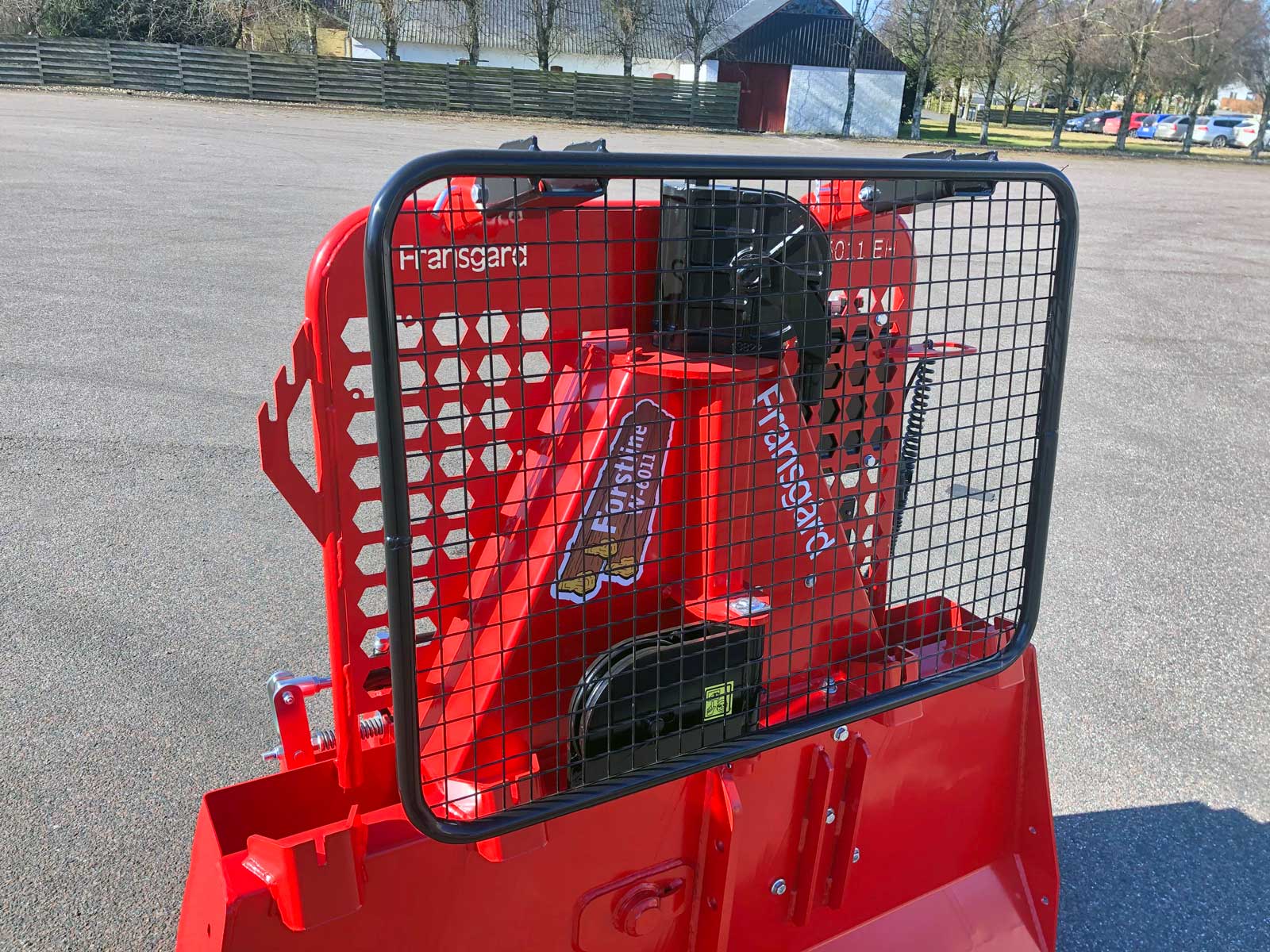

Safety grill, down

The safety grill can easily be turned down in front of the winch without using tools, allowing a better view behind.
Button
Dozerblade, end

The ends of the dozerblade/butt plate are reinforced and prepared for mounting extensions on both sides.
Button

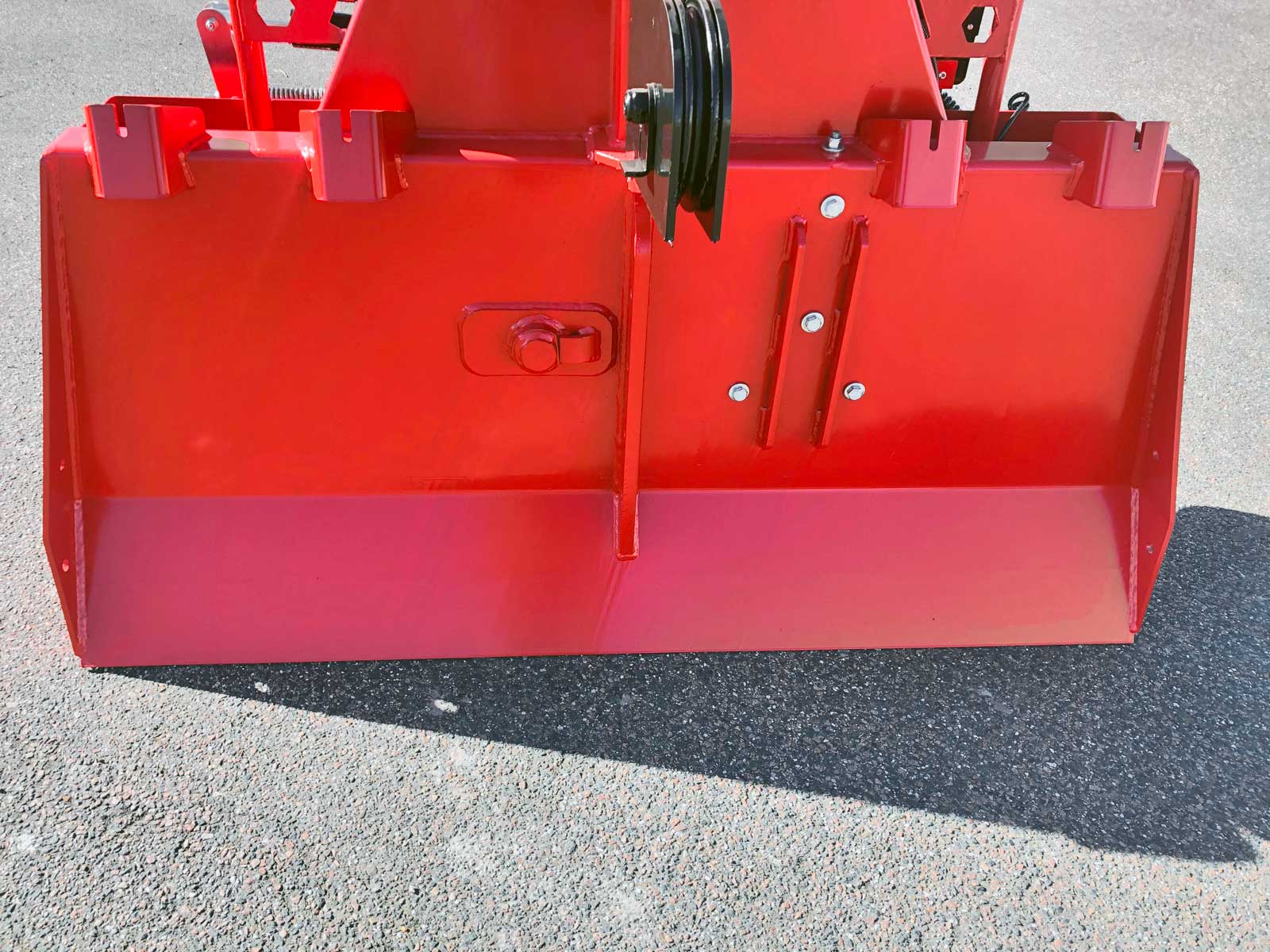

Dozerblade

The wide and high dozerblade ensures a stable construction and good fixed support when pulling in the wire.
Button

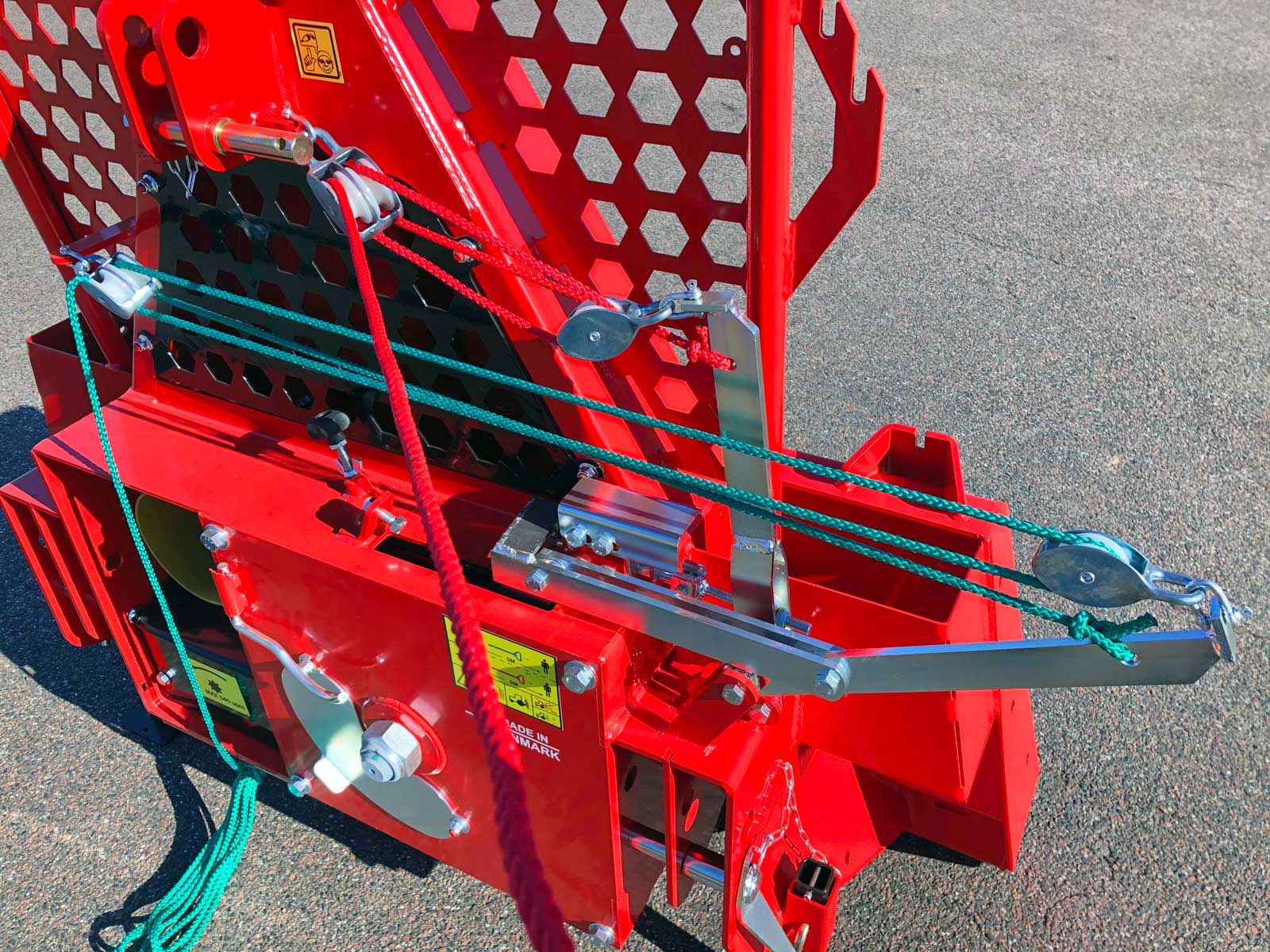

Cord control

The cord controll on the W models has high gearing, so less force is needed to operate the winch. All parts are galvanised (not W-3014) and with the possibility to replace the pulley rollers.
Button

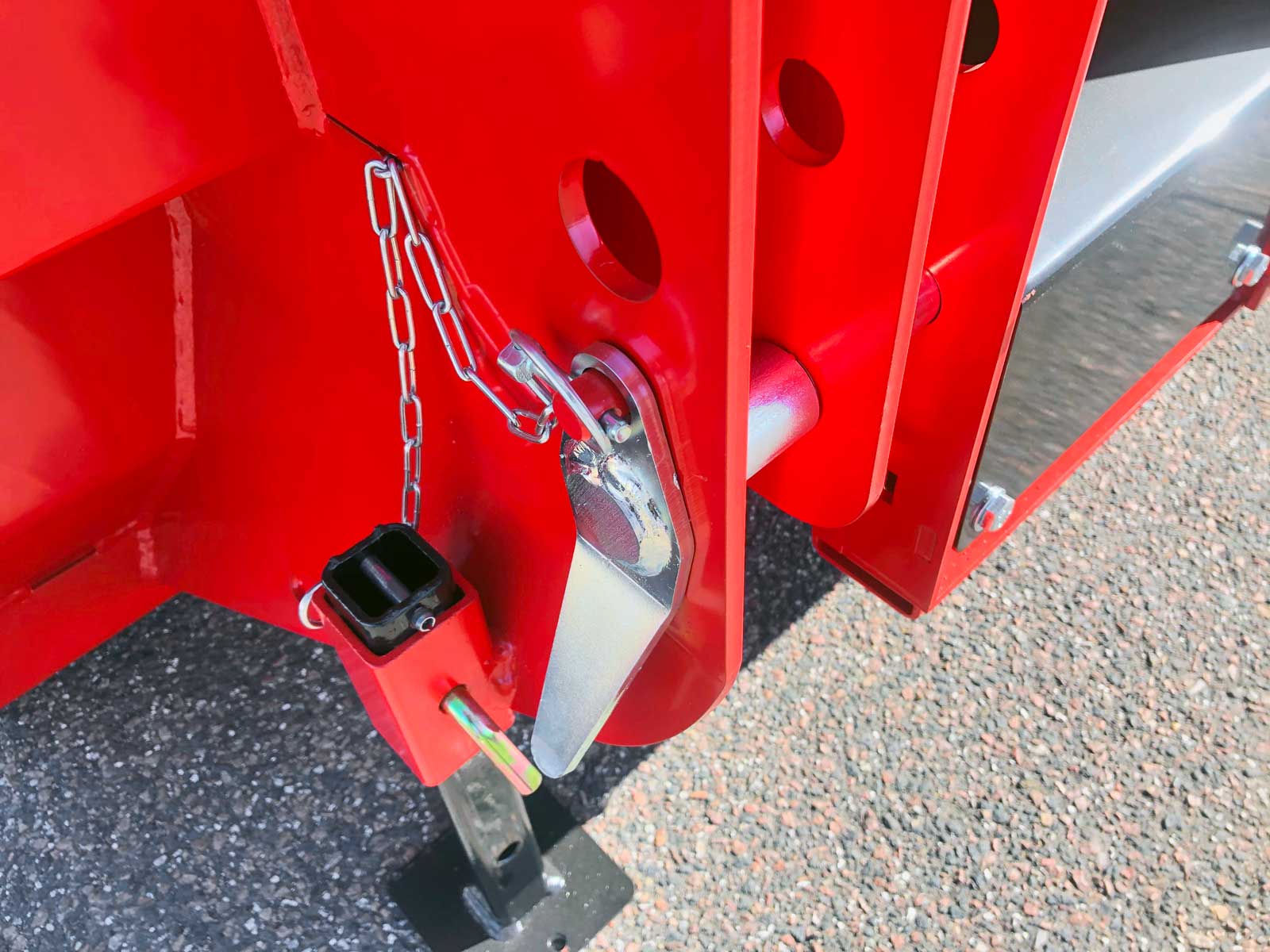

Splitter

All ring splitters are suspended by chain so that they do not disappear when mounting the winch on the tractor.
Button

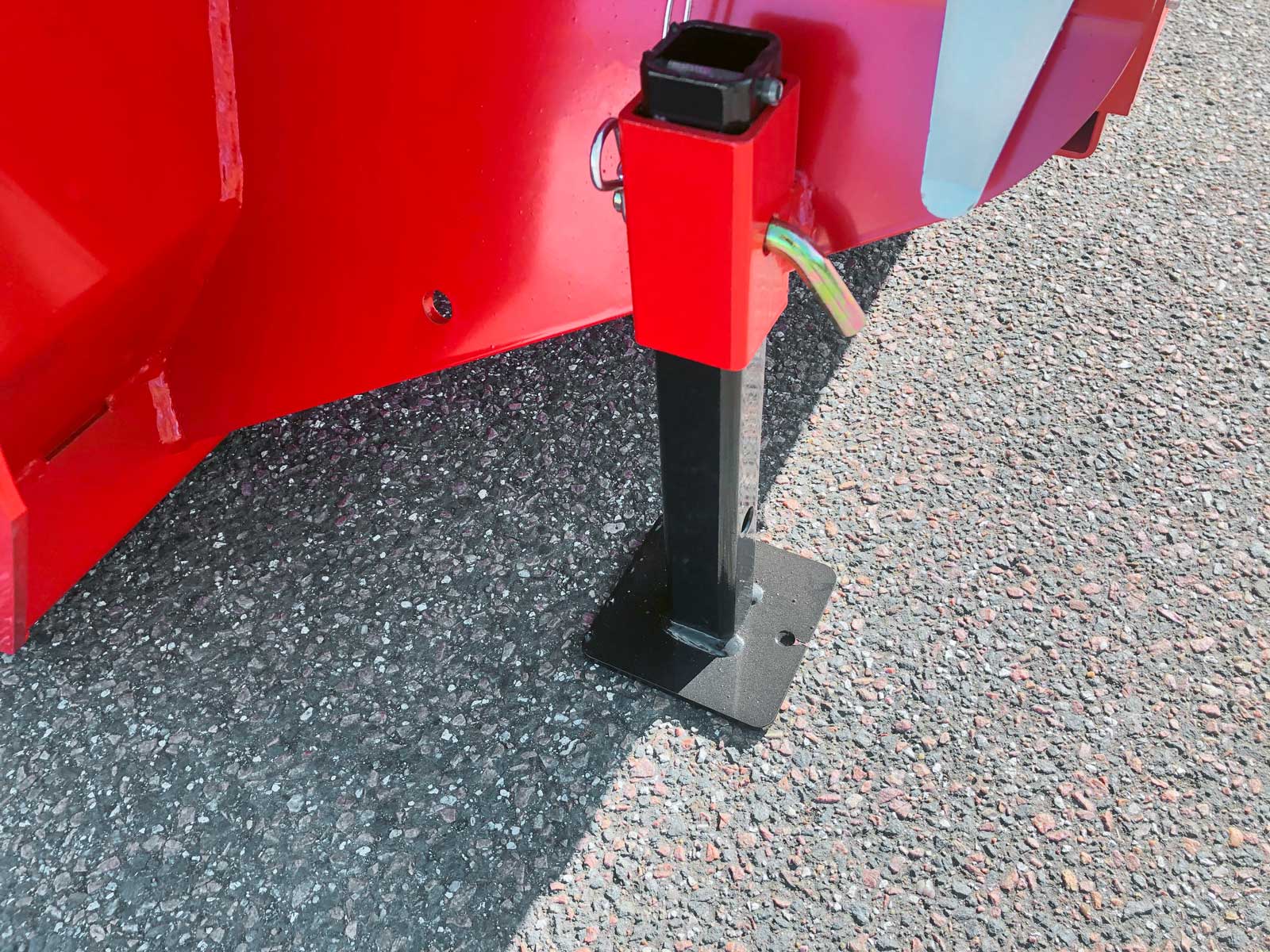

Support legs

The 2 support legs are easily lifted up while working with the winch and are always there when it needs to be parked again.
Button

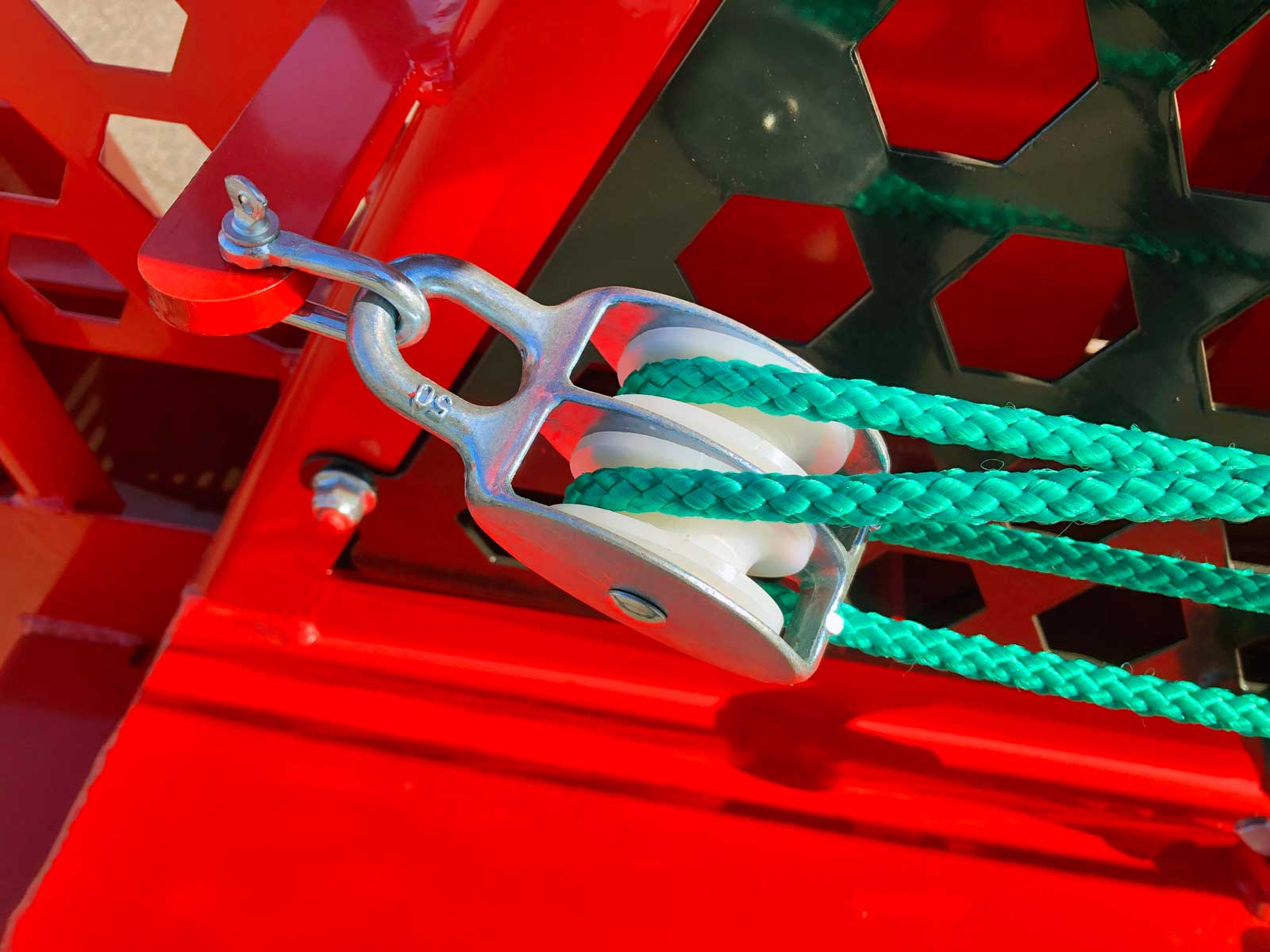

Pulley rollers

Galvanised pulley rollers with nylon wheels provide reliability and long life.
Button

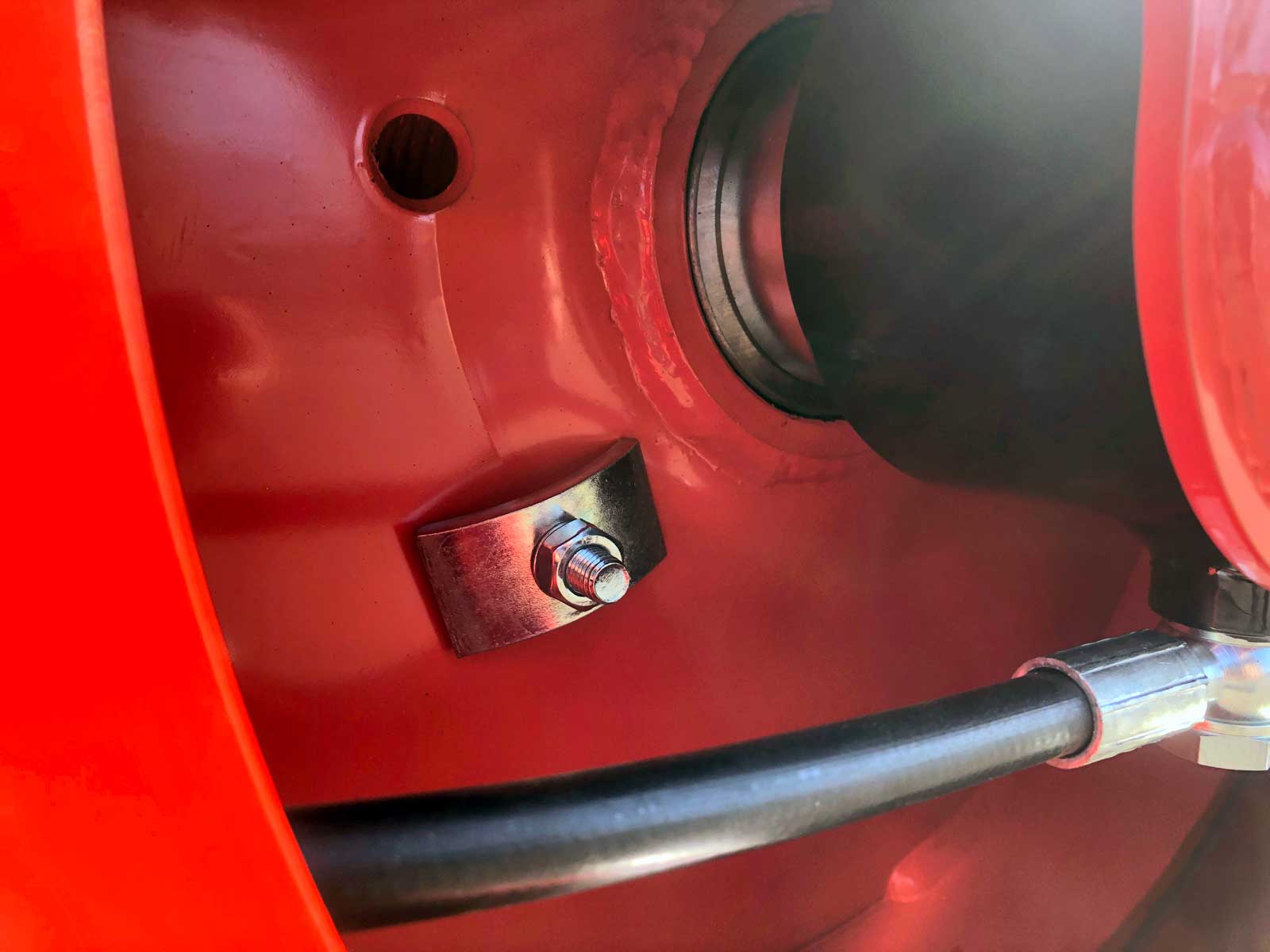

Wire lock

The wire lock is galvanised and mounted on the drum so that it does not disappear when the wire is changed or pulled out of the drum.
Button

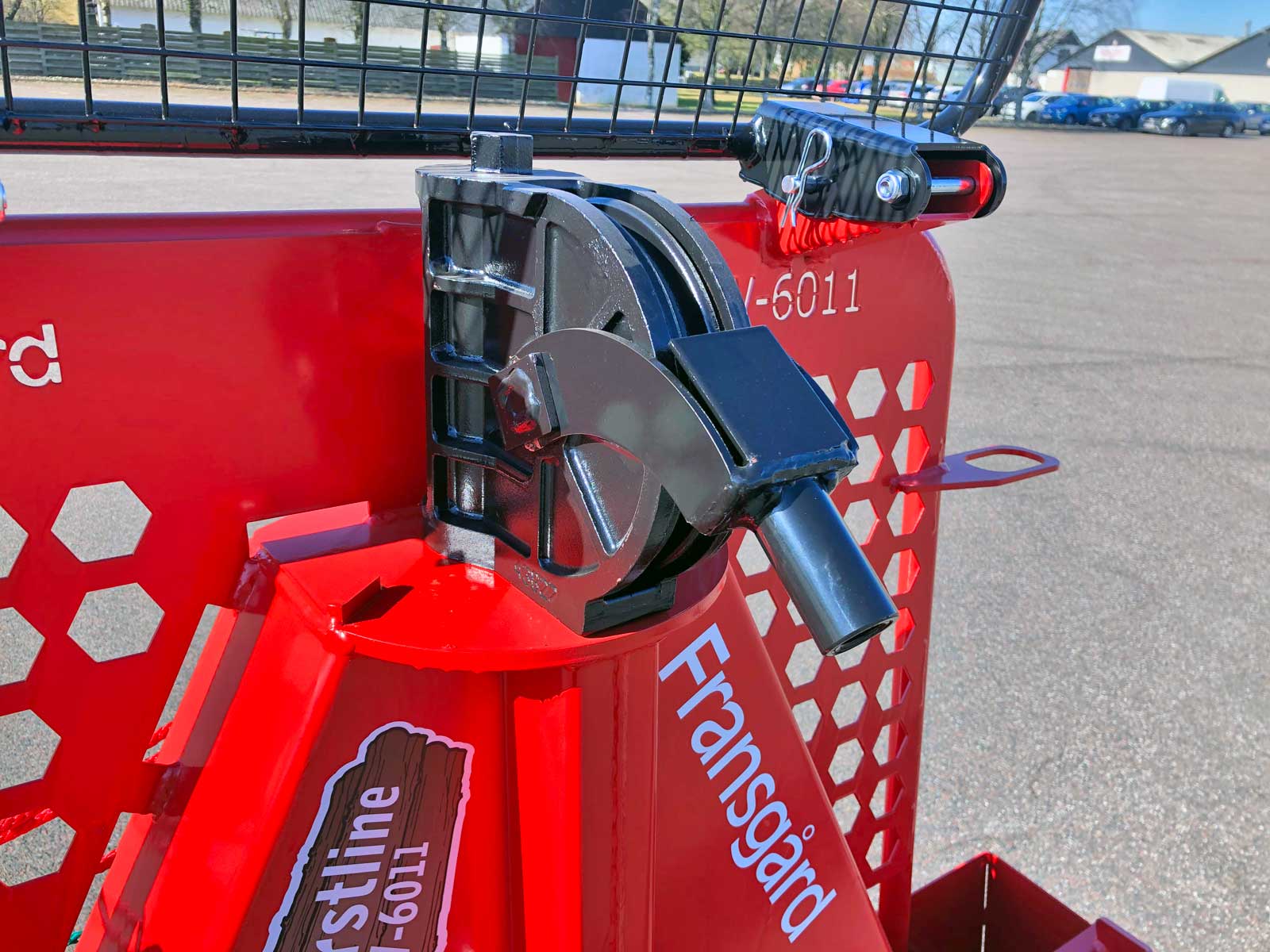

Wire guide, top roller

The top roller in the cast steel box has a cast wire roller, which is fitted with 2 ball bearings and a wire guide with hardened steel bushing. The moulded top roller box rests on a support plate, which ensures stable wire retraction, even under heavy loads. The support plate can be greased so that the top roller turns freely from side to side. The W-EH winch can be fitted with a top roller with hydraulic extension, item no. 1550-14. (Not W-4011-EH).

Button

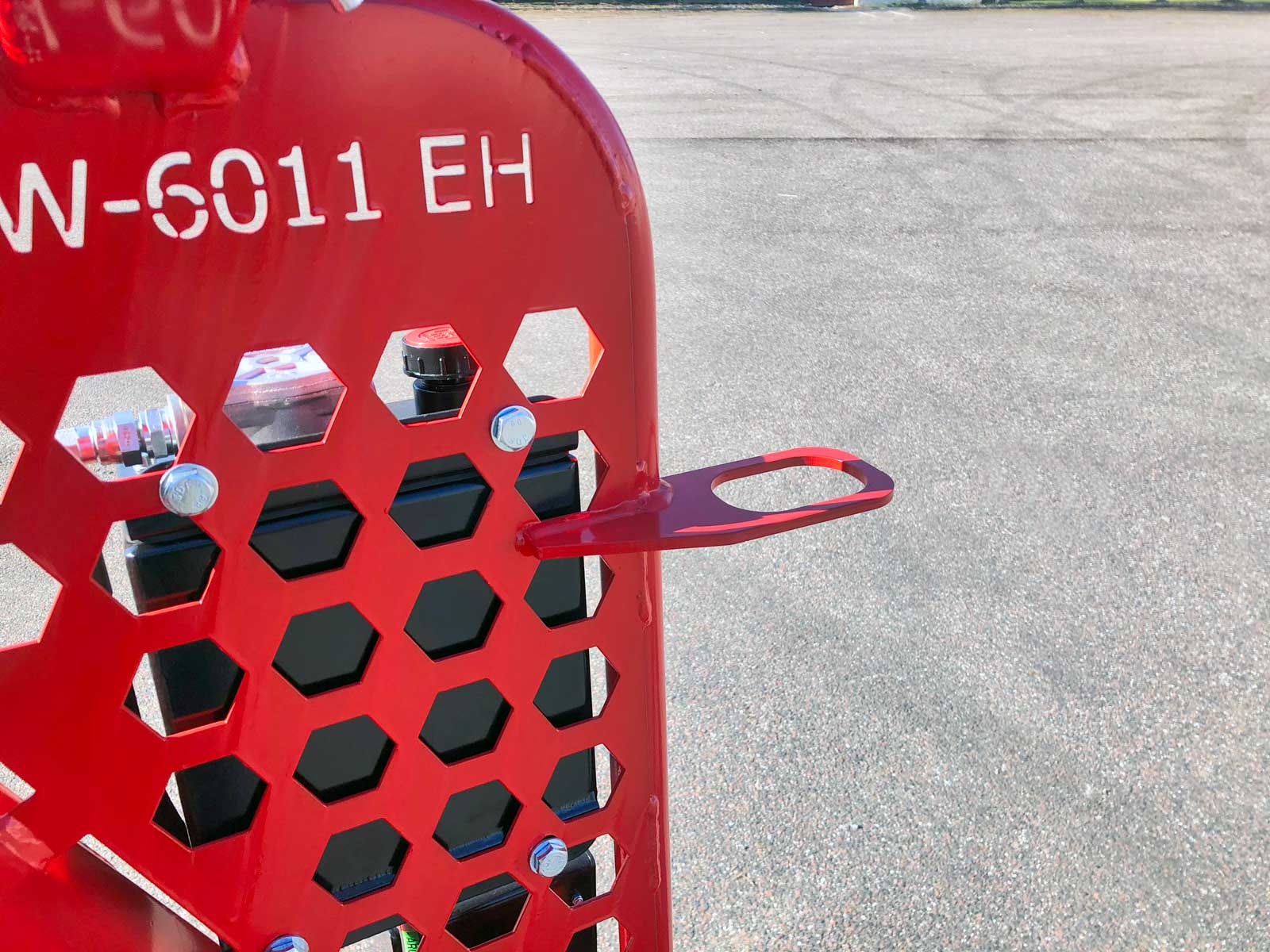

Axe holder

Axle holders are standard equipment on all winches.
Button

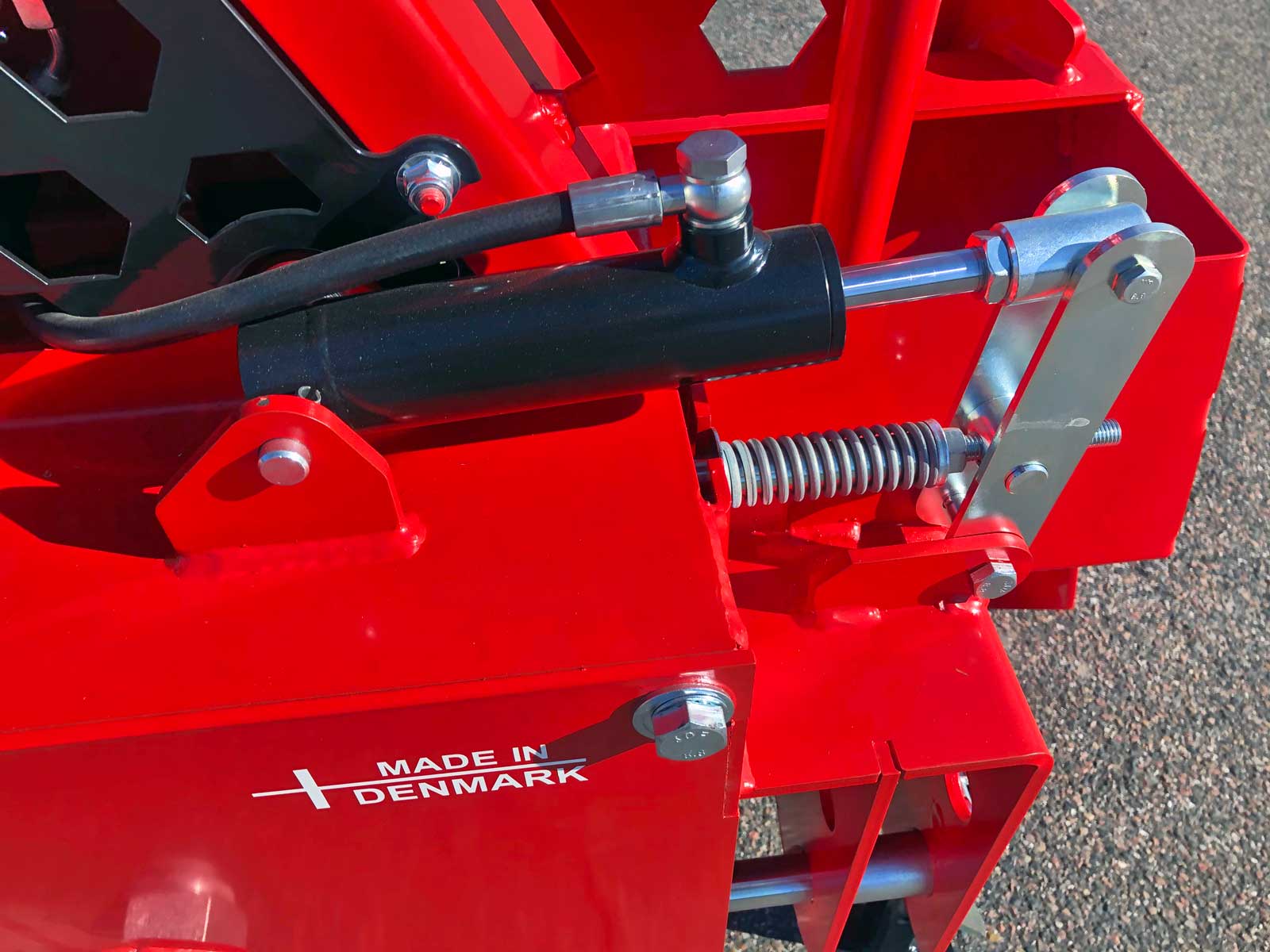

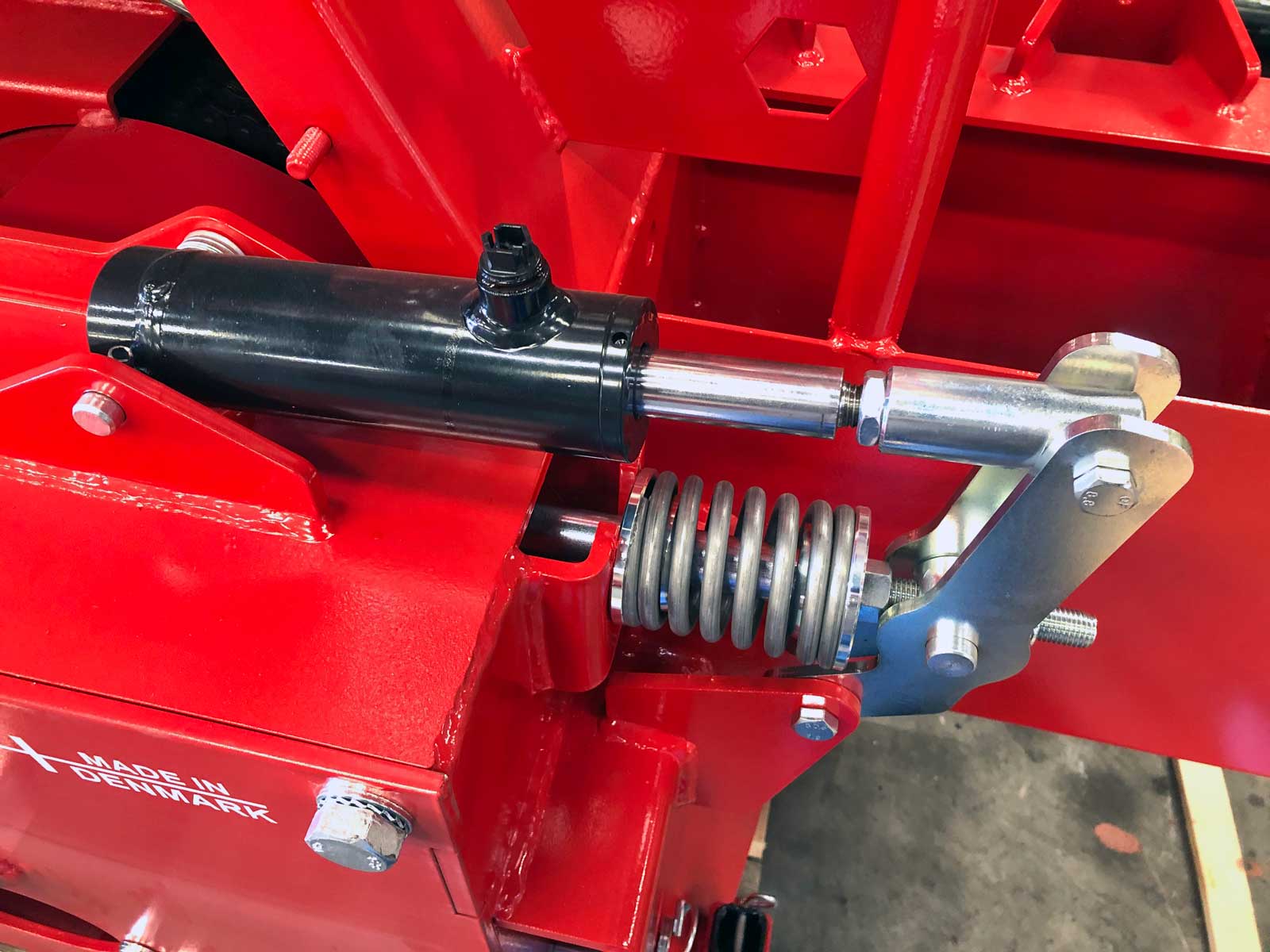

Brake cylinder

The brake cylinder of the W-10014-EH is fitted with an extra strong spring to ensure optimal braking effect.
Button
3-pin connector

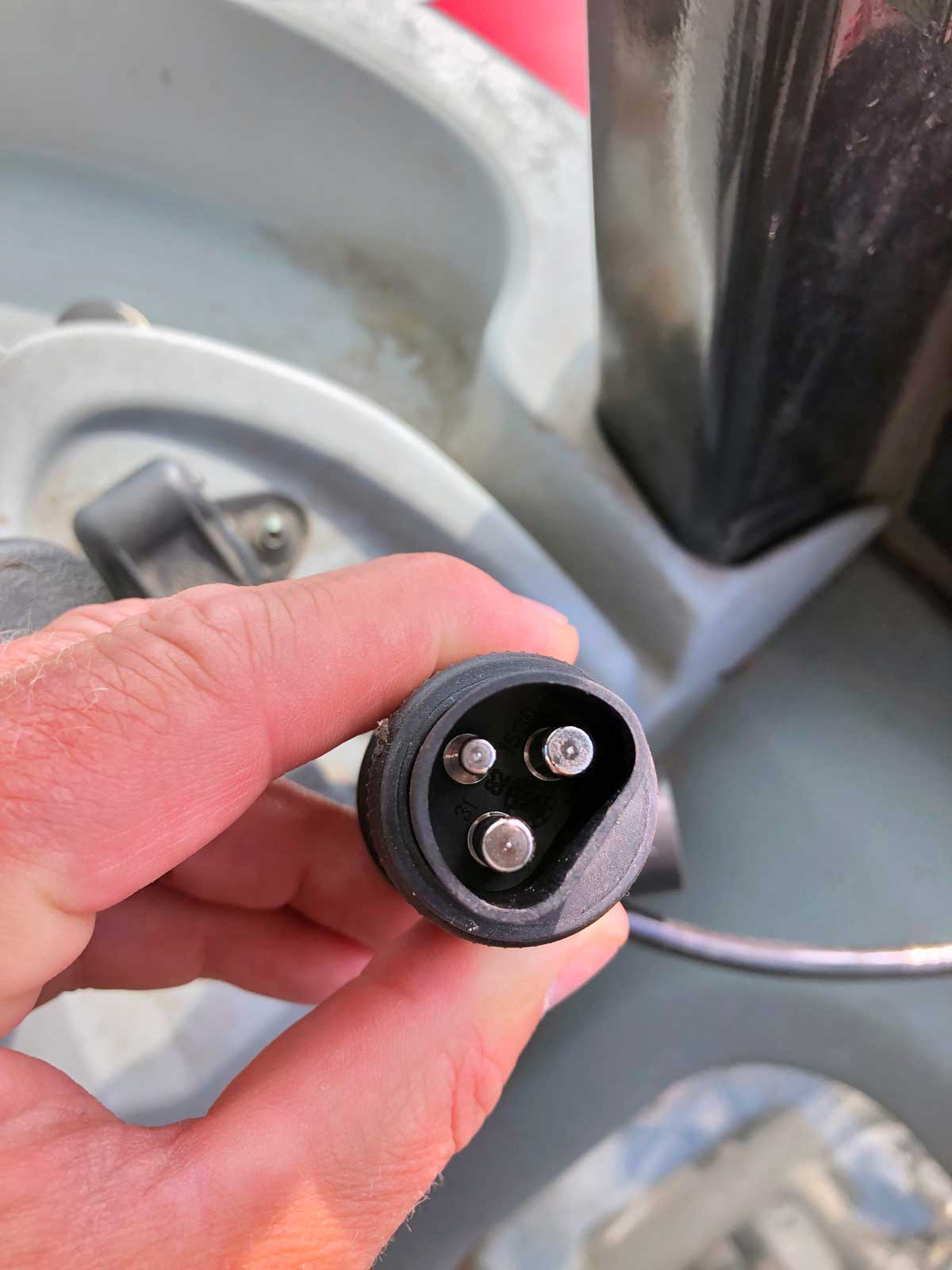

The power for the W-EH winches is taken from the tractor via the 3-pin connector.
Button
7-pin connector

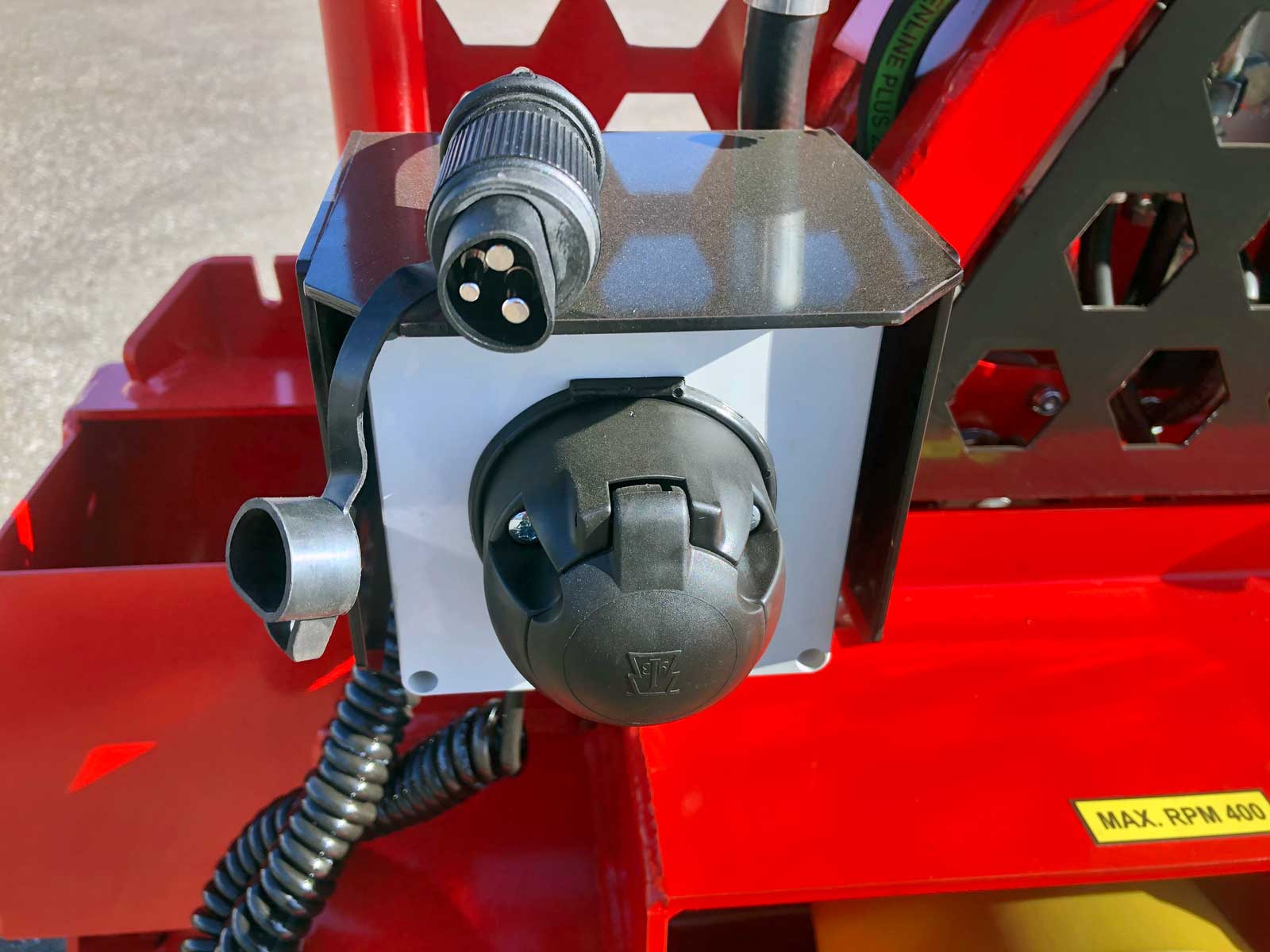

The 7-pin connector on the W-EH winches makes it easy to install cable control or radio control as required to operate the winches.
Button

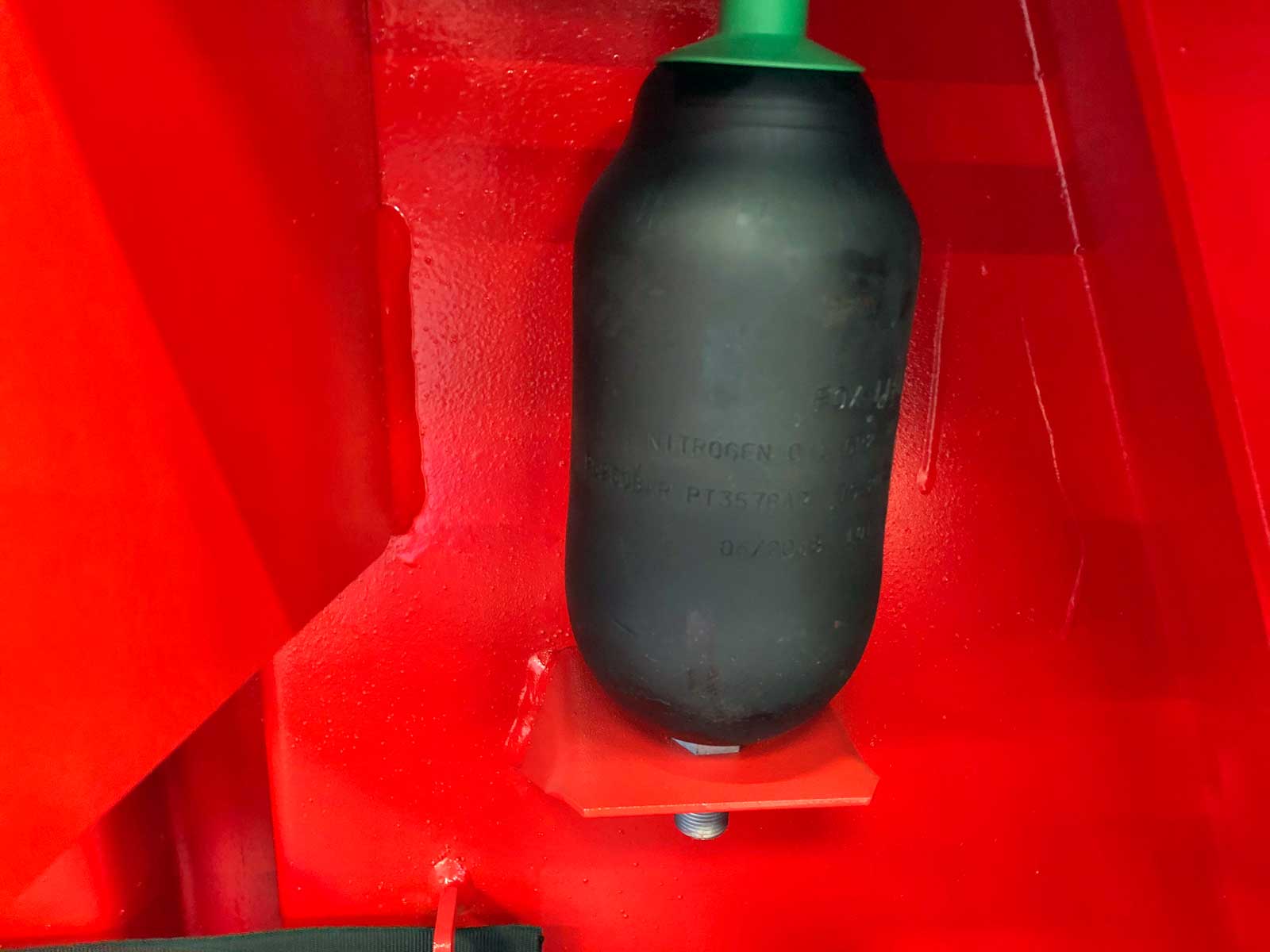

Accumulator

All W-EH winches are fitted with an accumulator on the hydraulic system.
Button
Cable pullers

Cable pullers with 5 metre cable can be used for operation of the W-EH winch (optional extra item no. 1591).
Button
Oil pump

The PTO driven oil pump is well protected inside the main frame and is driven by a powerful chain and gear wheel.
Button

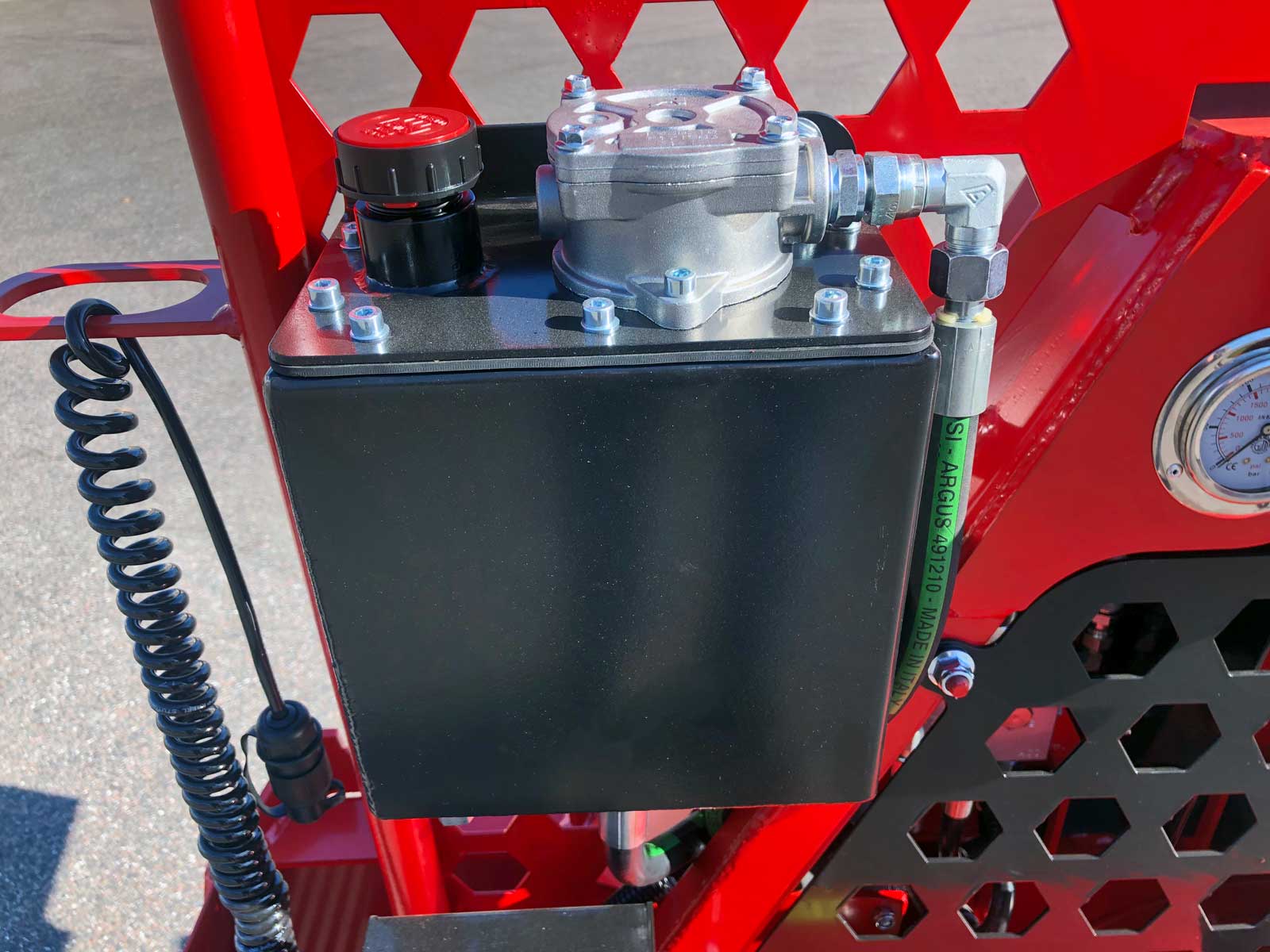

Oil tank

Robust and pressure-tested oil tank with dipstick ensures a supply to the winch
Button

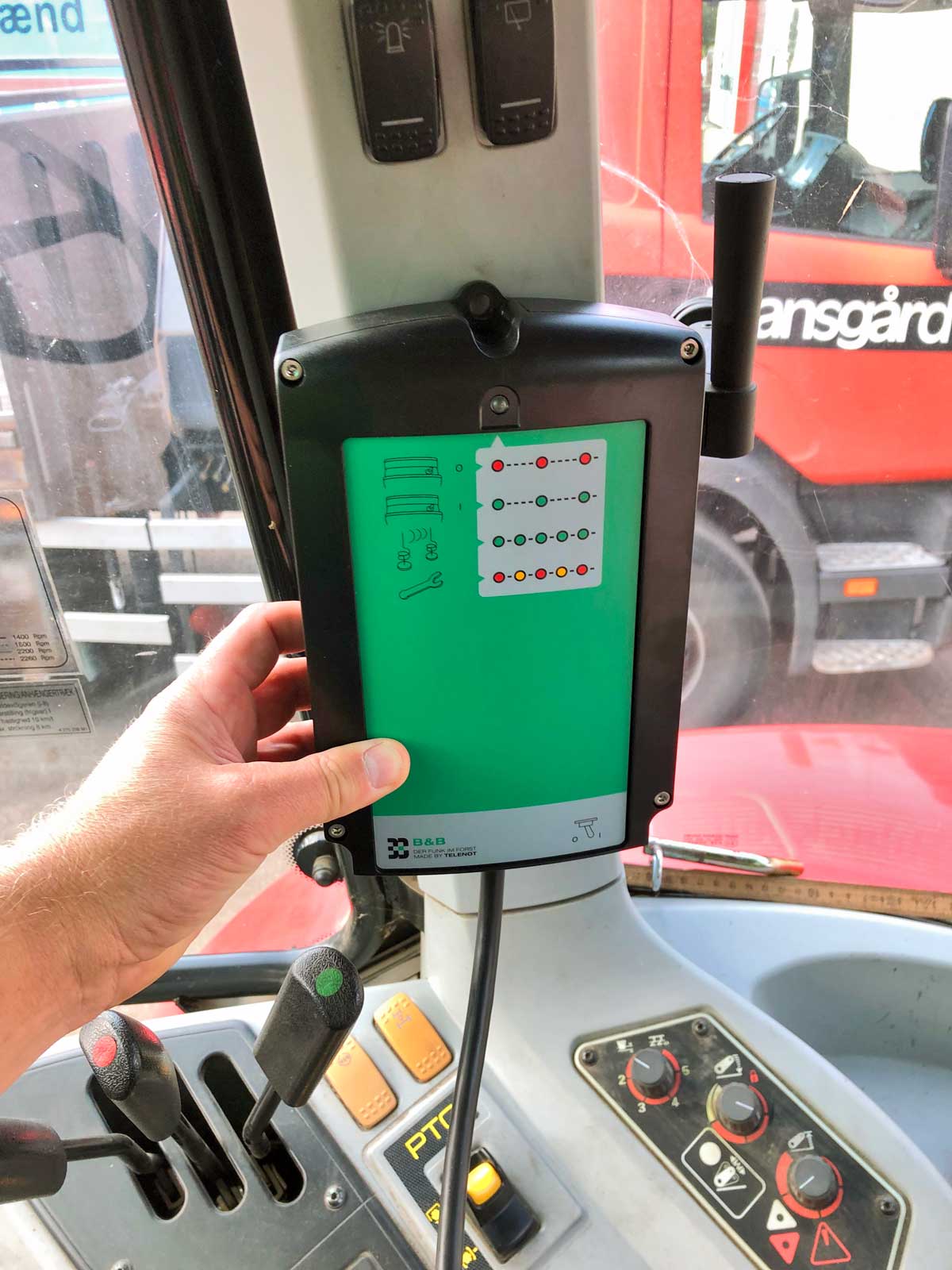

Radio receiver

The radio receiver from the radio controls can be mounted inside the tractor cab, and the 7-pin connector can be pulled out to the winch.
Button
Radio

The hand-held transmitter on the radio controls can be used to operate the W-EH winches. Activation and deactivation of the brake, winding of the wire and unwinding of the wire (requires hydraulic wire unwinder, item no. 1550-14). The radio can also be connected to the tractor's horn and engine reversing system. (See optional extras for the models)

Button

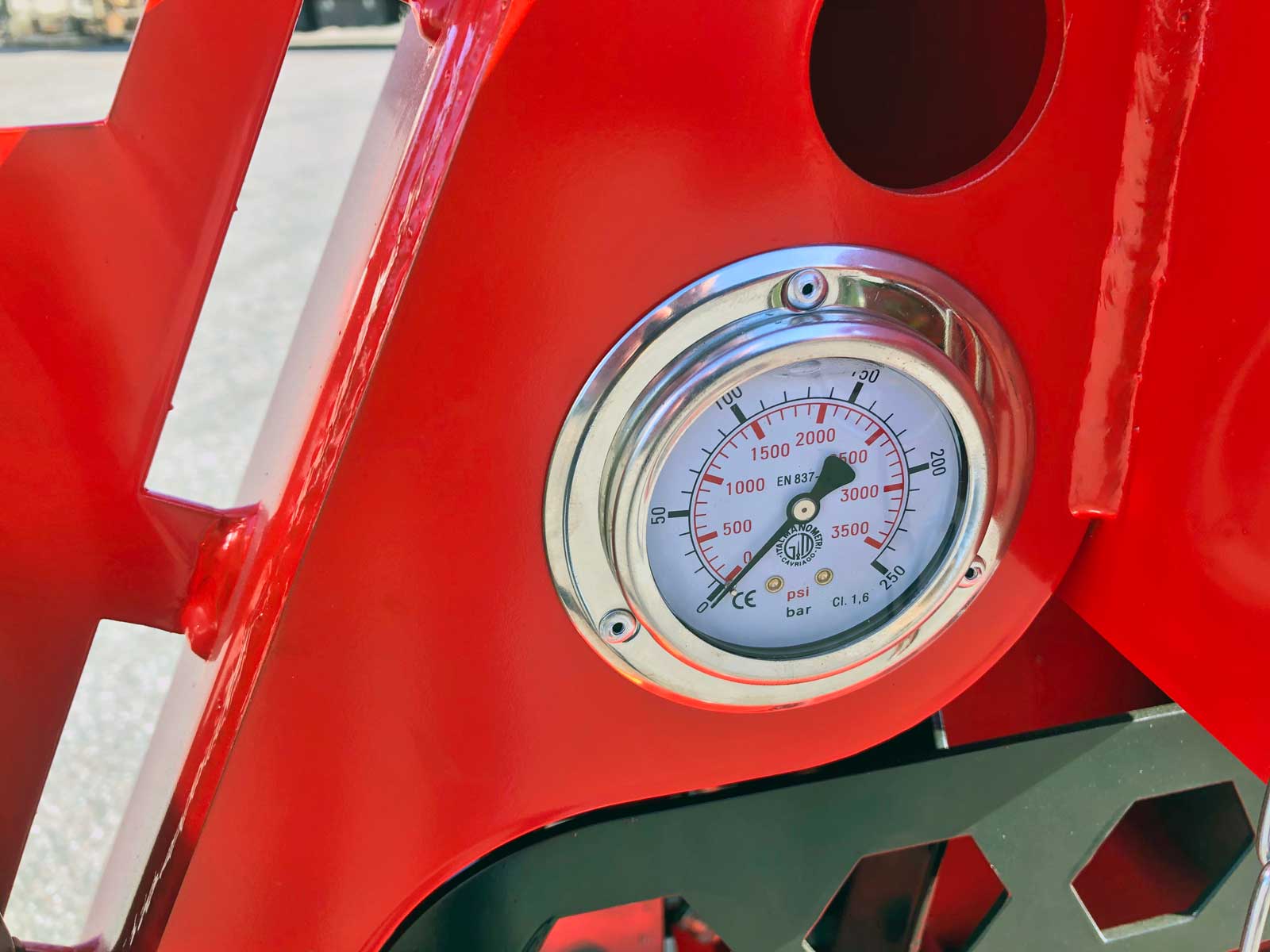

Oil pressure guage

The oil pressure gauge is mounted on the back of the W-EH winch, so it is easy to see if the hydraulic system has reached the desired pressure.
Button

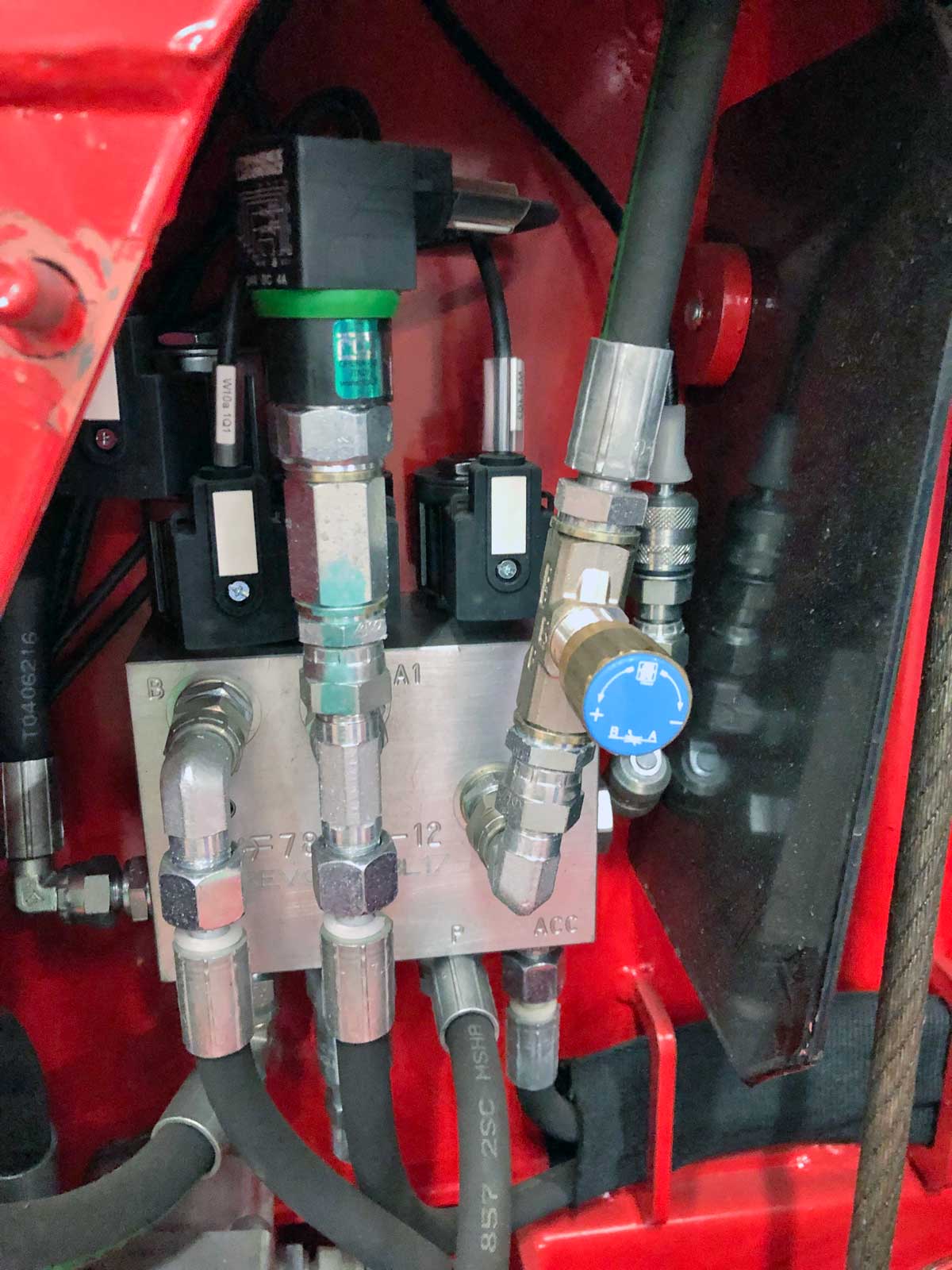

Valve block

The large aluminium valve block, which controls all W-EH winch functions, is well protected inside the main frame and can be easily operated by removing the front screen.
Button
Brake cylinder

The brake cylinder on the W-10014-EH is equipped with an extra powerful spring to ensure optimal braking effect.
Button

Optional extras:

Item No. 1517

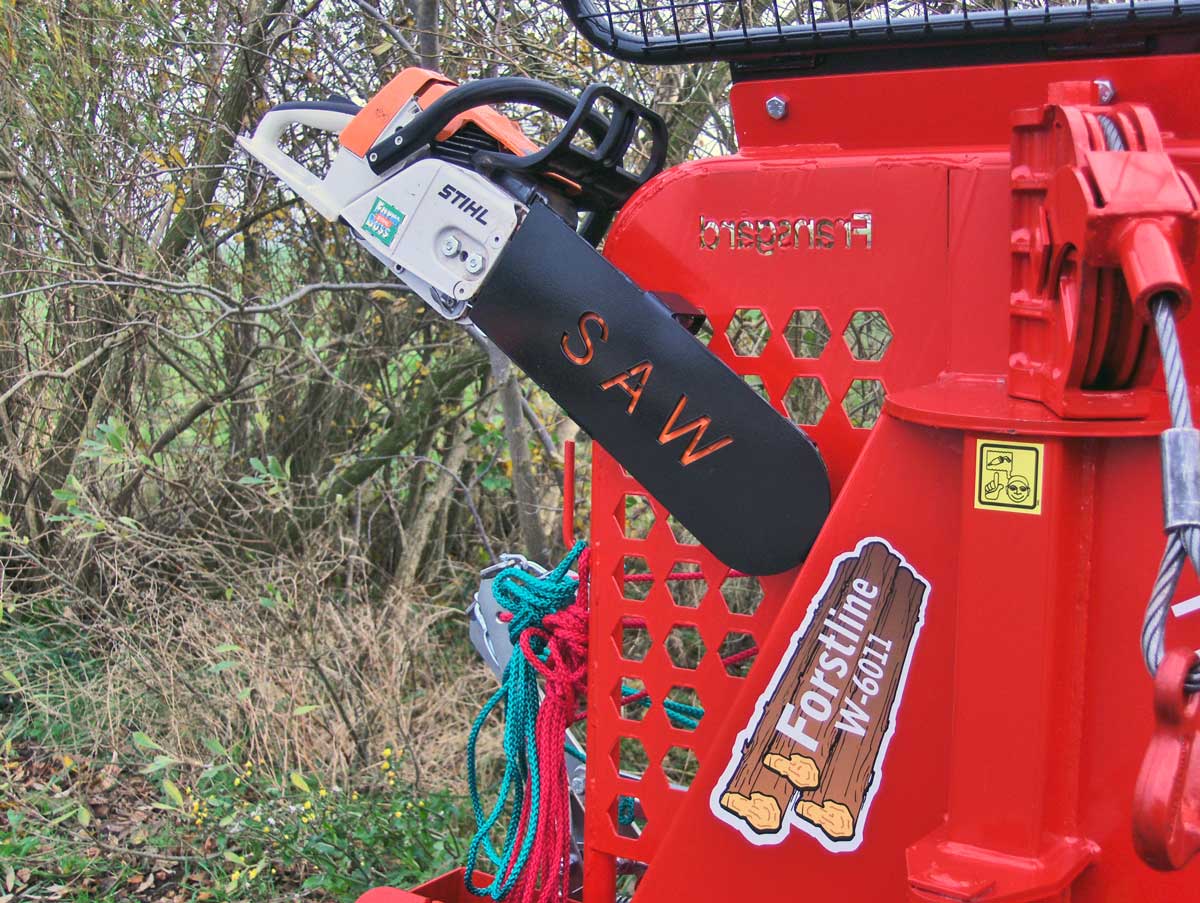

Holder for a chain saw incl. plastic guard for the saw chain blade.
Button

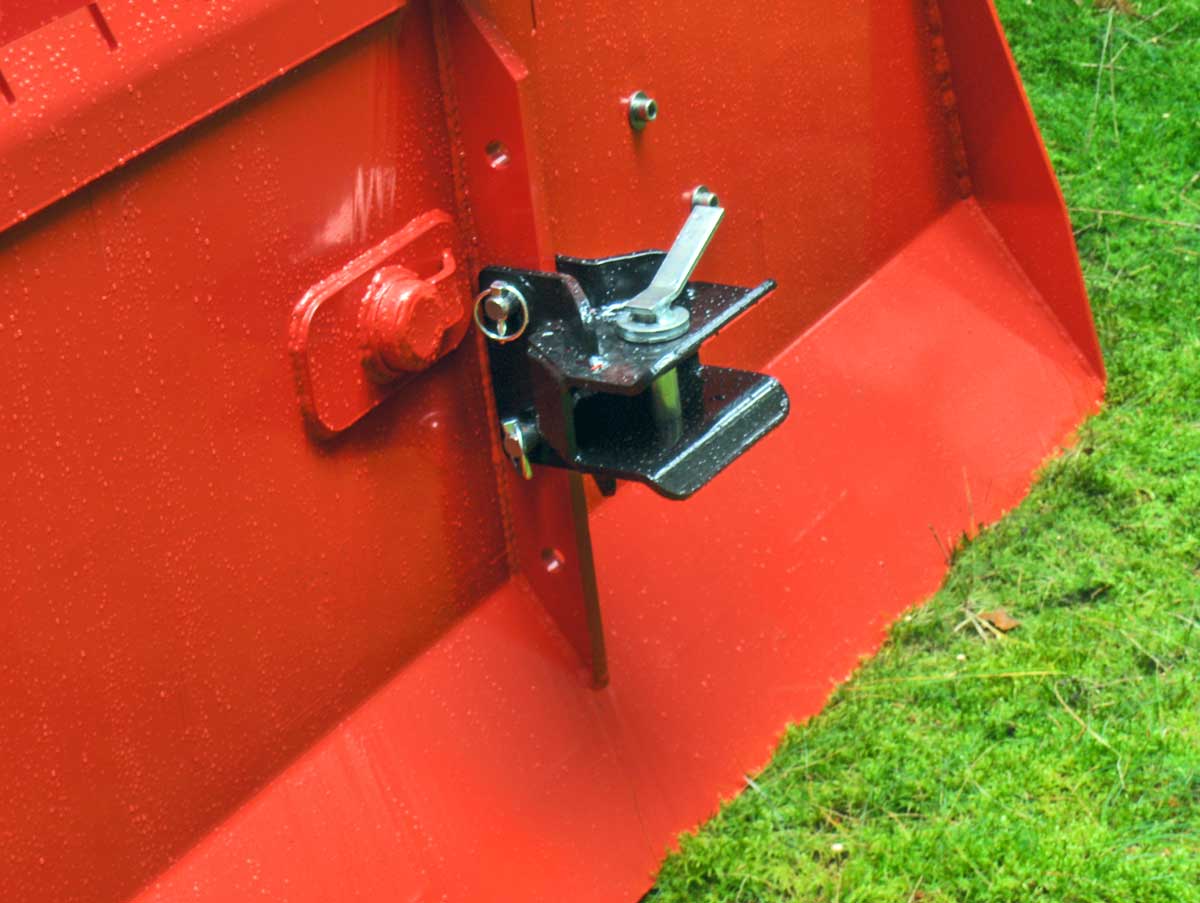

Item No. 1518

Towbar for mounting on all winches. Not approved for use on public roads.
Button

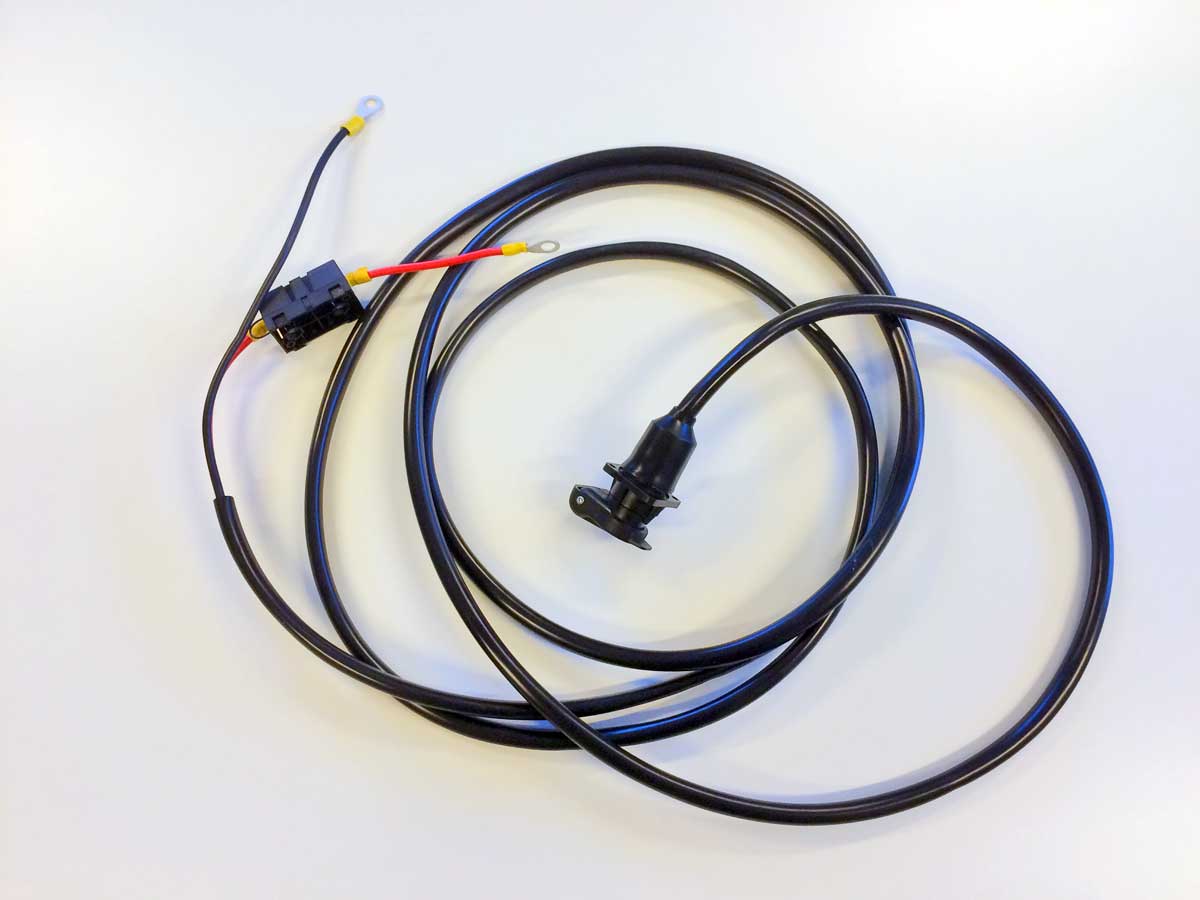

Item No. 1532

4 m long supply cable for W-EH winches for attaching directly to the tractor battery.
The supply cable has cable lugs and a 50 Amp fuse, as well as a 3-pin female connector.

Button
Item No. 1537

Oil engine kit for hydraulic operation of the W/W-EH winch model (not W-8016 and W-10014 models). Mounts directly to the PTO connector on the winch. (Hoses not included)
Button

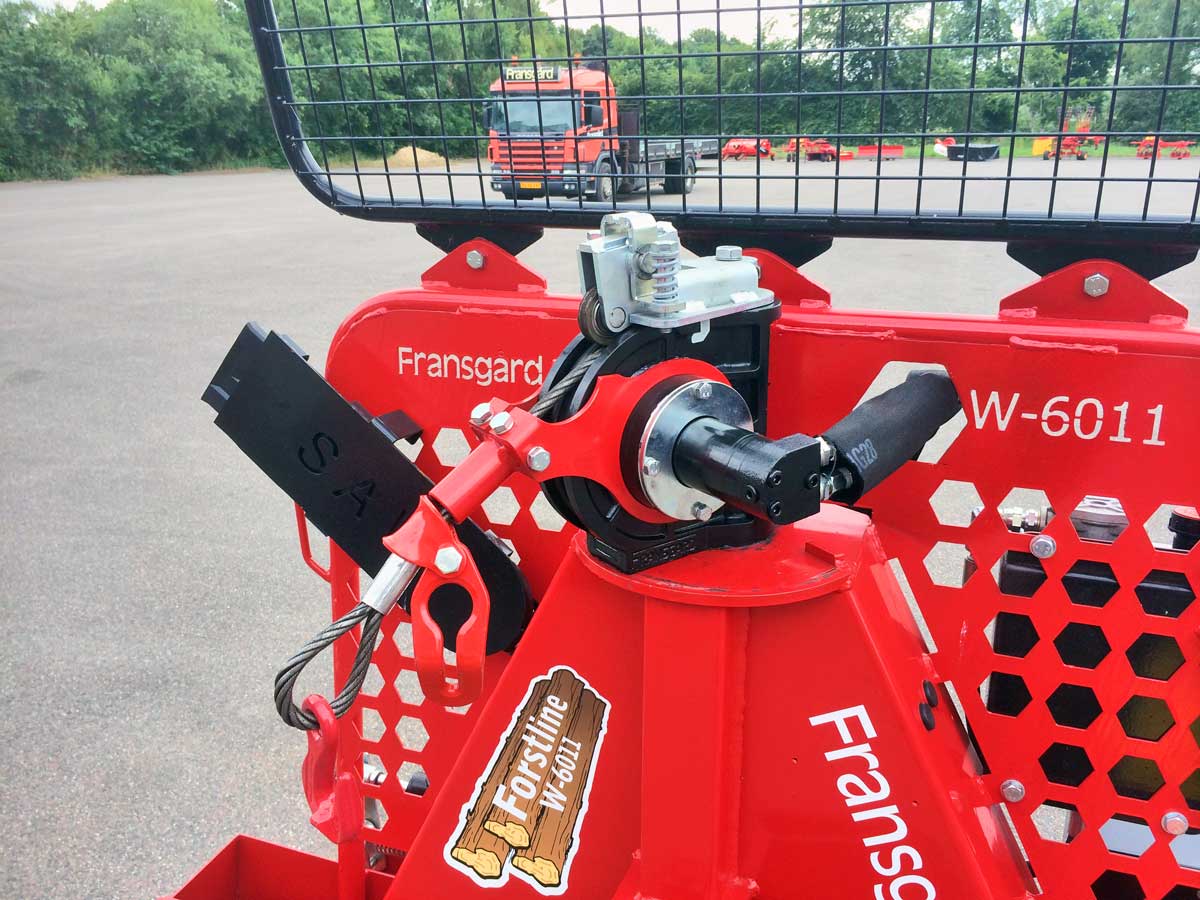

Item No. 1550-14

Hydraulic uncoiling of the wire can be fitted to all W-EH models (Not W-4011-EH).
Button

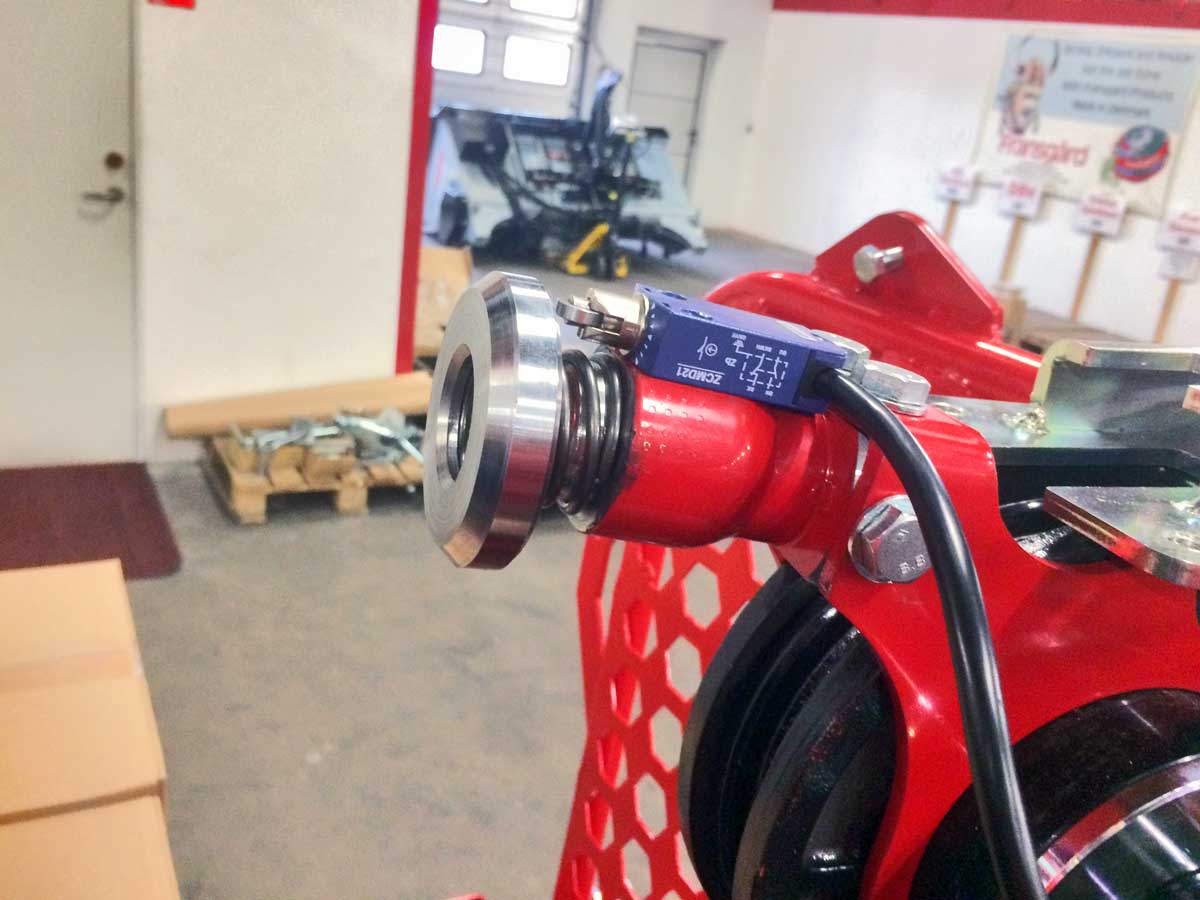

Item No. 1551

Automatic stop of wire winding to avoid damage to the wire guide. Can be retrofitted on all W-EH models.
Button
Item No. 1552

Throttle valve for the brake cylinder, so you can release the brake very slowly. Can be retrofitted on all W-EH models
Button
Item No. 1561

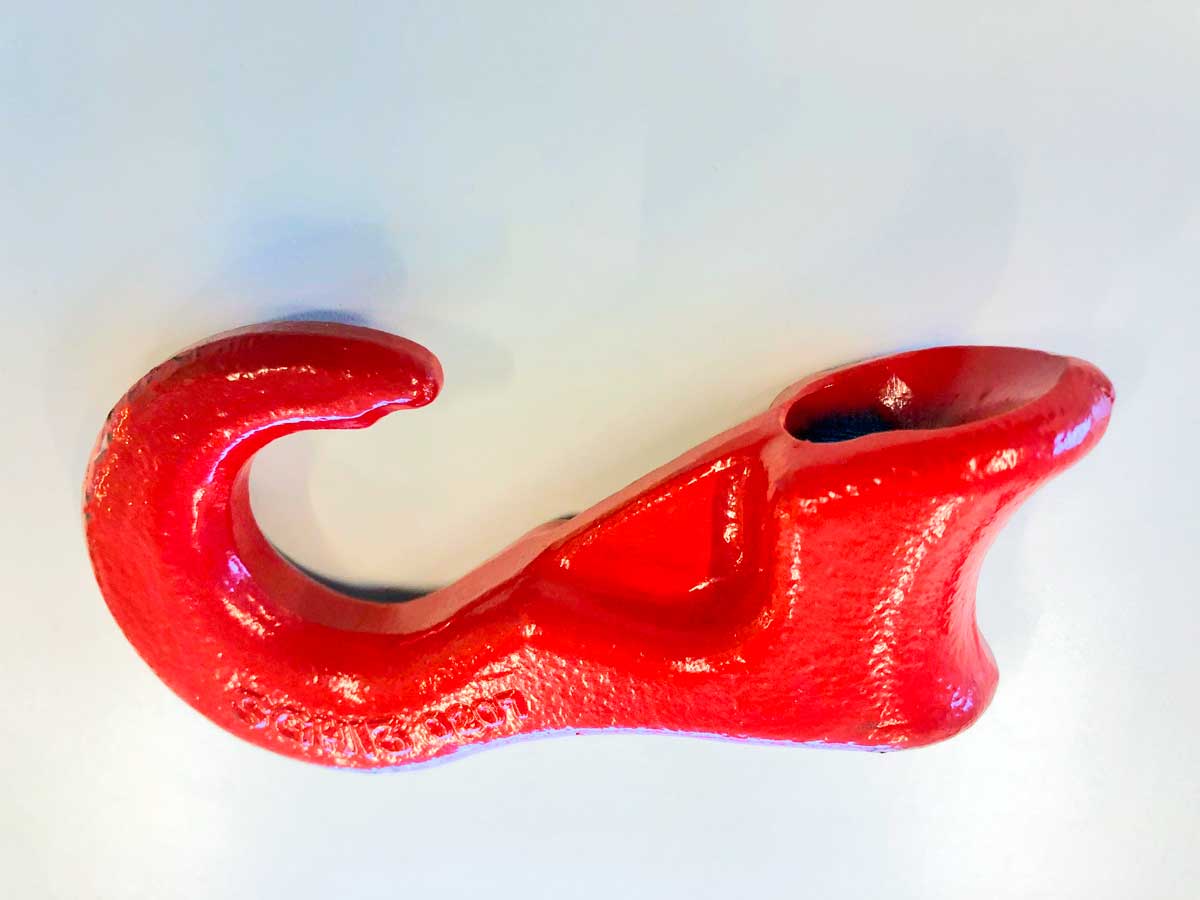

Sliding hook for 9-13 mm wire
Button
Item No. 1562

End hook for 8-11 mm wire
Button

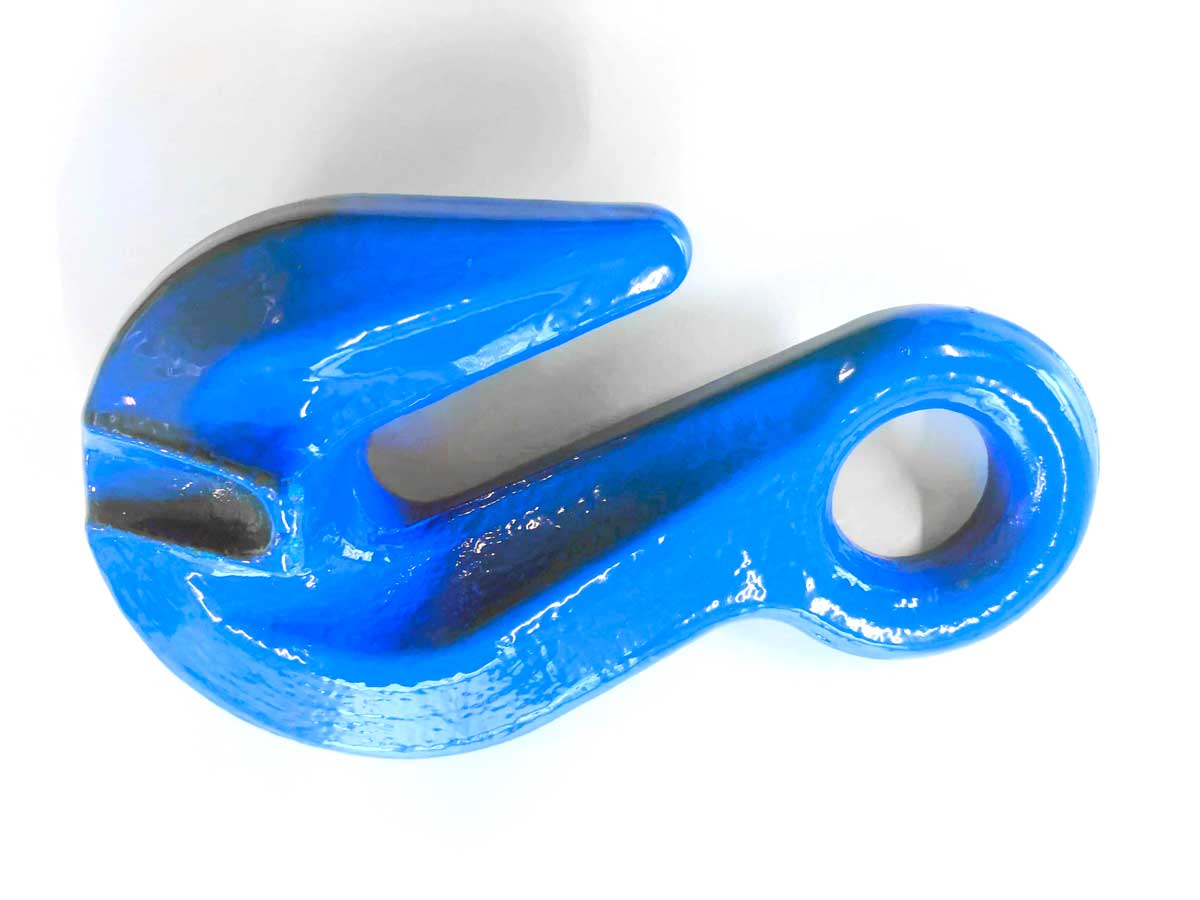

Item No. 1563

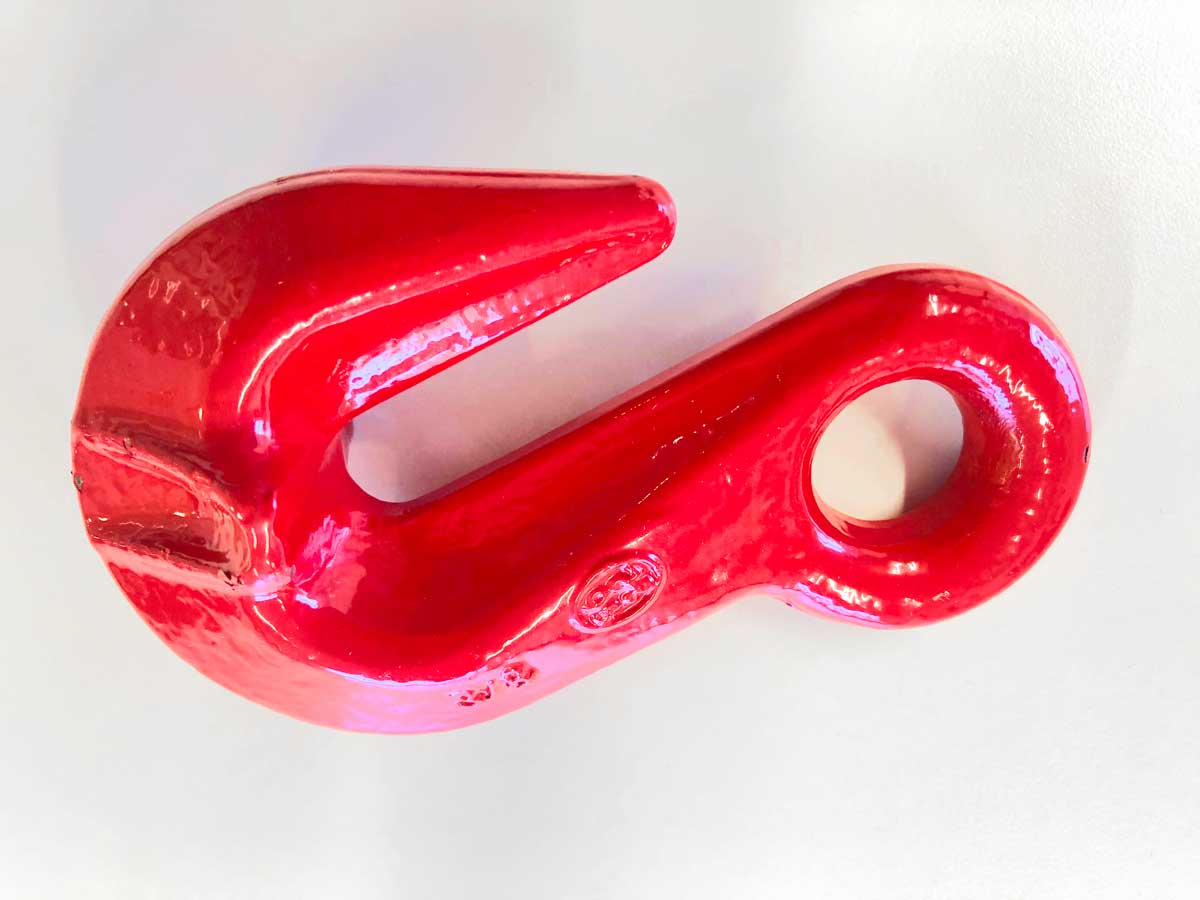

End hook for 12-14 mm wire
Button

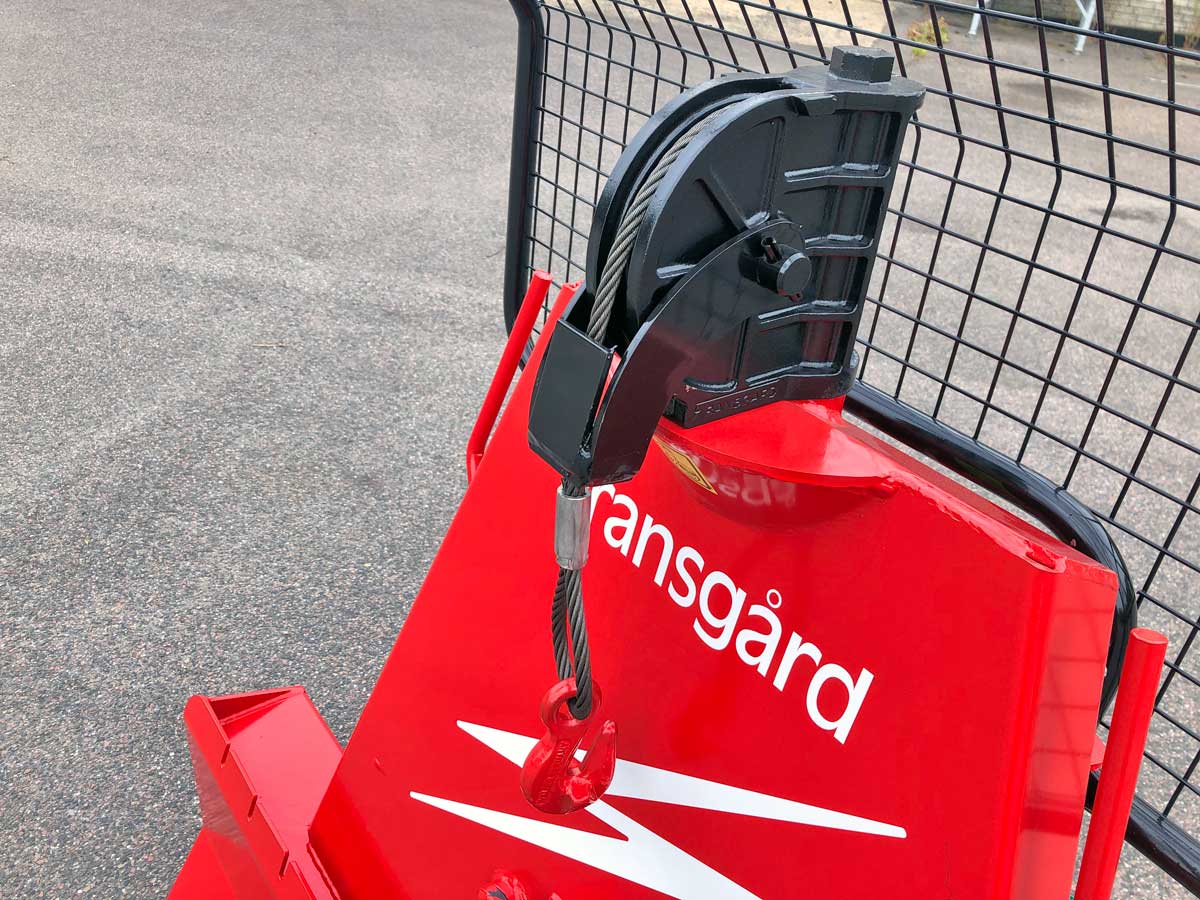

Item No. 1570

Factory installation of wire on the winch.
Button
Item No. 1582

Slider for 8-14 mm wire with a chain fall for 7-8 mm chain
Button

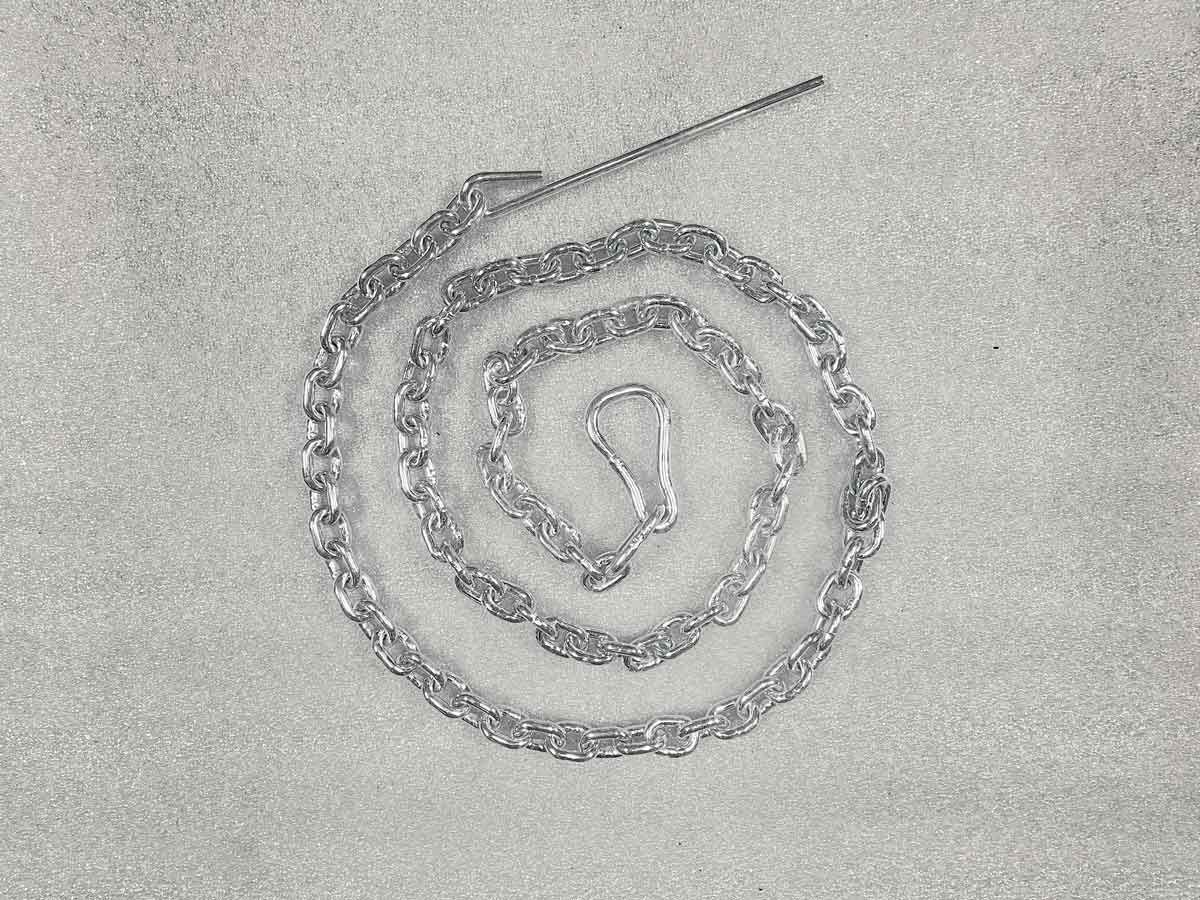

Item No. 1584

2 m chain 7 mm with locking eye and pin (recommended up to V-4000). Quality G80, galvanised.
Button

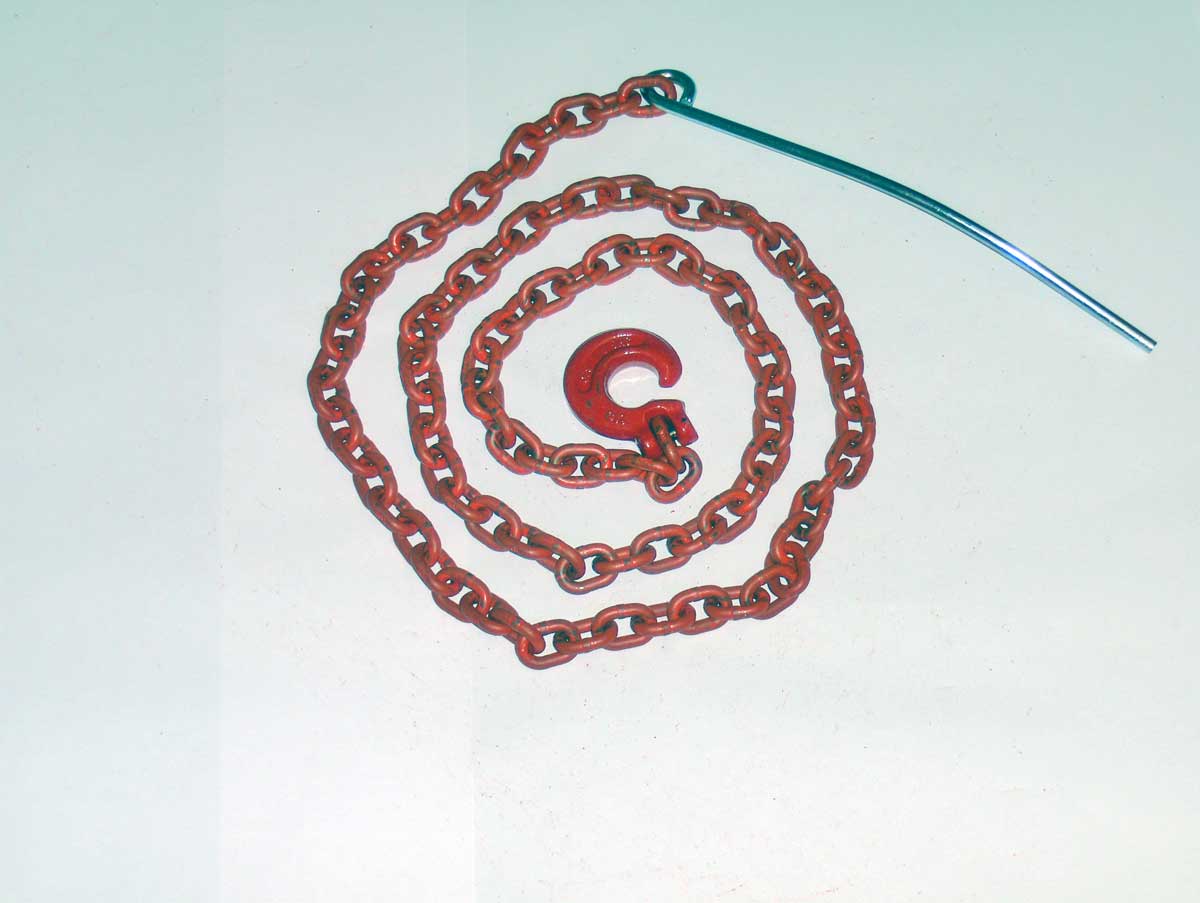

Item No. 1586

2 m chain 7 mm with C-hook and pin (recommended up to V-6400). Quality G100, painted red.
Button
Item No. 1588

3 m chain 7 mm with C-hook and pin (recommended up to V-6500). Quality G100, painted red.
Button

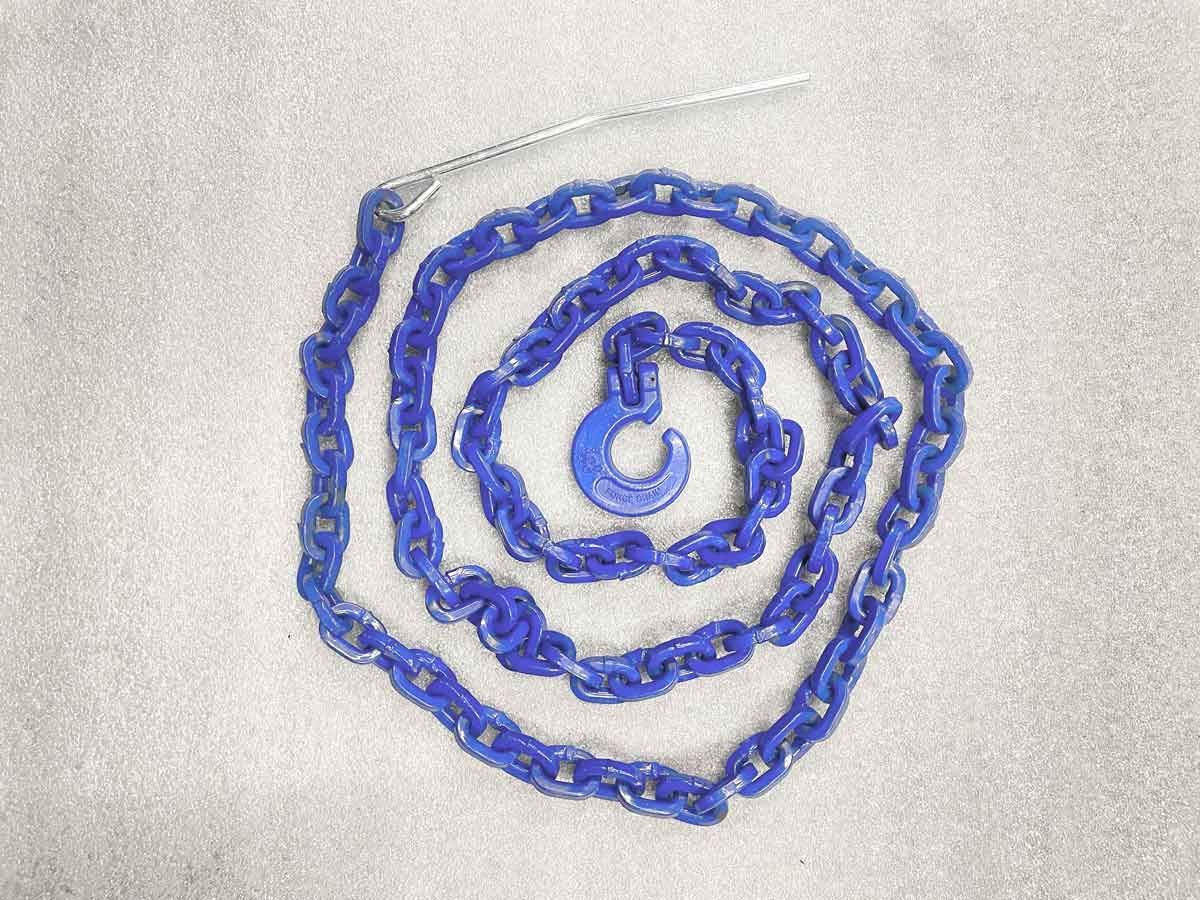

Item No. 1589

3 m chain 8 mm with C-hook and pin (recommended up to V-6500). Quality G100, painted red.
Button
Item No. 1591

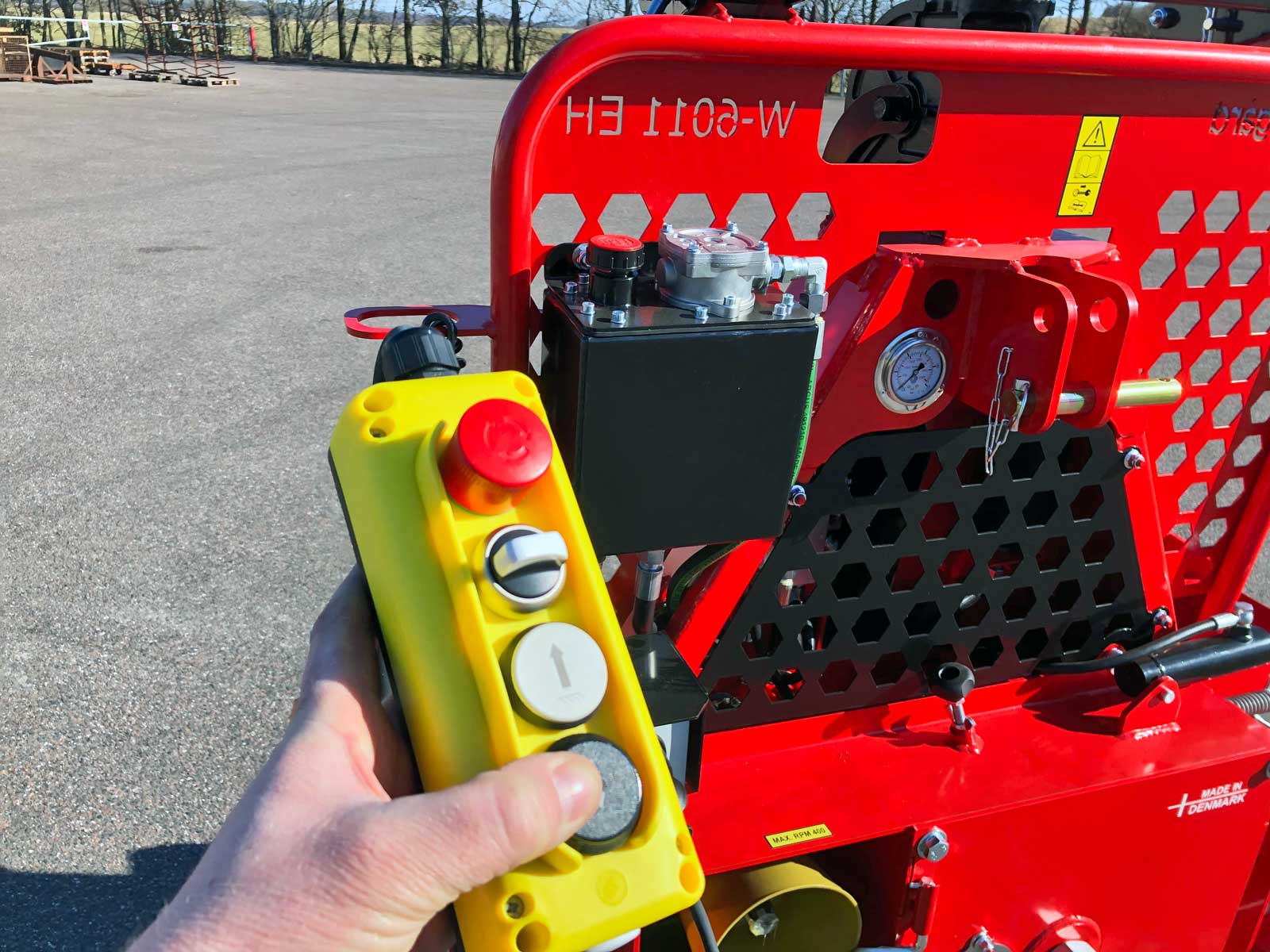

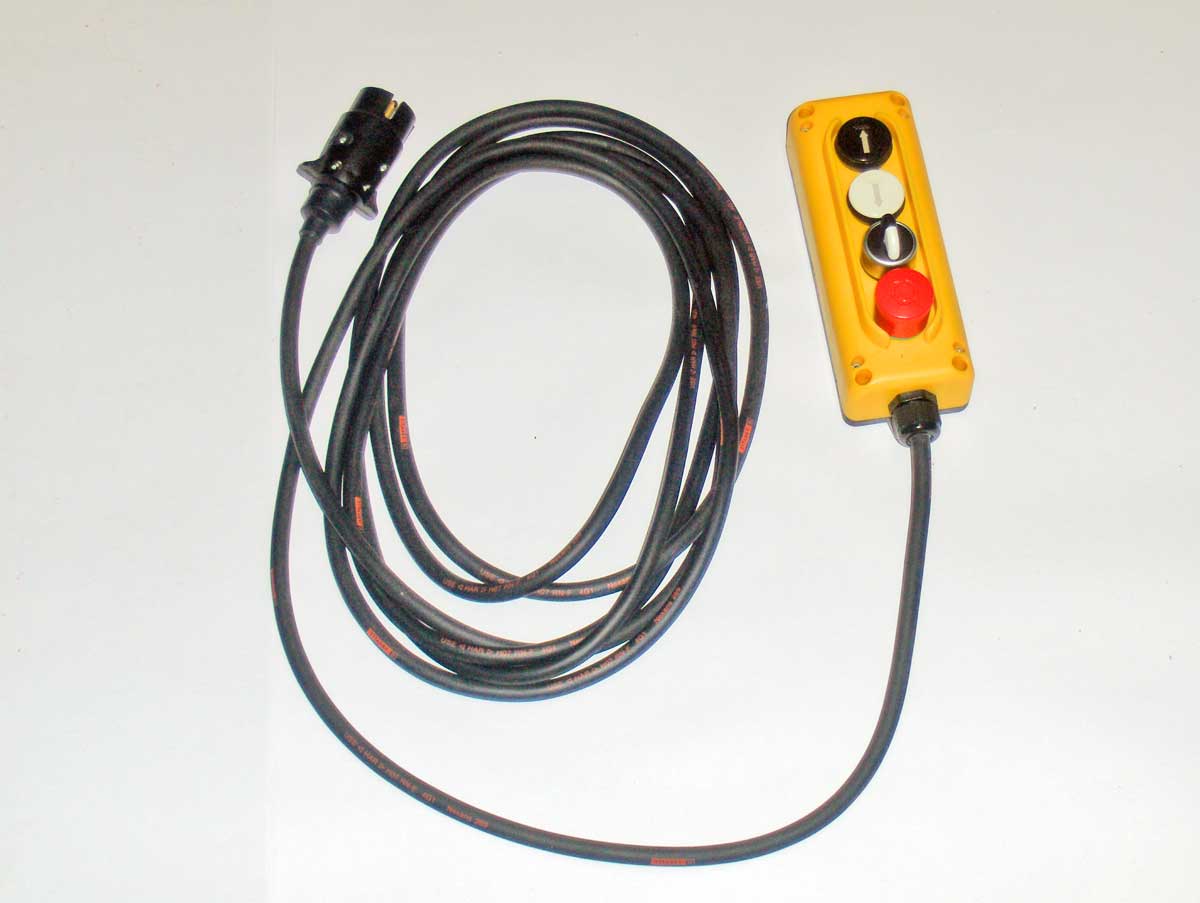

Cable control box with 7 metre cable for W-EH winch.
Button
Item No. 1592

Radio control model Telenot with 2 AA batteries. Charger included.
Button
Varenr. 1593

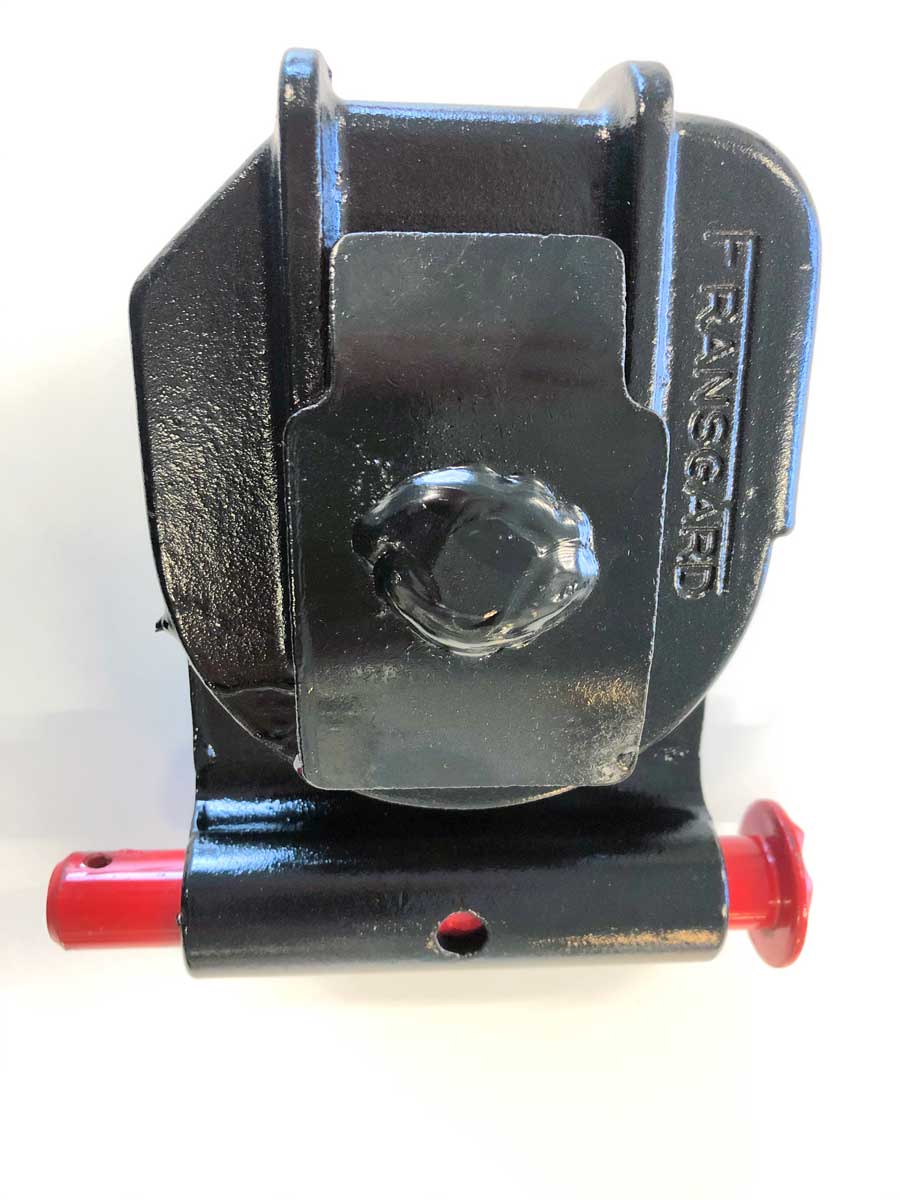

Bottom roller for W-3014.
Button
Item No. 1597

Radio control model ELCA with rechargeable battery. The battery in hand-held transmitter is not replaceable.
Button
Item No. 1601

2 m loading sling with a breaking strength of 4 tonnes (recommended for item no. 1595). For fitting around standing trees to avoid damaging the bark.
Button
Item No. 1600

Loading sling 2.5 m with a breaking strength of 6 tonnes (recommended for item no. 1596). For fitting around standing trees to avoid damaging the bark.
Button

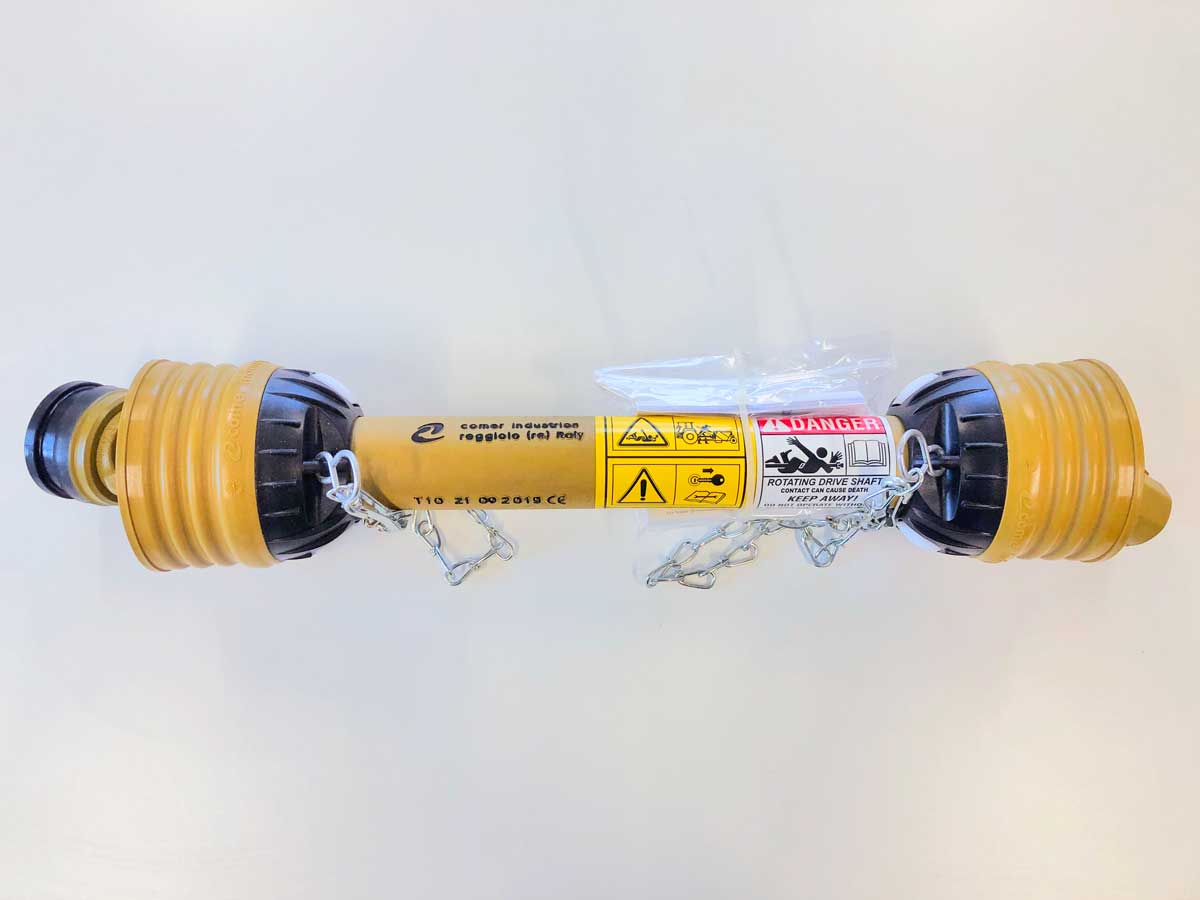

Varenr. 1413500

PTO shaft for W-3014.
Button
Item No. 1416000

PTO axle for W-4011
Button
Item No. 1416030

PTO axle for W-6011, W-8016, 10014.
Button
Item No. 1595

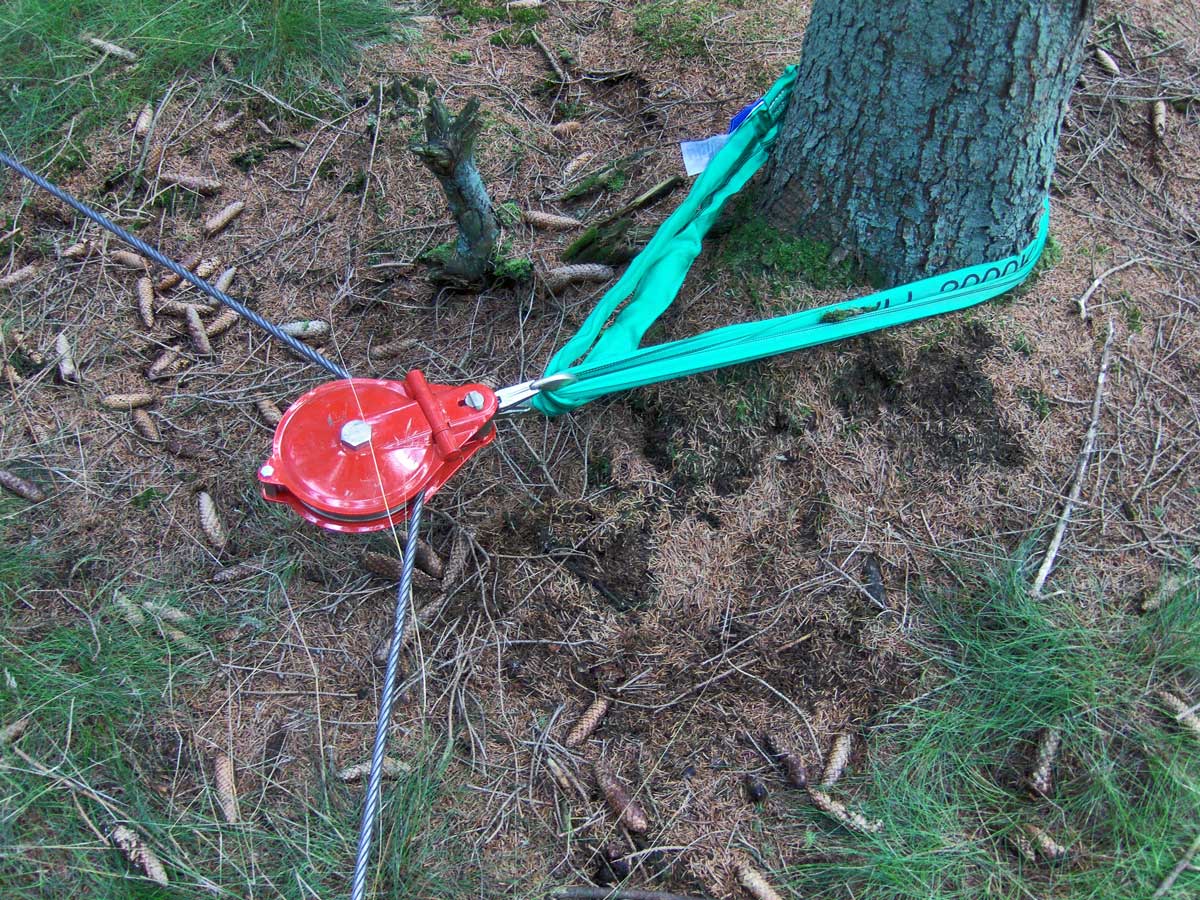

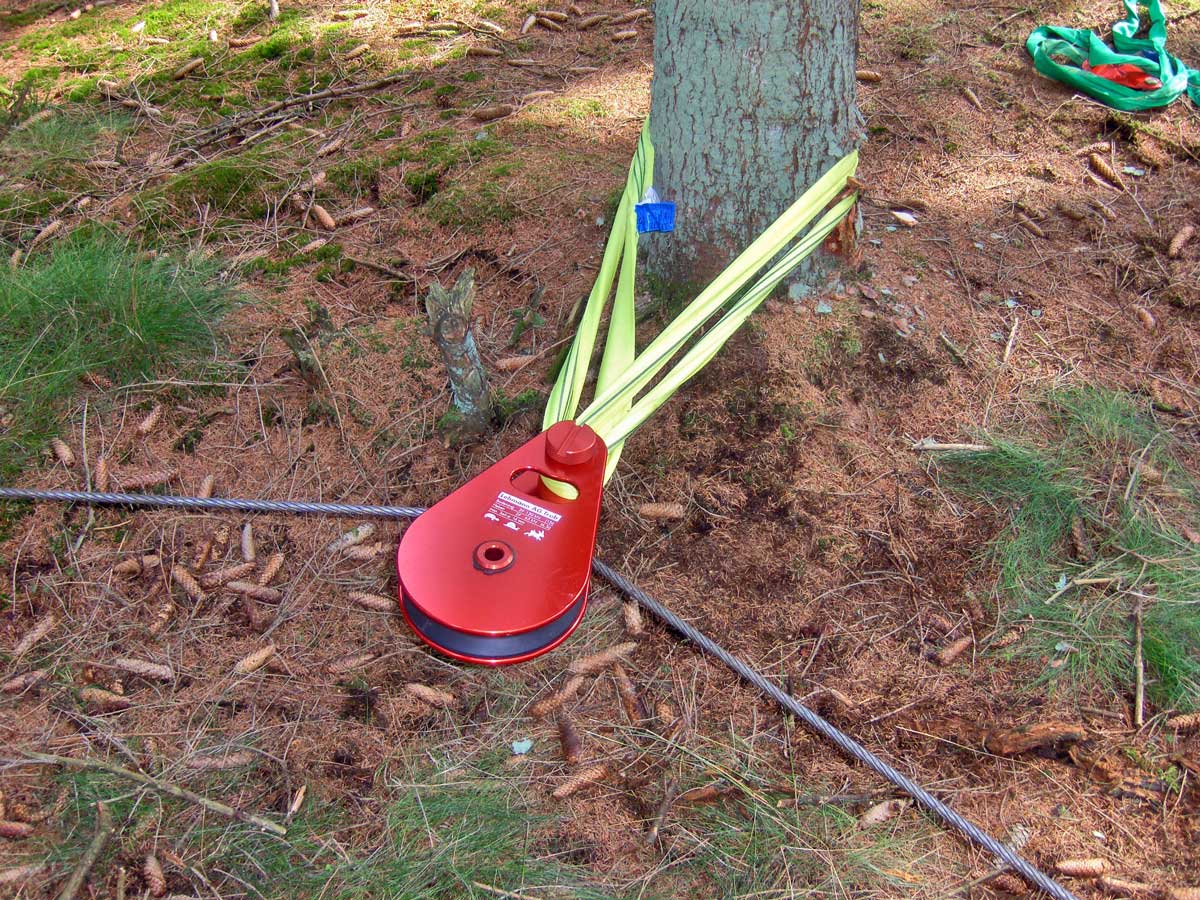

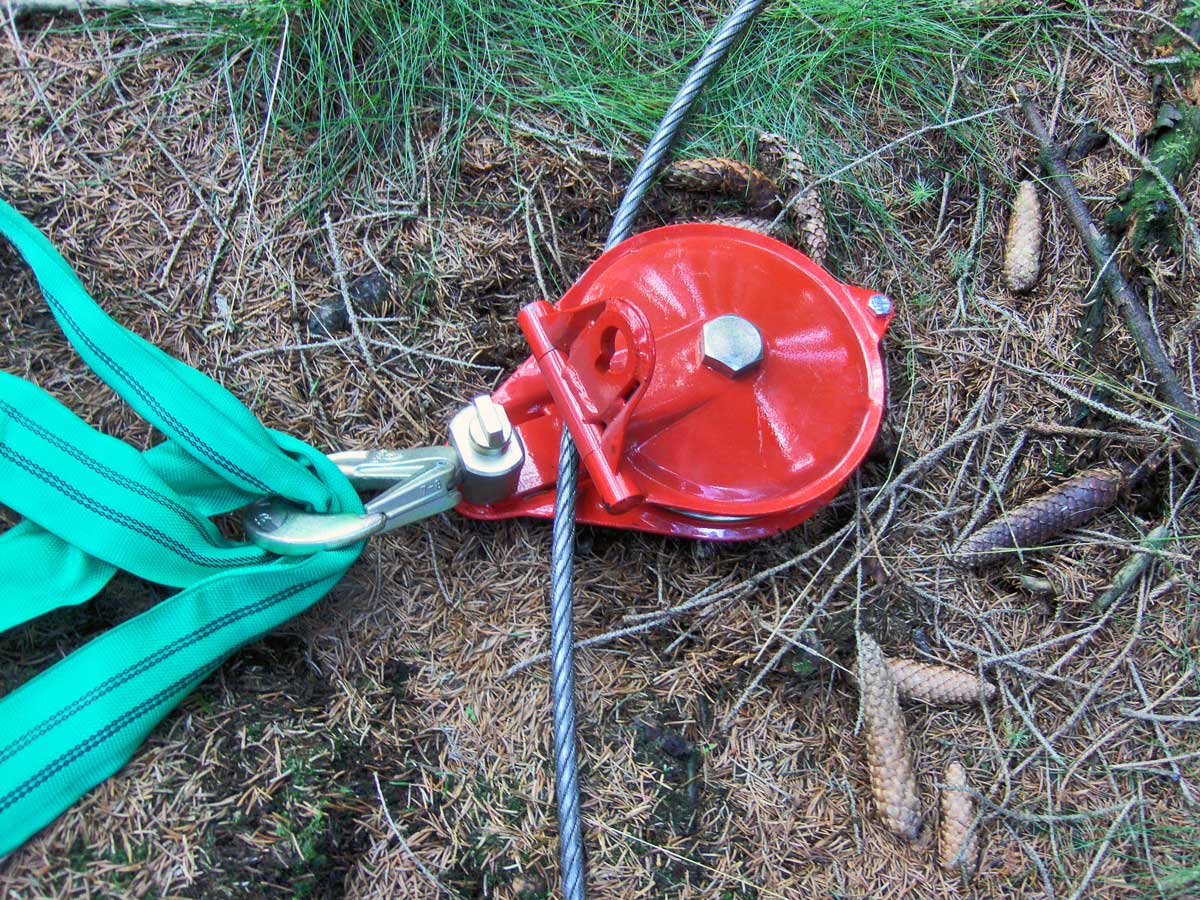

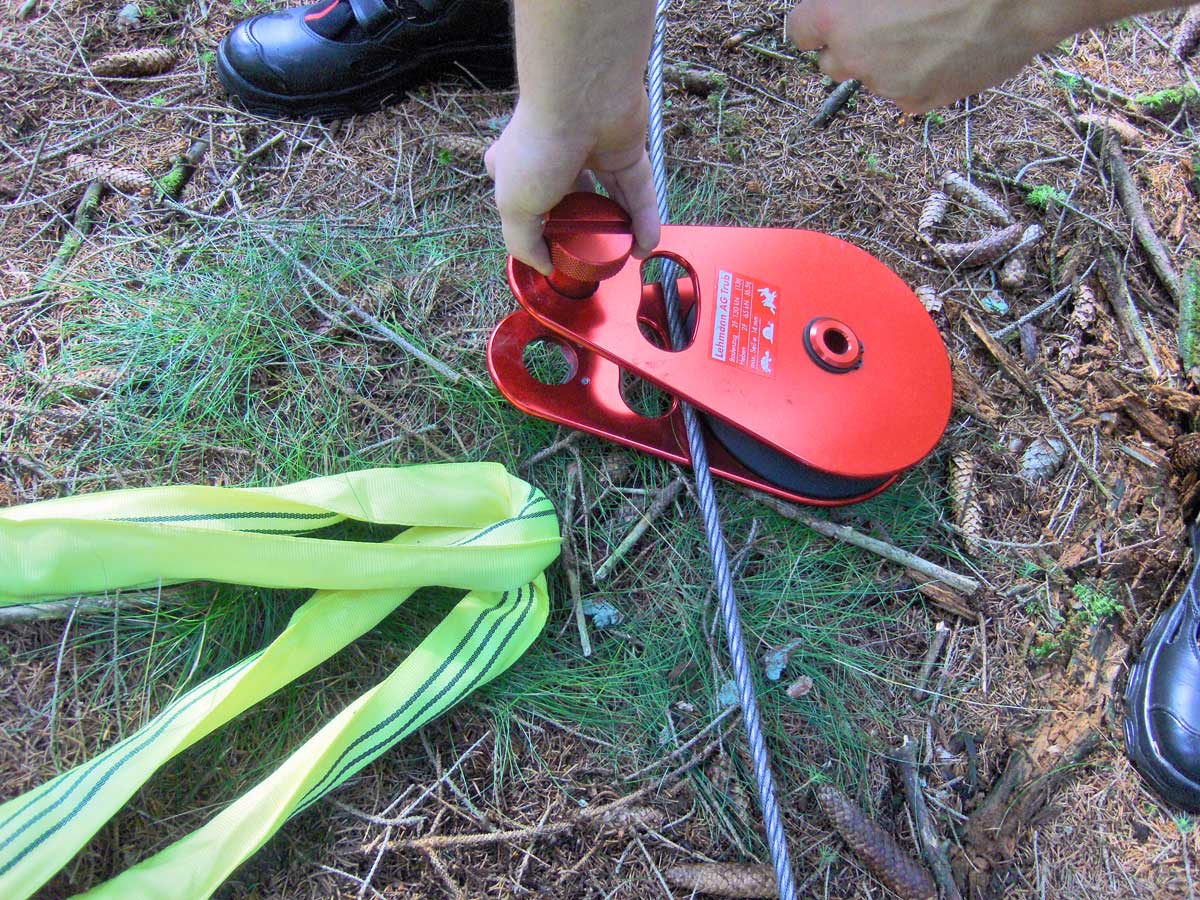

Remote roller/throwing block for 8-14 mm wire and tractive force up to 4 tonnes. For use on sloping and angled retractions. The enclosed roller that ensures that the wire does not jump off. Weight 6 kg.
Button
Varenr. 1595

The enclosed roller that ensures that the wire does not jump off. Weight 6 kg.
Button
Item No. 1596

Remote roller/throwing block for 8-14 mm wire and tractive force up to 17 tonnes. For use on sloping and angled retractions. The enclosed roller that ensures that the wire does not jump off. Weight 4 kg.
Button
Item No. 1596

The enclosed roller that ensures that the wire does not jump off. Weight 4 kg. The remote roller is made of light alloy and with carbon fiber wheels.
Button

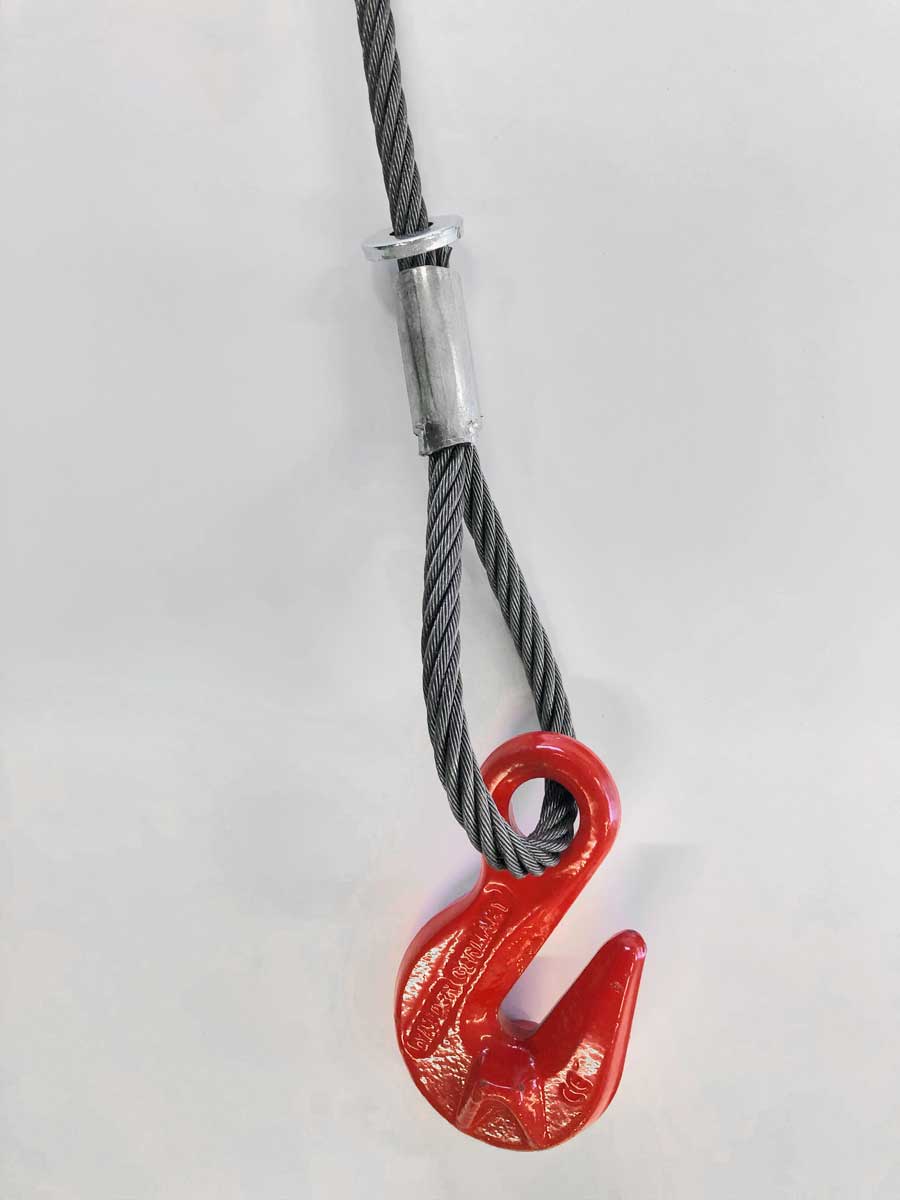

Item no. 8-14 mm* 30-120 m

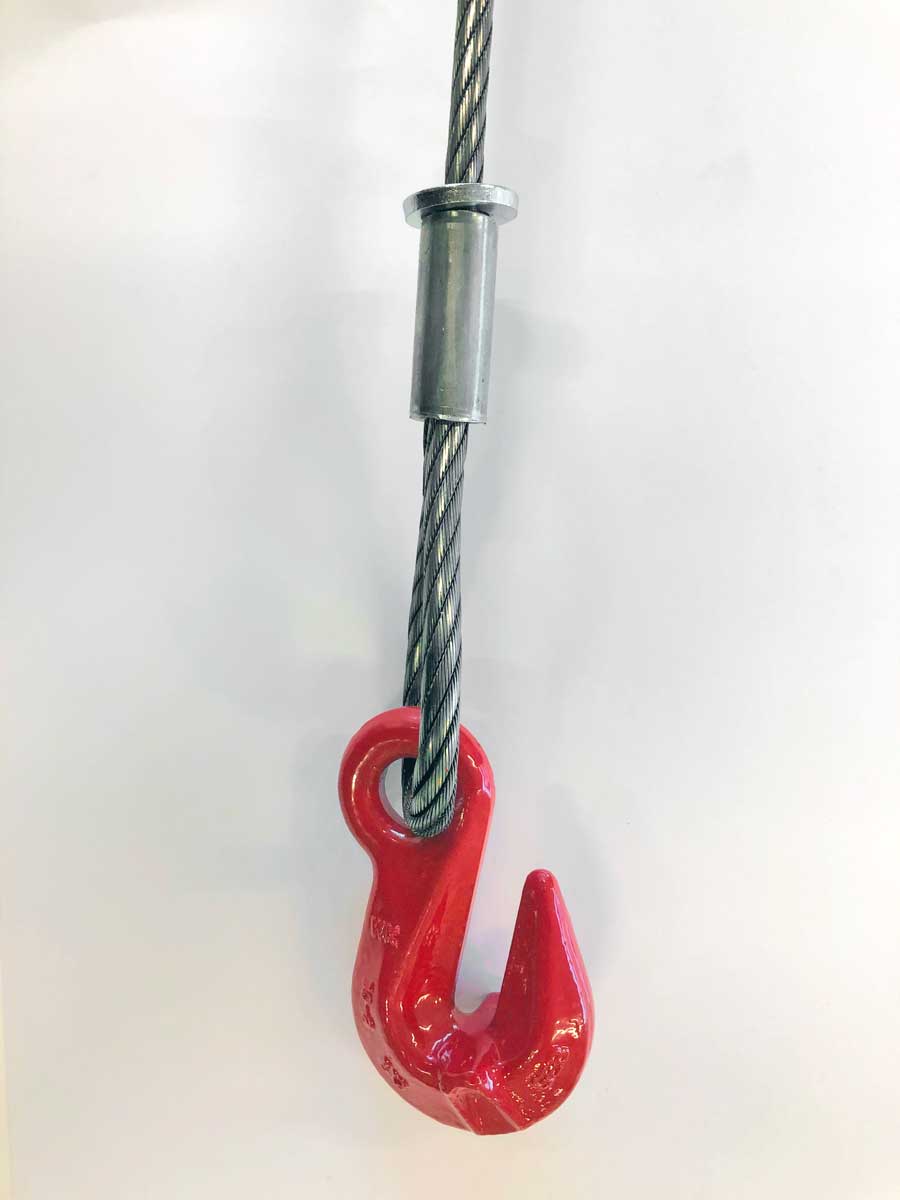

Steel wire incl. end hook and stop washer. Quality 6x26WS+IWRC with steel core. When ordering, please state thickness in mm + length in metres.
Button
Item No. P8-14 mm* 30-120 m

Compressed steel wire incl. end hook and stop washer. Quality 6x25F+IWRC with steel core. Fully round and more durable, does not get squashed flat on the drum. When ordering, please state P + thickness in mm + length in metres.
Button
Item No. N8-16 mm* 40-90 m

Novoleen-wire incl. end hook Low weight and very easy to pull out in the forest. If you change from steel wire to Novoleen wire, the wire guide must always be changed to a version with brass bushing, please inform when ordering. Instructions included. When ordering, please state N + thickness in mm + length in metres.
Button

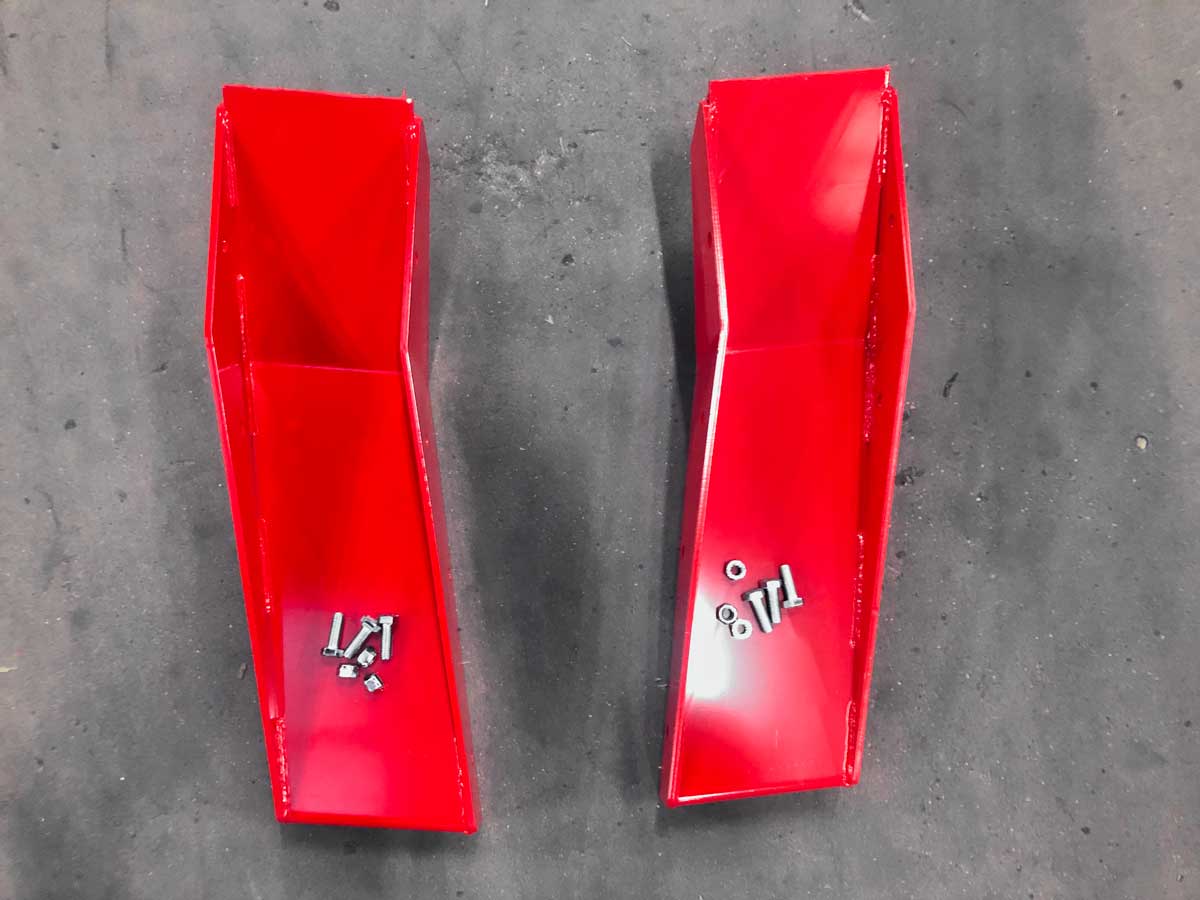

Item No. 1560

Extension plates for the dozerplate on W-6011/W-6011-EH. Bolts on.
