Leveller GT-250HY - GT-275HY

Presentation

Fransgård's hydraulic (HY) levellers are used for efficient levelling of soil, clearing of snow and smoothing of roads.

The leveller has been developed and designed according to know-how accumulated over many years of experience with mechanical levellers. The quality is high as the leveller is Made in Denmark at our own factory in Farsø.

Flexible and strong

The powerful hydraulic cylinder is well protected on top of the boom and ensures easy blade travel of up to 244°. The machine has mechanical offset adjustment of 55 cm to the right or left without using tools.

The blade is prepared for the installation of wide support wheels that can be offset to create a sloping road surface, thereby diverting rainwater away. Side plates can be fitted on the right and left sides to hold the material, and a snow blade can be fitted on the right side to cut the edge diagonally so that the snow does not fall out behind the blade after driving.

Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button

Technical data:

Model:	GT-250HY	GT-275HY
Working width	250 cm	275 cm
Blade height	60 cm	60 cm
Offset adjustment, mechanical right/left	55 cm	55 cm
Hydraulic rotating blade	244°	244°
Hydraulic connectors	1 double	1 double
Reversible wear steel Hardox 500	Std.	Std.
Push/front mounting	Yes	Yes
Support wheels	Possible	Possible
Snow blade right	Possible	Possible
Side flap	Possible	Possible
3-point suspension	Cat I/II	Cat I/II
Weight	452 kg	475 kg
Tractor Performance	Max. 120 hp	Max. 120 hp

Details:

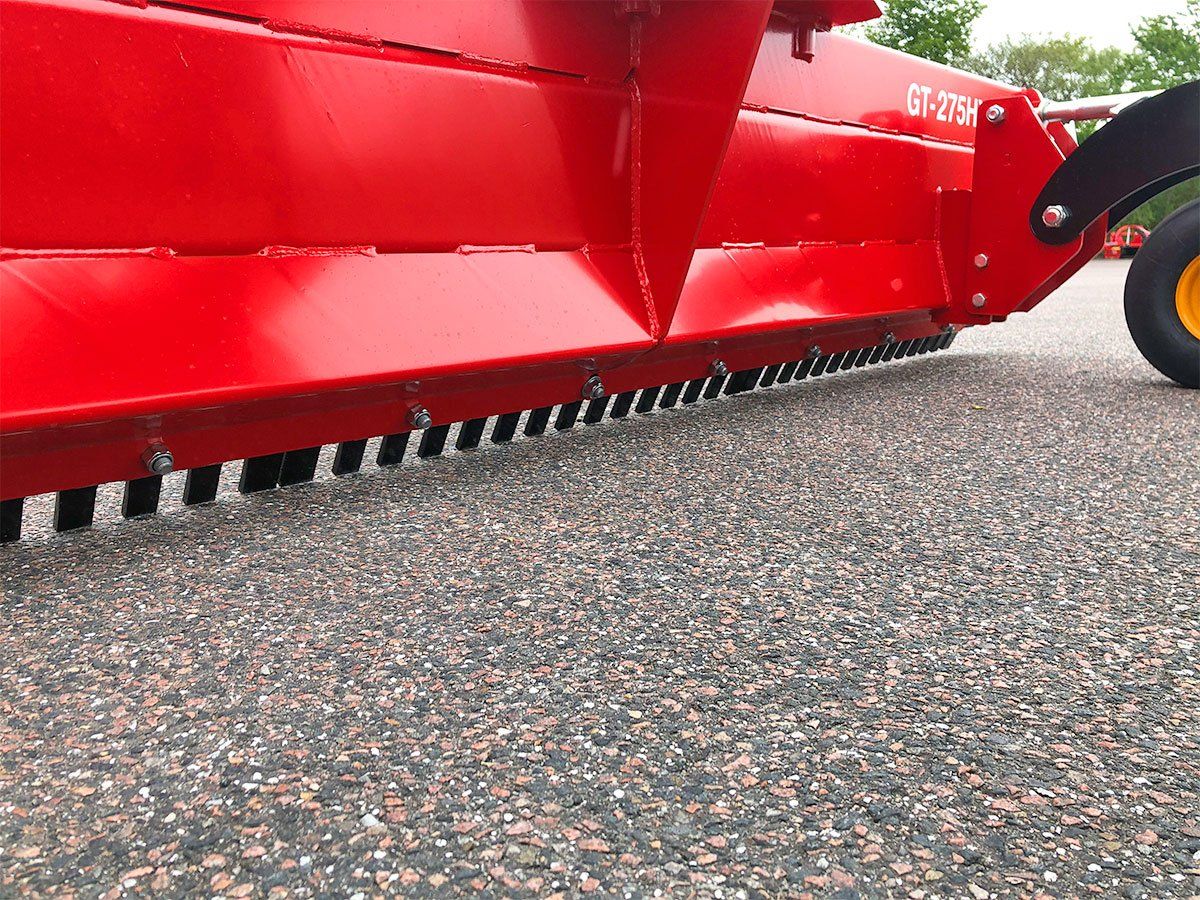

Blade, rear

Strong blade with reinforcements at the rear. The lower reinforcement at the rear is designed so that you can reverse the leveller without turning the blade and you will be able to reverse over any excess material, for example, when you come to an asphalt road and the leveller will press and distribute the material out into the road.
Button

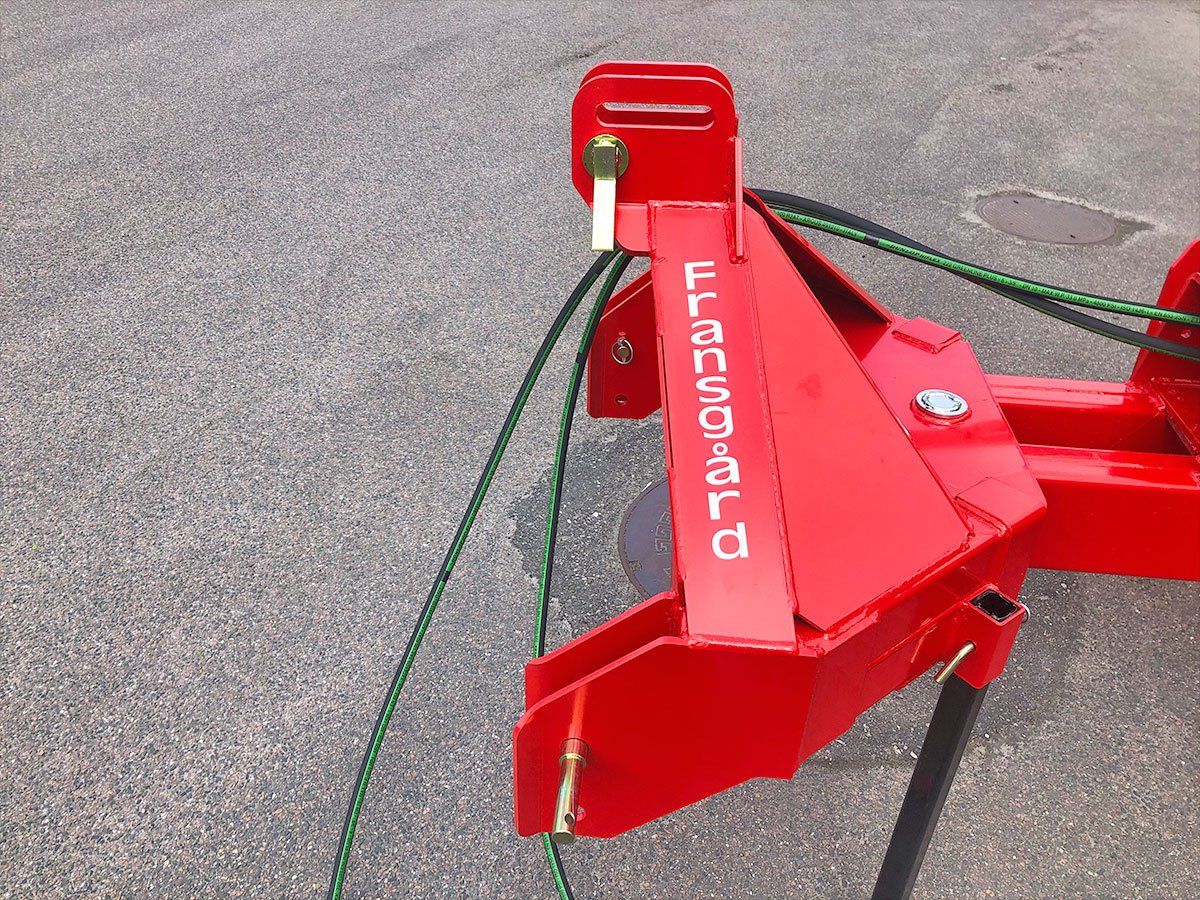

3-point suspension

The lift arms can be mounted in 2 different heights to fit most tractors. If the lifting arms are mounted in the lower hole on one side and the upper hole on the other side, the blade will have a horizontal cutting angle of approximately 7 degrees. The top bar attachment has both a fixed hole and an elongated slot, where the top bar bolt can usefully be mounted for, e.g., levelling roads. The blade will better follow the terrain and improve the end result.
Button

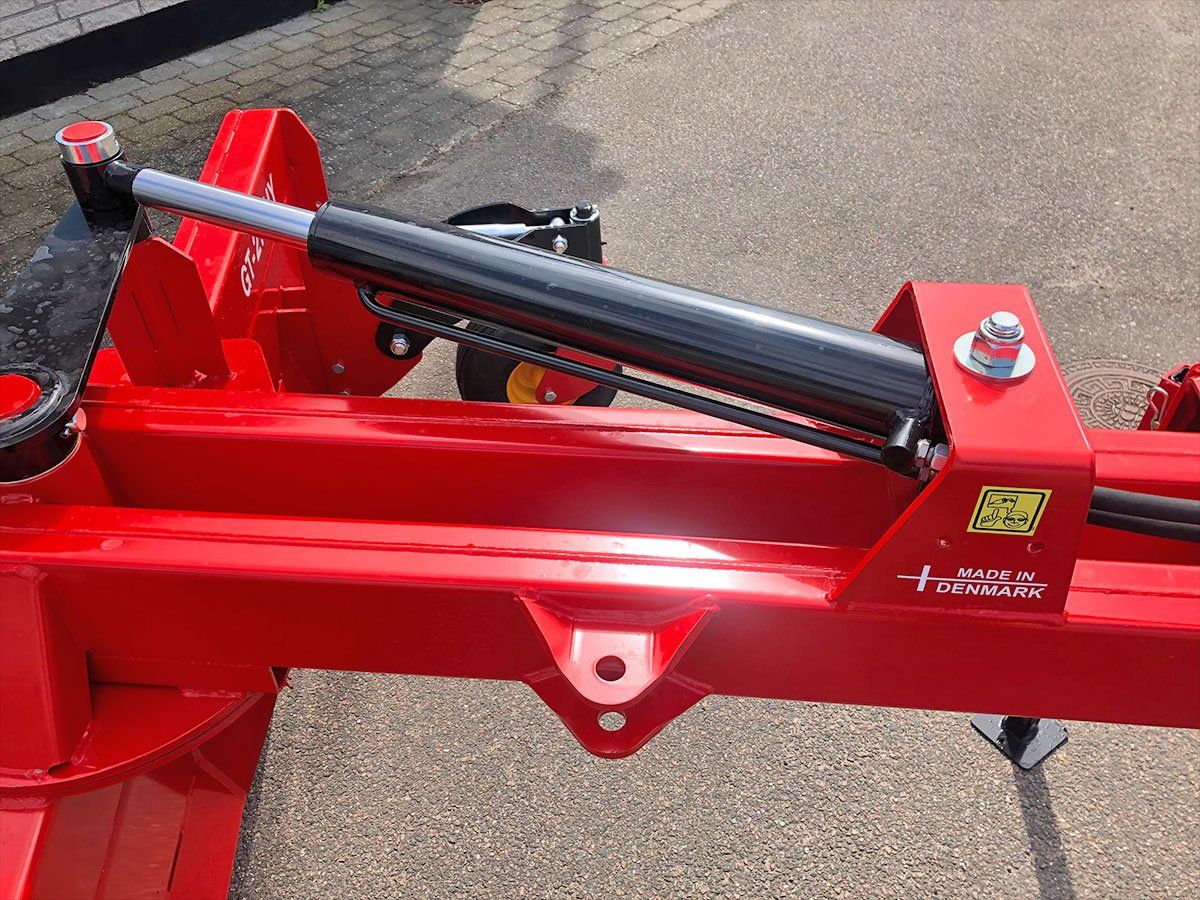

Blade cylinder

A strong blade cylinder with 45 mm stick ensures that the blade is kept stable.
The cylinder is well protected on top of the boom.

Button

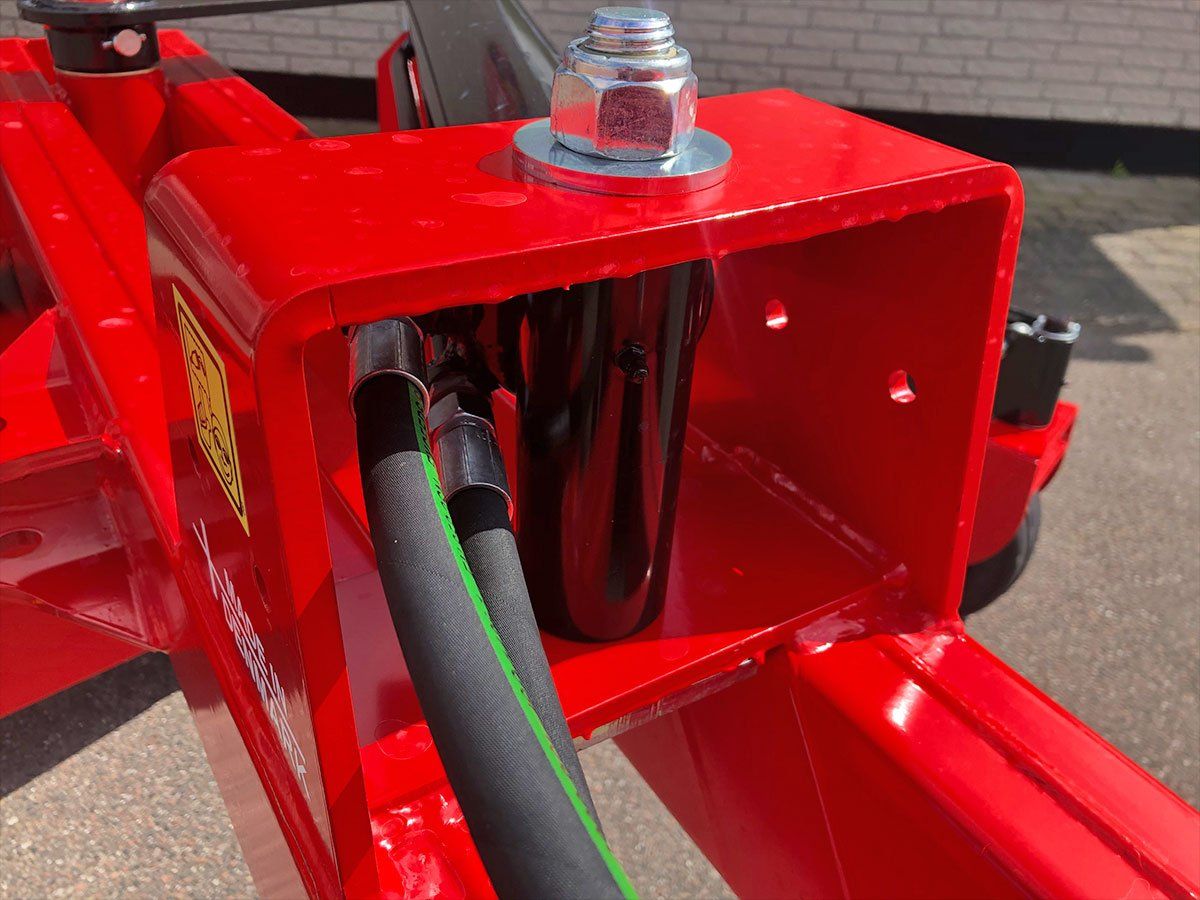

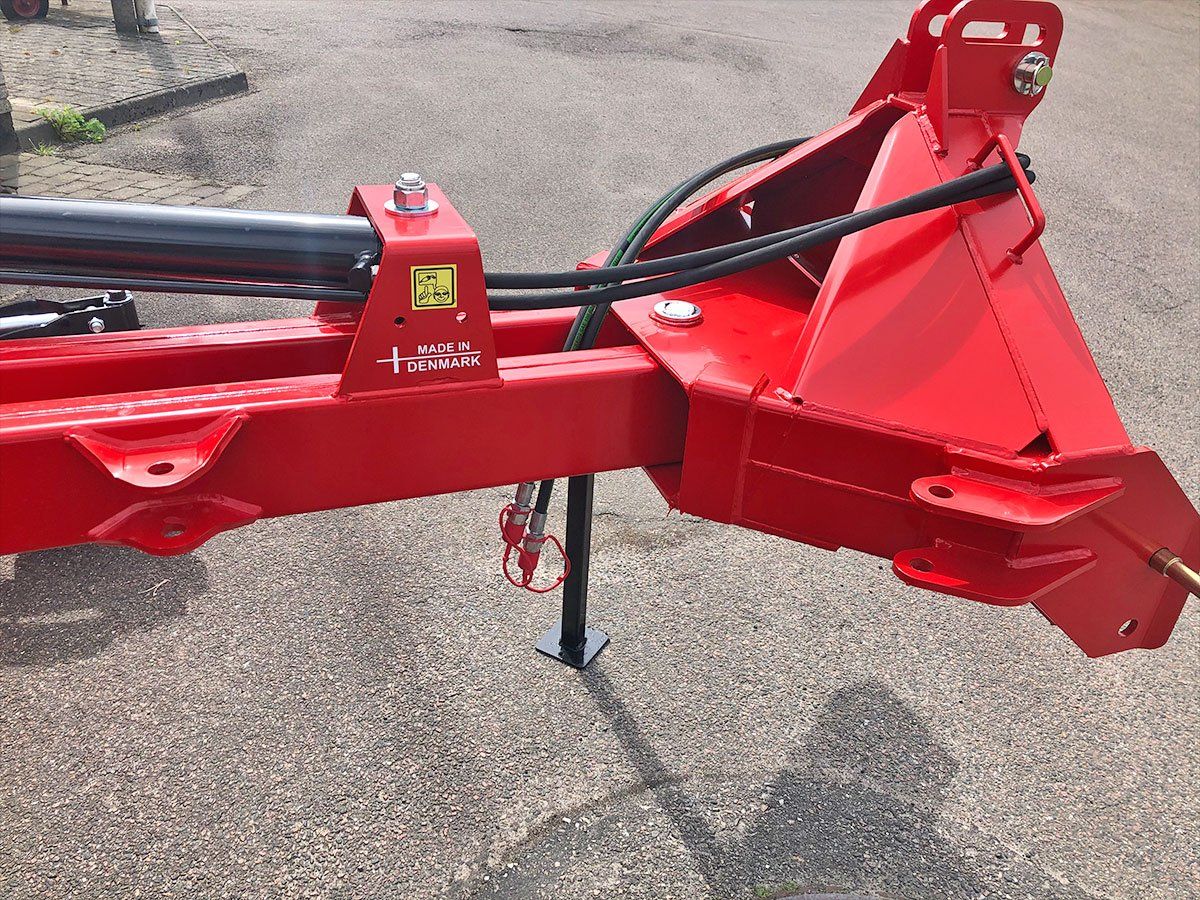

Fitting for hydraulic offset adjustment

All GT-HY levellers are prepared for the installation of hydraulic offset adjustment (item no. 2528).
Button

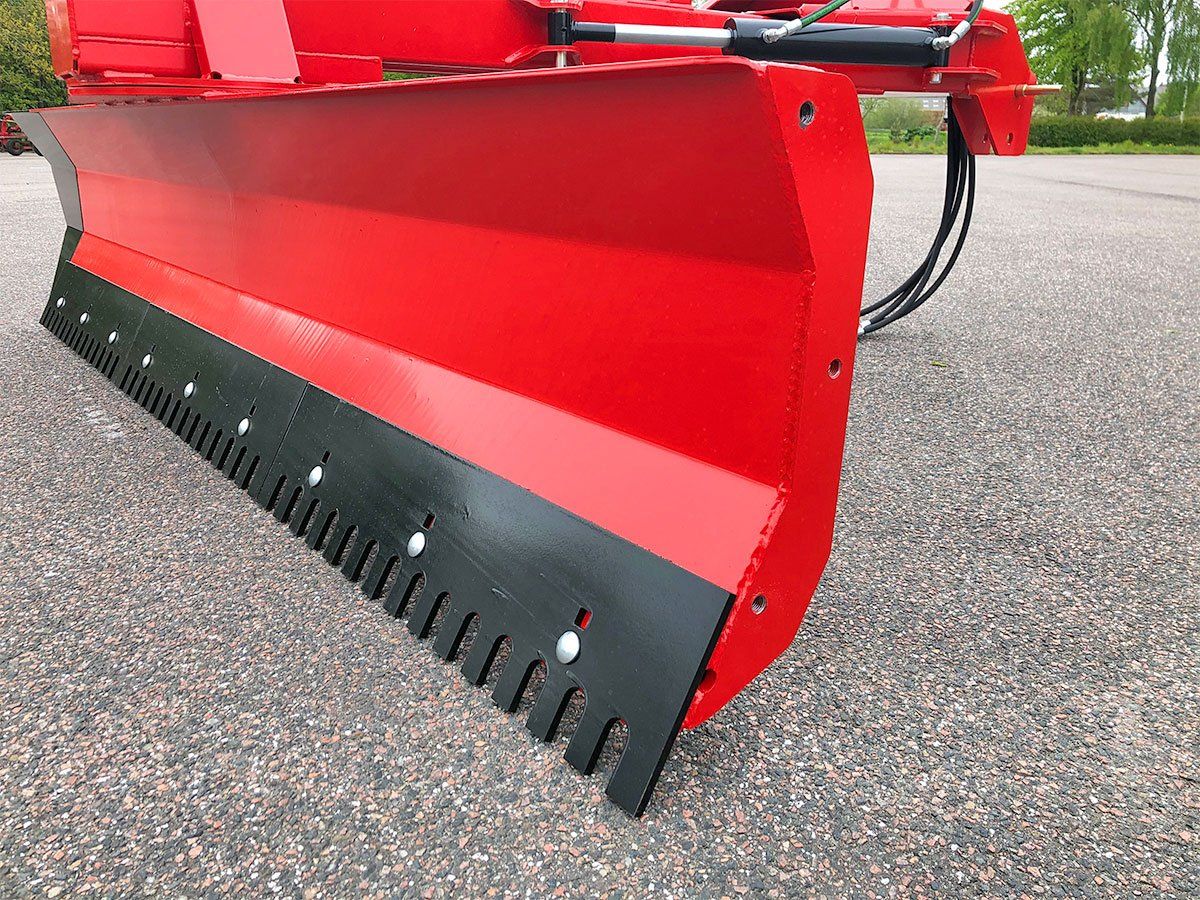

Blades

Reinforced ends on the blade of the leveller, which are also prepared for mounting the side flap and snow blade. Reversible wear steel bolts on with 16mm steel bolts grade 12.9.
Button

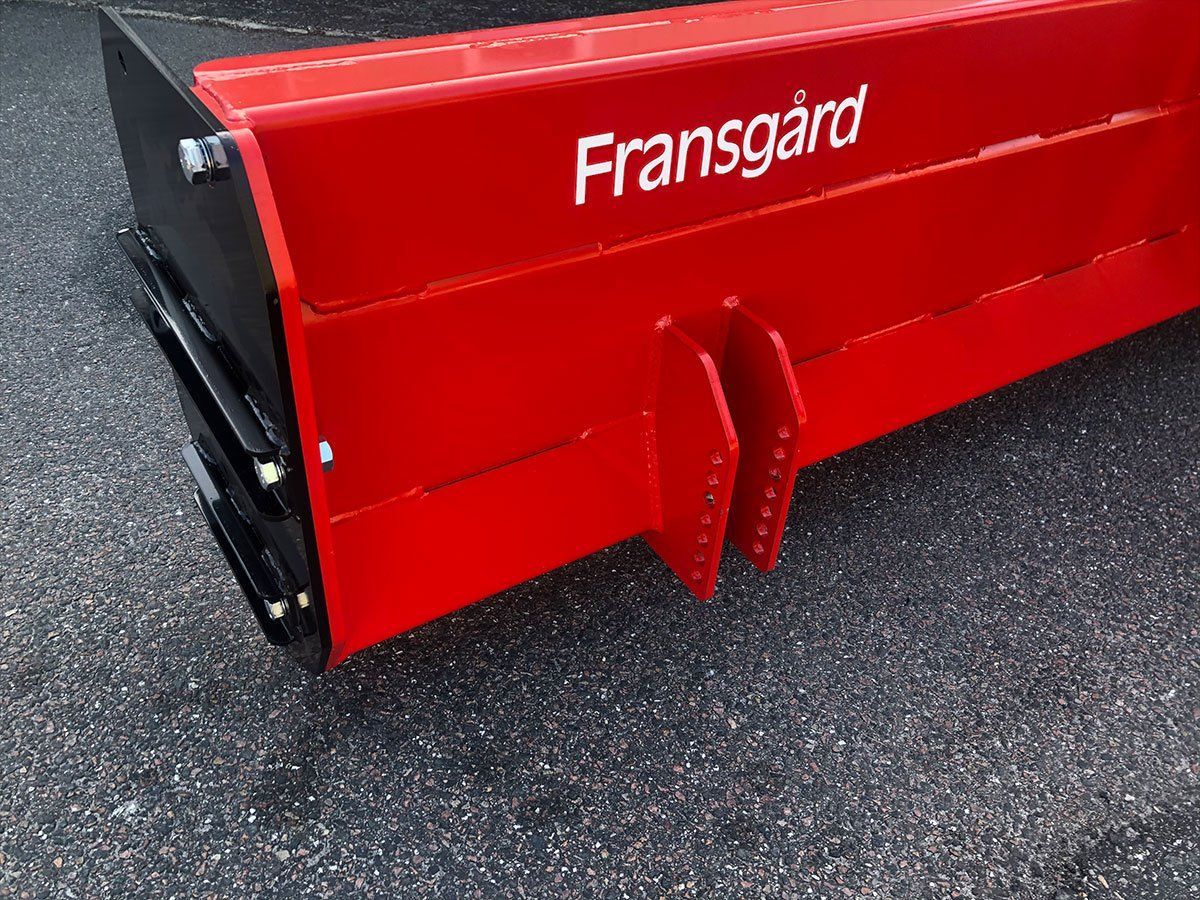

Prepared for wheels

The leveller is prepared for the installation of wheel sets item no. 2512 or 2513.
Button

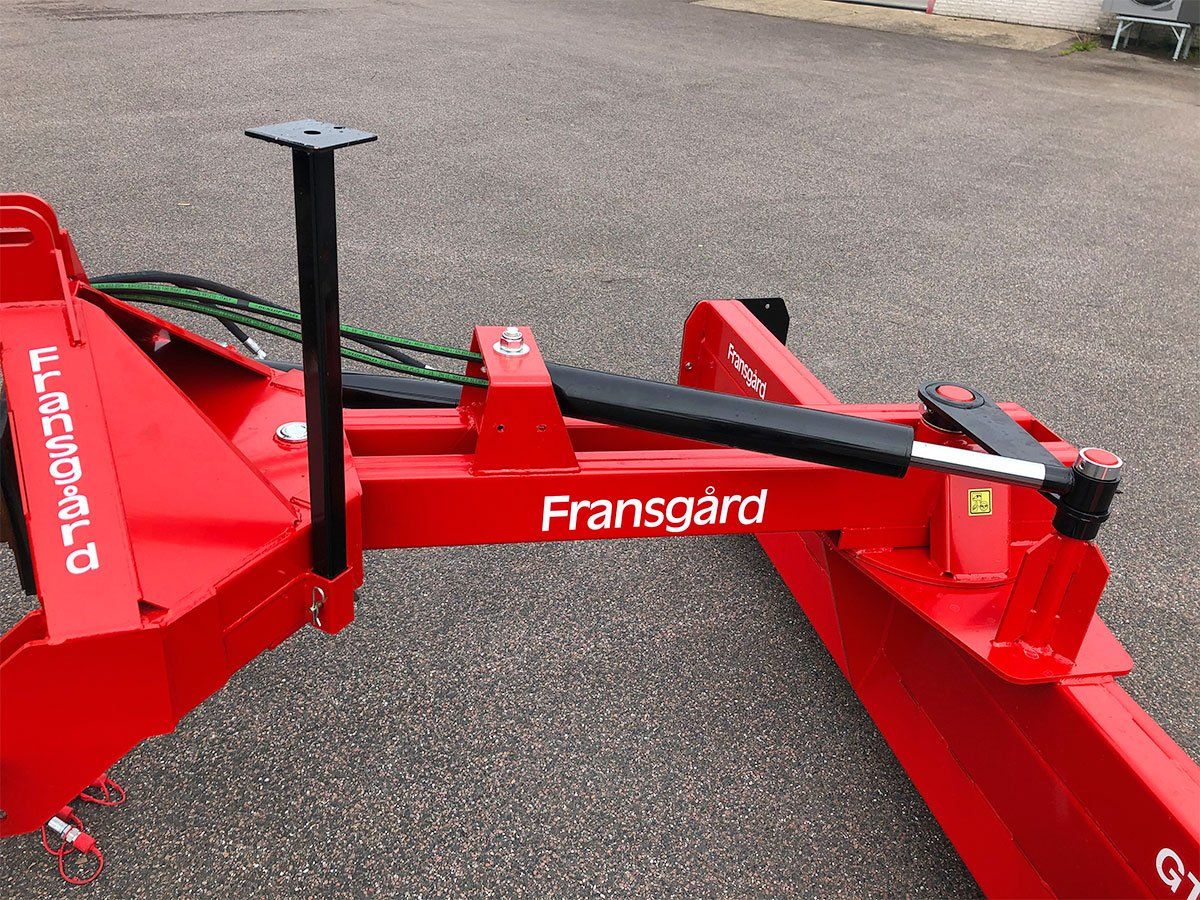

Support legs

The support leg is easily lifted and secured in the holder during work, so you always have the support leg with you when you need to park the leveller again.
Button

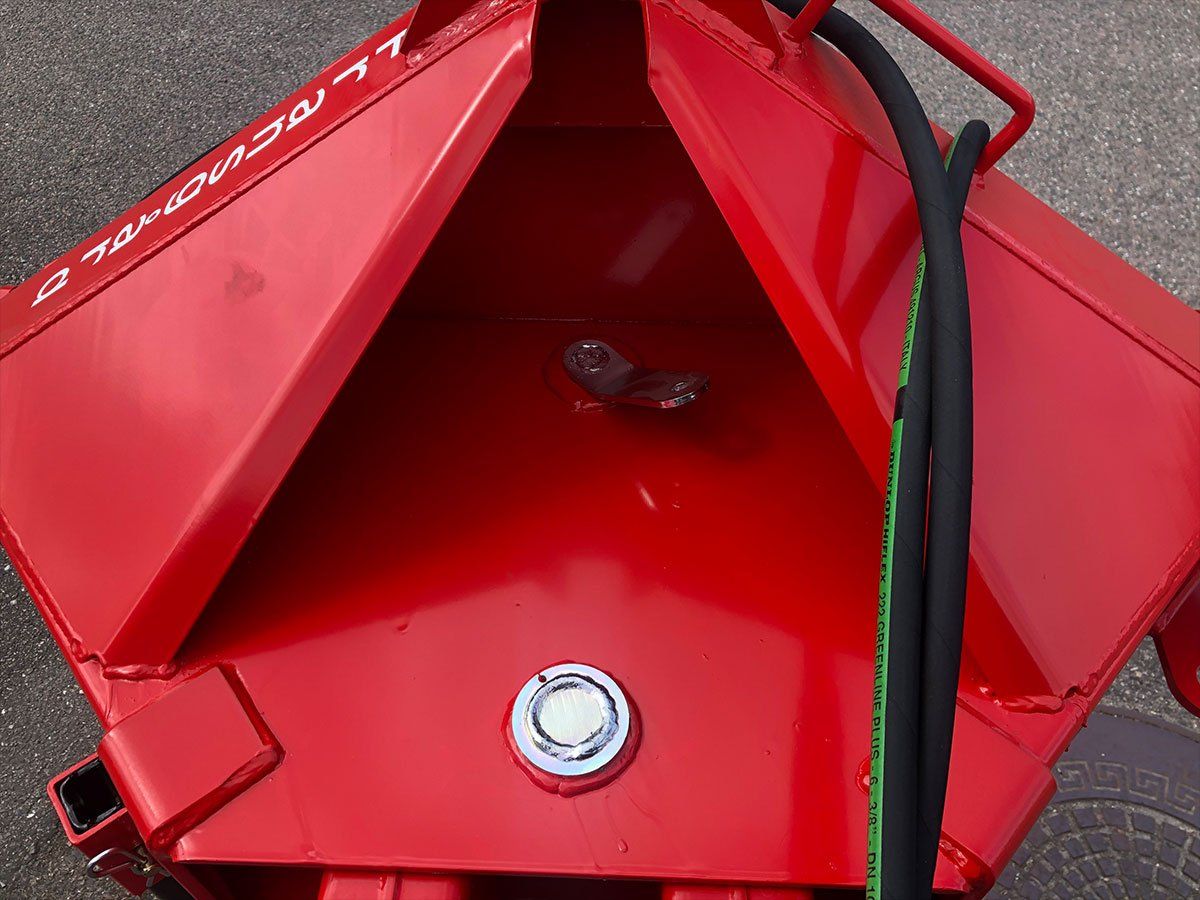

Assembly bolts

All assembly and adjusting bolts are galvanised.
Button

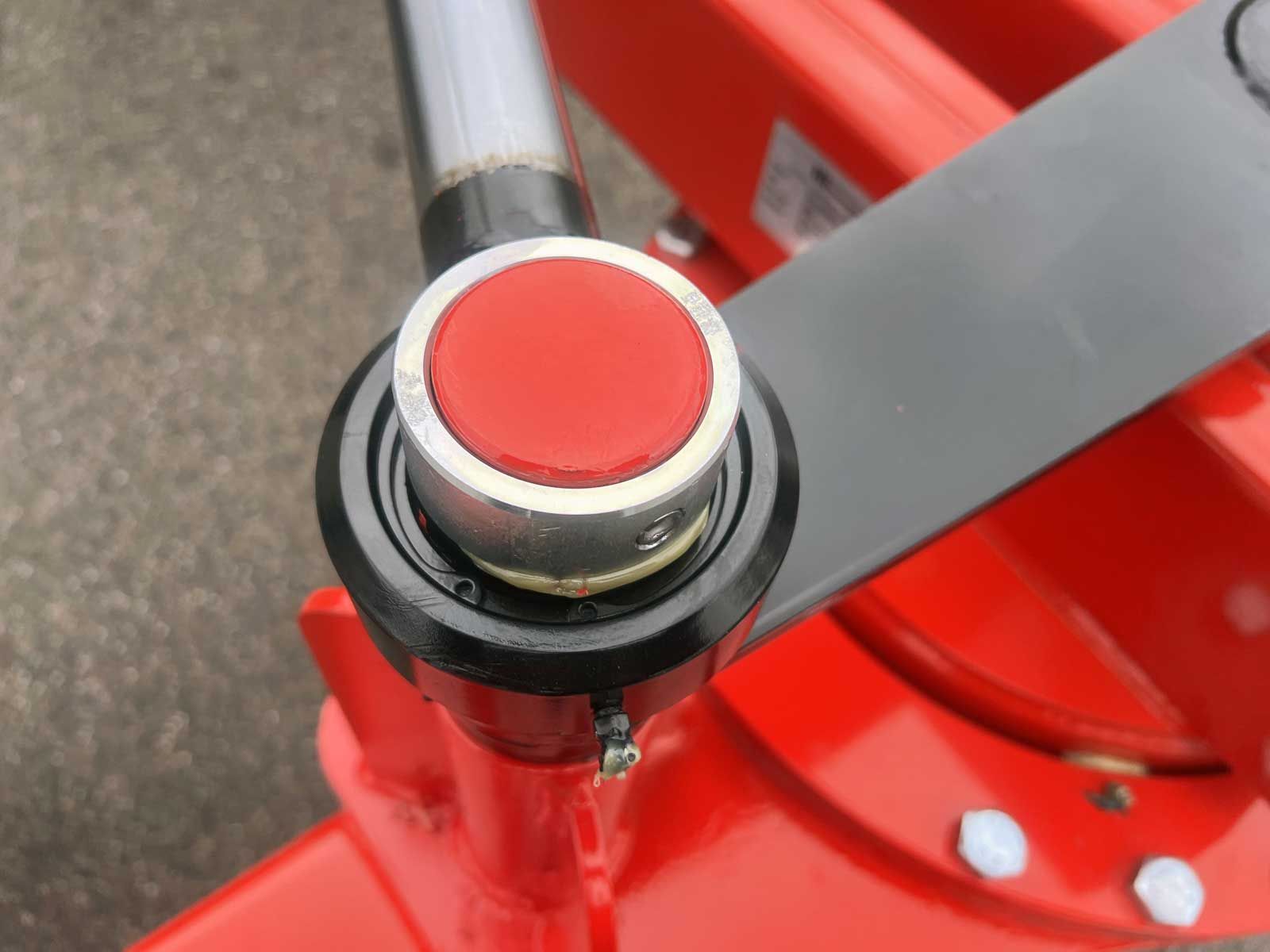

Cylinder attachment

Heavy duty cylinder hinge in special steel provides stable operation and long life.
Button

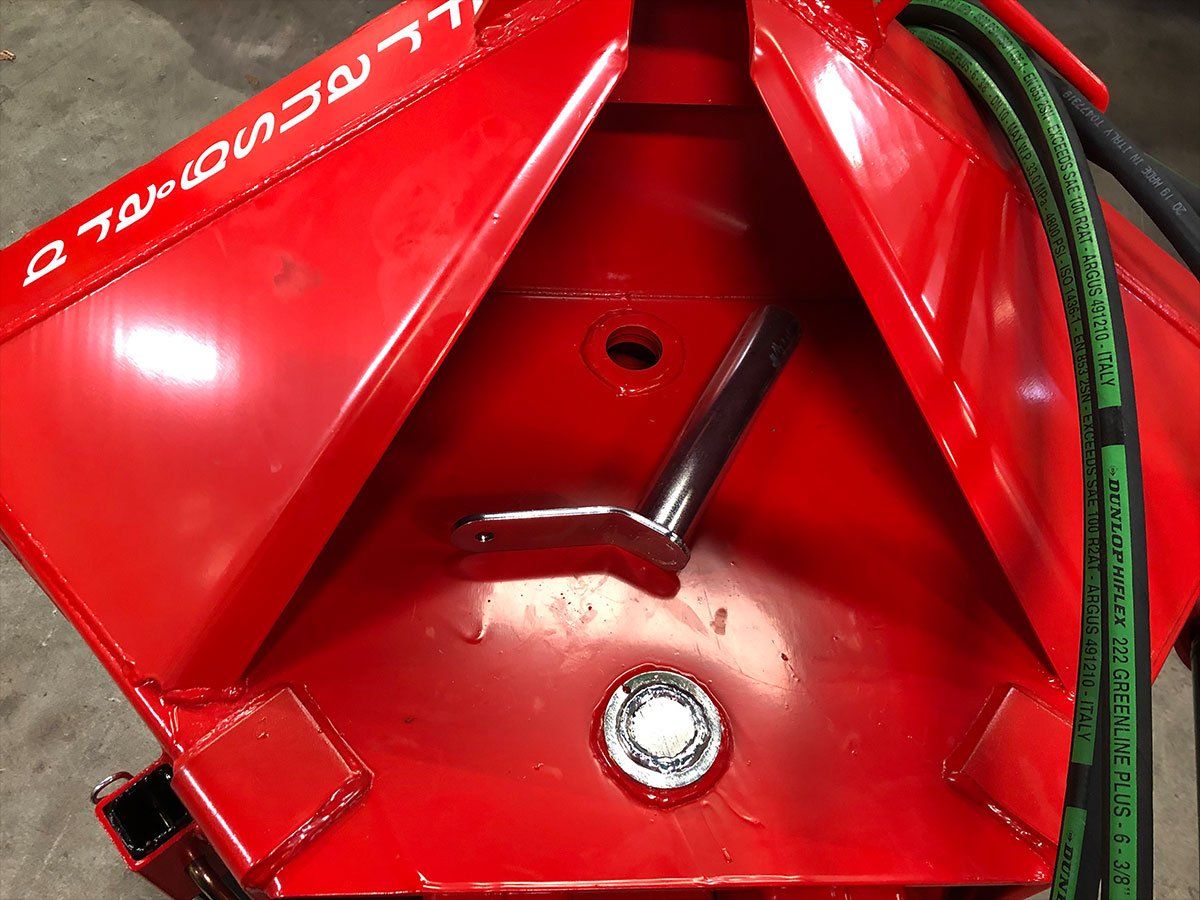

Locking bolt offset adjustment

The leveller can be mechanically offset adjusted 55 cm to the right or left side.
The locking bolt is operated without using tools.
Button

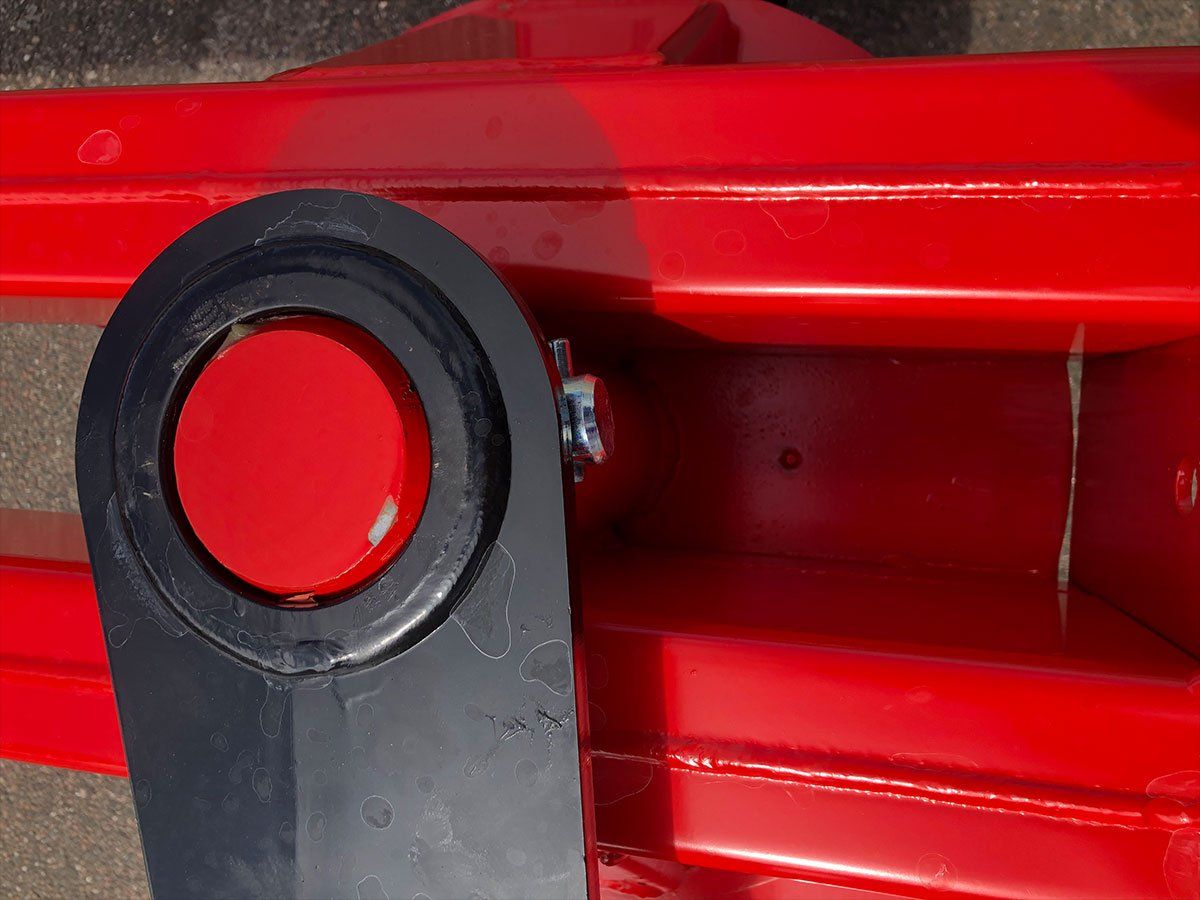

Main axle

The blade and boom are assembled with a strong 75 mm main bolt.
Button

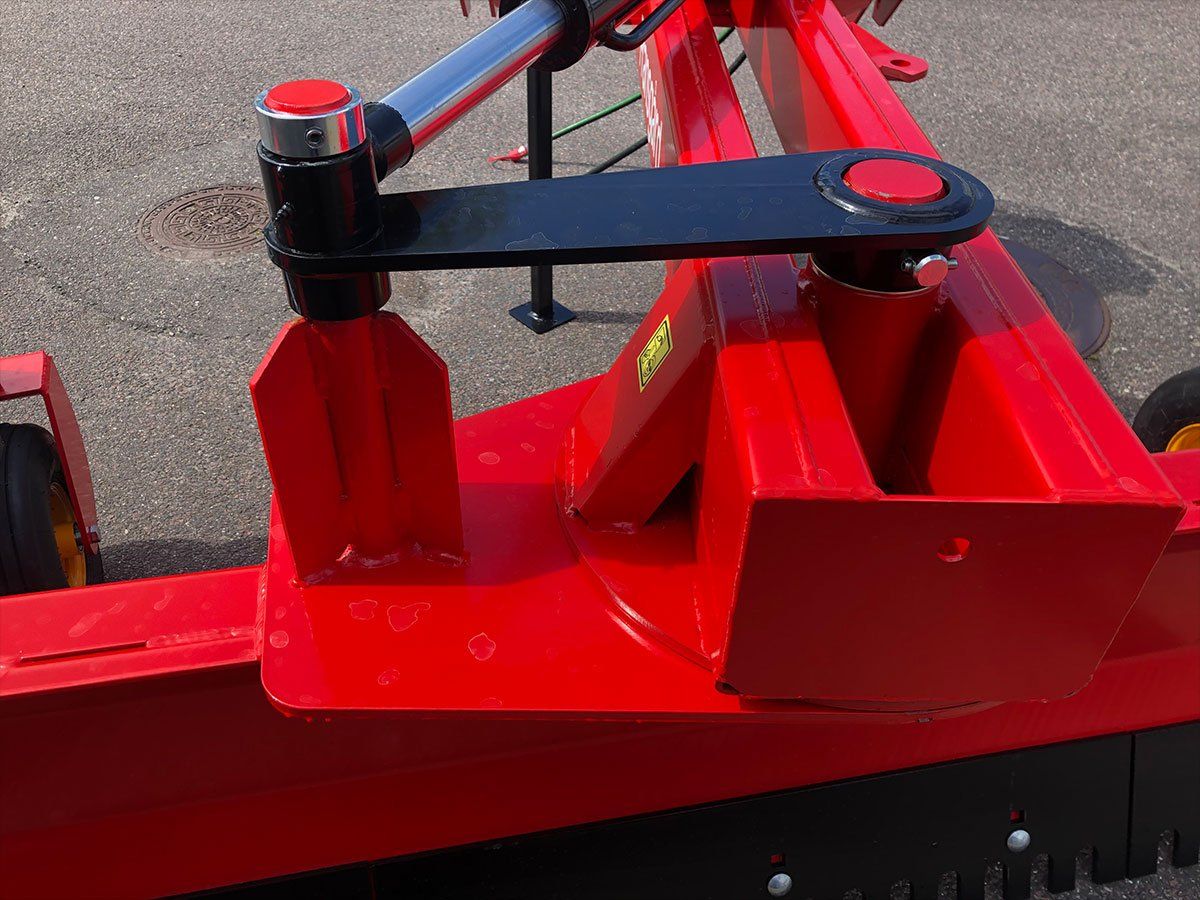

Pivot

The large pivot on the blade can be greased via lubrication nipples in the pivot plate on the boom.
Button

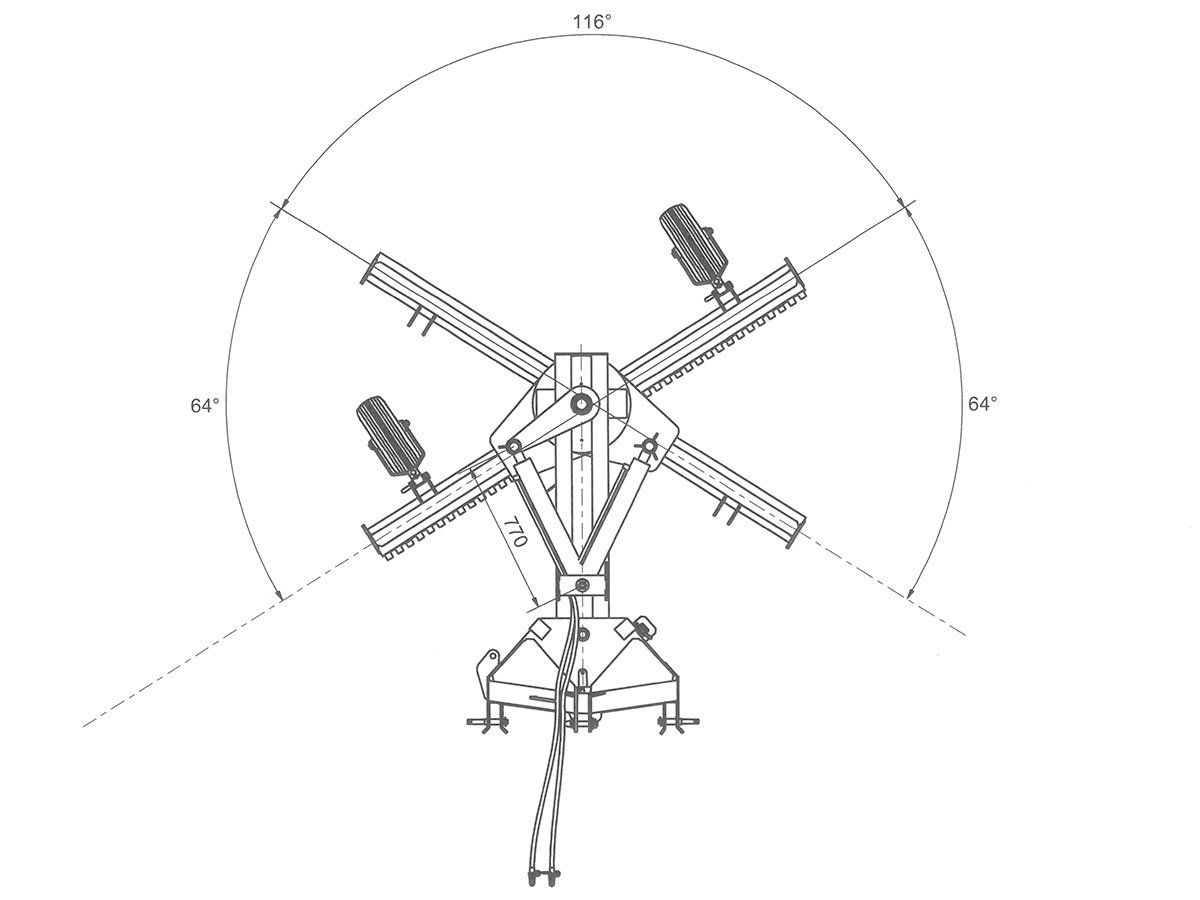

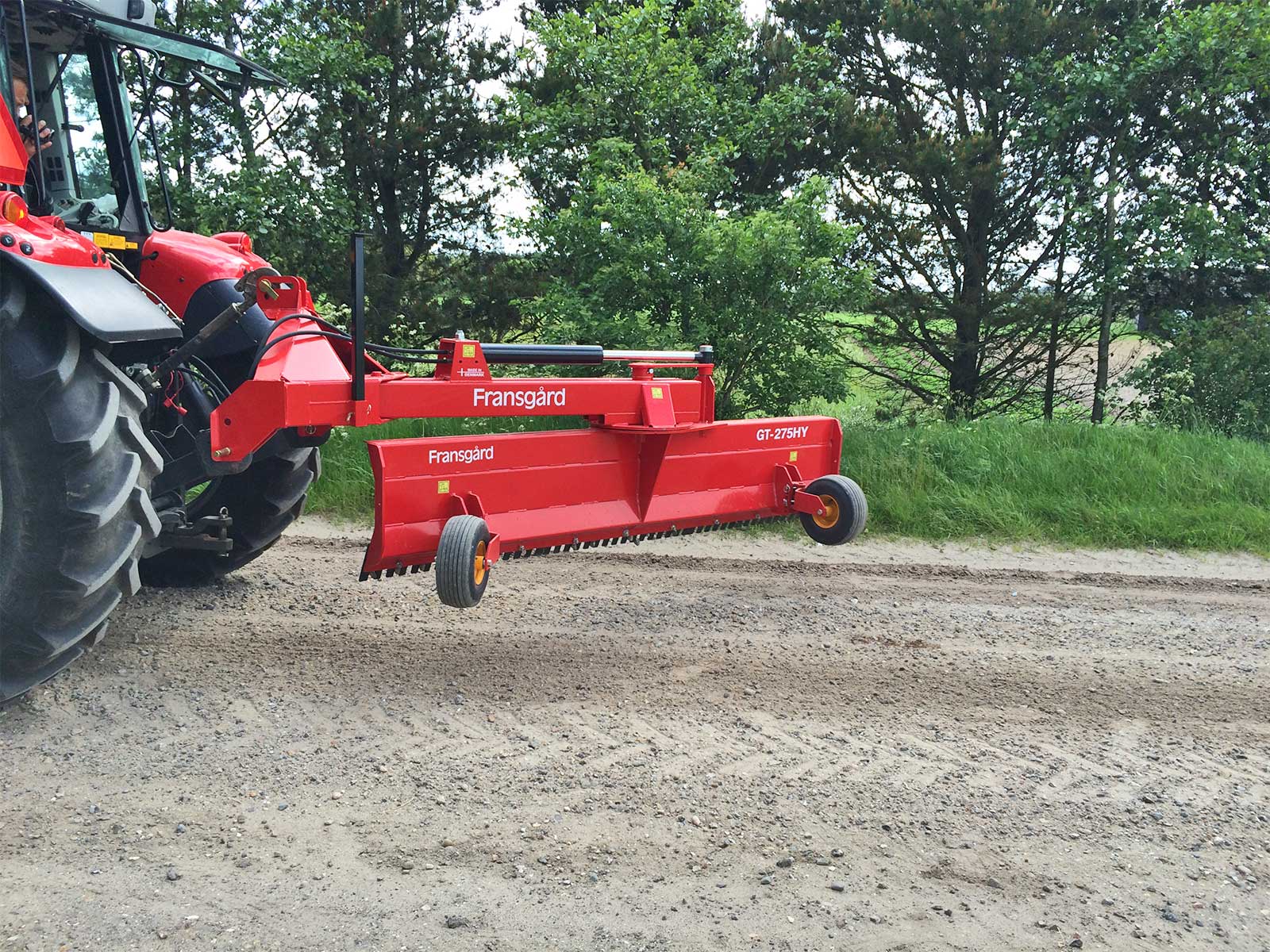

Turning radius

GT-HY planeringsskæret kan drejes hydraulisk rundt op til 244 grader.
Button

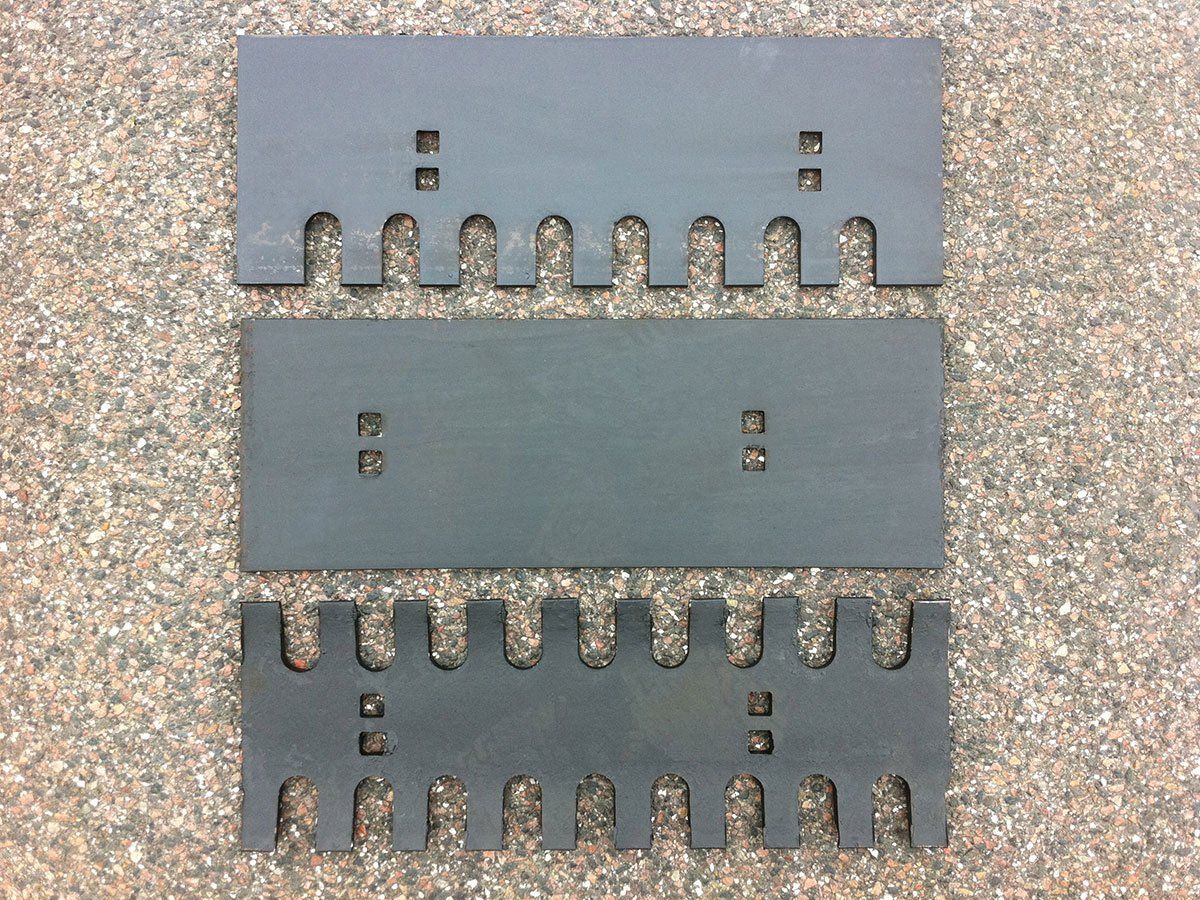

Wearing steel all

The leveller is fitted as standard with reversible smooth/toothed wear steel. You can have your leveller delivered with a smooth or toothed wear steel at no extra cost if this is specified when ordering the leveller. The leveller can also be retrofitted later with another type of wear steel.
Button

Optional extras

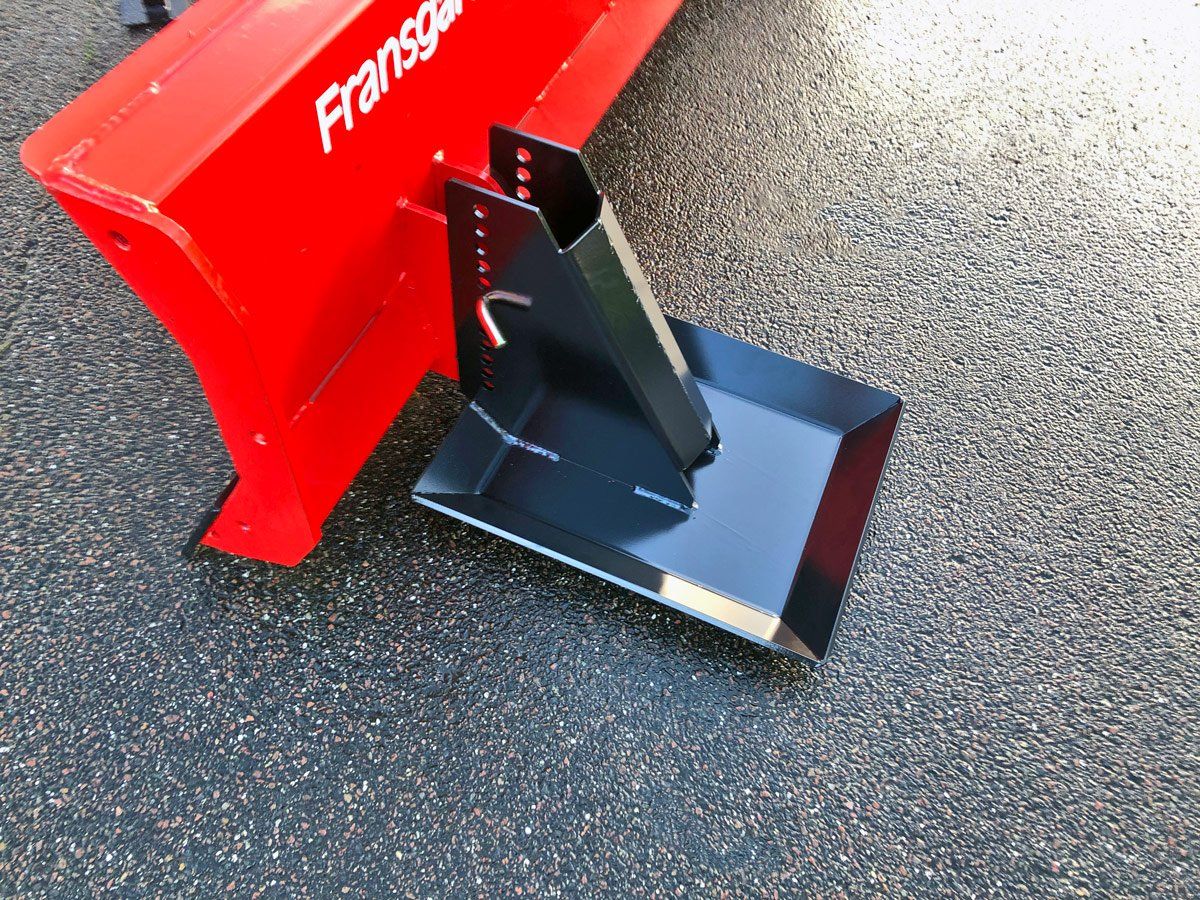

Item No. 2511

Towing shoes help to ensure that the insert does not go too deep during work. Made of Hardox 500 steel
Button

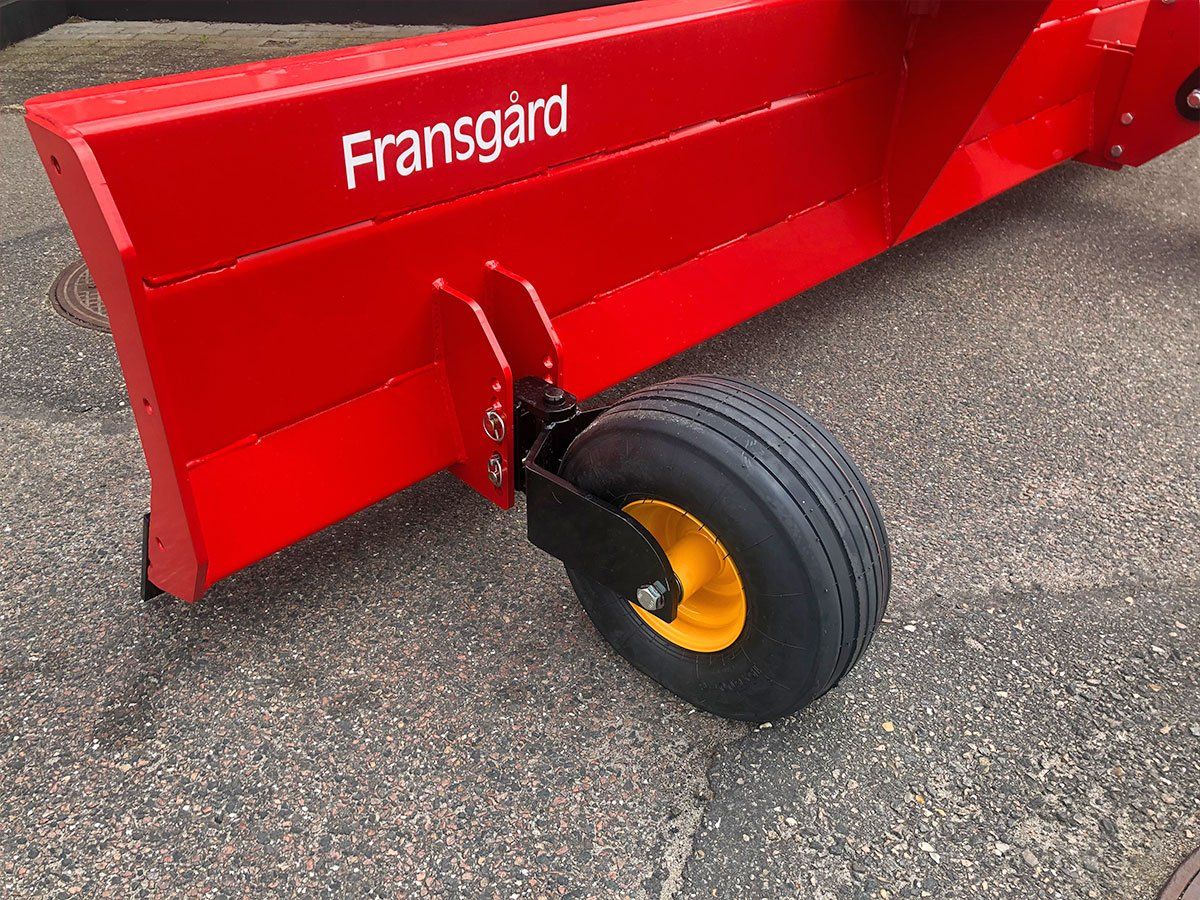

Item No. 2512

Wheel set with wheel width 15 x 600, adjustable up and down via 2 bolts with a ring split.
Button

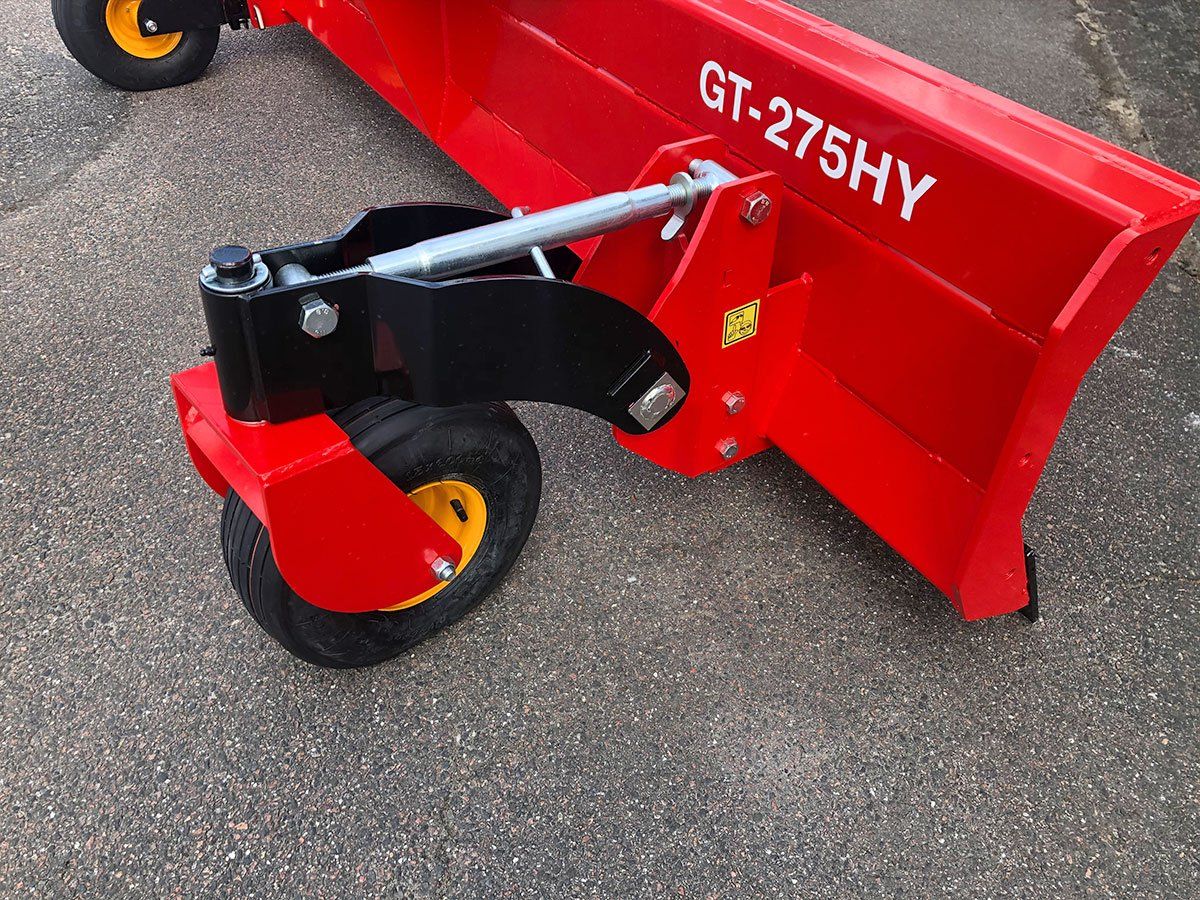

Item No. 2513

Wheel set with width wheels 15 x 600, stepless height adjustment via spindle, wheels can turn 360 degrees around, so you can reverse with the leveller without turning the blade around.
The wide rear wheel spacing makes for a smoother operation.

Button

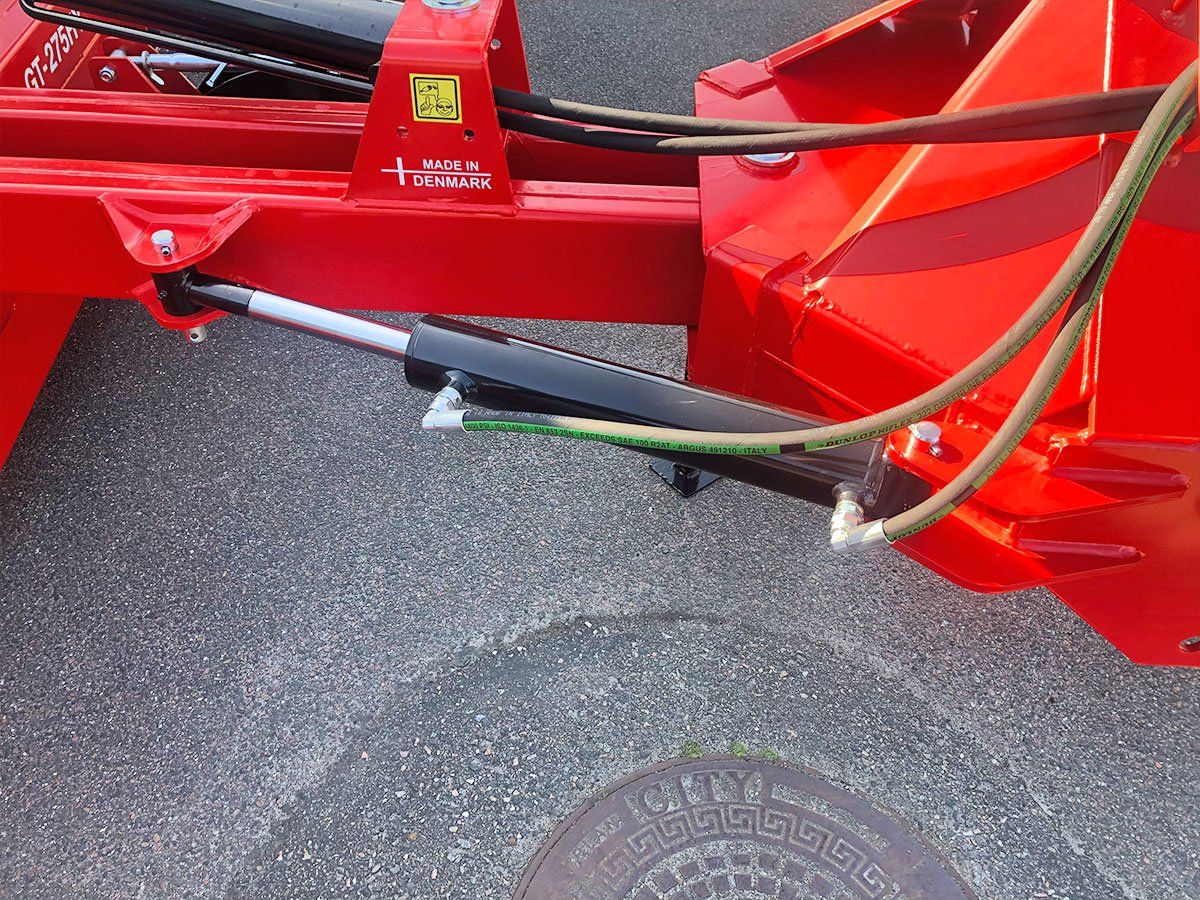

Item No. 2528

Hydraulic offset adjustment can shift the blade up to 55 cm to the right or left side, so you don't have to drive with the tractor wheel in the ditch, for example.
The hydraulic cylinder allows the blade to have offset adjustment exactly to the required distance if space is at a premium.

Button

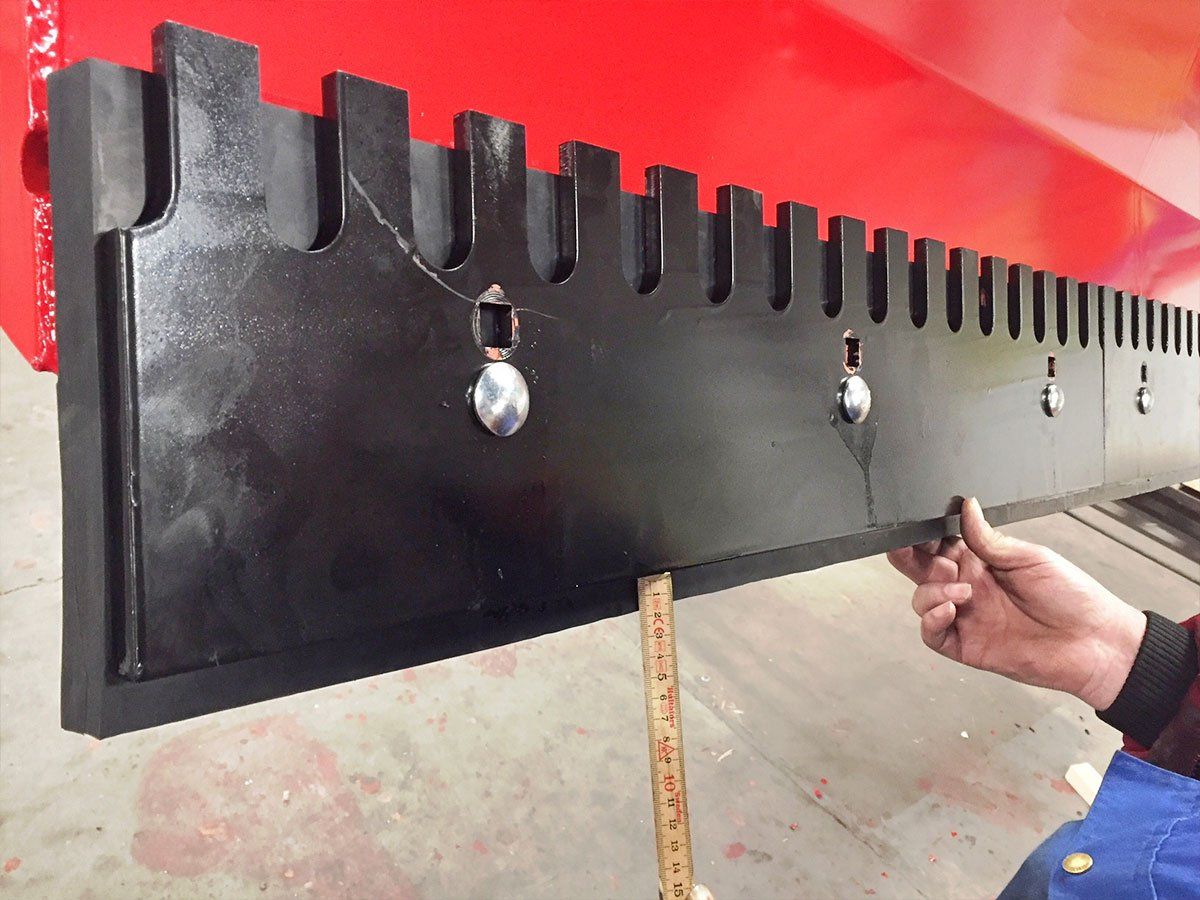

Item No. 2517-2520

Rubber blade for mounting on all Fransgård models of levellers. The rubber blade is mounted behind the existing wear steel, which acts as a backstop on the rubber blade, it should be mounted 2-3 cm lower than the wear steel and can be continuously moved downwards as it wears down.
You drill the holes in the rubber blade yourself and mount it with the bolts provided.

Button

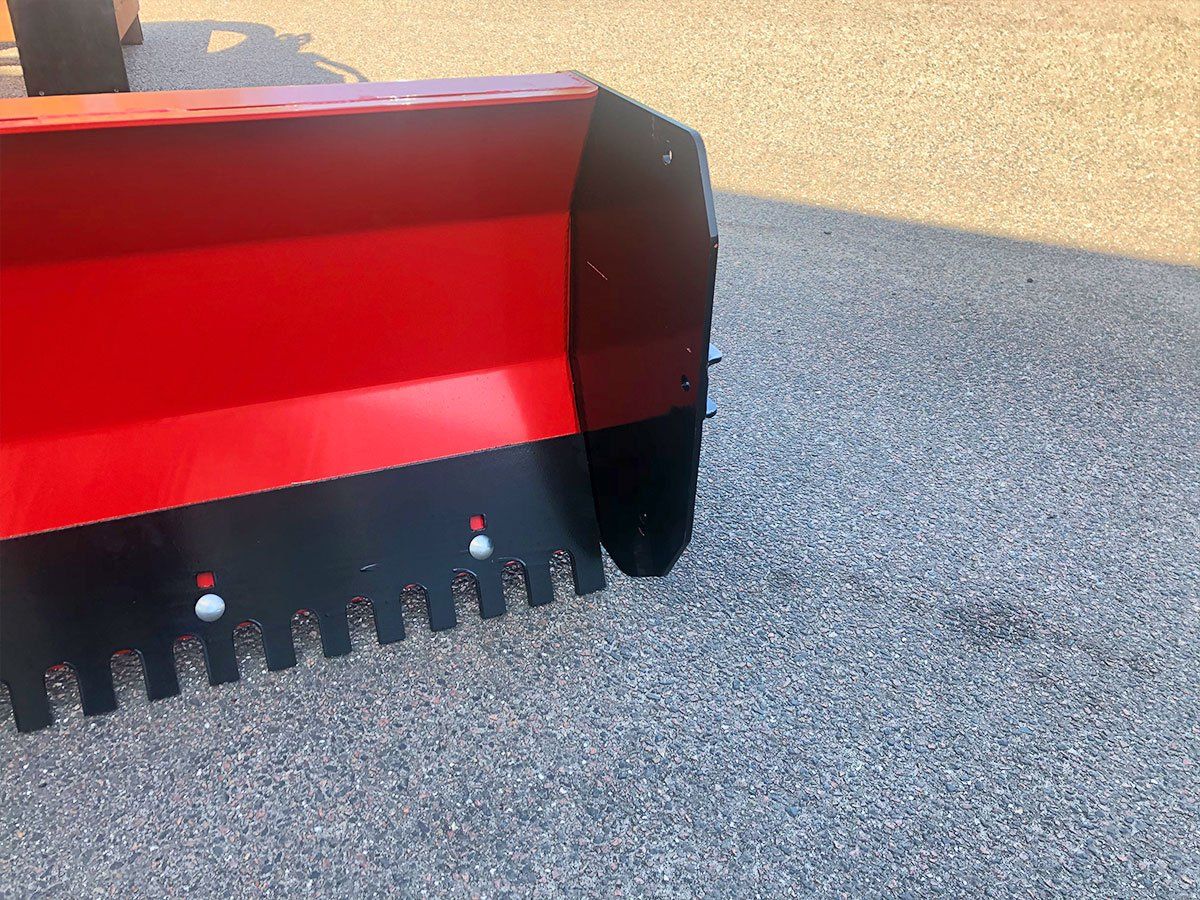

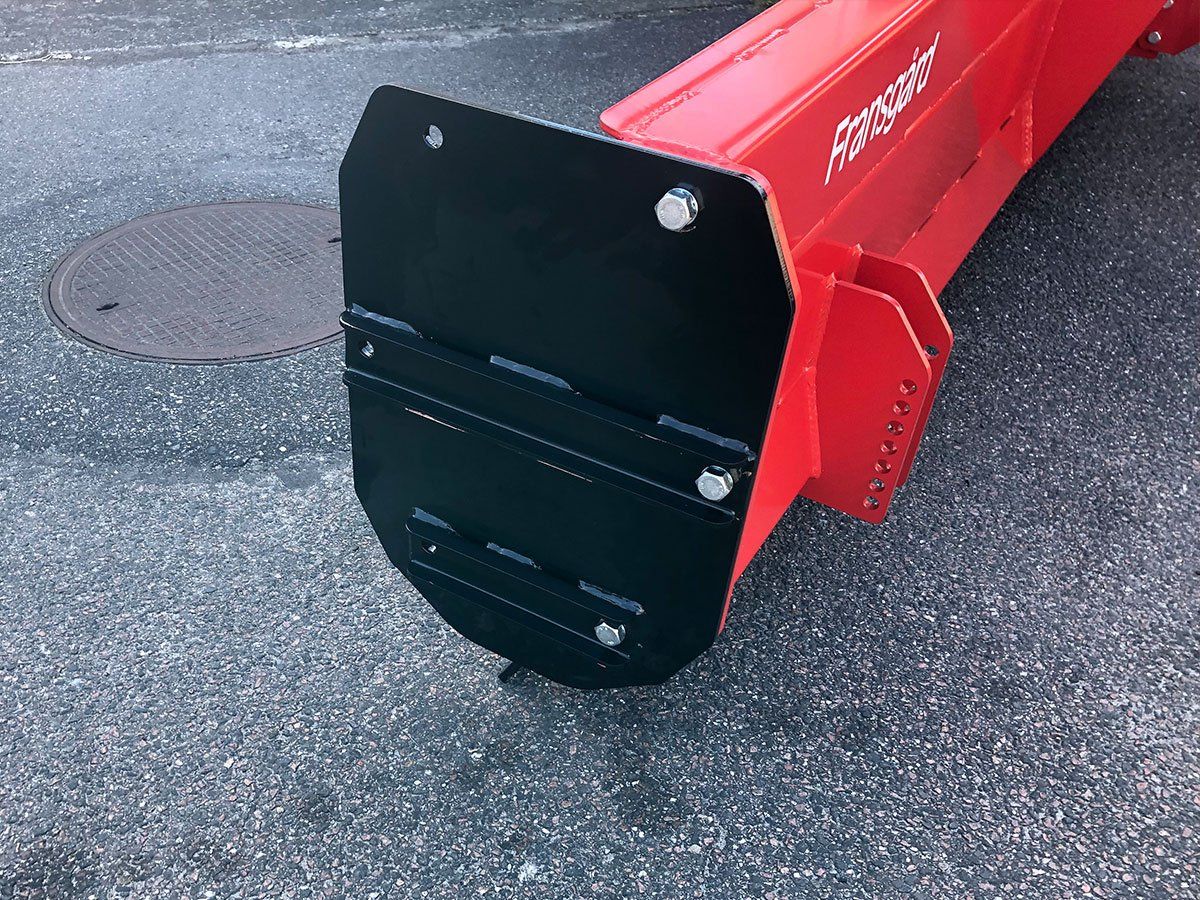

Item No. 2533

Side flap to hold the material. Can be mounted on both the right and left side.
Button
Item No. 2533

All Fransgård's newer levellers are ready for mounting side flaps and are easily mounted with the 3 bolts provided.
Button

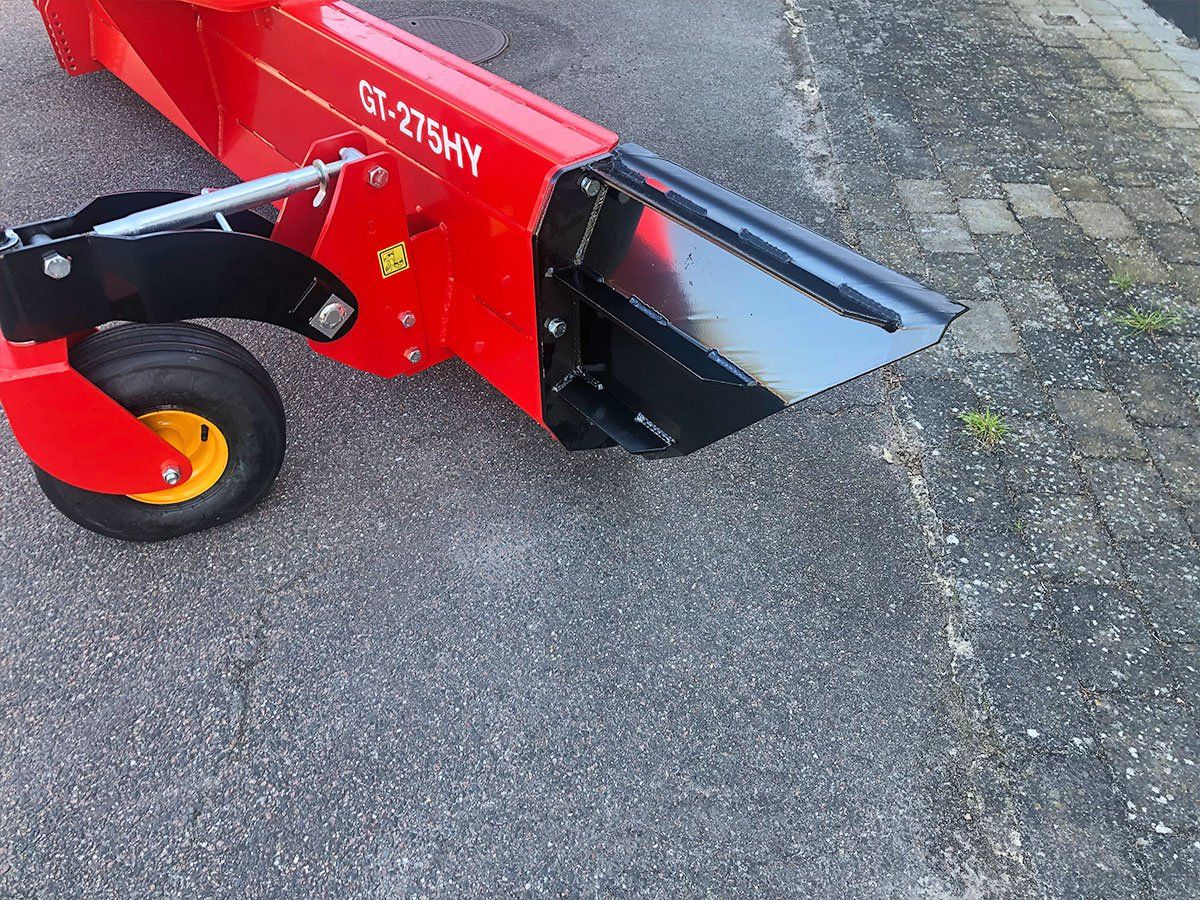

Item No. 2545

Snow blade for the right side, cut the snow edge diagonally so that it does not collapse and in behind the tractor where you have just driven.
Button

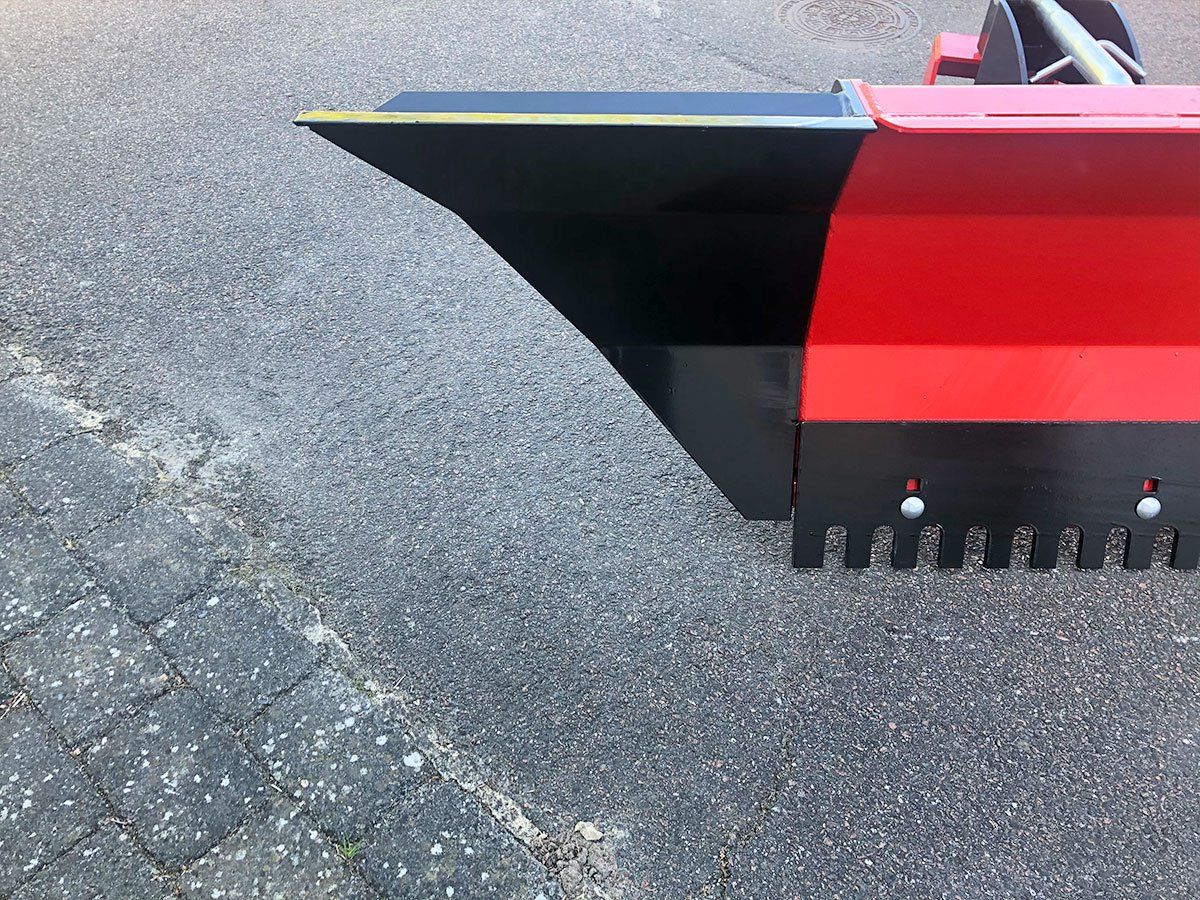

Item No. 2545

All Fransgård's newer levellers are ready for mounting snow blades and are easily mounted with the 3 bolts provided.
Button

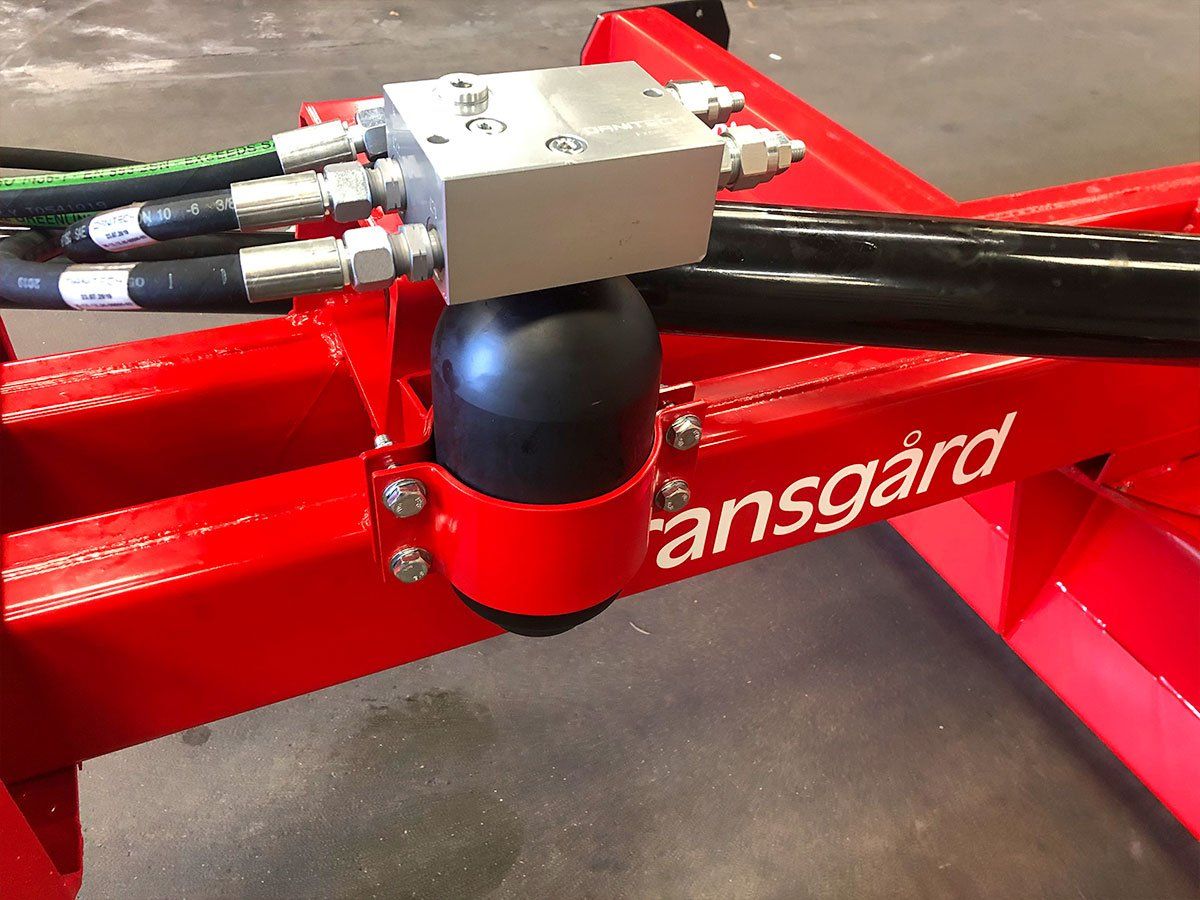

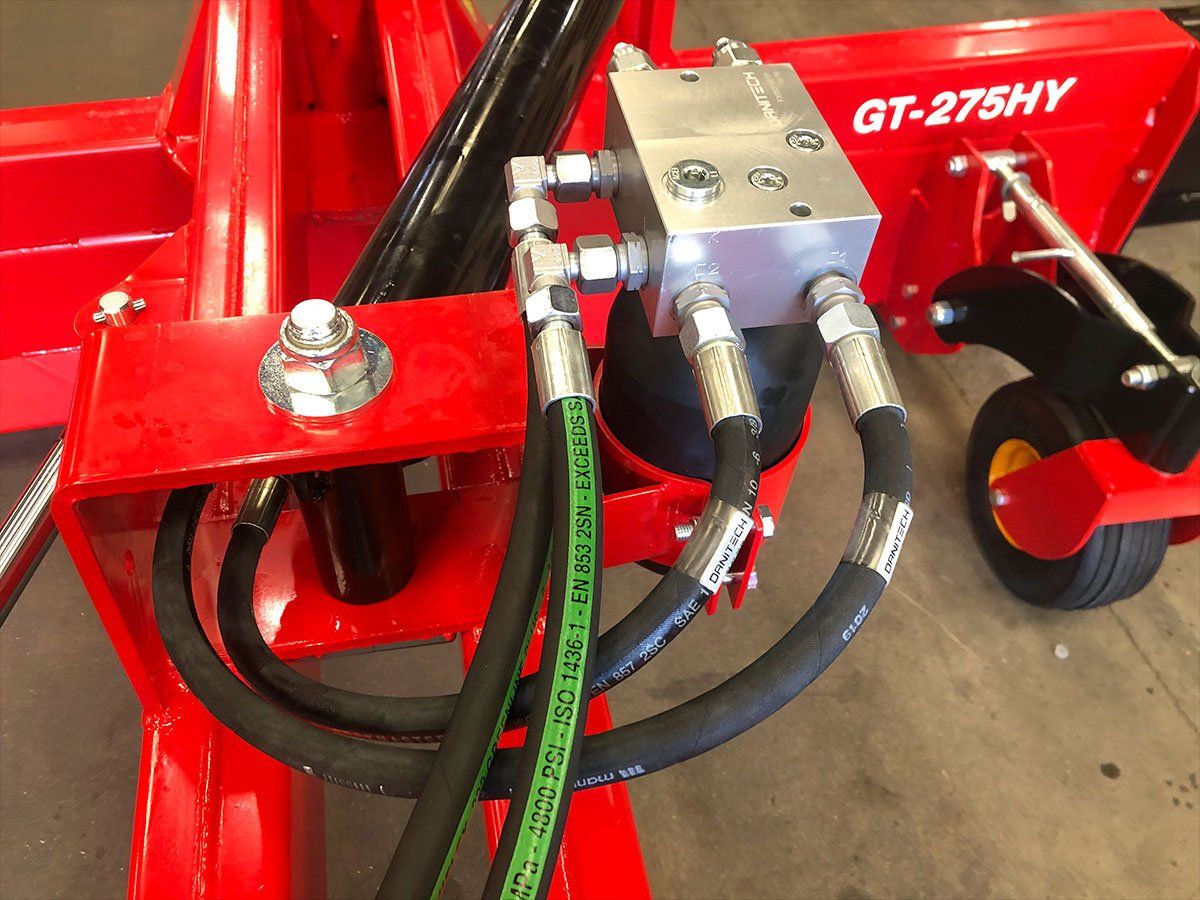

Item No. 2543

Shock valve with an accumulator for mounting on the blade cylinder of all Fransgård hydraulic levellers.
Button
Item No. 2543

The shock valve will relieve the cylinder and the leveller when hitting objects and minor impacts, in both the right and left side of the blade. Supplied as a complete set with assembly instructions.

Button

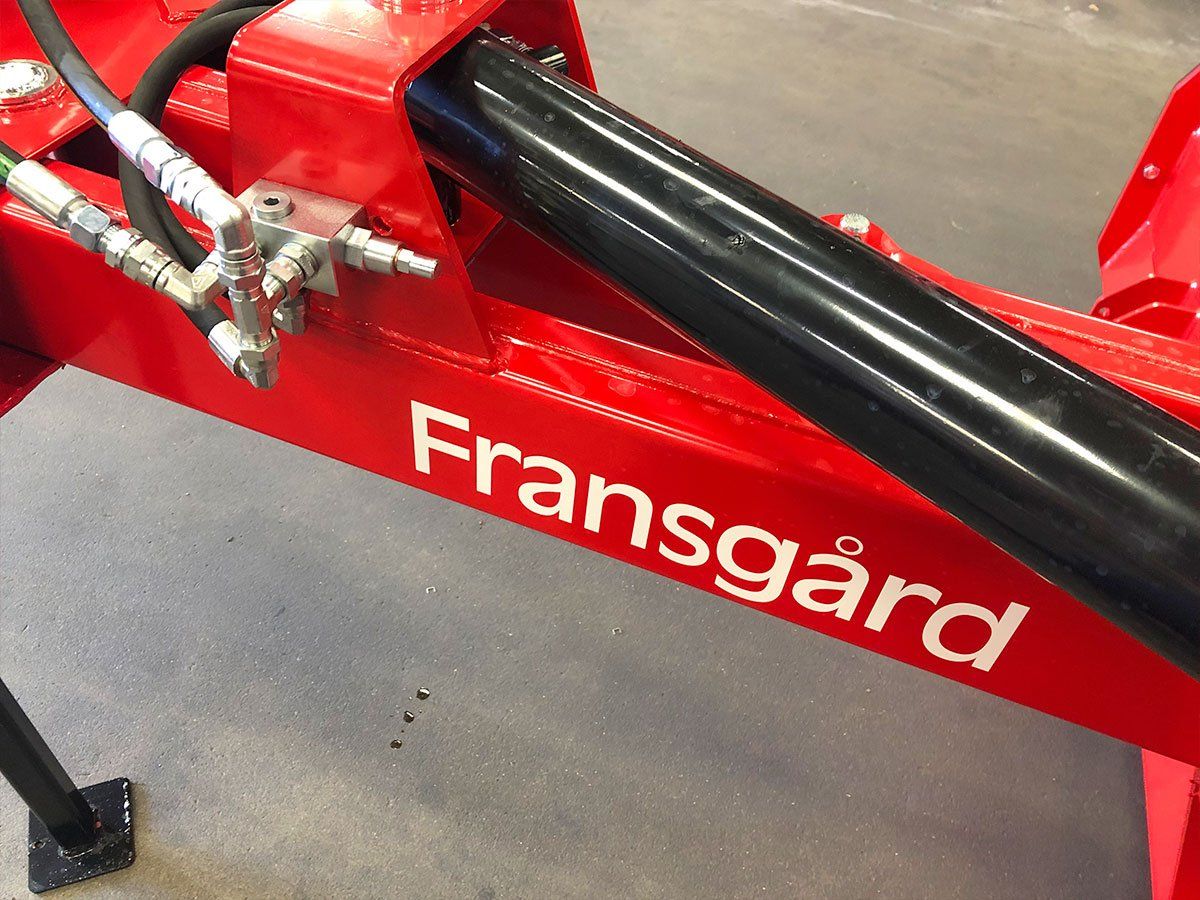

Item No. 2544

Shock valve for mounting on the blade cylinder of all Fransgård hydraulic levellers.
The shock valve will relieve the cylinder and the leveller when hitting objects and minor impacts, in both the right and left side of the blade. Supplied as a complete set with assembly instructions.
