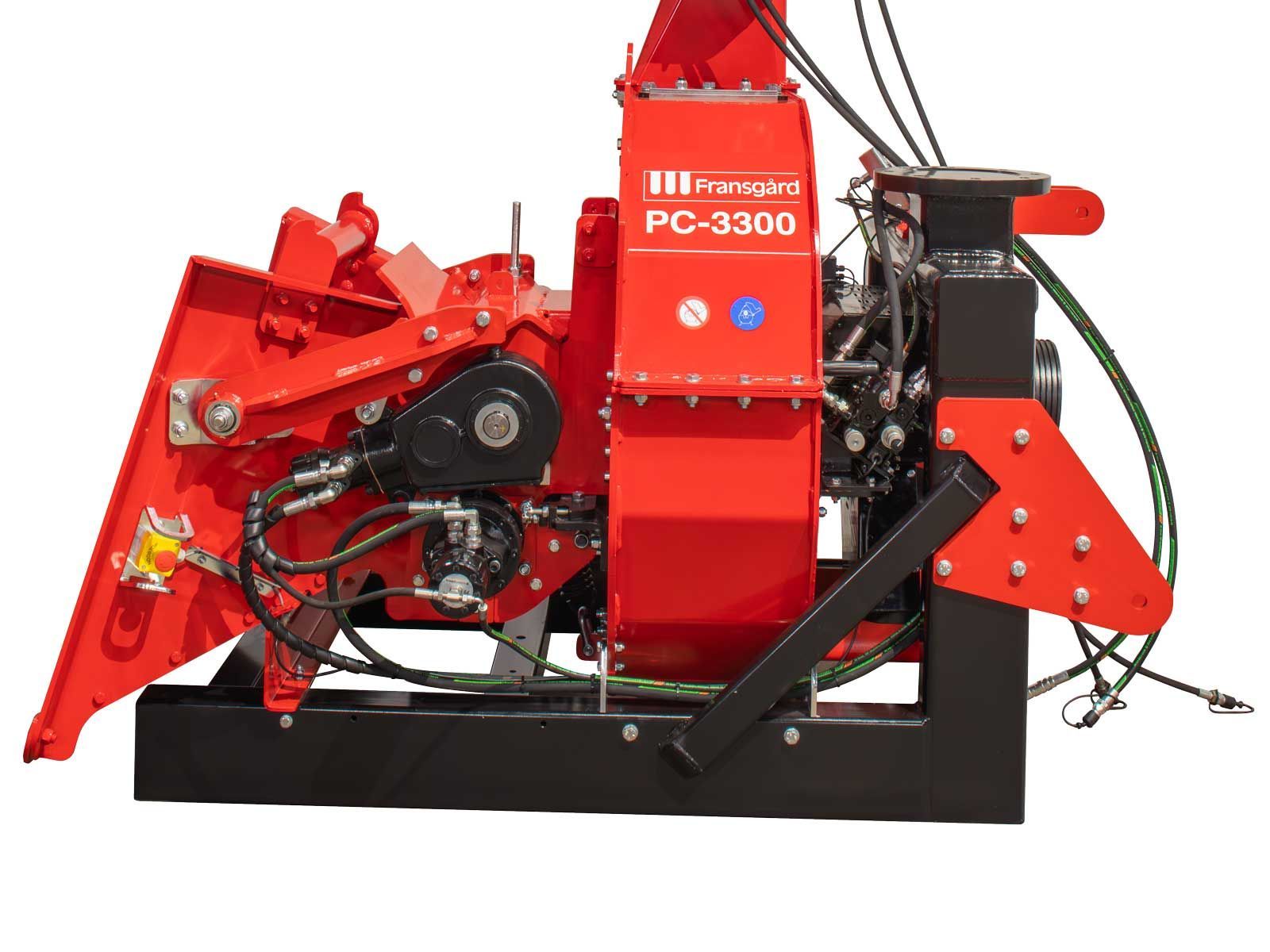

This tractor-mounted pellet wood chipper with a 360° screen system handles logs up to 33 cm in diameter. The chipper is prepared for crane mounting to assist feeding and streamline the work process.

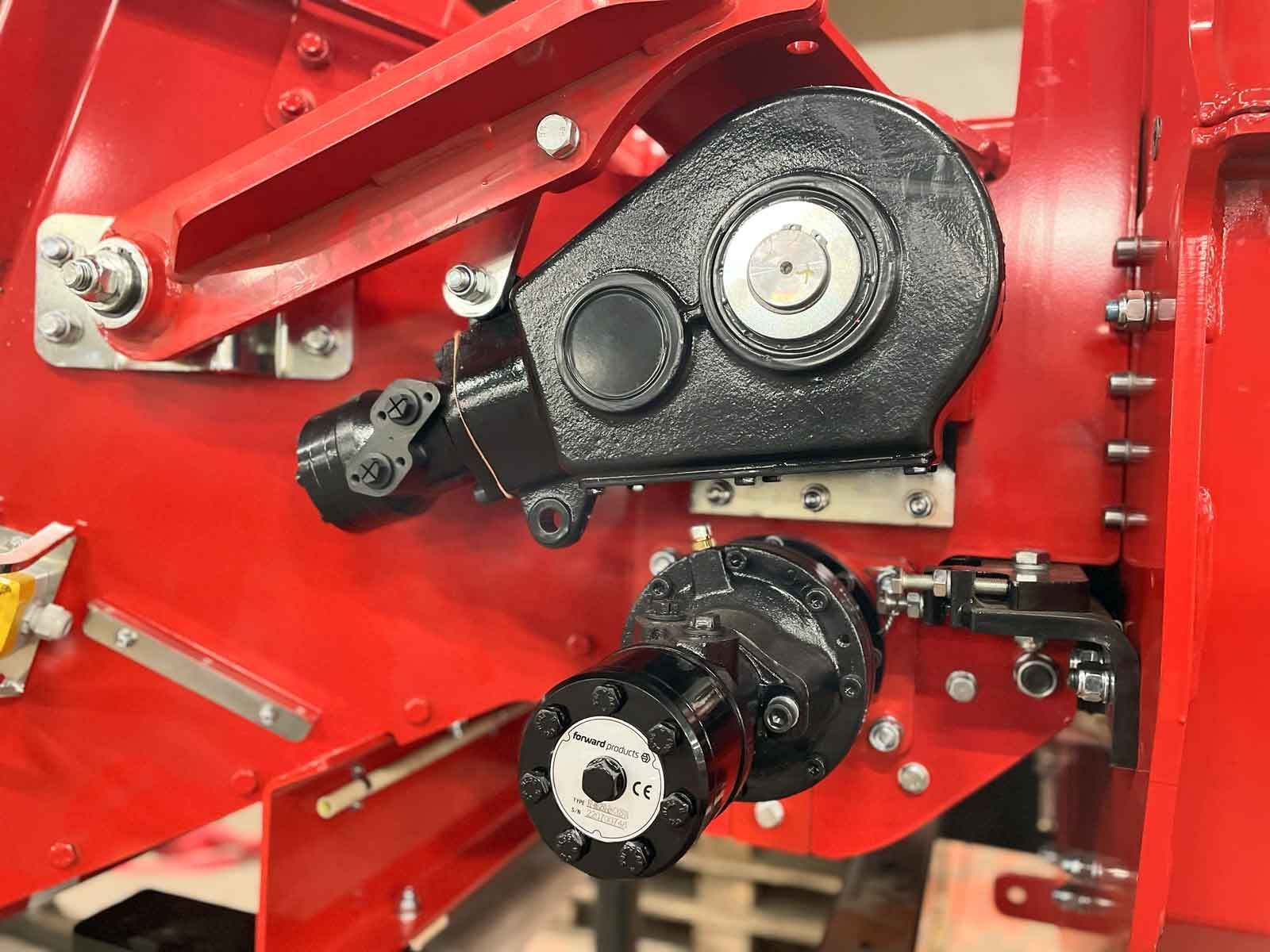

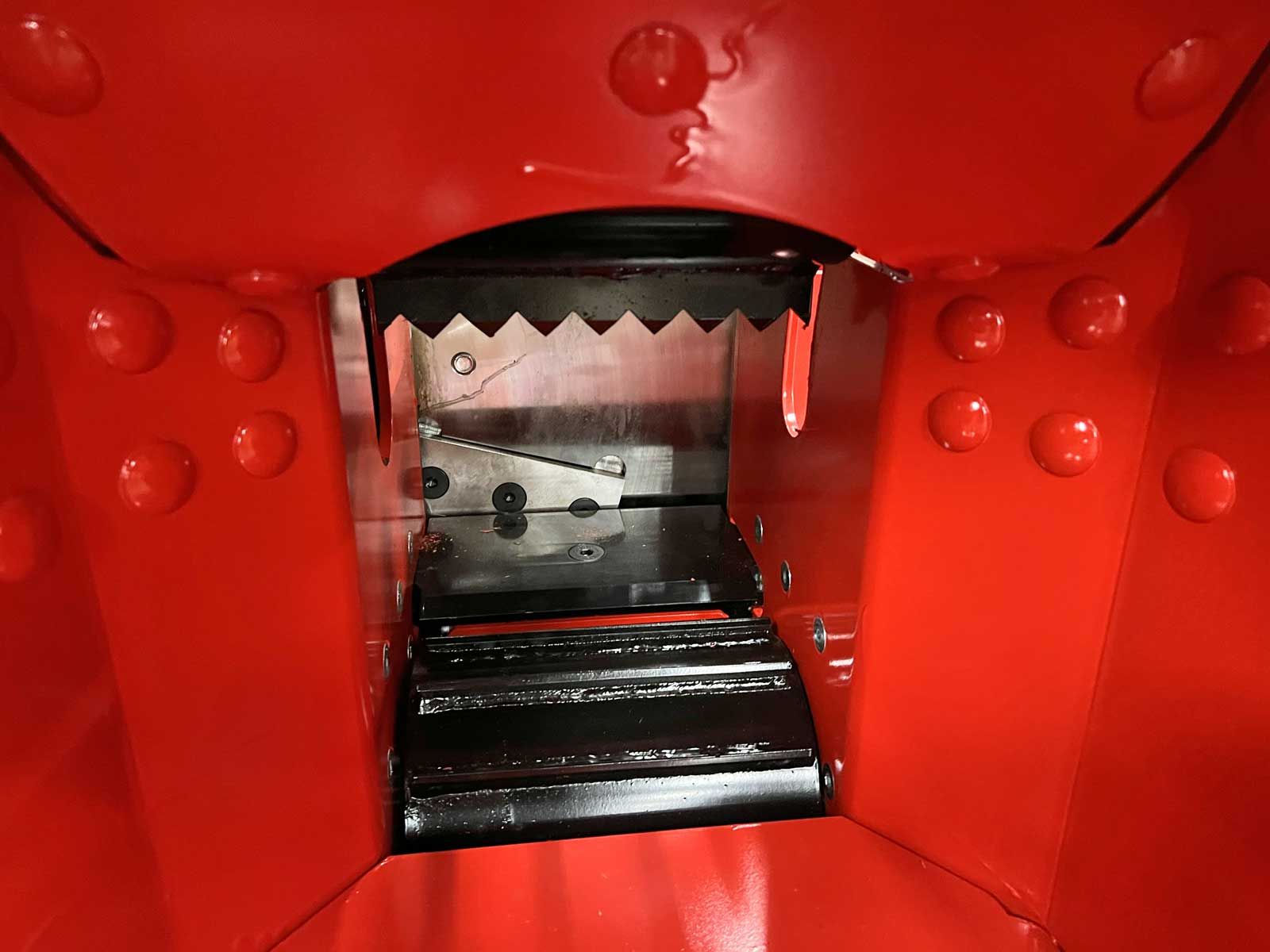

Two hydraulic feed rollers powered by the tractor and the chipper’s extra robust main frame ensure stable and reliable chipping. The construction is reinforced at all key points. Each feed roller is driven by its own hydraulic motor. The planetary and worm gears on the rollers boost feed force. The feed rate can be adjusted steplessly.
With the integrated speed guard, the chipper can be optimally adapted to each task.

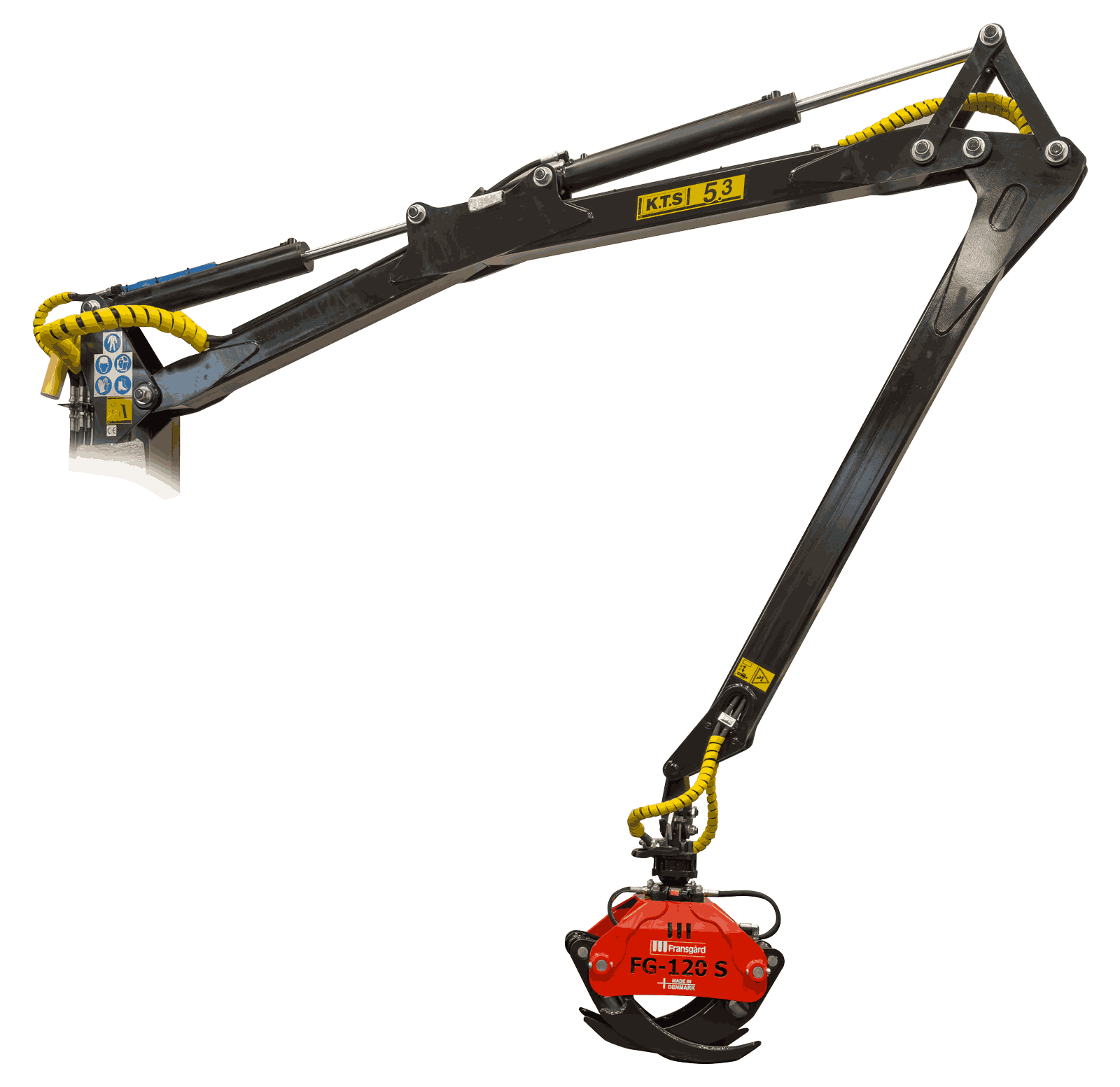

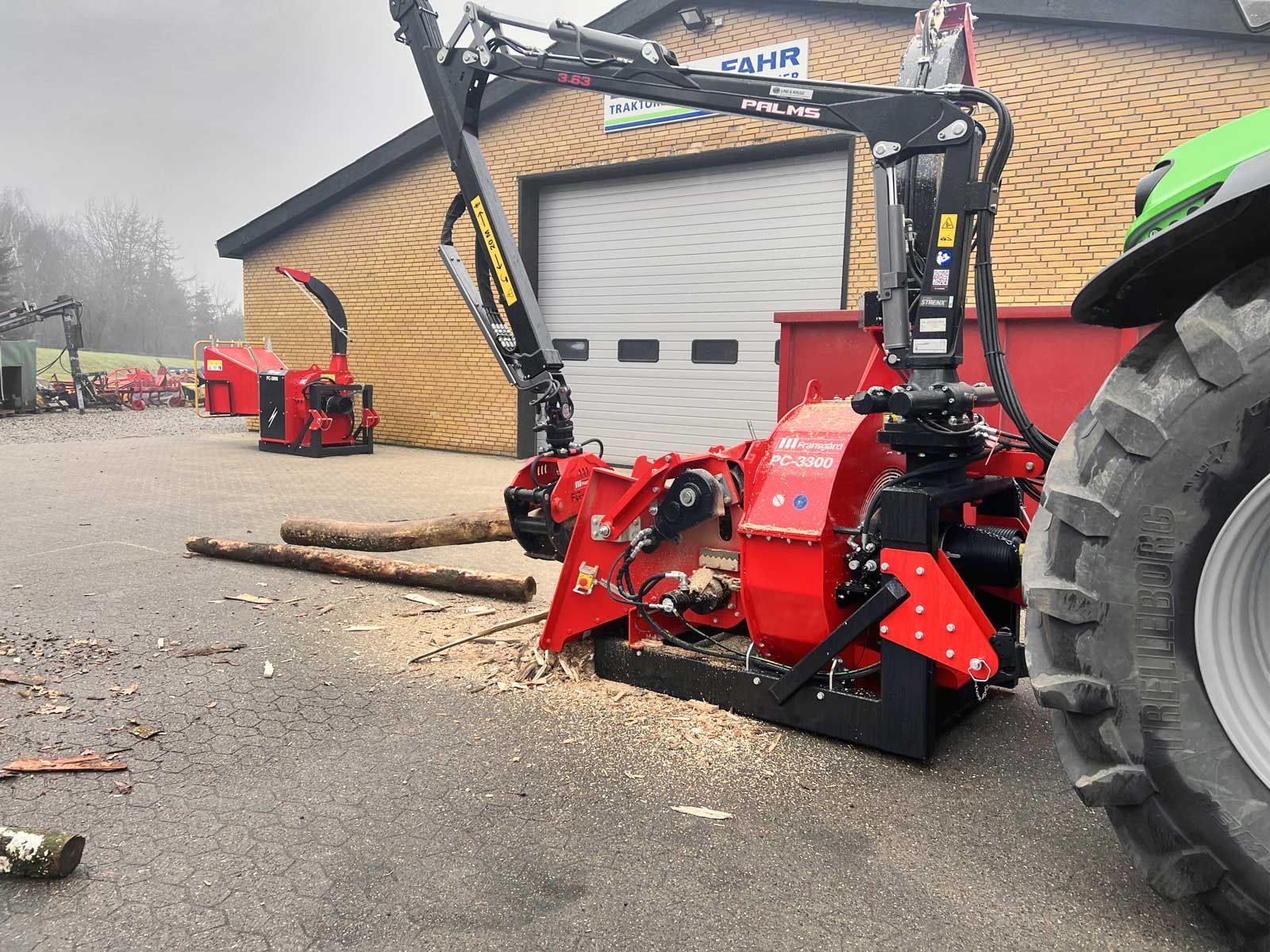

The remote-controlled feed rollers can be operated from the same control station as, for example, a mounted forest crane.

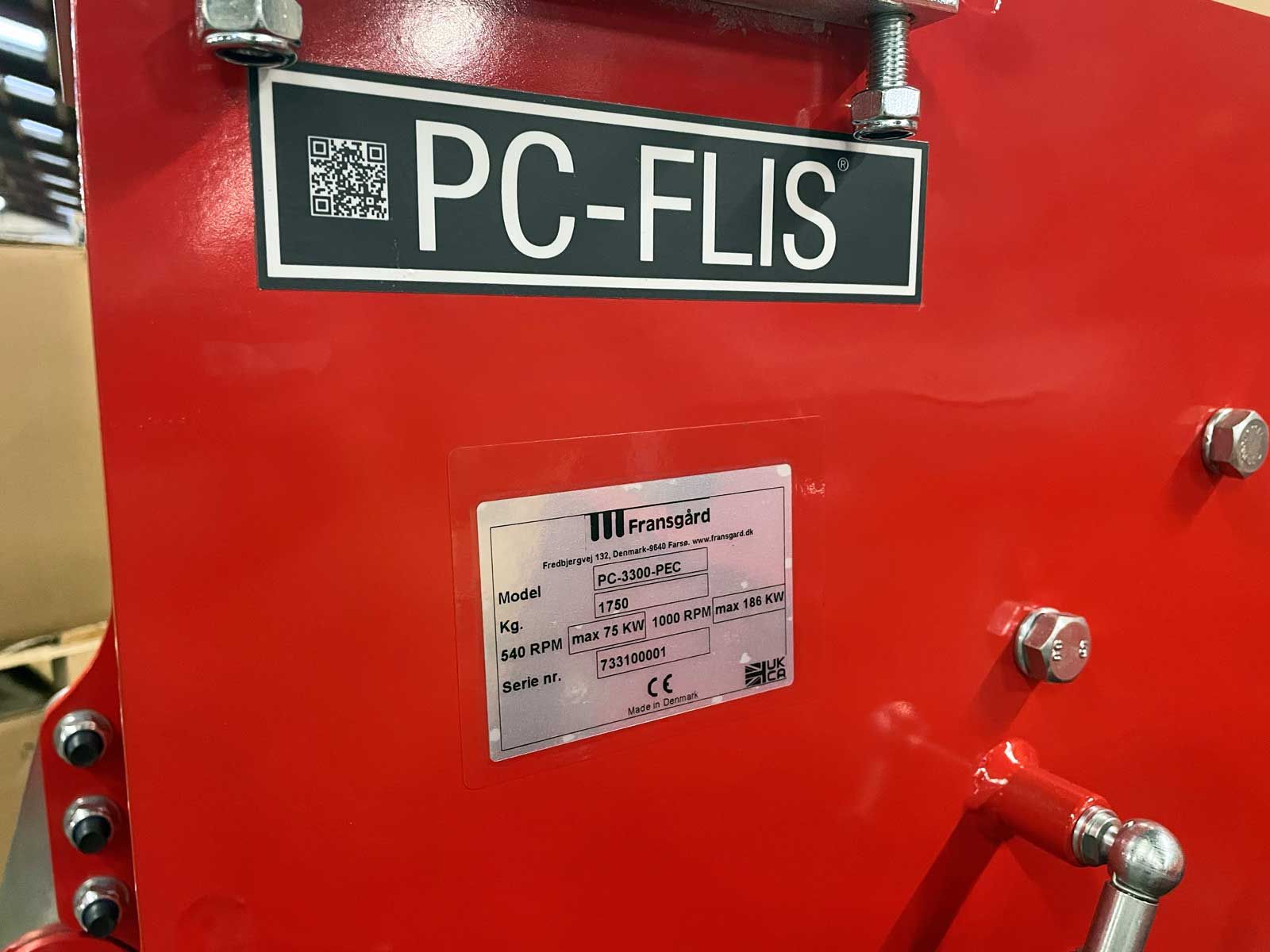

The chipper produces trademarked PC-FLIS® – completely free from splinters and lumps – ideal for heating.
By adjusting the knife height and choosing screen hole size, PC-FLIS® can be tailored for uses such as animal bedding, uniform cover chips, or a wood pellet alternative.
Only chips produced on a PC pellet wood chipper may be called PC-FLIS®.
Model | PC-3300-PEC |
---|---|
Type | Pellet chipper with 360° screen |
Max log diameter | Ø33 cm |
PTO RPM | 540 / 1,000 |
Power requirement (540 RPM) | Max. 60 kW / 80 hp |
Power requirement (1,000 RPM) | Max. 112 kW / 150 hp |
Main shaft spline | 1 3/4” x Z6 |
Weight | 1,600 kg |
Mounting | 3-point tractor linkage |
Hydraulics | From tractor |
Number of feed rollers | 2 |
Feed torque | Up to 1,096 Nm |
Rotor weight | Approx. 380 kg |
Capacity * | 30 m³/hour |

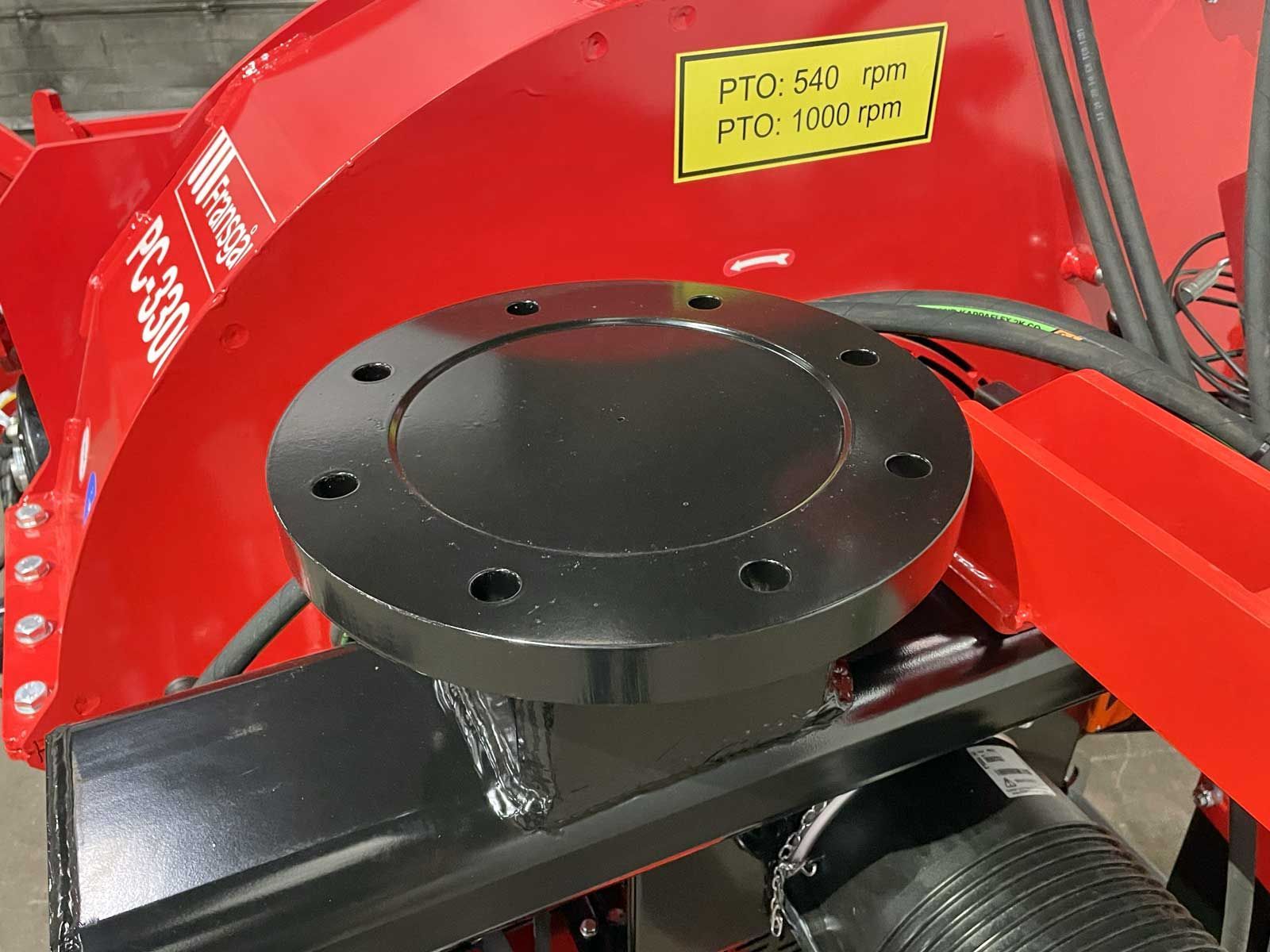

Crane mounting option | Yes |
Speed guard | Yes, standard |
*Depends on blade setting, HP available, wood type, and rotor speed |

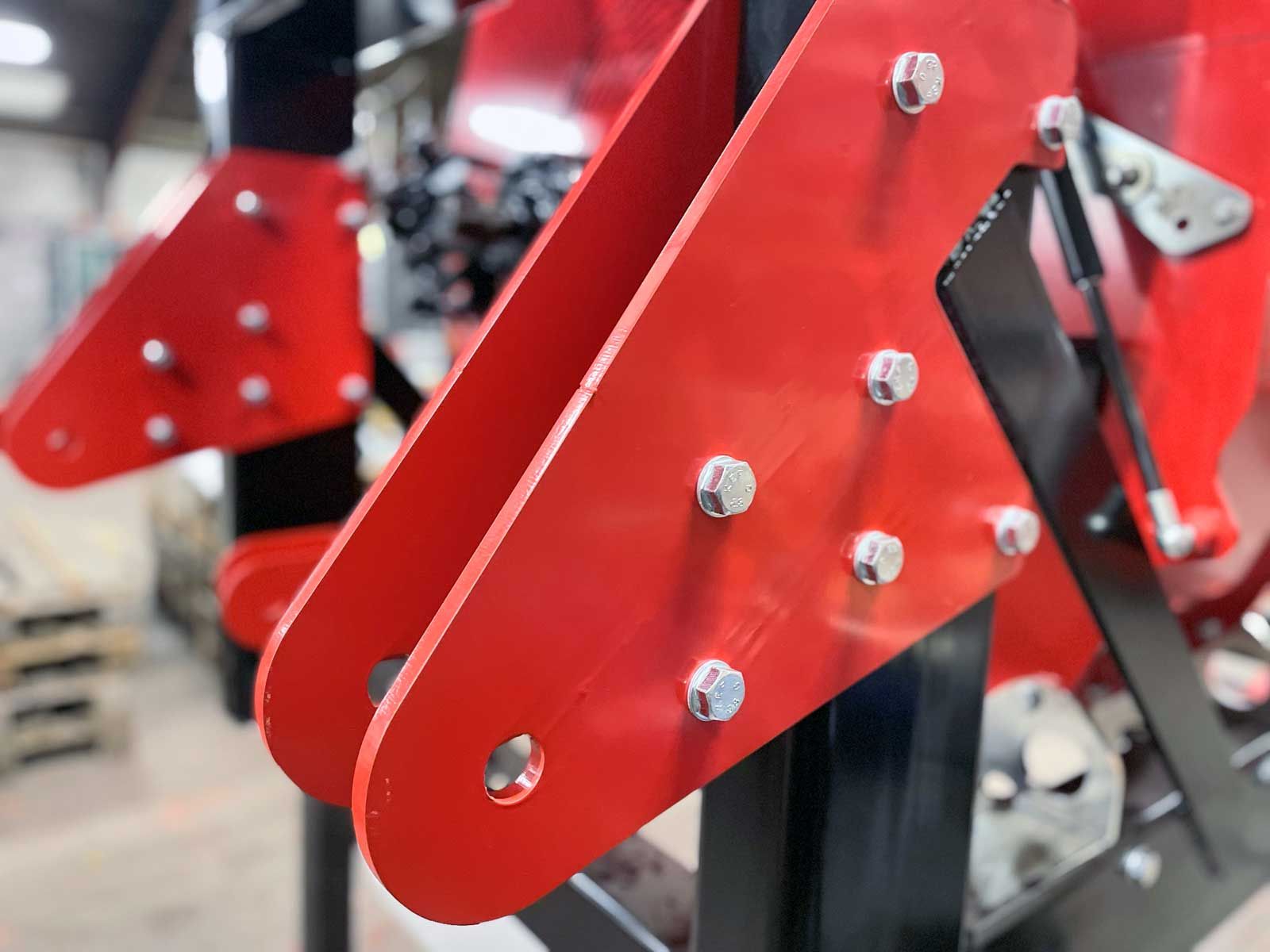

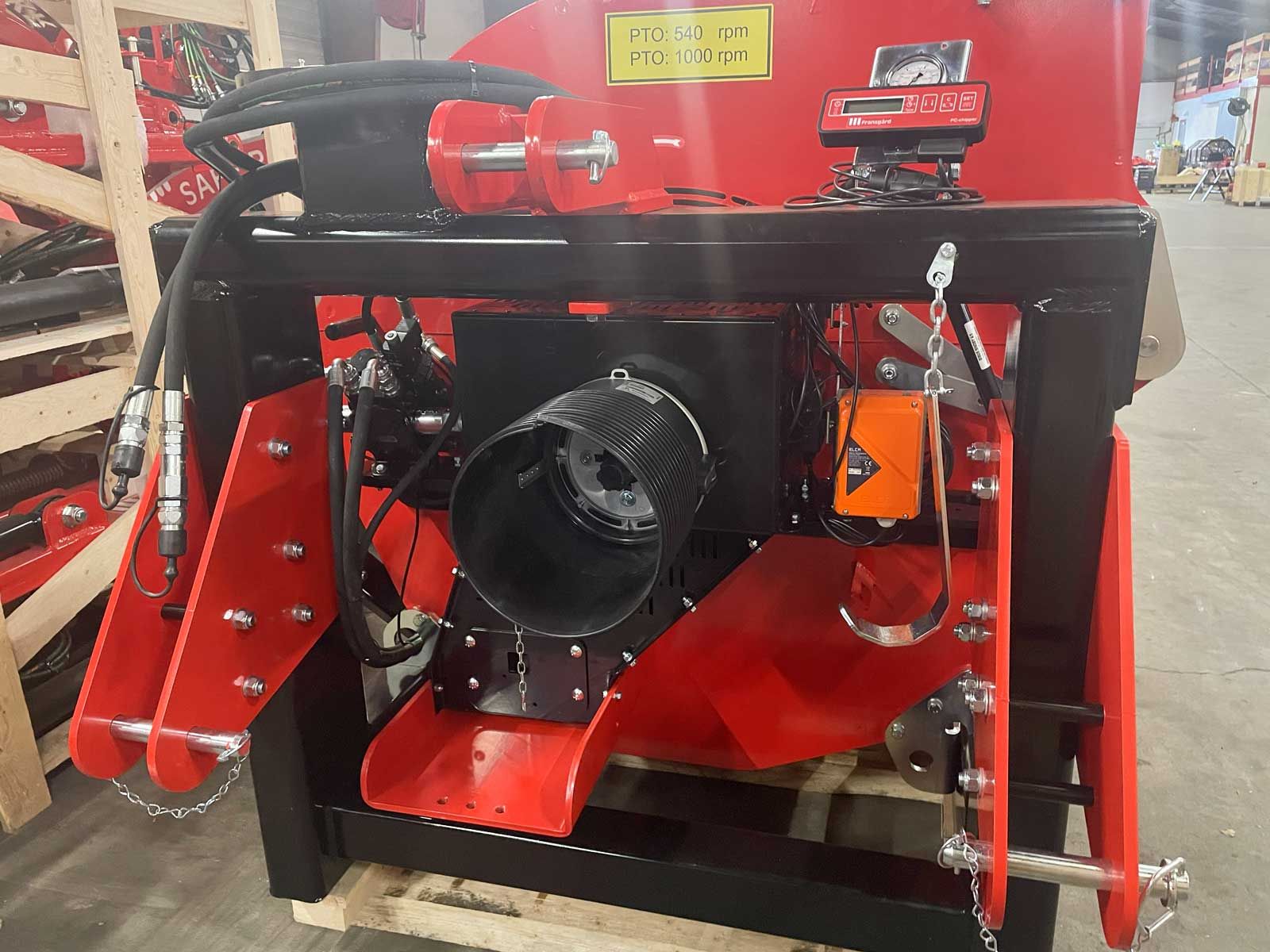

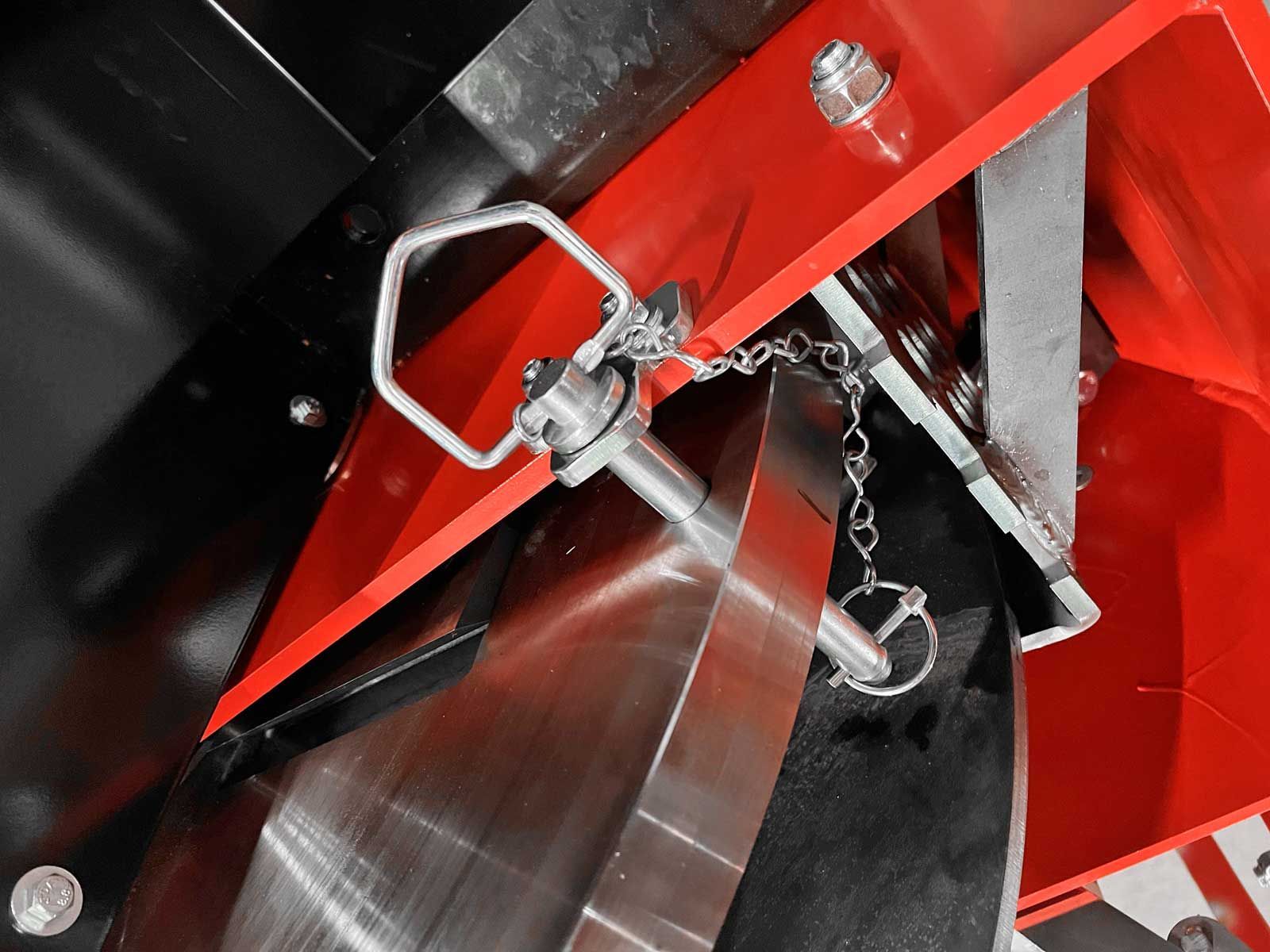

Ensures safe attachment

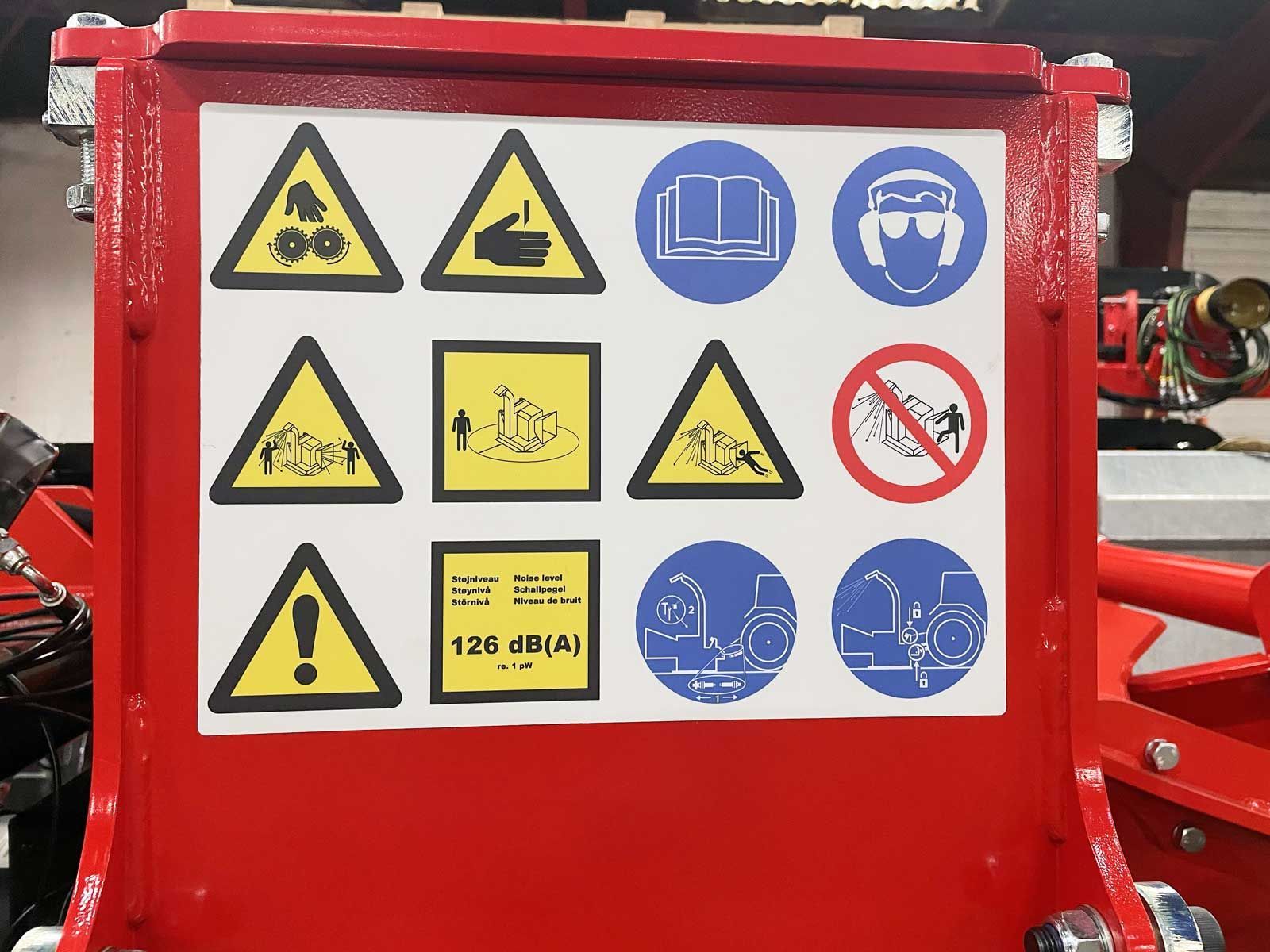

Symbols enhance safety awareness during machine operation.

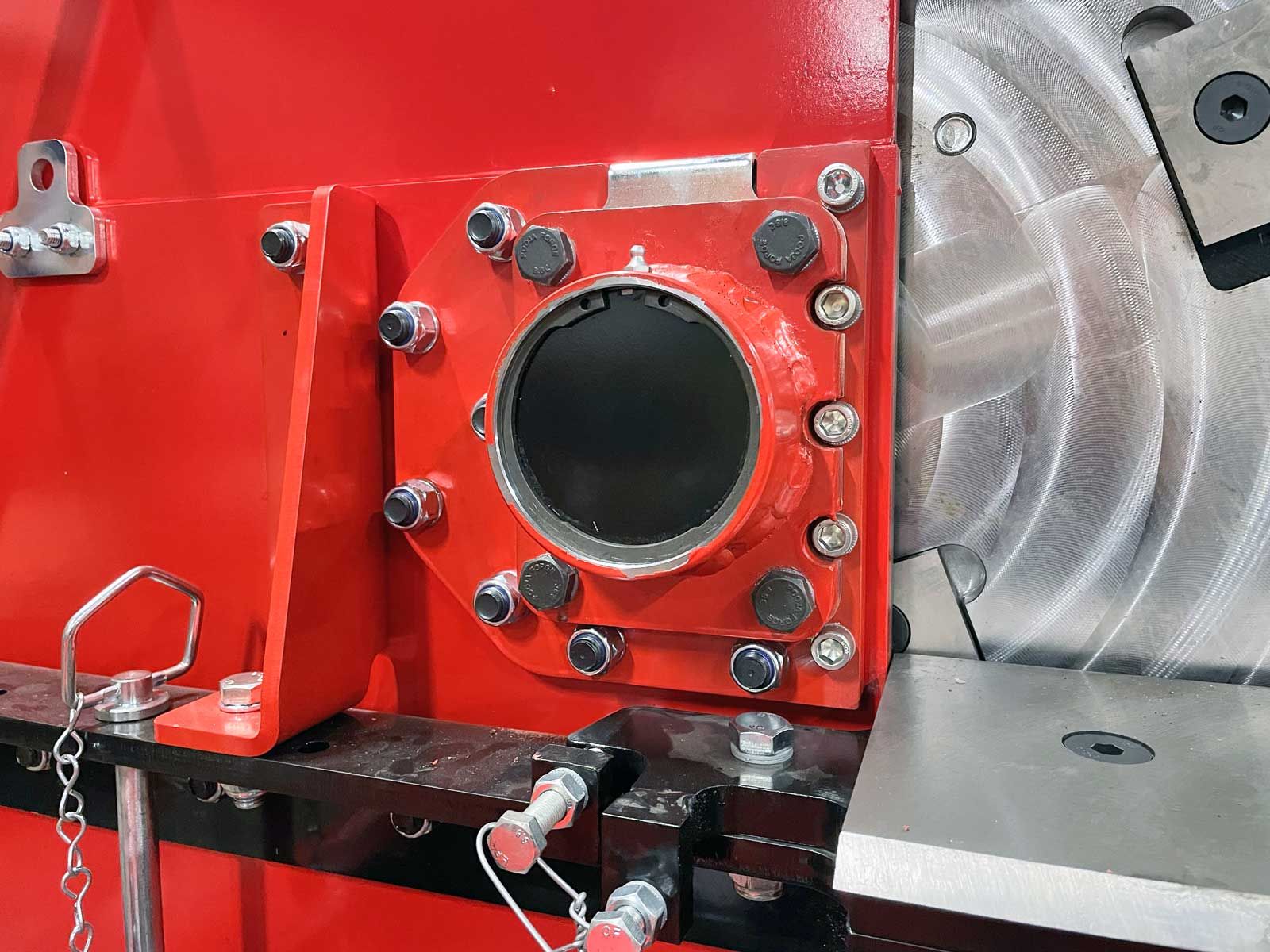

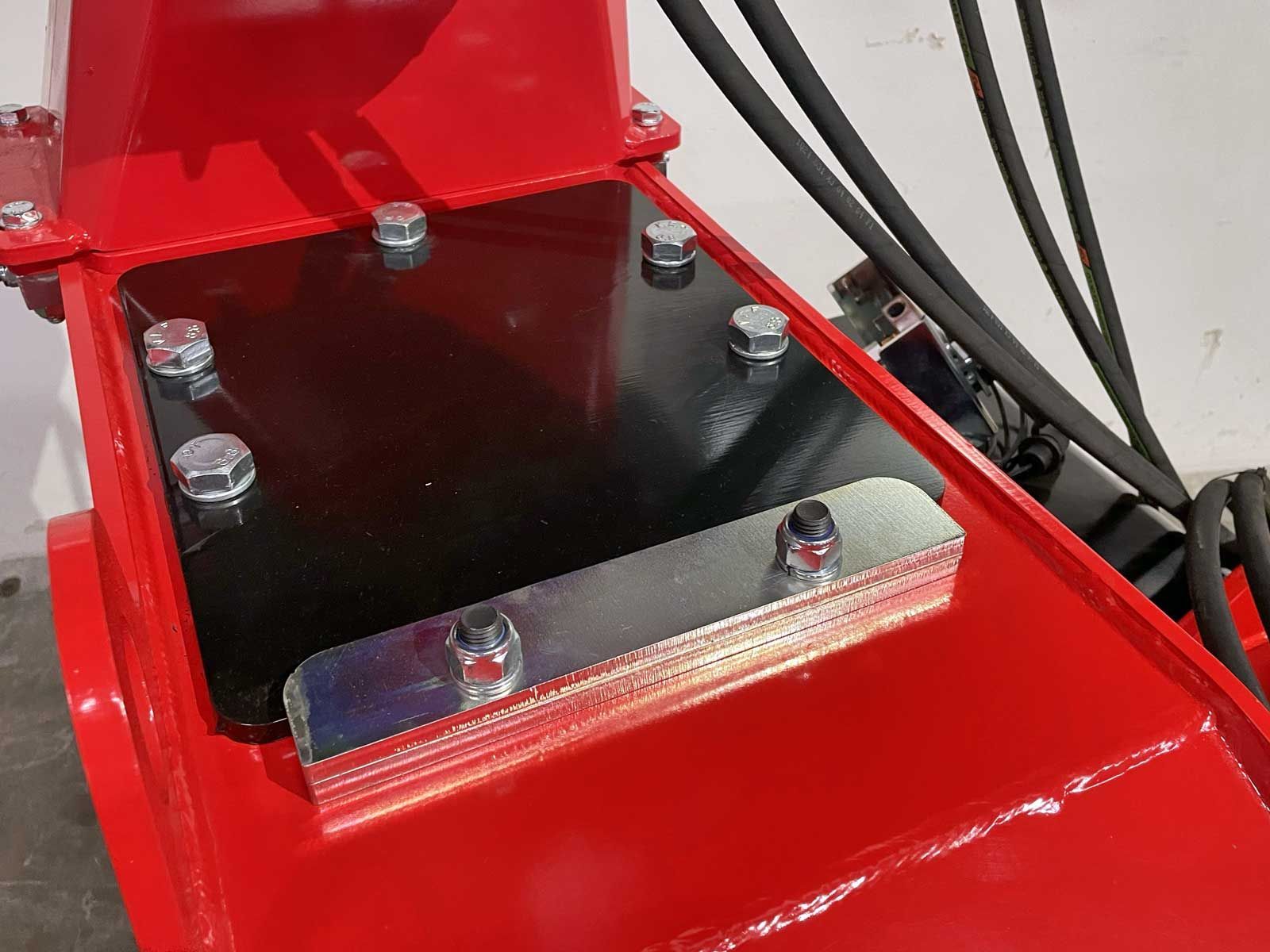

The bearing housing is secured with an extra reinforced backplate.

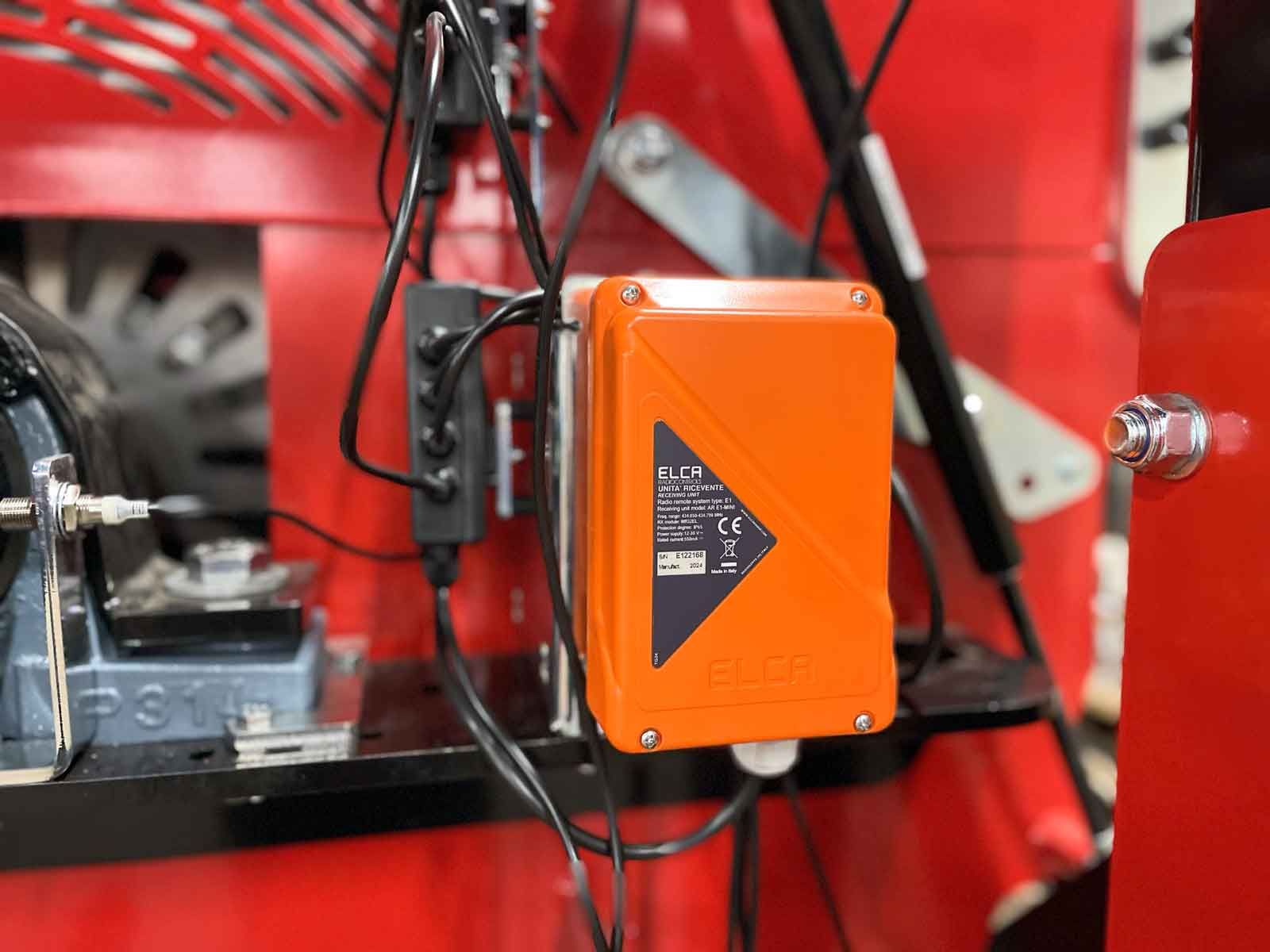

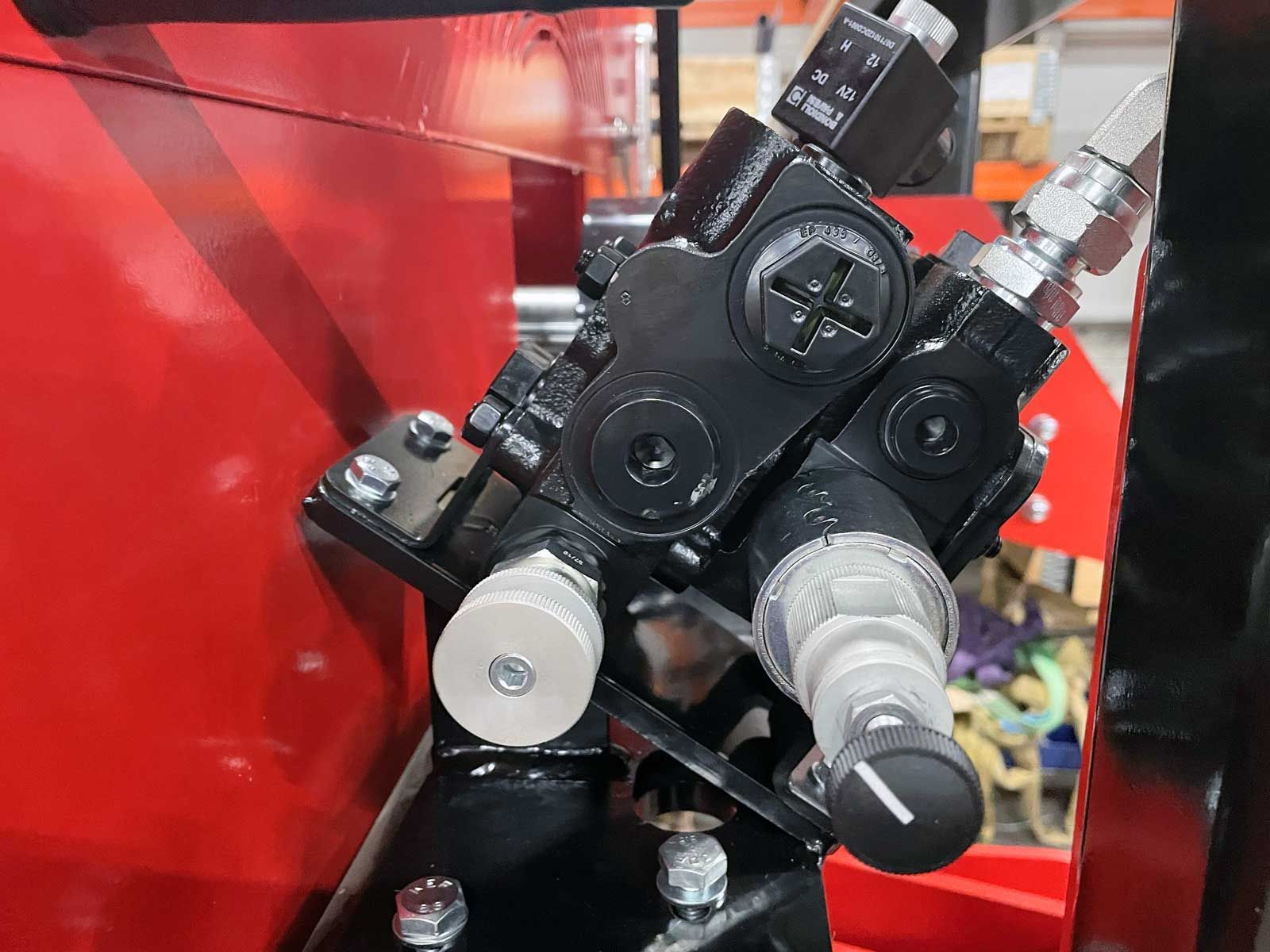

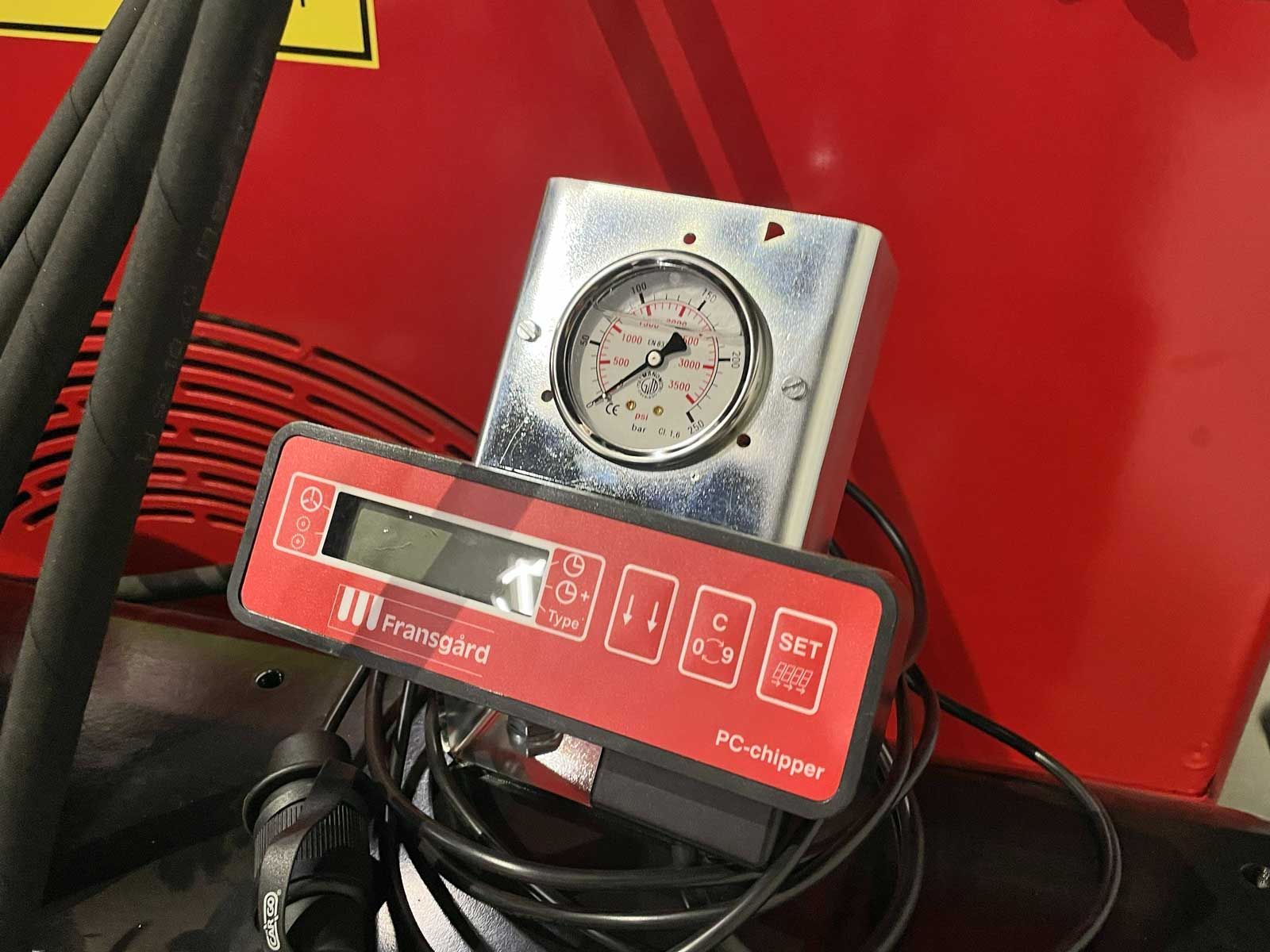

The unit receives signals from the remote control.

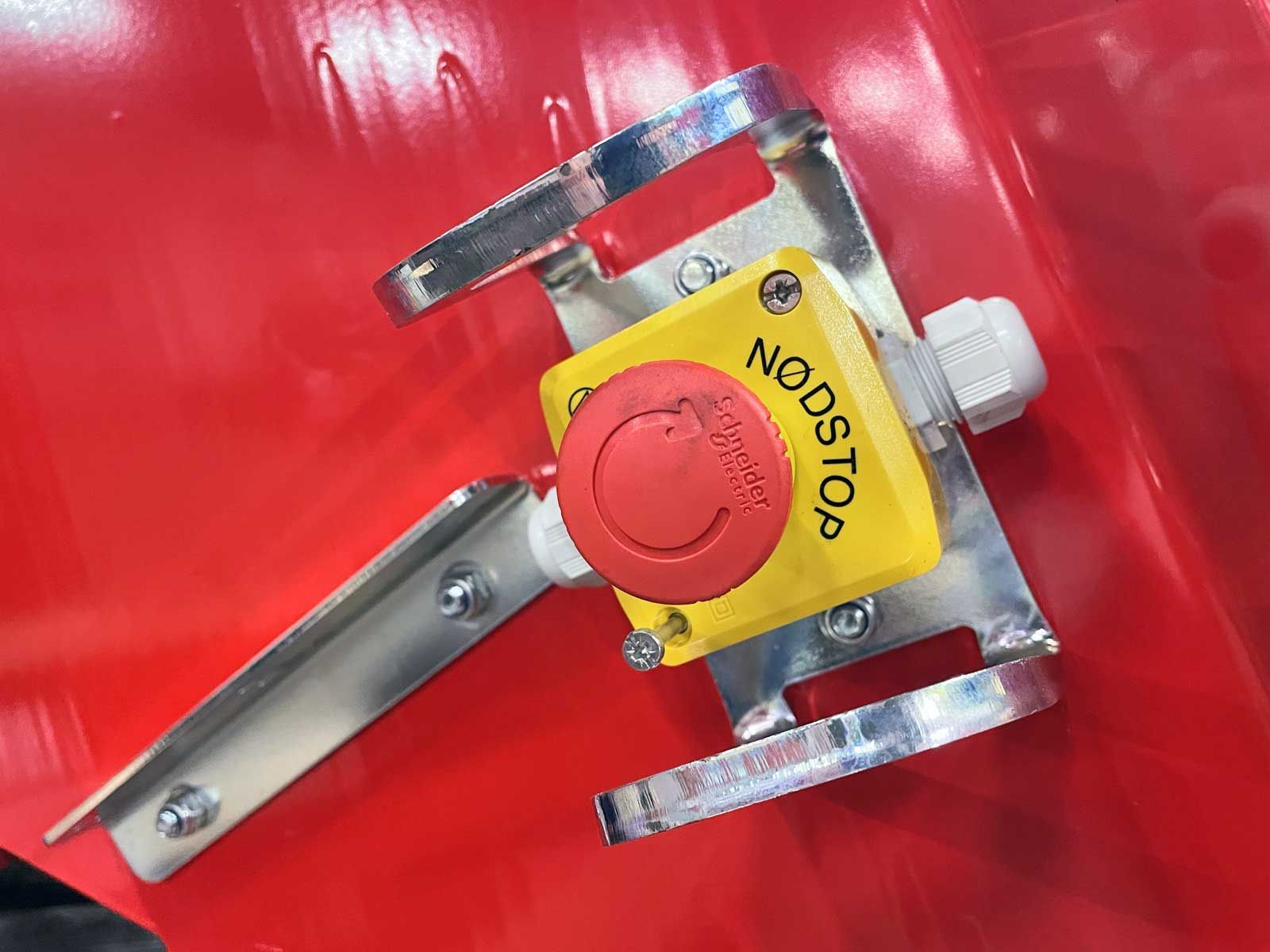

The visible emergency stop button is used for quick shutdown in critical situations.

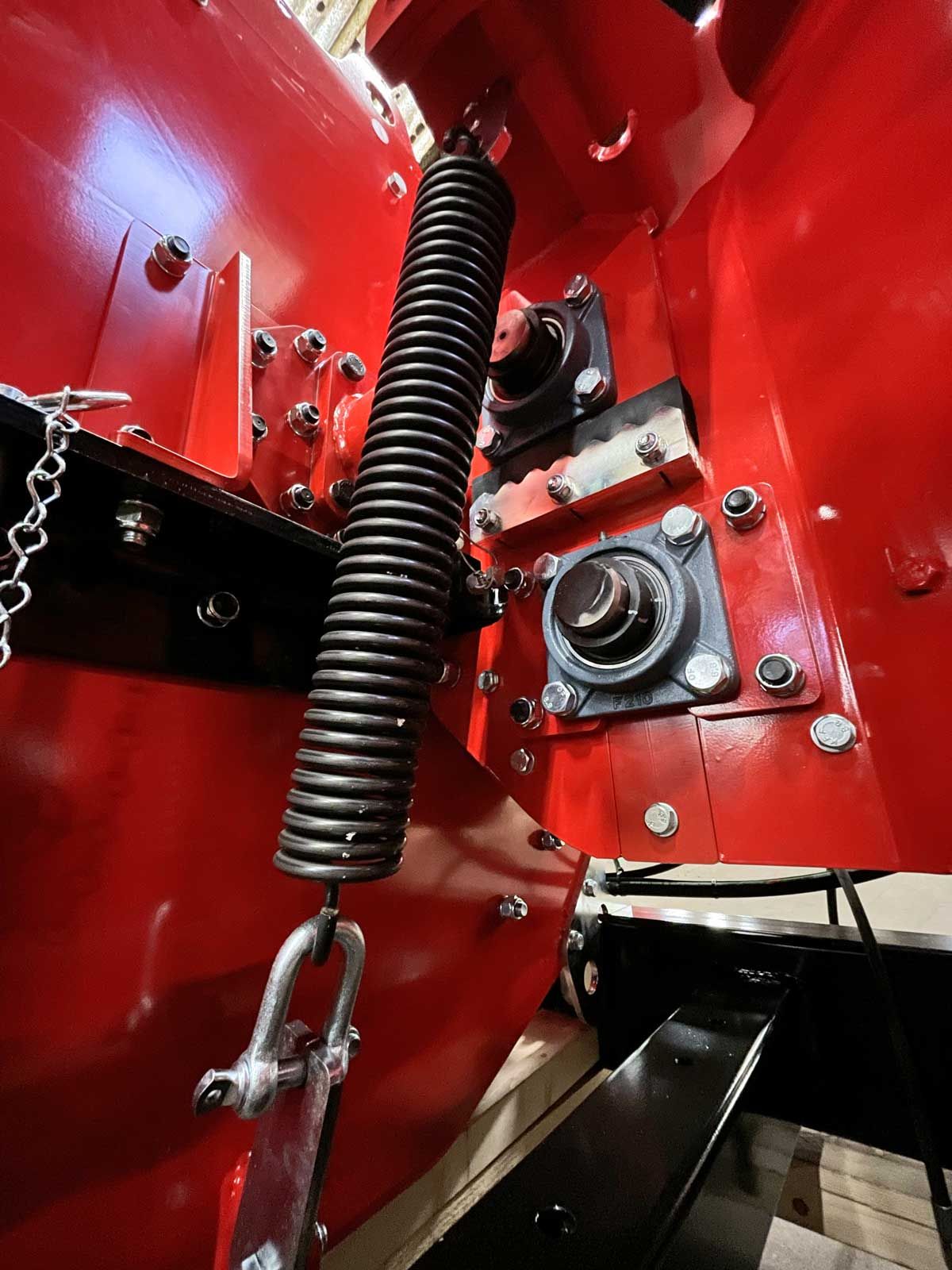

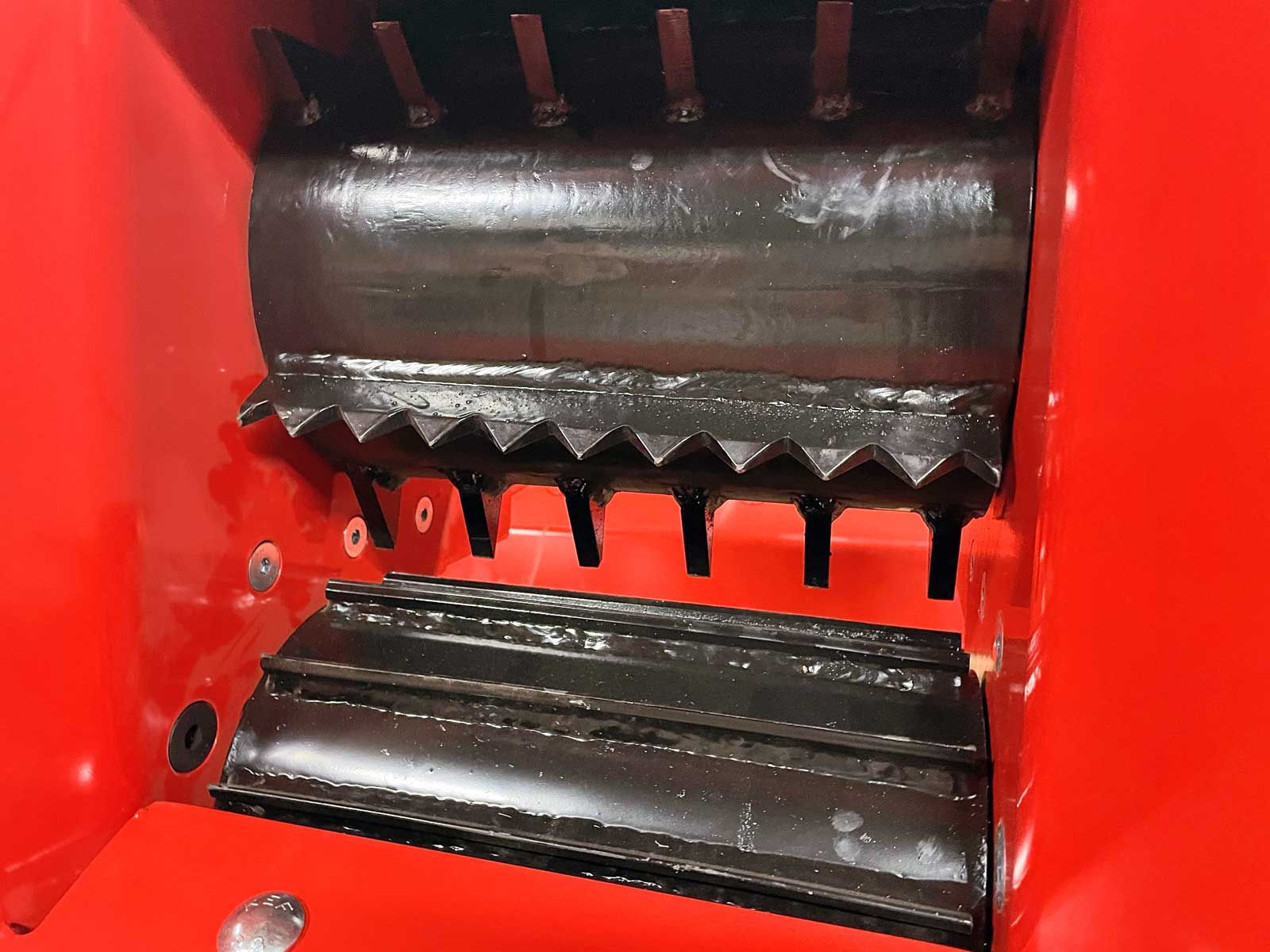

The heavy-duty spring keeps the feed rollers in optimal working position.

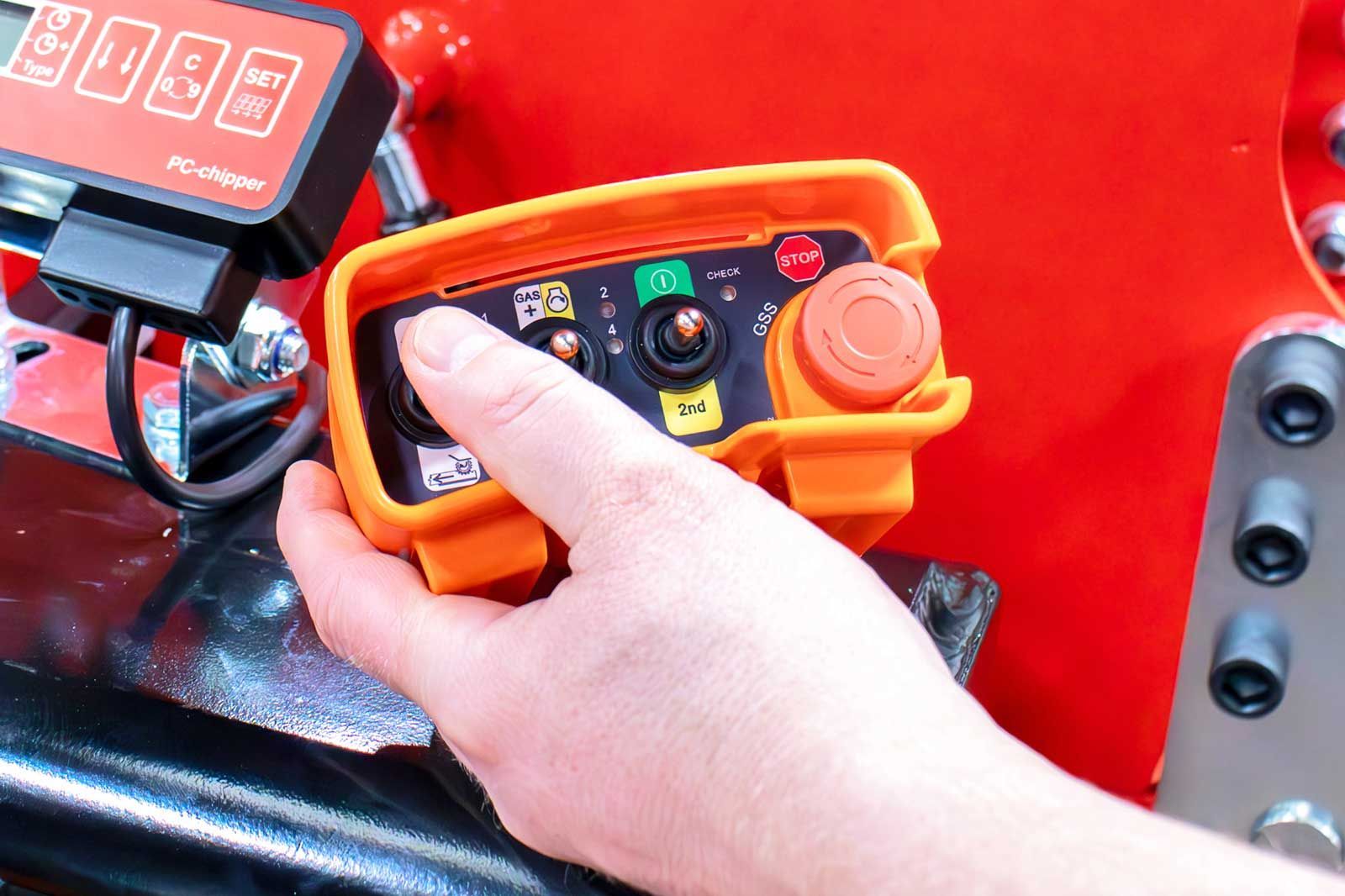

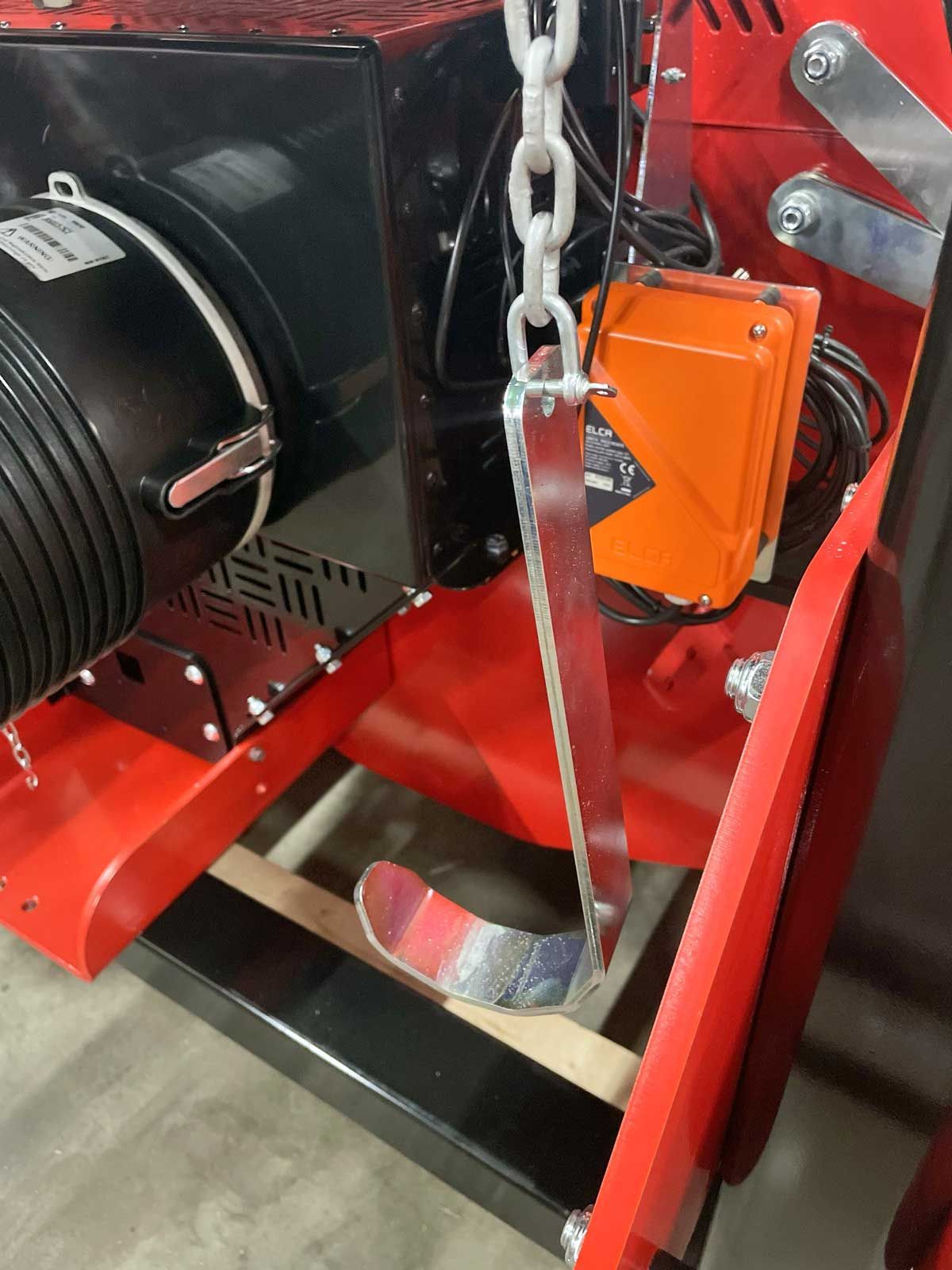

Can be operated directly from its position – either from the tractor or attached to the supplied belt.

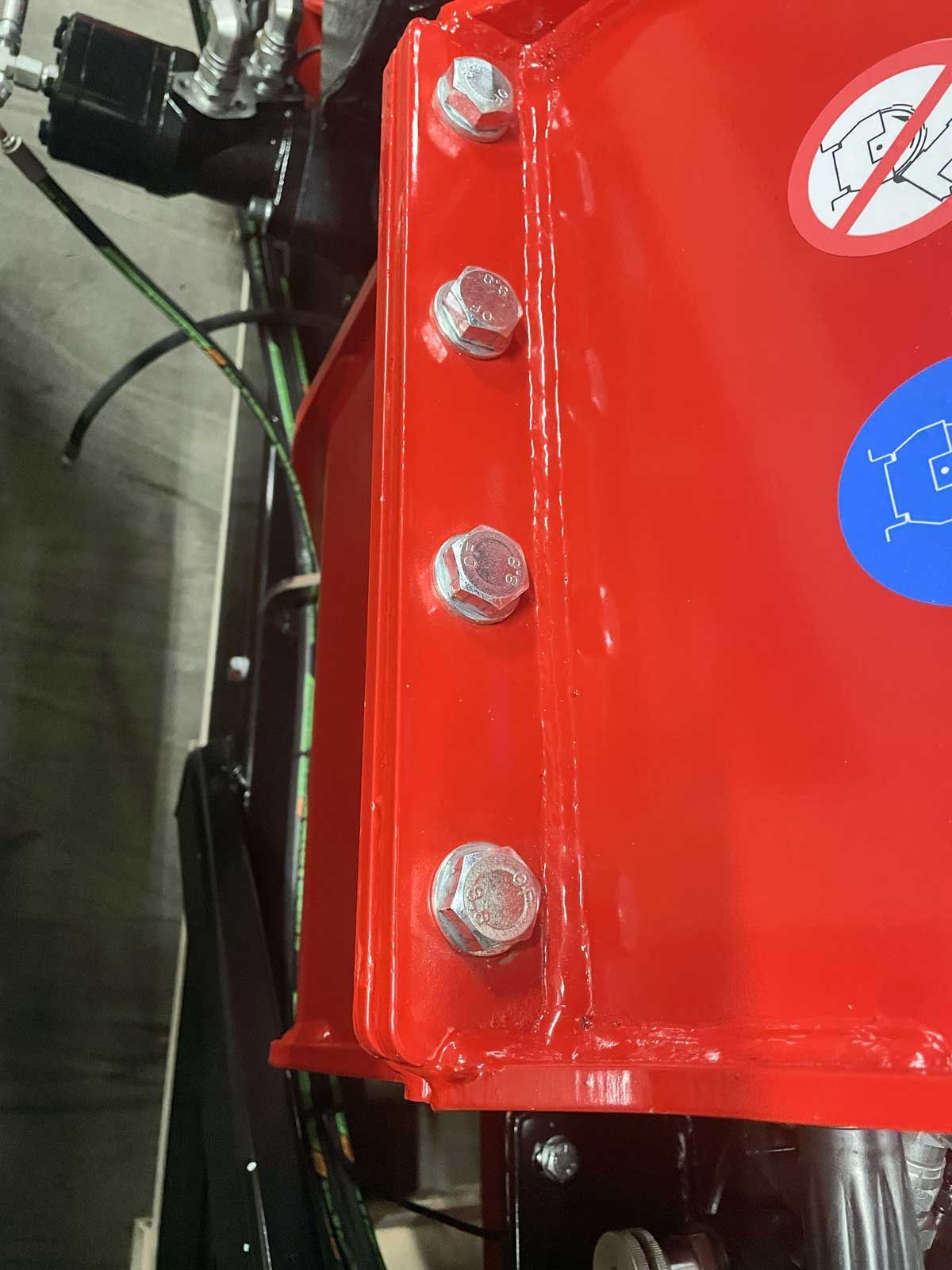

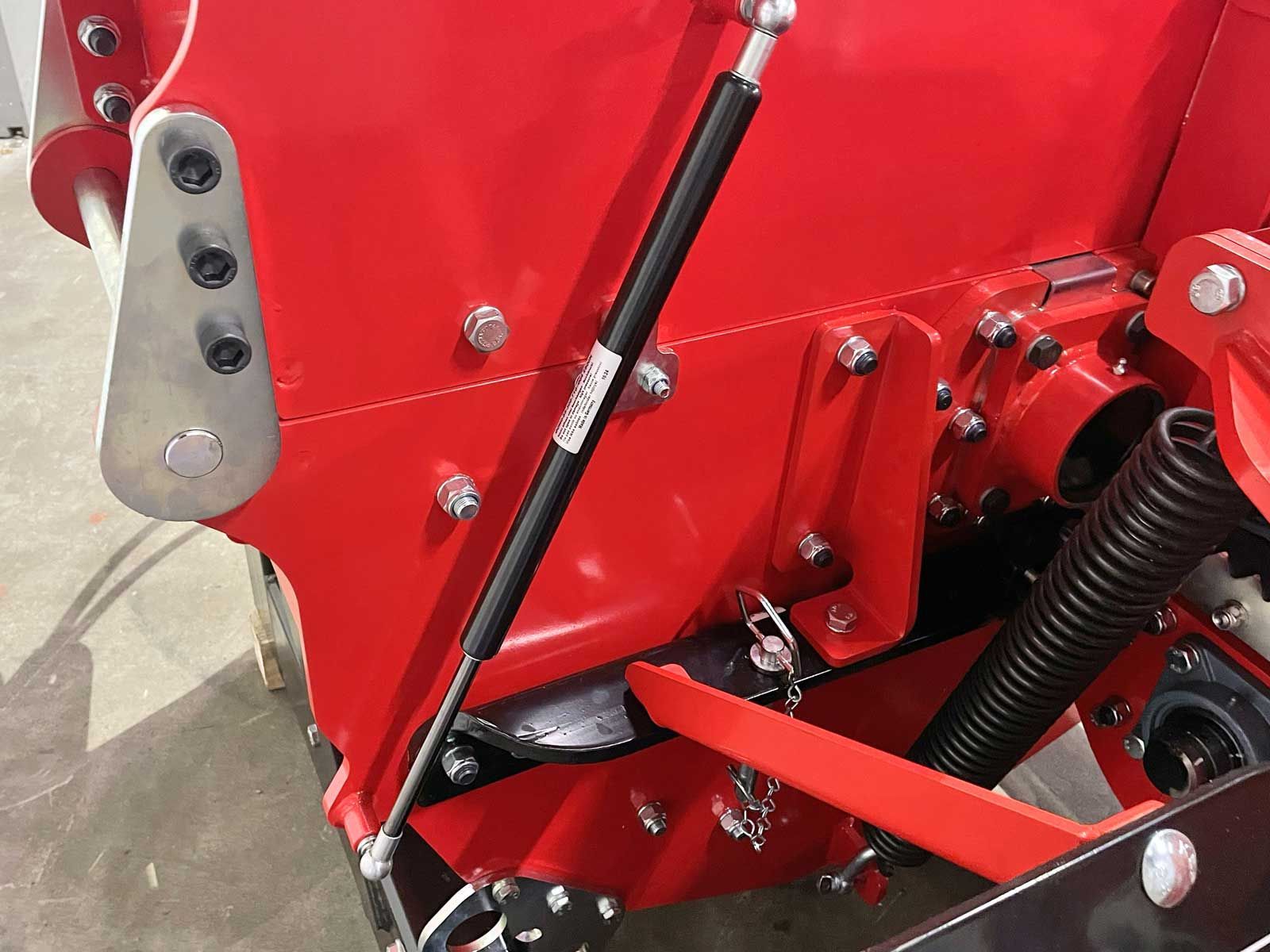

The gas cylinder helps hold the rotor housing lid in open position, e.g., during maintenance.
Controlled via remote

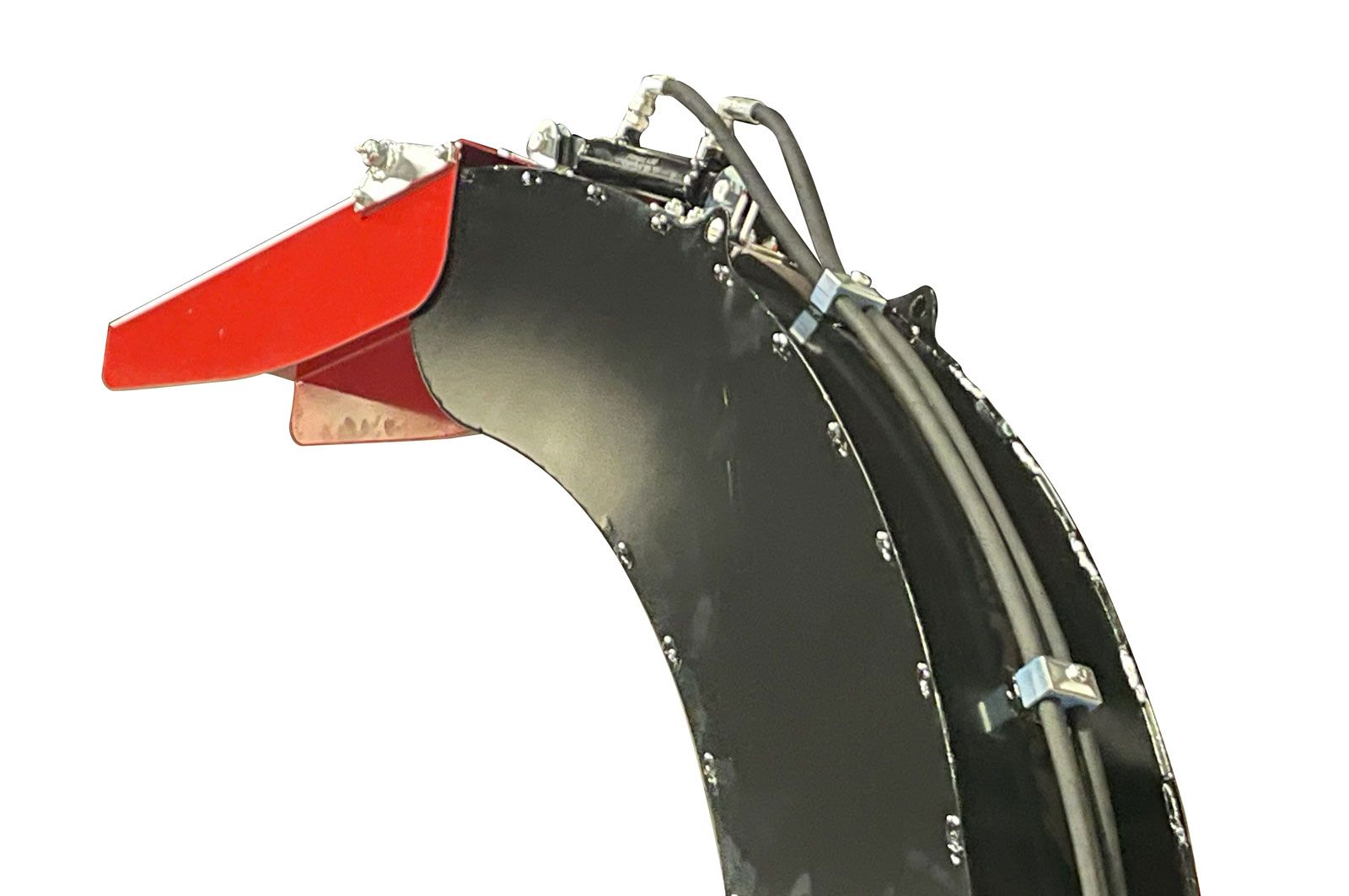

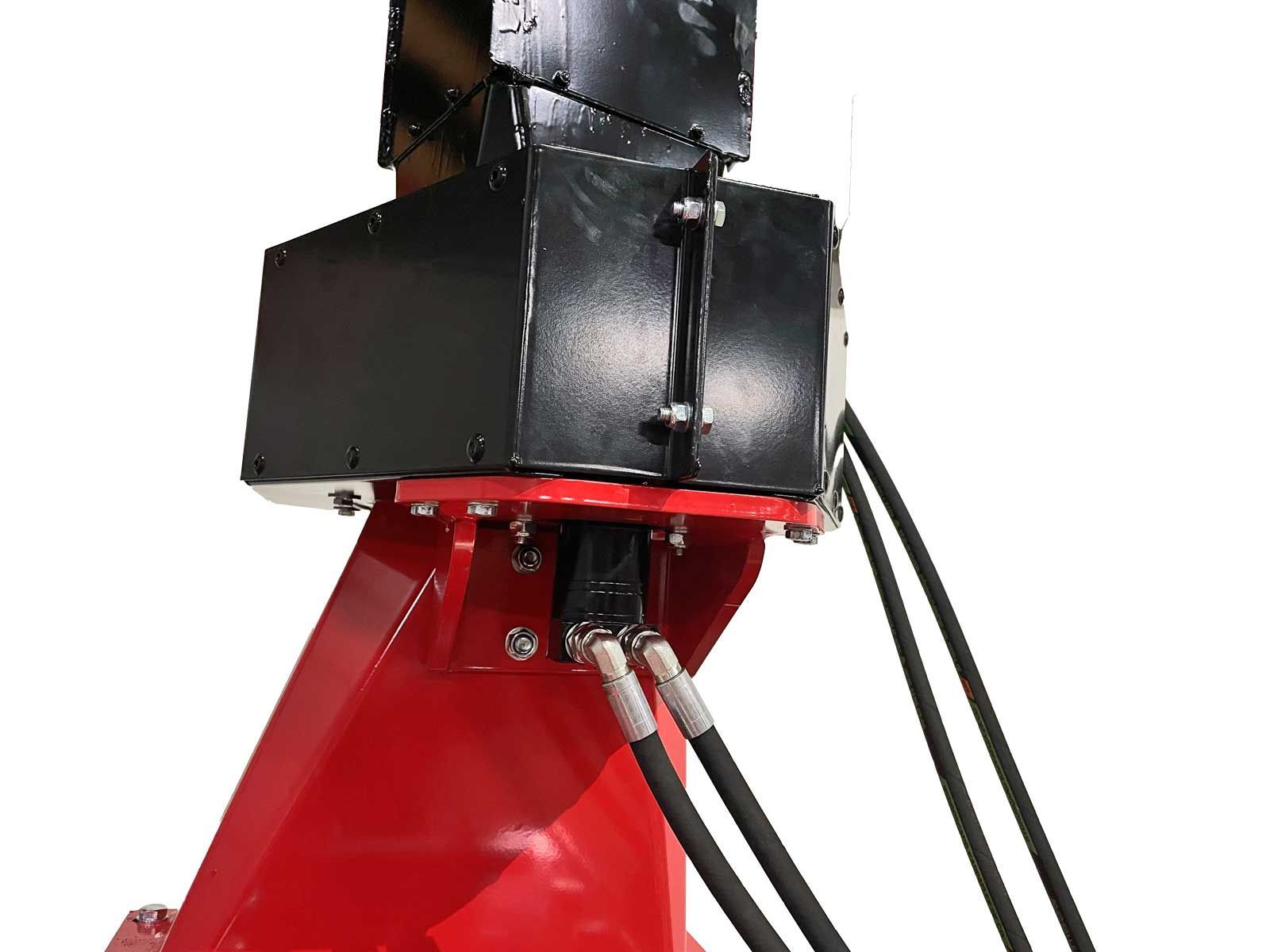

Controls chip stream direction

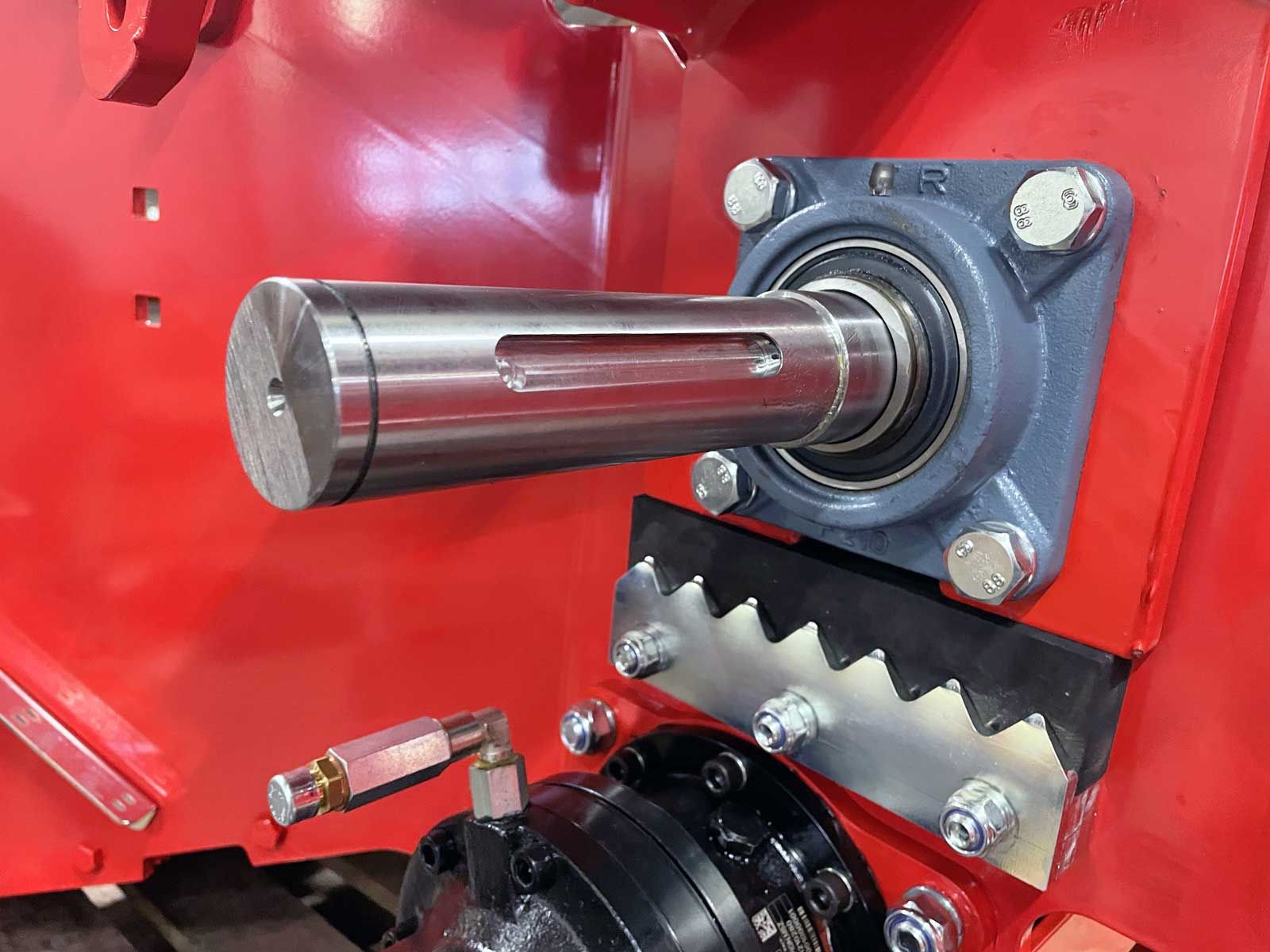

The machine is equipped with heavy-duty shafts for the feed rollers.

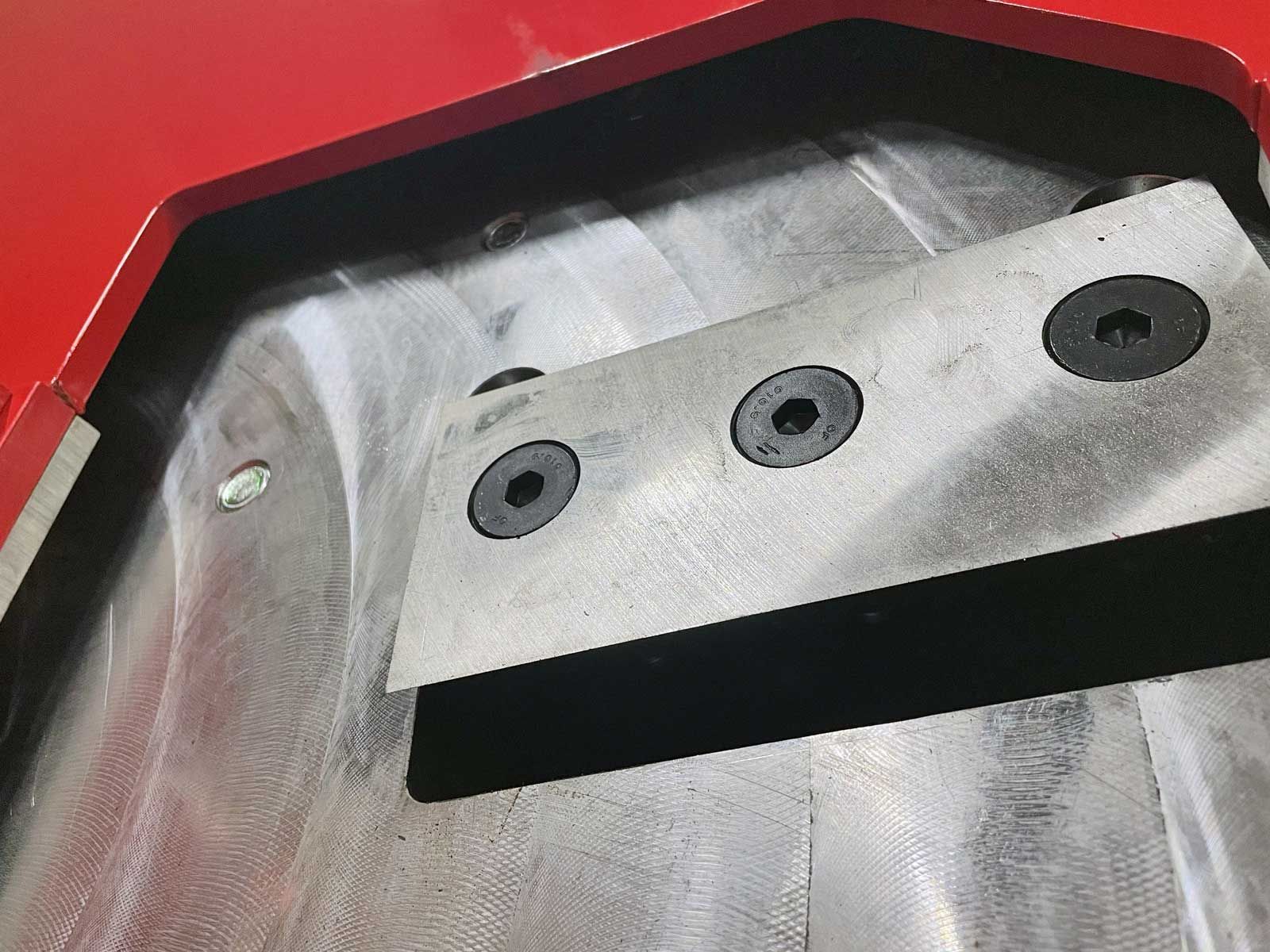

Made of high-strength chrome-nickel steel

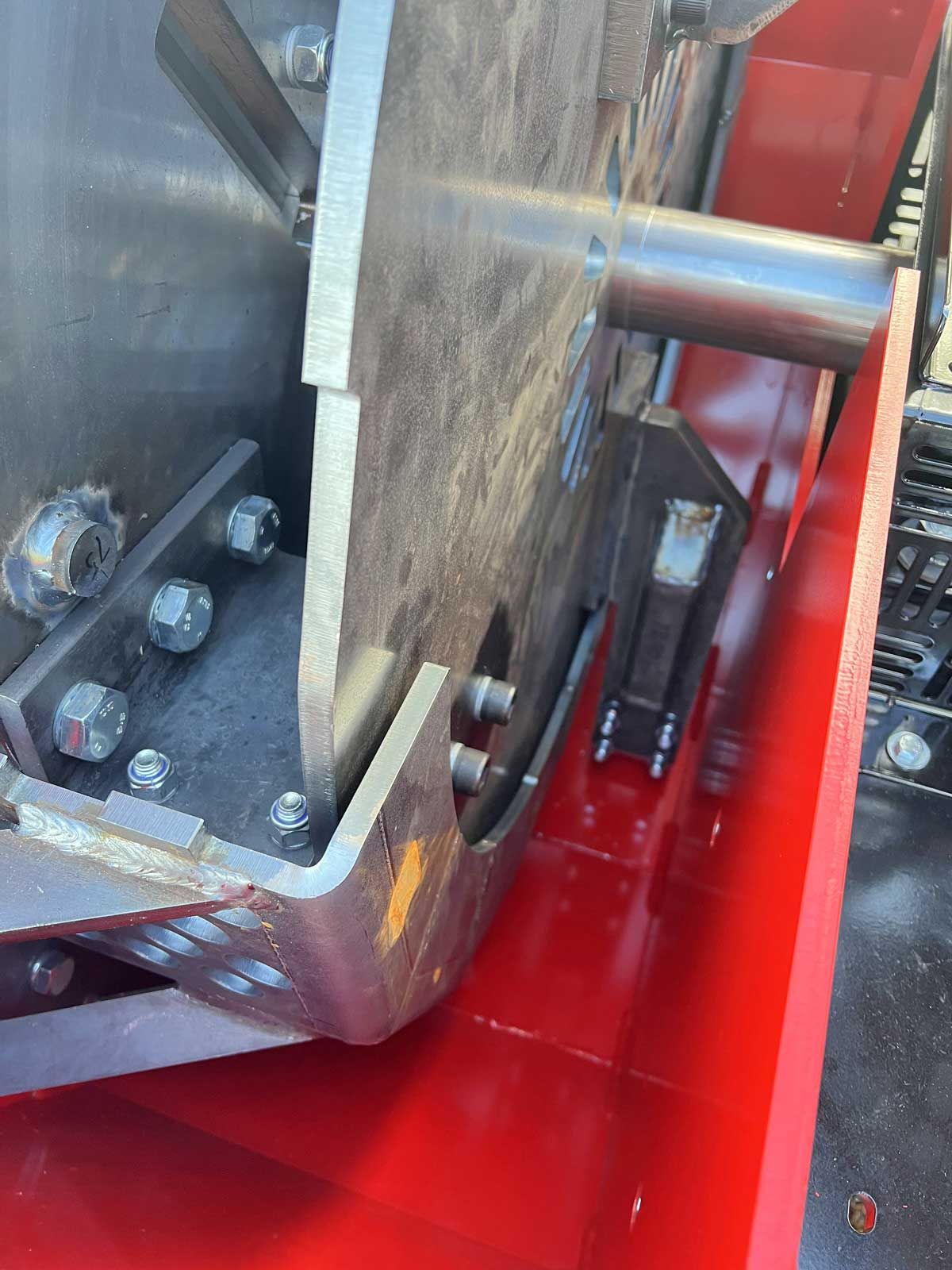

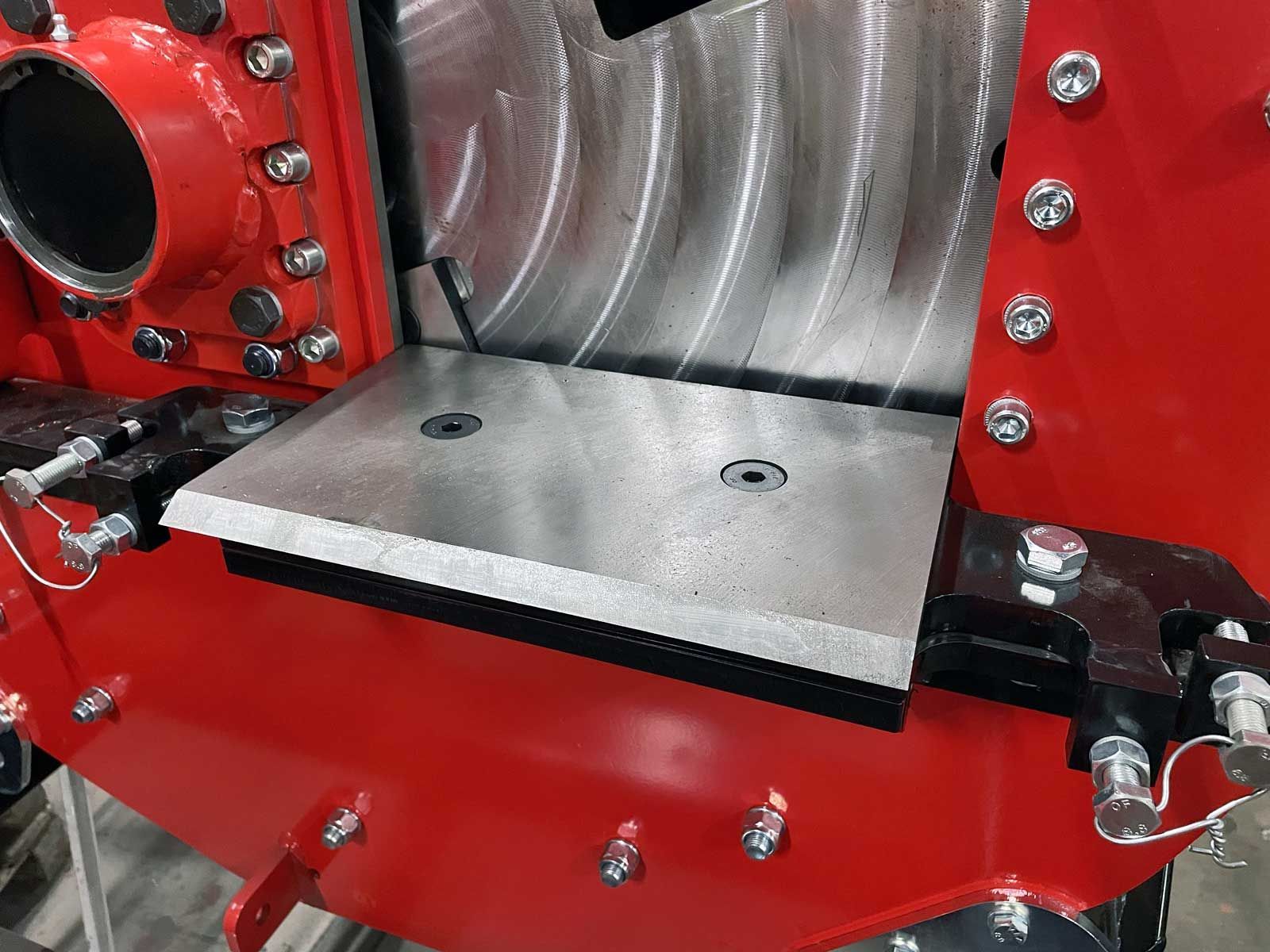

Built of high-strength steel for large logs
Robust for heavy-duty work

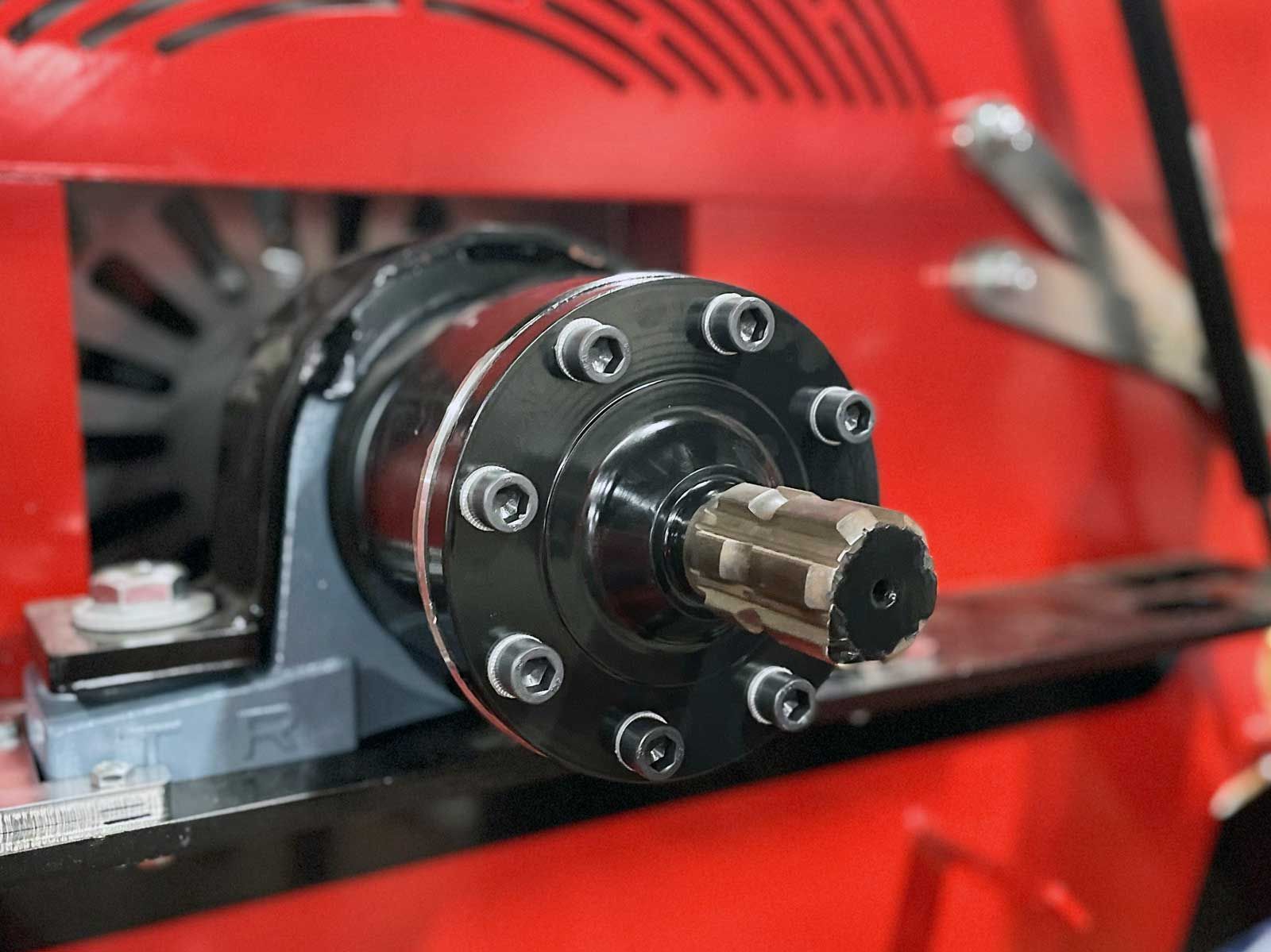

For reinforced PTO shaft

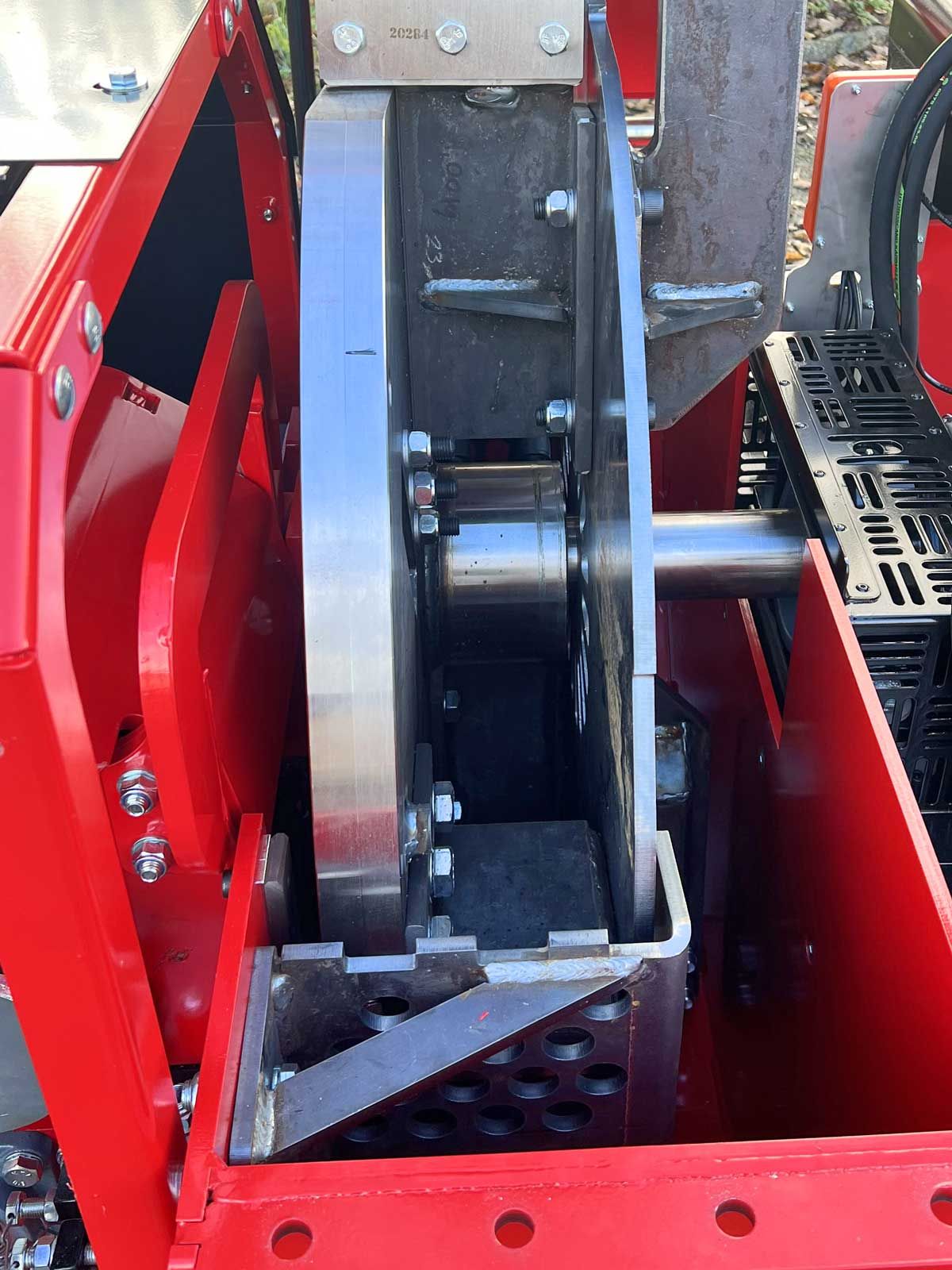

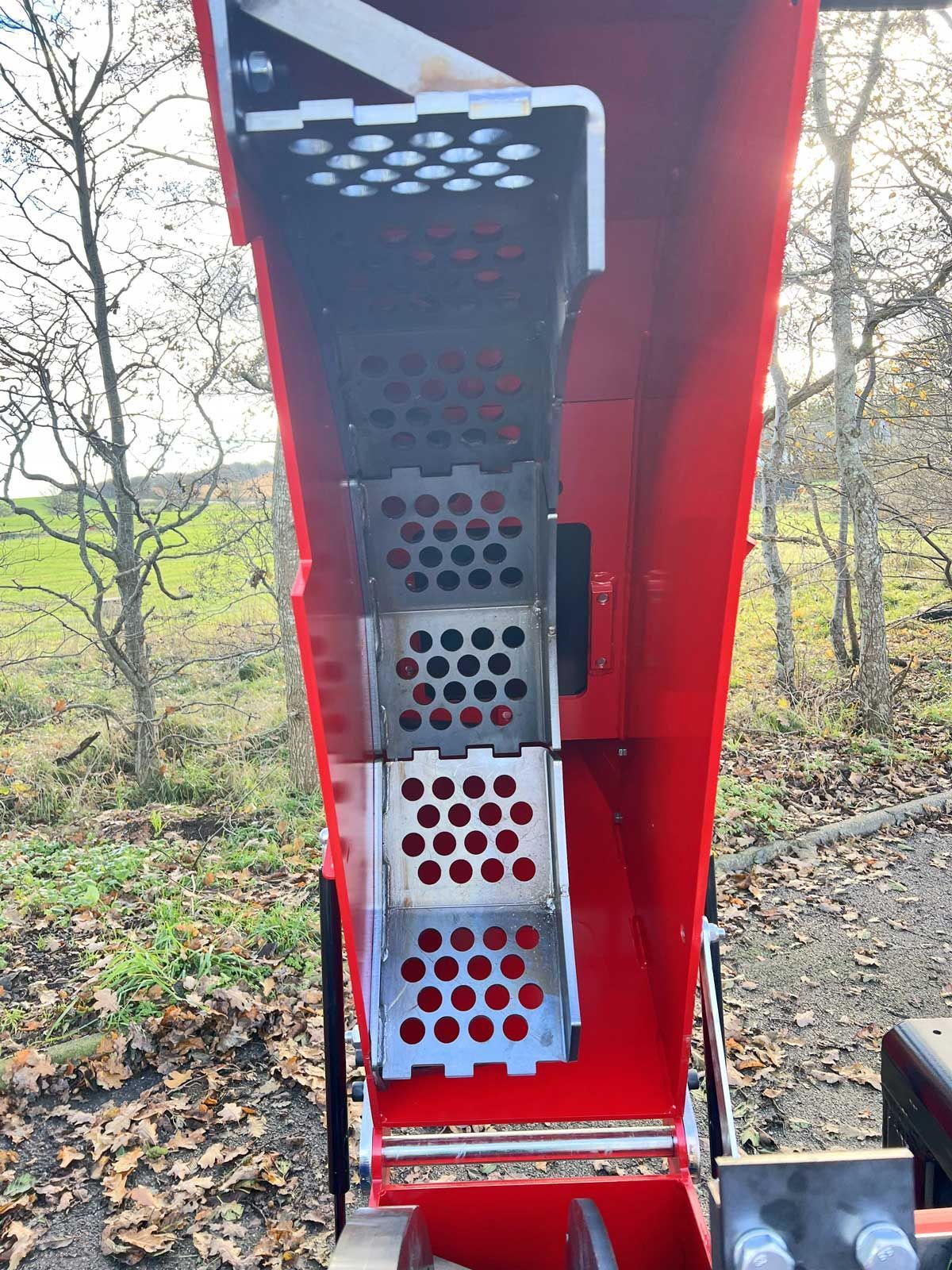

For clean chip sizing
For clean chip sizing
For clean chip sizing
Ensures chip quality
Enables strong, stable feed
Stainless steel, protective storage

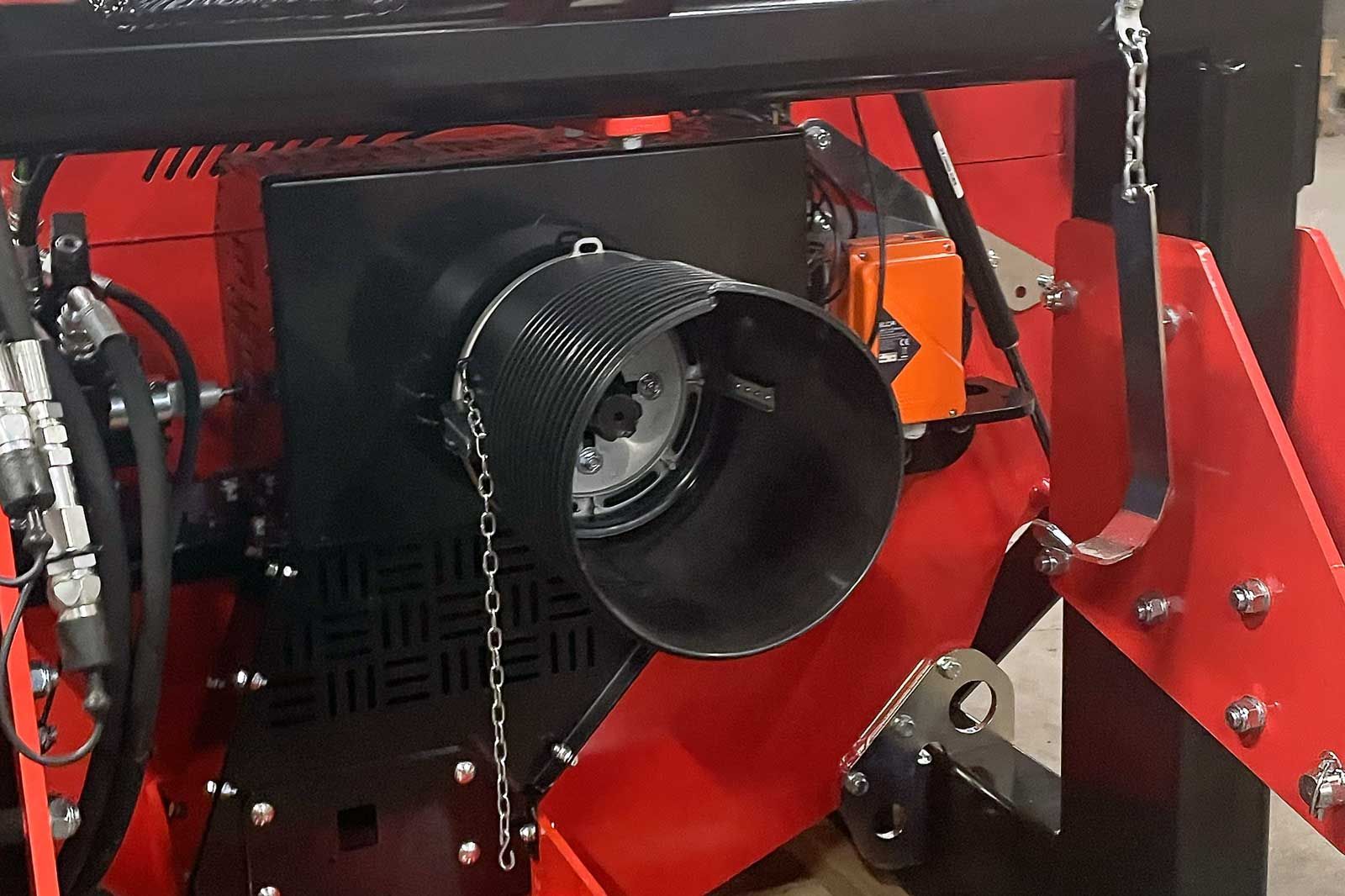

Full protection, quick-release

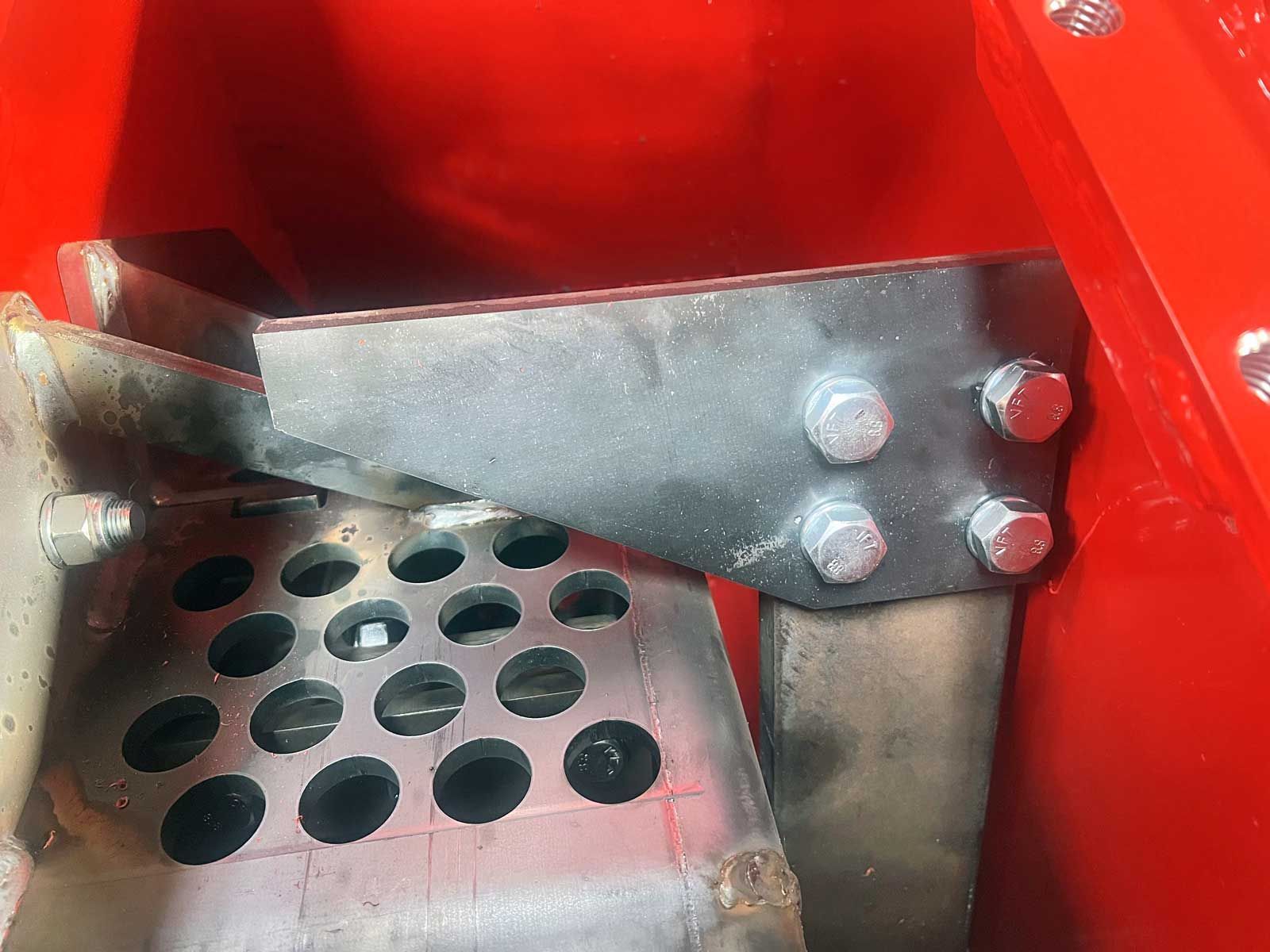

Throw chips through chute
PTO shaft for PC-3300

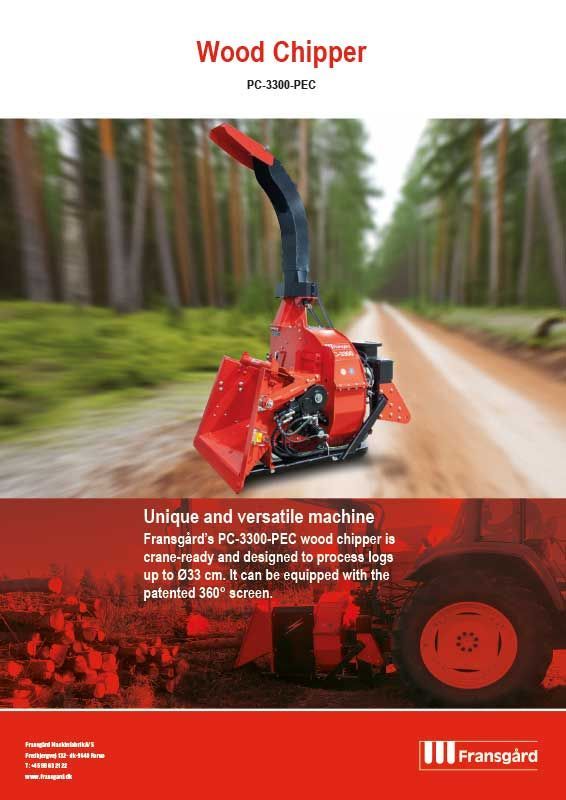

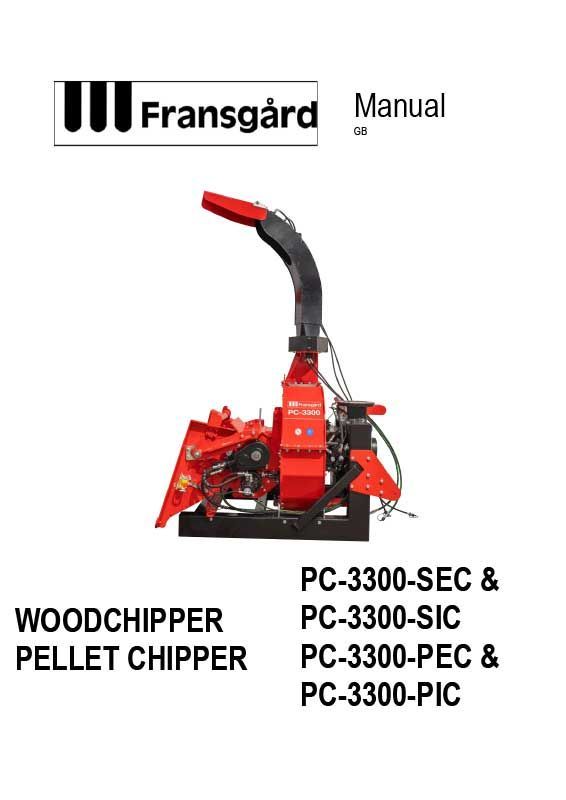

See our information material here, where you can also read it online, print it, or download the file.
