Chain mower FKR-150BF

Presentation

Chain mower FKR-150BF is an efficient machine for mowing/clearing fallow fields, central verges and unwanted tree growth in plantations, etc. The chain mower is built for both rear and front mounting on the tractor.

The large working width of 1.5 m and the possibility to adjust the cutting height makes it perfect for keeping growth down on the forest floor. It is fitted with 2 or 4 steel chains of quality G100, which are very durable without being too hard, so they won't crack if they hit a stone or other hard material. With a speed of 1000 rpm, the machine efficiently breaks down the material it encounters on its way.

Solid construction in strong materials

The FKR-150BF is fitted with a heavy-duty safety cover to minimise material spillage during operation. It is constructed with heavy-duty Hardox 500 wear shoes and a main frame built from Domex 420 high-strength steel. FKR-BF is available in 150 cm working width.

The machine can be laterally offset by up to 35 cm to each side. The machine works best at 1000 RPM on PTO and has built-in freewheel in the gimbal joint, which must be replaced if you want to use the machine front-mounted. Gimbal joint specially for front mounting is optional.

Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button

Technical data:

Model:	FKR-150BF
Working width	150 cm
Number of chains	2
Chain dimensions	10 or 13 mm
Chain quality	G100
Wear shoes	Std.
PTO speed	1000 rpm.
Power requirements	70 hp
Offset adjustment, R/L	35 cm
3-point suspension	Cat I/II

Details:

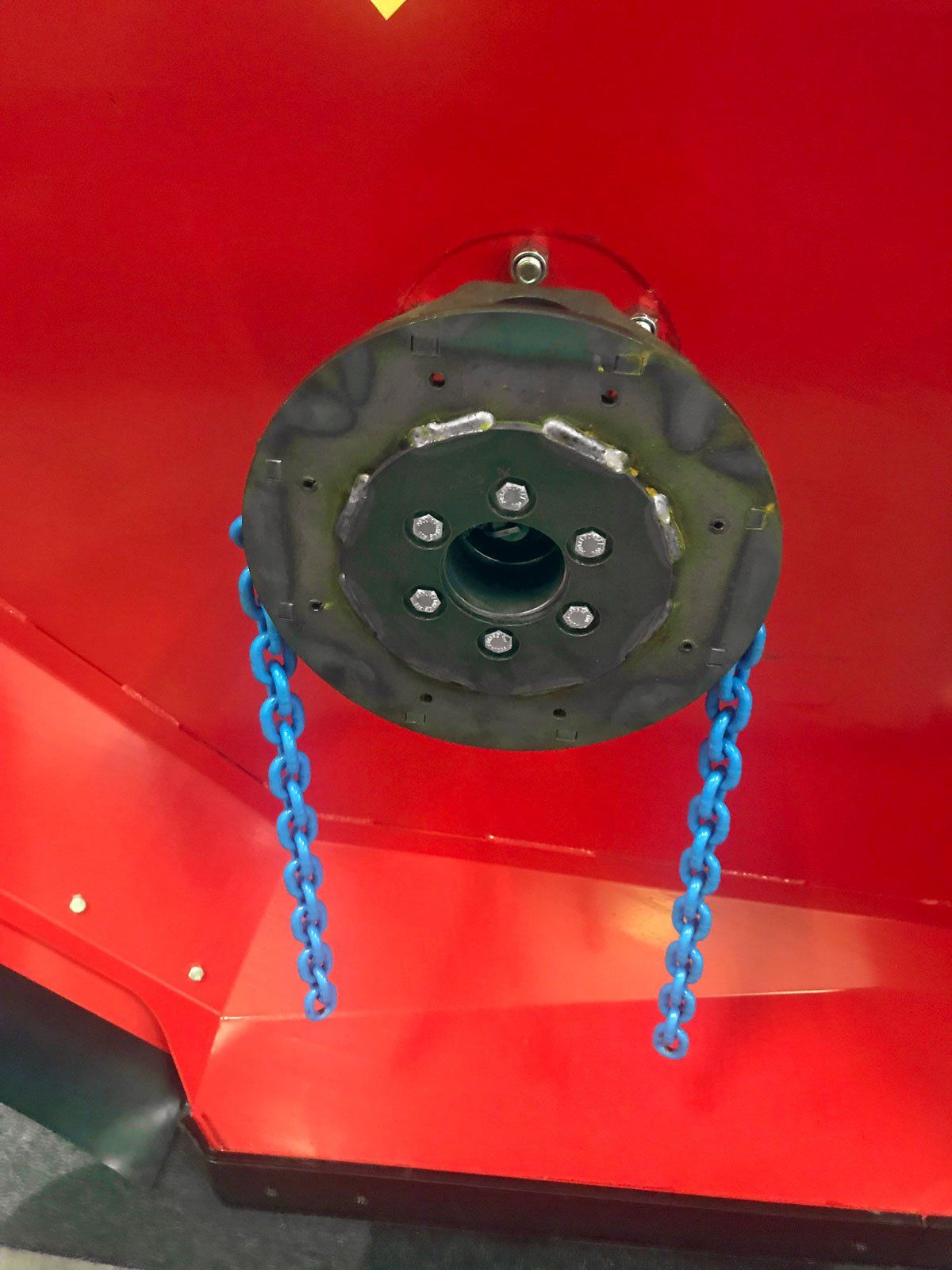

Chain head

All Fransgård chain mowers are fitted with 2 x 10 mm chains as standard. The chains are easily replaced by knocking out the 2 pipe splitters.
Button

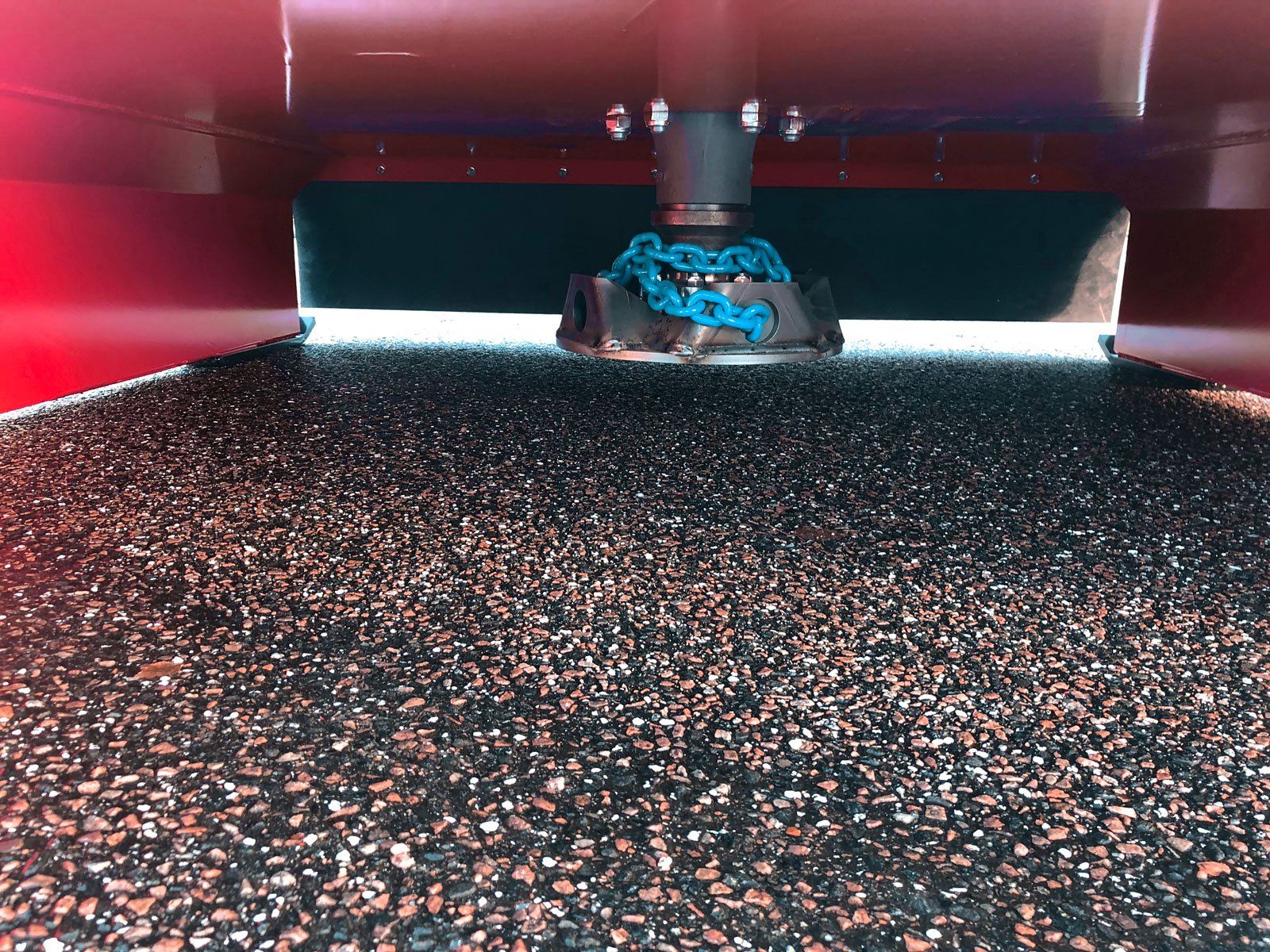

Gearbox chain head

The chain head is mounted with a steel hub on the gearbox axle. The axle is well protected by the leg of the cast steel gearbox.
Button

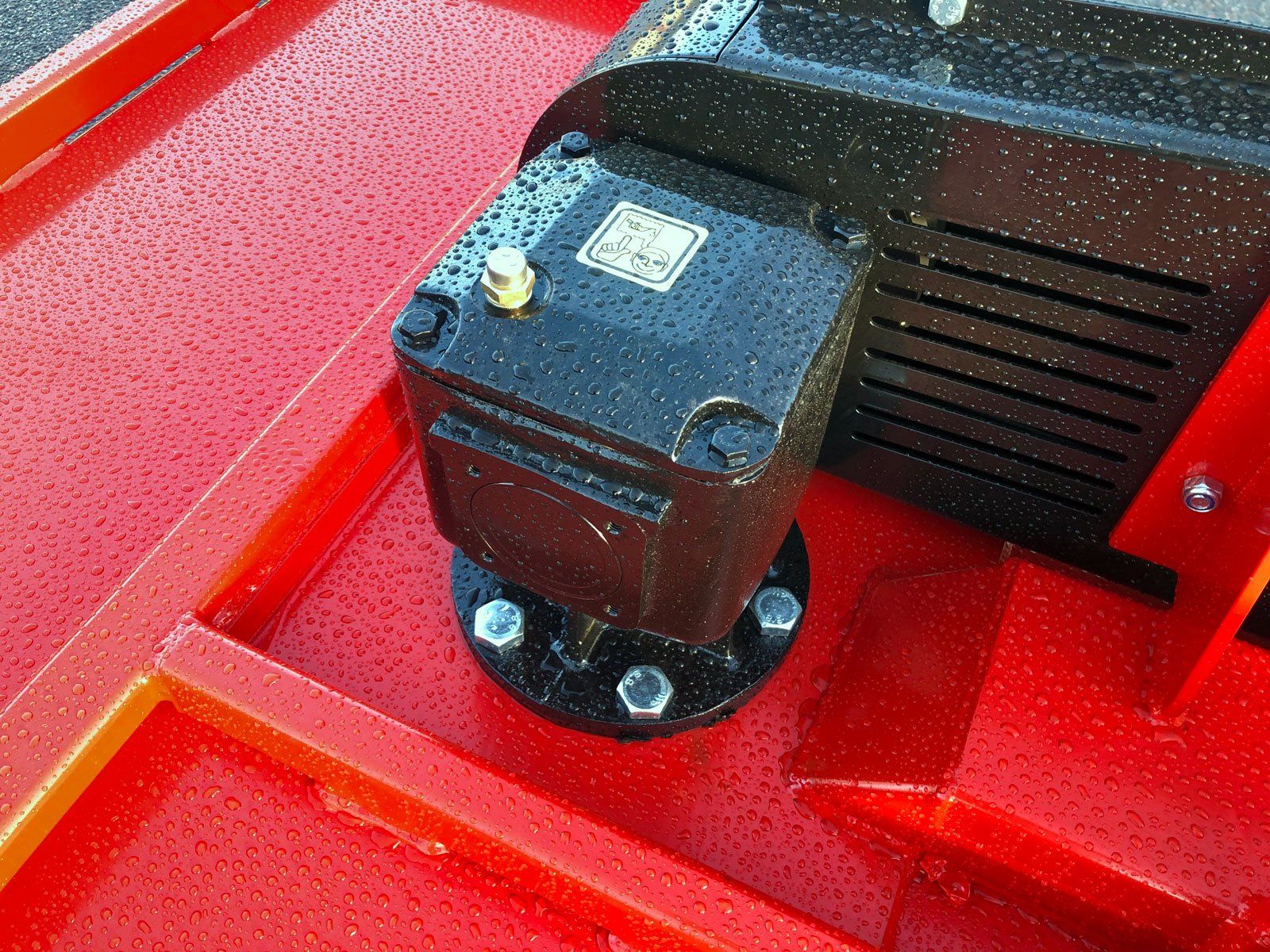

Gearbox

The gearbox is mounted on a reinforced mounting plate, which is fitted with a raised vent as standard. The shield on the machine is built in 5mm Domex 420 steel plate with reinforcement of profile tubes on top.
Button

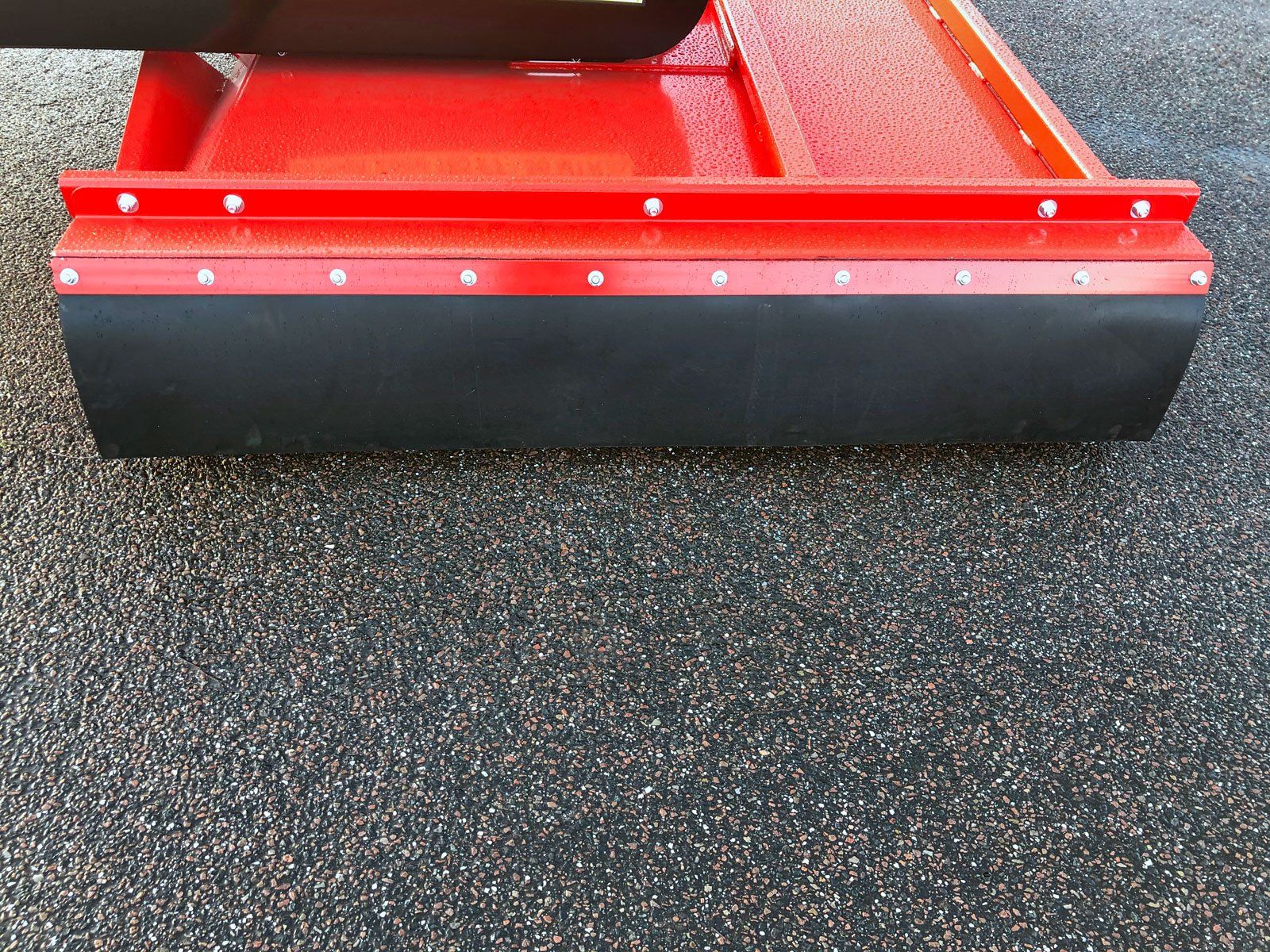

Rubber guard

Durable rubber cover helps hold material in place.
Button

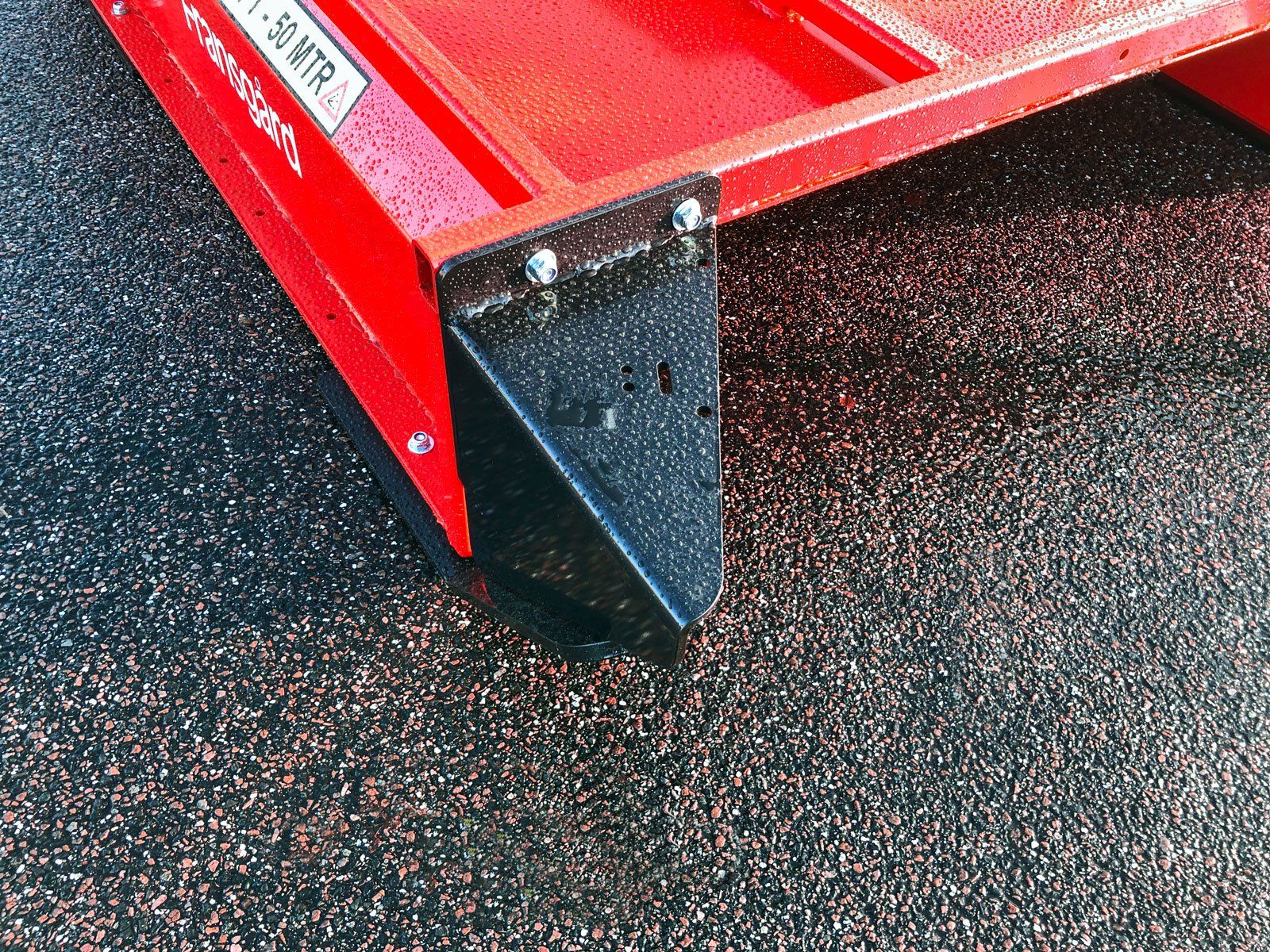

Horn

The powerful horns on each side of the front guide the material into the machine. The horn is prepared for mounting a chain fall.
Button

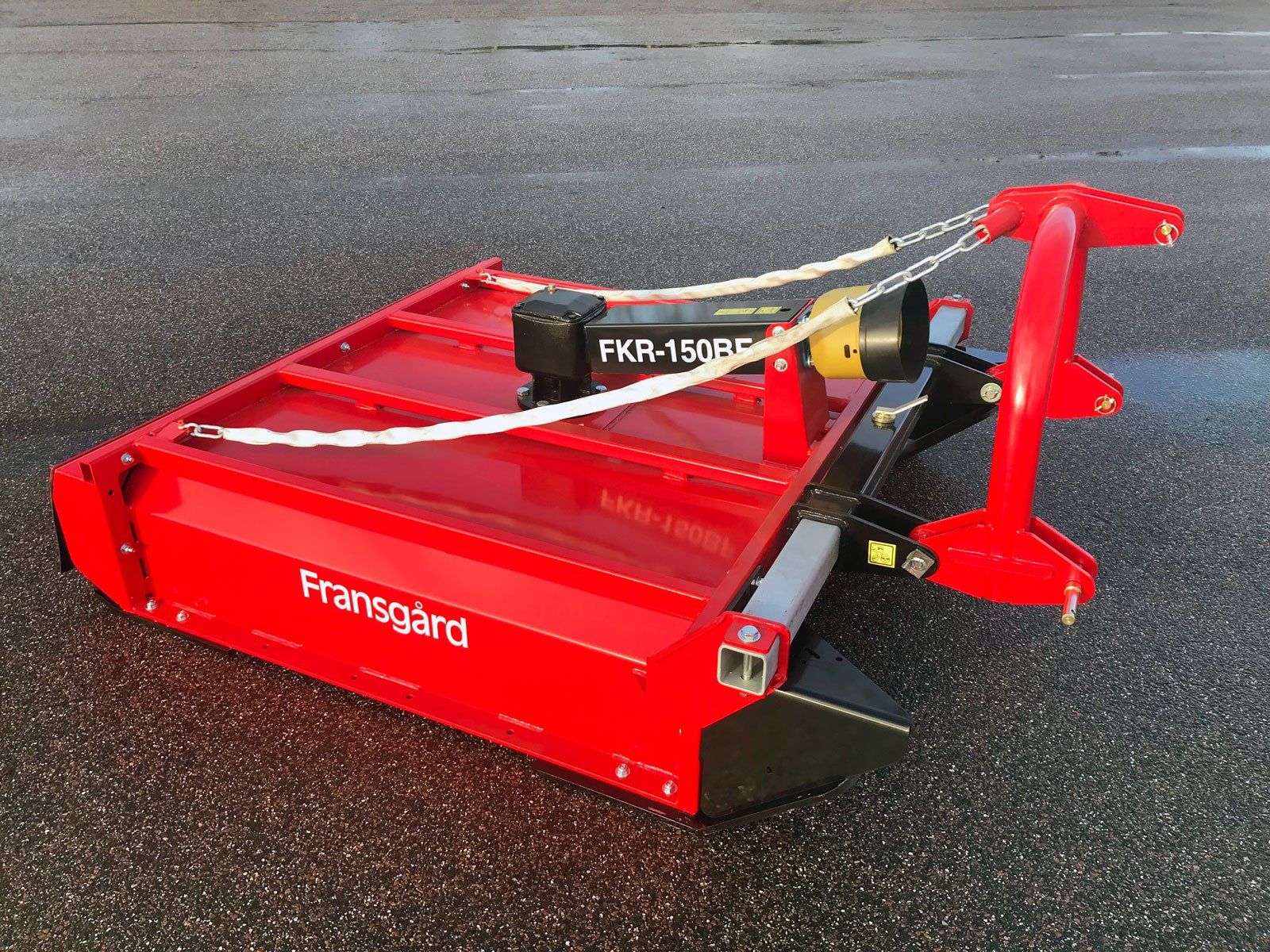

Side shift

Machines can be laterally shifted 350 mm to either the right or left side by moving the 3-point suspension on the hot-dip galvanised profile tube without using tools.
Button

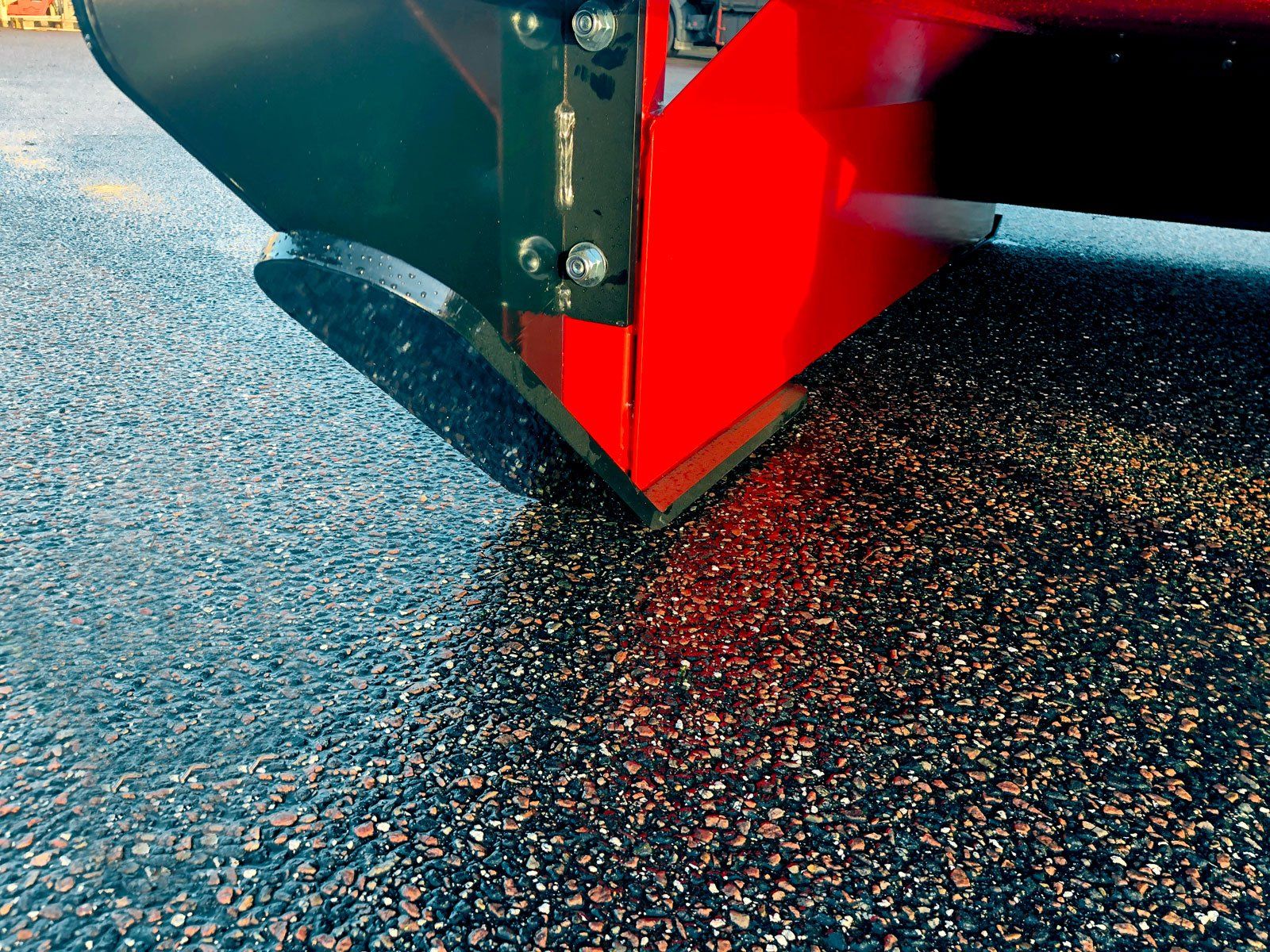

Towing shoes

Large and wide wear shoes in the front of the hardox-500 are designed to slide easily over tree stumps, etc., smaller wear shoes are fitted at the rear.
Button
Rear-mounted

The FKR-150BF comes with a gimbal joint with freewheel as standard, which is rear-mounted for towing. The machine can be set for rear mounting for backwards pushing by swapping the horn and rubber cover.
Button
Front-mounted

Machine can be converted to front mounting by swapping the horn and rubber guard and replacing the gimbal joint with freewheel at the gearbox. Front gimbal joint is an optional extra (item no. 62208)
Button

Optional extras:

Item No. 6112

Tow rails for mounting between front and rear wear shoes.
Button
Item No. 6117

Protective guard with a chain fall for mounting between the 2 horns.
Prevent the material from being thrown out of the box.

Button
Item No. 6134

Chain kit 10 mm with bracket and splitter
Button
Item No. 6136

Chain kit 13 mm chain bracket and splitter.
Button
Item No. 62208

Gimbal joint with freewheel for front mounting
Button
Item No. 6150

Knife set, 150 cm with 3 knives
