Snow blower S-180K · S-180K3 · S-220-1 · S-220-3 · S-245-1

Presentation

The S-series are 2-stage models developed and produced based on Fransgård's best-selling S-220 model. Behind the models are years of experience and a constant focus on functionality and optimisation.

The design with an infeed auger and a solid ejector fan is particularly effective for handling moderate to large amounts of solid, heavy snow. The snow blower is targeted at the price-conscious consumer who does not want to compromise on quality and functionality.

Practical details increase functionality

The S-180K and S-180K3 are compact snow blowers with high reliability, large capacity and low operating costs. The models can be fitted with wheels, hydraulic top flap, edge blade, etc. The result is a semi-professional snow blower where the quality and capacity-enhancing components of the larger models are carried through to the last detail.

The compact spout with lubricatable centre and top flaps ensures good snow control and gives the operator a good view. All models are built with Hardox 500 drag shoes and wear steel.

Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button

Technical data:

Model:	S-180K/K3	S-220-1	S-220-3	S-245-1
Working width	180 cm	220 cm	220 cm	245 cm
Working width with edge blade r/l	+10/ -	+10 / +10	+10 / +10	+10 / +10
Ejector fan diameter	66 cm	66 cm	66 cm	72 cm
Ejector fan housing diameter	24 cm	24 cm	24 cm	28 cm
Infeed auger diameter	35 cm	35 cm	35 cm	35 cm
Centre flap	Std.	Std.	Std.	Std.
Hydraulic top flap	Possible	Possible	Possible	Possible
Springbolt magazine	Std.	Std.	Std.	Std.
3-point suspension Category	I/II	II	II	II
Gearbox RPM	540/1000	540	540/1000	540
Gearbox power nominal PTO	51/74 kW	51 kW	74 kW	51 kW
Power requirement	50 HP	60 HP	60 HP	70 HP
Push/front mounting	No/Yes	No	Yes	No
Weight	610/625 kg	680 kg	695 kg	750 kg

Details:

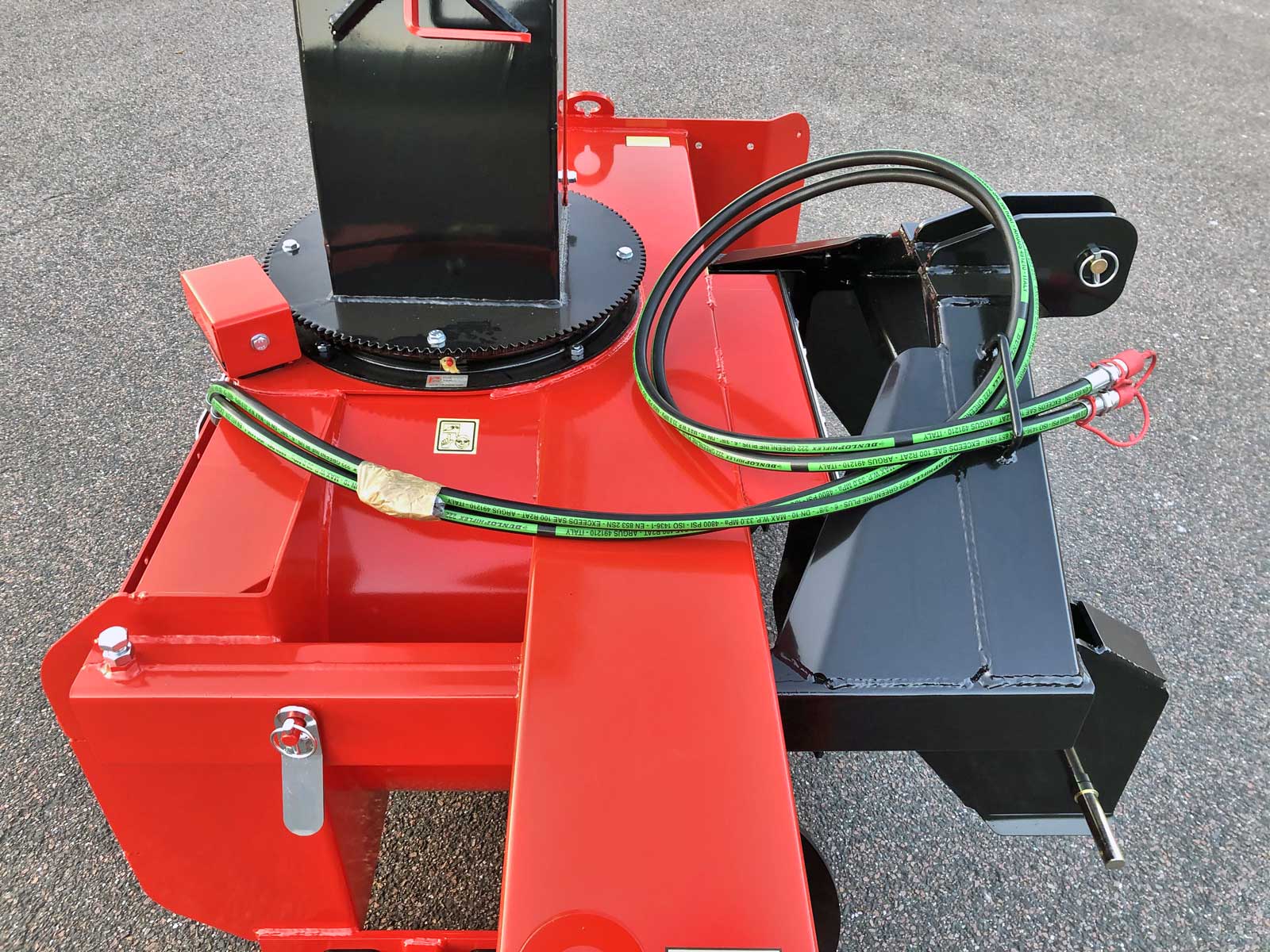

Turntable

All spouts are mounted on a greasable ball bearing turntable, which allows the spout to rotate 360 degrees easily and freely.
Button
3-point suspension S-180

The heavy-duty 3-point suspension is Cat I/II as standard and is reversible, so the S-180K3 can be front-mounted or rear-mounted.
Button

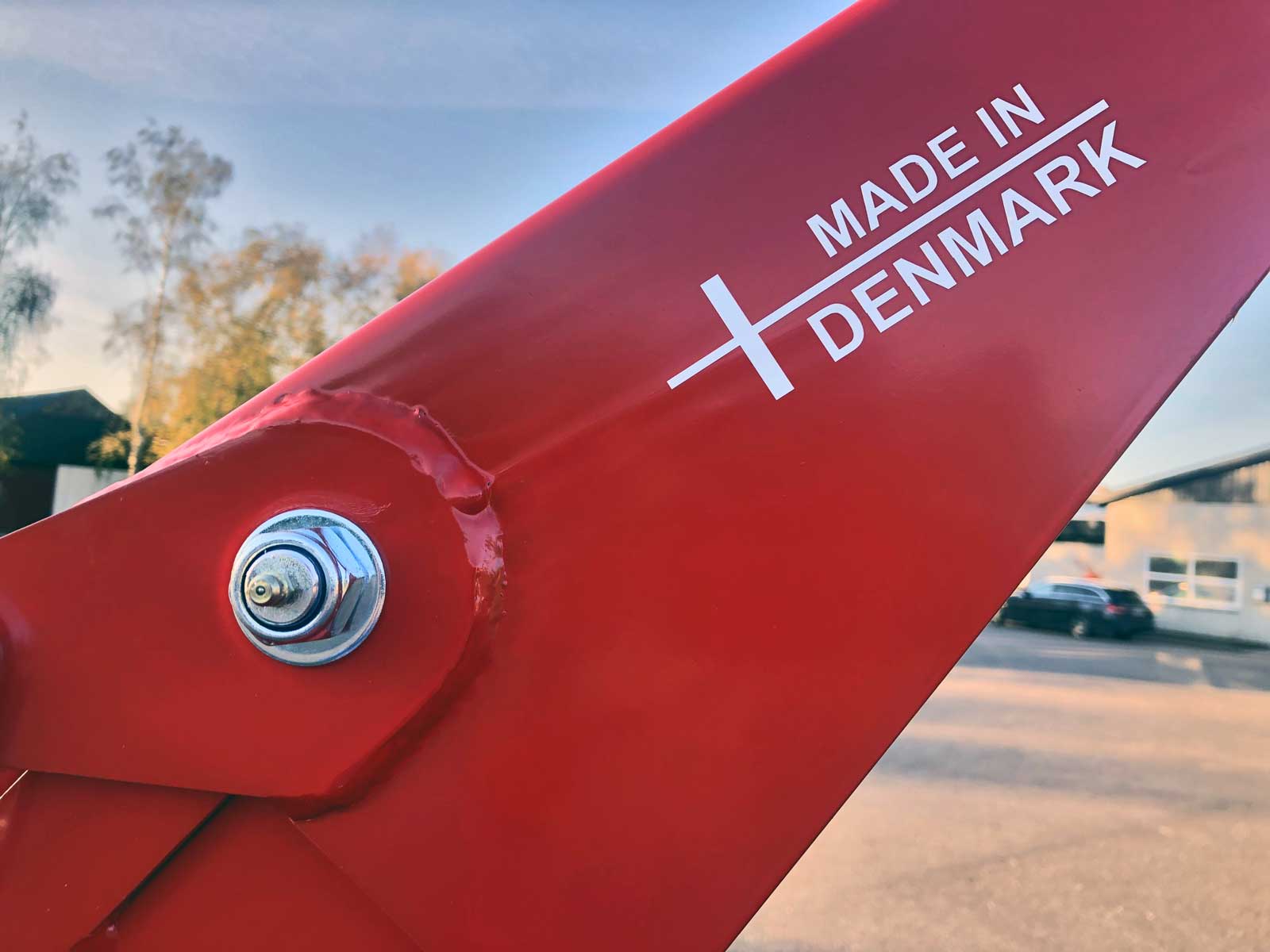

Bolt in the top flap

All S models are fitted with greasable bolts in the centre and top flaps to minimise vibration and extend service life.
Button

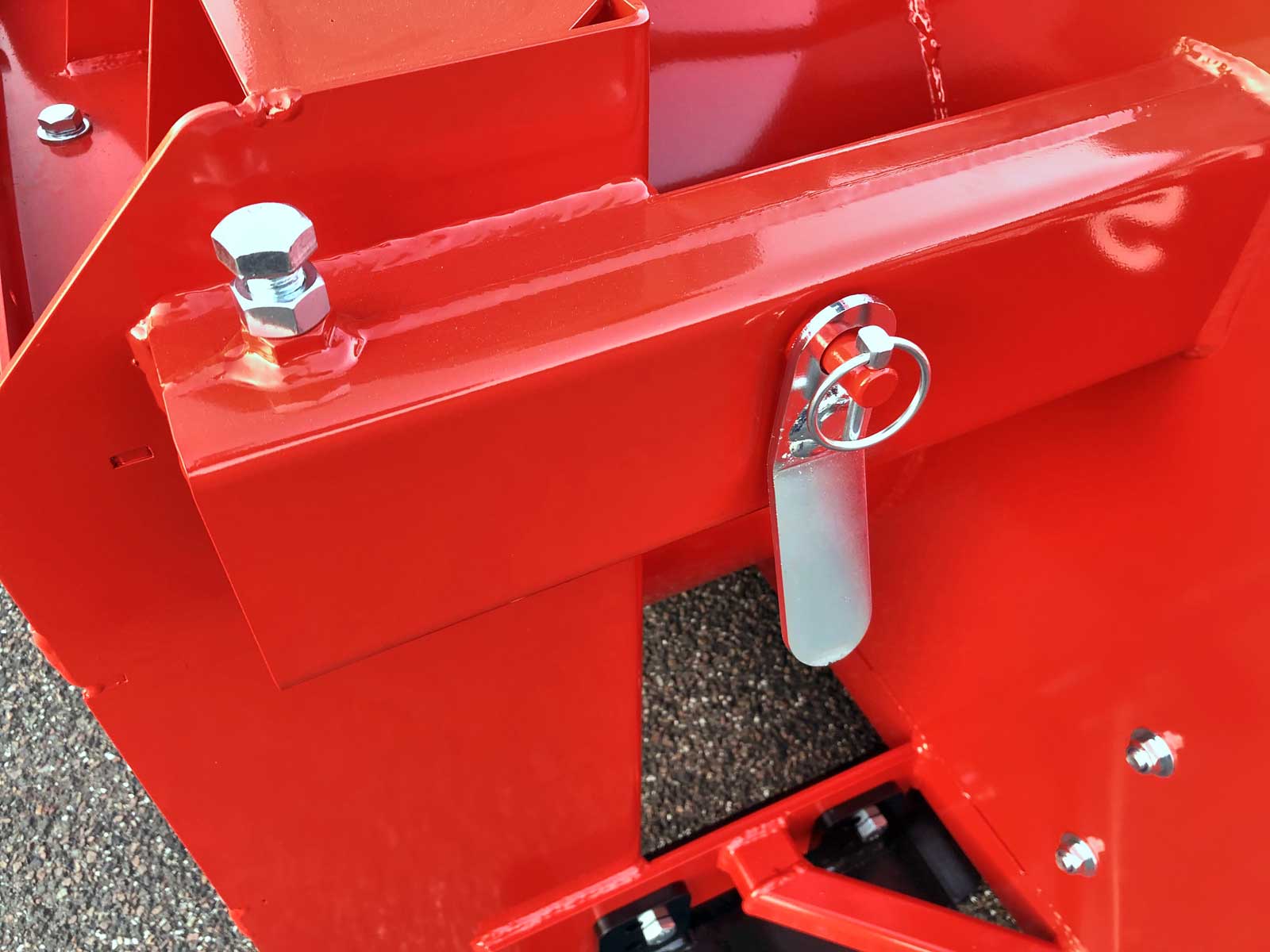

Bolts for 3-point

The reversible 3-point suspension is bolted with both a through bolt and a locking bolt with lock nut. All bolts are galvanised.
Button

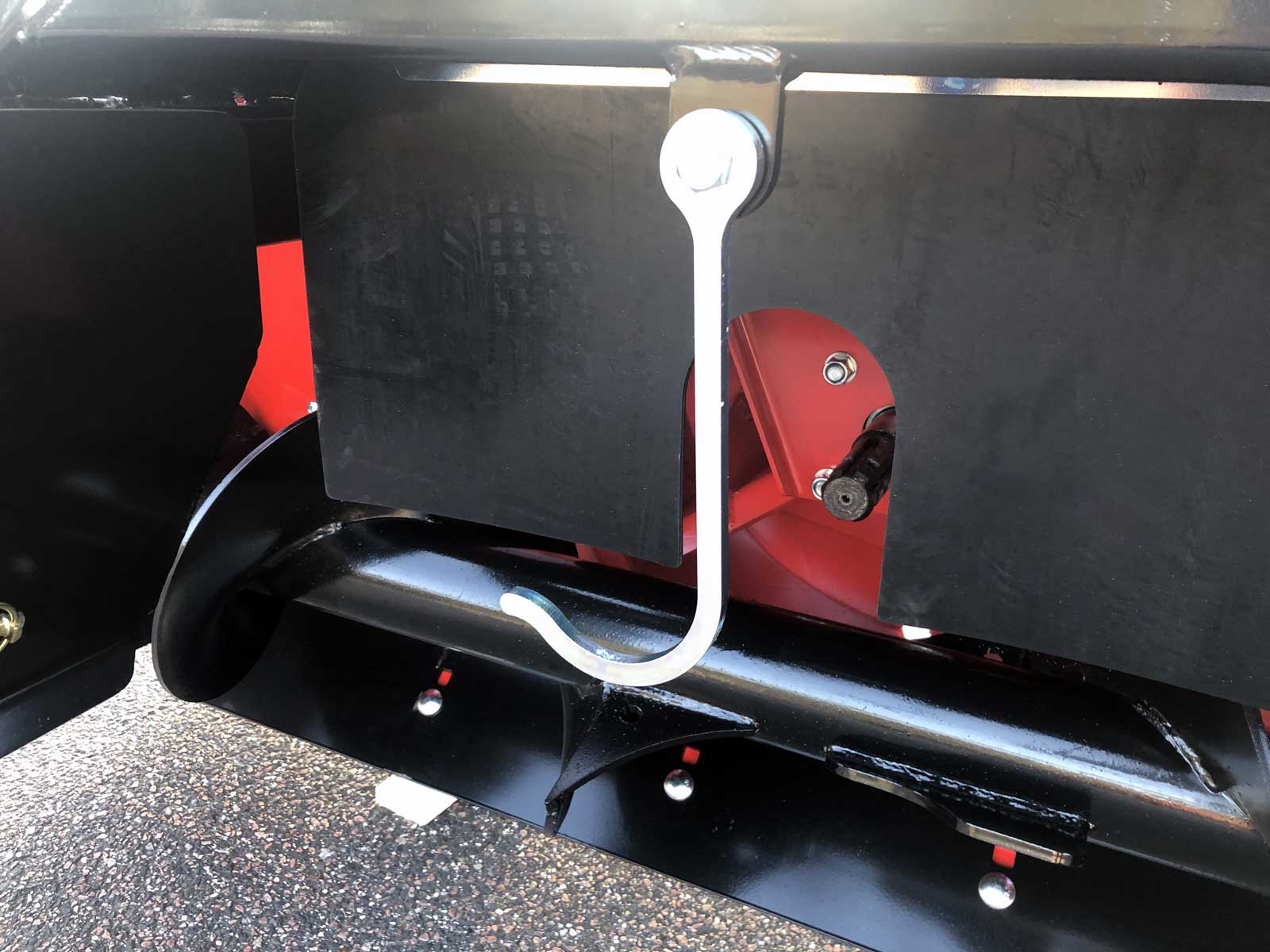

PTO bracket

The snow blowers are fitted as standard with a bracket for the PTO axle when the machine is parked. Turn slightly to the side while working with the machine
Button

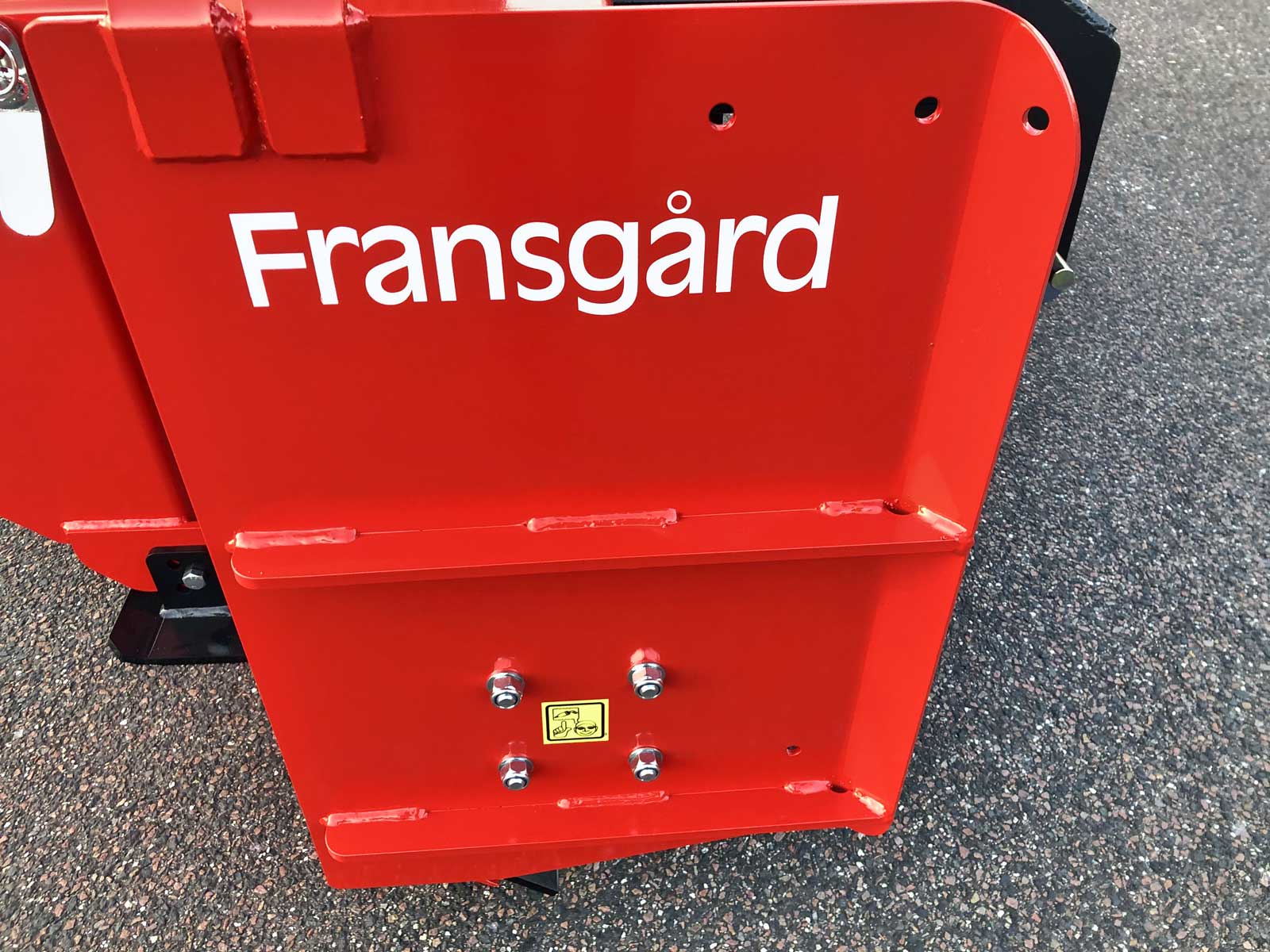

Reinforcement in the side

The main frame of the snow blowers is reinforced at the sides and prepared for mounting the edge blades at both sides.
Button

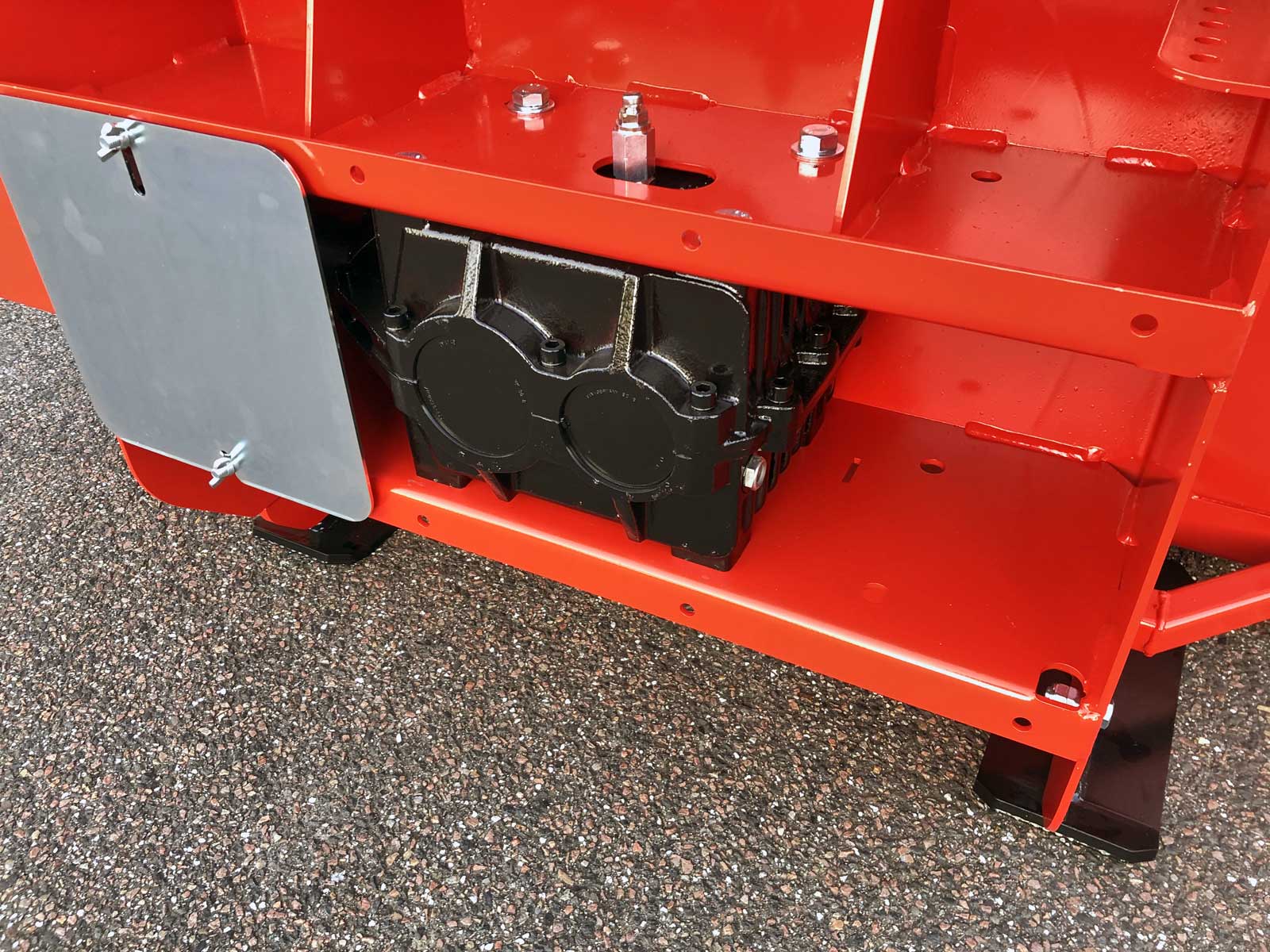

Gearbox-1

The gearbox of our -1 version is well protected inside the main frame and easy to remove when servicing the machine.
Button

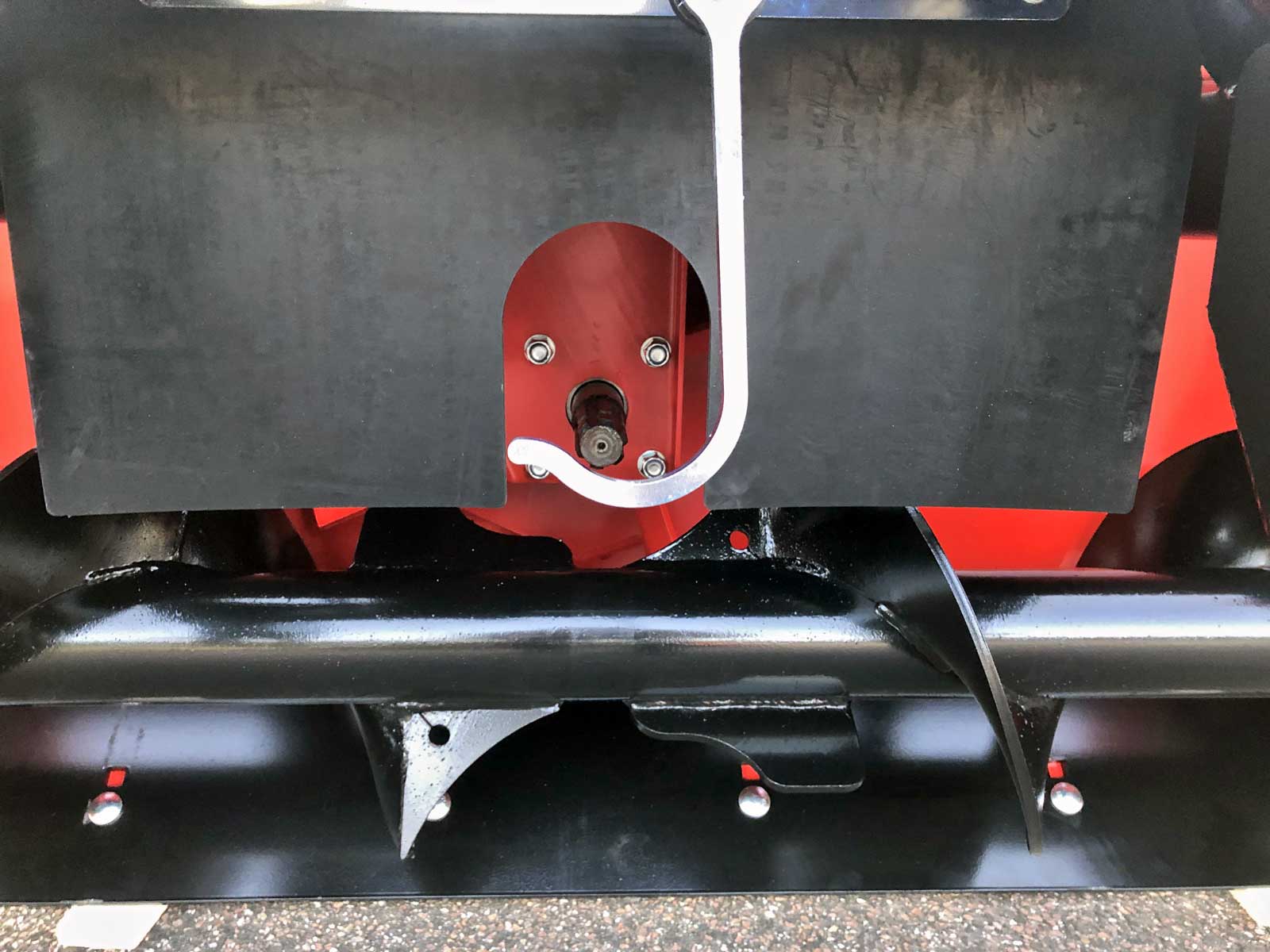

Rubber guard

The heavy-duty rubber guard in front of the fan protects the tractor from stone impacts and the like.
Button
Auger feed

The sturdy auger, with powerful coils and feeds in front of the fan, providing optimal feeding of the fan.
Button

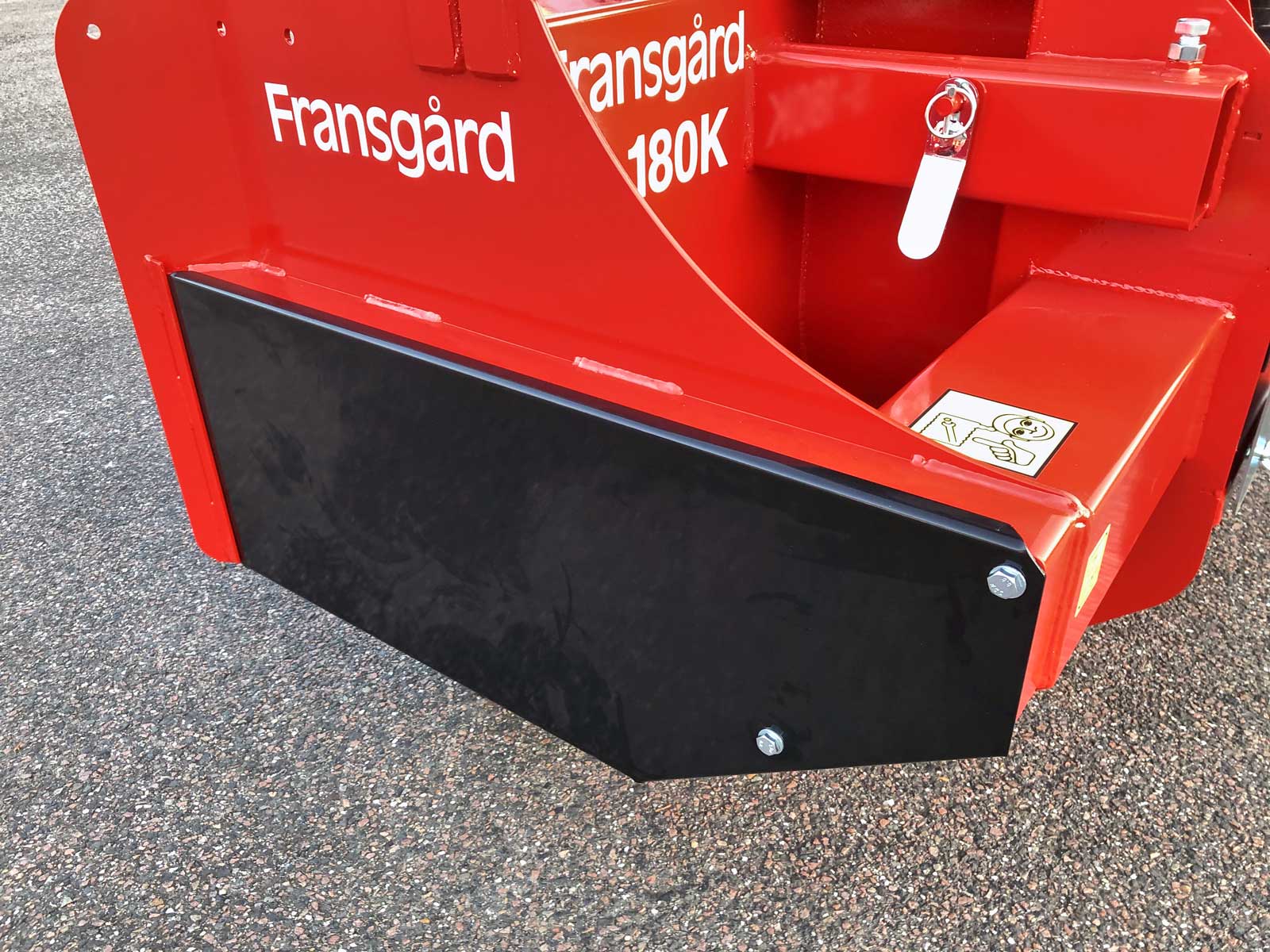

Chain guard

The chain guard on the left side acts as both reinforcement on the main frame and wear plate against the snow edge.
Button

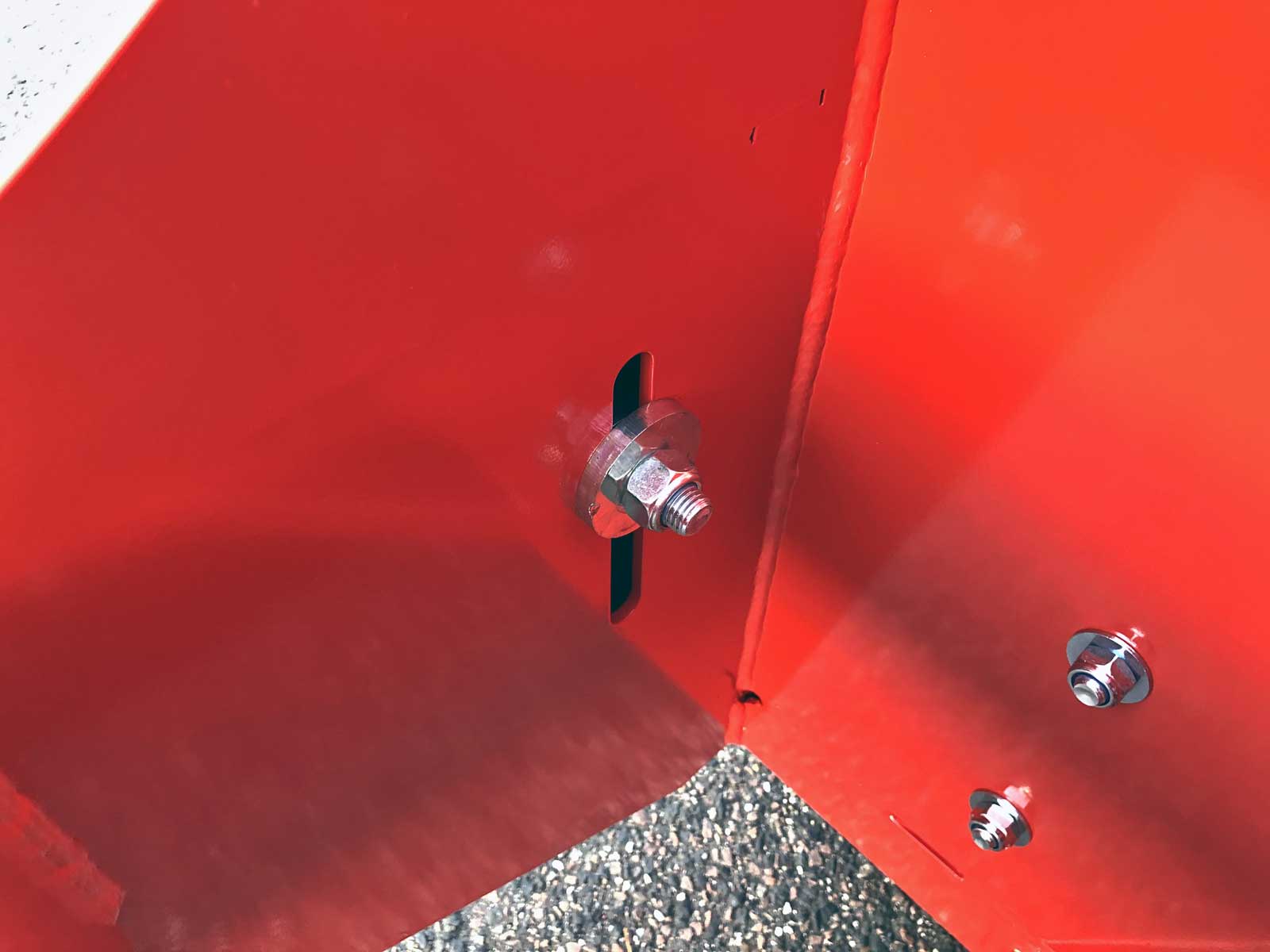

Chain tensioner

The chain tensioner for the drive chain of the auger is positioned so that it is easy to operate from the outside.
Button
Chain drive

The chain drive has a heavy duty 1" chain and gear wheel on the chain tensioner.
Button

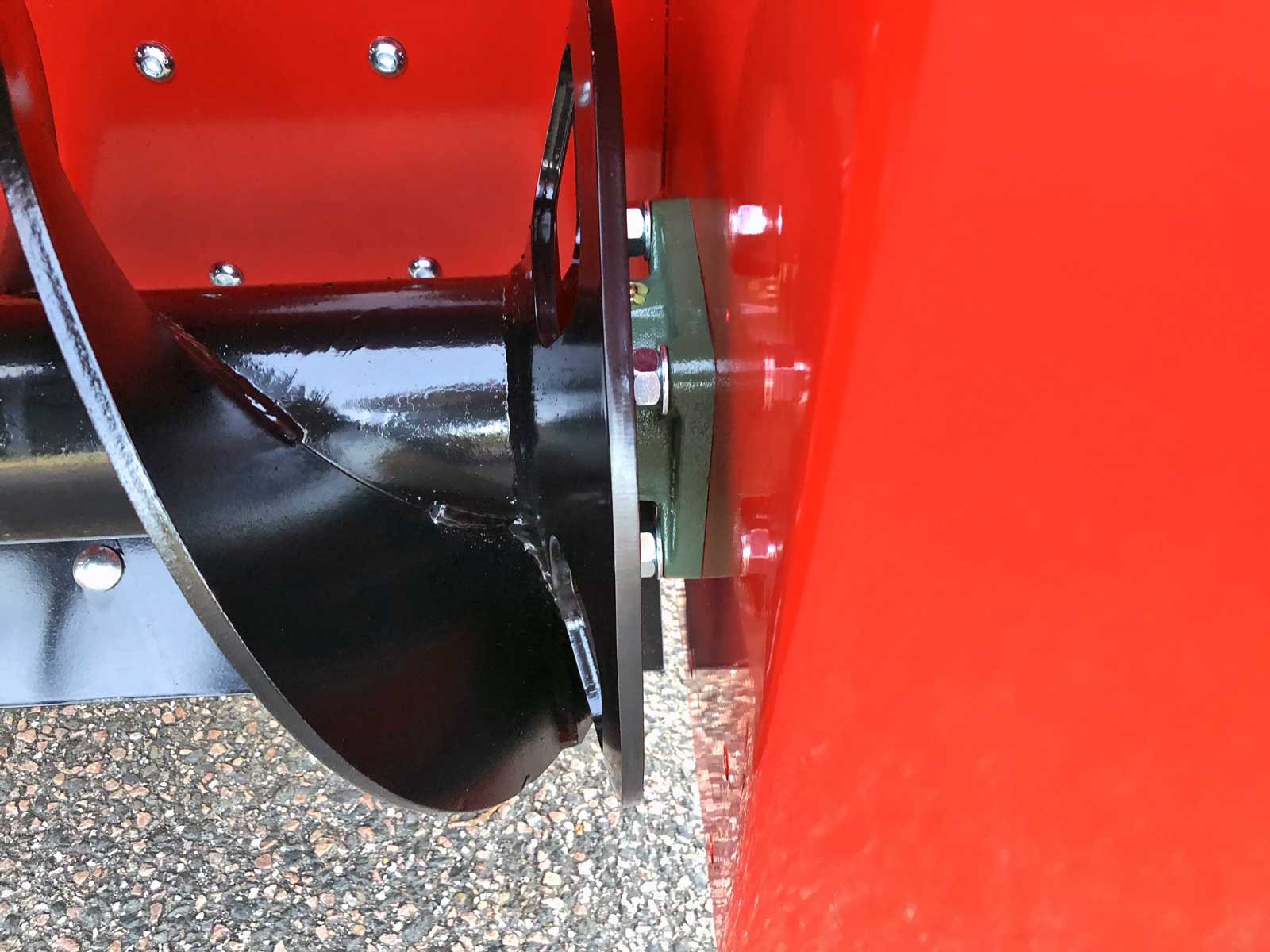

Bearings by the auger

The auger is fitted with robust flanged bearings that can be lubricated from the outside.
Button
Lifting eye

The snow blowers have standard lifting eyes for transport or moving to summer storage.
Button

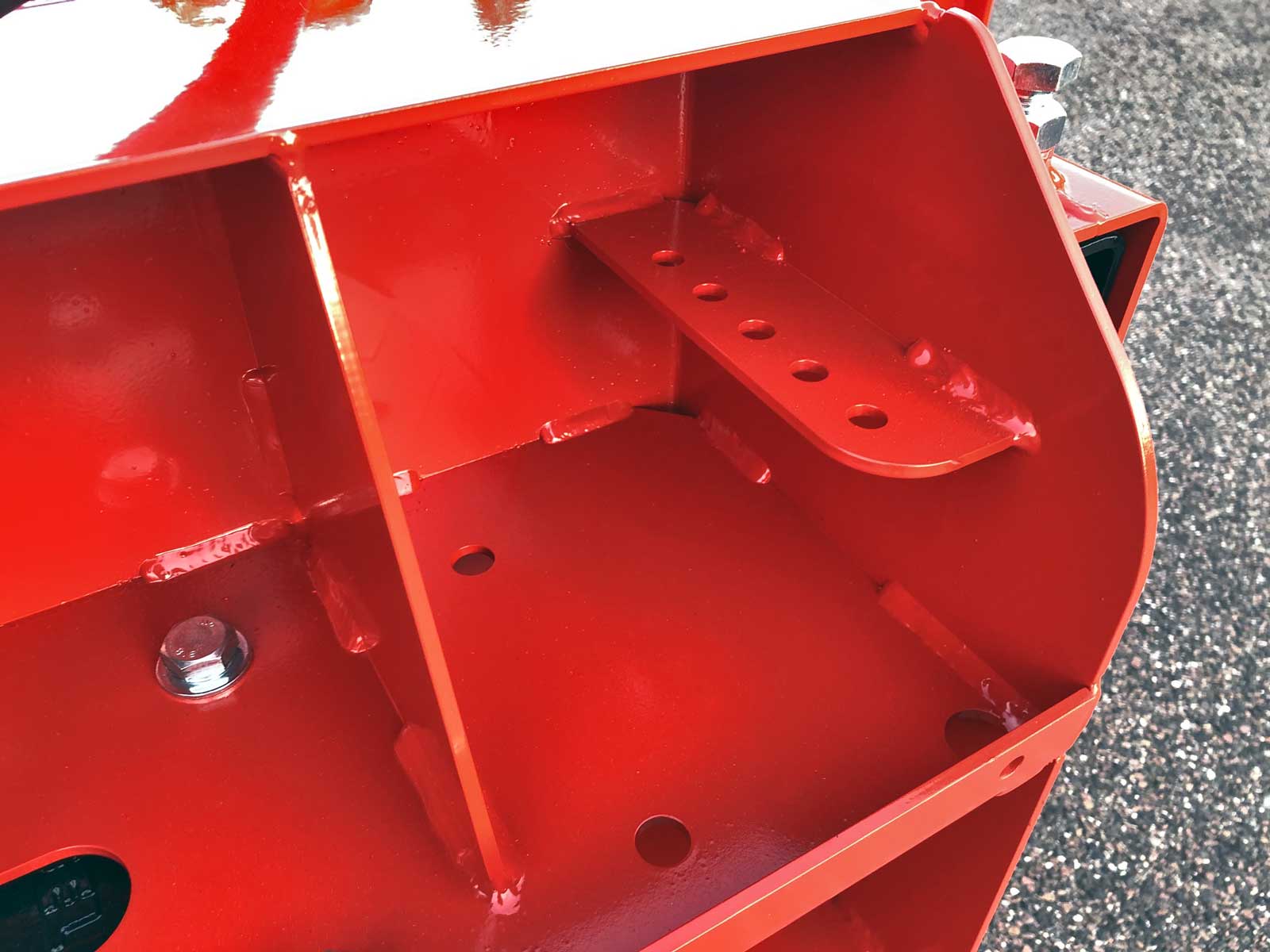

Magazine for springbolts

Storage space for up to 10 springbolts, so they are always at hand.
Button

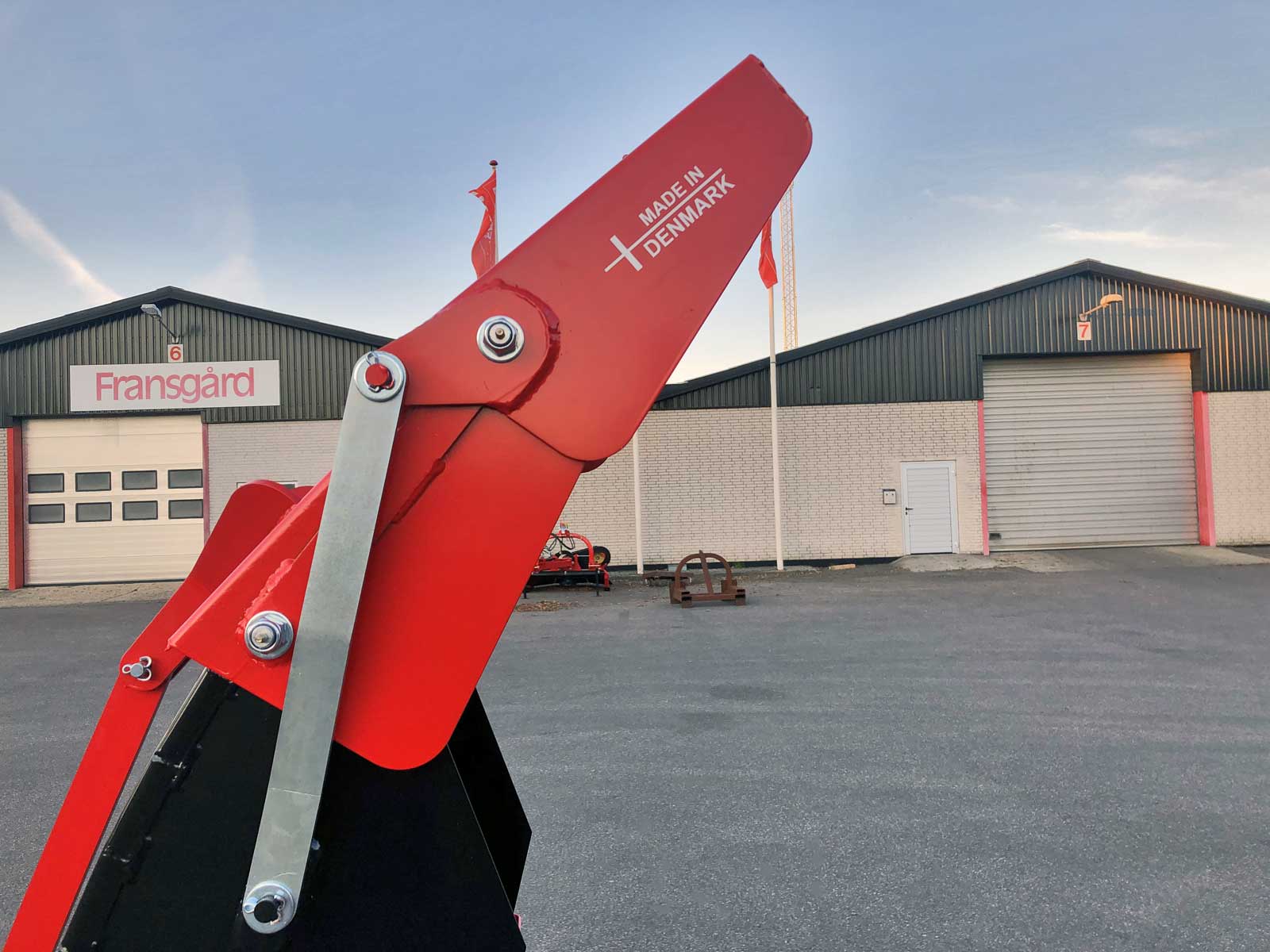

Centre and top flap

All snow blowers are fitted as standard with both a centre and top flap, which allows you to control the snow stream with great precision.
Button

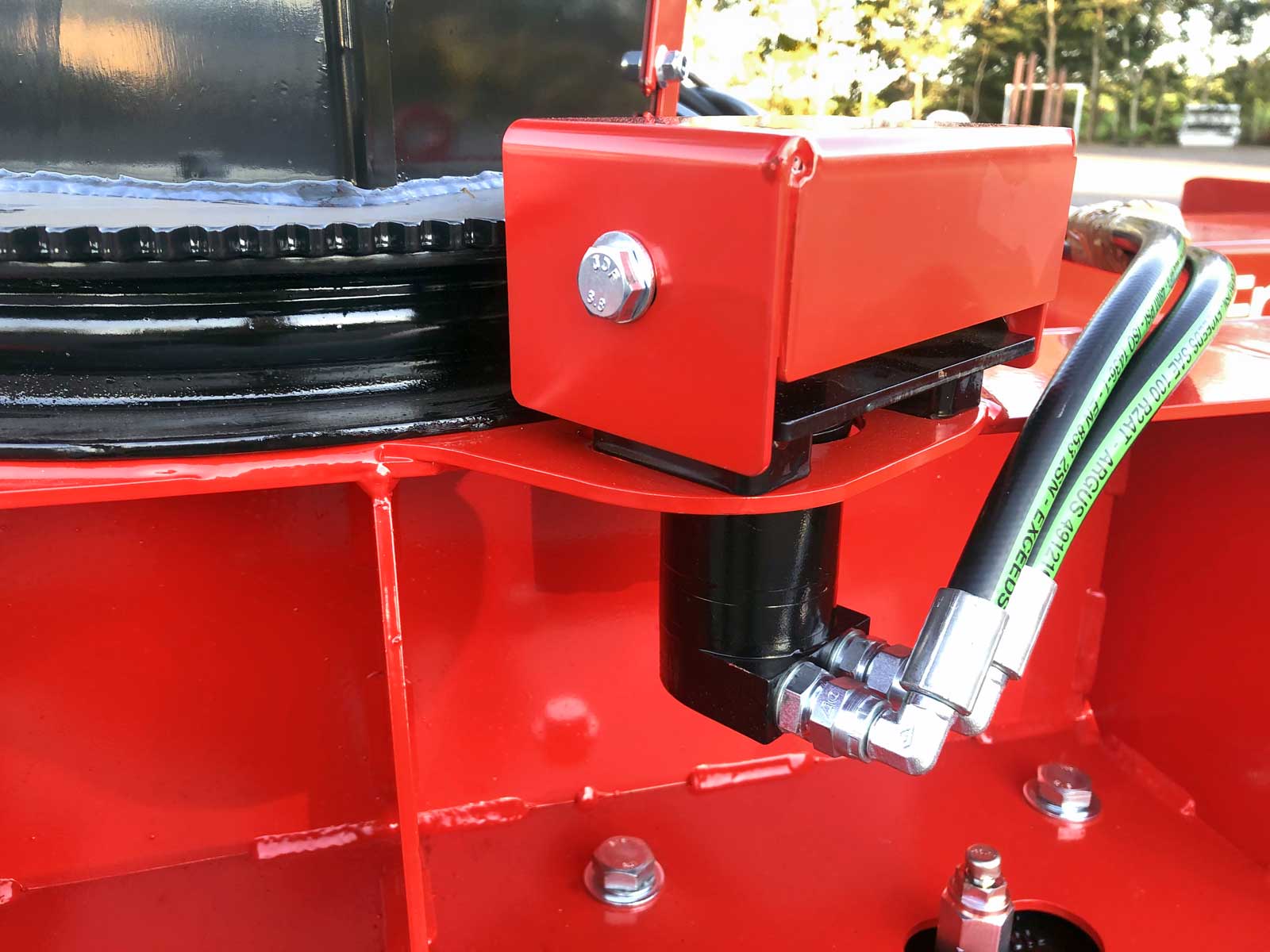

Oil engine, spout

The oil engine with a gear wheel, which turns the spout 360 degrees, is well protected at the back of the snow blower.
Button

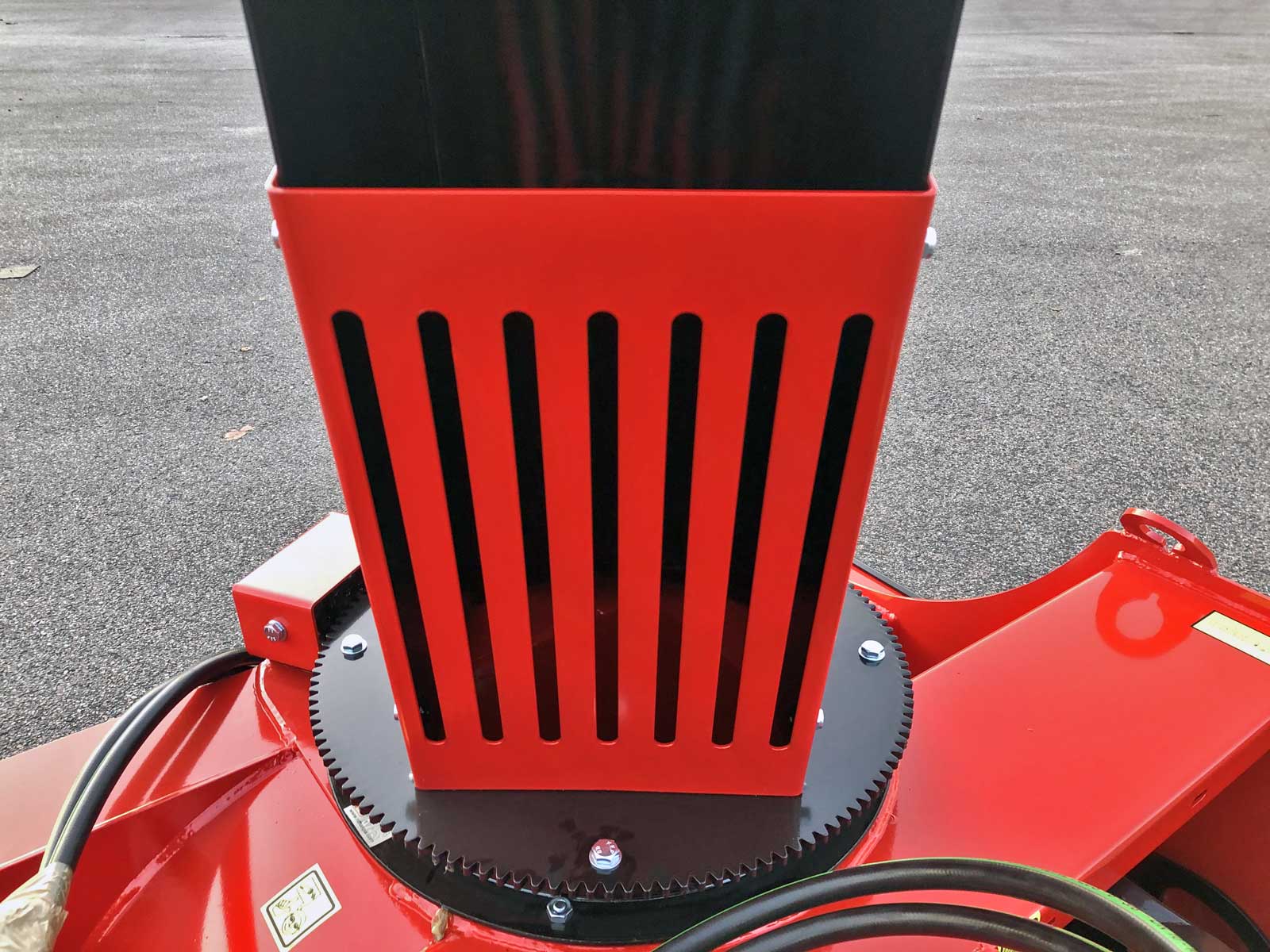

Safety grill at the spout

The spout has a standard safety grill fitted to prevent accidental contact with the impeller.
Button

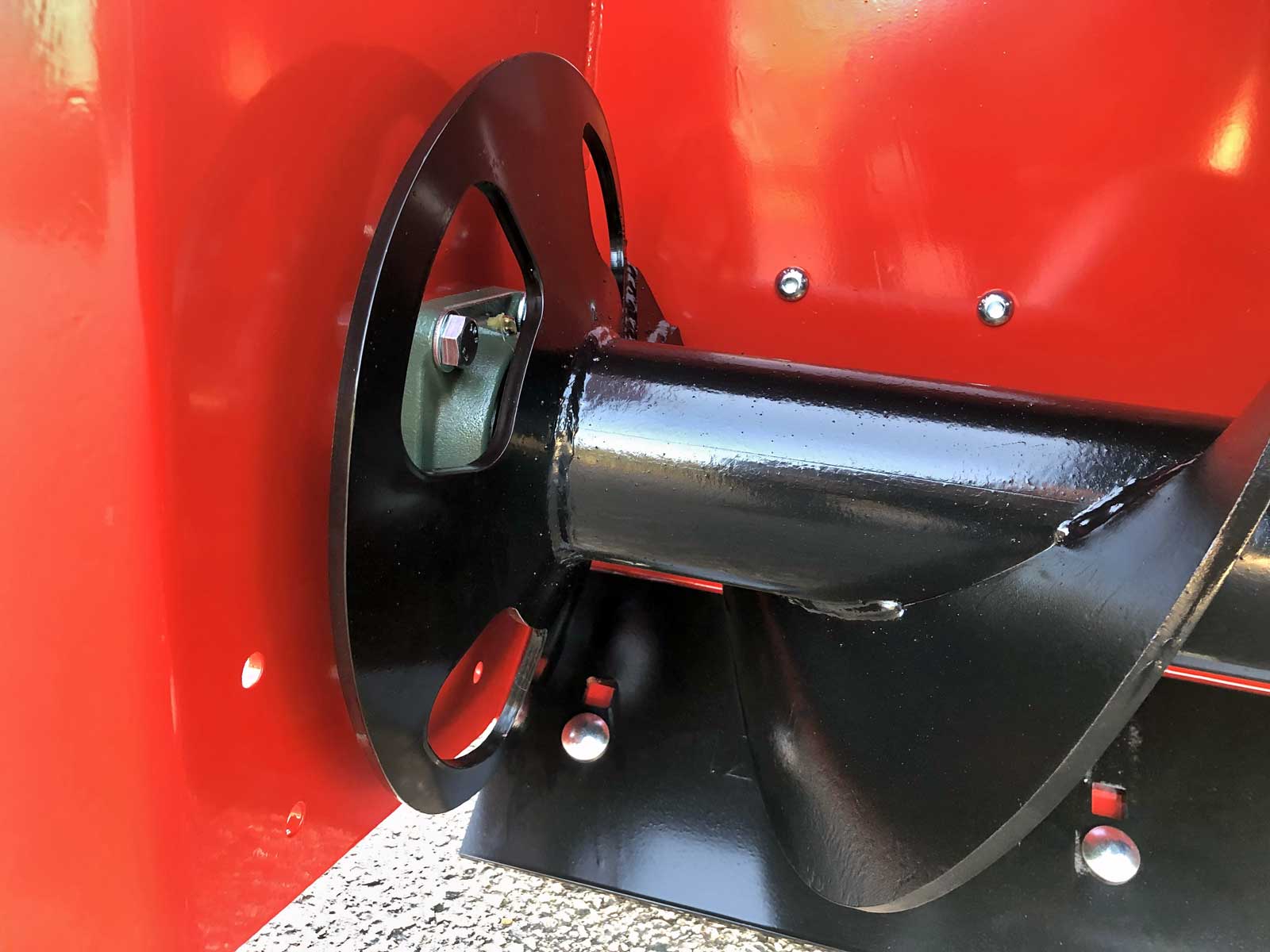

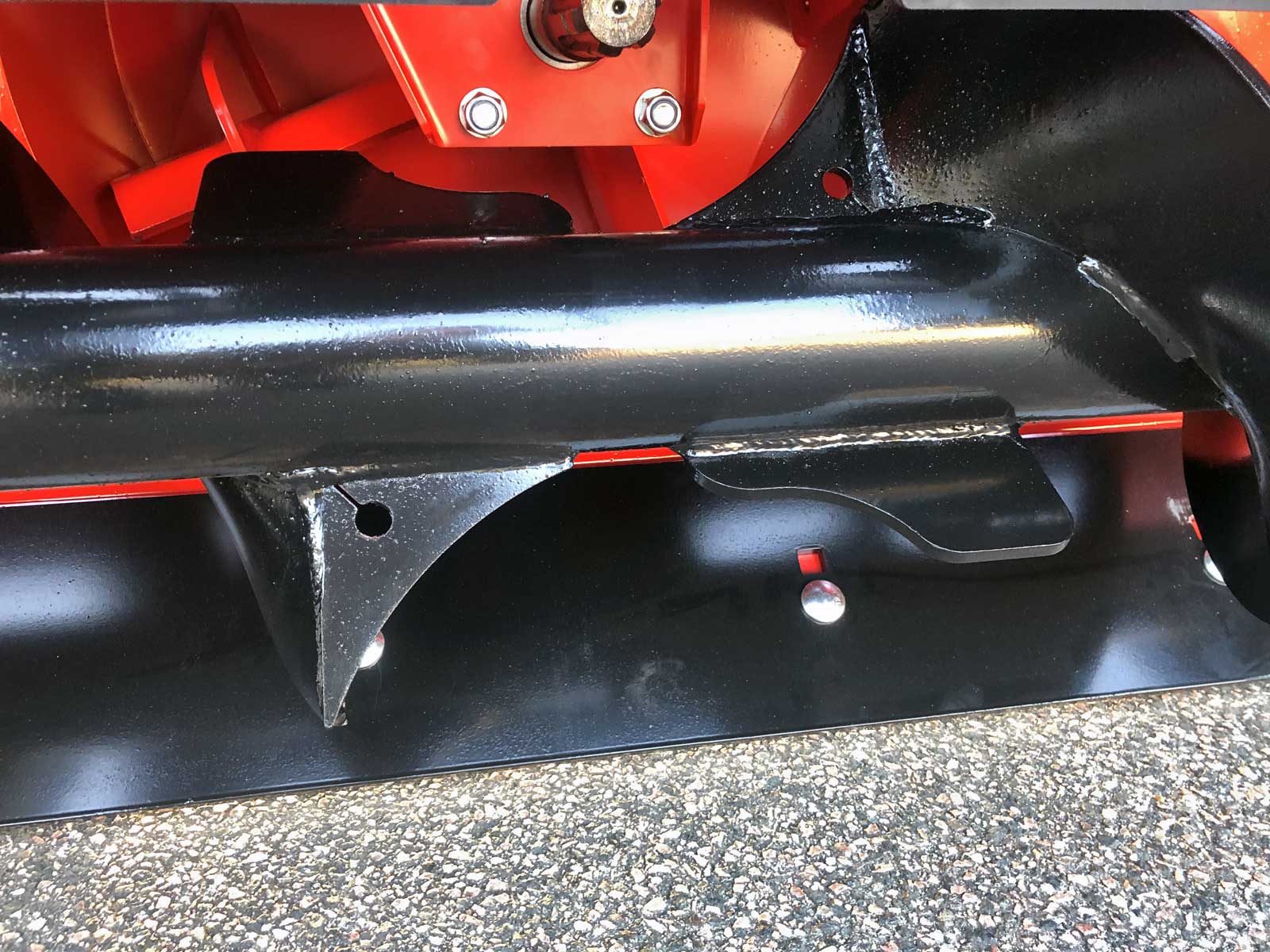

Discs on the auger

A disc on each end of the auger optimises the flow of snow into the machine.
Button

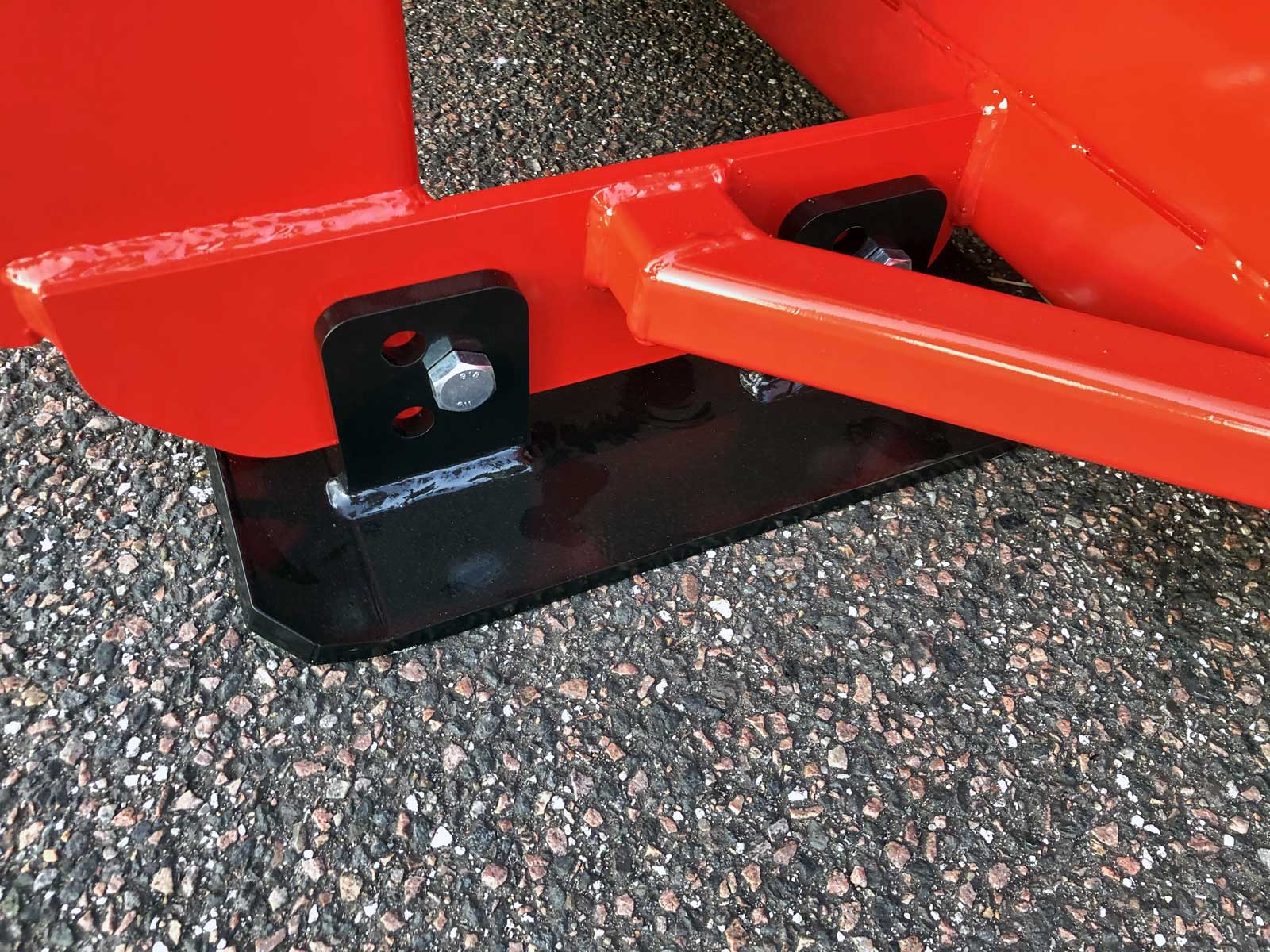

Wear shoes

The height-adjustable special steel wear shoes are standard.
Button

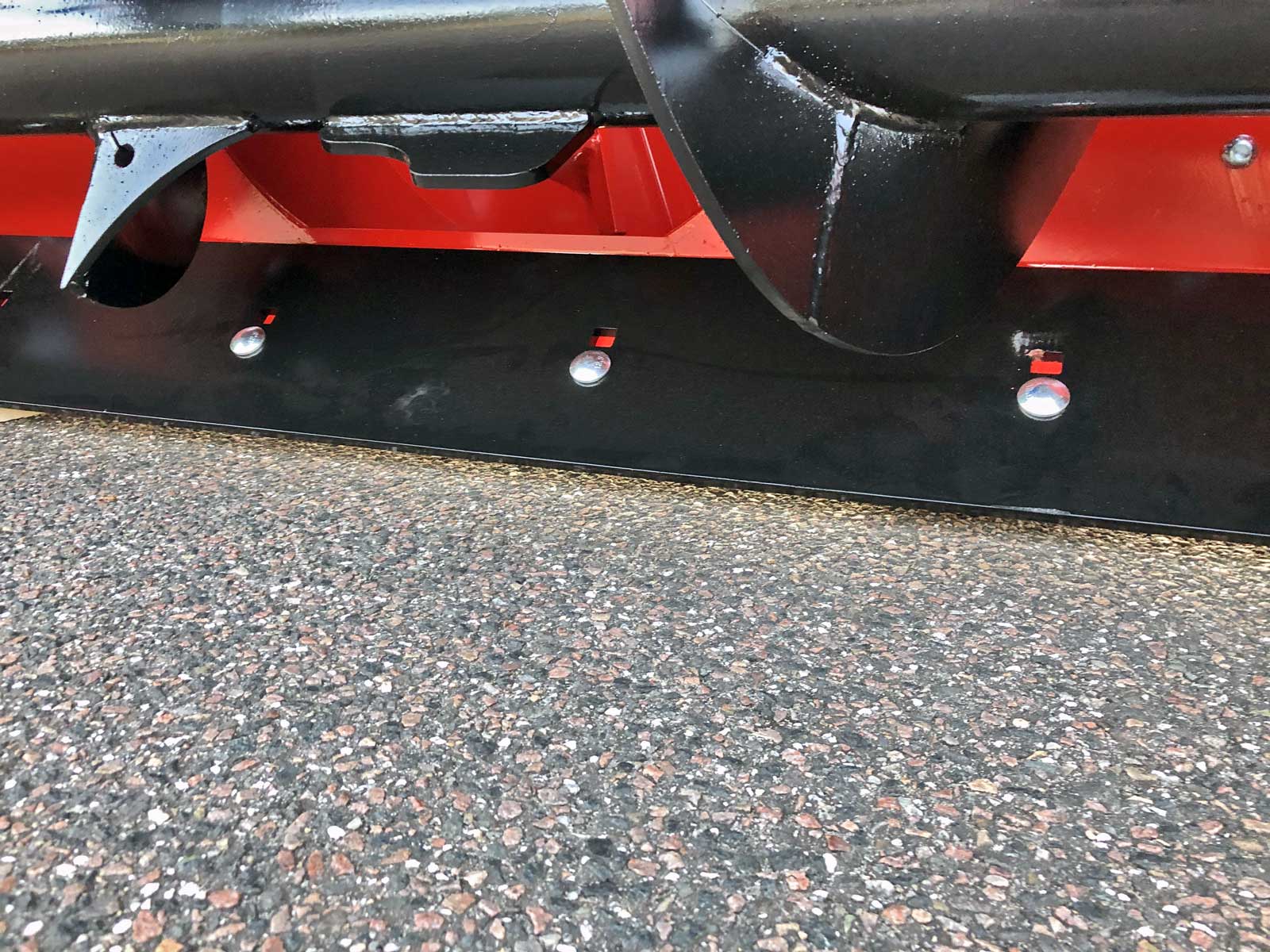

Wear steel

Reversible plain/galvanised wear steel in special wear steel is standard. Also available with serrated wear steel on request.
Button

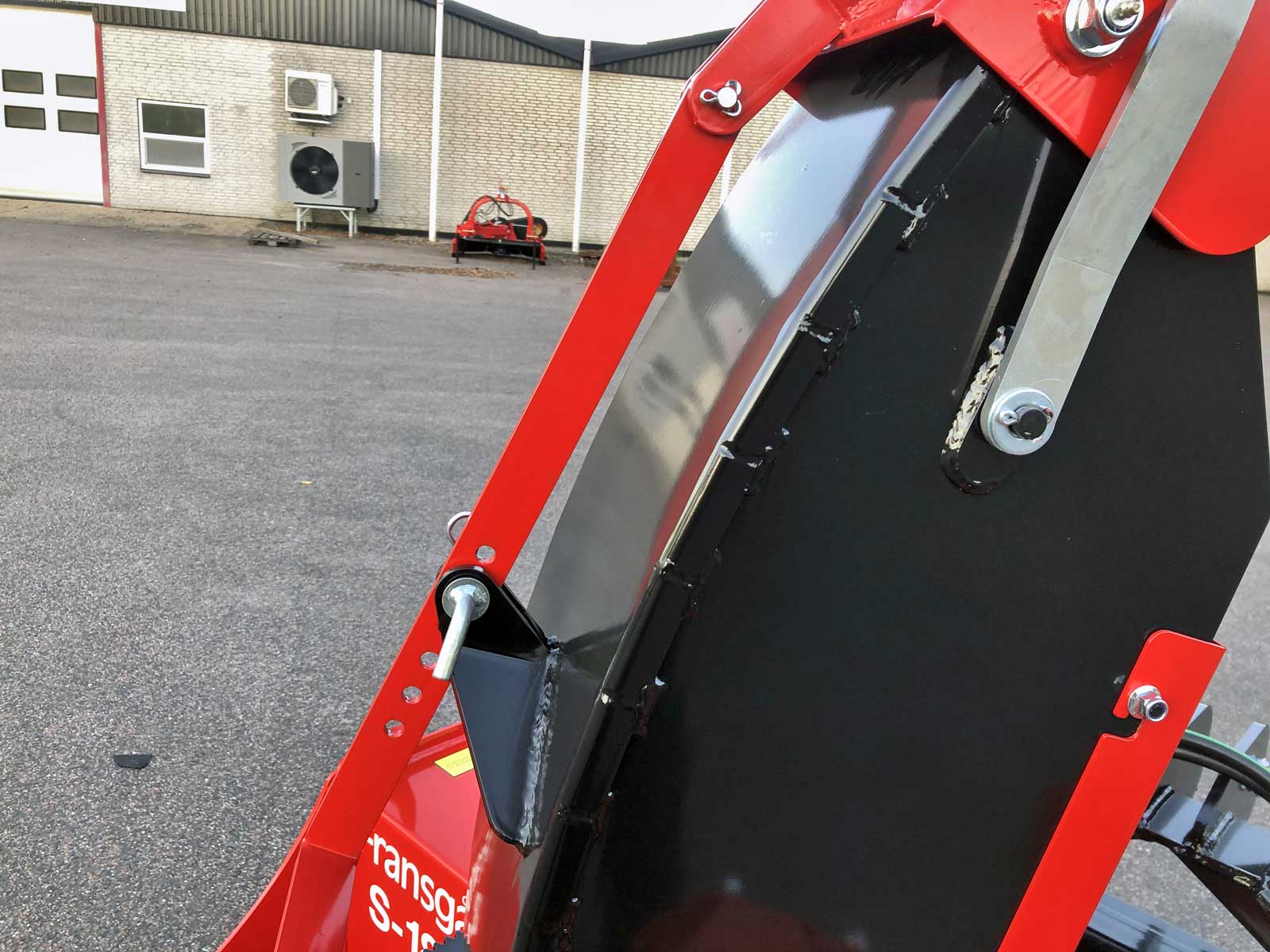

Positioning bracket on the spout

Manual adjustment of centre and top flaps without using tools. Hydraulic adjustment is an optional extra (item no. 2227).
Button

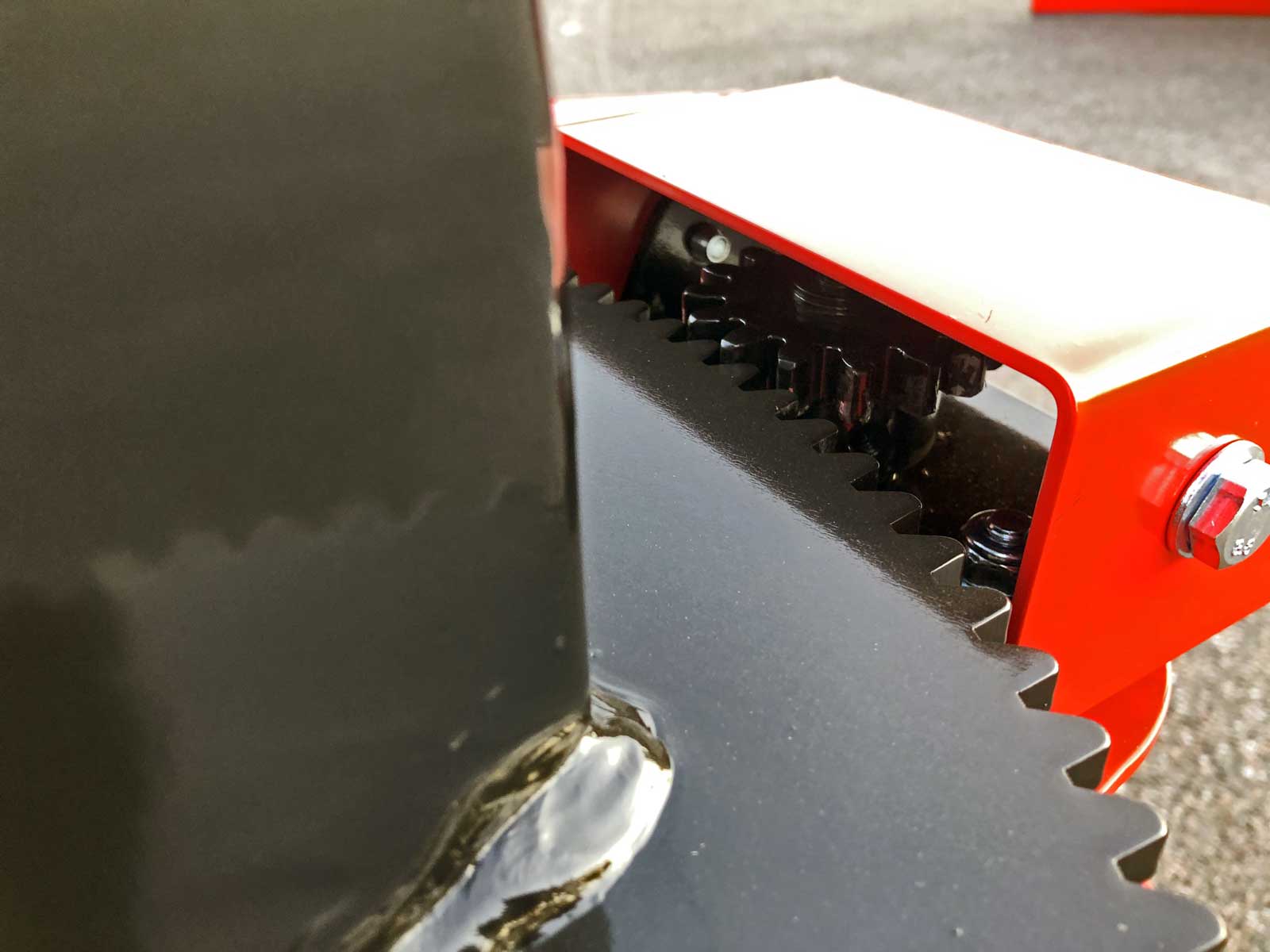

Toothed rim

The powerful toothed rim on the spout is driven by a gear wheel, which is fixed with Loctite on the oil engine and which is securely located under the guard. A very reliable solution.
Button

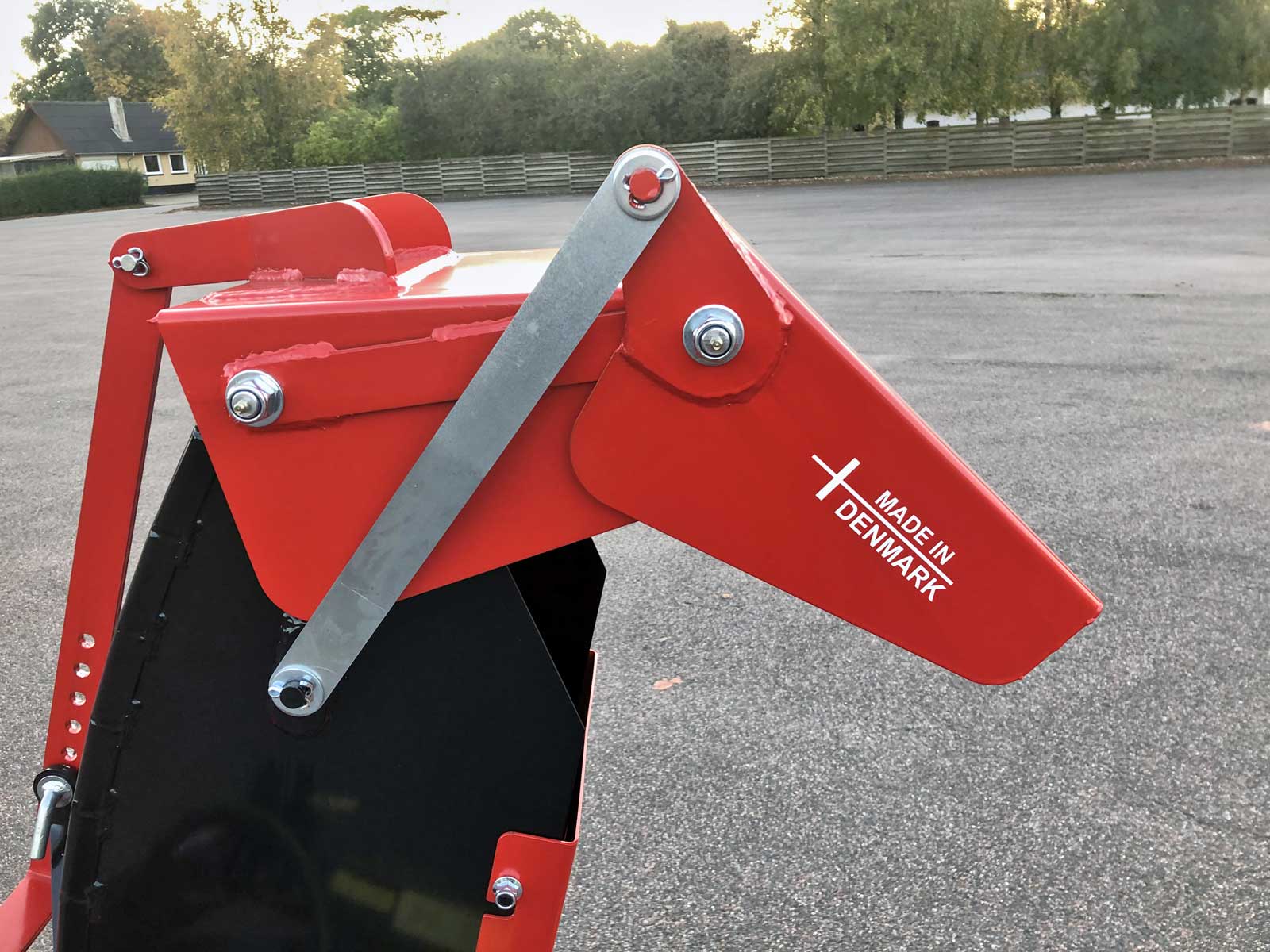

Top flap

The top flap can be angled down so that snow can be thrown down between the tractor and the snow blower when passing a side road, for example.
Button

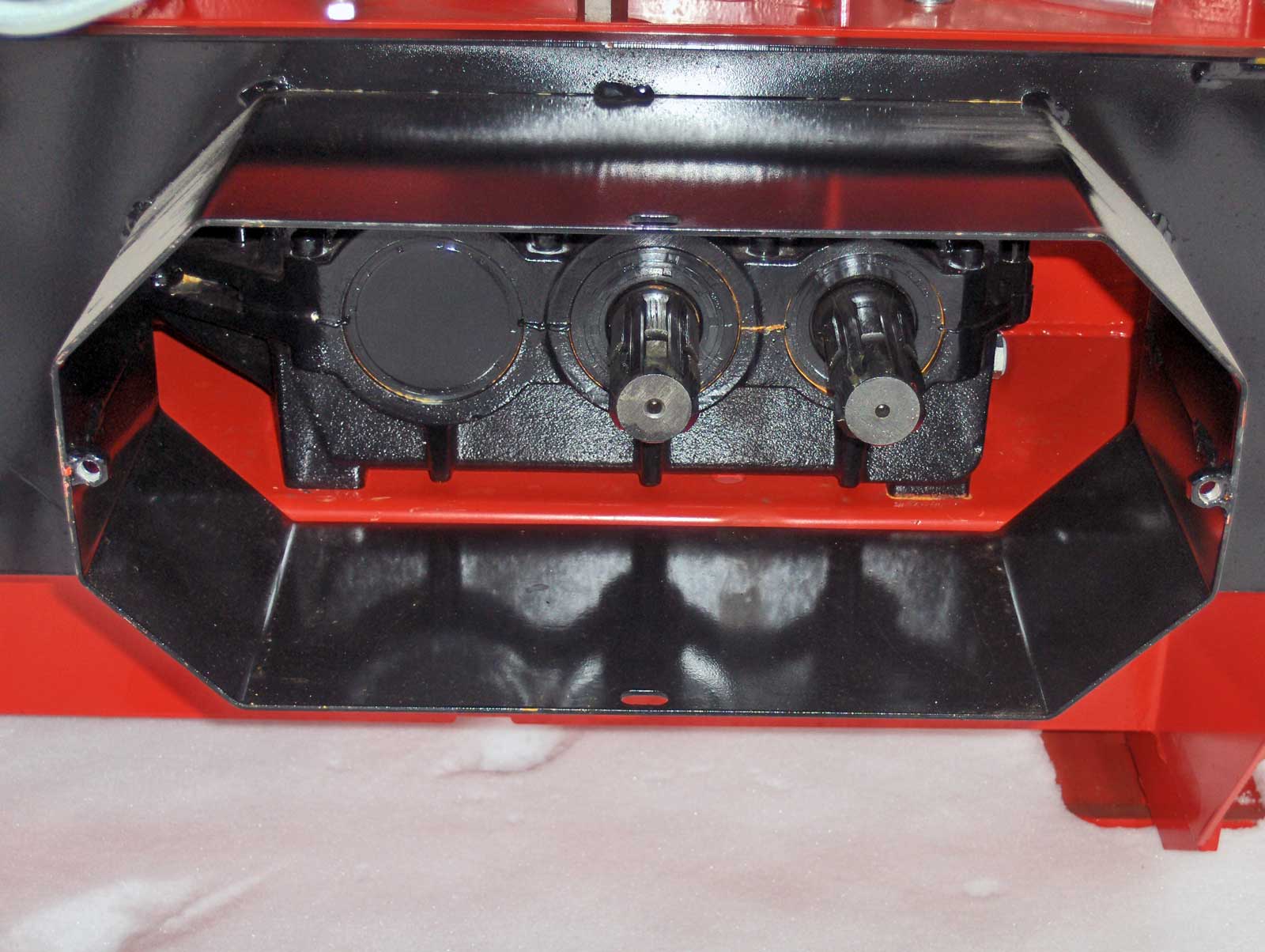

Gearbox -3

Front- and rear-mounted snow blowers are called dash 3 (-3), which means that the gearbox has 3 PTO connectors. Both connectors on this side are for 1000 rpm. The connector on the left is for rear mounting and the one on the right is for front mounting.
Button

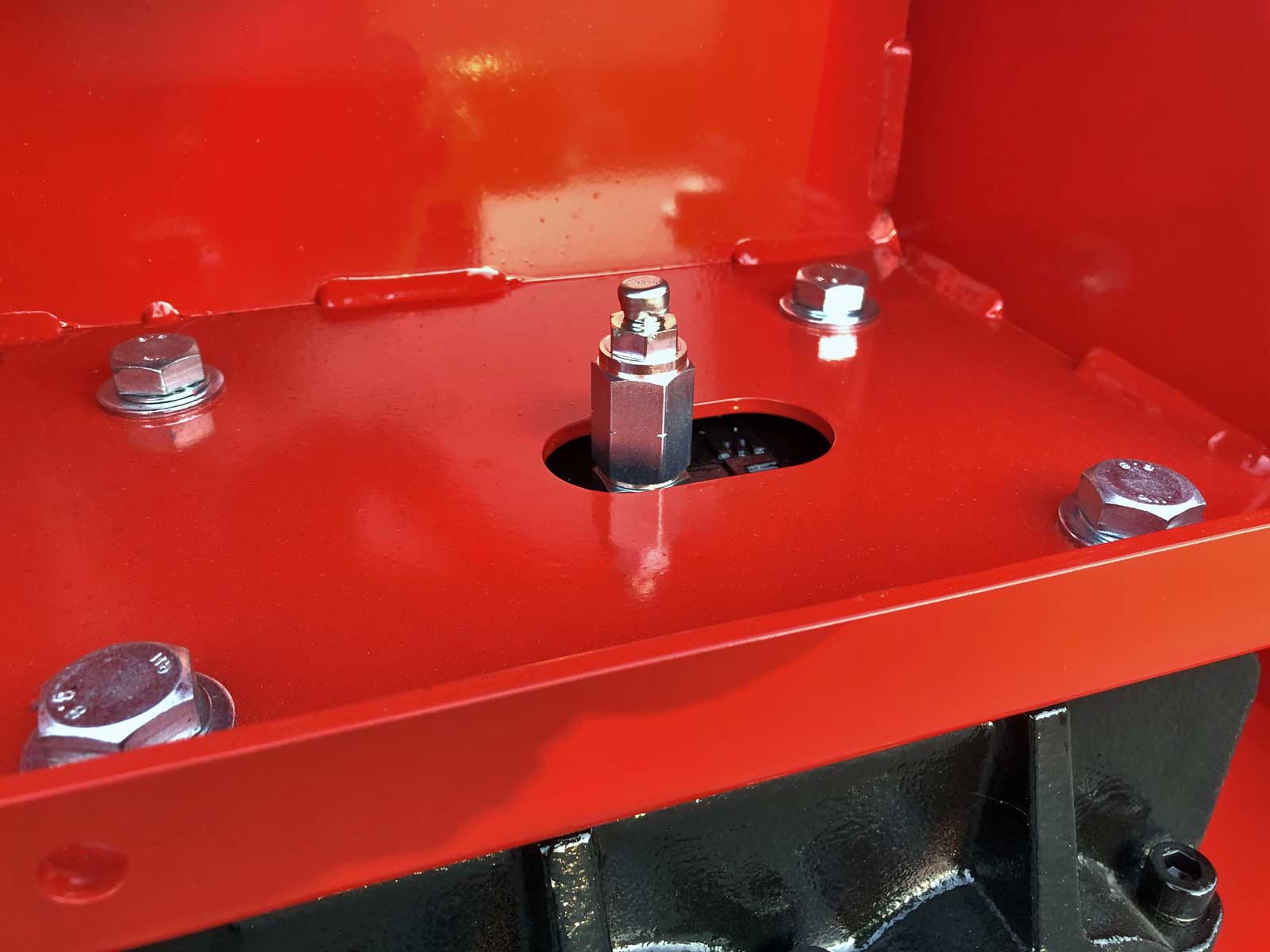

Gearbox ventilation

The ventilation on the gearbox is raised to prevent water from entering the gearbox when the snow melts.
Button

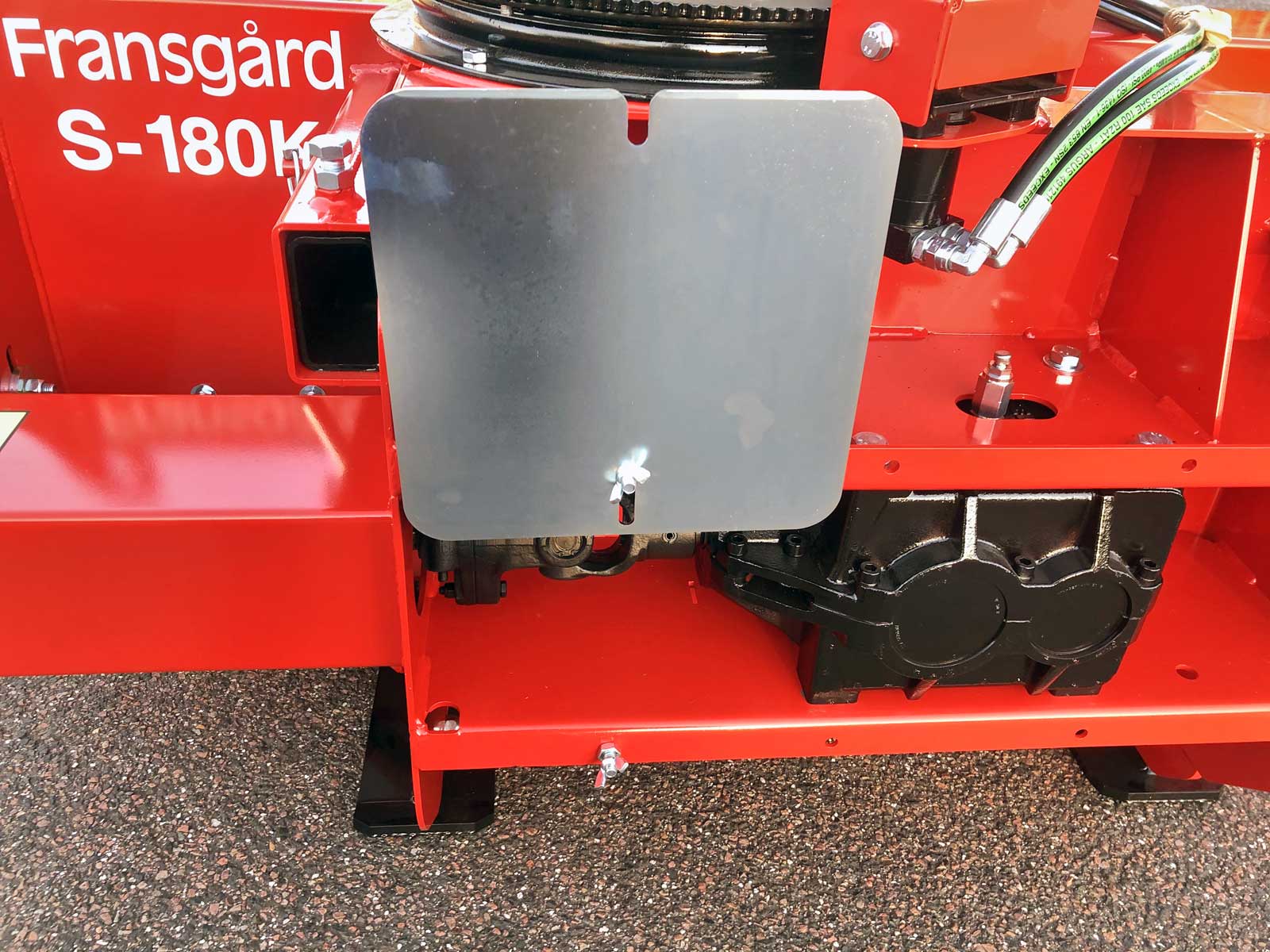

Gimbal guard

The guard at the gimbal with a springbolt can be turned up without using tools, so that it is easy to replace the springbolt.
Button

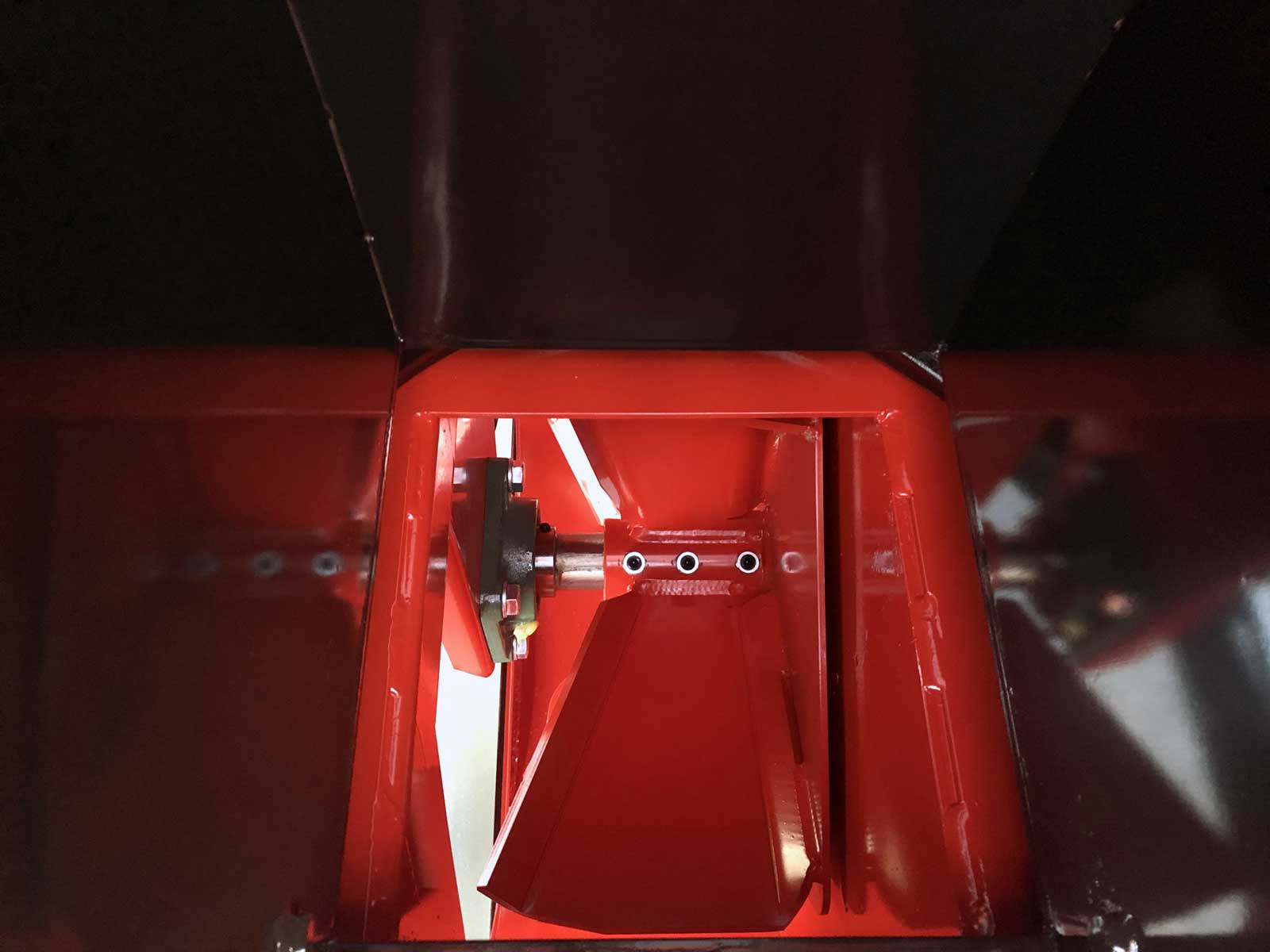

Fan

The heavy-duty impeller with 4 vane-shaped blades is mounted with a solid bearing yoke and bolted to the axle with 6 pinol screws.
Button

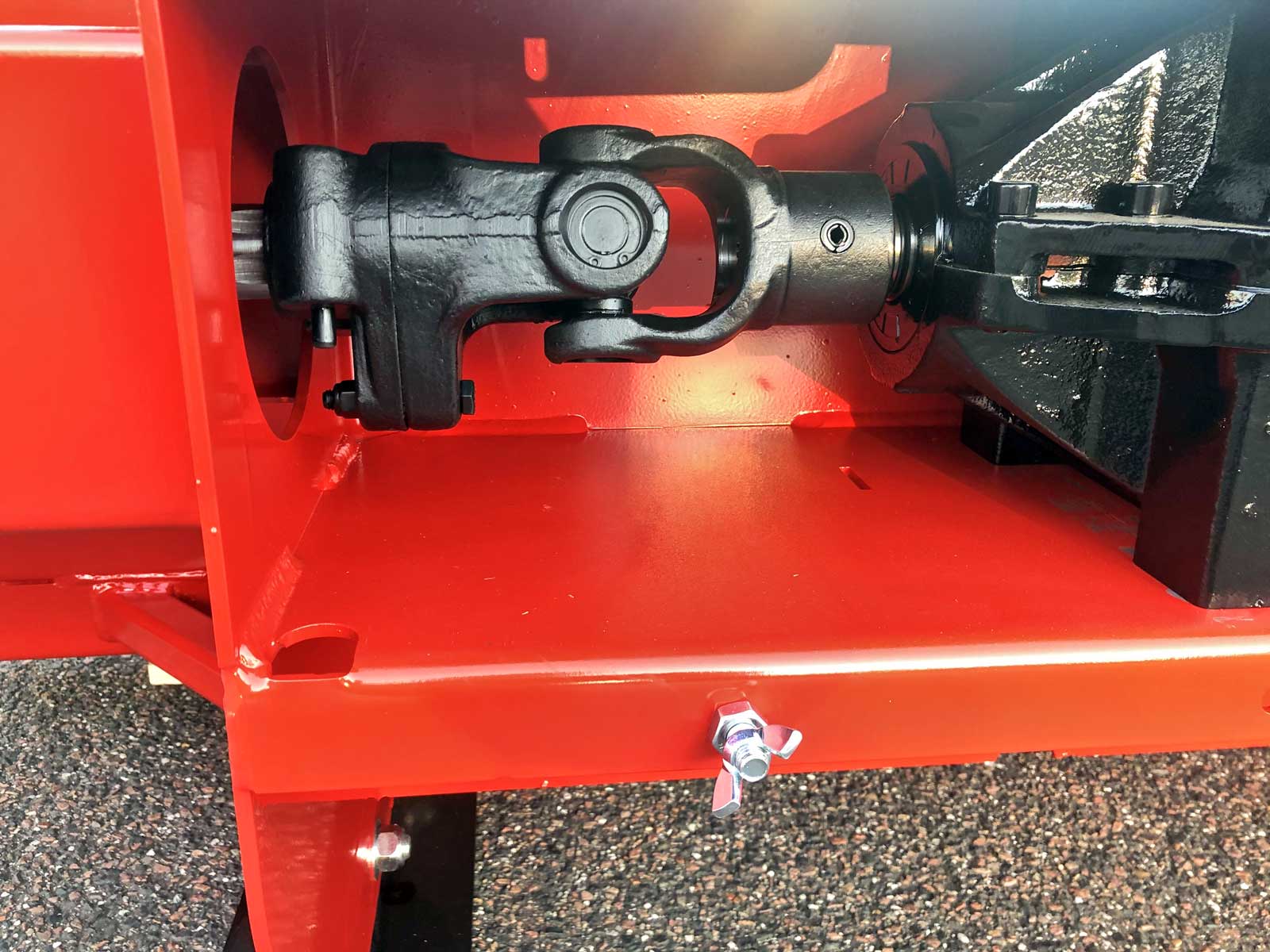

Safety springbolt

The gimbal at the gearbox has a built-in springbolt as a safety feature in case the snow blower is overloaded. So does the PTO axle. However, this is no guarantee against damage to other parts of the blower.
Button

Optional extras:

Item No. 1417102 PTO

PTO axle with 8 mm 8.8 springbolt
Button

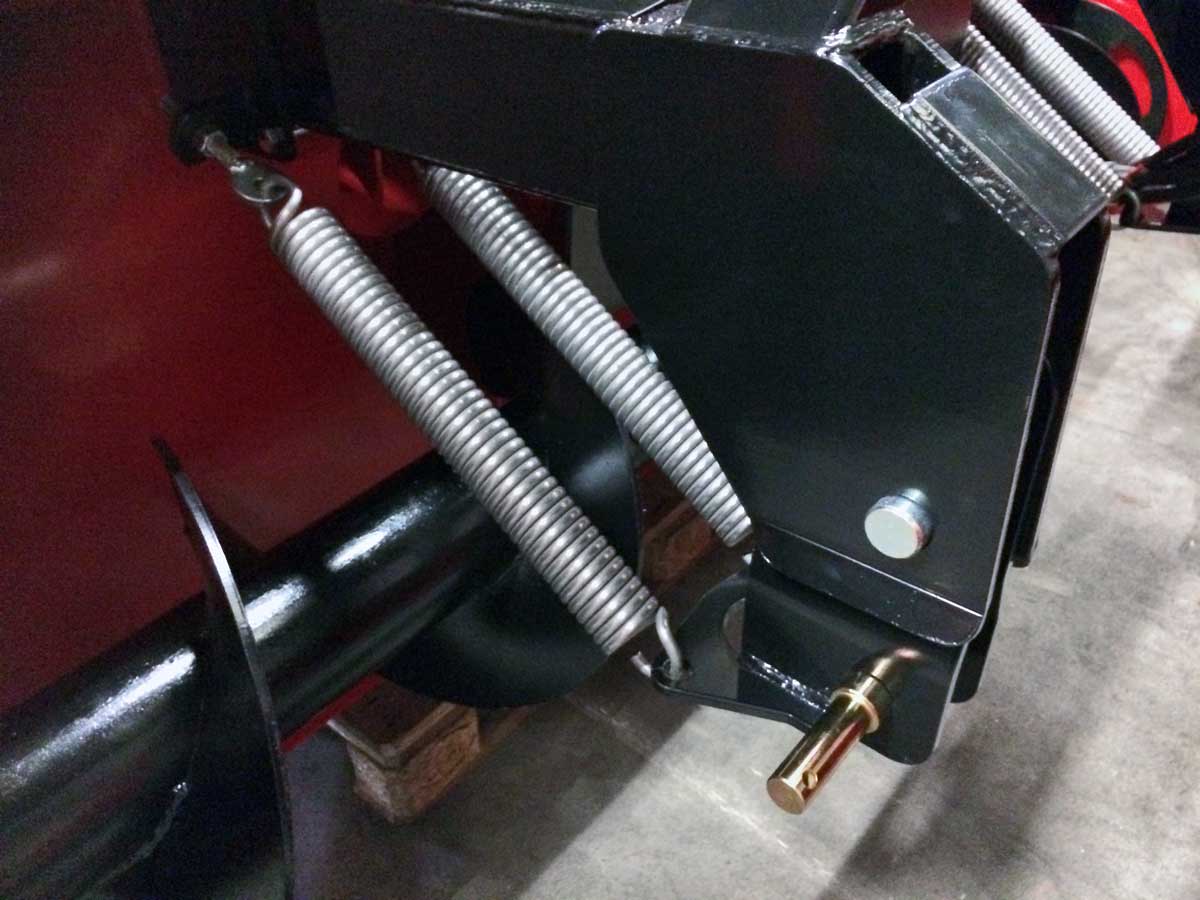

Item No. 2201

Bracket with spring release for 3-point. It can be mounted when towing snow blowers and want to relieve it, if you hit a manhole cover or similar.
Button

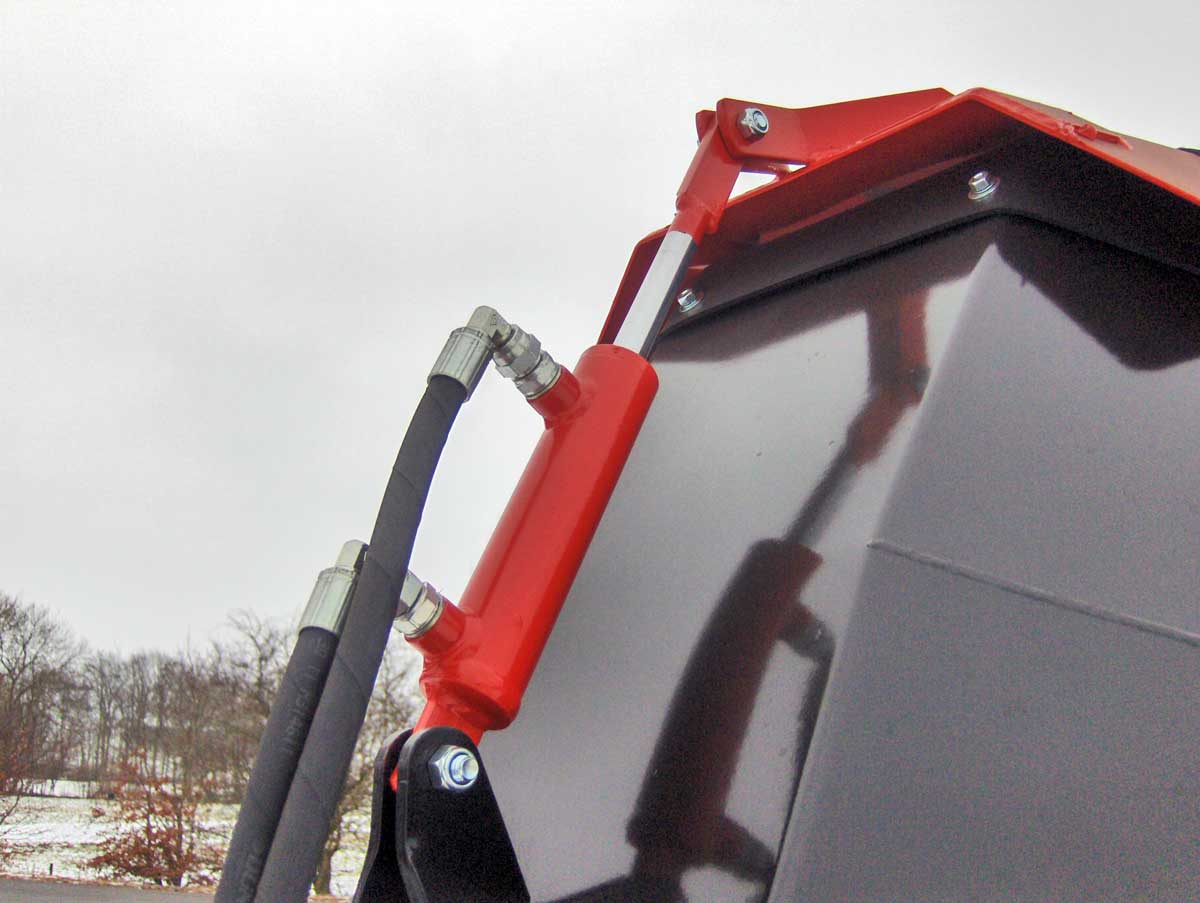

Item No. 2227

Hydraulic cylinder for adjusting the top flap of the spout to quickly control where the snow is thrown.
Button

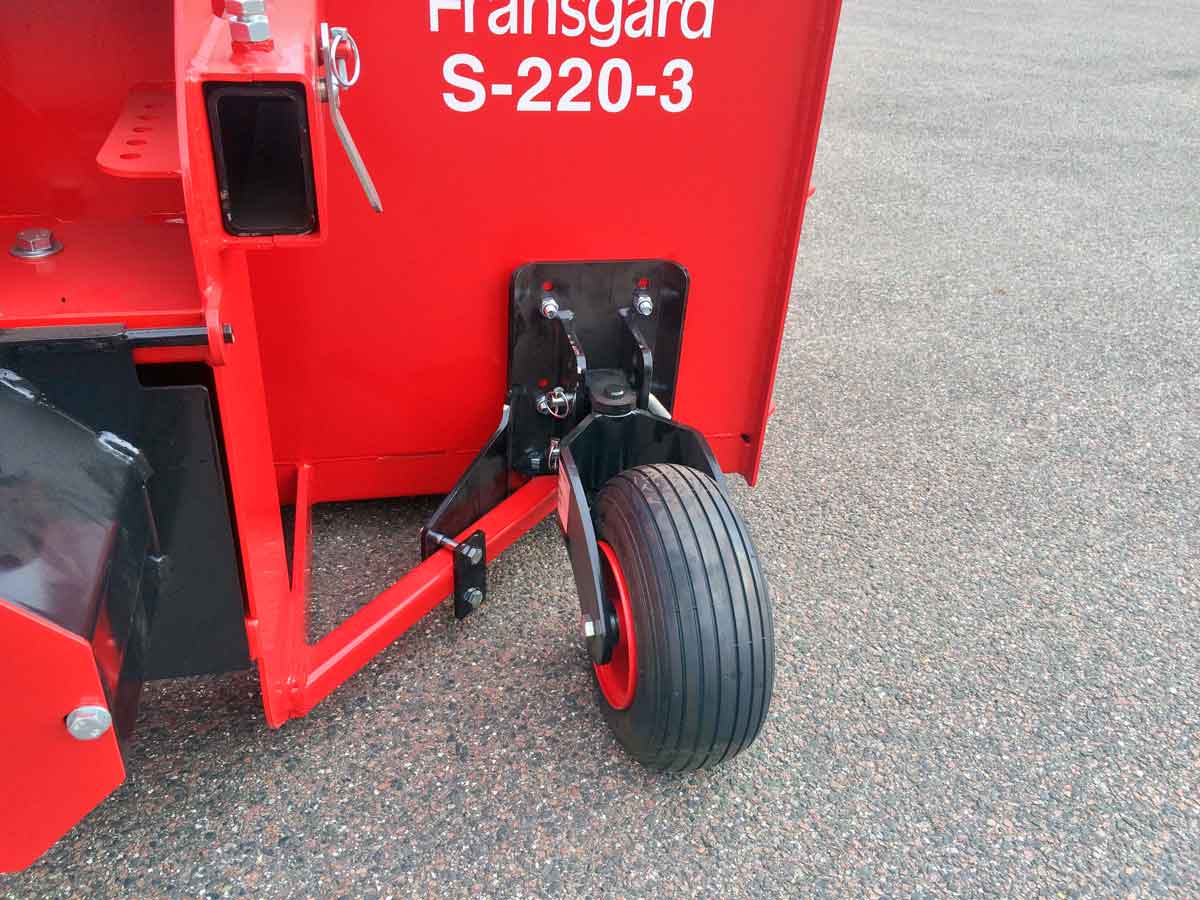

Item No. 2230

Swivel wheel set for S-220/S-245. The wheels are filled with foam, which provides greater wear and you will avoid punctures.
Button

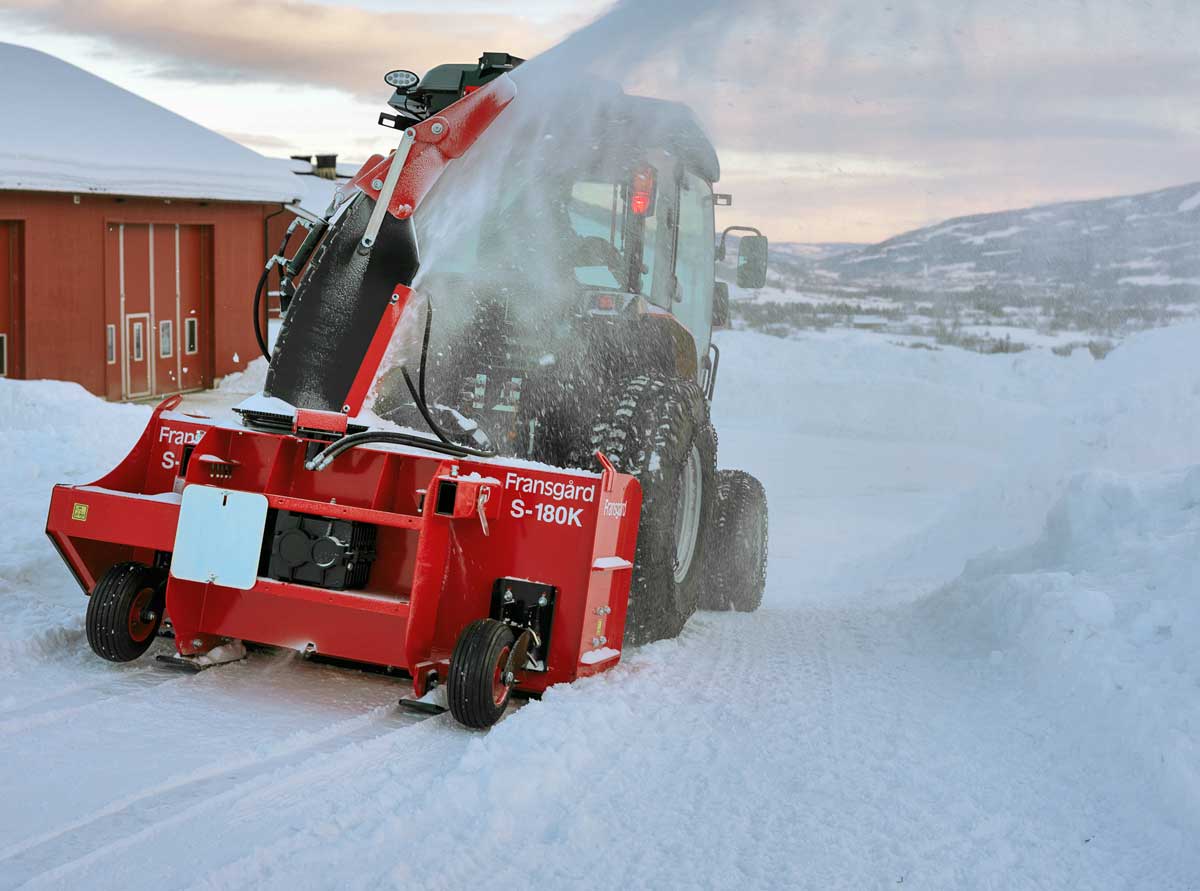

Item No. 2231

Wheel set with fixed wheels for S-180. The wheels are filled with foam, which provides greater wear and you will avoid punctures.
Button

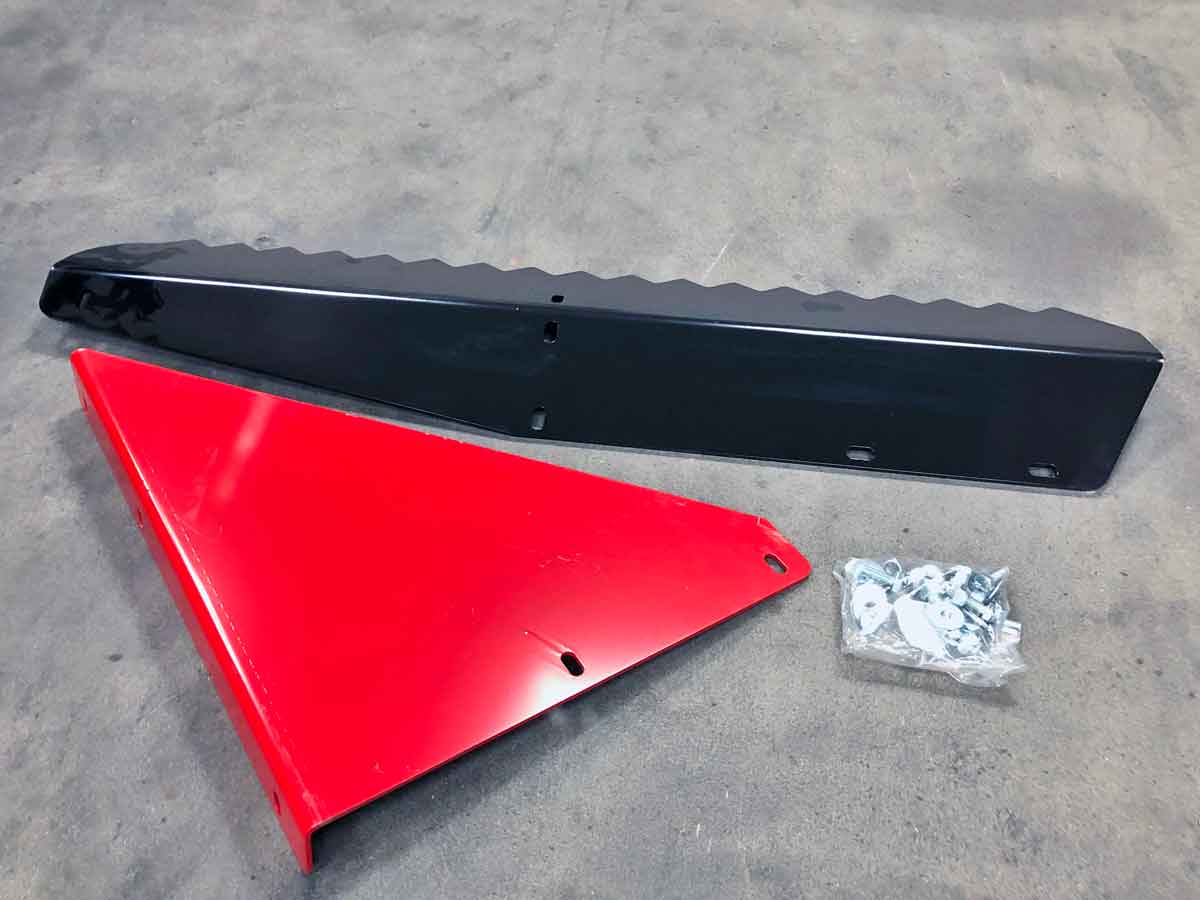

Item No. 2215A

Edge blade for the right side which bolts on. The triangle ensures that the snow enters the machine. The working width is increased by 10 cm. S-180/S-220.
Button
Item No. 2215B

Edge blade for the left side that bolts on. The triangle ensures that the snow enters the machine. The working width is increased by 10 cm. S-180/S-220.
Button
Item No. 2218A

Edge blade for the right side which bolts on. The triangle ensures that the snow enters the machine. The working width is increased by 10 cm. S-245.
Button
Item No. 2218B

Edge blade for the left side that bolts on. The triangle ensures that the snow enters the machine. The working width is increased by 10 cm. S-245.
Button

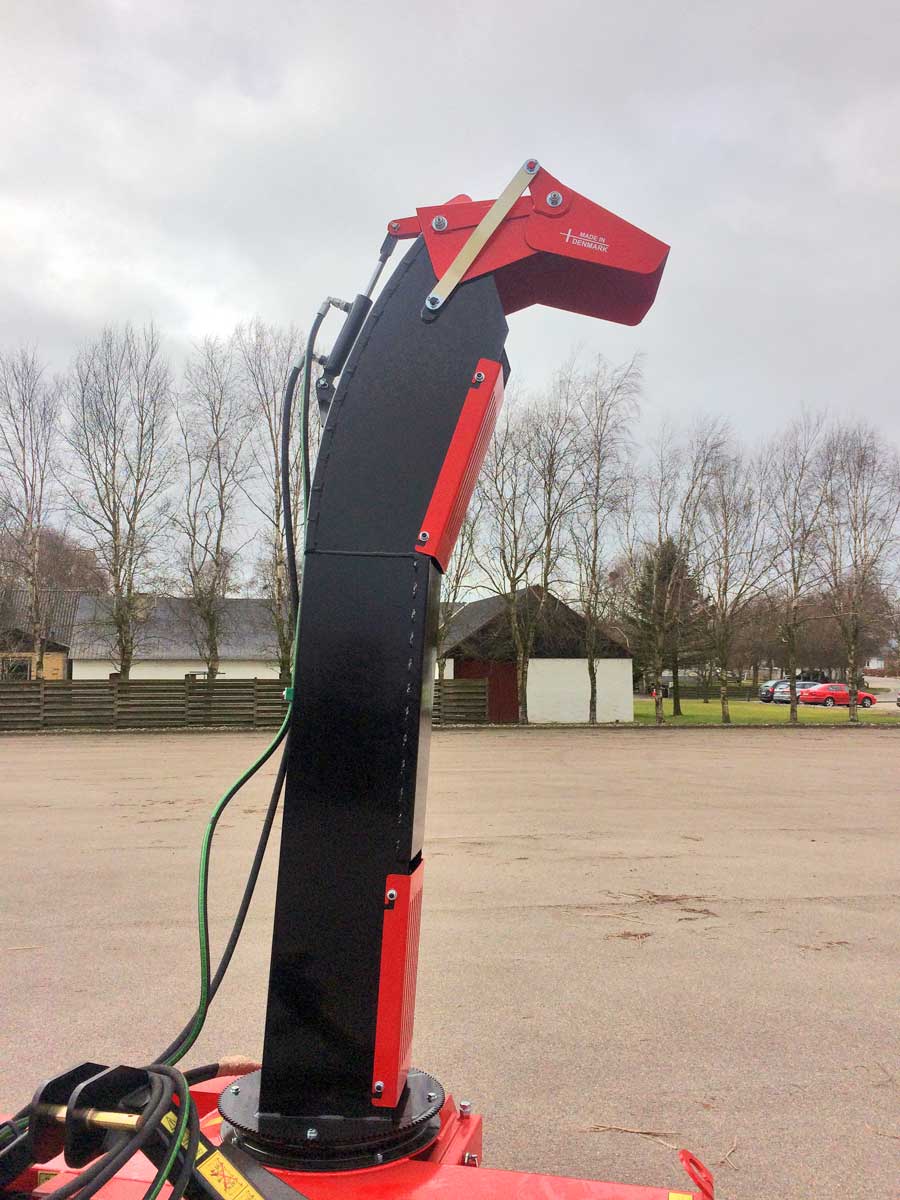

Item No. 2221

Loading spout to move the snow into a trailer or similar. The loading height with this spout is 330 cm
Button
Item No. 2218

Wear steel for the sides, which is mounted under the edge blades. Ensures that the snow blower clears snow completely at full working width. Fits S-180 and S-220 models.
Button

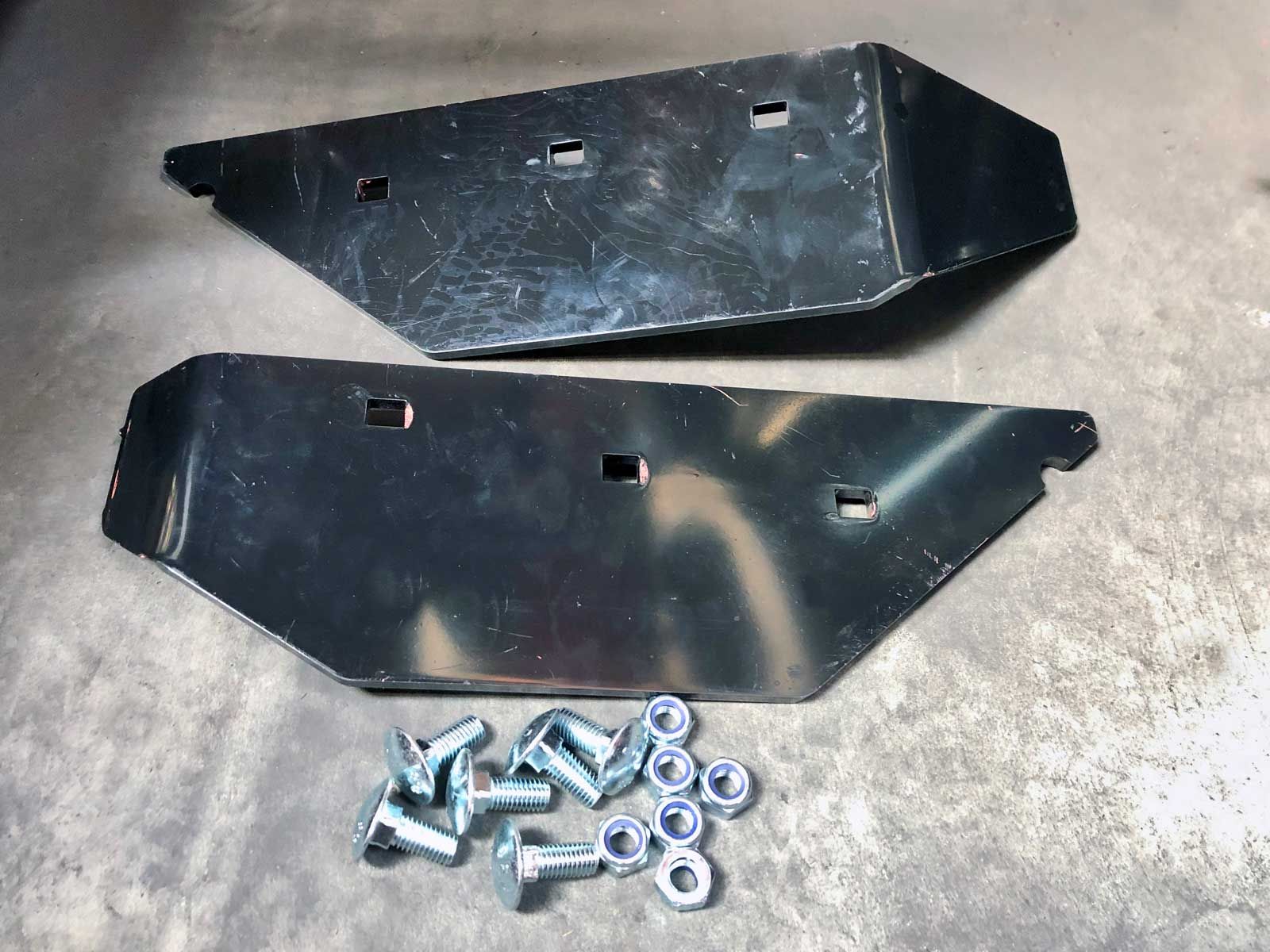

Item No. 2224

Wear steel for the sides, which is mounted under the edge blades. Ensures that the snow blower clears snow completely at full working width. Fits the S-245 model.
Button
