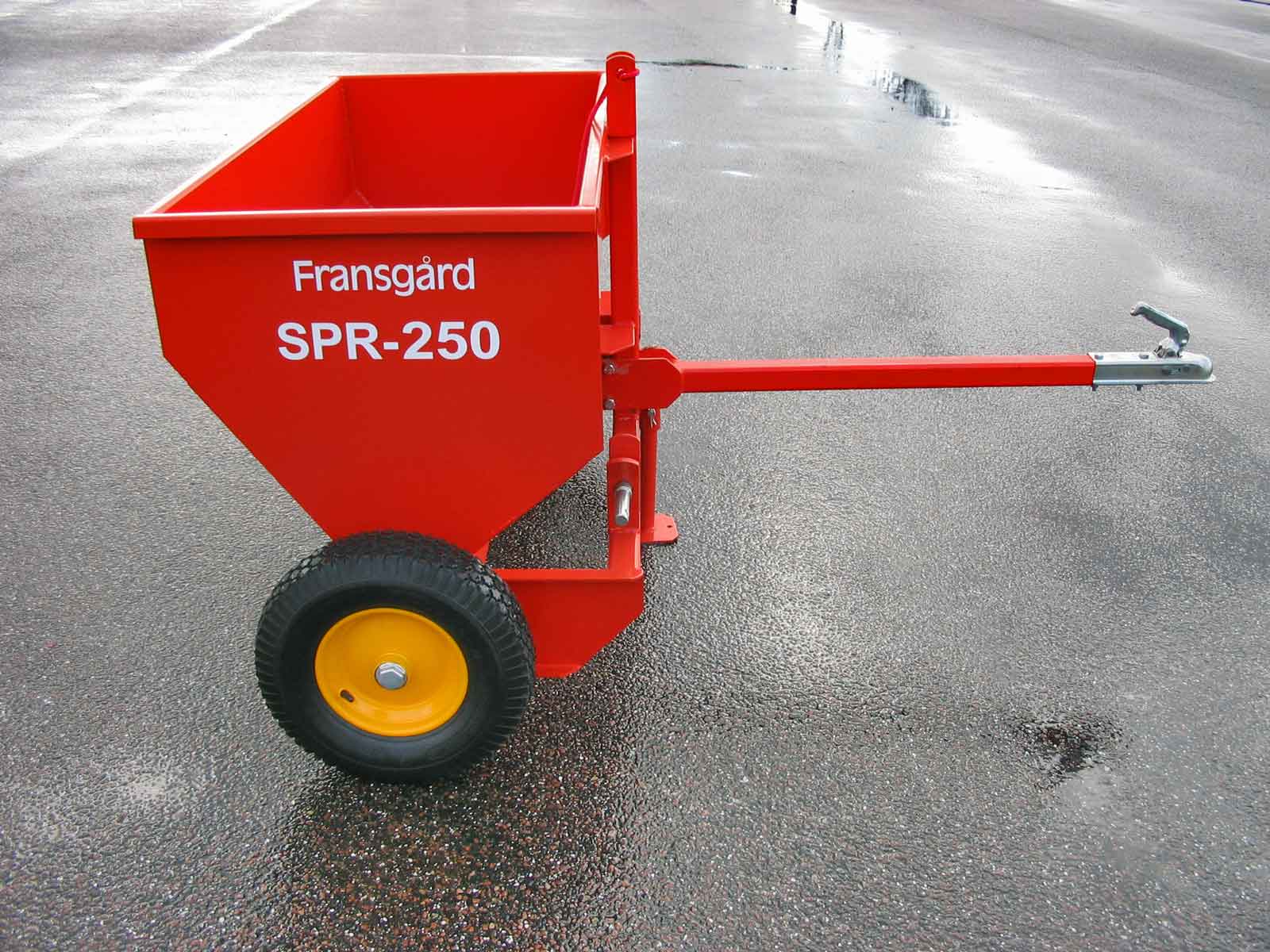

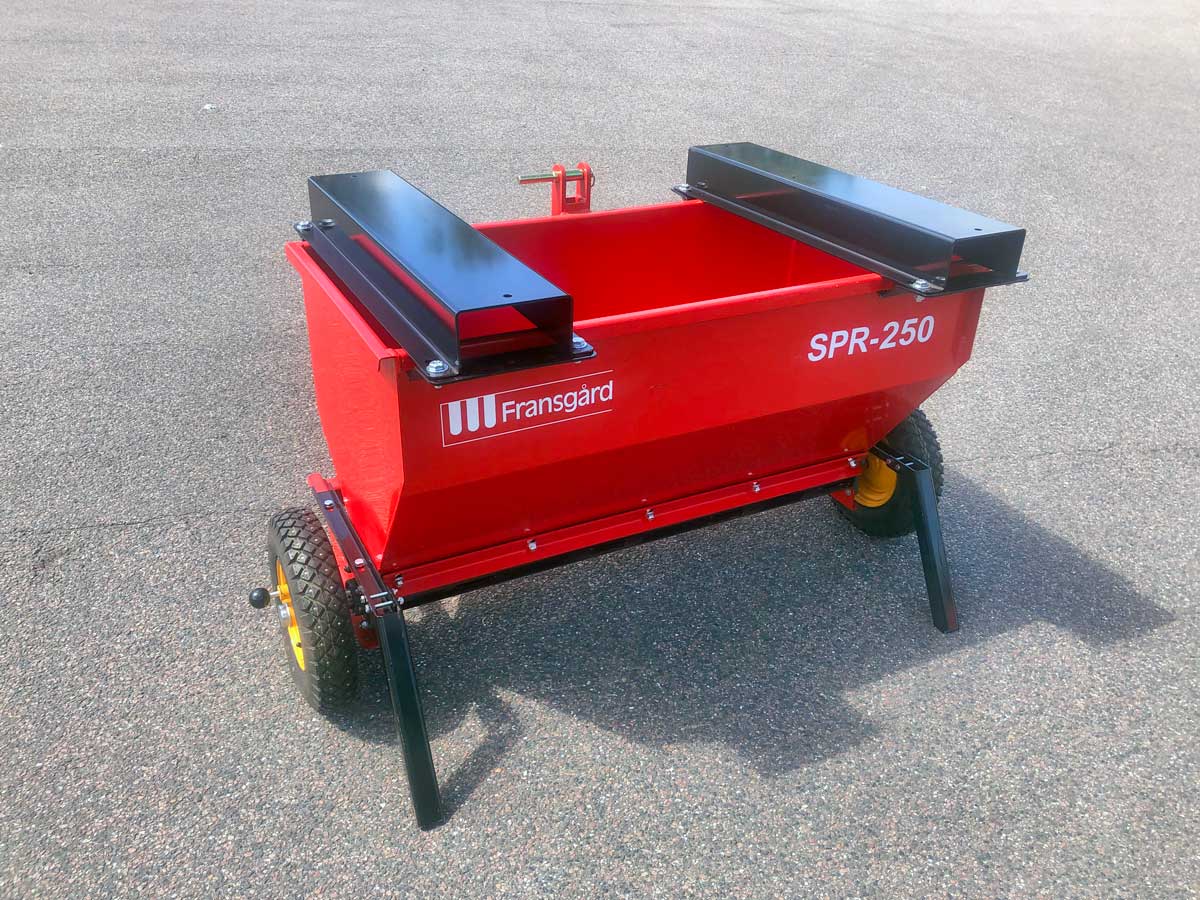

Roller Spreader SPR-250 · SPR-250H

Presentation

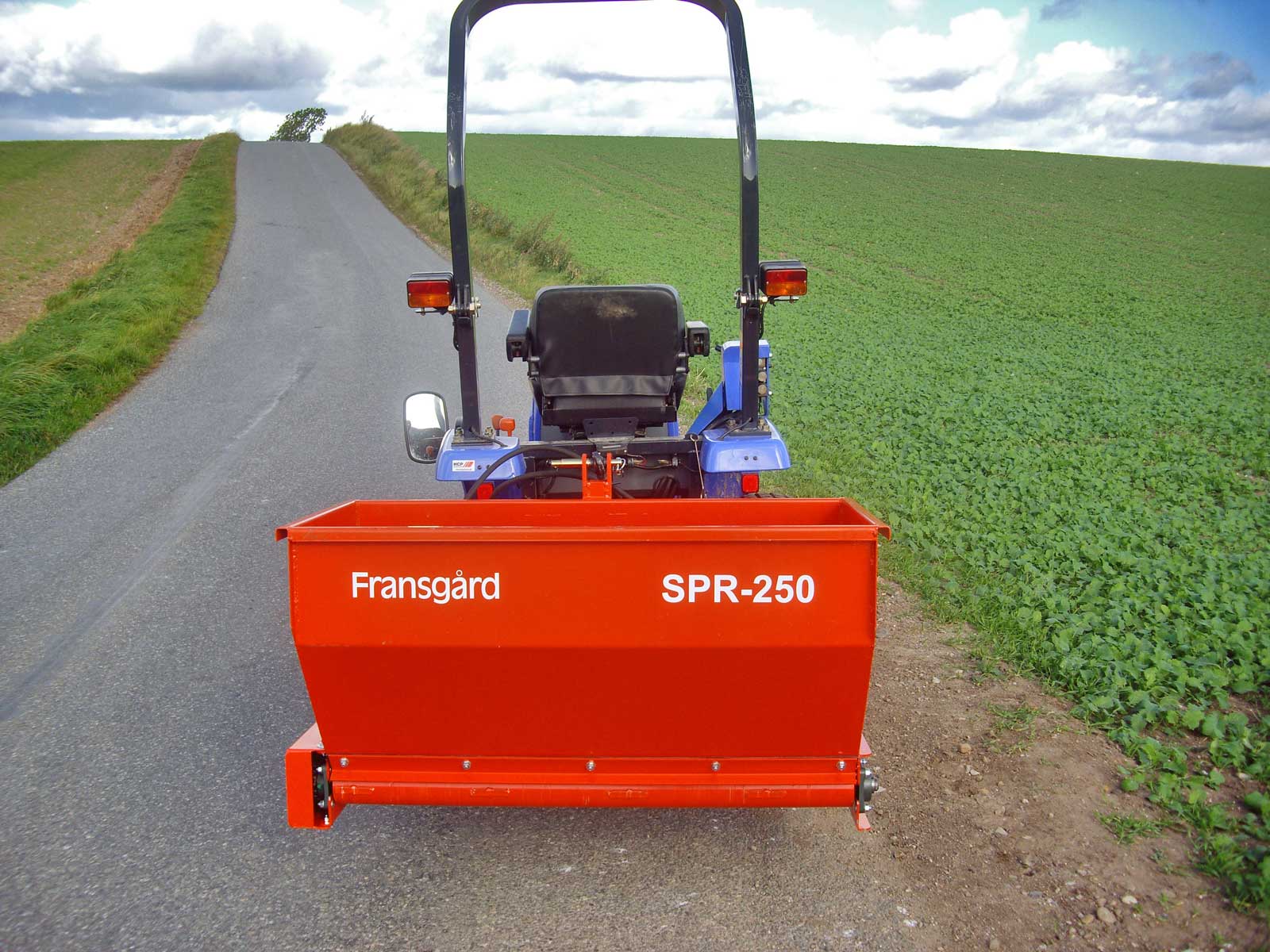

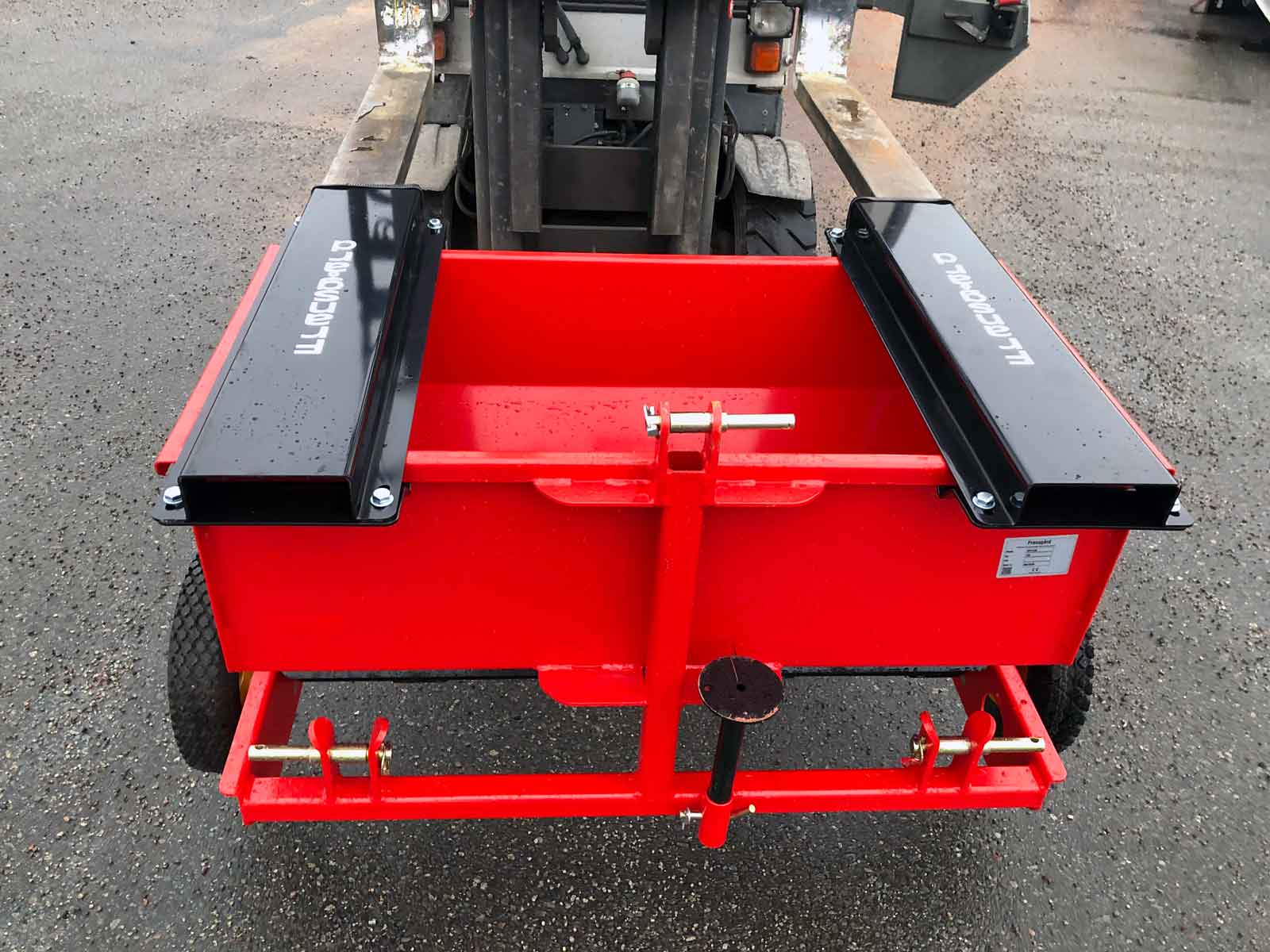

Fransgård's smallest spreader with a spreading width of 120 cm is available in 2 efficient models. The machine is suitable for a compact tractor, ATV, forklift or similar. The spreader is a perfect choice for companies, housing associations, cemeteries, public administrations, private individuals and others who need to spread coarse sand, sand/salt, pebbles or similar material.

The working areas of the spreader ensure passable paths, pavements, car parks, loading ramps, small roads and other places where accessibility and safe traffic is a major requirement.

Small model - big equipment package

The models may be small, but the equipment package is big. Spreader model SPR-250 is fitted with mechanical selection, which is drive-dependent via a traction wheel with studded tyres.

Model SPR-250H comes with hydraulic selection via powerful oil motor controlled by the tractor's oil flow. The models can be mounted in 3-point or with a tow bar (optional extra). The roller stops automatically by mechanical selection when the machine reverses, avoiding unnecessary waste.

Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button

Technical data:

Model:	SPR-250	SPR-250H
Working width:	120 cm	120 cm
Transport width	155 cm	140 cm
Container volume	250 L	250 L
Box dimensions top	56 x 120 cm	56 x 120 cm
Quick emptying	No	No
Self-loading	No	No
Agitators	No	No
Hydraulic connectors	None	1 double
Hydraulic quantity control	No	Possible
3-point suspension Category	I/II	I/II
Weight	130 kg	130 kg

Details:

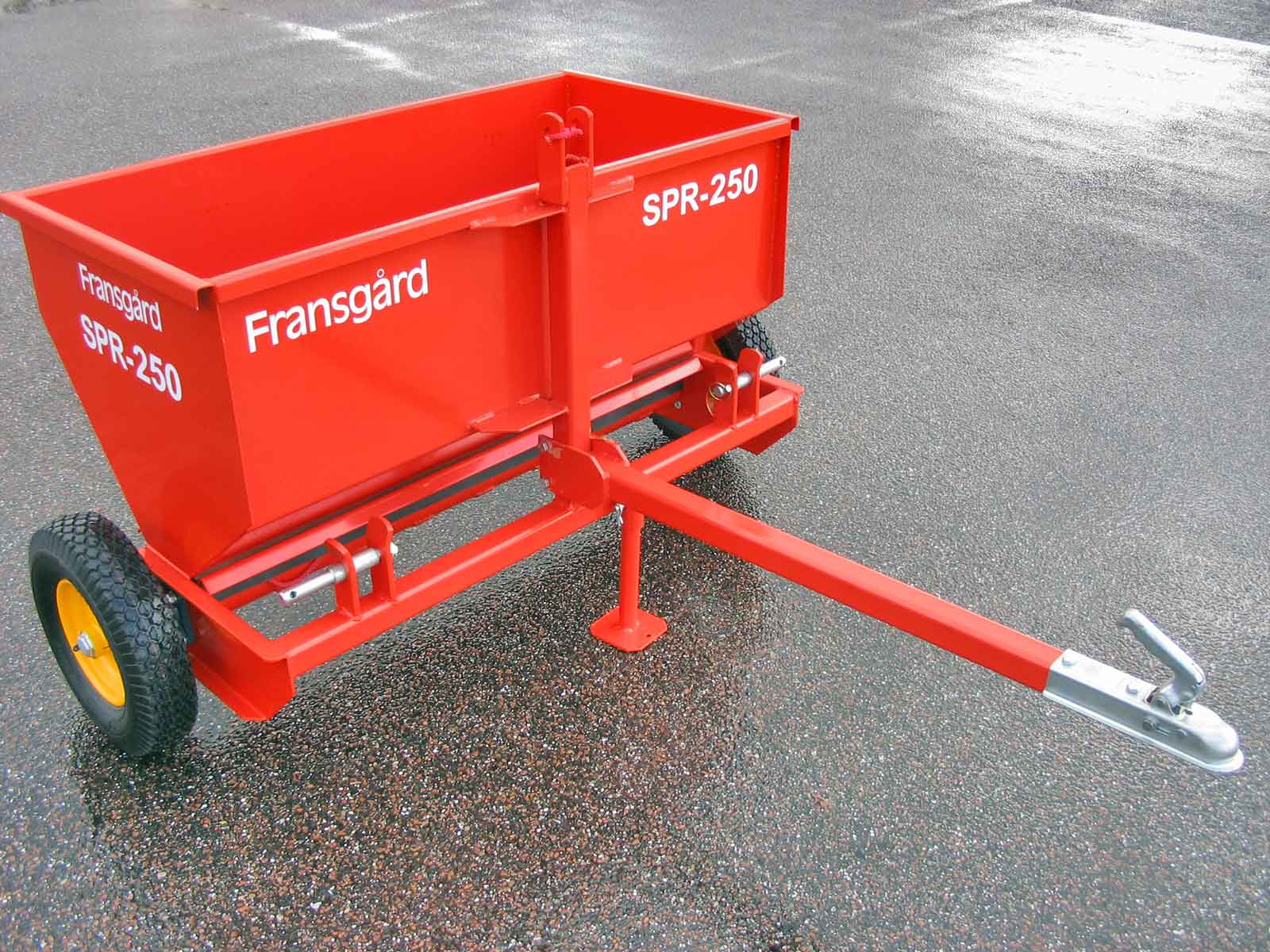

3-point suspension + drawbar

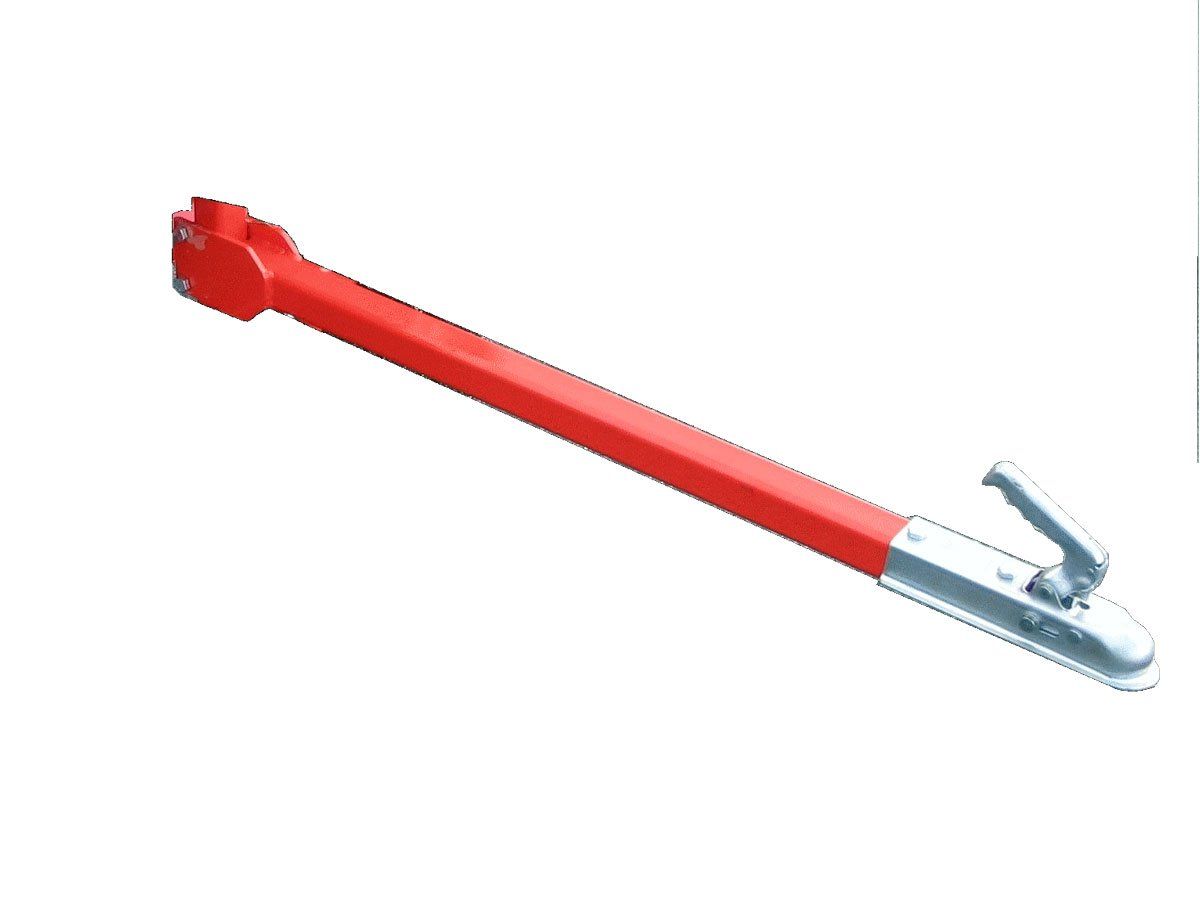

3-point suspension Cat II is standard equipment. Drawbar with ball coupling (Item. No. 3610) is an optional extra.

Button

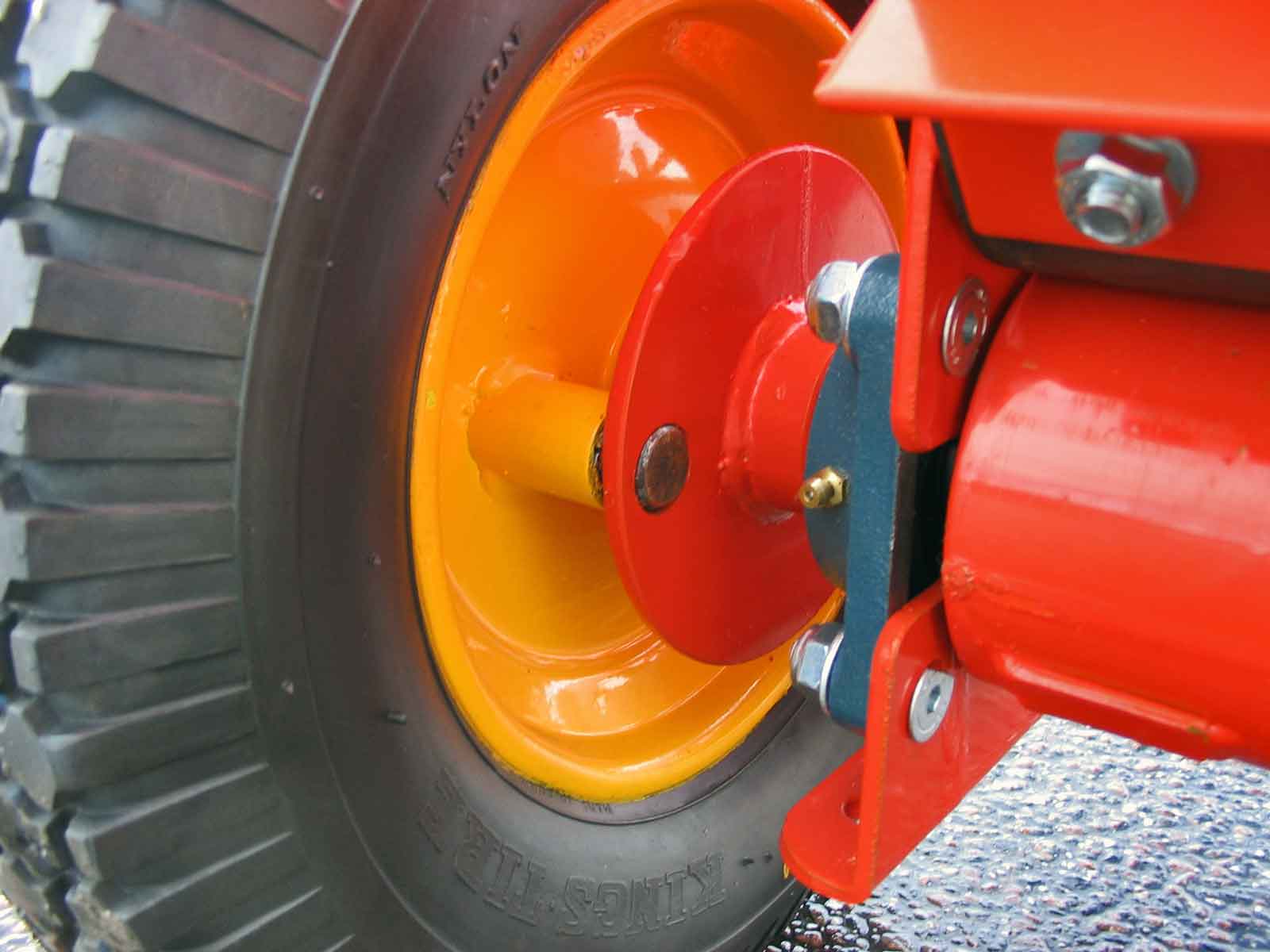

Lock inside

The locking pedal on the traction wheel is designed so that the machine does not lay out material when backing with the machine.

Button

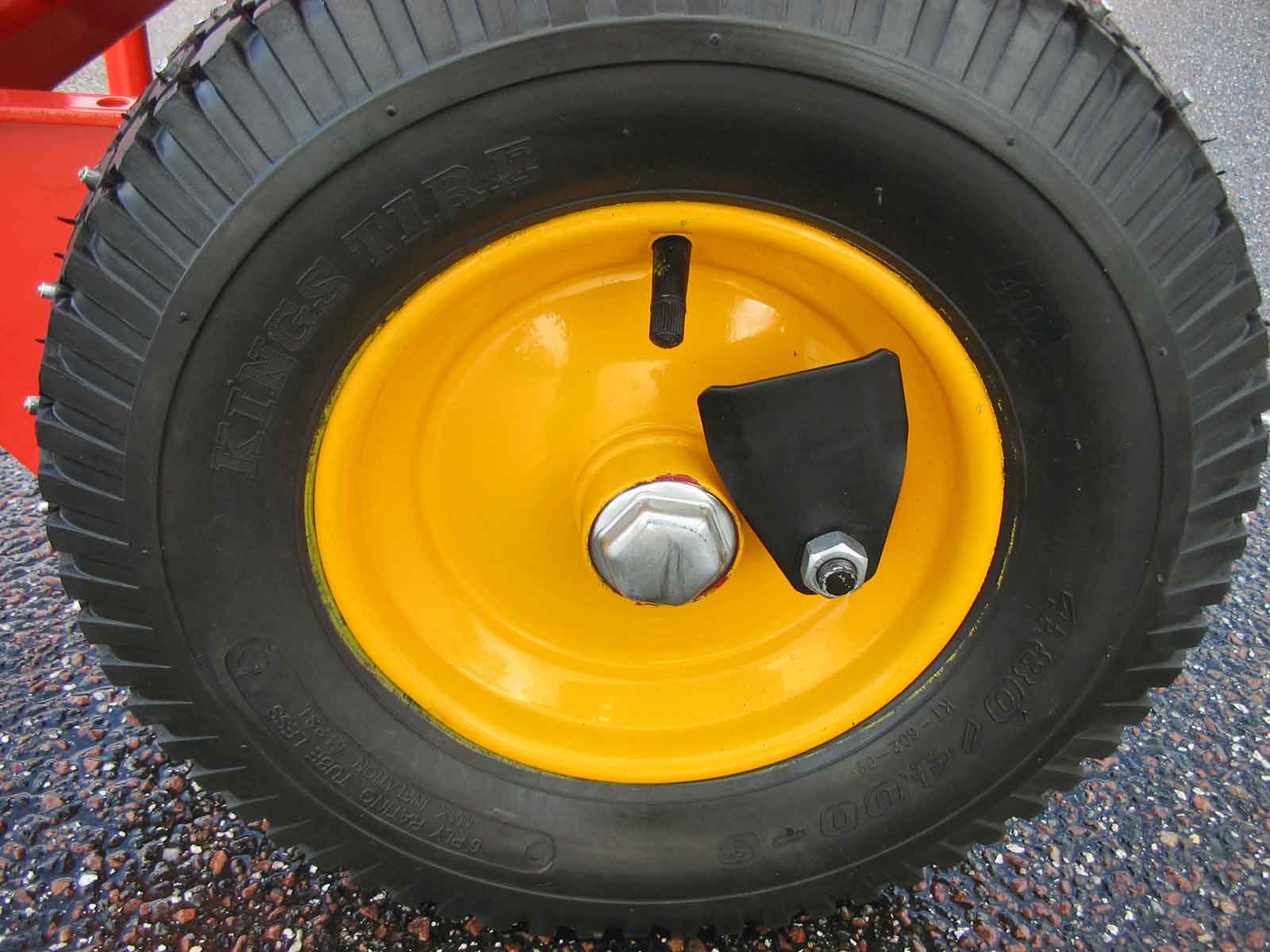

Lock outside

The lock on the traction wheel can easily be pulled out and turned down on the hubcap, so the machine does not lay out material during transport.

Button

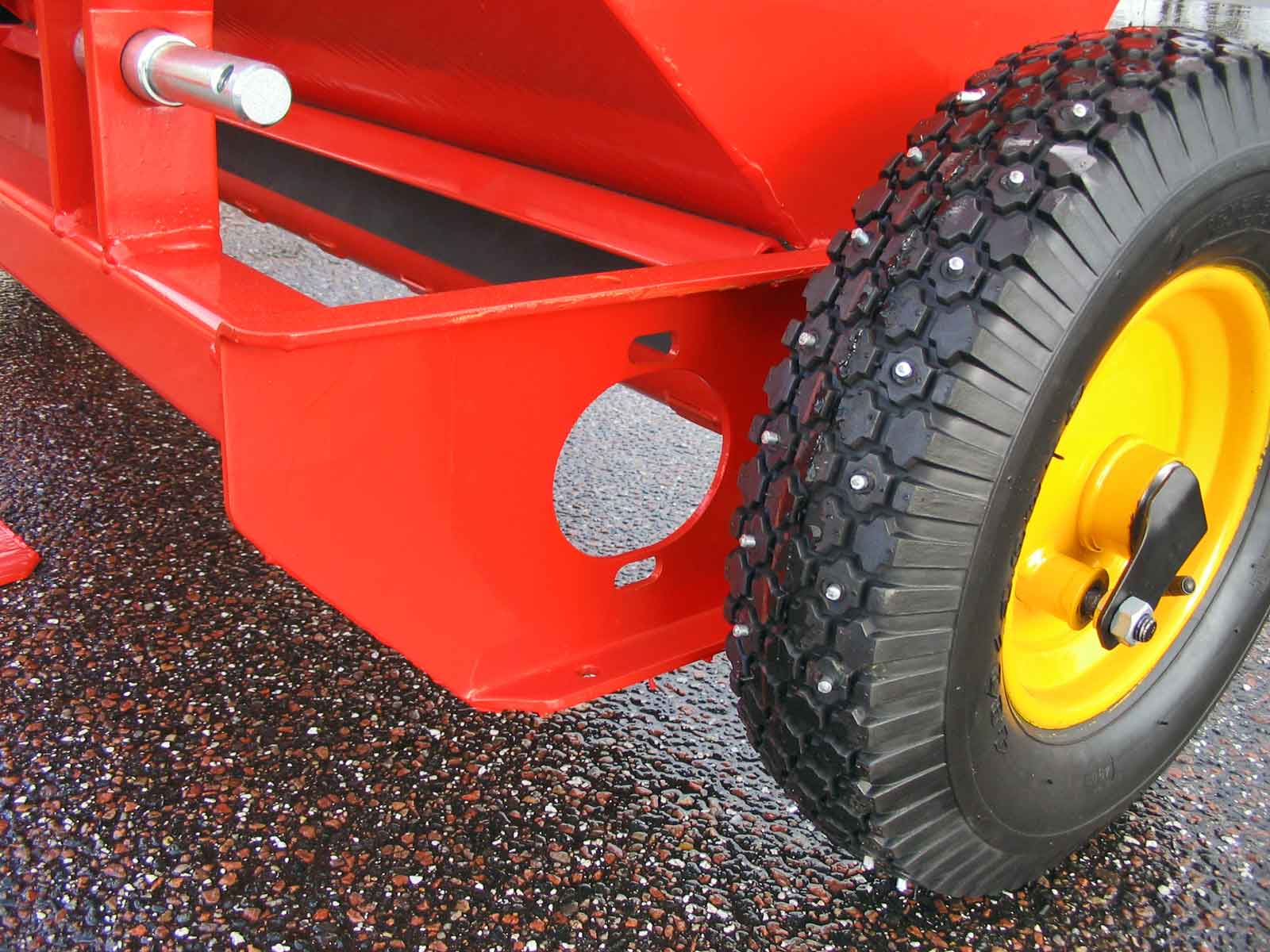

Traction wheels

The traction wheel of the SPR-250 is fitted with studded tyres as standard.

Button

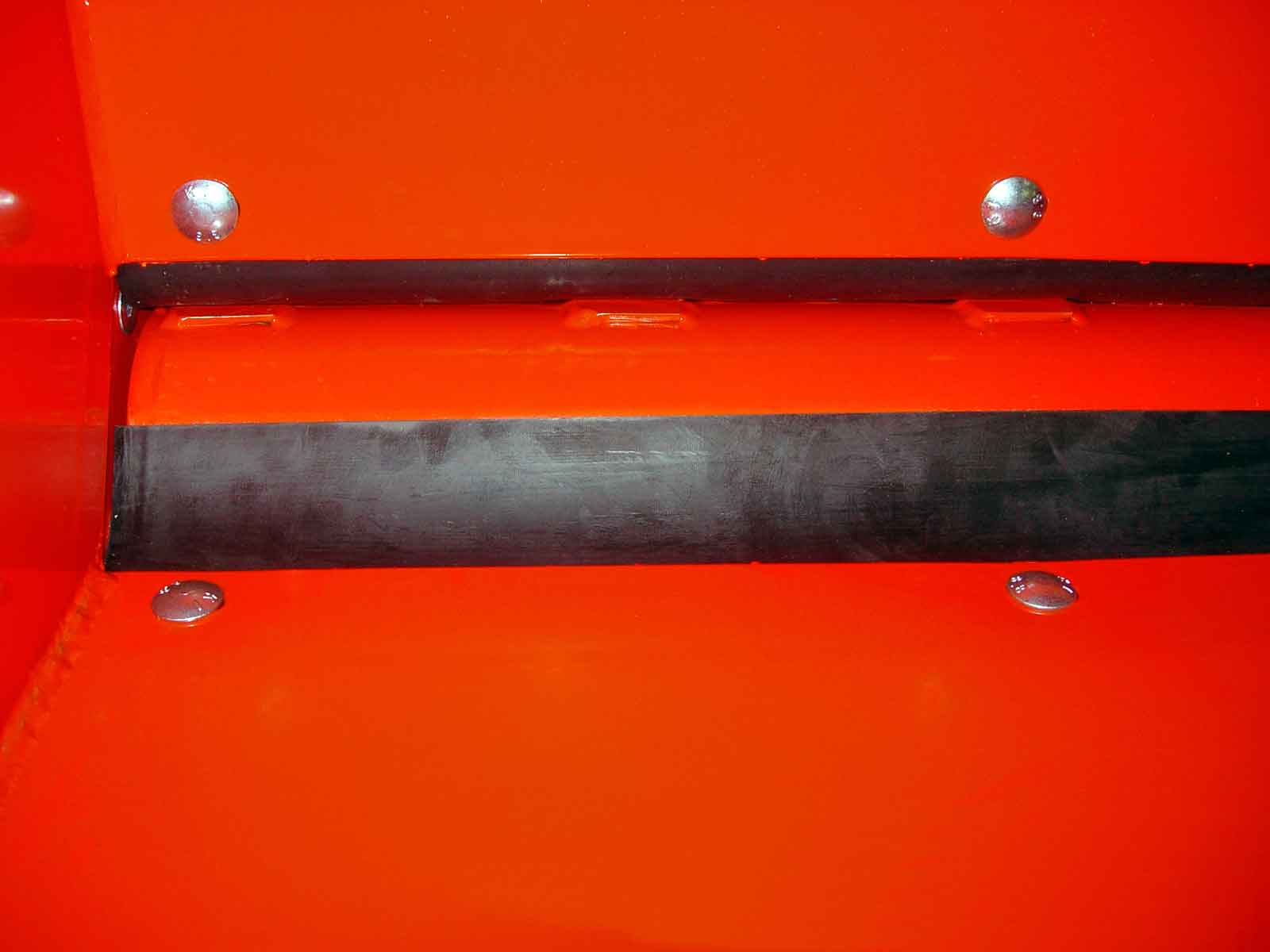

Roller

The roller of the spreader has 6 rows of knobs, which are staggered to achieve an even spreading of the material.

Button

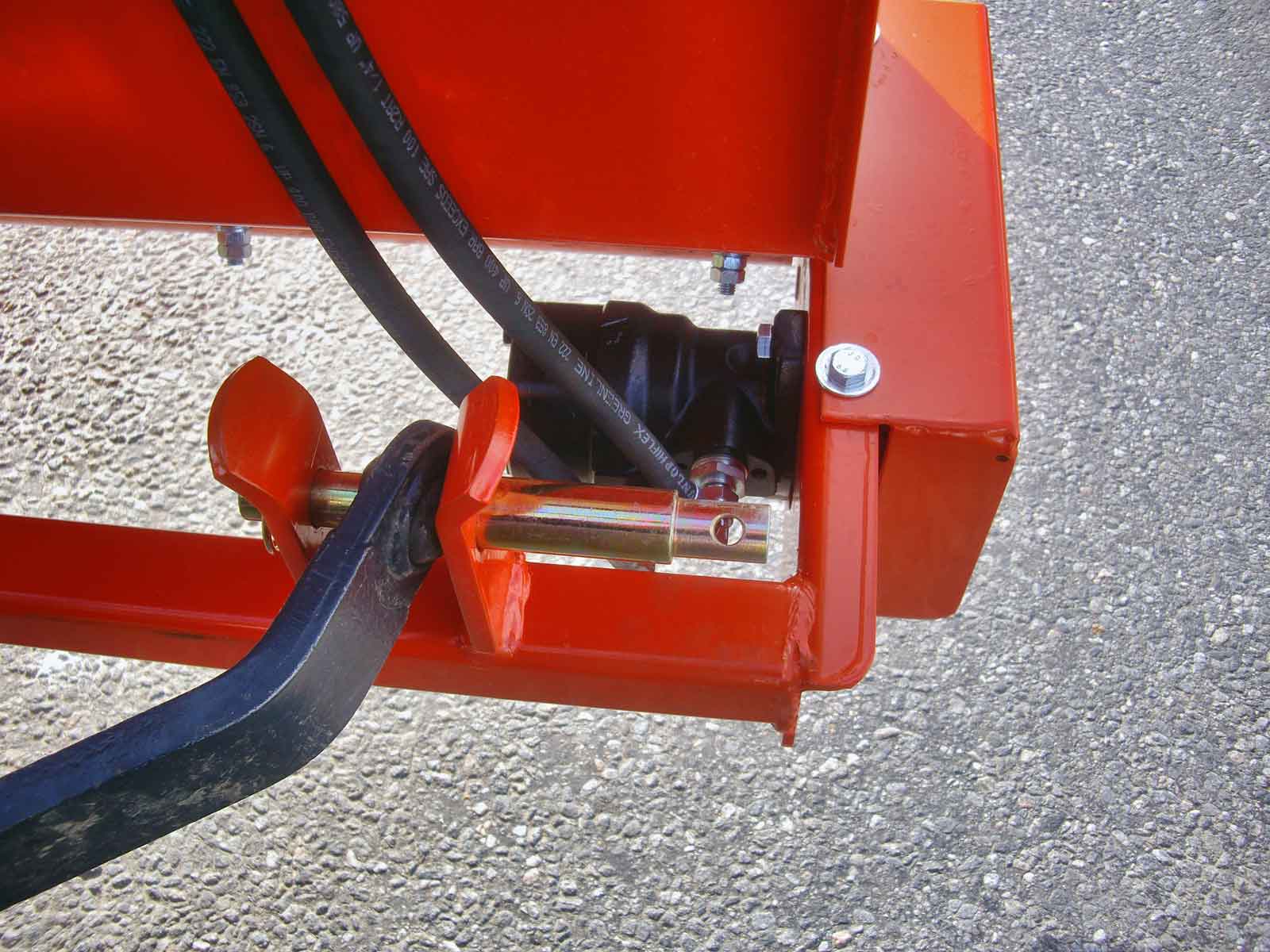

Oil engine

The SPR-250H has the same construction as the SPR-250, except that the wheels have been replaced with a hydraulic motor to drive the roller via the powerful chain drive.
