VK-7000 Log Splitter
Presentation
The VK-7000 log splitter is designed with a strong and compact structure, making the machine easy to transport wherever you need to split wood. Its robust construction makes it suitable for splitting logs from 20 to 70 cm in length and up to 50 cm in diameter.
It can split logs into 2 or 4 parts in the same operation through a simple adjustment. With a loading height of just 82 cm, it avoids the need for high, uncomfortable lifting of the logs.
Focus on Safety
The machine is equipped with important safety features, ensuring it meets the latest and strictest safety standards for log splitters. A sturdy safety screen and two-hand operation minimize the risk of accidents during use.
Technical Data:
| Technical Data | VK-7000 |
|---|---|
| Max. splitting force | 7 tons |
| Min. splitting force | 2.2 tons |
| Splitting length | 20–70 cm |
| Splitting diameter | Max. 50 cm |
| Max. pressure | 200 bars |
| Max. flow | 30 l/min |
| Knife setting | 2/4 |
| Knife adjustment | Mechanical |
| 3-point hitch | Cat. II |
| Weight | 245 kg |
Details:

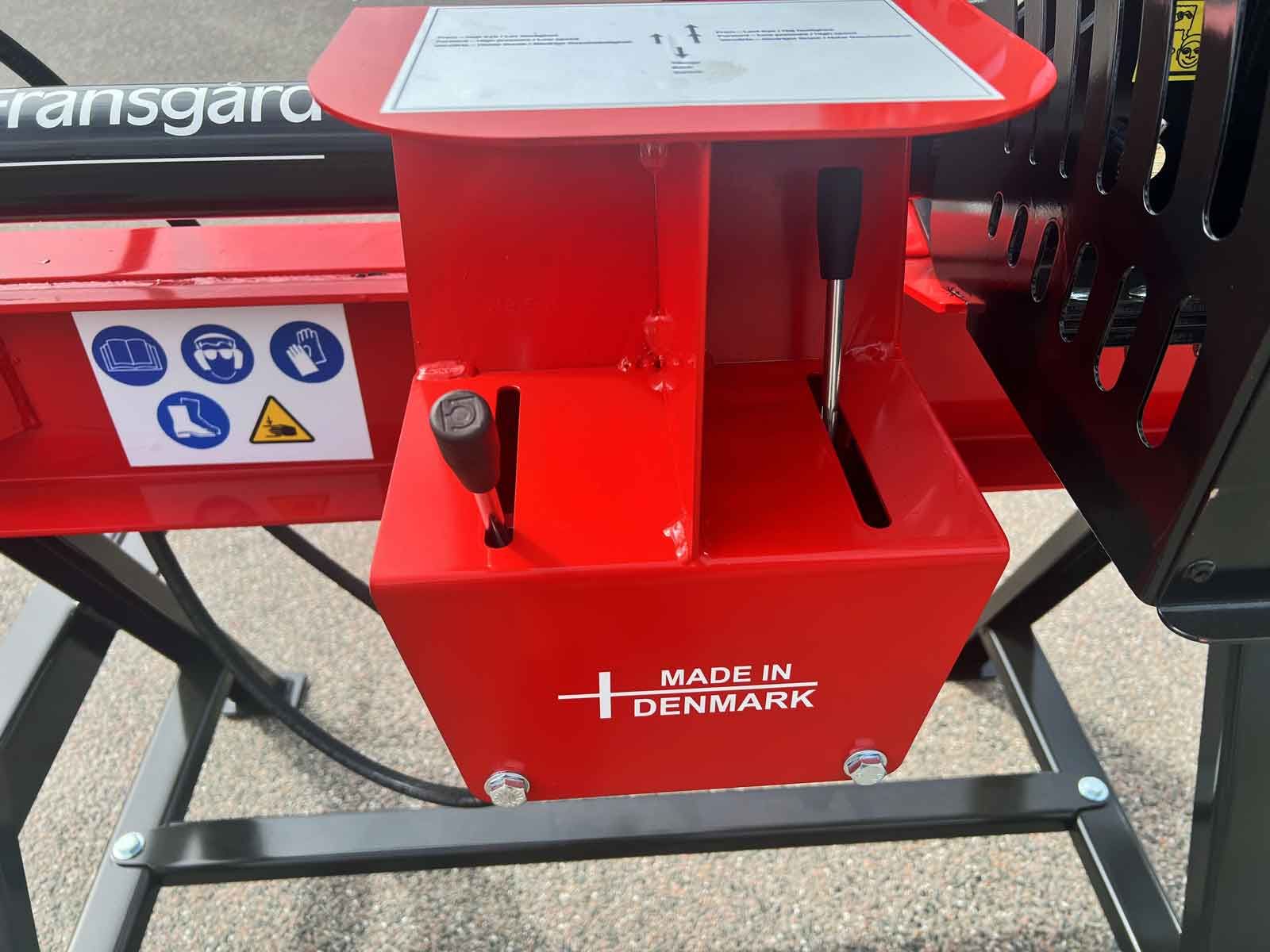

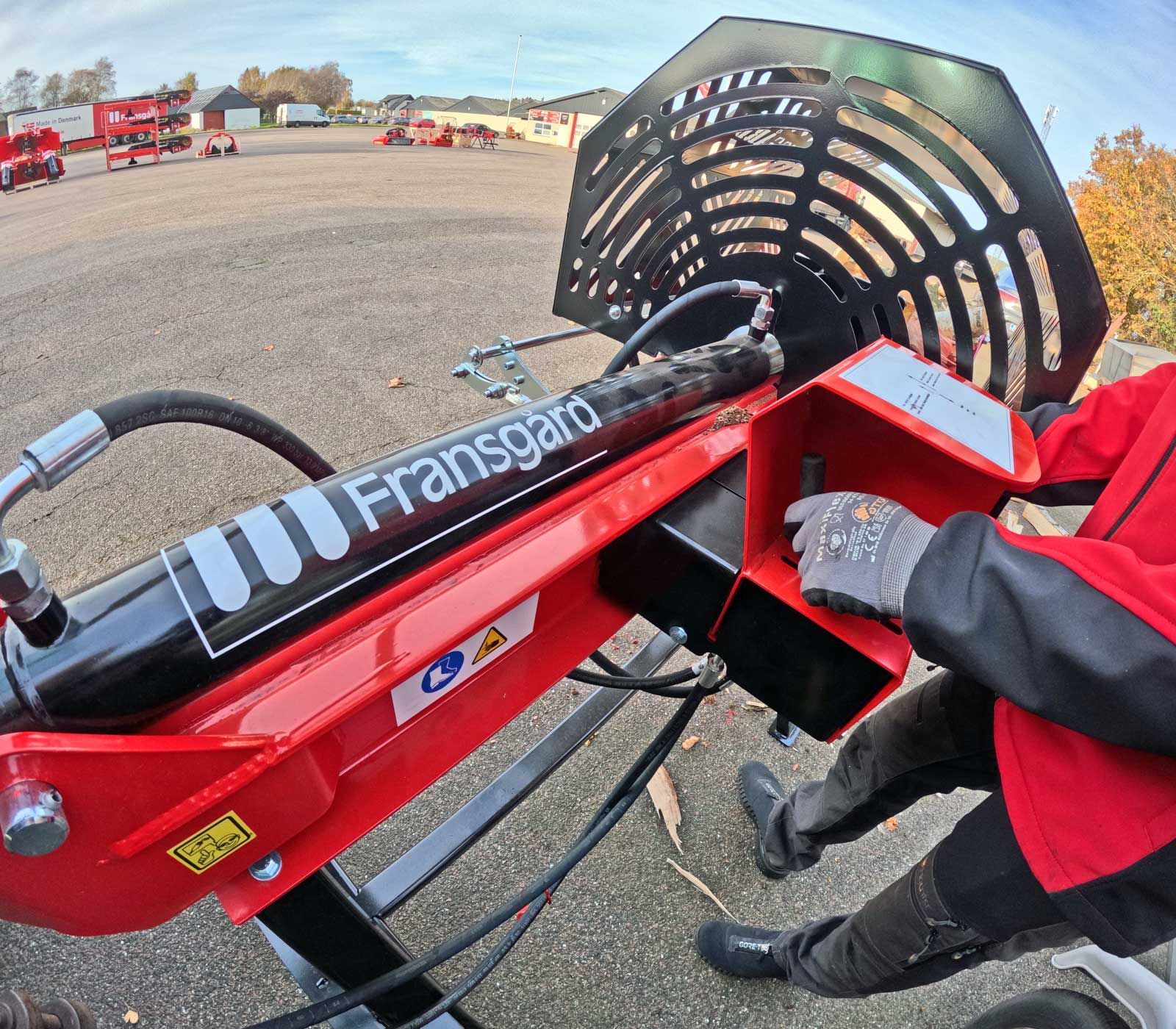

Control Levers
The machine can only be activated with two hand grips operated simultaneously. This solution enhances safety during use.

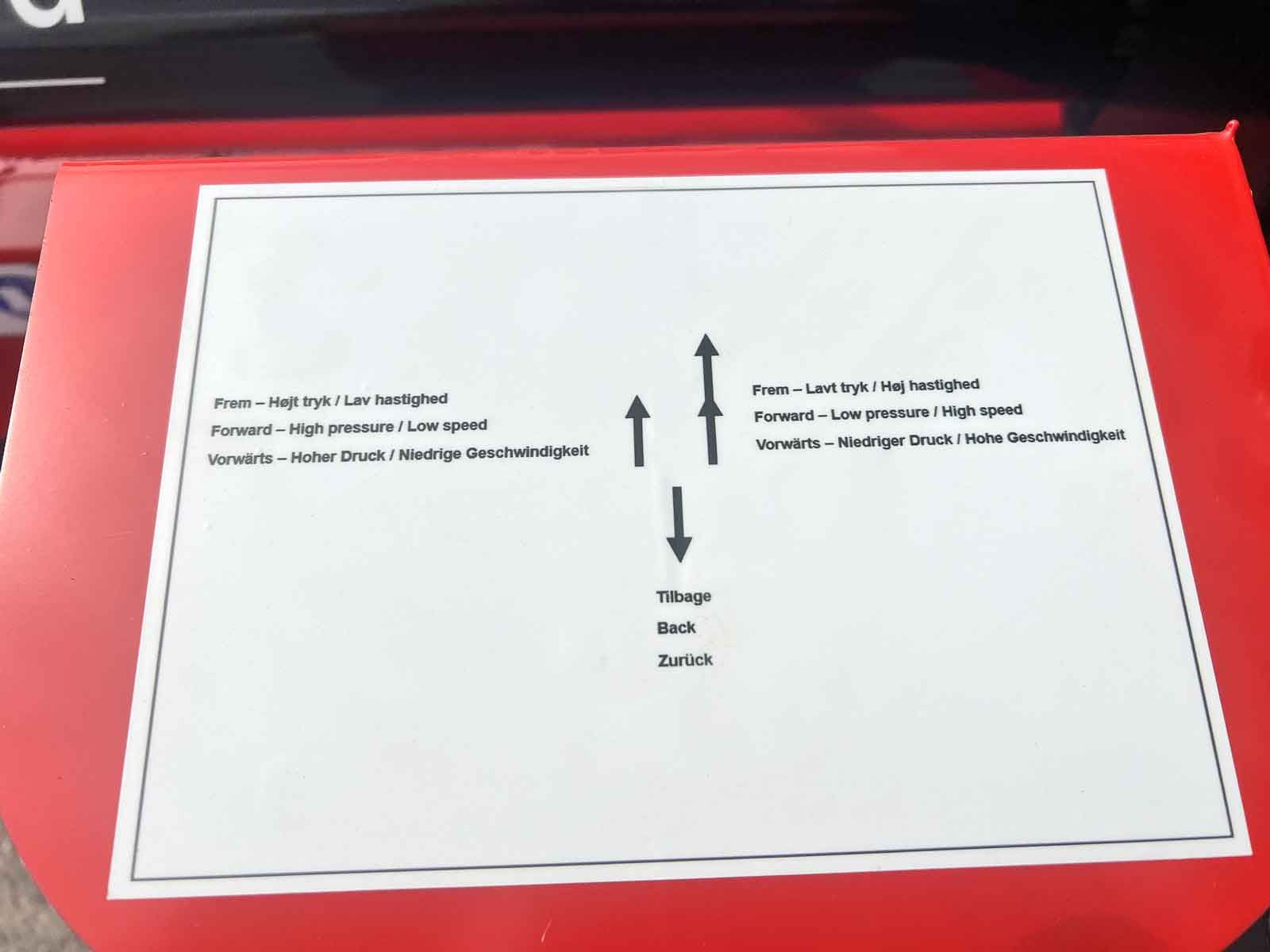

Splitting Valve Functionality:
- Pos. 0: Neutral position.
- Pos. 1: Splitting operation at maximum pressure
- Pos. 2: Return to Pos. 0.
- Pos. 3: Fast operation at minimum pressure.

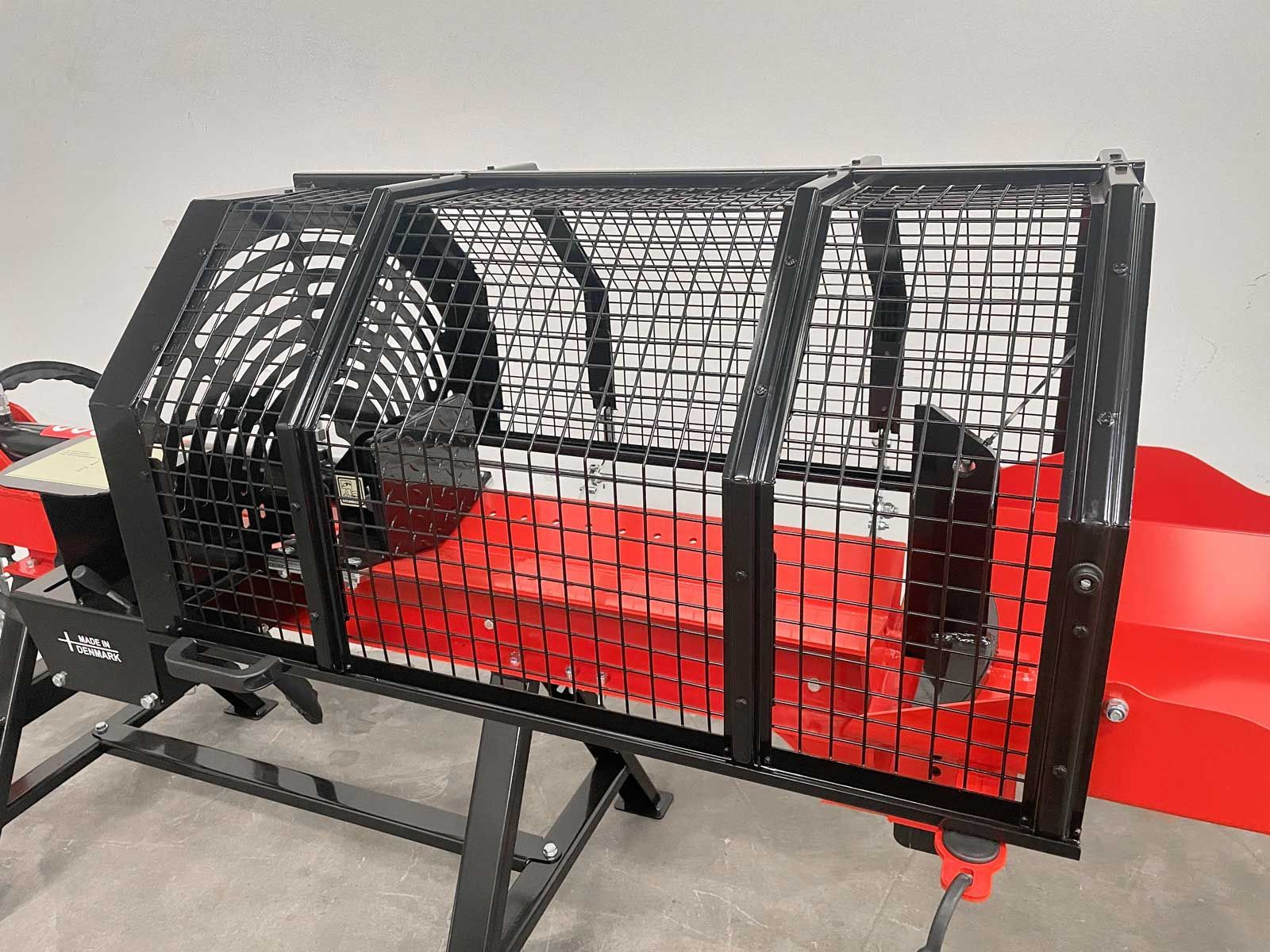

Safety Screen
The sturdy safety screen with cut-outs provides the highest level of safety during operation. The splitter cannot be activated unless the safety screen is closed. The cut-outs provide clear visibility of the splitting process.
Sturdy Mounting System
The safety cover is mounted on a robust system supported by a gas cylinder, holding the cover in an open position when necessary.

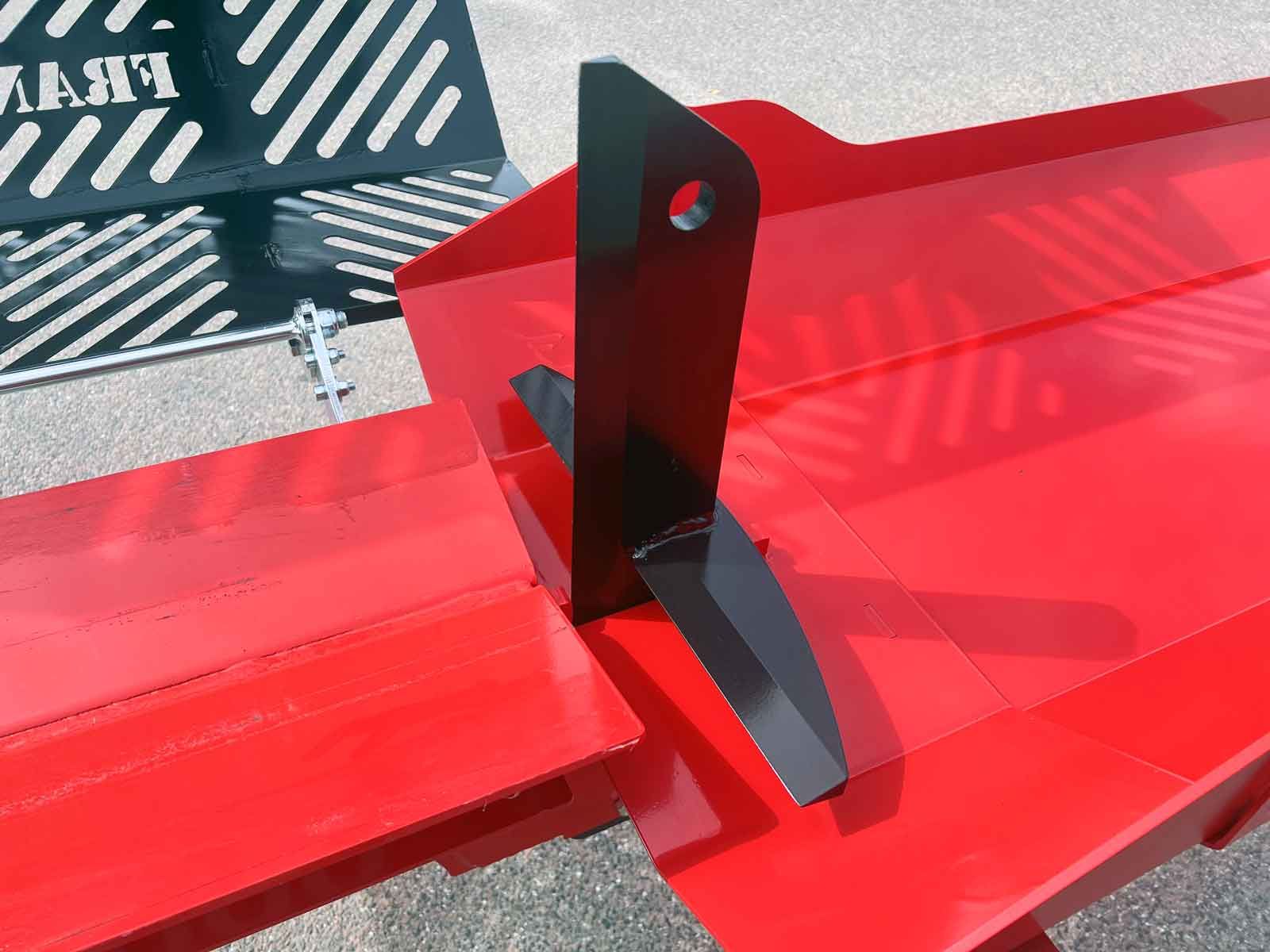

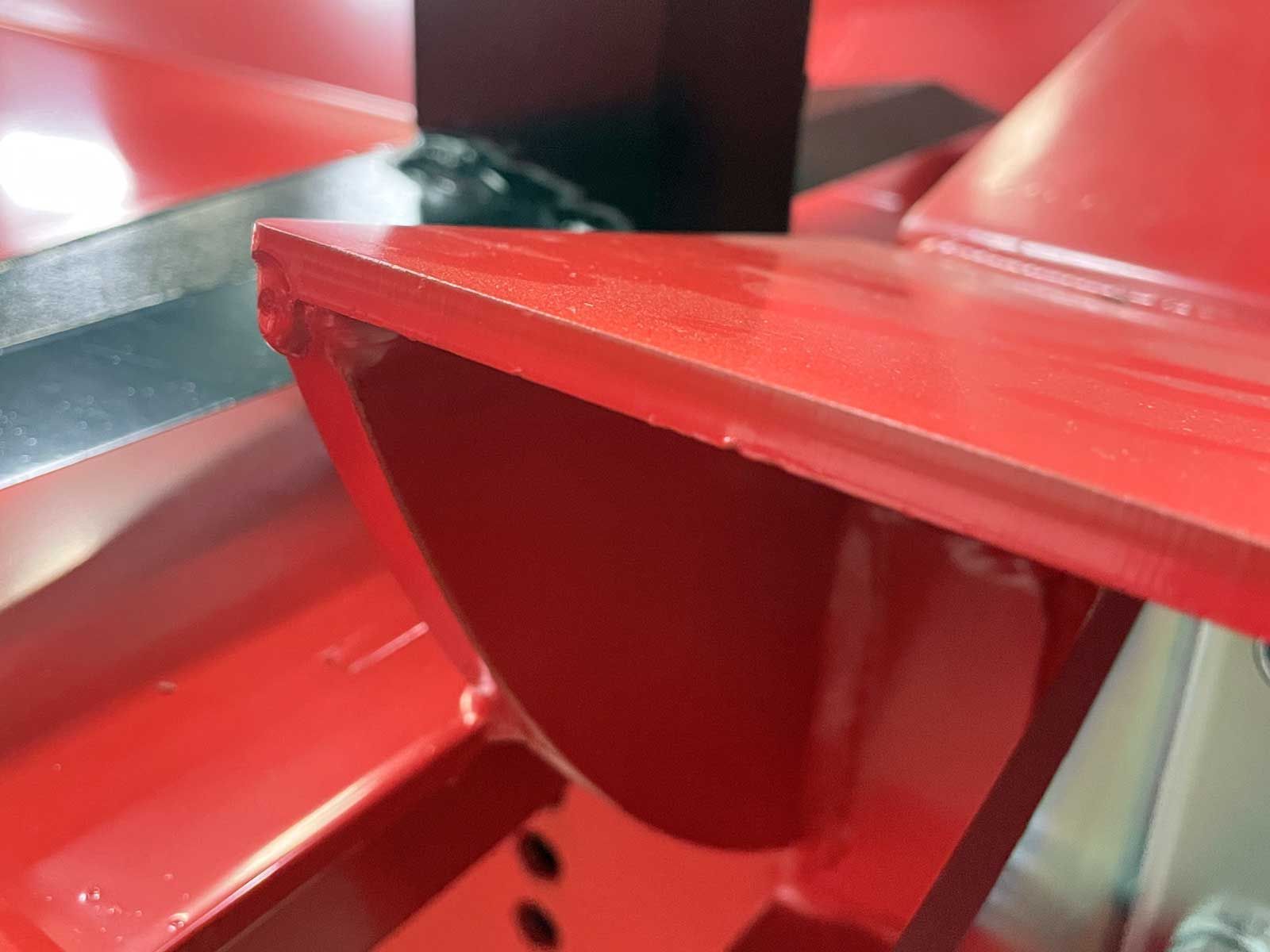

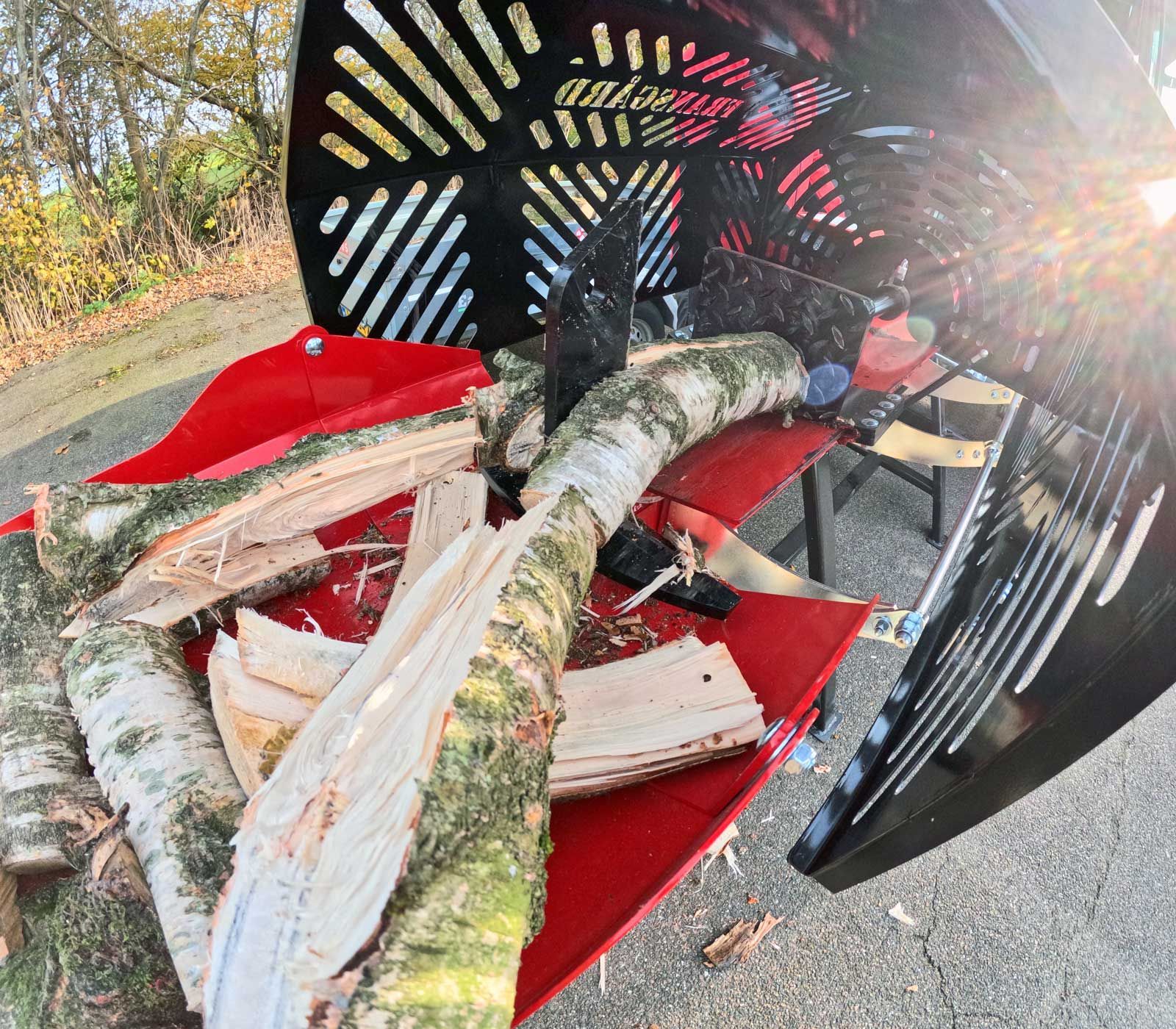

Splitting Knife
The solid knife ensures efficient splitting of the logs. Its heavy-duty construction guarantees stable and consistent operation.

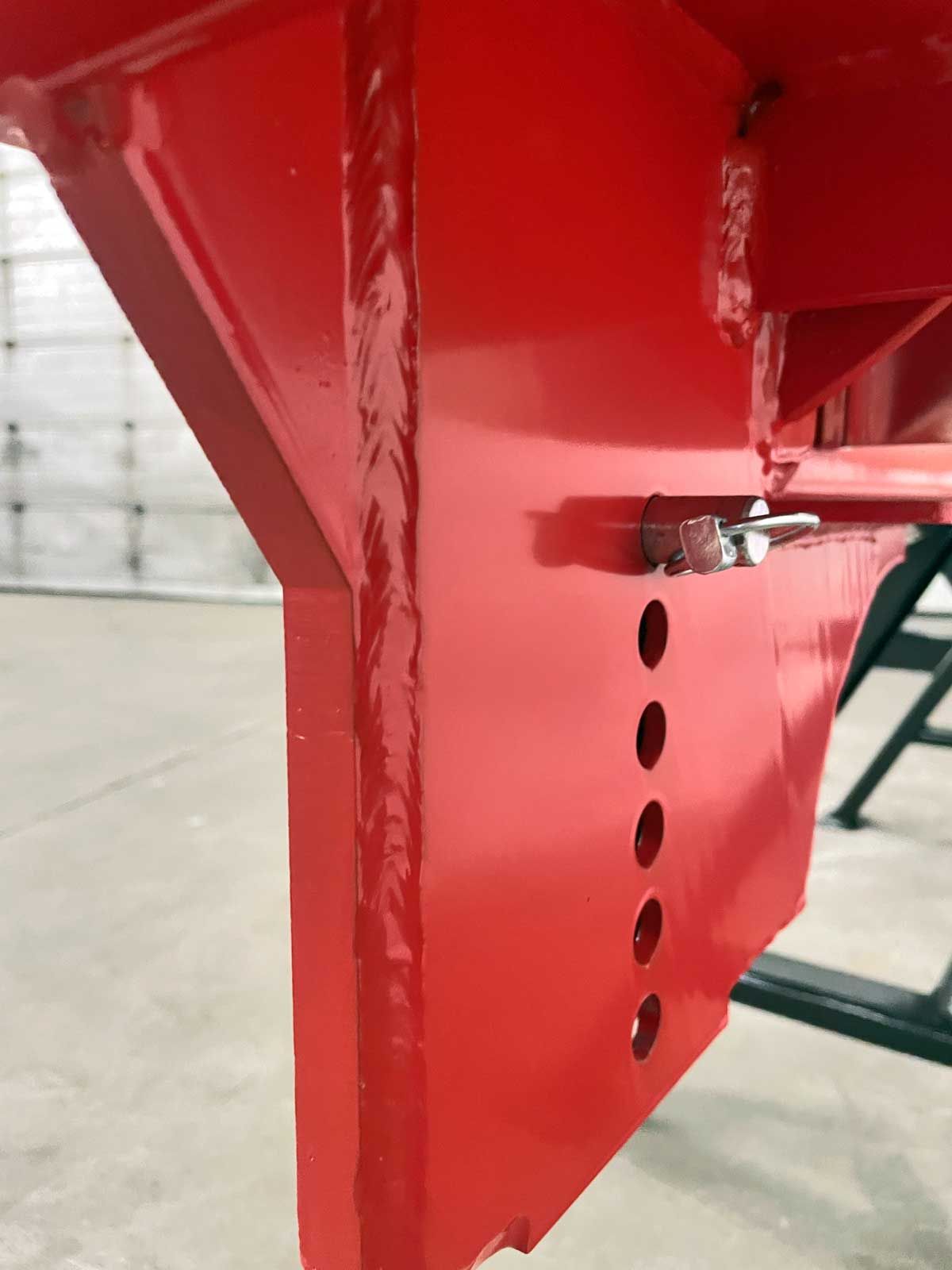

2- or 4-Part Wood Splitting
The splitting knife can be mechanically adjusted to split wood into 2 or 4 parts by removing a bolt, lifting the knife, and refitting the bolt at the desired height.

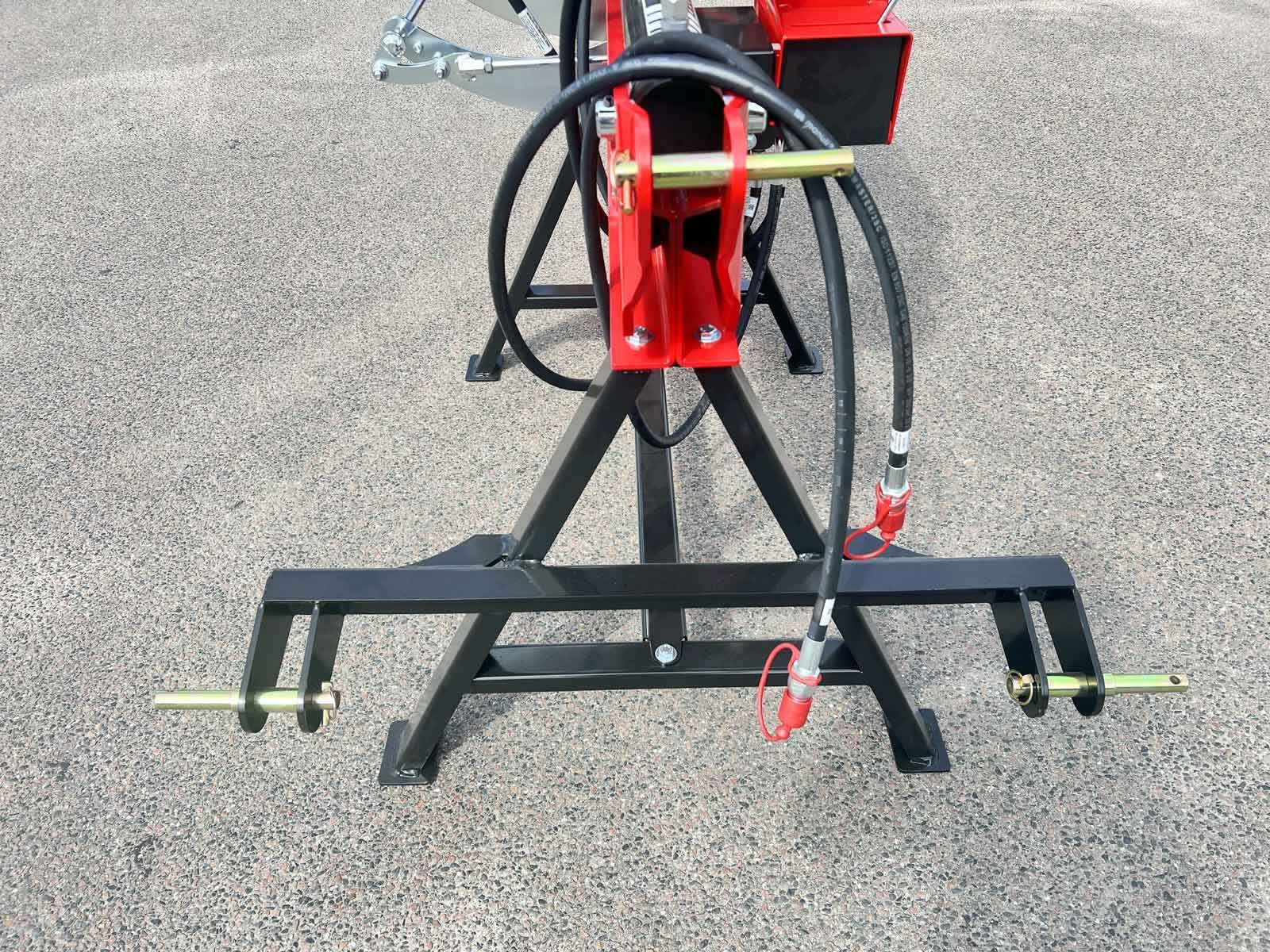

3-Point Suspension Cat. II
The 3-point suspension allows the log splitter to be easily transported to the desired working area using a tractor. Its compact design ensures easy transport..
Hydraulic Hoses
The machine connects to the tractor's hydraulic outlets.

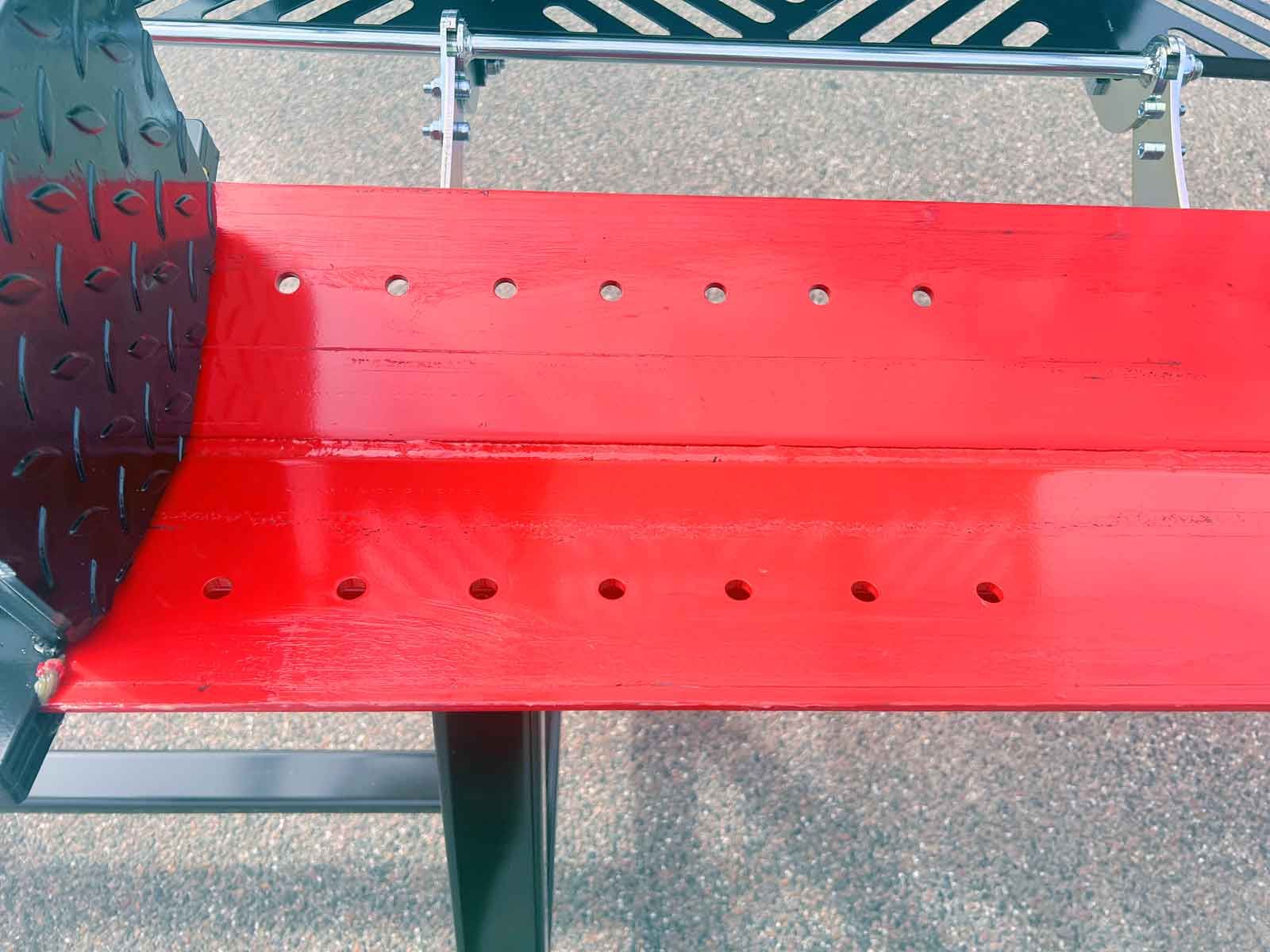

Multiple Settings
The VK-7000 splits logs up to 700 mm in length. It offers fast forward and return speeds for shorter logs. Shorter stops can be set by installing bolts at the base of the splitting plate.

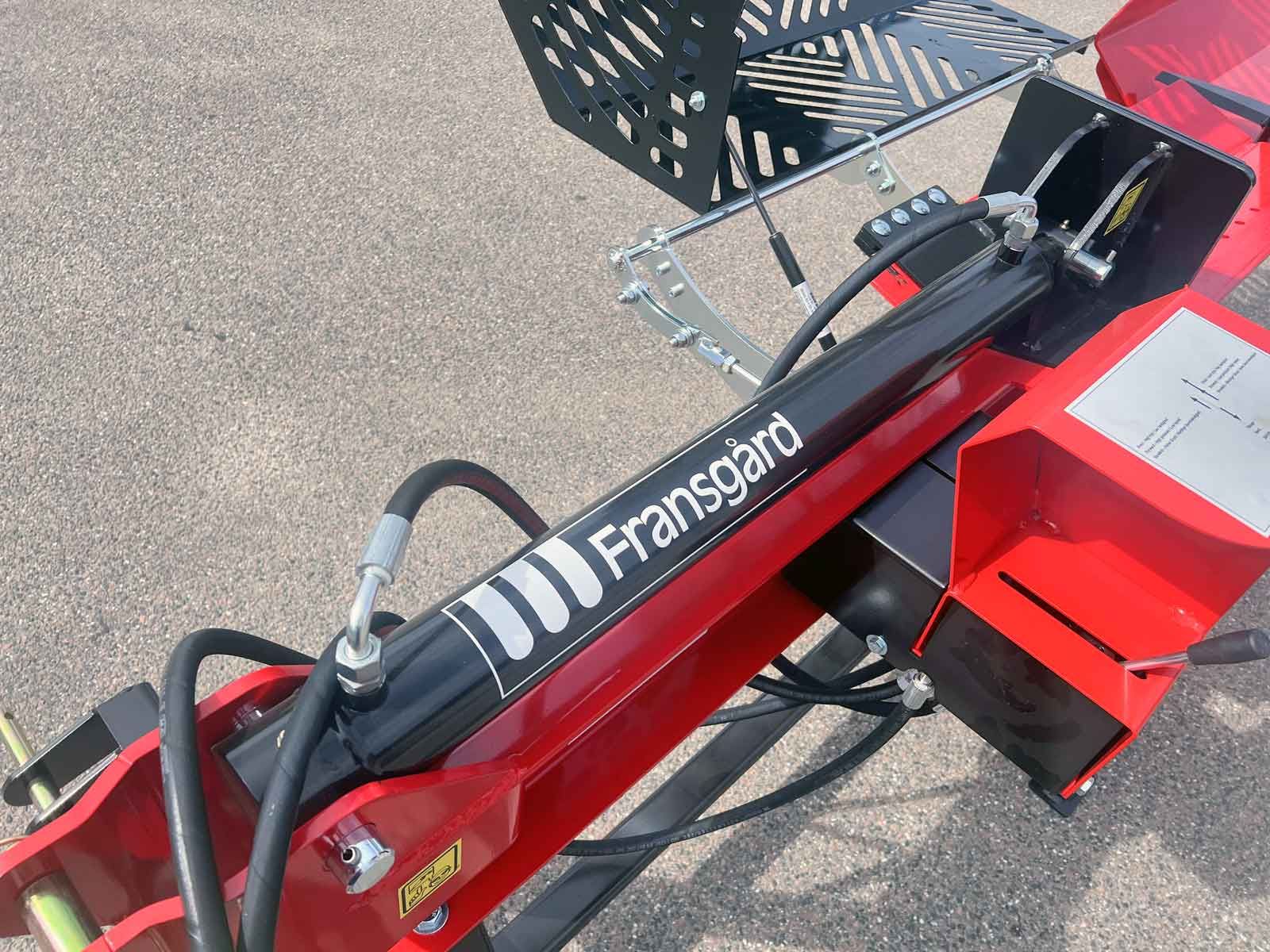

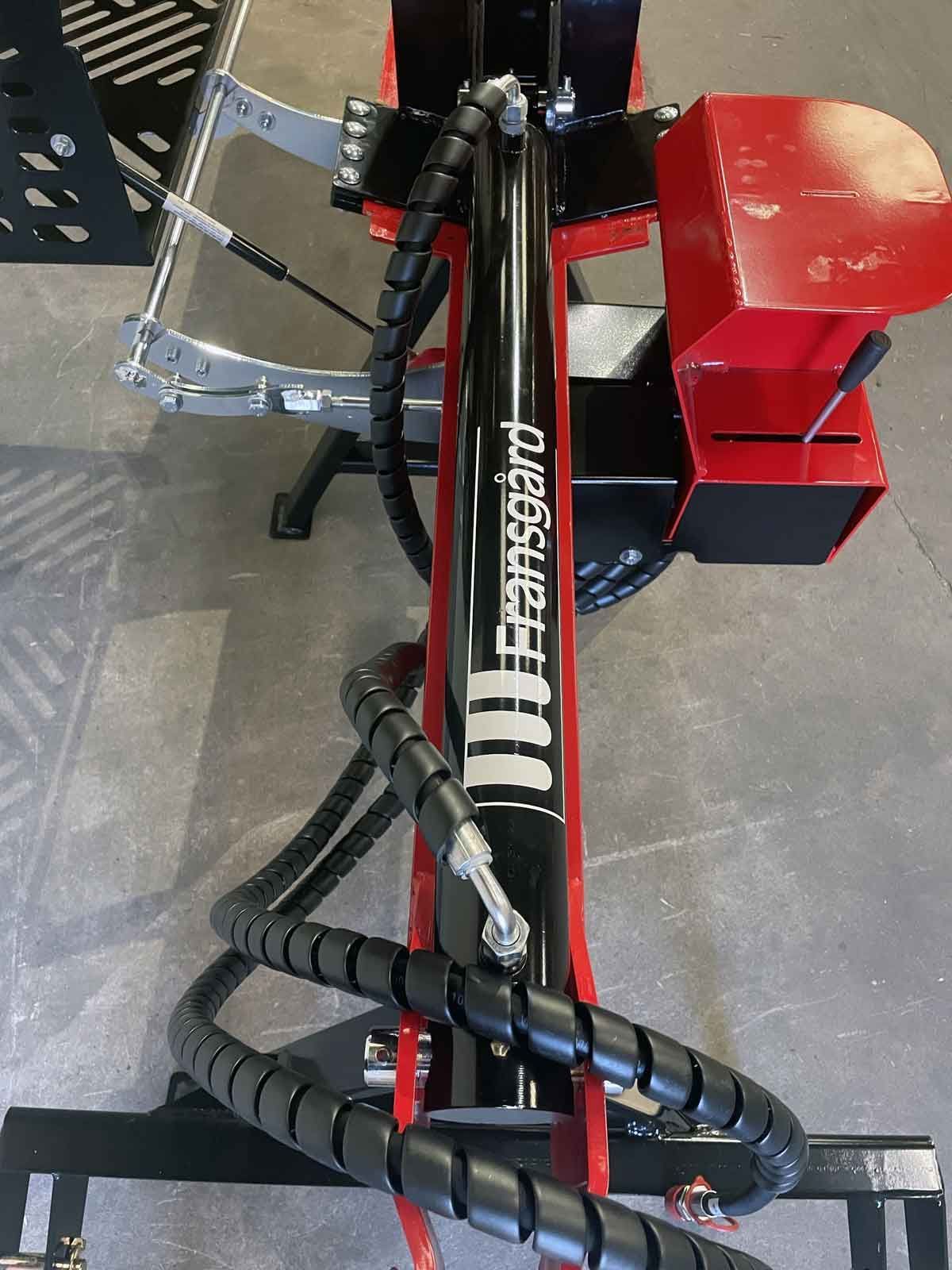

Hydraulic Cylinder
The powerful hydraulic cylinder delivers solid pressure to split the logs against the knife.

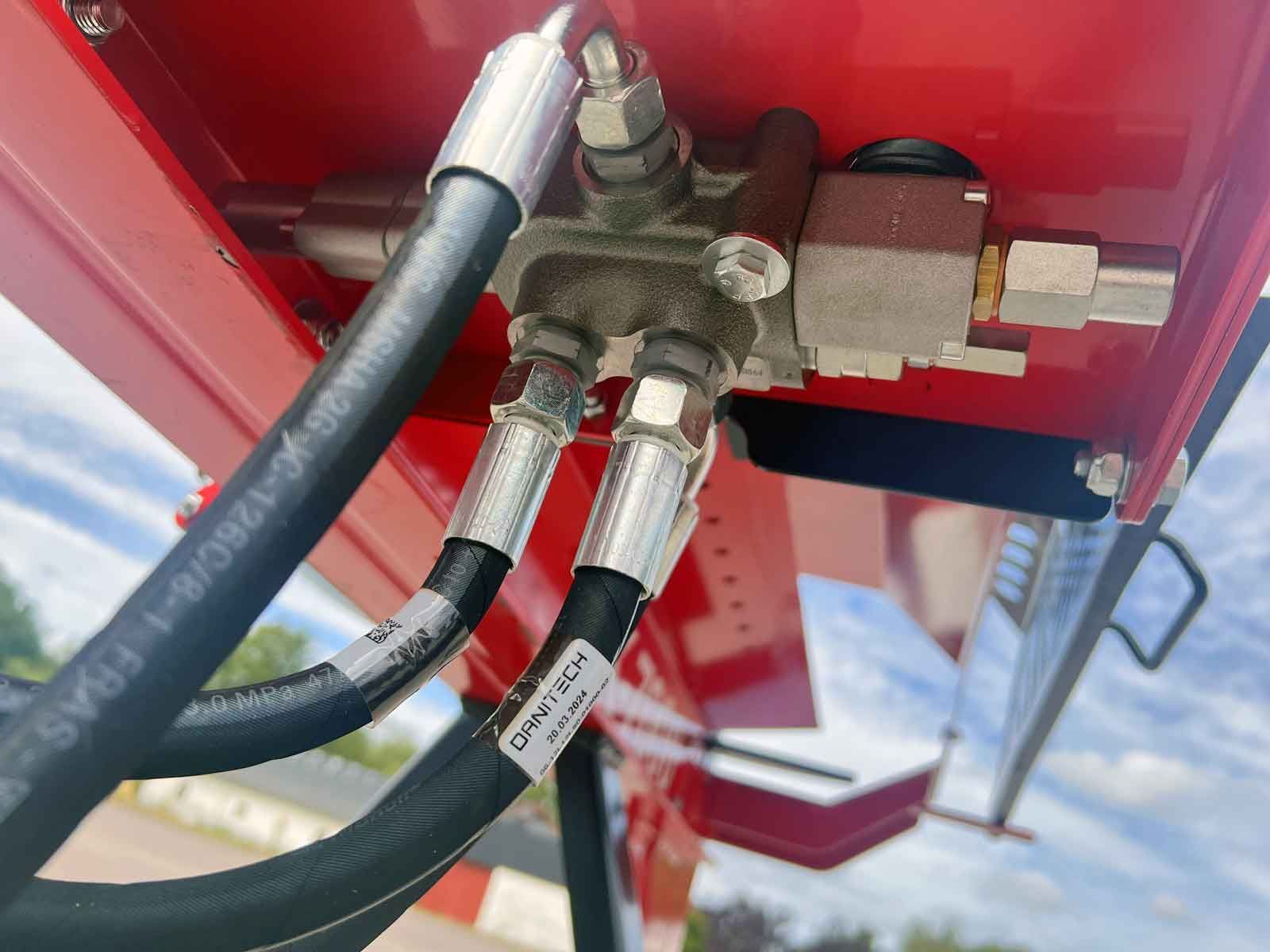

Hydraulic Valve
The valve ensures consistent pressure.

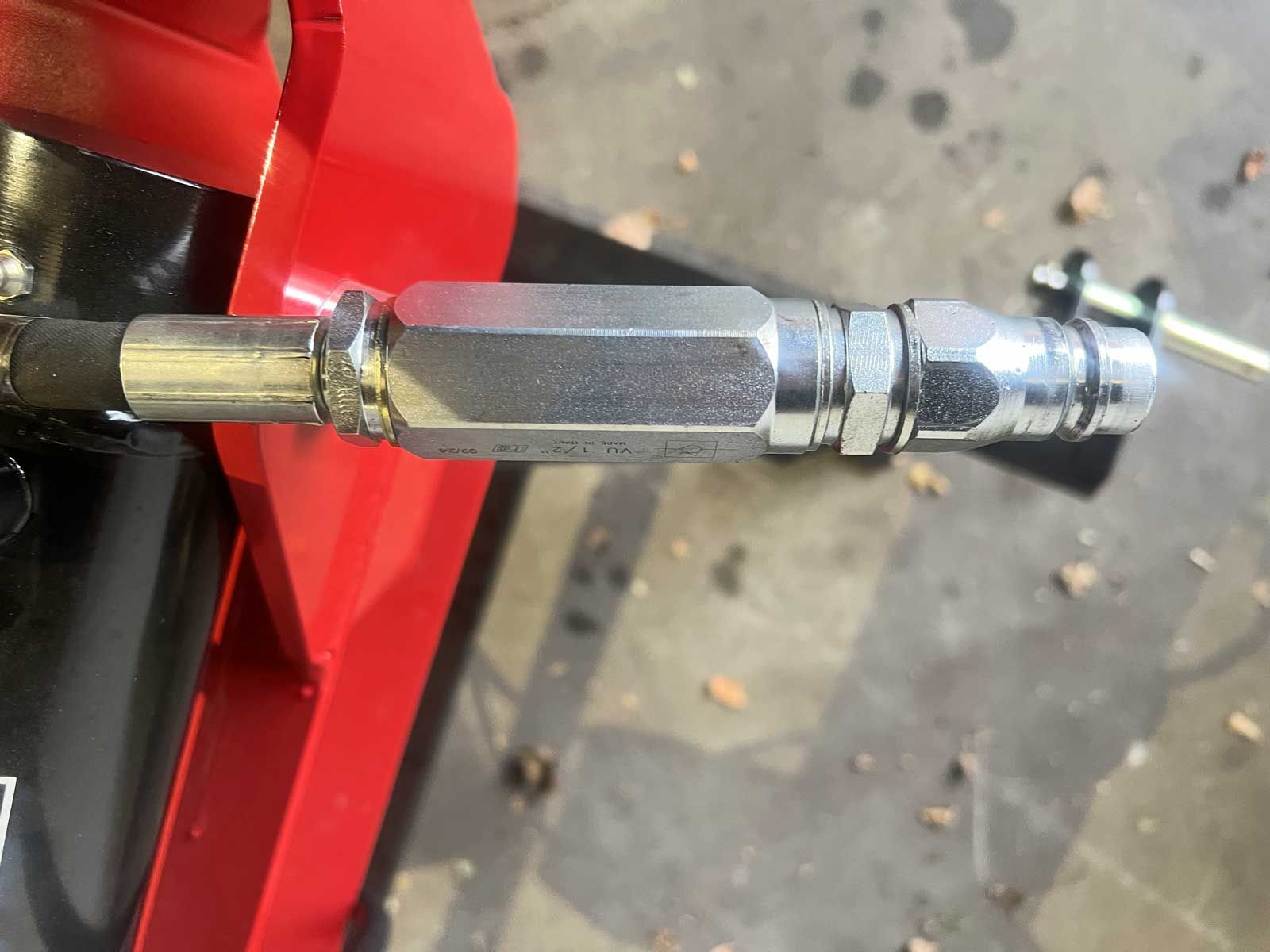

Non-return valve
Non-return valve ensures that the hydraulics are not connected incorrectly.

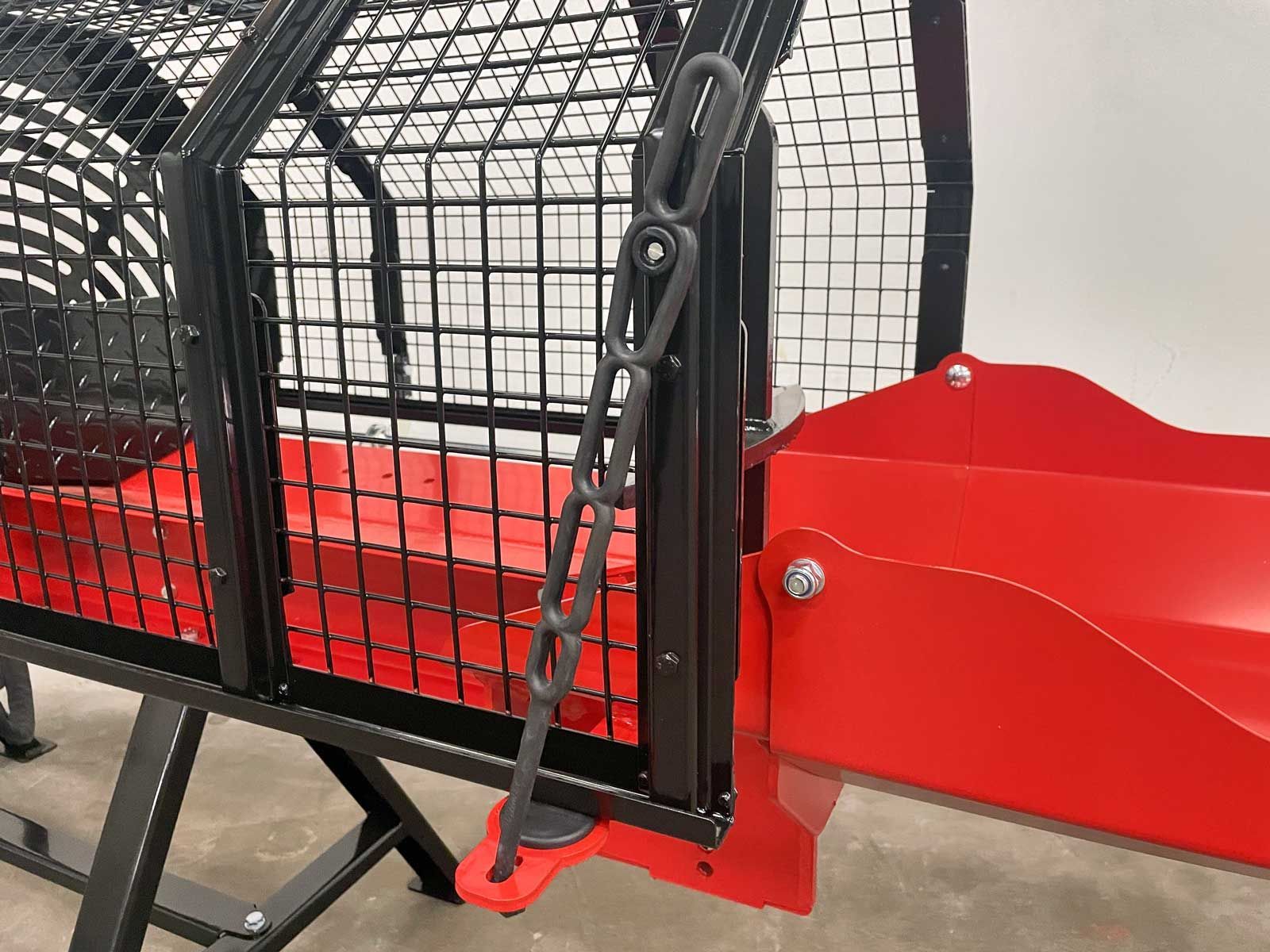

Rubber strap
The rubber strap secures the grid during transport.

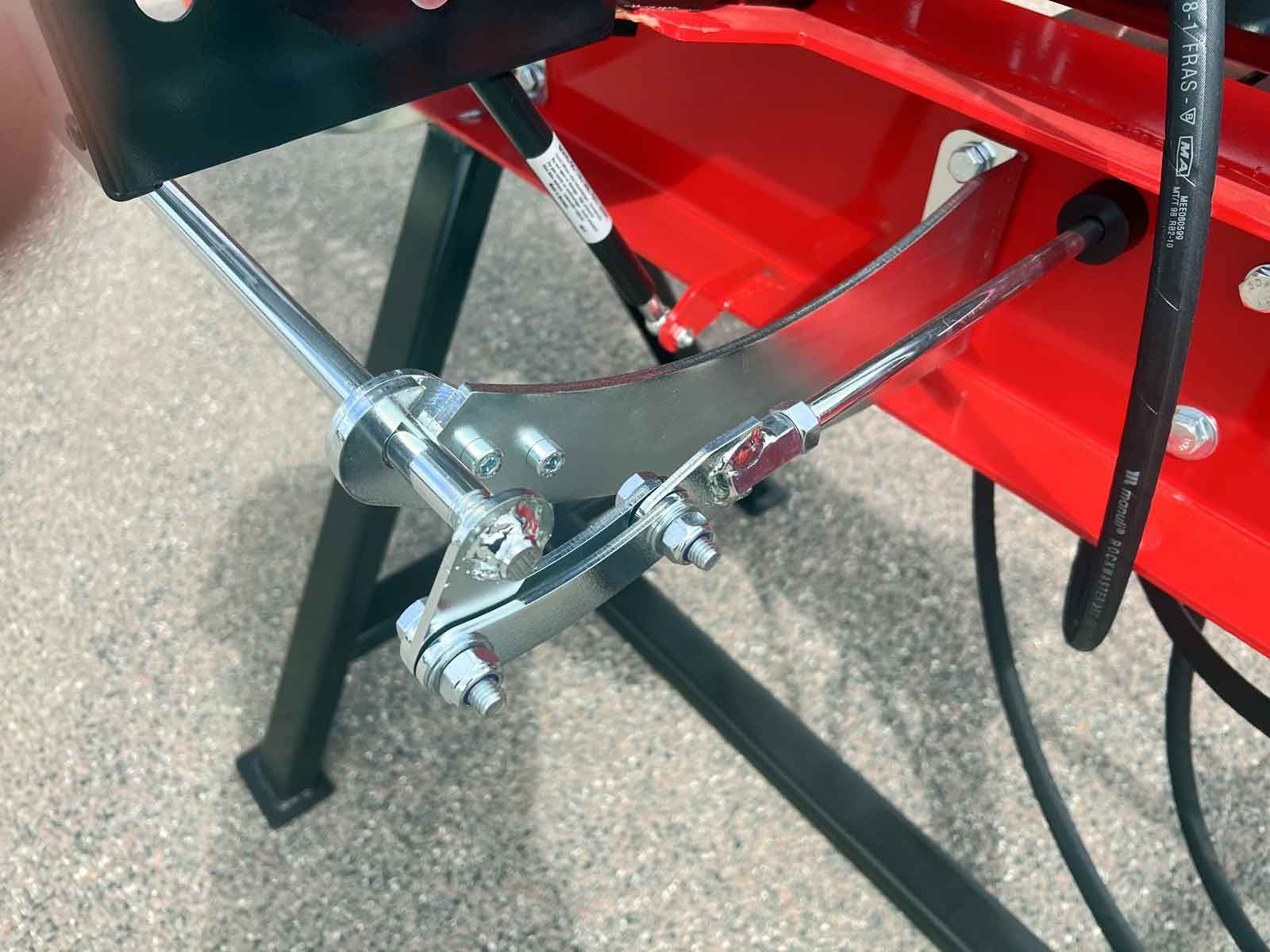

Mounting Brackets
The safety screen is securely mounted on a simple, functional bracket.

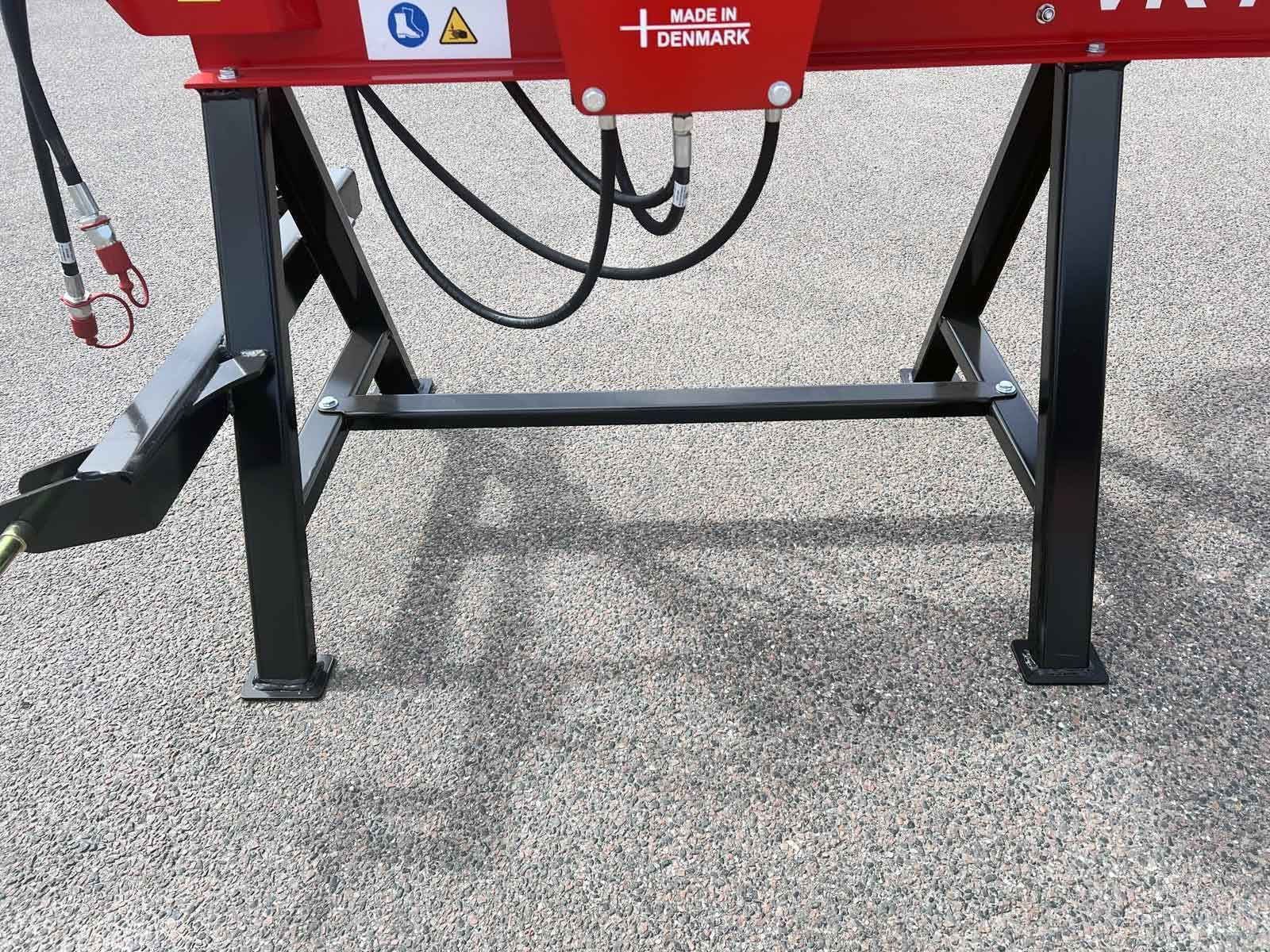

Sturdy Stand
The machine rests on a sturdy stand while operating or in storage.

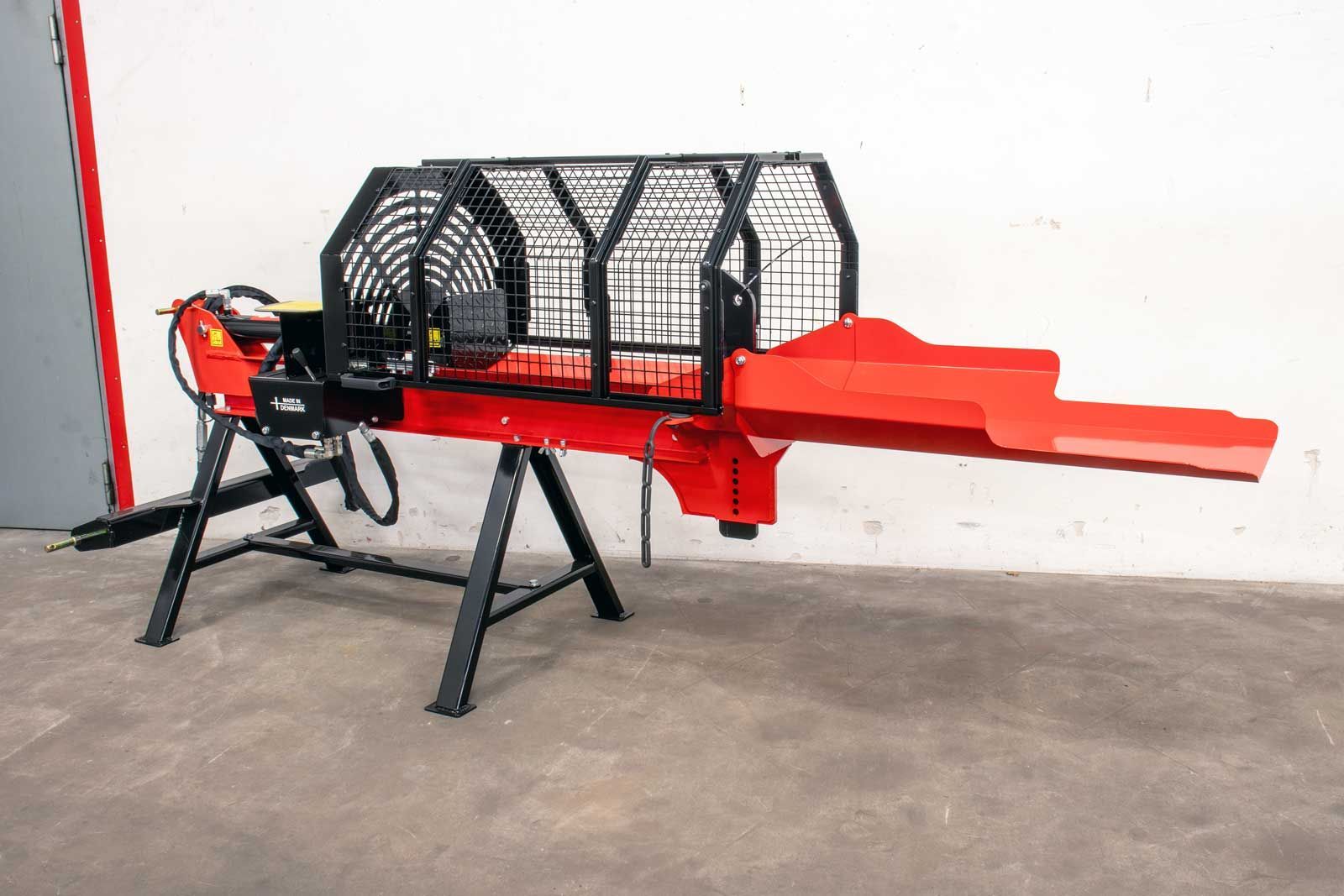

Extended Machine
The VK-7000 log splitter extended into working position.

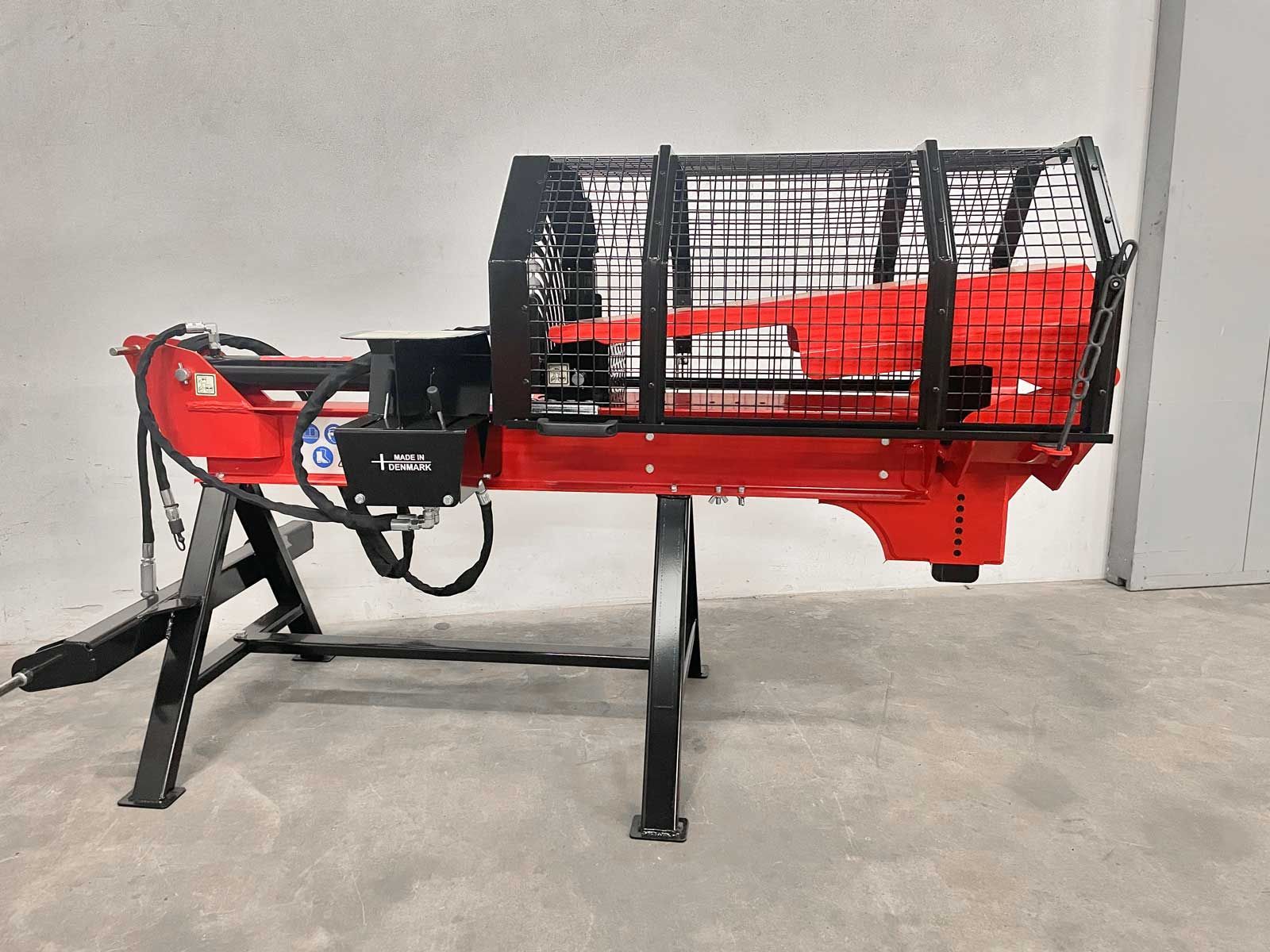

Folded Machine
The VK-7000 log splitter is compact and easy to move around.

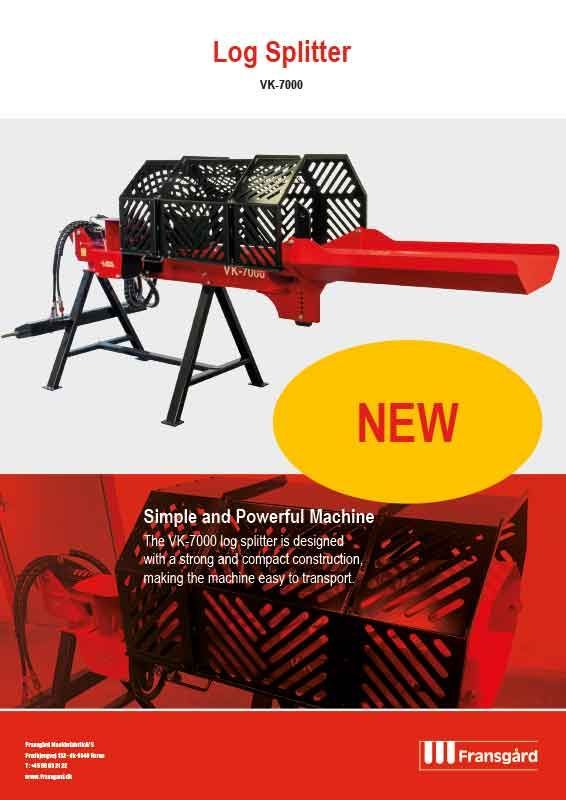

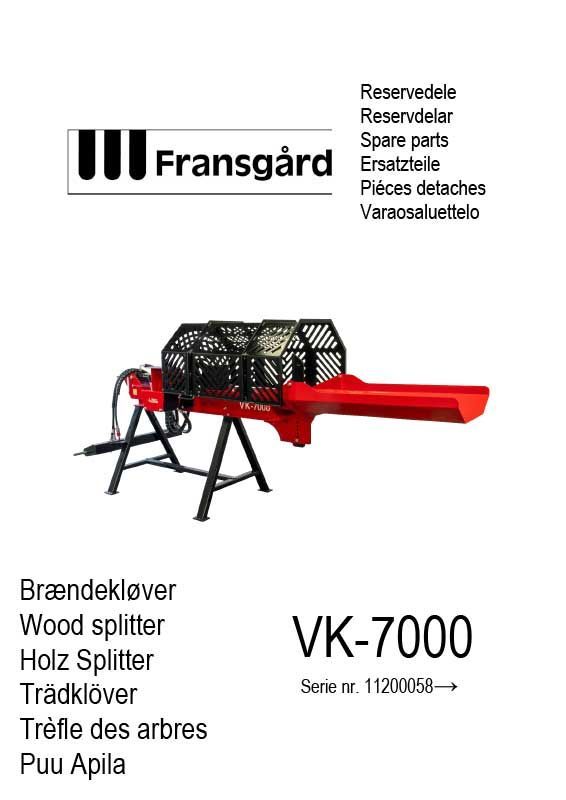

Download PDF Files
View our informational material here, where you can also read it online, print, or download the file.

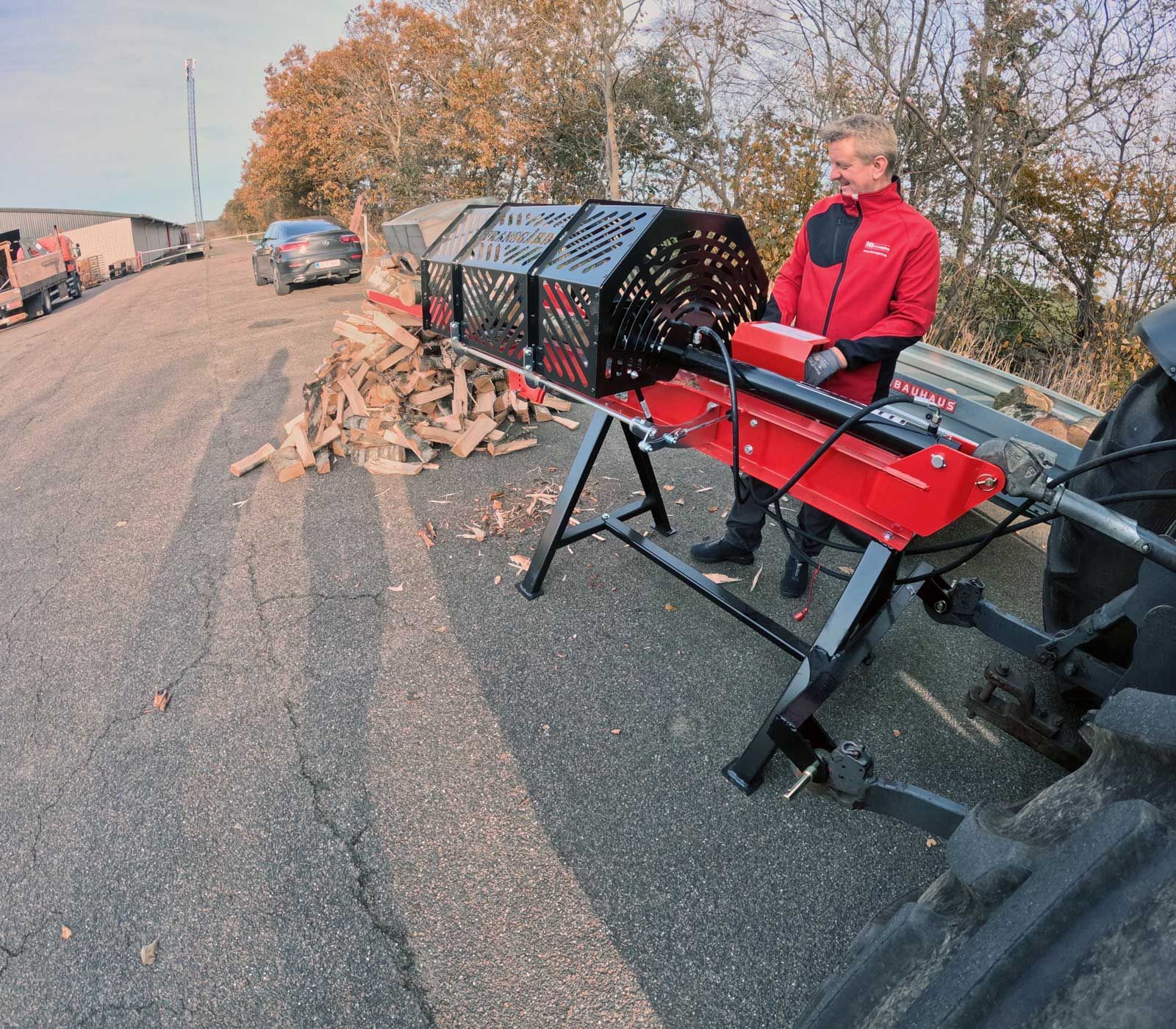

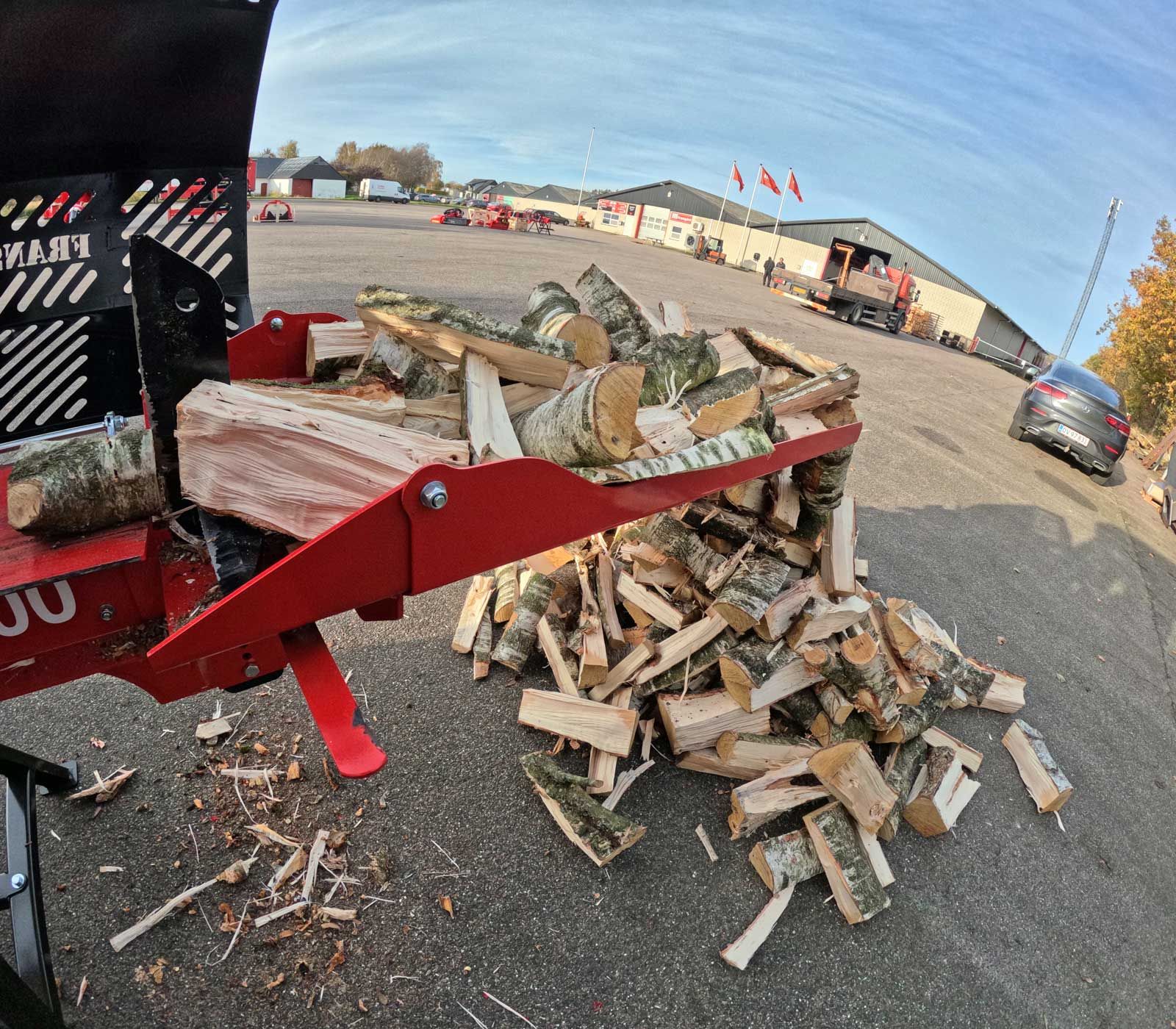

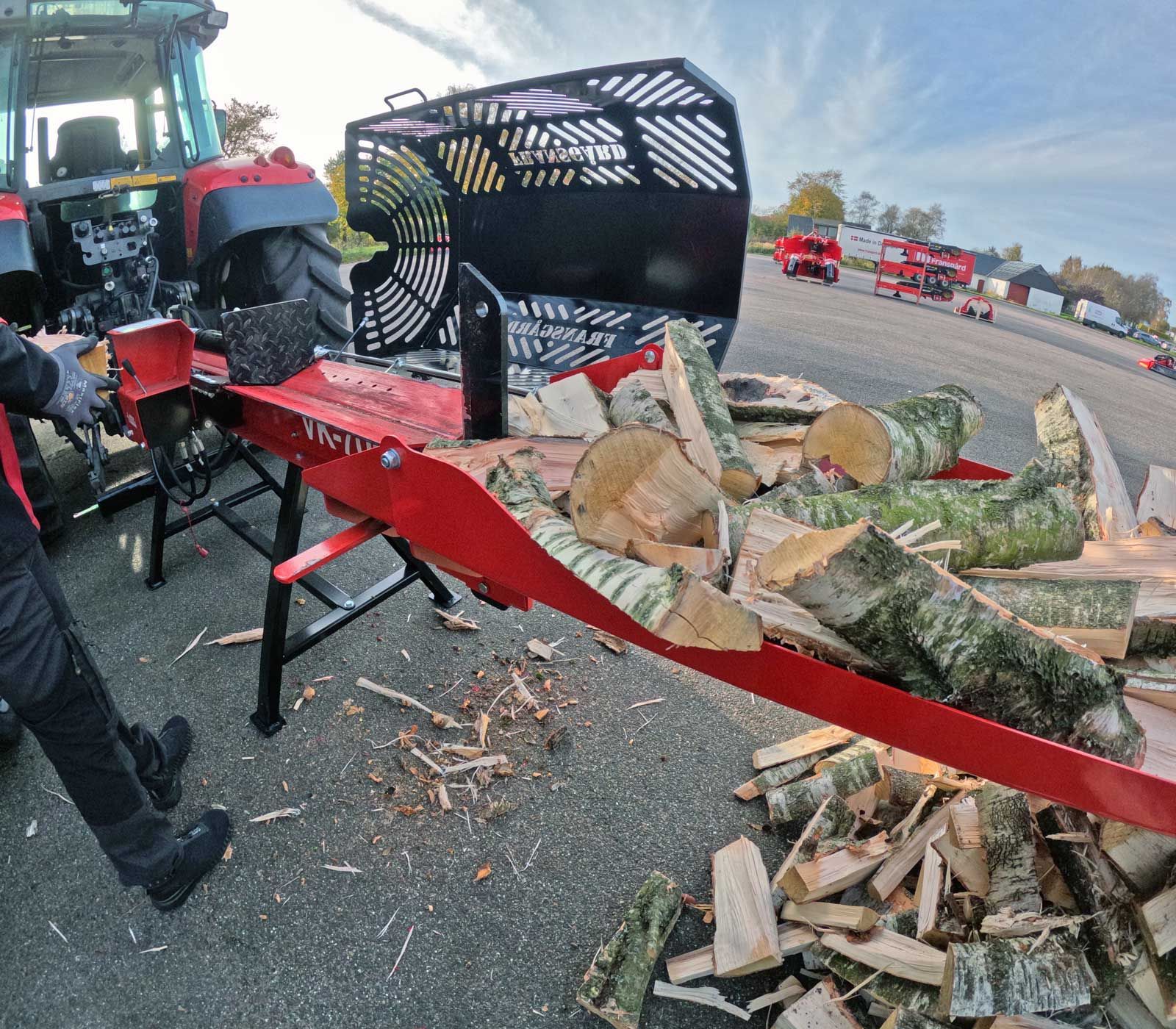

See the Machine in Action
